Zodiac High-Limit Wire Harness Switch Assembly R0457400 for Jandy Legacy & LXi Heaters — OEM Fit, Safety Cutoff

Replacement high-limit wire harness switch assembly built to restore safe temperature control in select Zodiac Jandy Legacy and LXi pool and spa heaters.

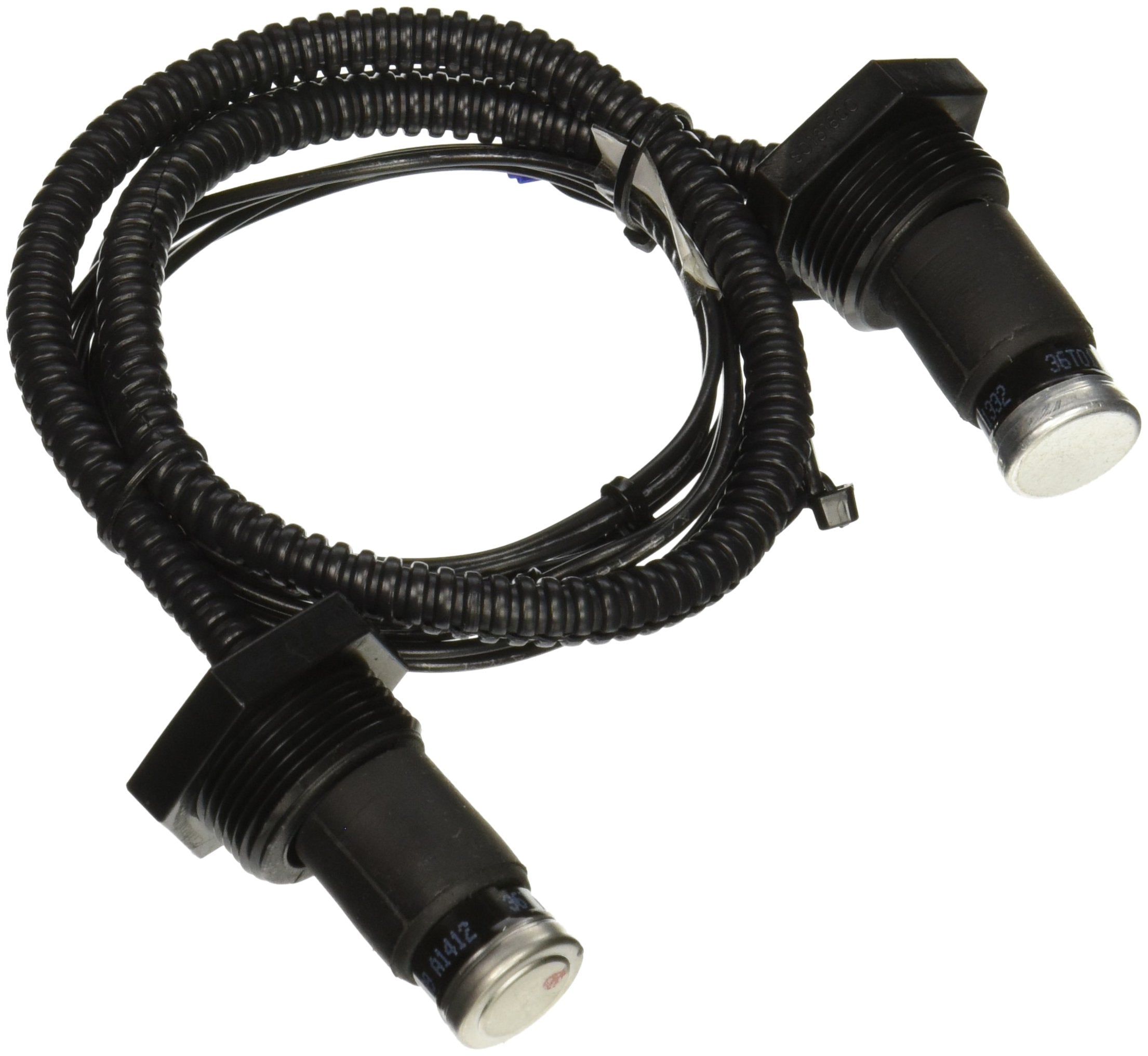

This Zodiac R0457400 component is a direct replacement for the high-limit safety switch wiring harness used on a range of Jandy Legacy LRZE and LRZM heaters (125, 175, 250, 325, 400) and compatible LXi Low NOx models (250, 300, 400). It’s a compact, manufacturer-matched switch assembly intended to reconnect the high-limit cutout circuit so the heater can correctly sense overheating and interrupt operation when needed. Because it’s produced to Zodiac standards and made in the United States, the part fits OEM housings and connector layouts without the need for extensive modification.

How does this switch assembly affect heater safety and operation?

The high-limit wire harness is part of the heater’s overtemperature protection system. If the heater’s internal temperature rises beyond a preset limit, the switch opens the circuit to stop burner operation and prevent damage. Installing a functioning, correctly wired replacement helps ensure the heater’s safety interlocks and control logic operate as designed.

• Restores high-limit cutoff function to prevent overheating.
• Maintains factory wiring orientation and connector pinout.
• Designed to engage with existing control boards and sensors.
• Supports seasonal recommissioning after part failure or wear.

Which Zodiac Jandy heater models are compatible with R0457400?

This harness is specifically compatible with selected Jandy Legacy LRZE and LRZM heater models and certain LXi Low NOx units. Confirm model and serial references before ordering to ensure an exact match, since older or differently configured units can use alternate harness lengths or connector types.

• Legacy LRZE and LRZM: 125, 175, 250, 325, 400 models.
• LXi Low NOx models: 250, 300, 400 compatibility stated by Zodiac.
• Verify part number against your heater’s service manual or the existing harness label.
• Not universal — check connectors, wire colors, and mounting points.

What should I know about installation and physical fit?

The R0457400 is a small packaged assembly that replaces the original high-limit wiring harness without complex rewiring when matched correctly. Basic mechanical fastening and connector engagement are typically all that’s required; still, professional installation is recommended for flame-control and safety systems to preserve warranty and compliance.

• Packaged dimensions are compact for easy storage and shipping.
• Mounting points and connector shapes match OEM layouts when compatible.
• Installers should follow Zodiac wiring diagrams and lockout/tagout procedures.
• Tools needed: basic hand tools and optionally a multimeter to confirm continuity.

What are the product origin and packaging details?

This replacement harness is manufactured in the United States and shipped in a lightweight package suitable for direct replacement jobs or service inventory. The part is sized to be added to a technician’s parts kit without taking up significant space.

• Package weight: approximately 0.15 pounds for economical shipping.
• Package dimensions: about 4.572 H x 8.89 L x 11.43 W centimetres.
• OEM part number: Zodiac R0457400 for accurate ordering and cross-reference.
• Sold as the single harness assembly—no additional sensors included.

Who is this for: the Zodiac R0457400 high-limit wire harness switch assembly is intended for pool and spa service technicians, facility maintenance teams, and informed DIY owners who operate compatible Jandy Legacy or LXi heaters and need a reliable OEM-style replacement to restore high-limit protection. If you maintain heater safety controls or are returning a unit to reliable operation after a thermal cutout fault, this harness provides the correct fit and connector layout when matched to the listed models.
