Yiming Grill Replacement Parts for Char-Broil Advantage 3-Burner — Stainless Steel Burners & 15-1/8in Heat Plates

These are Yiming stainless-steel replacement burner tubes, 15 1/8" heat plates, and adjustable carryover tubes engineered to fit Char-Broil Advantage 3-burner grills (multiple compatible model numbers).

If your Char-Broil Advantage grill is showing uneven heat, excessive flare-ups, or rusty parts, replacing the worn burners, heat plates and carryover tubes restores reliable cooking and more even heat distribution. This kit includes three stainless-steel burners (14 3/8" x 5/8"), three 15 1/8" stainless heat plates, and two adjustable stainless carryover tubes (5"–9"). Before ordering, measure your existing parts and compare dimensions to ensure correct fit; several similar heat-plate sizes exist for other Char-Broil variants.

Will these parts fit my Char-Broil Advantage model?

These Yiming parts are made to match common Char-Broil Advantage patterns and will fit many 2-, 3-, 4-, and 6-burner models listed by Char-Broil. Compatibility depends on the part dimensions rather than only the model number, so measuring your original items is the best way to confirm fit.

• Compatible with many 3-burner models: 463340315, 463343015, 463335115, 463435115, 463436815 and more.
• Also references certain 2-, 4- and 6-burner Advantage models — compare sizes before purchase.

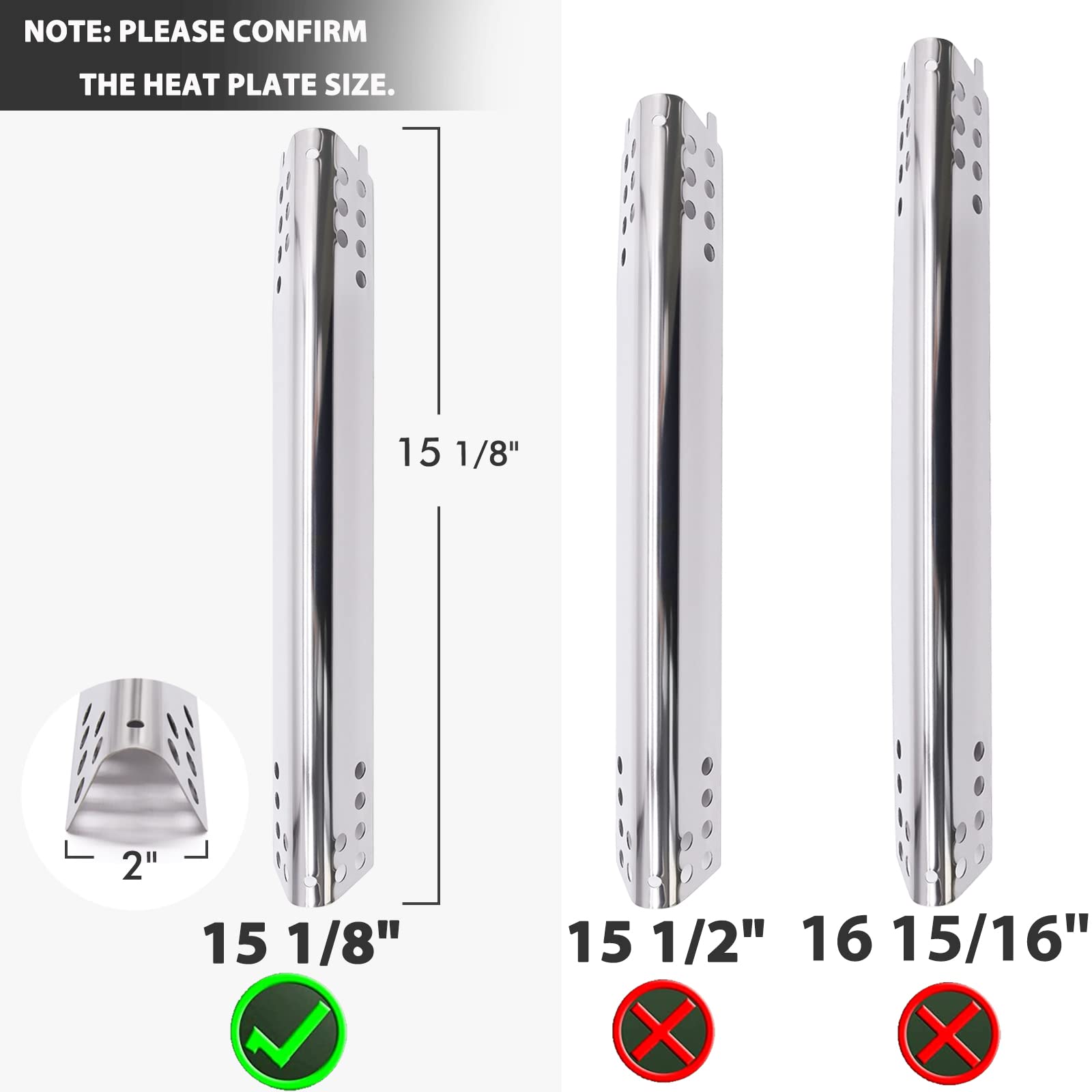

• Heat plate size is 15 1/8" (not 15 1/2" or 16 15/16").
• Measure original burner (14 3/8" x 5/8") and carryover tube length (adjustable 5"–9").

How do these replacements improve grill performance?

Fresh stainless-steel burners and heat plates promote more even flame distribution and reduce hot spots that cause food to cook unevenly. Replacing corroded carryover tubes and heat plates also minimizes grease buildup and flare-ups, improving safety and consistency for grilling.

• Stainless steel resists rust and lasts longer under high heat.
• Correct burner dimensions restore proper gas flow and flame pattern.
• Heat plates shield burners and distribute heat across grates.
• Carryover tubes direct heat behind the burners for balanced cooking.

What are the exact dimensions and materials for each part?

Knowing the exact size helps avoid ordering the wrong replacement. Yiming supplies parts manufactured in stainless steel with specific original Char-Broil reference numbers so you can match them to your grill precisely.

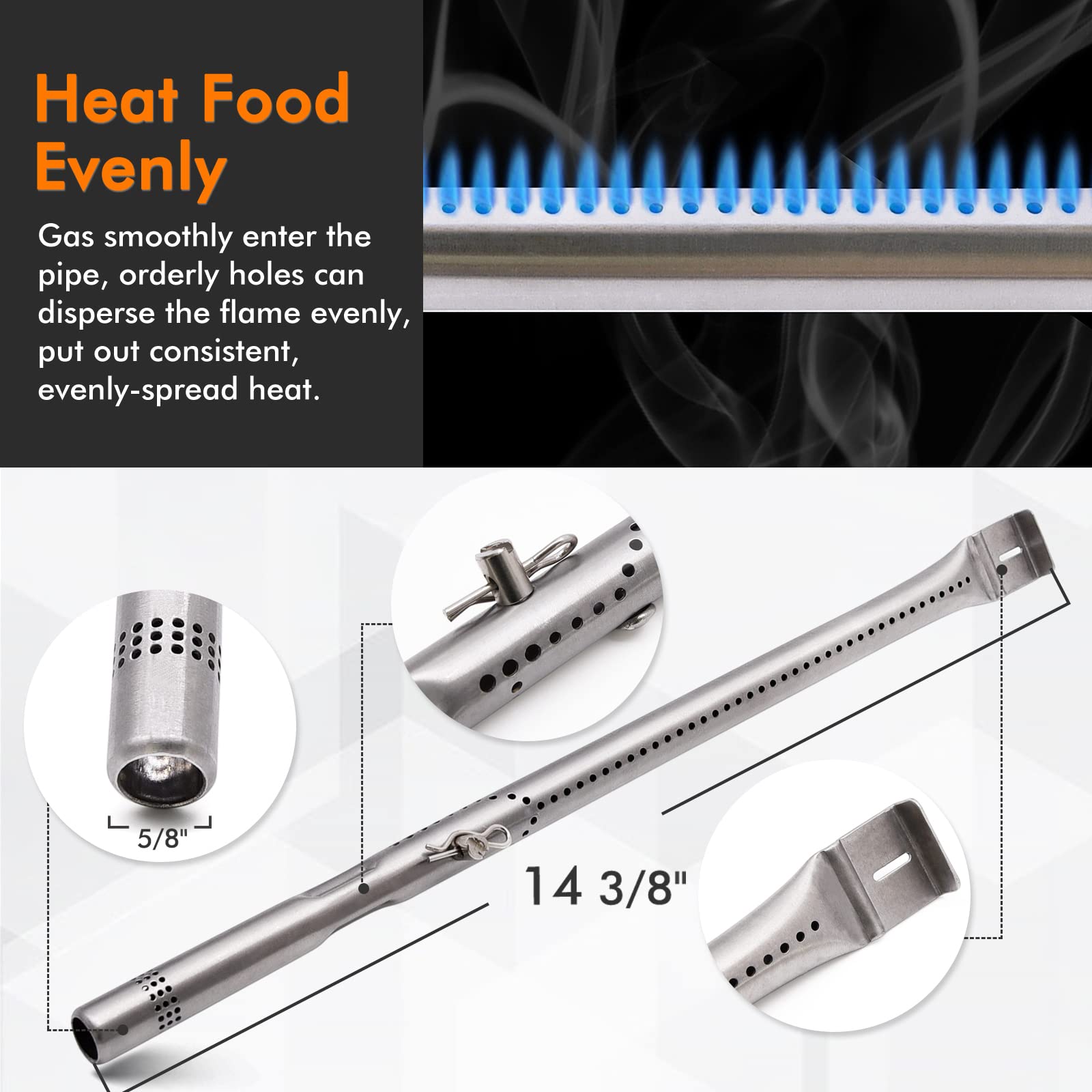

• Burner tube: 14 3/8" long by 5/8" diameter, stainless steel (Char-Broil ref G432-8M00-W1).

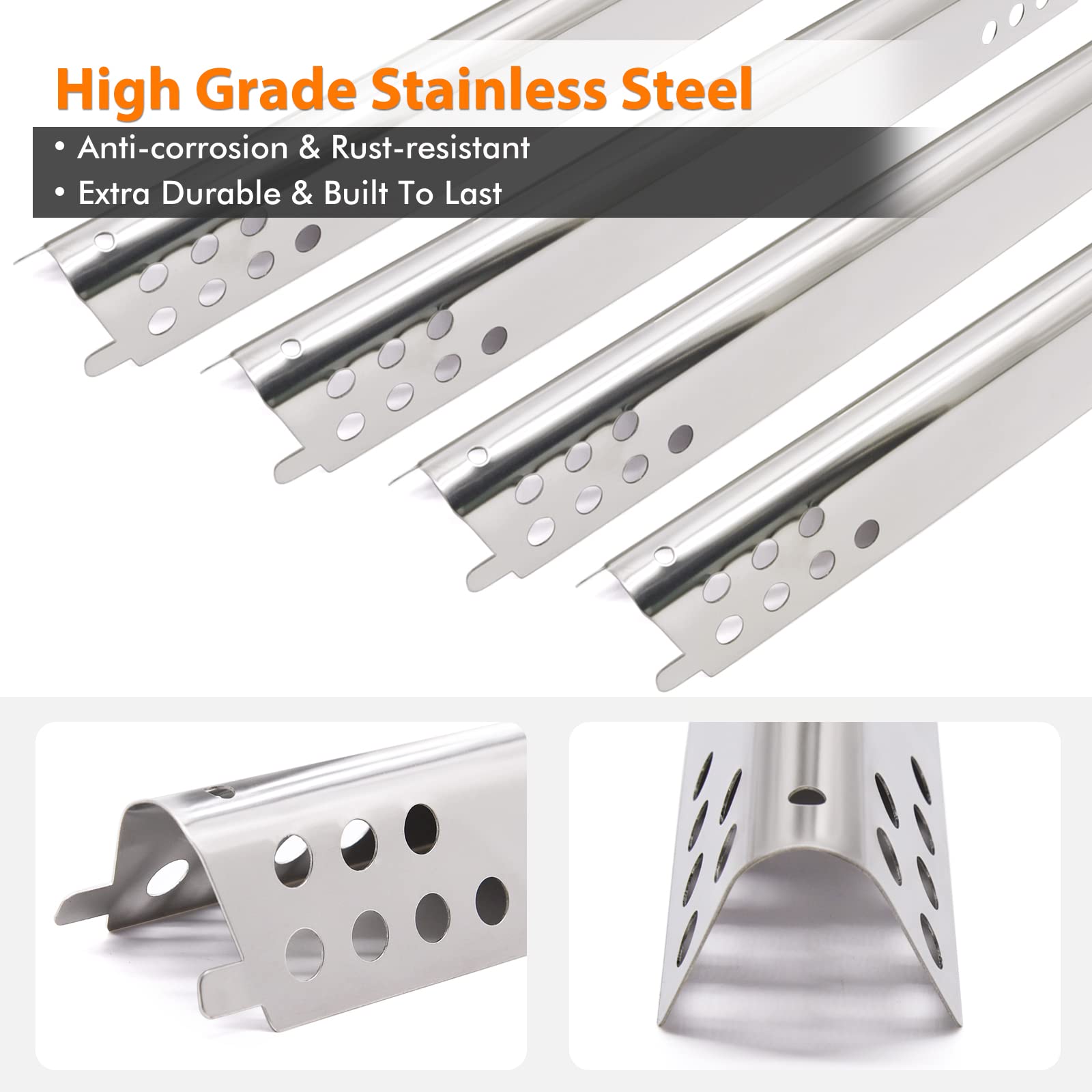

• Heat plate: 15 1/8" x 2", stainless steel (Char-Broil ref G458-0018-W1).

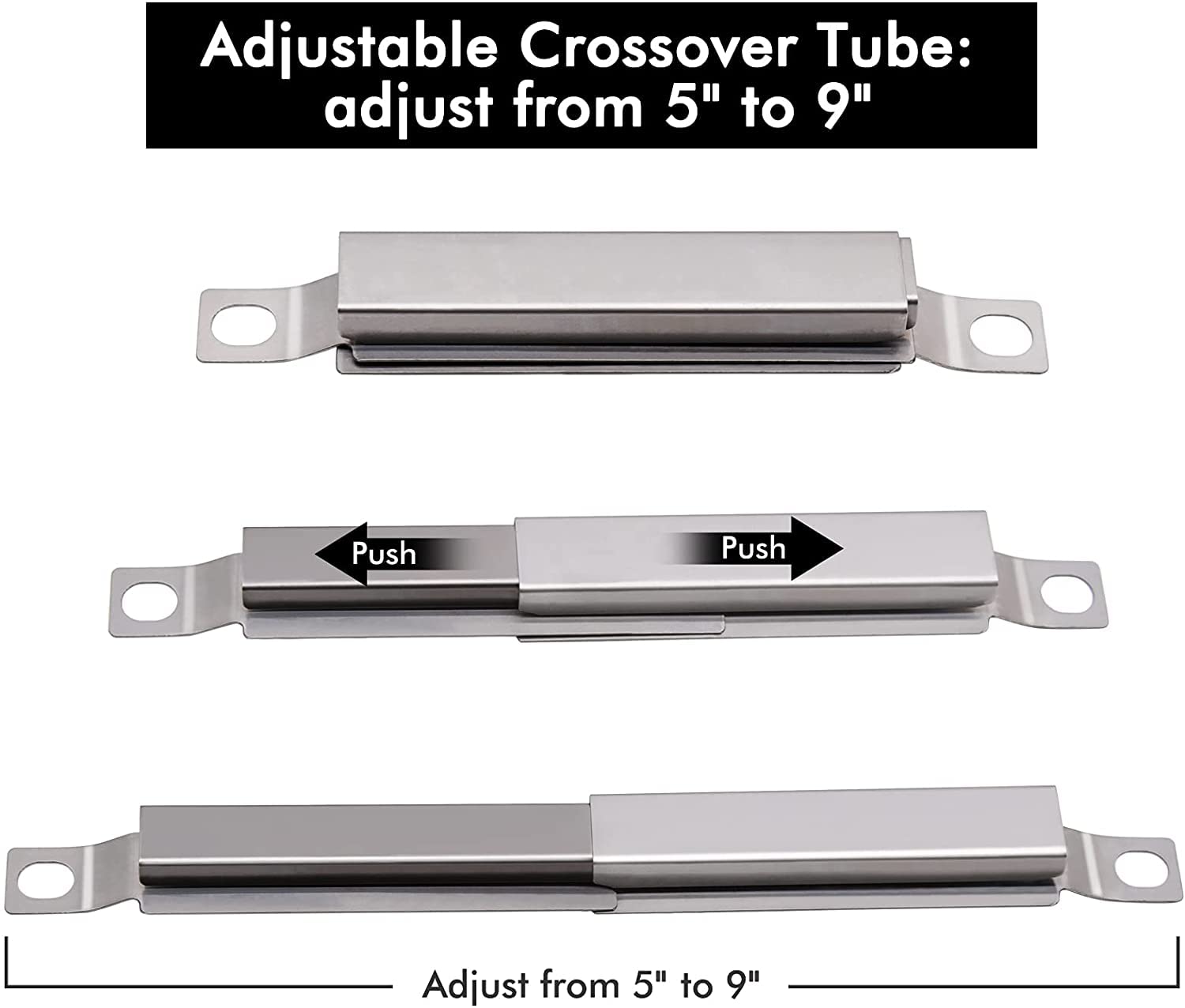

• Carryover tube: adjustable length 5"–9", stainless steel (Char-Broil ref G432-001D-W1).

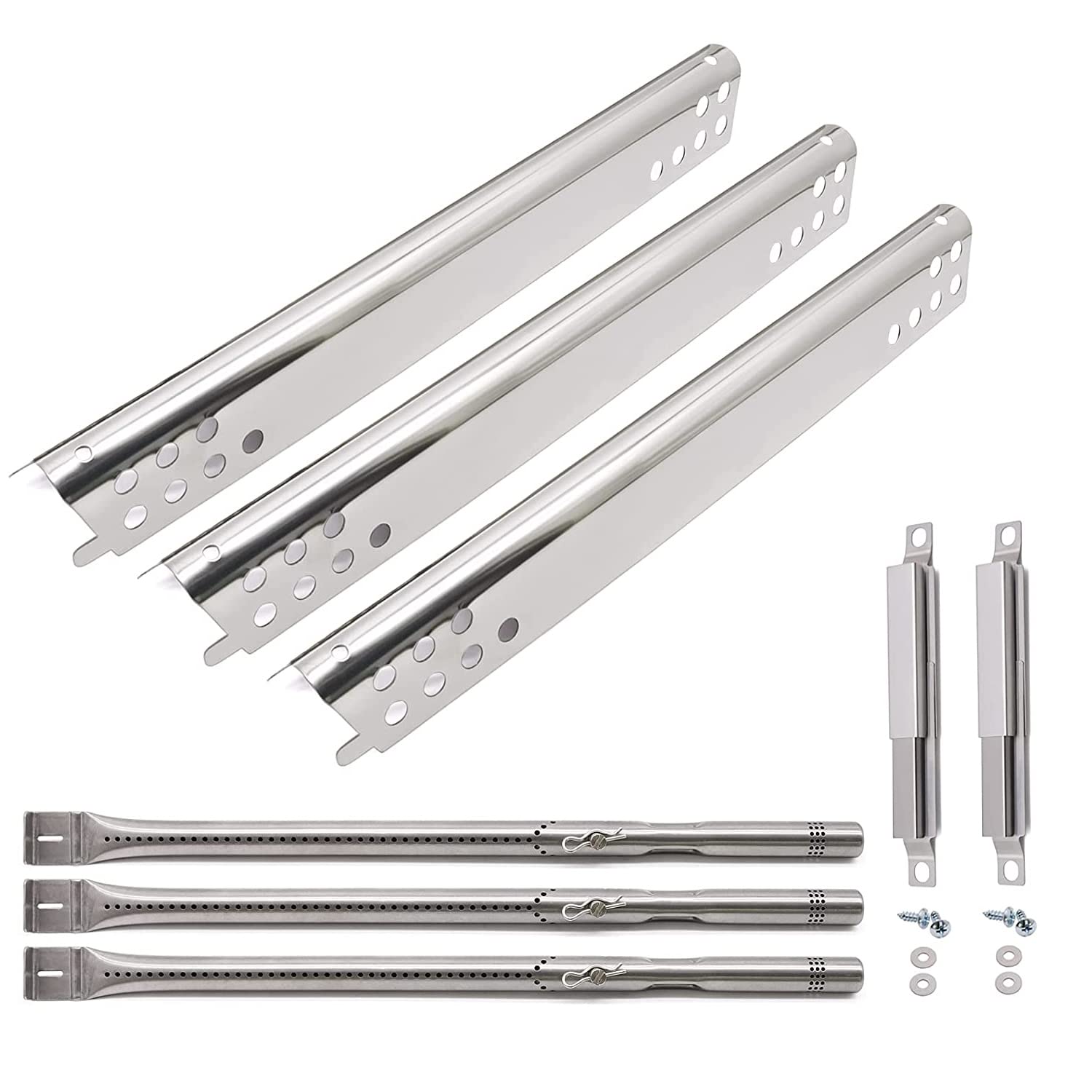

• Sold as a set for 3-burner grills: 3 heat plates, 3 burner tubes, 2 carryover tubes.

How do I install and maintain these replacement parts?

Installation is straightforward for anyone comfortable removing grates and old heat shields; basic tools, a screwdriver and safety gloves are usually sufficient. Regular cleaning and inspection will extend the life of the replacements and maintain even cooking performance.

• Turn off gas and disconnect the propane tank before starting.
• Remove grates and old heat plates, then detach burner tubes from manifold.
• Slide in replacement burners and secure carryover tubes, then test for correct ignition and flame shape.
• Wipe down periodically and remove grease build-up to prevent flare-ups.

Who is this for: Grill owners with Char-Broil Advantage series grills who need to replace corroded or damaged burners, heat plates or carryover tubes. This kit is best for DIYers comfortable with basic grill maintenance, and for anyone who wants stainless-steel replacements sized specifically for many Char-Broil 3-burner models. If you have a different heat plate length, check other listings for the 15 1/2" or 16 15/16" options before purchasing.
