YHTIMIOX AquaRite Circuit Board Replacement Kit 2025 — Main PCB + DSP Display, 110/220V, Updated Firmware

If your Hayward AquaRite, SwimPure, AquaRite XL, Mineral Springs or other listed Goldline-compatible unit shows error codes, fails to power the cell, or has an unresponsive display, these boards replace worn or damaged electronics with updated firmware and improved protection. The GLX-PCB-RITE package combines a main control board with the GLX-PCB-DSP display board, plus an installation manual, to offer a straightforward replacement solution that supports both 110V and 220V systems.

How will these boards get my chlorinator working again?

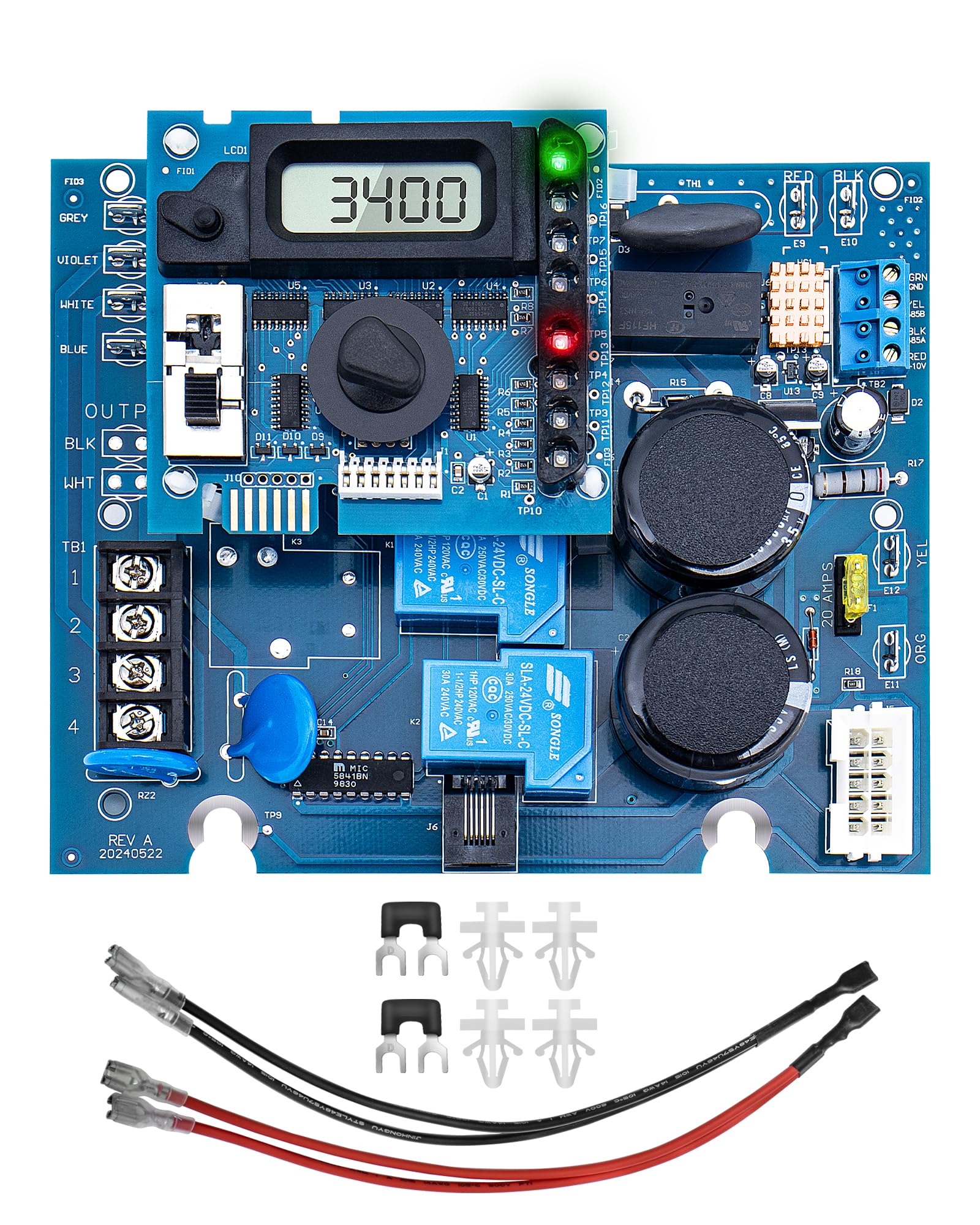

The GLX-PCB-RITE main board and GLX-PCB-DSP display board replicate the original Hayward circuitry while adding updated V1.59 firmware and enhanced build materials to reduce failure points. Replacing both boards addresses common causes of no-power, error reporting, and communication faults between controller and display.

• Restores control logic and power distribution to the cell
• Resolves display and user-interface failures by replacing the DSP board
• Updated firmware improves compatibility with cell types and error handling
• Waterproof adhesive coating reduces short-circuit risk from moisture

Will this fit my Hayward model and salt cell type?

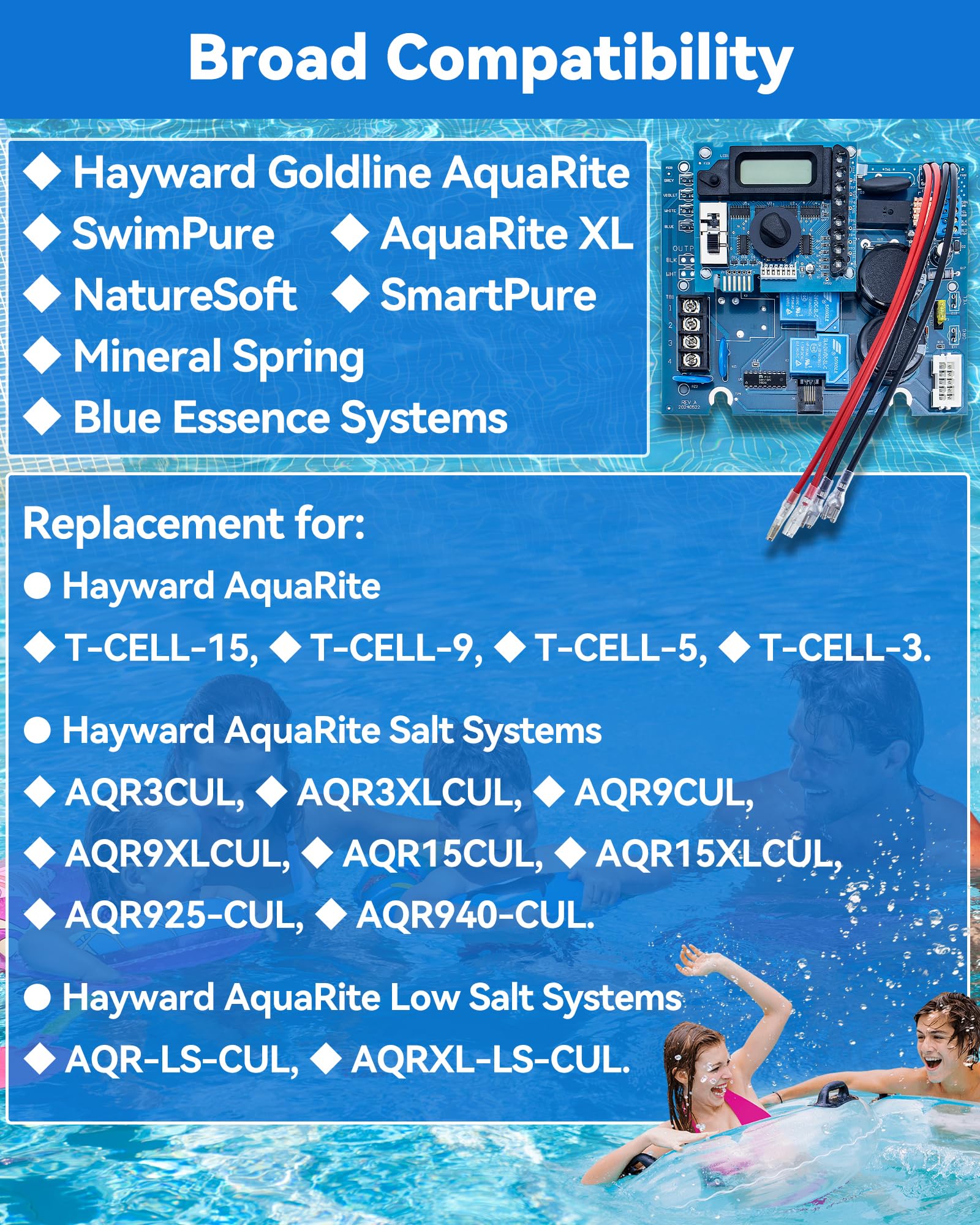

The GLX-PCB-RITE set is built for broad compatibility with many Hayward Goldline-based systems and T-CELL models. It supports common AquaRite platforms and most T-CELL sizes so you can replace aged electronics without changing the cell or housing.

• Compatible with AquaRite, SwimPure, AquaRite XL, NatureSoft, SmartPure, Mineral Springs, Blue Essence
• Works with Hayward cell types: T-CELL-15, T-CELL-9, T-CELL-5, T-CELL-3
• Suitable for most Goldline AquaRite legacy control housings
• Check model label and connector arrangement before installation

How simple is installation and voltage setup?

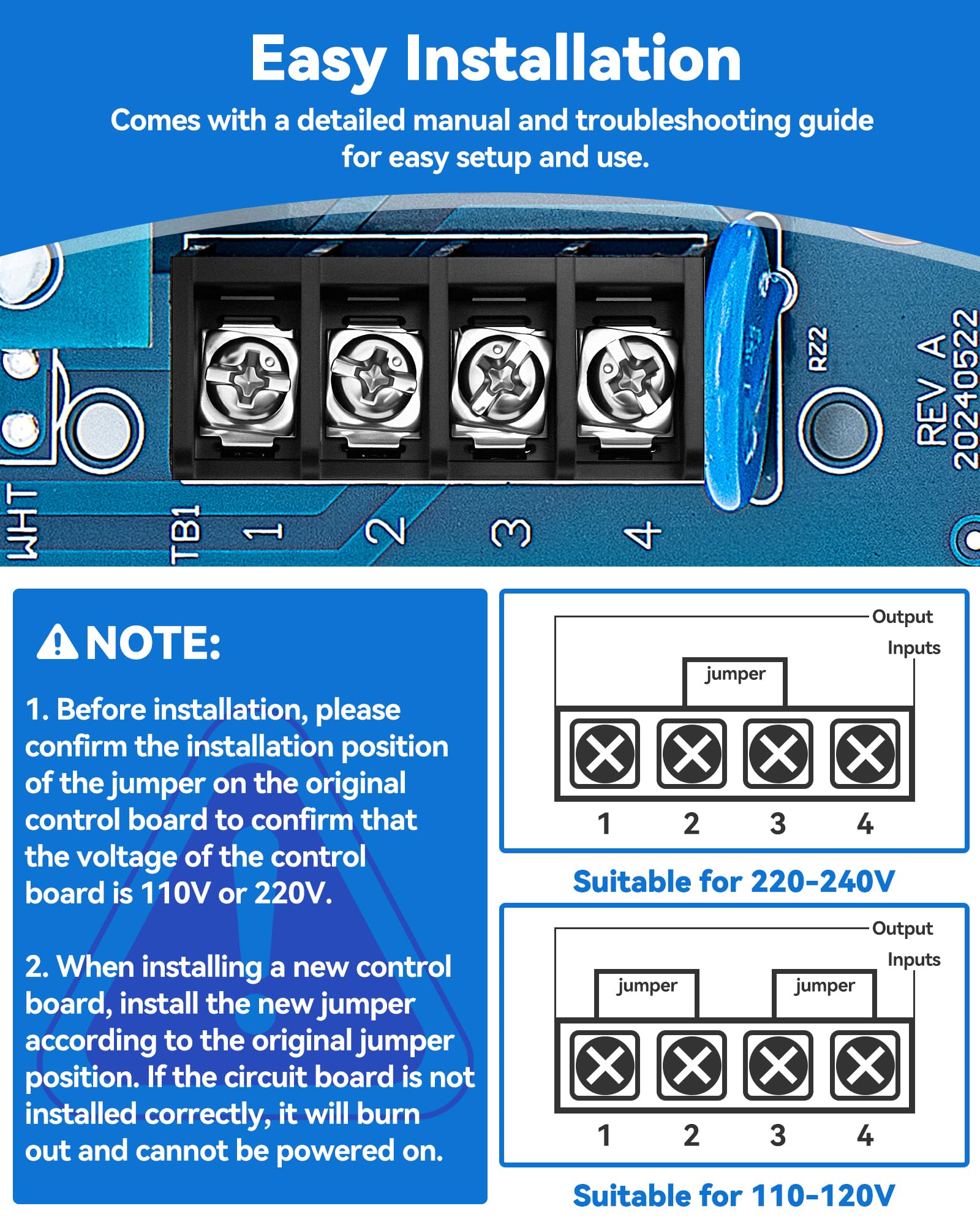

Installation is designed for pool technicians and experienced DIYers. The kit includes a detailed manual and troubleshooting guide; voltage selection is handled by a jumper on the main board so you can switch between 110V and 220V safely before powering the unit.

• Includes step-by-step installation manual and troubleshooting tips
• Dual-voltage support via a jumper: set to 110V or 220V prior to use
• Plug-and-play connectors match original wiring harness locations
• Basic electrical knowledge recommended; power off before replacing

What quality and durability improvements does this upgrade include?

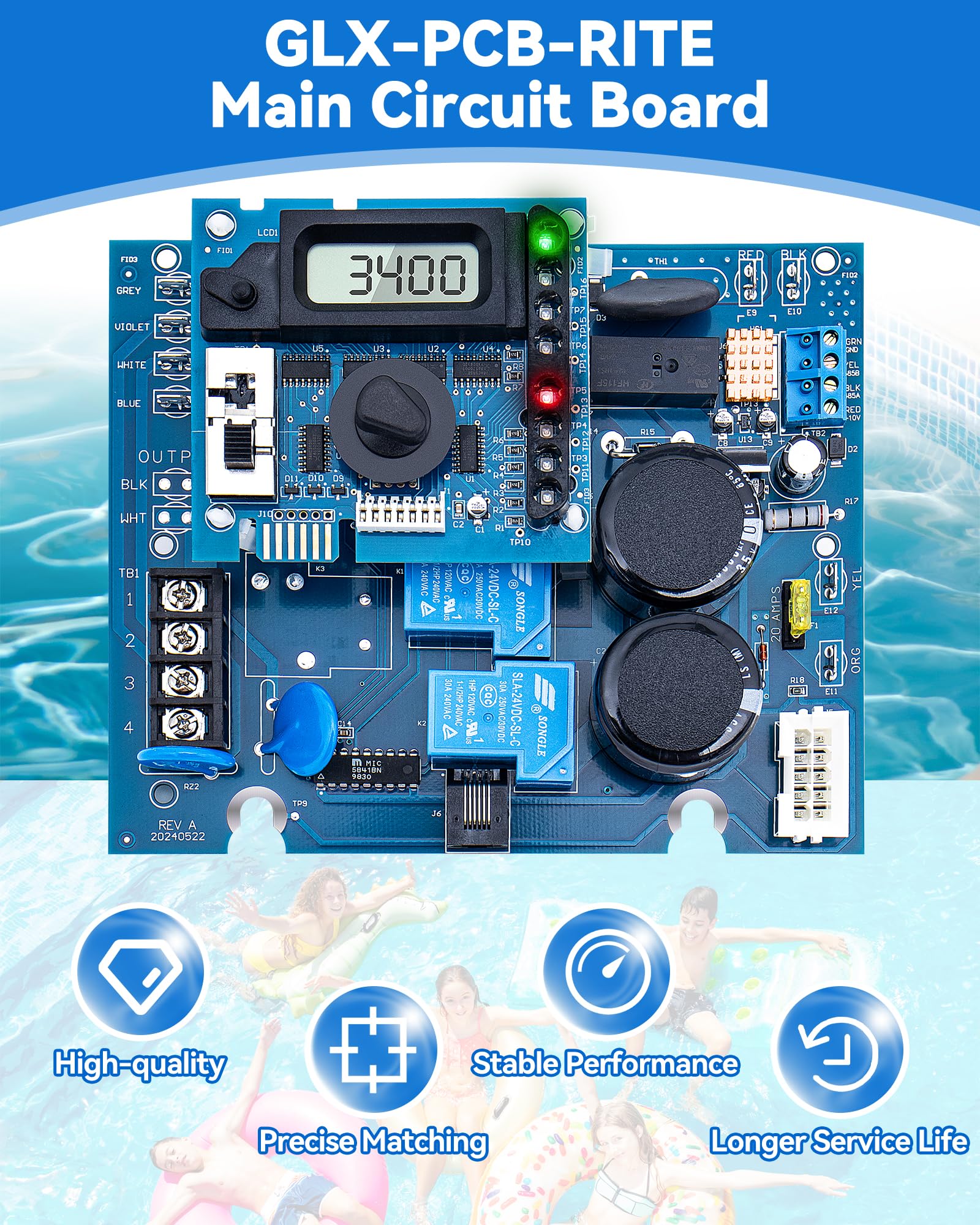

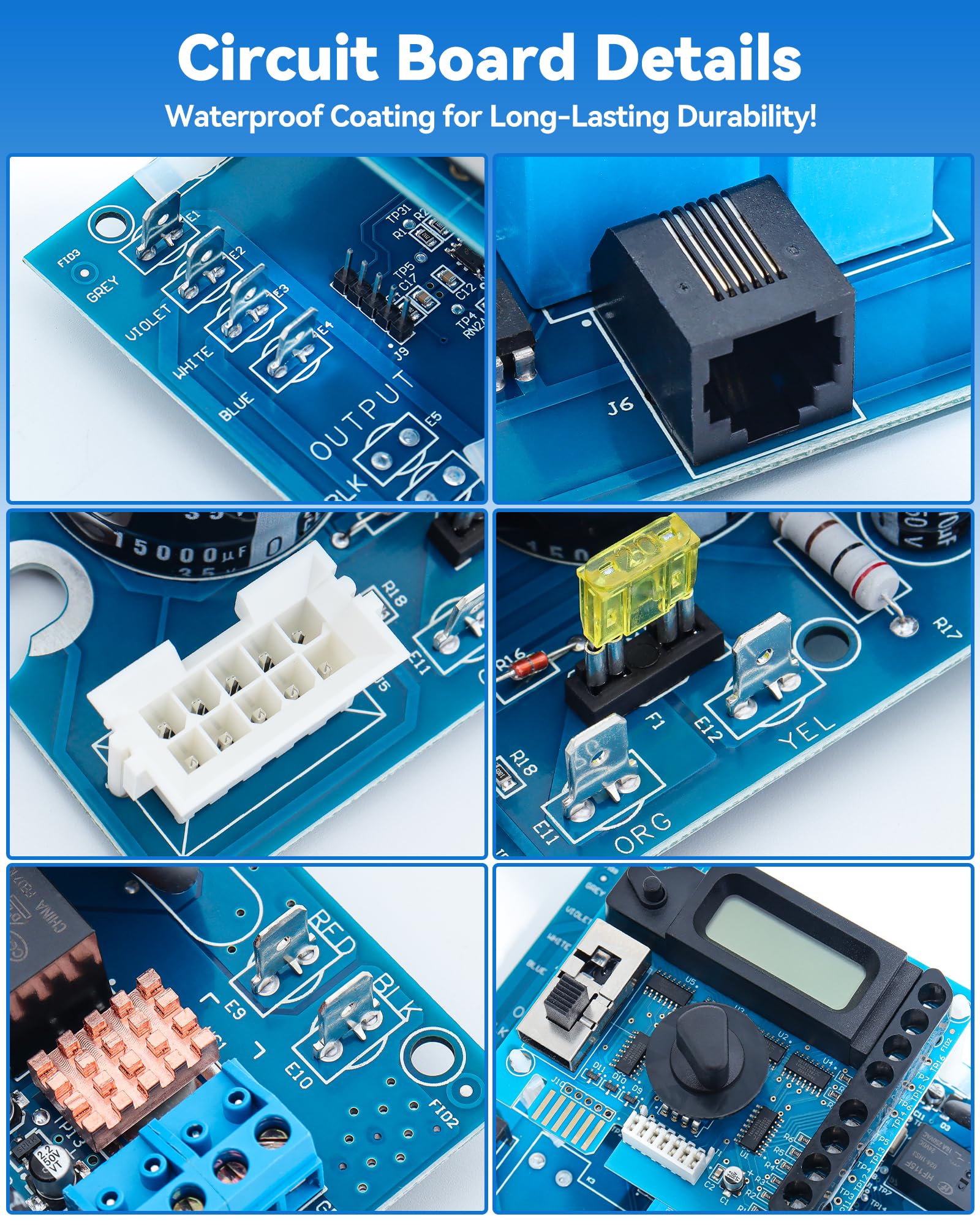

The 2025 GLX-PCB-RITE main board uses upgraded components and a waterproof adhesive coating to protect sensitive solder joints and traces. These enhancements target the most common failure modes in pool electronics—corrosion and moisture intrusion—without altering the original control logic.

• Latest V1.59 firmware for reliable operation and improved error handling
• Waterproof adhesive coating to resist moisture and short circuits
• Higher-grade components chosen for thermal and electrical durability
• Manufactured to meet or exceed OEM longevity expectations

Who is this for? Pool service professionals, experienced homeowners, and replacement-part resellers who need a dependable, cost-effective alternative to OEM Hayward control boards. If your chlorinator exhibits power faults, unresponsive displays, or communication errors, and you are comfortable following an electrical replacement guide (or have a technician), the YHTIMIOX GLX-PCB-RITE 2025 kit restores full control while improving protection against moisture and wear. Always confirm device compatibility and power settings before installation to ensure safe operation.
