XTJHP Generator Exhaust Extension Kit — 25.51" Black Flexible Hose, Alloy-Steel Muffler & 3 Adapters, Reduces Shed Noise

XTJHP Generator Exhaust Extension Kit is a complete muffler and exhaust hose system designed to route exhaust out of an enclosure and reduce audible exhaust noise by up to 80% when used inside a generator shed or quiet box.

This kit combines a coated alloy-steel muffler, a flexible 25.51" 304 stainless corrugated hose, three adapter fittings and installation hardware to let you safely direct generator exhaust through a wall or vented panel. It’s meant specifically for use inside an enclosure—do not remove the generator’s built-in muffler; instead attach this system to the exhaust outlet to lower exhaust sound escaping the shed while maintaining safe gas flow.

How does this kit lower exhaust noise in a generator shed?

The XTJHP silencer lengthens and muffles the exhaust path and uses a coated alloy-steel muffler body to dissipate sound energy. When the assembly is installed inside a quiet box, less exhaust sound leaks out and perceived noise drops significantly.

• Coated alloy-steel muffler body to absorb and break up exhaust pulses.
• 25.51" corrugated stainless hose adds distance and flexible routing.
• Designed specifically for enclosure discharge to limit outward noise.

Will this fit my generator exhaust outlet and how do adapters work?

The kit ships with three adapter fittings to match common outlet diameters and self-tapping screws to secure adapters when pre-drilled holes are absent. Check your outlet diameter and compare to the adapter sizes before installing; contact the seller for custom connectors if sizes differ.

• Three adapter options included for broad compatibility.
• Self-tapping screws allow mounting where holes aren’t pre-aligned.
• Do not disassemble the generator’s internal muffler; attach to the existing outlet only.

What materials and durability features should I expect outdoors?

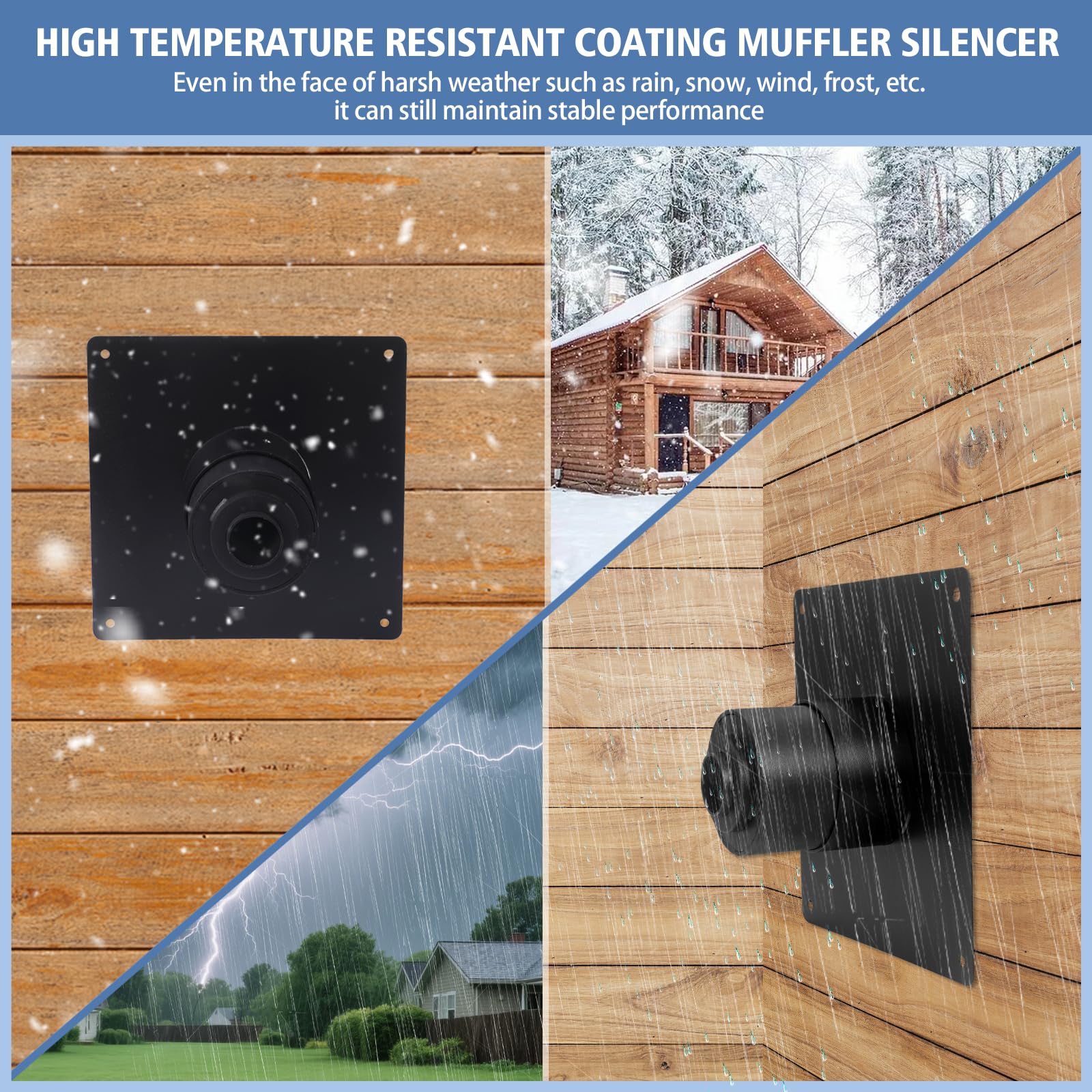

The muffler uses an alloy steel shell with a heat-resistant coating while the flexible extension hose is 304 stainless steel corrugated tubing. These choices prioritize heat resistance and weather durability for installations exposed to rain, snow or cold.

• Alloy-steel muffler with protective heat-resistant coating.
• 304 stainless flexible hose that resists corrosion and can be cut to length.
• Includes high-temperature tape and mounting plate for secure weatherproof routing.

How simple is installation and what hardware is included?

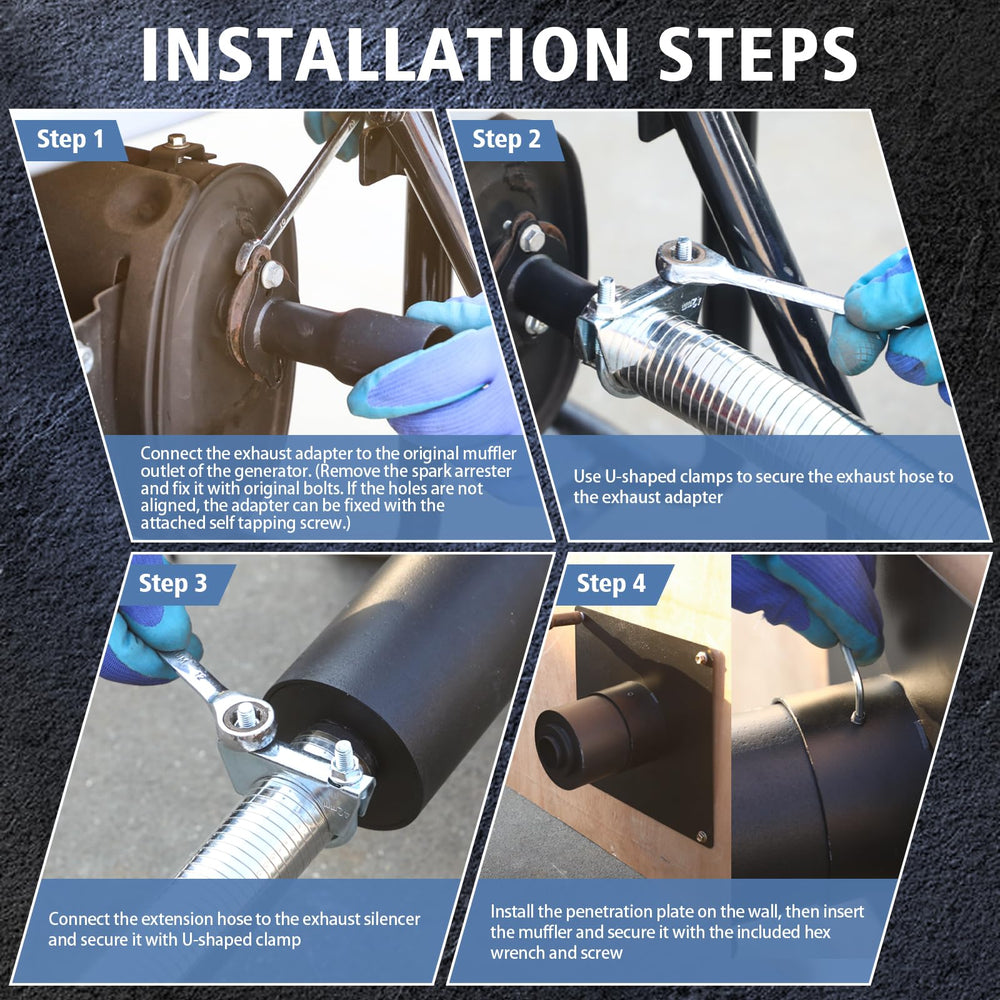

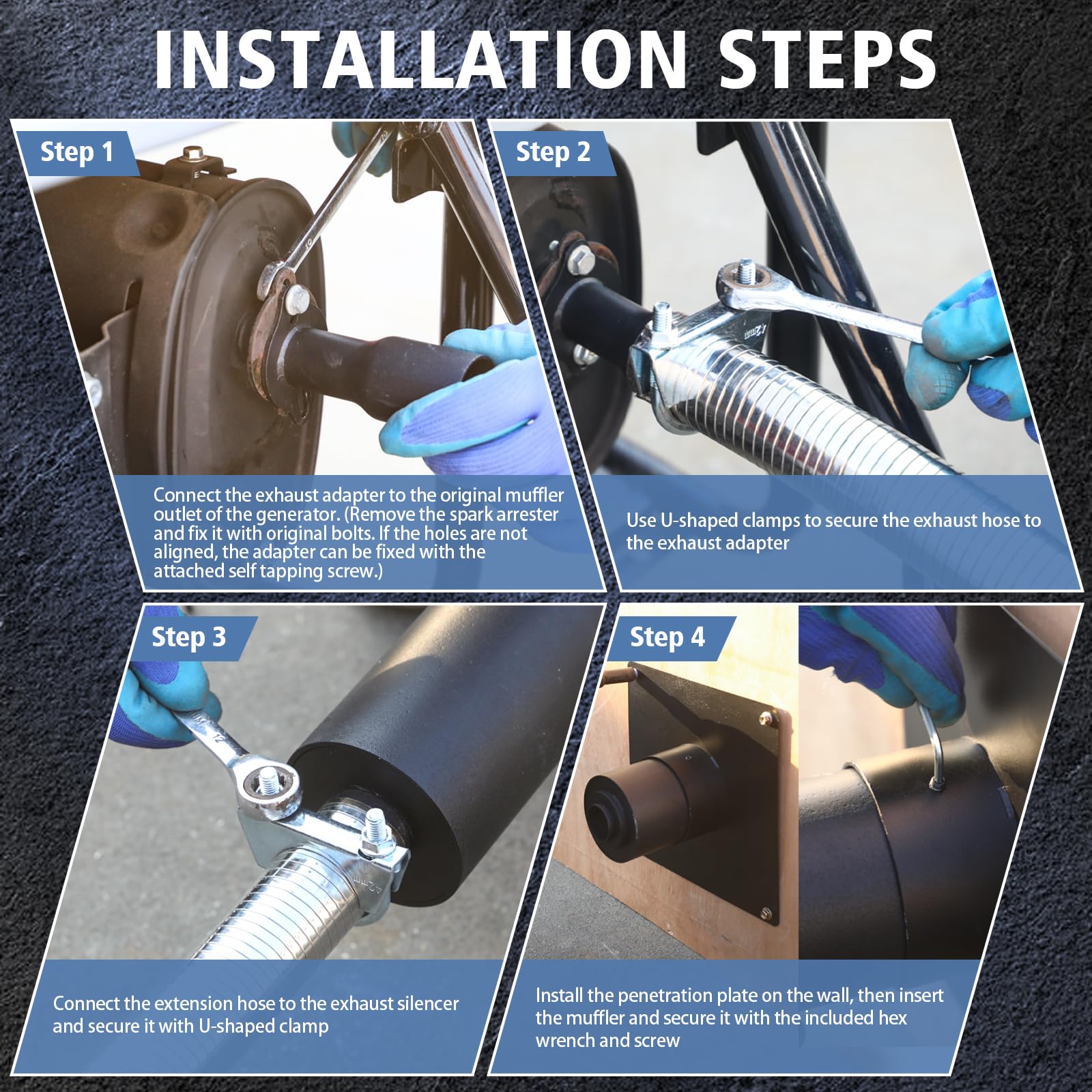

Installation is straightforward when used with a generator shed quiet box: remove the muffler outlet bolt or filter as instructed by your engine manual, attach the supplied adapter, clamp the hose, and run the exhaust through the mounting plate or wall opening. The kit contains all basic hardware for a standard installation.

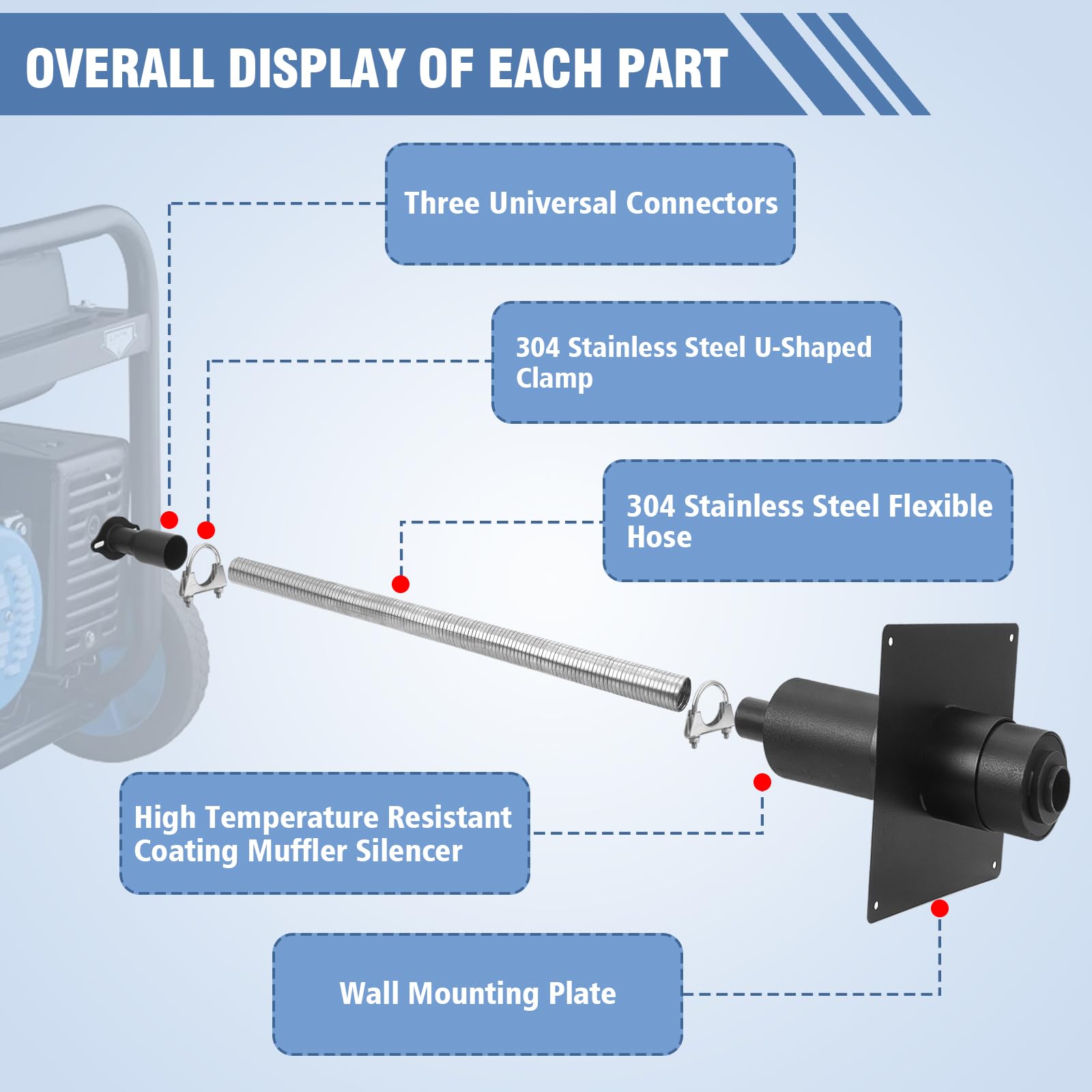

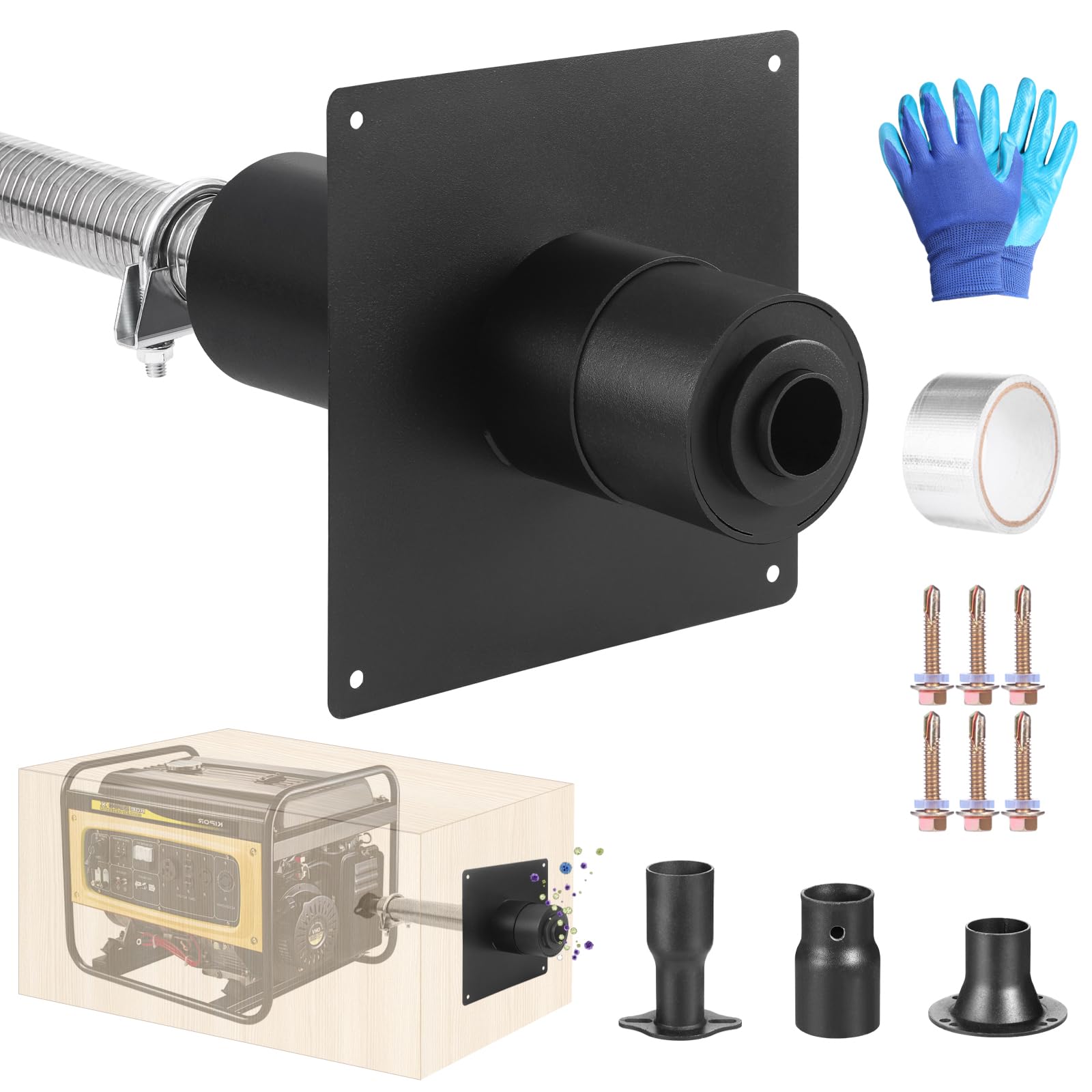

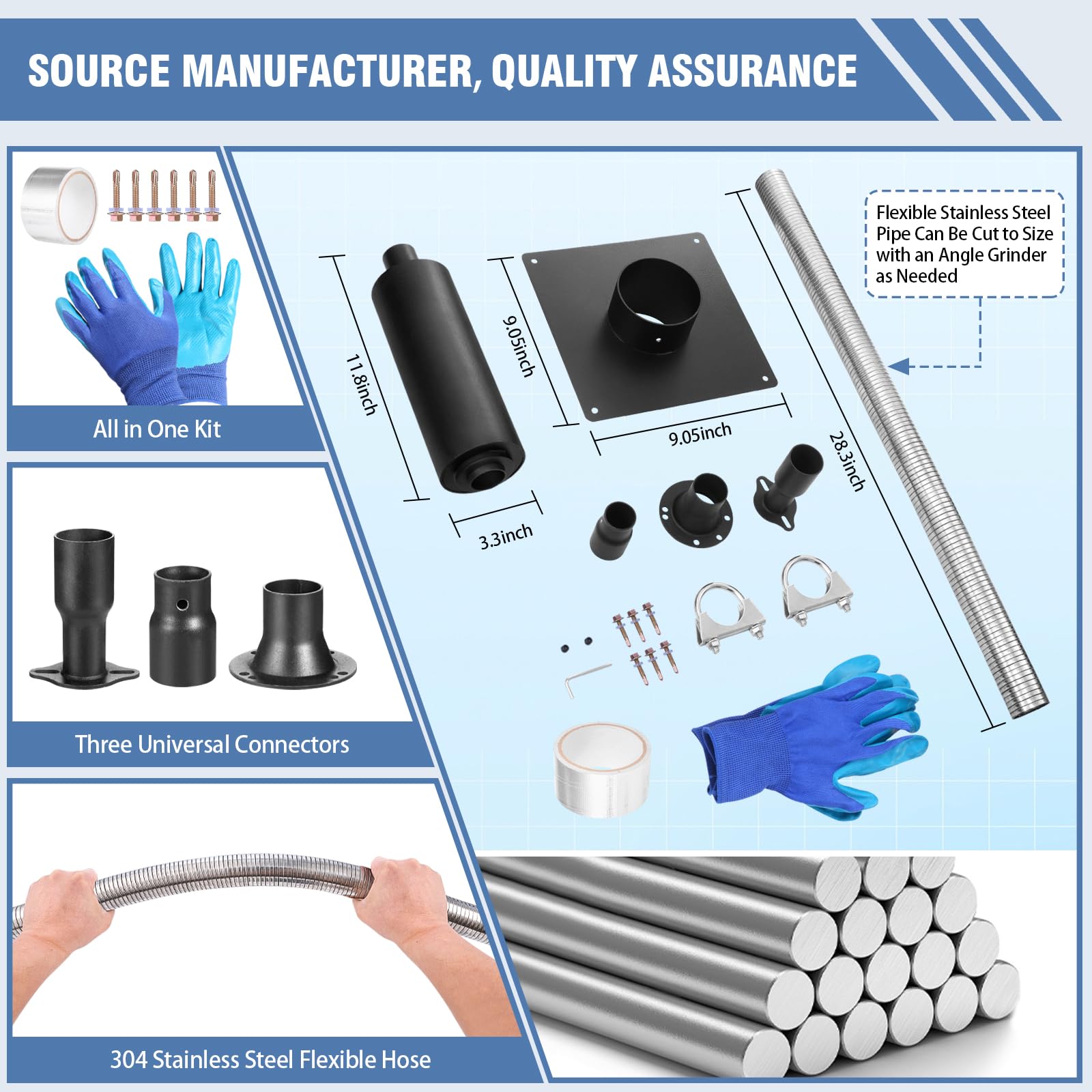

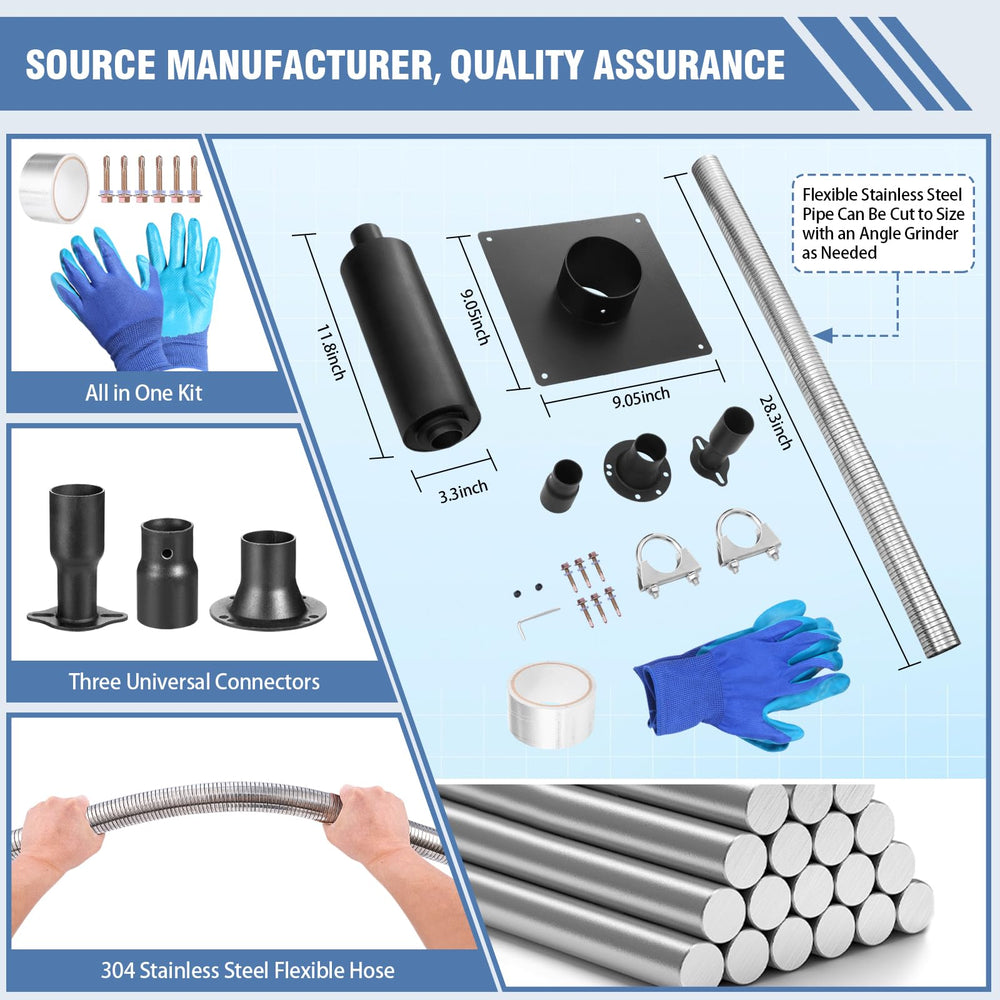

• Included: muffler silencer, 3 adapters, flexible hose, mounting plate, 2 clamps.
• Also supplied: 5m/16ft high-temp tape and a pair of gloves for safe handling.
• Adapters can be secured with provided self-tapping screws if needed.

Who is this for: the XTJHP Generator Exhaust Extension Kit is aimed at homeowners, construction crews, or small business operators who run portable generators inside an enclosure or sound-reduction shed and want to route exhaust outdoors while significantly lowering exhaust noise. It’s not a replacement for internal generator mufflers and should be used only as the exhaust discharge and silencing component inside a quiet box. Contact XTJHP for connector customization if your generator outlet requires a non-standard adapter.
