XaXmTee 6-Pack Lawn Mower Deck Gauge Wheels Kit, 5" Smooth-Tread with Hardware — Direct Fit for John Deere/MTD

XaXmTee 6Pack M111489 Lawn Mower Deck Wheels Kit is a complete replacement set of six 5" smooth-tread deck gauge wheels with matching bolts, bushings, lock nuts and metal gaskets for popular mower decks.

Keep your lawn mower deck running true and prevent scalping by swapping worn gauge wheels for this comprehensive XaXmTee kit. Designed as a direct-fit replacement for many John Deere and MTD decks, the set includes everything needed to replace six wheels: multiple bolt and bushing types so you can match factory fitment, plus corrosion-resistant hardware for long service life. The wheels are injection-molded polypropylene with a smooth tread and a 5/8" bore to match standard gauge wheel spindles.

Which mower models will these wheels fit?

These 5" gauge wheels are intended as replacement parts for a range of common deck models. They are compatible with several John Deere and MTD part numbers and fit many 38", 40", 46" and 50" mower decks when the spindle and bore dimensions match.

• Direct replaces: John Deere AM116299, M111489, M11149, AM133602, AM125172.
• Also replaces MTD numbers such as 734-04039, 734-3058, 703-1890 and related variants.
• Wheel dimensions: 5" diameter, 2" height, 5/8" bore, 1-1/2" hub.

How durable and weather-resistant are these deck wheels?

The wheels are molded from high-strength polypropylene that resists abrasion, UV exposure and repeated impacts typical in lawn care. Steel bolts, lock nuts and metal gaskets are hardened and plated to reduce corrosion so the assembly holds up season after season under normal outdoor conditions.

• Polypropylene tread minimizes wear and reduces friction.
• Hardened steel bolts and bushings for impact resistance.
• Metal gaskets and plated hardware to help prevent rust.

What hardware is included and will I need extra parts?

This kit comes with all the common fasteners required to install six deck wheels, offering two bolt styles and corresponding bushings so you can match your mower’s original setup. In most cases no additional parts are needed, but inspect your mower spindles and mounting brackets for excessive wear before installation.

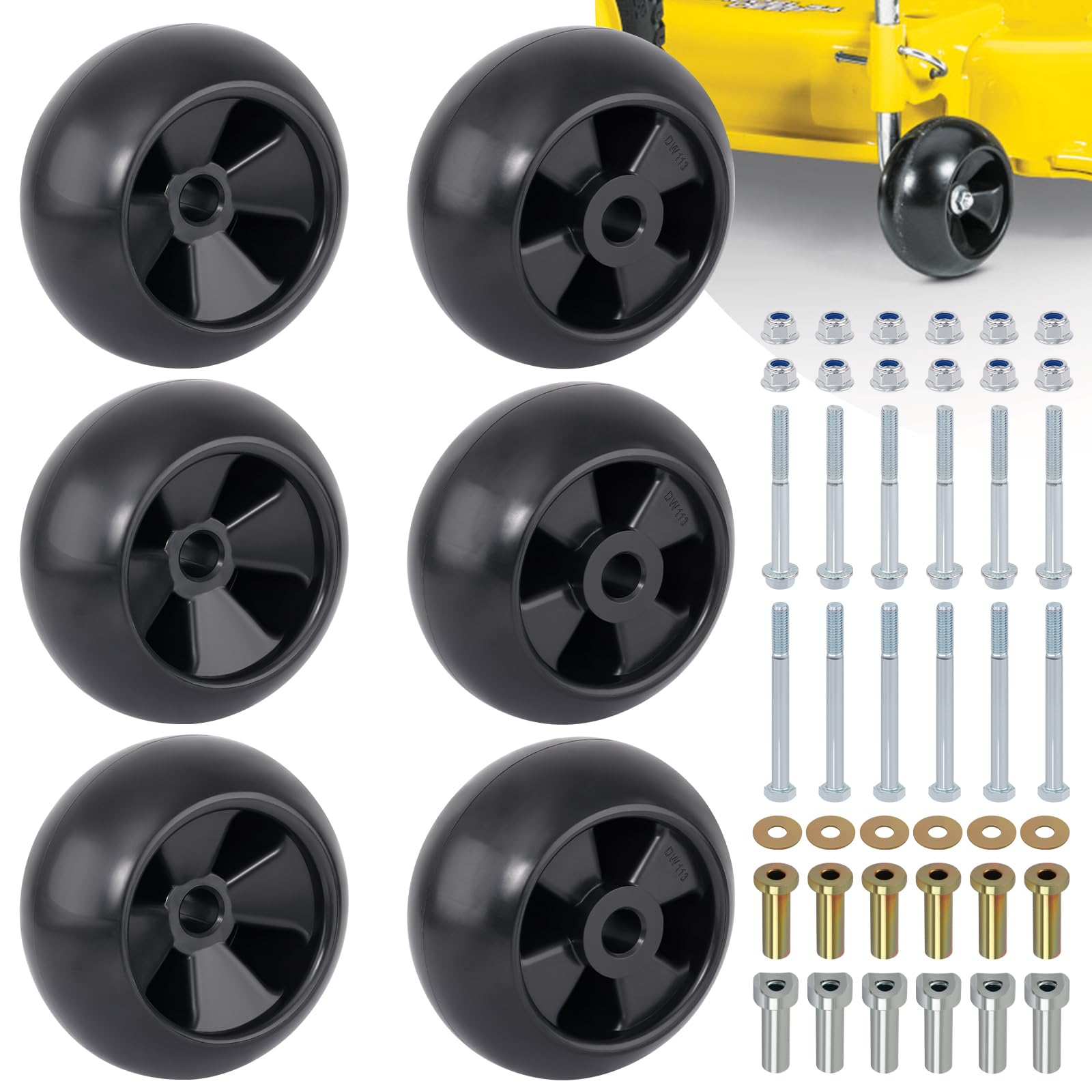

• Included: 6 deck wheels, 12 bolts (two styles), 12 bolt bushings (two styles), 12 lock nuts, 6 metal gaskets.
• Most installations require only basic hand tools; specialty tools are rarely necessary.
• Check spindle condition—replace worn spindles if loose or damaged.

How easy is installation for a homeowner?

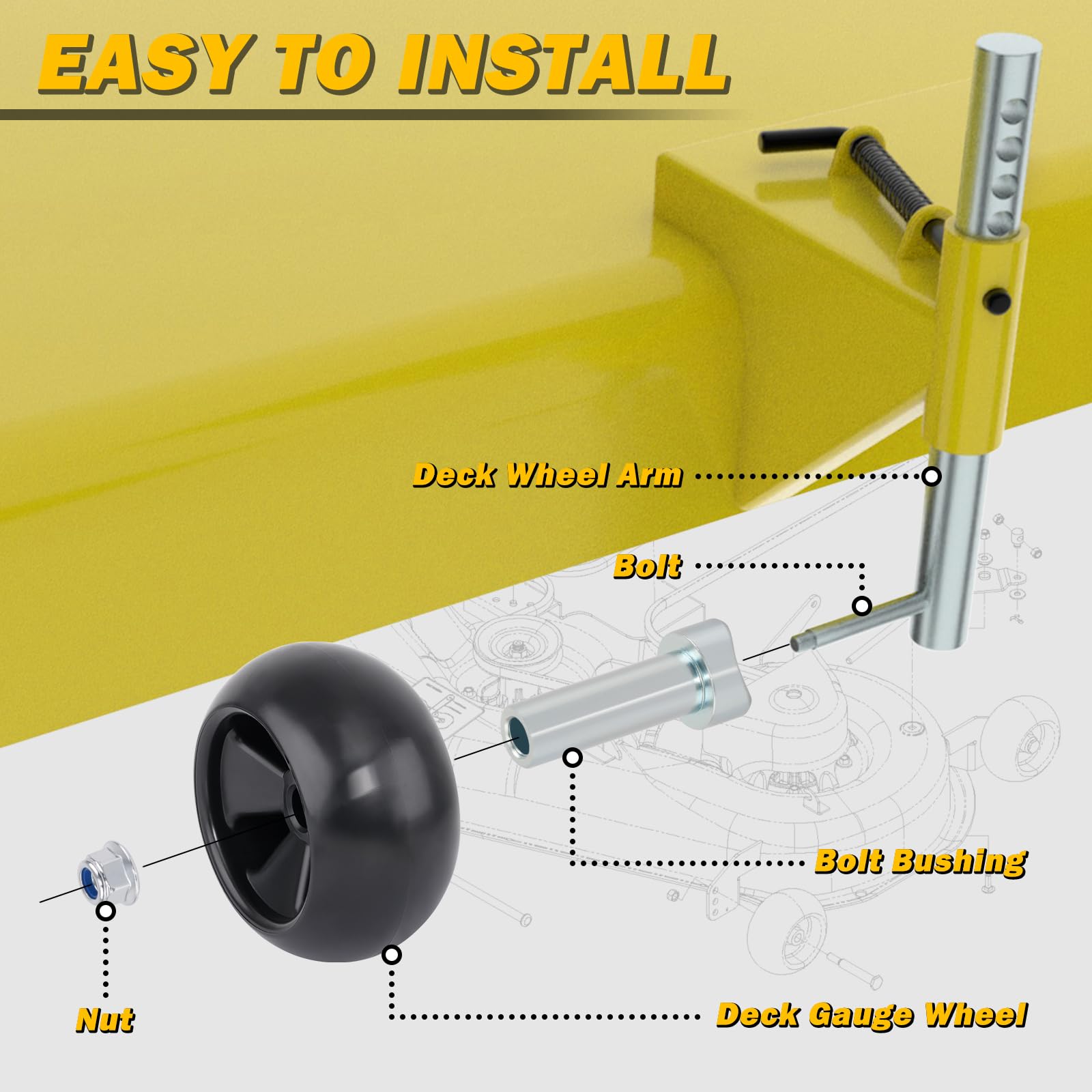

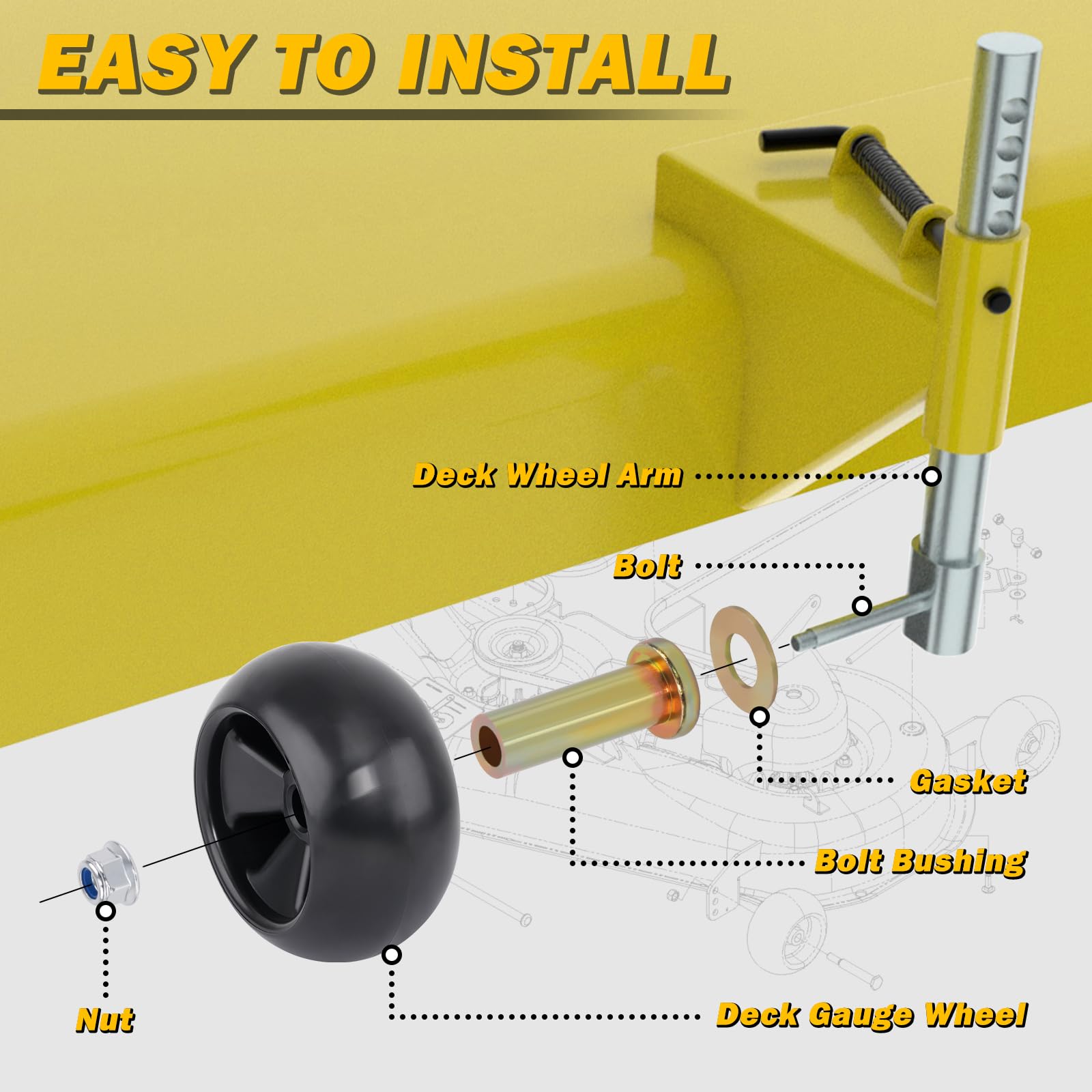

Replacing deck gauge wheels is a straightforward DIY job for someone comfortable with basic maintenance. The kit is designed for quick swap-out—pull back the release rod, remove the old wheel, pick the correct bushing, and secure the new wheel with the supplied hardware. Online videos and mower-specific guides can help with step-by-step visuals.

• Simple steps: remove release rod, fit correct bushing, secure wheel with supplied bolt and nut.
• Installation time: typically 15–45 minutes for all six wheels depending on experience.
• No grease fittings required; inspect and clean spindle before assembly.

Who is this for: This XaXmTee 6Pack deck wheel kit is aimed at homeowners, landscapers and service technicians who maintain John Deere or MTD-style riding mowers and need a complete replacement kit. It suits anyone wanting a cost-effective, ready-to-install set of durable 5" gauge wheels and matching hardware to restore deck height control and protect turf from scalping.
