Woodford Wall Faucet Model 19CP-10 10-Inch Chrome Inlet, 3/4-inch Hose Thread and Stainless Seat

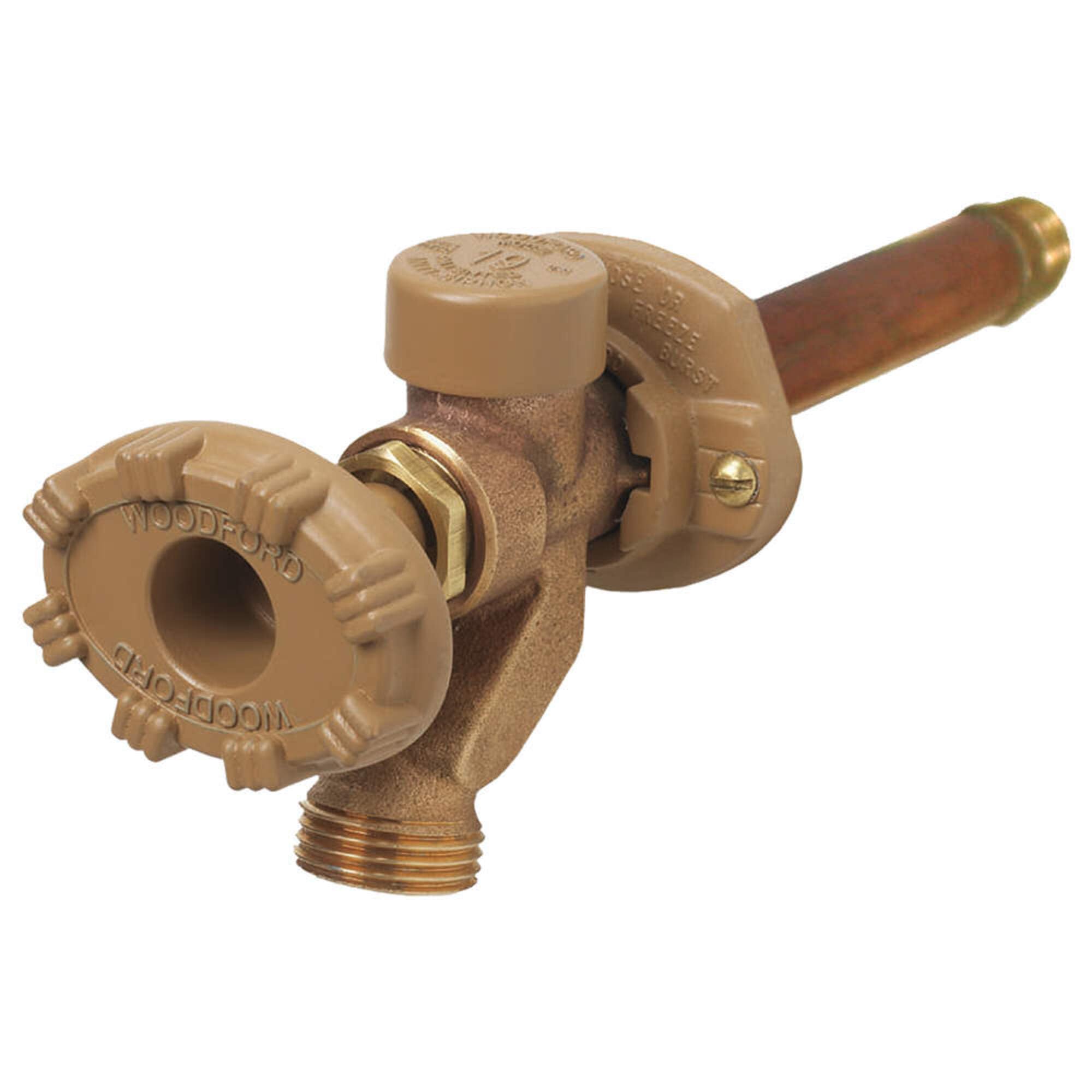

Woodford Model 19CP-10 is a heavy‑duty 10‑inch wall faucet with a chrome-plated inlet designed for commercial and exterior use.

This Model 19CP-10 wall faucet from Woodford delivers a rugged, serviceable water outlet for utility sinks, hose bibs, and outdoor wash stations. Built with stainless and no‑lead components, EPDM packing, and a powder‑coated die‑cast aluminum handle, this faucet is engineered for repeated use in demanding environments. The 3/4" male hose thread nozzle and adjustable polycarbonate wall flange make installation and hose connection straightforward, while full‑circle operating threads and a standard “O” size seat washer simplify maintenance.

How is the Model 19CP-10 constructed for durability?

The faucet uses corrosion‑resistant materials and serviceable internals to extend working life in commercial settings. Stainless steel seating, no‑lead solder, and EPDM packing reduce corrosion and leakage risks. The handle and body are built to withstand frequent operation without sacrificing ease of repair.

• 3/4" male hose thread nozzle for secure hose attachment
• Stainless steel seat to resist wear and corrosion
• EPDM packing to minimize leaks around the stem
• Die‑cast aluminum oval handle with powder coating for improved grip

What are the installation and compatibility details?

Model 19CP-10 fits common plumbing setups and includes a chrome-plated (CP) inlet for visual consistency and corrosion resistance. The adjustable polycarbonate wall flange adapts to different wall thicknesses and mounting conditions, while the 10‑inch reach positions the outlet where it is needed.

• 10‑inch centerline length for extended reach from the wall
• CP inlet compatible with standard fittings and supply lines
• Adjustable polycarbonate wall flange to suit various installations
• Maximum pressure: 125 psi; maximum temperature: 120°F

How easy is maintenance and repair?

The Model 19 design emphasizes simple serviceability: replaceable seats and a common-size washer keep downtime low. Full‑circle operating threads and a retainer allow controlled disassembly and reassembly without specialized tooling, and optional replacement parts are standard sizes.

• Standard "O" size seat washer for quick swaps
• Full circle operating threads on valve body and retainer for easy servicing
• No‑lead solder joints compatible with modern code requirements
• Optional tee key available for secure shutoff (extra charge)

What performance limits should I expect?

The faucet is rated for typical commercial and exterior applications but is not intended for extreme temperature or pressure conditions. Observe the published limits and design the installation to remain within those parameters to preserve longevity.

• Maximum working pressure: 125 p.s.i.
• Maximum working temperature: 120°F
• Not rated for steam or high‑temperature industrial processes
• Use proper winterization procedures in freeze‑risk locations

Who this is for: The Woodford 19CP-10 is ideal for building managers, contractors, and facility maintenance teams seeking a reliable wall‑mounted faucet for outdoor spigots, utility sinks, maintenance rooms, and commercial landscapes. Choose this model when you need a long‑reach outlet with serviceable internals, corrosion‑resistant components, and straightforward installation features.
