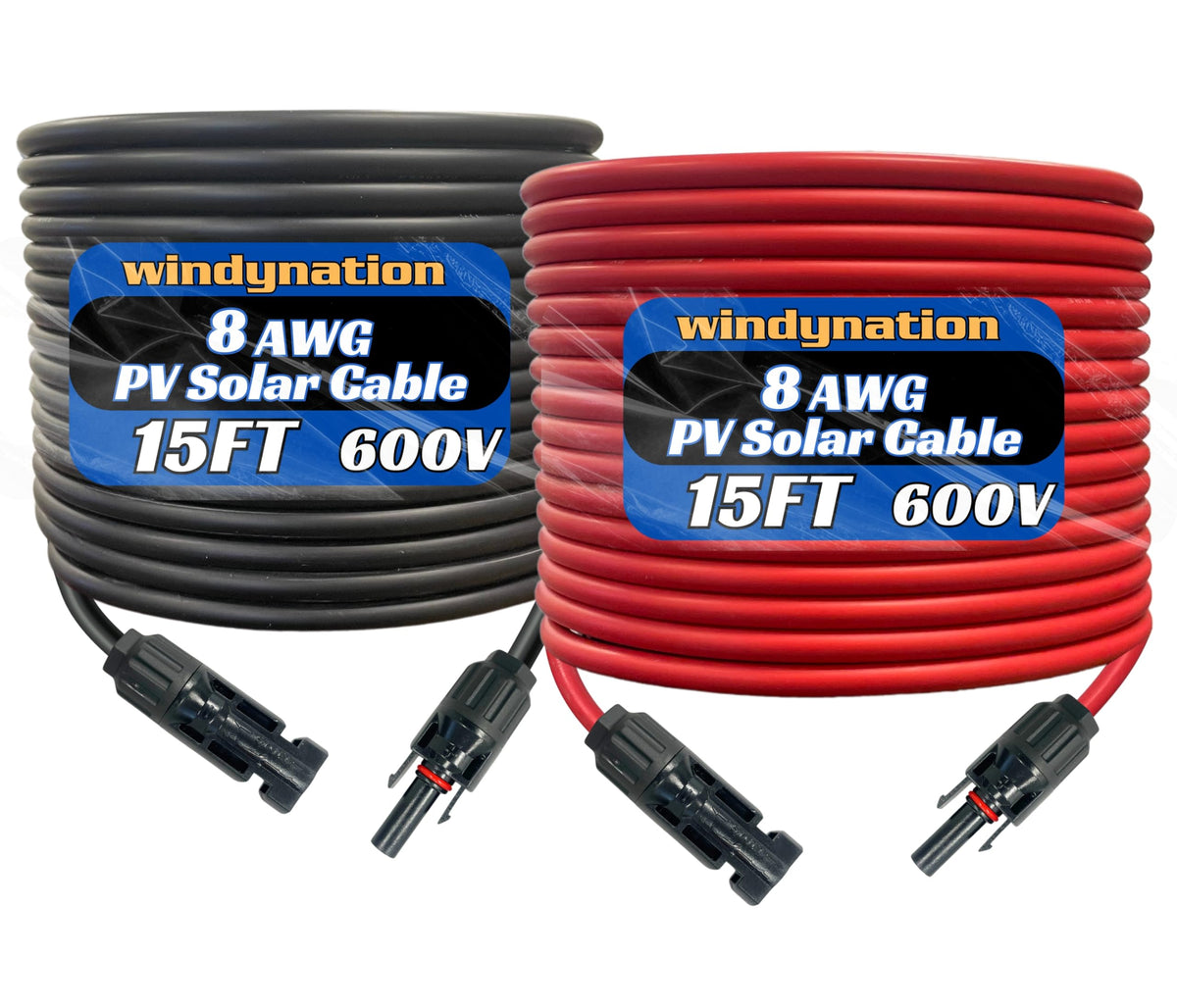

WindyNation 8 AWG Solar Extension Cable Pair 15 ft (Red & Black) with Weatherproof PV Connectors and XLPE Insulation

WindyNation 8 AWG solar extension cable pair: two 15-foot photovoltaic wires (one red, one black) terminated with weatherproof male and female PV connectors for reliable, low-resistance solar panel connections.

These WindyNation PV extension cables are built for outdoor solar systems that require flexible, high-conductivity wiring and industry-standard connectors. The cables use pure copper multi-strand conductors and XLPE insulation to maintain electrical efficiency, resist environmental damage, and meet NEC/UL standards. Each cable is factory-assembled in California and tested to deliver secure, long-lasting panel-to-inverter or panel-to-combine-run connections.

What electrical capacity and conductor specs does this 8 AWG pair provide?

The 8 AWG cables feature pure copper conductors made of many fine strands to keep the wire flexible while minimizing resistance. This gauge is rated for higher current loads commonly required in residential and small commercial PV arrays.

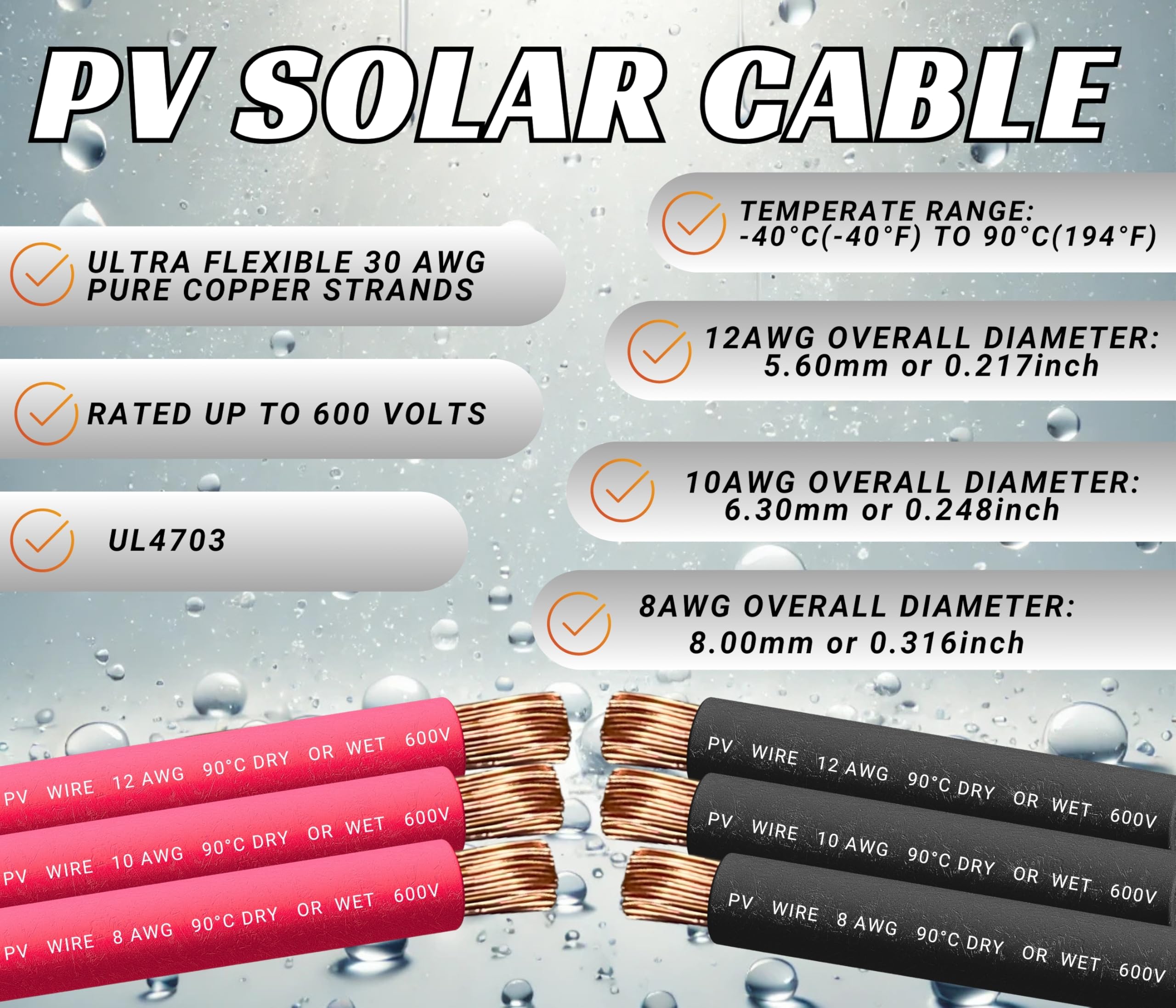

• 8 AWG pure copper strand count: 168 strands for increased flexibility
• Amperage rating for 8 AWG: approximately 55 A (per manufacturer specs)
• Low-resistance conductors to maximize power transfer from panels
• Suitable for runs where higher current capacity is required compared to 10/12 AWG

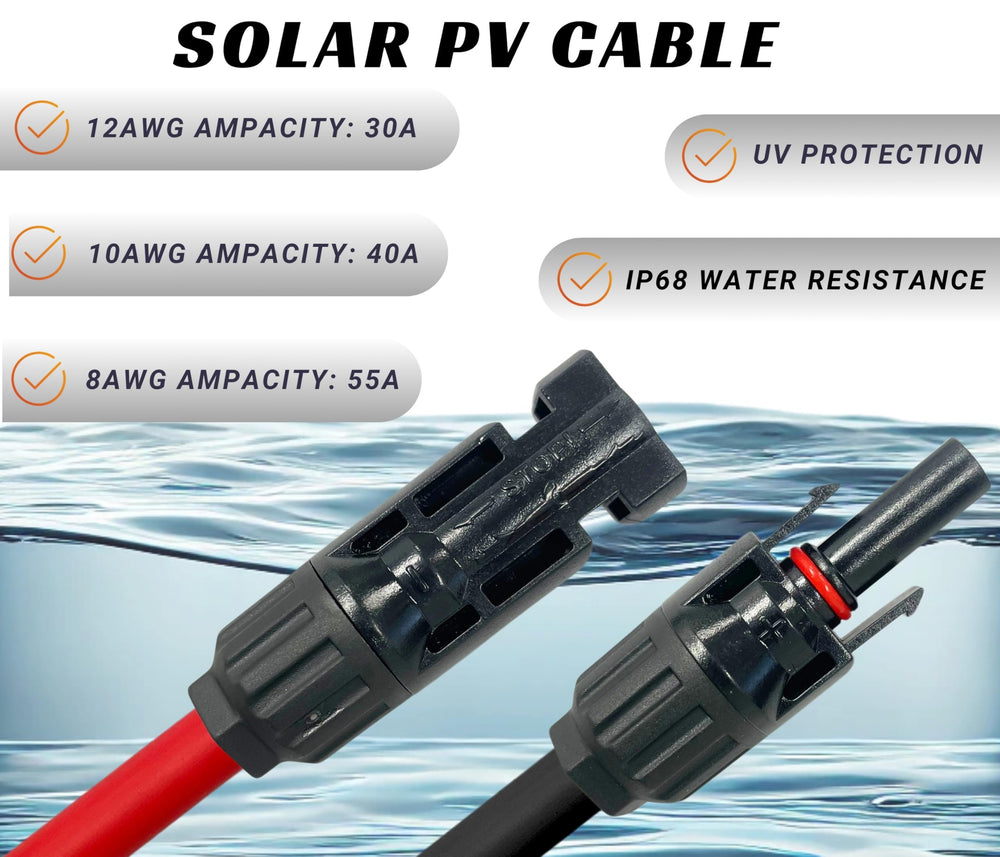

How do the PV connectors work and will they fit my system?

Each cable is factory-terminated with one male and one female PV connector compatible with industry-standard photovoltaic connectors. The quick-connect design simplifies installation and ensures a consistent, weatherproof mating for array strings or extension runs.

• One male and one female connector per cable for straightforward pairing
• Compatible with standard MC4-style PV connectors used across the solar industry
• IP67-rated housings for water and dust resistance in outdoor environments
• Connectors assembled using pneumatic crimping for consistent, reliable crimps

How durable are these cables in outdoor and harsh conditions?

WindyNation uses thick XLPE insulation and weatherproof connectors so these extension cables resist UV, abrasion, and wide temperature swings. They are rated for direct burial and wet or dry operation, making them suitable for rooftop, ground-mounted, or concealed conduit runs.

• XLPE insulation resists UV, heat, cold, and mechanical wear
• Operating temperature range: -40°C to 90°C (-40°F to 194°F)
• UL4703 PV cable rating and NEC compliance for photovoltaic wiring systems
• Constructed and quality-checked in the USA for consistent performance

What certifications and code compliance should I expect?

The cables carry UL4703 approval and are manufactured to meet photovoltaic wiring requirements in the National Electric Code (NEC). That means they are appropriate for module interconnection and approved for use with or without raceway per Article 690.

• UL4703 listed for photovoltaic cable applications
• Meets NEC (NFPA 70) requirements for PV module interconnection wiring
• Rated for direct burial and outdoor installation
• Factory-assembled and inspected to ensure secure crimps and terminations

Who is this for: Installers, DIY solar enthusiasts, and system designers who need a dependable, flexible 8 AWG PV extension set for medium- to high-current runs. Choose this WindyNation pair when you want UL-rated conductors, robust weatherproof connectors, and cables that hold up to outdoor exposure while keeping electrical losses low. If you need different lengths or gauges, WindyNation offers alternate sizes to match system requirements.
