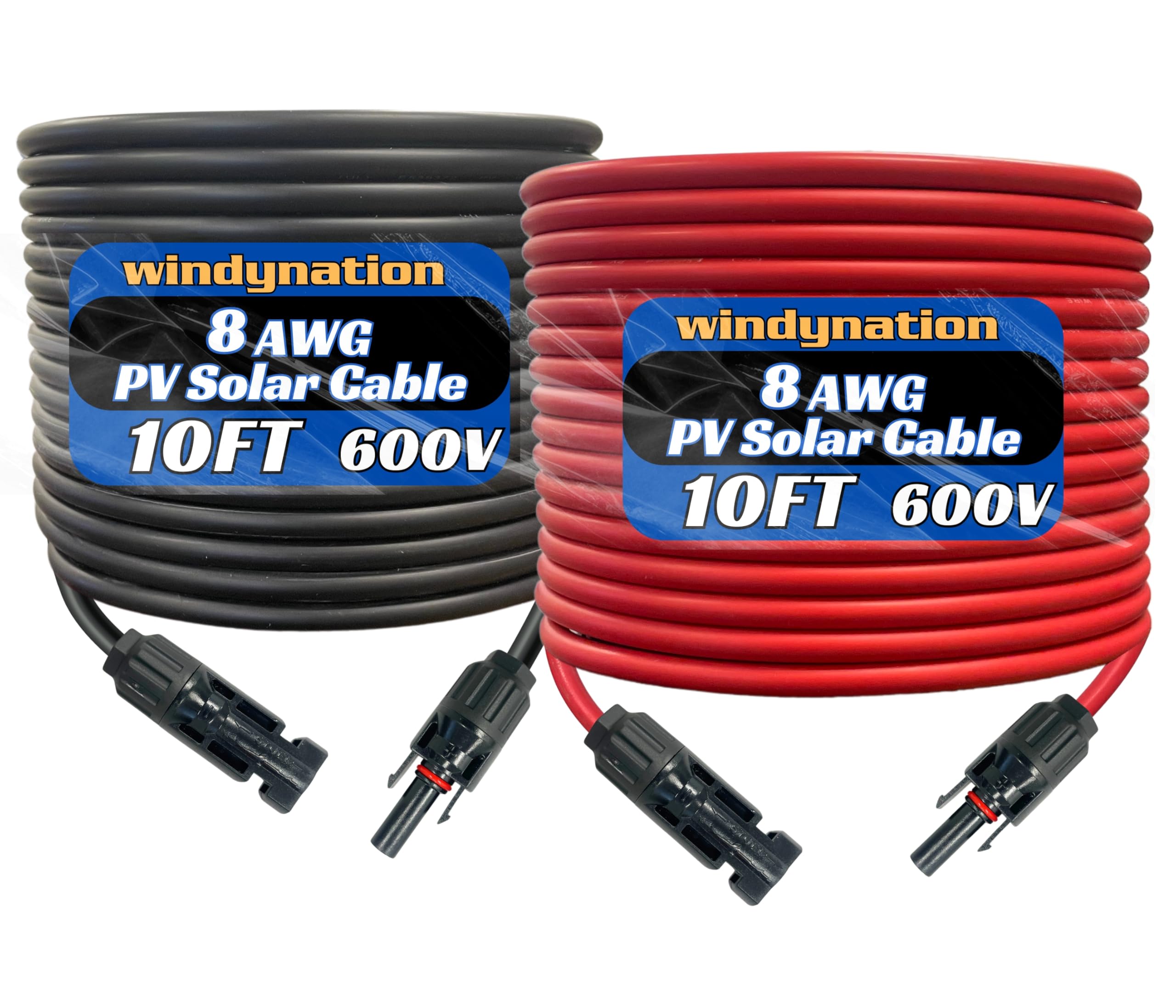

WindyNation 8 AWG Solar Extension Cable Pair 10 ft Red + Black — 55A UL4703 IP67 Waterproof

WindyNation 8 AWG solar extension cable pair (10 ft red + 10 ft black) is a UL4703-rated PV extension wire with pre-terminated IP67 male/female connectors built for durable, low-resistance solar panel hookups.

These photovoltaic extension cables are engineered for rooftop and ground-mounted solar arrays that need a robust outdoor-rated connection between panels, charge controllers, inverters, or junction boxes. Constructed with pure copper conductors and XLPE insulation, the set balances flexibility, amperage capacity, and environmental protection so installers can run tidy, efficient cable runs that meet industry standards and local electrical codes.

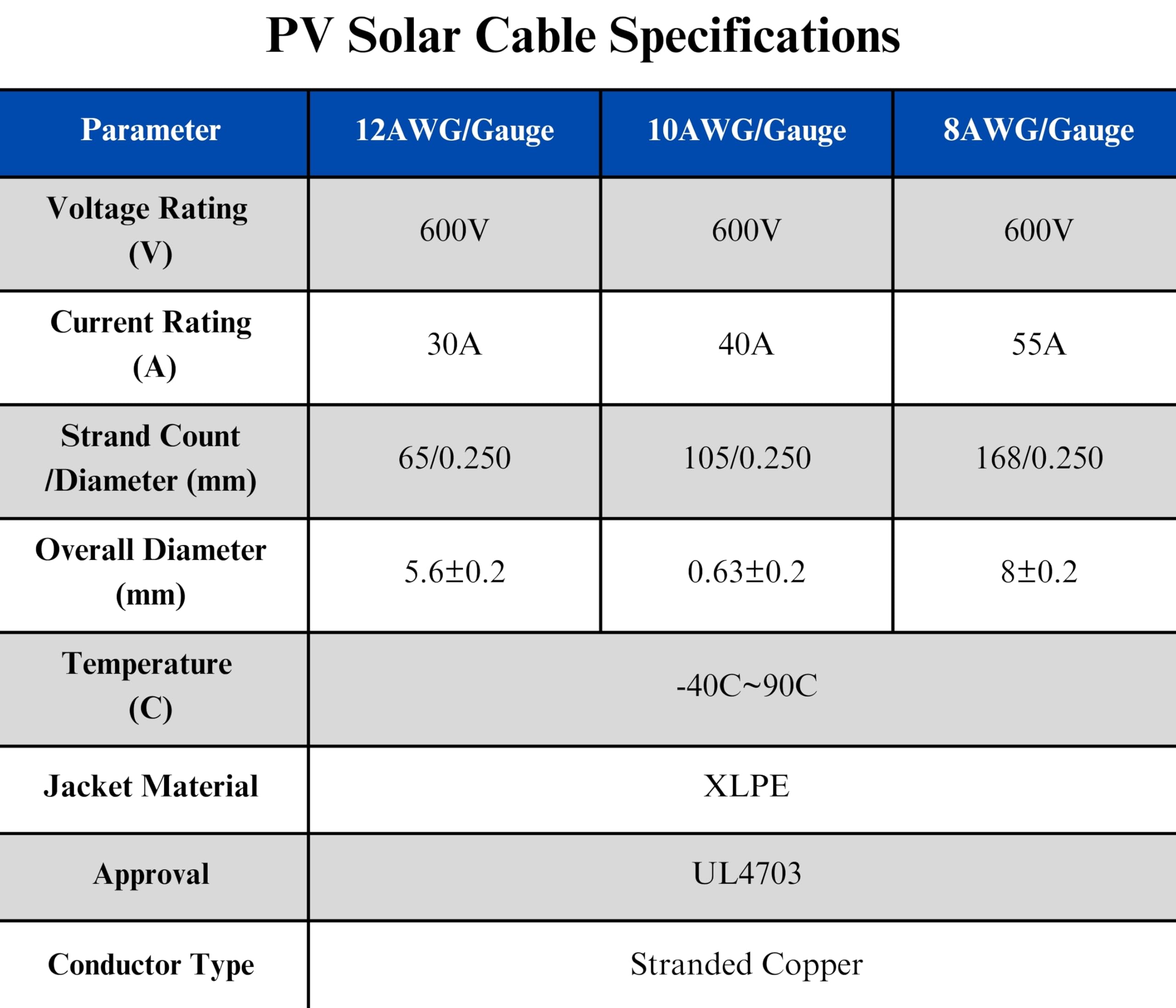

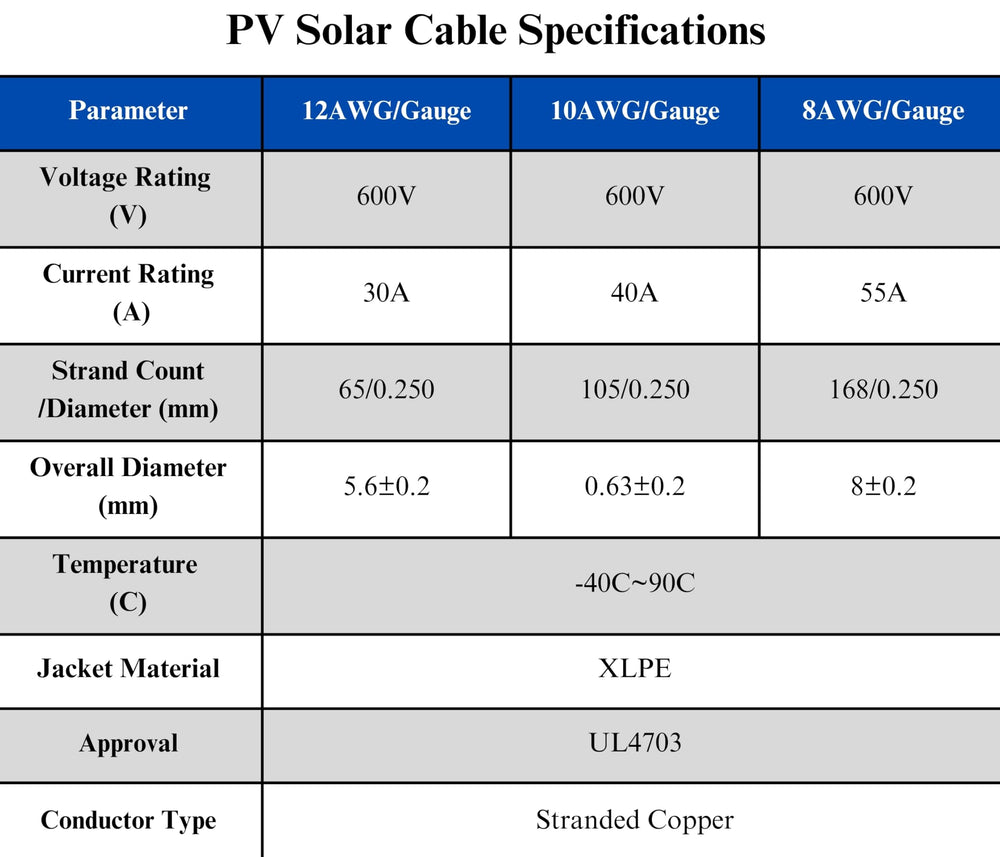

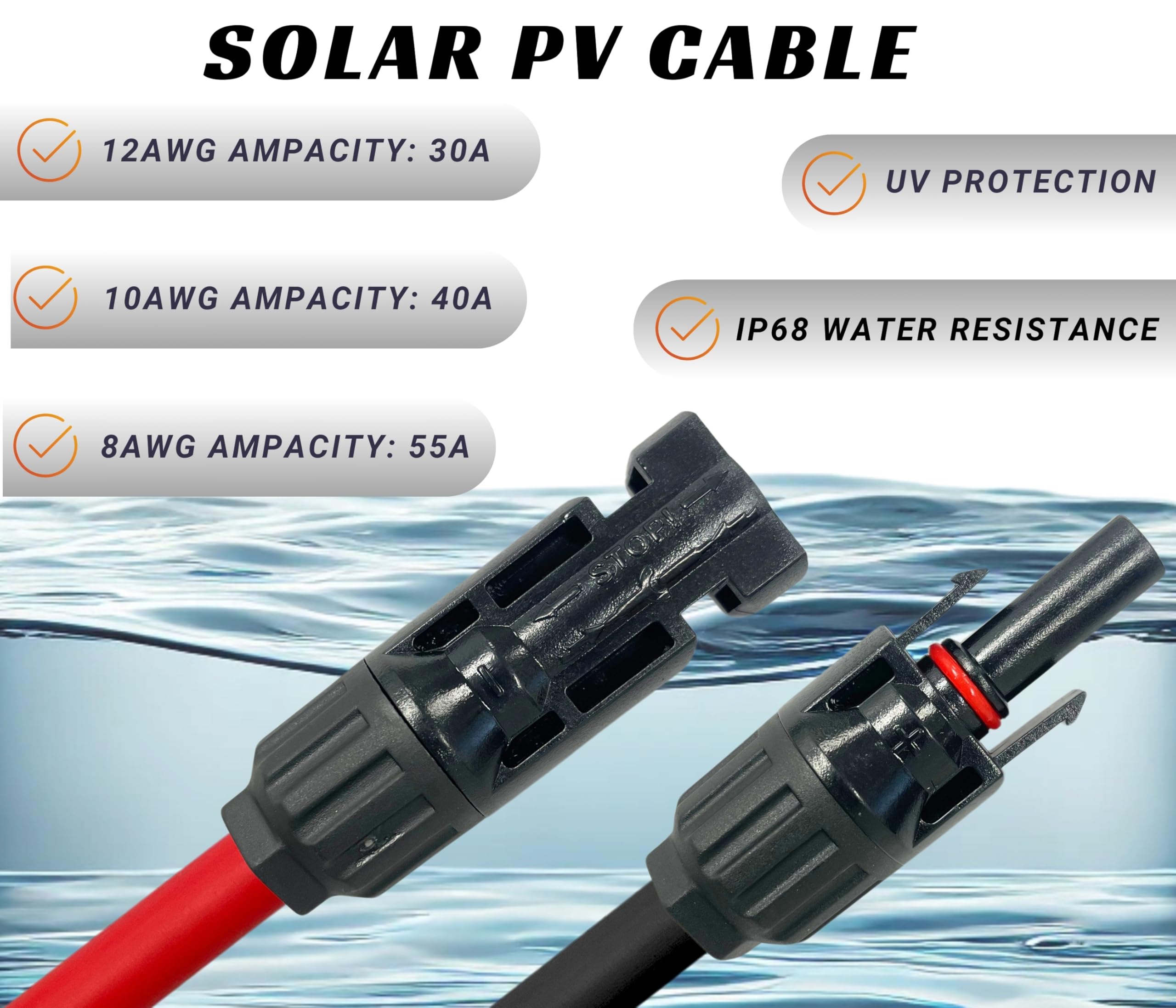

How much current can the 8 AWG WindyNation cables safely carry?

The 8 AWG pair is rated for roughly 55 amps under typical PV conditions, providing headroom for many small-to-medium residential circuits. Ratings differ by gauge: 10 AWG is roughly 40A and 12 AWG about 30A; choose the gauge that matches your system's maximum current to avoid overheating.

• 8 AWG amperage: ~55 A
• 10 AWG amperage: ~40 A
• 12 AWG amperage: ~30 A
• Use ampacity vs. system short-circuit currents to size correctly

Are the connectors and cable rated for outdoor and long-term exposure?

Yes — each cable arrives with one male and one female PV connector that comply with industry standards and are sealed to IP67, resisting water ingress and dust. The XLPE outer jacket withstands UV, heat, cold, abrasion, and direct burial, making these cables suitable for exposed rooftop and buried runs.

• Connector rating: IP67 waterproof and weatherproof
• Insulation: XLPE for UV and abrasion resistance
• Operating range: -40°C to 90°C (-40°F to 194°F)
• UL4703 approved for photovoltaic use

Will these cables fit my existing solar connectors and meet code?

The pre-installed PV connectors are compatible with standard industry PV connector systems, so they plug directly into most panels and in-line connectors without adapters. They are manufactured to meet UL4703 specifications and are suitable for photovoltaic module interconnections in accordance with NEC Article 690.

• One male and one female connector per cable
• Compatible with common PV connector brands and panels
• Meets UL4703 and NEC (NFPA 70) wiring requirements
• Assembled and quality-checked in the USA

How flexible and durable are the conductors for routing and installation?

The conductors are stranded pure copper designed for lower resistance and greater flexibility than solid-core alternatives. Strand counts vary with gauge to improve bendability — 8 AWG uses many fine strands so installers can route cables through trays, conduits, or across roof profiles without excessive stiffness.

• Pure copper conductors for low electrical resistance
• High strand counts enhance flexibility for 8, 10, and 12 AWG
• Automated pneumatic crimping ensures consistent terminations
• Quality inspections performed in California factory

Who this is for: This WindyNation 8 AWG 10 ft red plus 10 ft black PV extension pair is aimed at DIY solar installers, electricians, and professionals wiring small to medium PV systems who need a reliable, code-compliant extension that resists weathering and maintains low resistance. Choose the 8 AWG option if your string or combiner currents approach 50 amps; pick 10 AWG or 12 AWG if your system draws less current or for longer runs where voltage drop calculations dictate thicker wire. The pre-crimped connectors speed installation and reduce on-site termination work while the outdoor-rated jacket delivers long-term performance in varied climates.
