White-Rodgers 750 mV Power Generator 101934F32 — 32" Fiberglass Leads, F-Spade Terminals

This compact power generator from White-Rodgers (Emerson) fits into 750 mV pilot ignition assemblies where a small, self-contained voltage source is required. It replaces or supplements PG9 pilot generators and connects via two 32" fiberglass-insulated leads terminated with F-spade connectors for straightforward installation. The unit is manufactured in Mexico and intended for use in gas appliance pilot systems that accept 750 mV generators.

How does the 101934F32 power the pilot control system?

The generator produces a 750 millivolt output that feeds the control circuit in compatible pilot assemblies, providing enough potential to operate a gas valve or safety circuit designed for self-generation. It’s a passive thermoelectric generator that converts the pilot flame’s heat into the required voltage.

• 750 mV output suited for low-voltage pilot controls
• Thermoelectric generation—uses heat from the pilot flame
• Direct wiring via F-spade terminals for simple connections
• Compatible with White-Rodgers / Emerson PG9 series components

What are the physical and electrical connections I should expect?

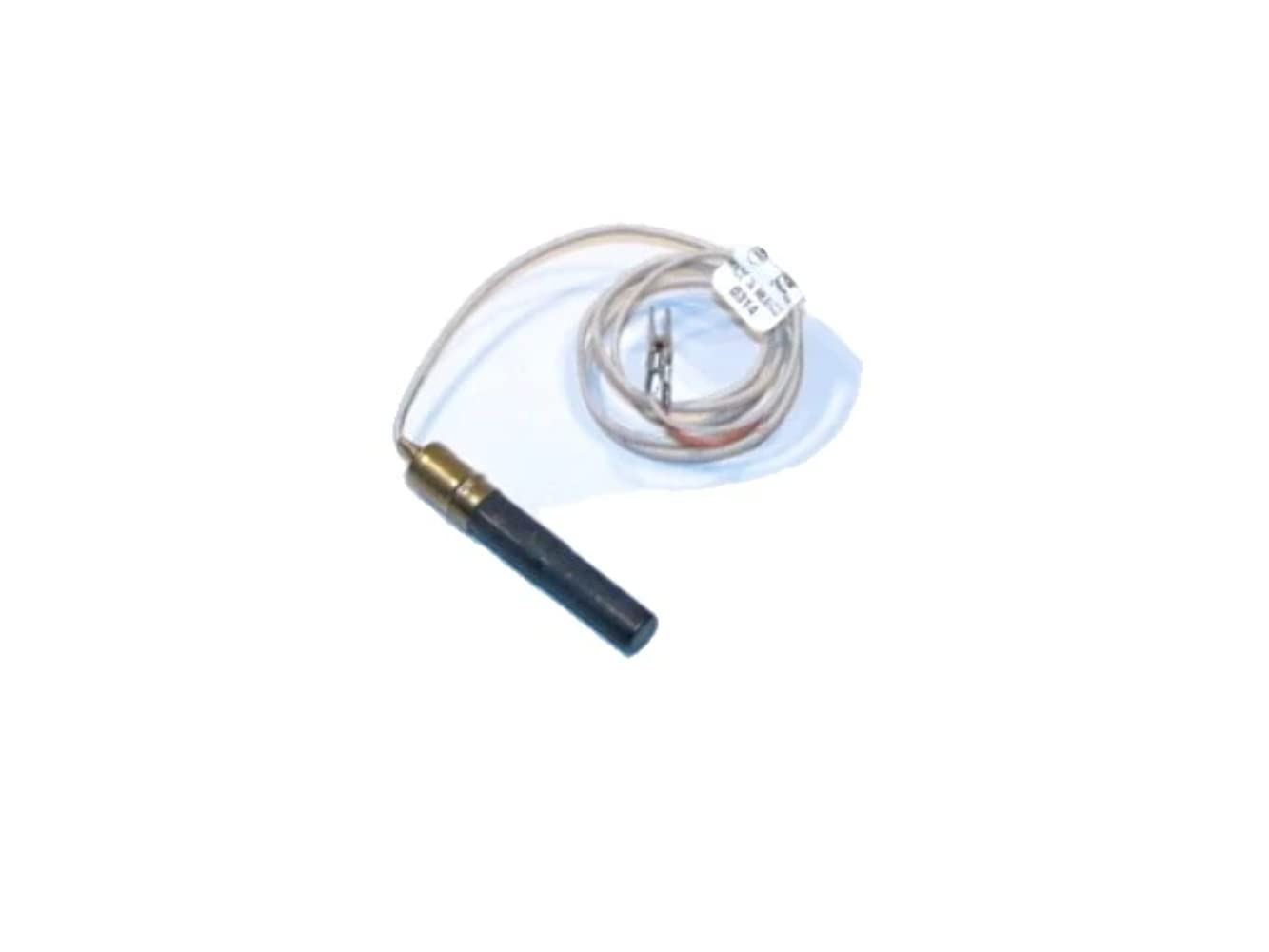

The 101934F32 arrives with two 32-inch fiberglass-insulated cable leads, each terminated with an F-spade terminal to match common pilot assembly wiring. The length gives flexibility when routing wires inside an appliance cabinet, while the fiberglass insulation tolerates higher temperatures near the pilot area.

• 32" fiberglass cable leads for extended routing options
• F-spade terminal terminations for quick attachment to valve or control posts
• Compact generator body fits typical pilot mounting locations
• Designed to interface cleanly with PG9 pilot generator sockets

Can I replace an existing PG9 generator with this part?

Yes—this part is designed for use with White-Rodgers/Emerson PG9 pilot generators and serves as a direct replacement when the original 750 mV generator has failed or needs updating. Confirm the electrical requirements and terminal style of your appliance before swapping parts to ensure compatibility.

• Drop-in replacement for systems specifying 750 mV PG9-type generators
• Same F-spade terminal configuration for straightforward swapping
• Check appliance documentation for voltage and mounting requirements first

Who is this for? Technicians, HVAC professionals, and experienced DIYers working on gas-fired appliances that use self-generating pilot controls will find the White-Rodgers 101934F32 useful when a 750 mV PG9-compatible generator is required. It’s aimed at those needing a reliable, easy-to-install generator with extra lead length and heat-resistant insulation—ideal for maintenance, repairs, or parts replacement in furnaces, water heaters, and similar equipment. Always follow appliance manufacturer instructions and safety procedures when installing replacement components.
