Weewooday Solar Branch Connectors — 10 Pairs 2-to-1 Y FMM+MFF, 50A 1500V Waterproof Parallel Wiring

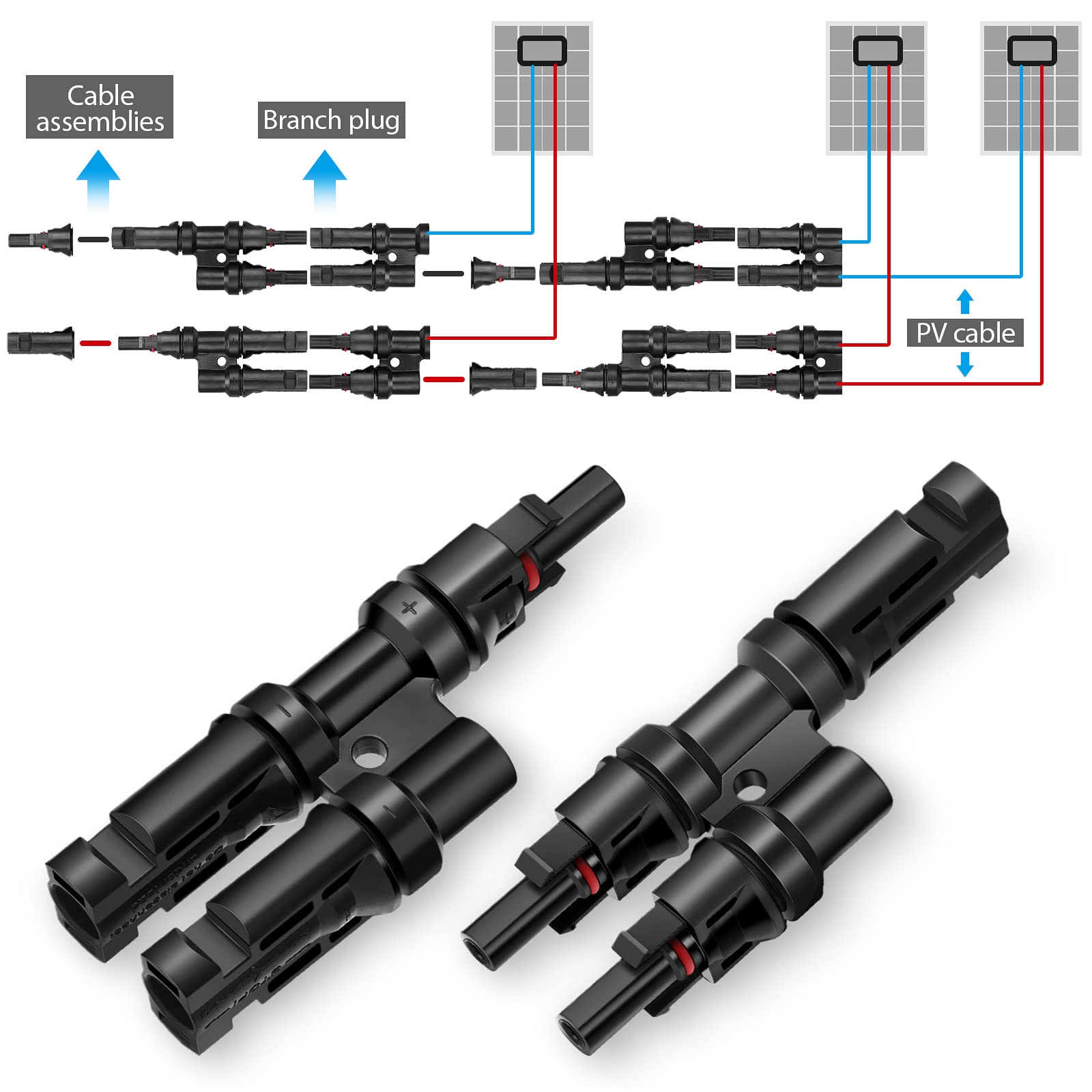

Weewooday 10 Pairs Solar Branch Connectors are durable 2-to-1 Y connectors (FMM+MFF) designed for safe, waterproof parallel connections between solar panels. These connectors provide a simple, reliable way to join multiple solar panel outputs in parallel without specialized tools. Each kit contains ten matched pairs manufactured primarily from PA (polyamide) material for strength, corrosion resistance and outdoor durability. The connectors support up to 50 A and are rated for system voltages to 1500 V, making them suitable for many household and small commercial photovoltaic arrays.

How do these connectors simplify parallel wiring for solar panels?

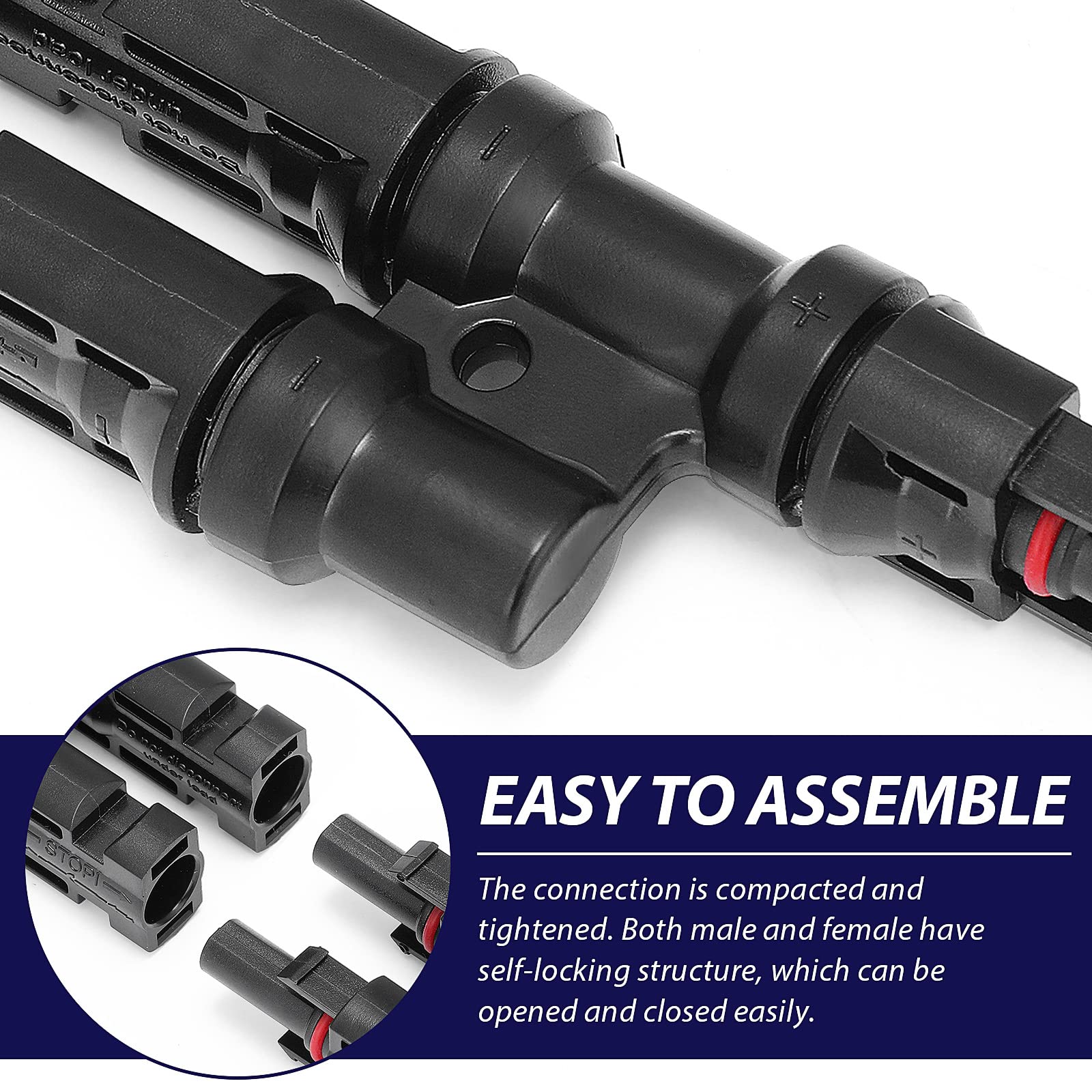

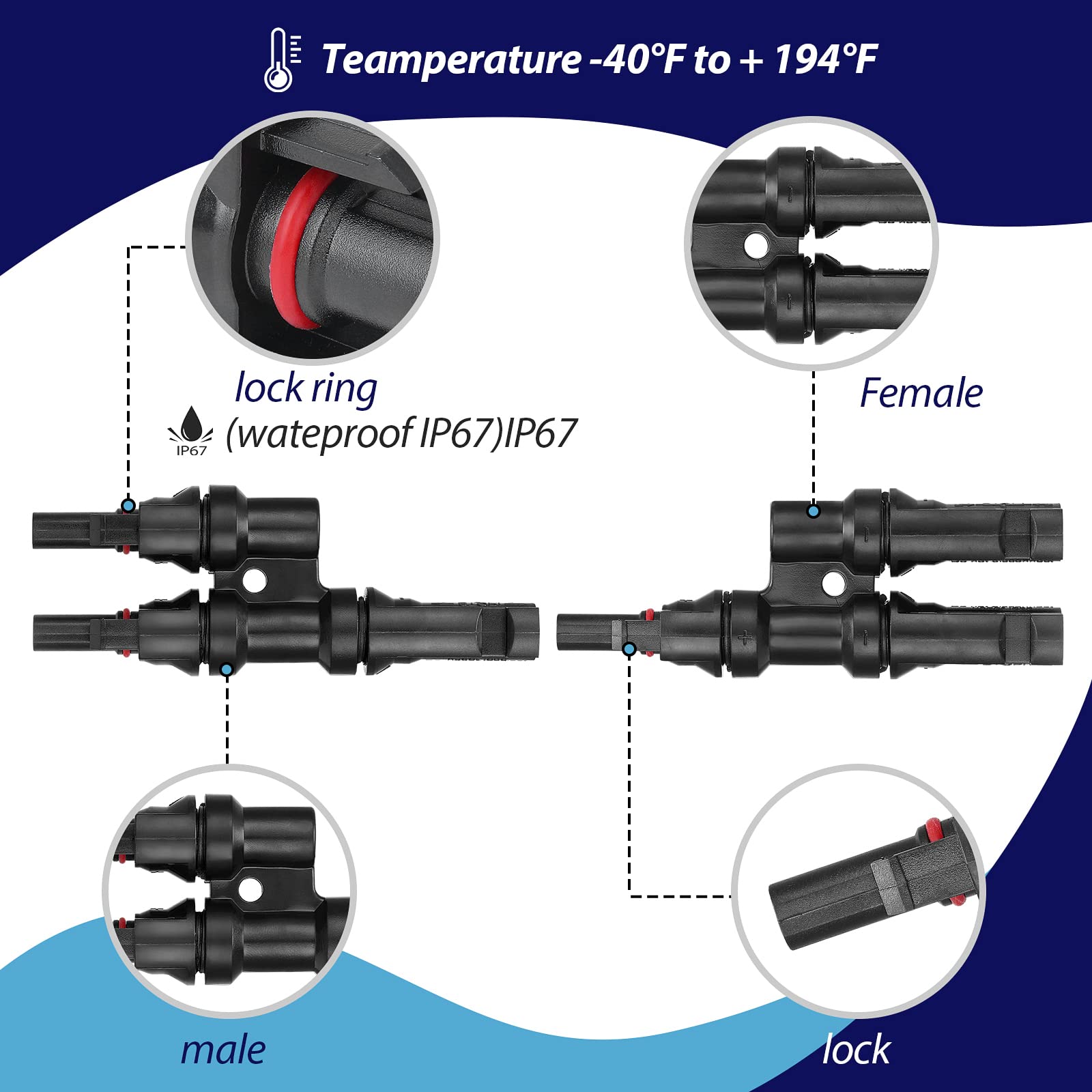

The Y-shaped 2-to-1 design lets you merge two panel outputs into a single feed quickly, reducing cable clutter and connection points. A secure self-locking mechanism holds the mating halves together while still allowing tool-free disconnection when needed.

• Pre-matched FMM + MFF pairings for immediate use
• Tool-free press-lock release for fast maintenance
• Compact Y configuration reduces the number of junction boxes required

Are these connectors weatherproof and reliable outdoors?

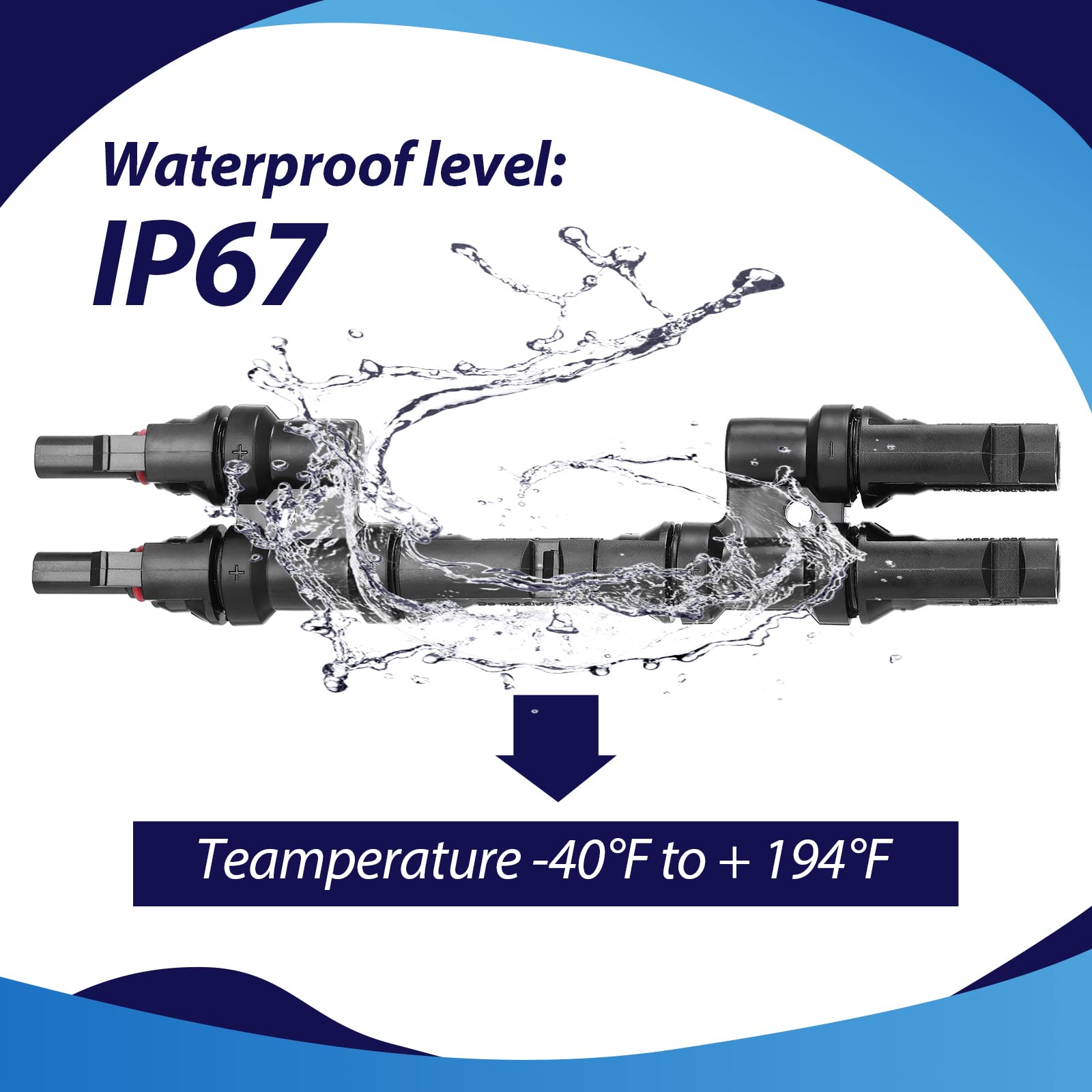

Yes. The housings are made mainly of PA material chosen for mechanical strength and resistance to UV, moisture and chemical corrosion. The connectors are designed to withstand outdoor exposure across a wide temperature range for dependable field performance.

• Waterproof sealing suitable for rooftop and ground-mount arrays
• Corrosion-resistant construction prolongs service life
• Operating range from –40°F to 90°F for varied climates

What electrical ratings and compatibility should I expect?

These Weewooday connectors are rated for 50 A continuous current and up to 1500 V nominal voltage, matching many modern PV panel and inverter systems. They fit common solar cable sizes and standard MC4-style installations, letting you pair panels with like connectors for safe parallel operation.

• Rated current: 50 A
• Nominal voltage: 1500 V
• Compatible with typical PV cables and panel connector types (FMM+MFF configuration)

How many connectors are included and how easy are they to install?

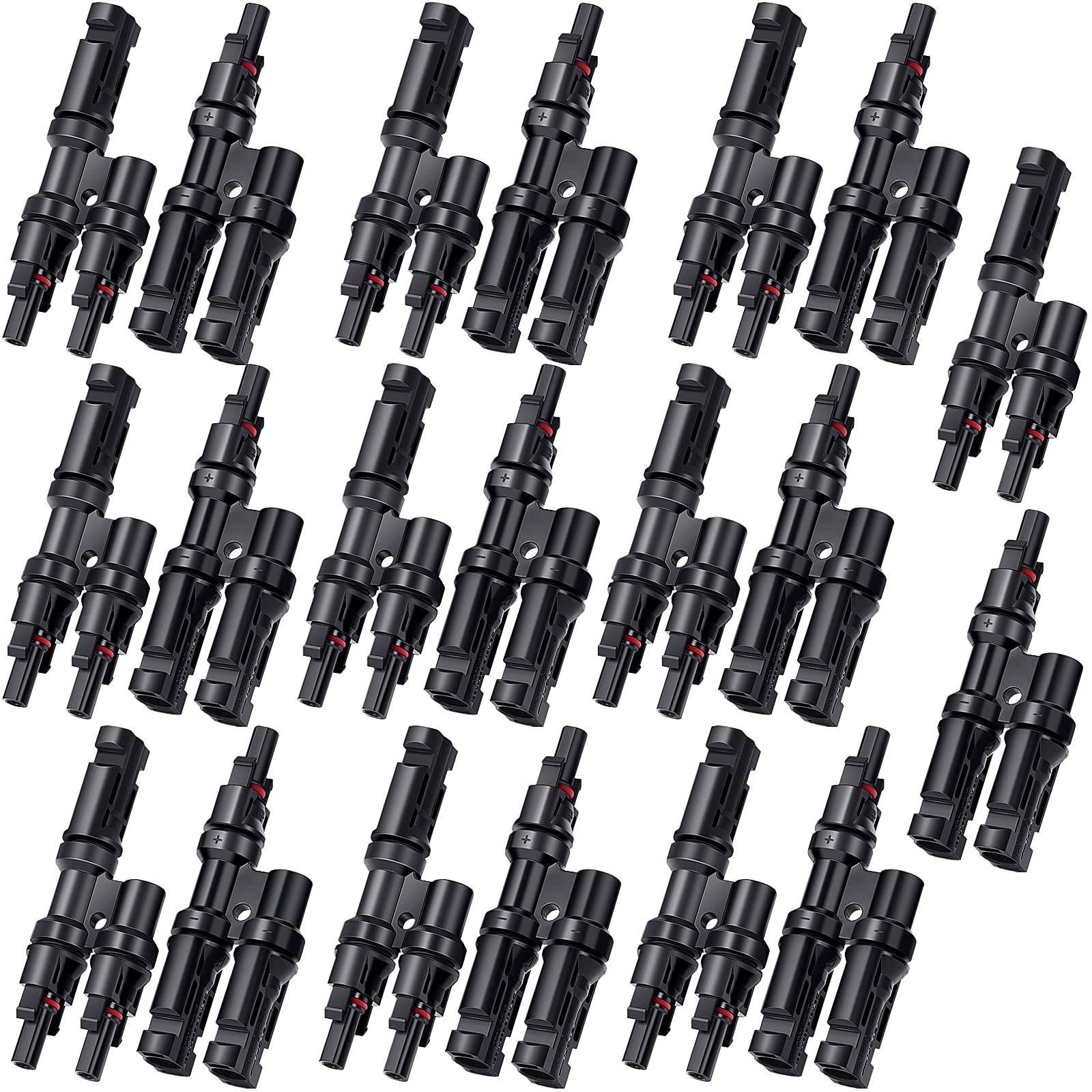

This package contains 10 pairs of connectors (20 pieces total) so you can wire multiple strings or keep spares for maintenance. Installation is straightforward: insert wires, snap the halves together until the self-lock clicks, and optionally secure in a junction location. No crimping tools are required for the locking action, but proper cable termination and torque-compliant crimps are recommended for electrical safety.

• 10 pairs included for projects and backups
• Self-locking design for quick assembly and disassembly
• Recommended: follow proper cable preparation and crimping practices

Who is this for? This pack suits homeowners, installers and small commercial PV teams who need a reliable, weather-resistant method to create parallel connections between solar panels. It’s ideal for rooftop arrays, small ground-mounted systems and any installation where compact, tool-free Y-branching and spare parts are helpful. Choose this kit when you want a larger quantity of matching FMM+MFF pairs for neat, consistent wiring and routine maintenance.

FAQ

Q: Can these connectors handle my 1000 V PV system?

A: Yes. They are rated up to 1500 V nominal, so they are suitable for a 1000 V photovoltaic system.

Q: Do I need special tools to connect or disconnect them?

A: No special tools are required for the self-locking action, but proper crimping tools are recommended for safe cable terminations.
