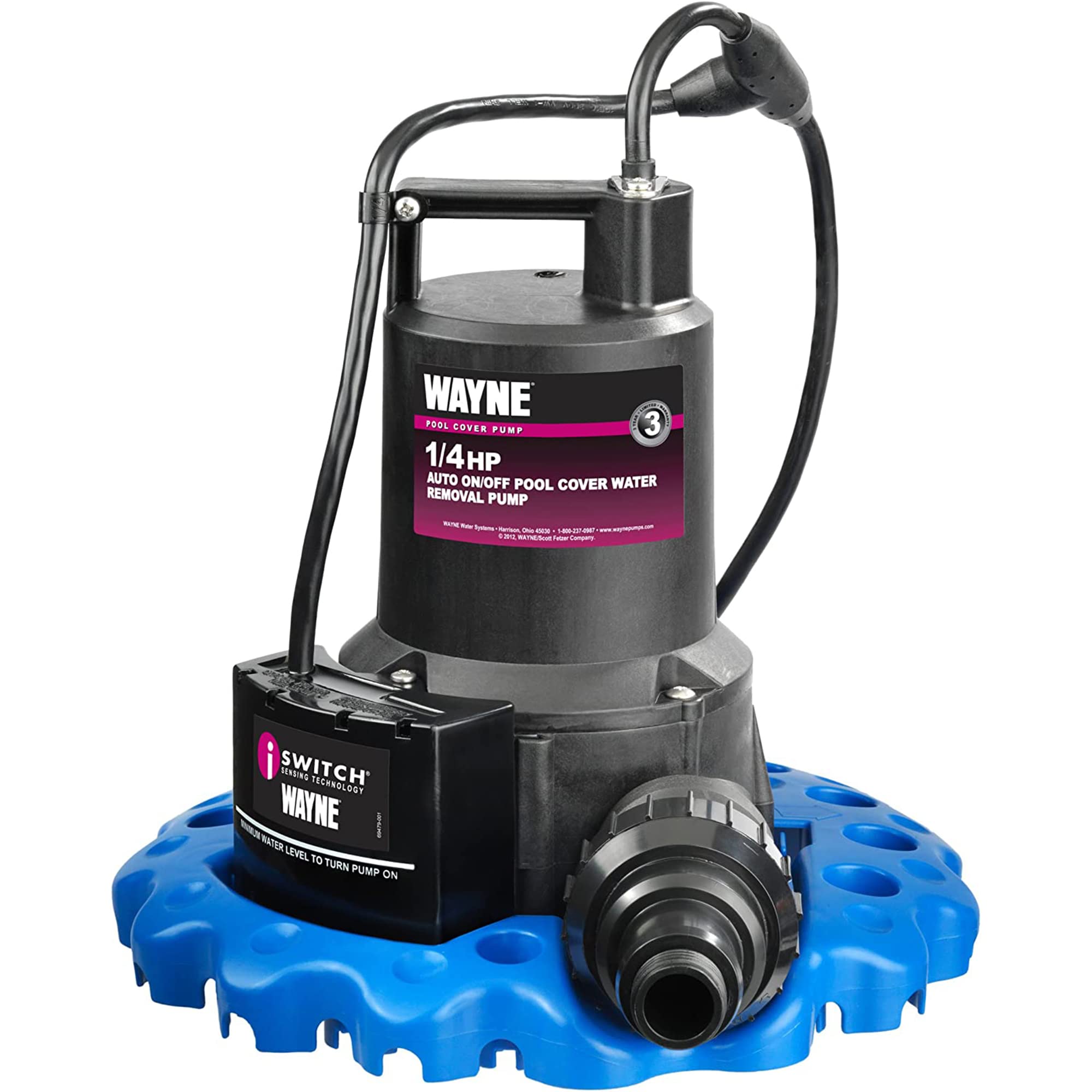

Wayne automatic pool cover pump WAPC250 — reinforced thermoplastic, 3,000 GPH, iSwitch auto-activation

The WAYNE WAPC250 is a reinforced thermoplastic automatic pool cover pump that removes surface water up to 3,000 gallons per hour while protecting itself from debris and freeze-related damage.

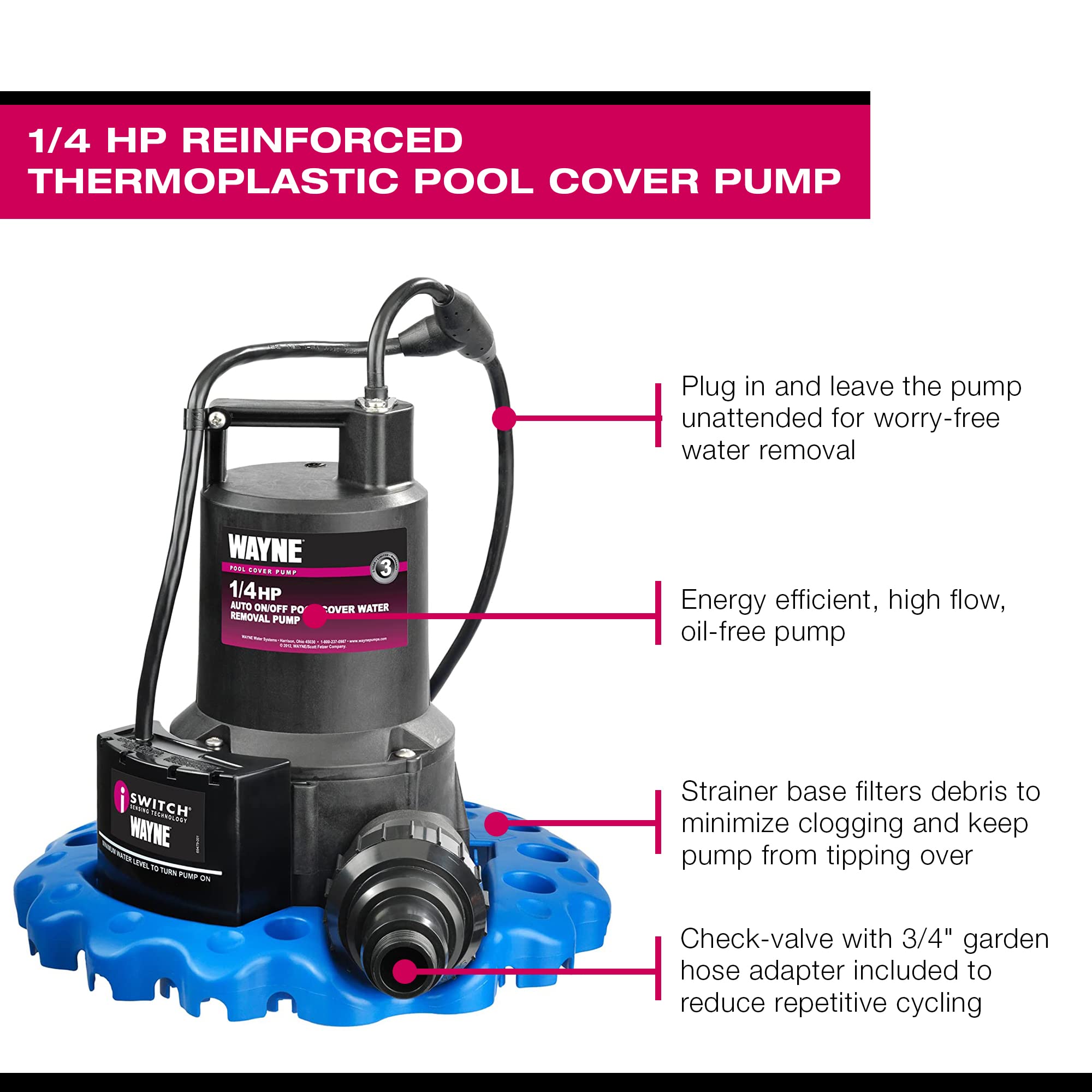

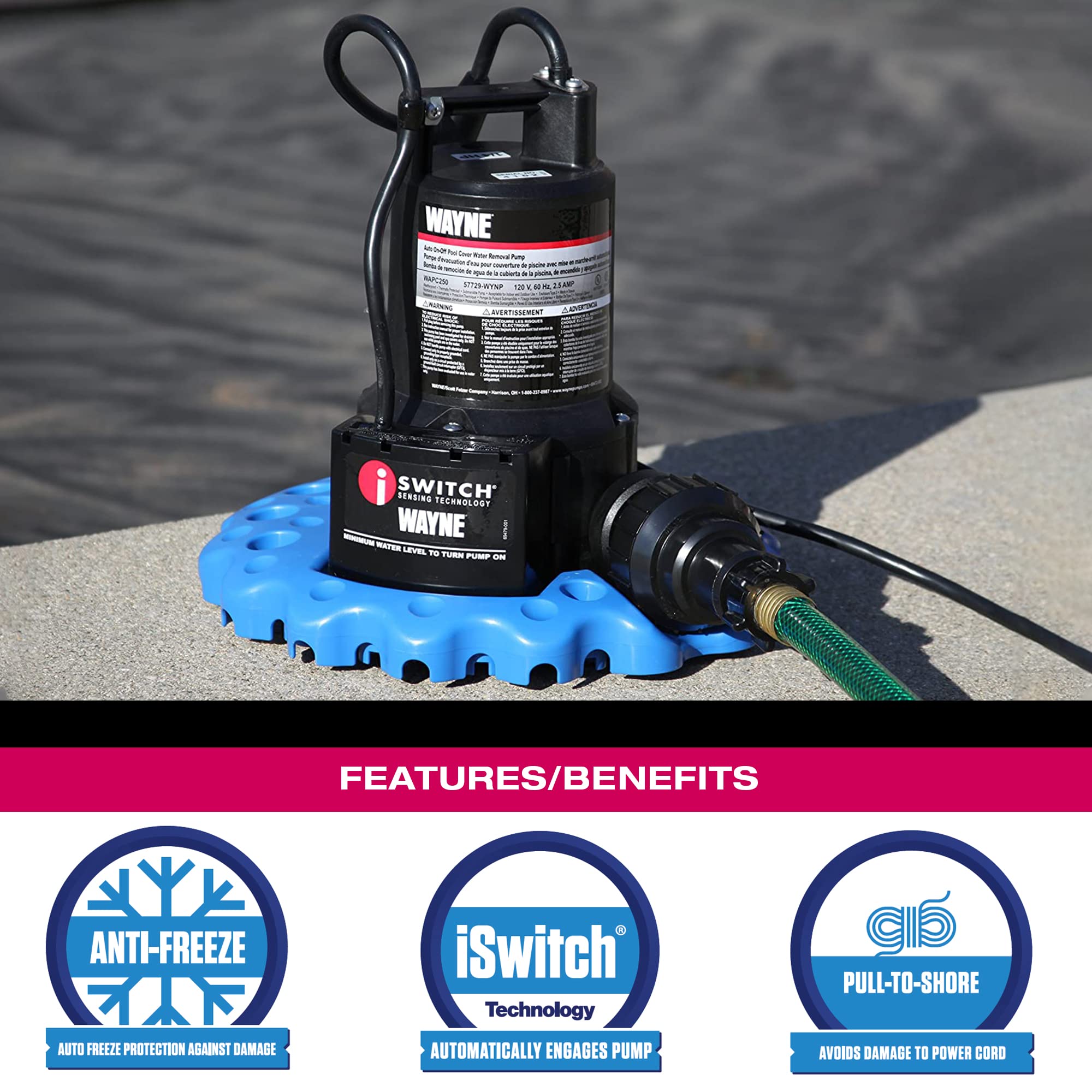

Keep your pool cover free of standing water with a compact, energy-efficient pump built specifically for cover applications. The WAPC250 uses iSwitch automatic activation to start when water reaches 2-1/8" and shut off at 3/4", and its reinforced thermoplastic housing resists corrosion and wear. Designed for unattended winter and rainy-season use, this unit combines a high-flow, oil-free motor with safety features like a strainer base, check valve, and a protection circuit that prevents motor damage from locked or frozen impellers.

How does the WAPC250 start and stop automatically?

The WAPC250 relies on Wayne's iSwitch technology to sense water height and cycle the pump without user intervention. The switch triggers at 2-1/8" to prime and run, and it stops pumping when the water level drops to 3/4". If water falls below activation height the pump will not start automatically and requires manual priming.

• iSwitch activation height: 2-1/8" to start
• Auto-off height: 3/4"
• Manual start possible when water is below iSwitch threshold
• Plug-and-play operation for unattended use

What protections guard the pump from debris and freezing?

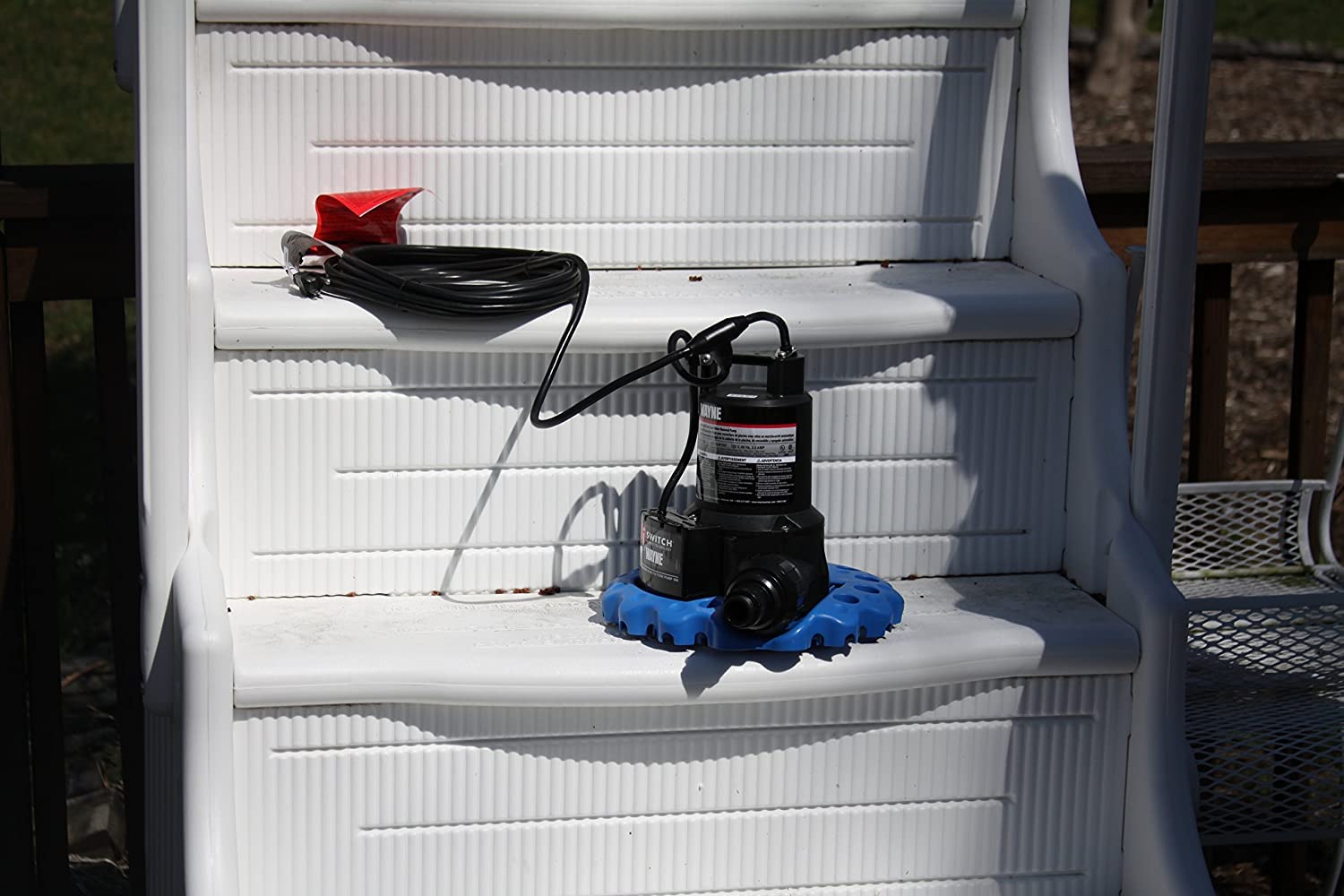

The pump includes mechanical and electronic safeguards: a molded strainer base to limit debris entry, a check valve to reduce unnecessary cycling, and an internal protection circuit that detects a locked or frozen impeller. When the motor detects a locked condition it will automatically shut down and attempt timed rest cycles; if the impeller remains stuck it stays off up to 12 hours while checking twice daily for recovery.

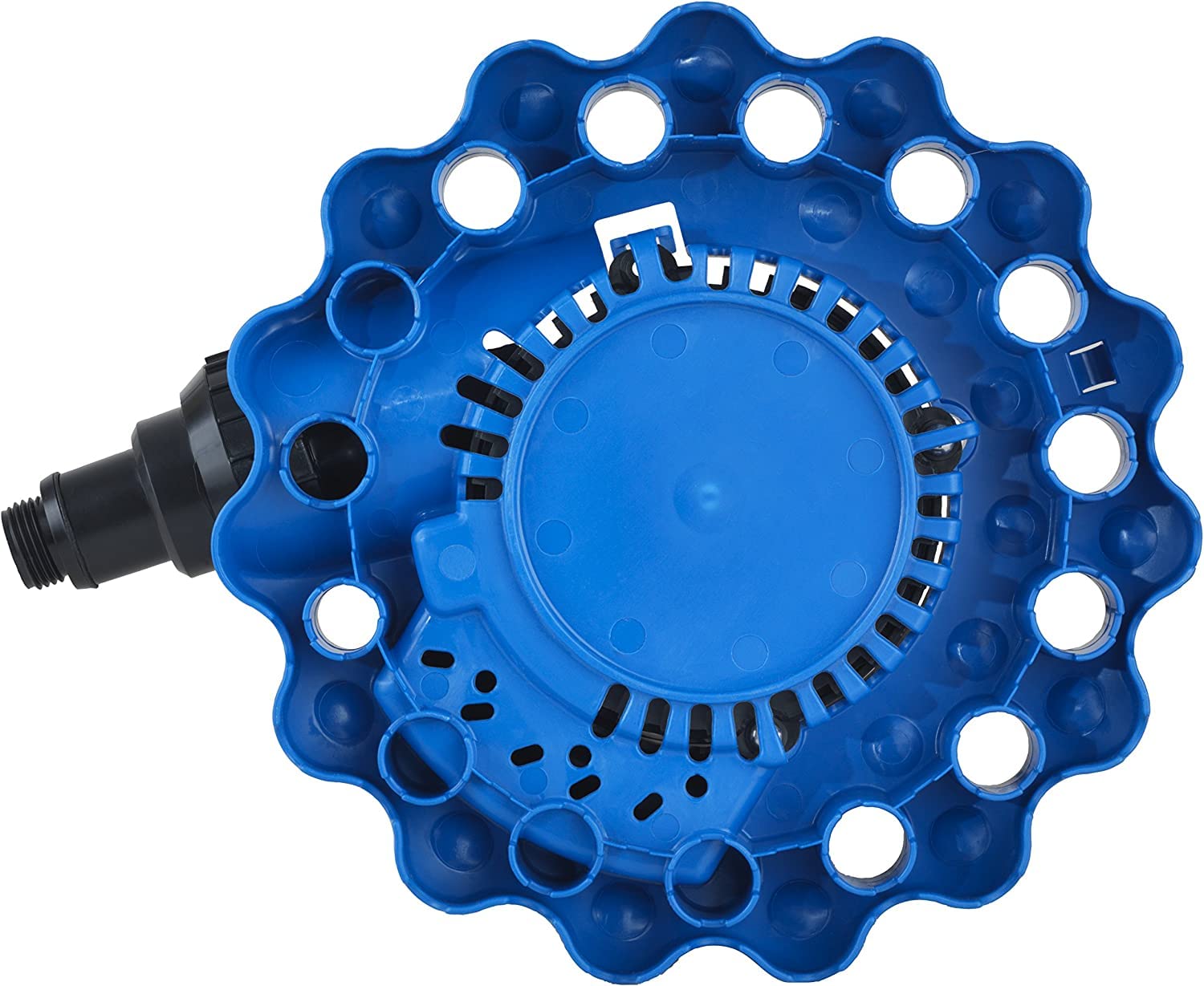

• Strainer base prevents clogging and tipping

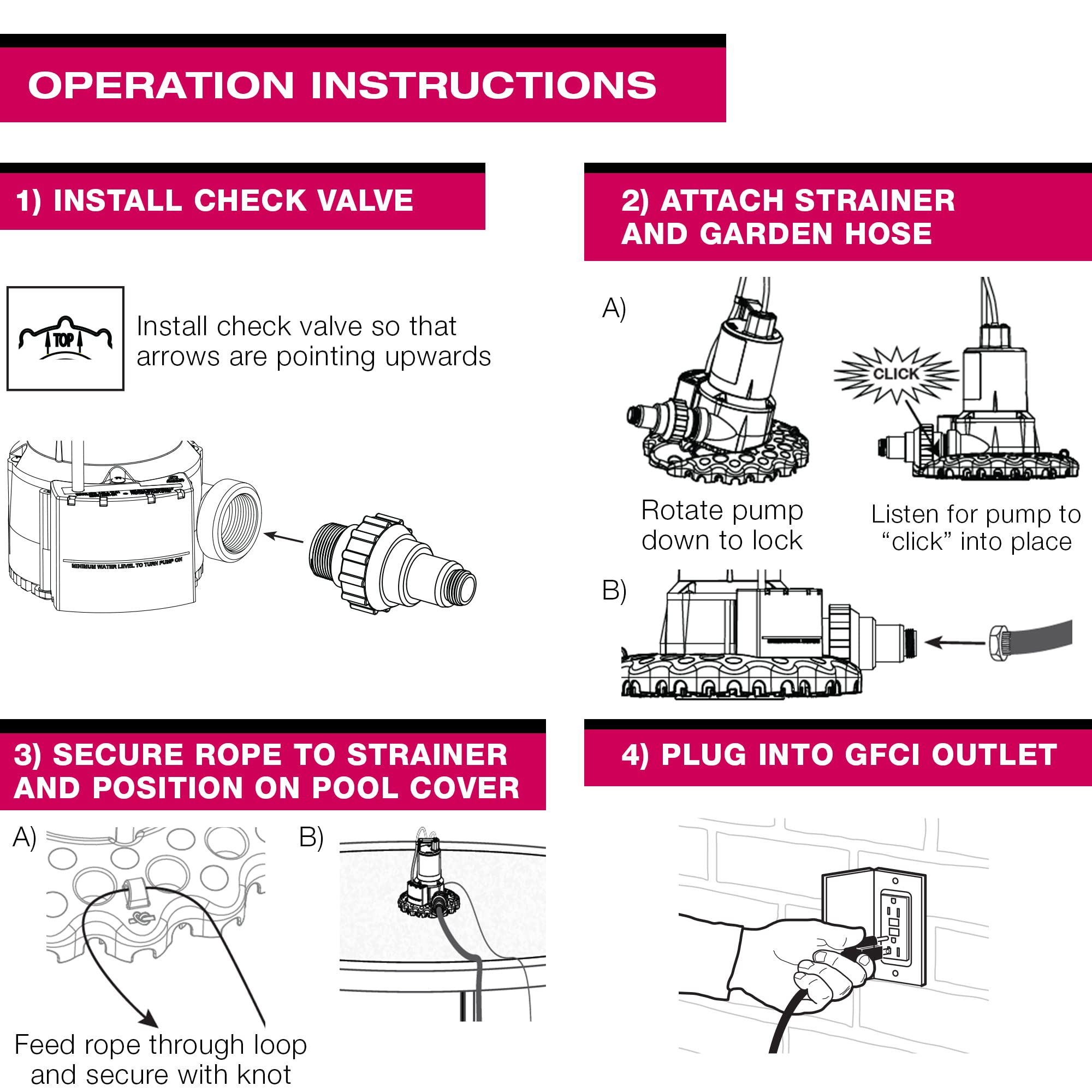

• Check valve with 3/4" garden-hose adapter to limit cycling
• Protection circuit prevents motor overheating from a locked impeller
• Automatic shutoff and retry sequence; manual reset by unplugging

What performance and accessories are included?

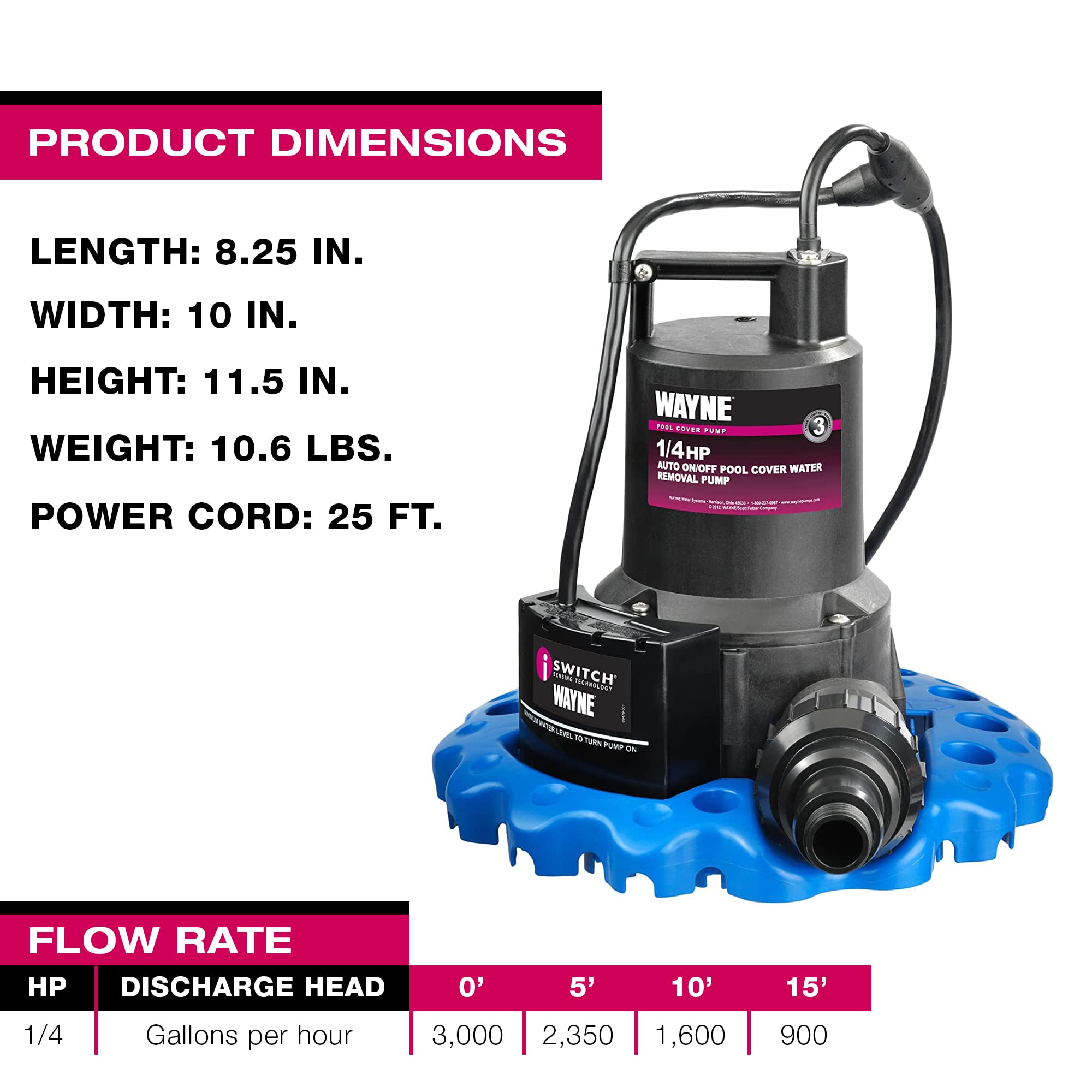

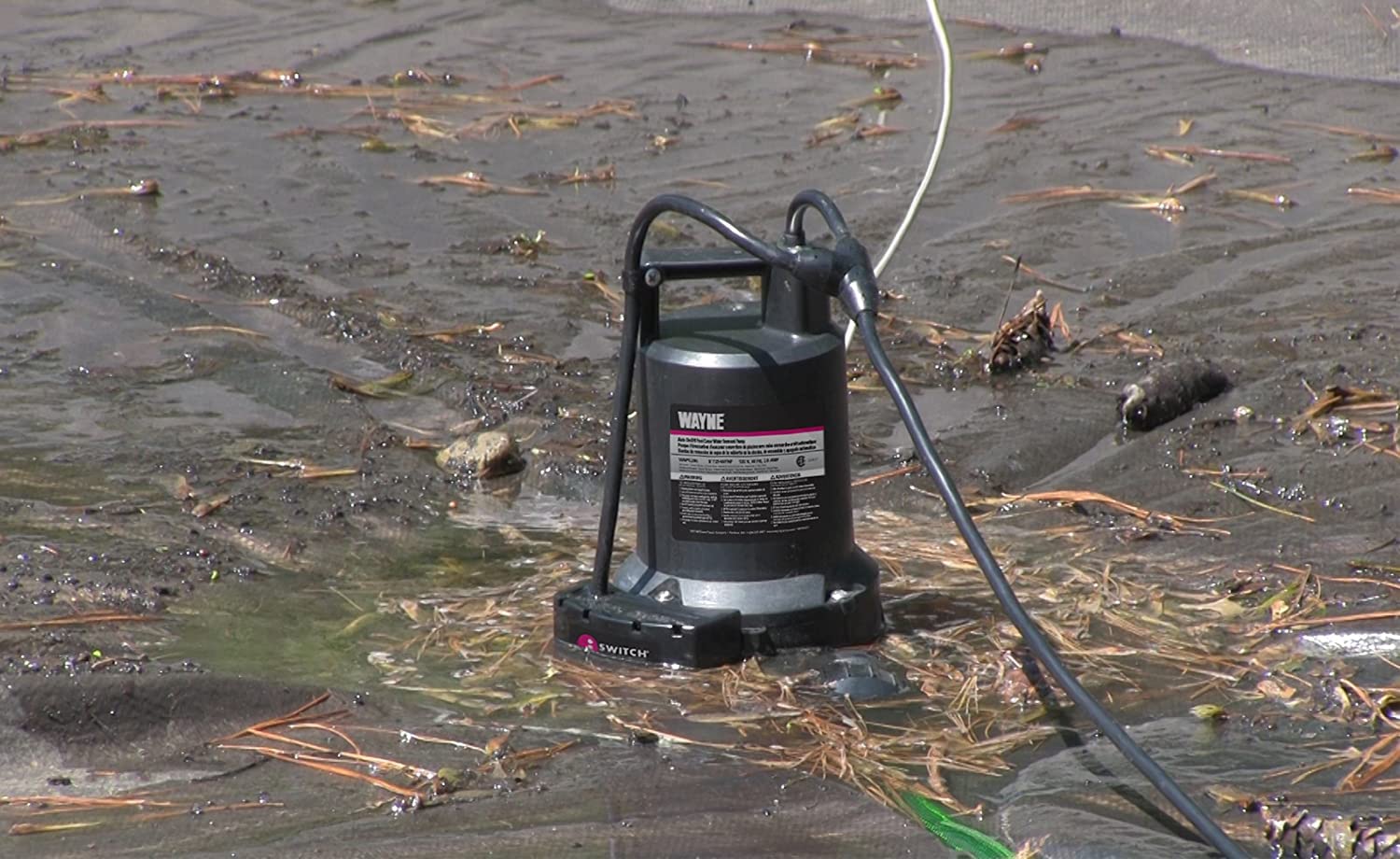

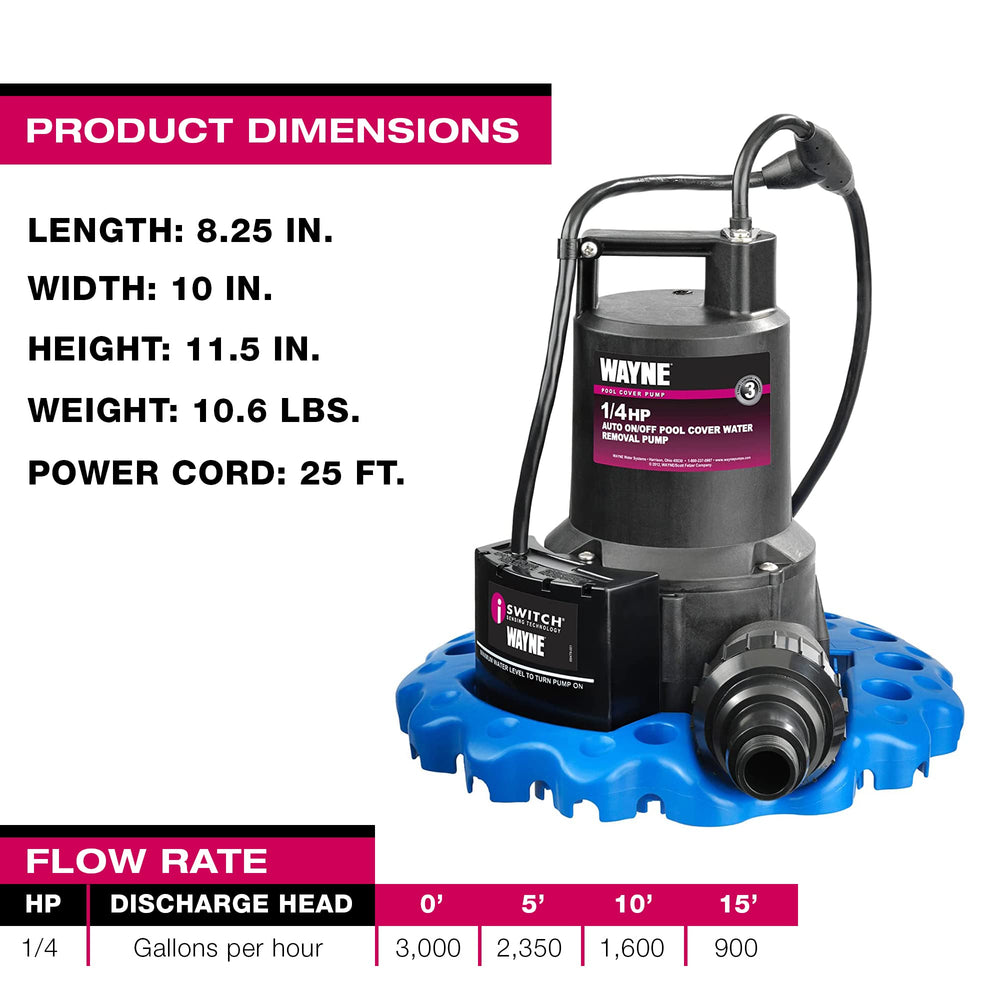

The WAPC250 is rated up to 3,000 gallons per hour using a 1-1/4" drain hose and is driven by a 1/4 HP oil-free motor for efficient water removal. Wayne provides a 25-foot power cord and a 25-foot "pull-to-shore" rope so you can position the pump from the deck. The package also includes a check valve with a 3/4" garden hose adapter for common hose connections.

• Maximum flow: 3,000 GPH with 1-1/4" hose
• 1/4 HP oil-free motor for efficient operation
• Includes 25-foot power cord and 25-foot positioning rope
• Comes with 3/4" adapter and check valve to reduce cycling

How should I store and maintain this pump to prolong life?

To avoid freeze damage, remove the WAPC250 from the pool cover and store it indoors when temperatures approach freezing. Periodically inspect the strainer and inlet for debris, and clear any obstructions. If the unit triggers its protection circuit due to a locked impeller, unplugging briefly will reset the delay rather than waiting the full 12 hours.

• Store indoors during freezing conditions to prevent ice damage
• Check and clear strainer of leaves and debris regularly
• Reset protection delay by unplugging briefly if needed
• Always plug into a GFCI outlet for safety

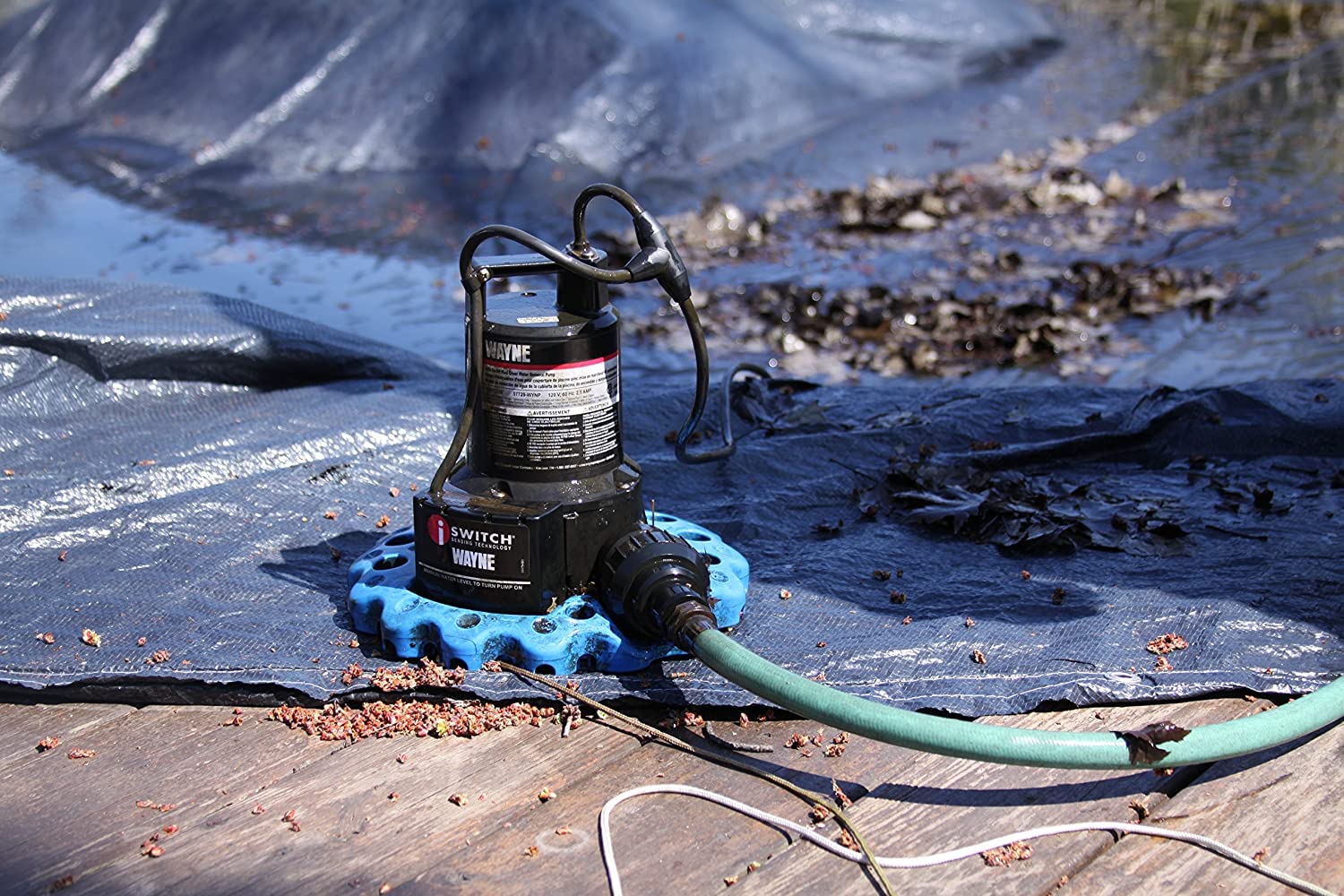

Who is this for: The WAYNE WAPC250 is aimed at pool owners who use solid or mesh safety covers and need a reliable, automatic method to remove rainfall and meltwater without constant monitoring. It's a practical choice for residential pools where high flow, freeze protection, and low-maintenance operation are priorities. Contractors and pool service professionals who manage winterization or seasonal cover care will also appreciate the included accessories and rugged construction.
