vuicci 30A Boost MPPT Solar Charge Controller — 48/60/72V Output, 1200W, Color LCD

The VUICCI 30A Boost MPPT Solar Charge Controller converts low-voltage solar panel input (12–60V) into stable 48V/60V/72V outputs while delivering up to 1200W with a high-efficiency boost topology.

This compact, all-metal controller combines advanced MPPT tracking with a built-in boost converter so panels that would otherwise under-perform can reliably charge higher-voltage battery banks. Designed for RVs, golf carts, yachts and small off-grid systems, it supports multiple battery chemistries, runs an HD color LCD for live data, and includes smart cooling and comprehensive protections for sustained outdoor use.

How does the boost MPPT design improve panel performance?

The integrated boost stage raises panel voltage when needed so lower-voltage modules can charge 48V/60V/72V battery systems efficiently. The MPPT algorithm continuously finds the optimal power point to maximize harvest even in partial shade.

• Boost range: accepts 12–60V panel input and outputs steady 48/60/72V.
• High tracking: up to 99% MPPT tracking accuracy for better yield.
• Conversion efficiency: up to 98% ensures minimal energy loss.
• Works with panel array sizes from about 10W to 1200W.

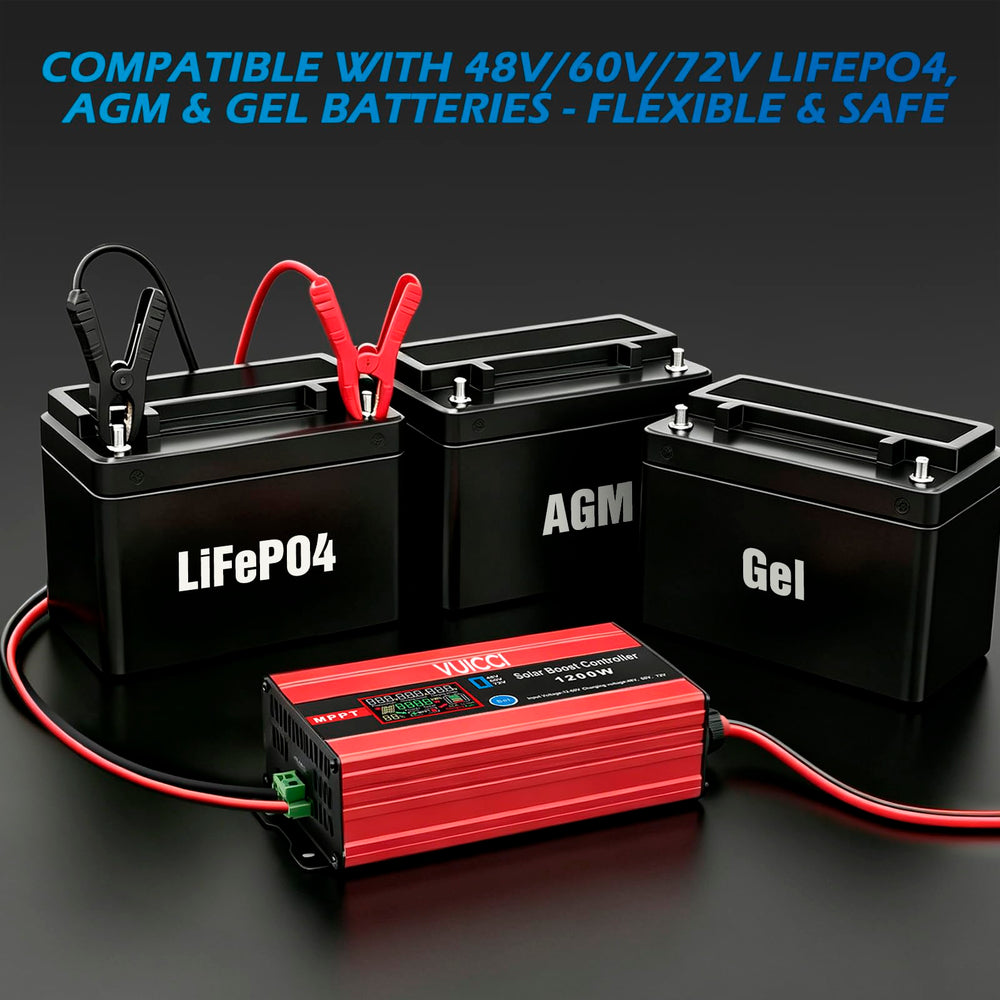

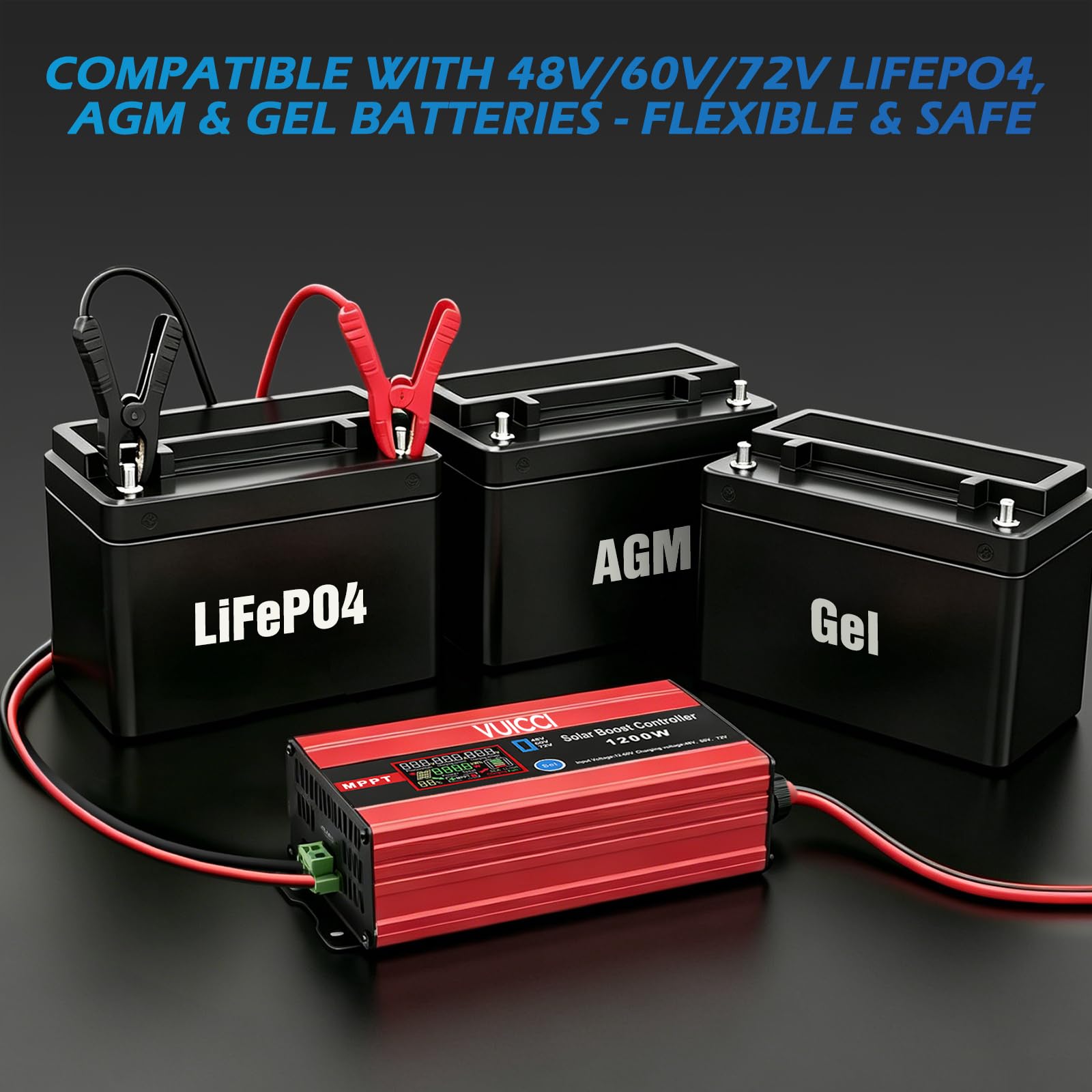

Which battery types and system voltages are supported?

VUICCI engineered this controller to be battery-chemistry agnostic for common off-grid setups. Selectable profiles and safe charge currents let you match charging behavior to LiFePO4, ternary lithium, and conventional lead-based batteries.

• Compatible chemistries: LiFePO4, NMC/ternary lithium, lead-acid, AGM, and gel.
• Battery voltages: designed for 48V, 60V, and 72V systems.
• Current limits: up to 30A PV input and 15A battery charging current.

What protections and thermal features keep the controller reliable?

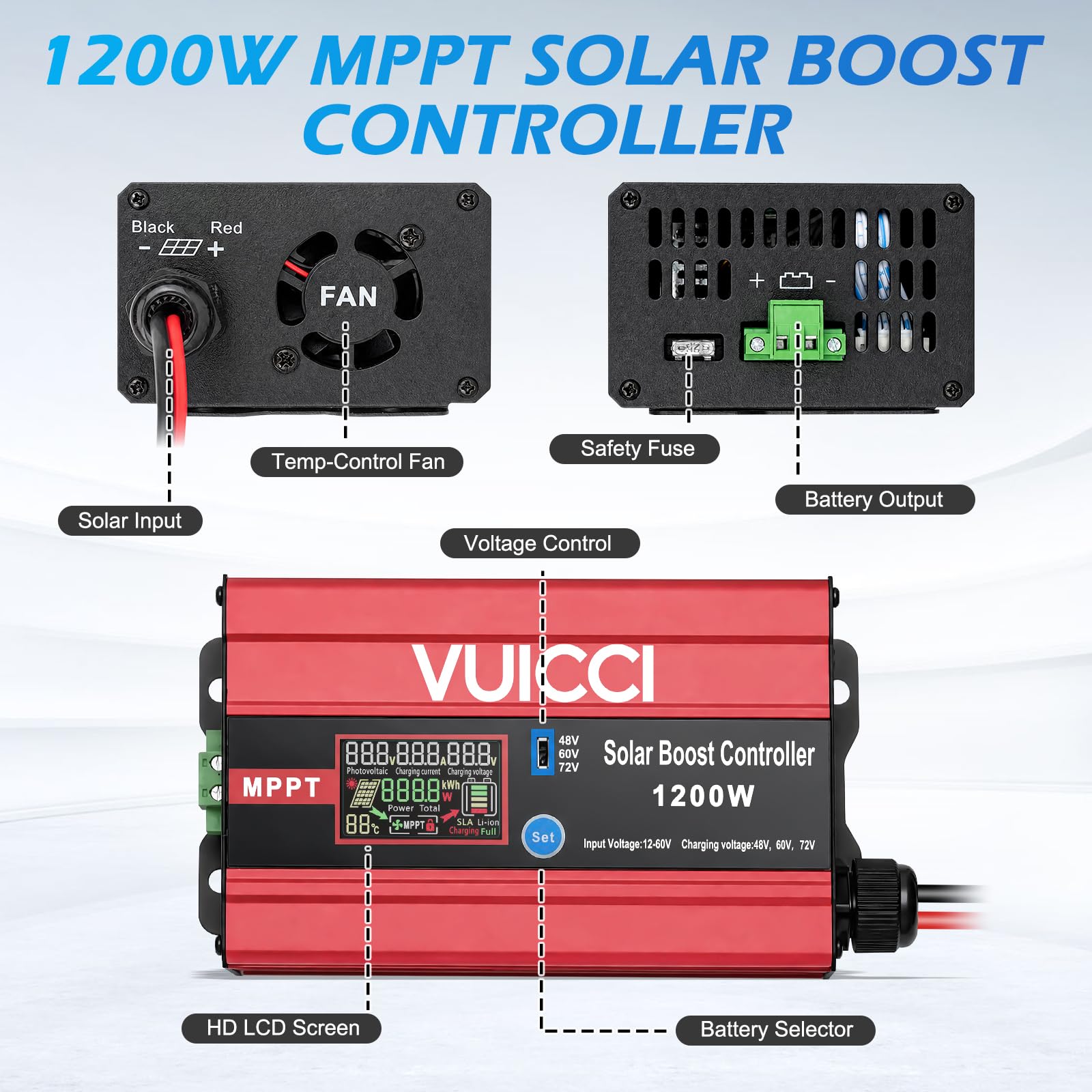

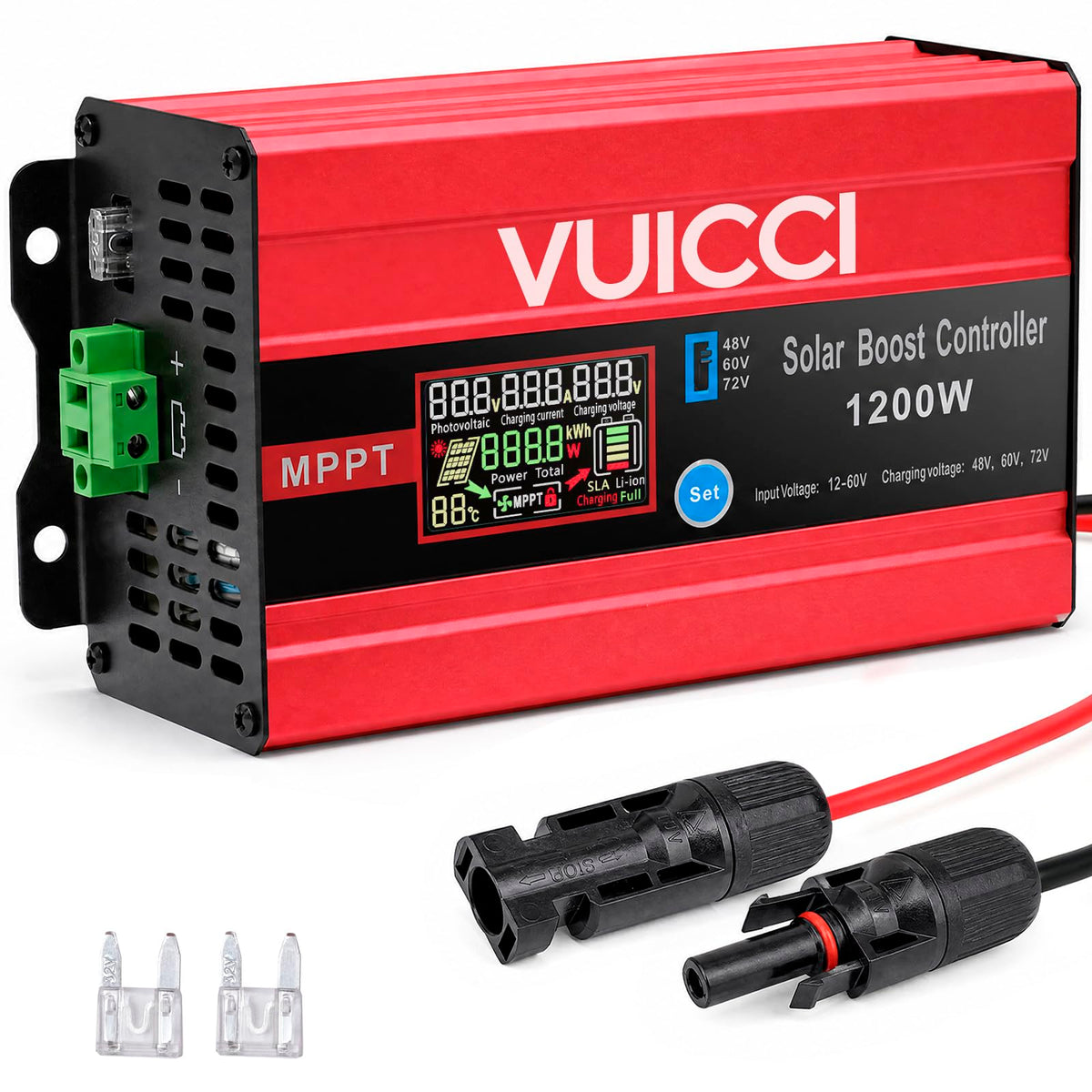

The unit comes in a rugged metal housing with an optimized airflow layout and an intelligent temperature-controlled fan. Multiple electrical safeguards protect both the controller and connected batteries under adverse conditions.

• Durable full-metal case for outdoor durability and heat conduction.
• Smart fan adjusts speed with temperature for quiet, efficient cooling.

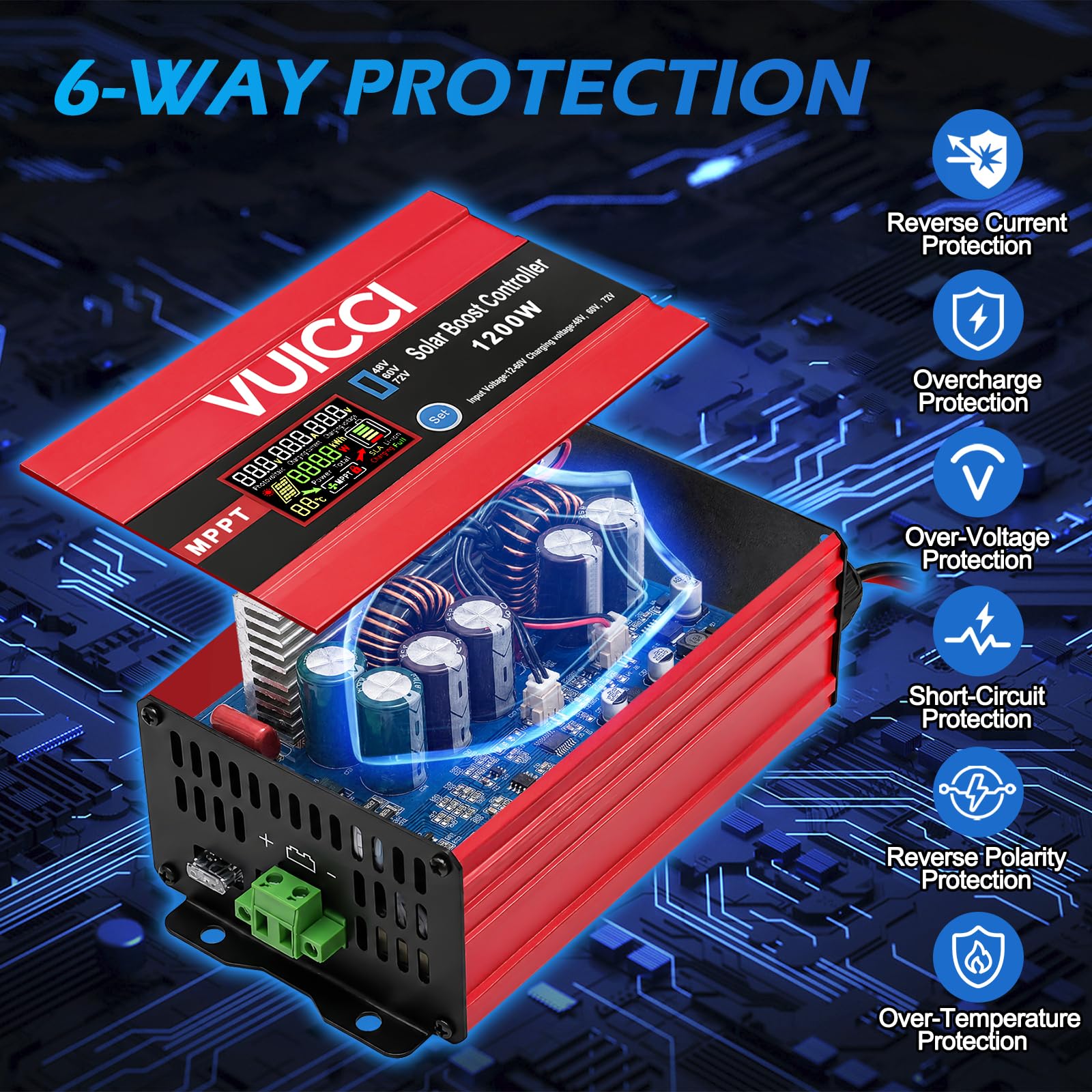

• Electrical protections: over-voltage, over-current, overload, overheating, reverse polarity, short-circuit, and low-voltage protection.

How easy is installation and monitoring?

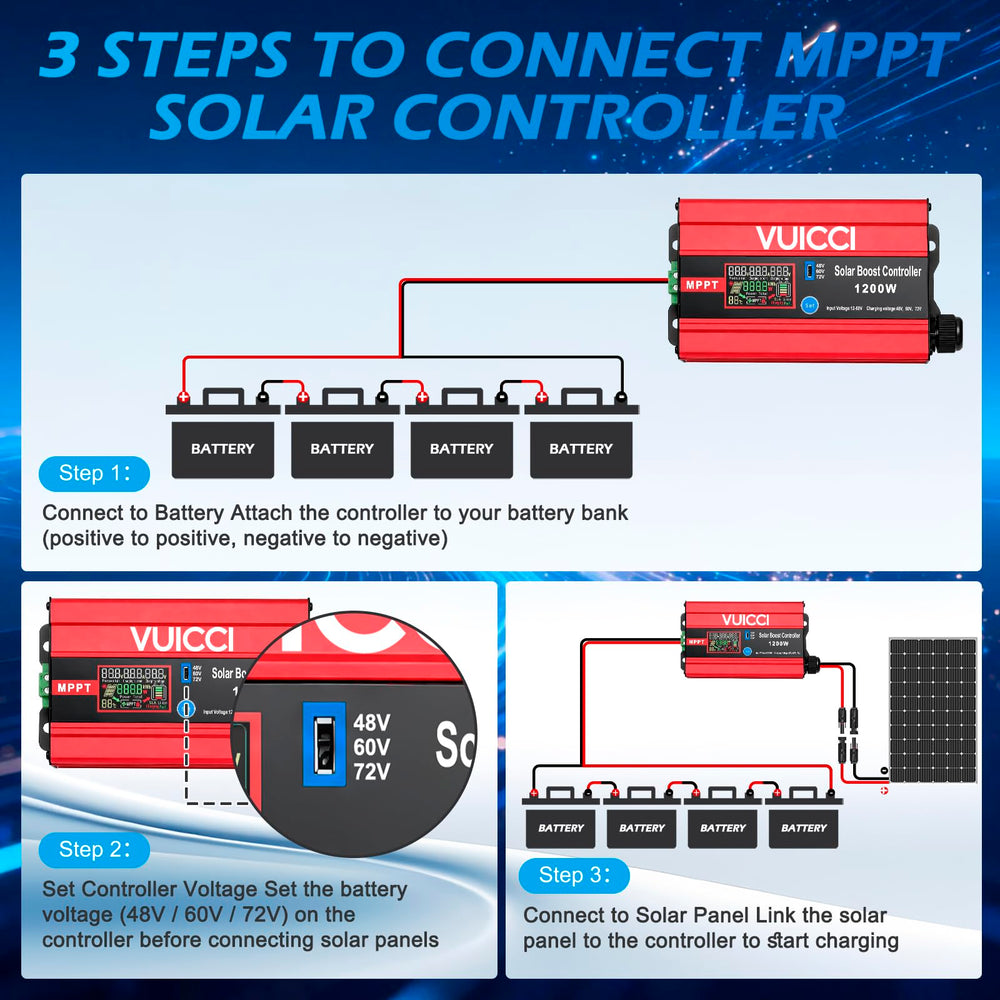

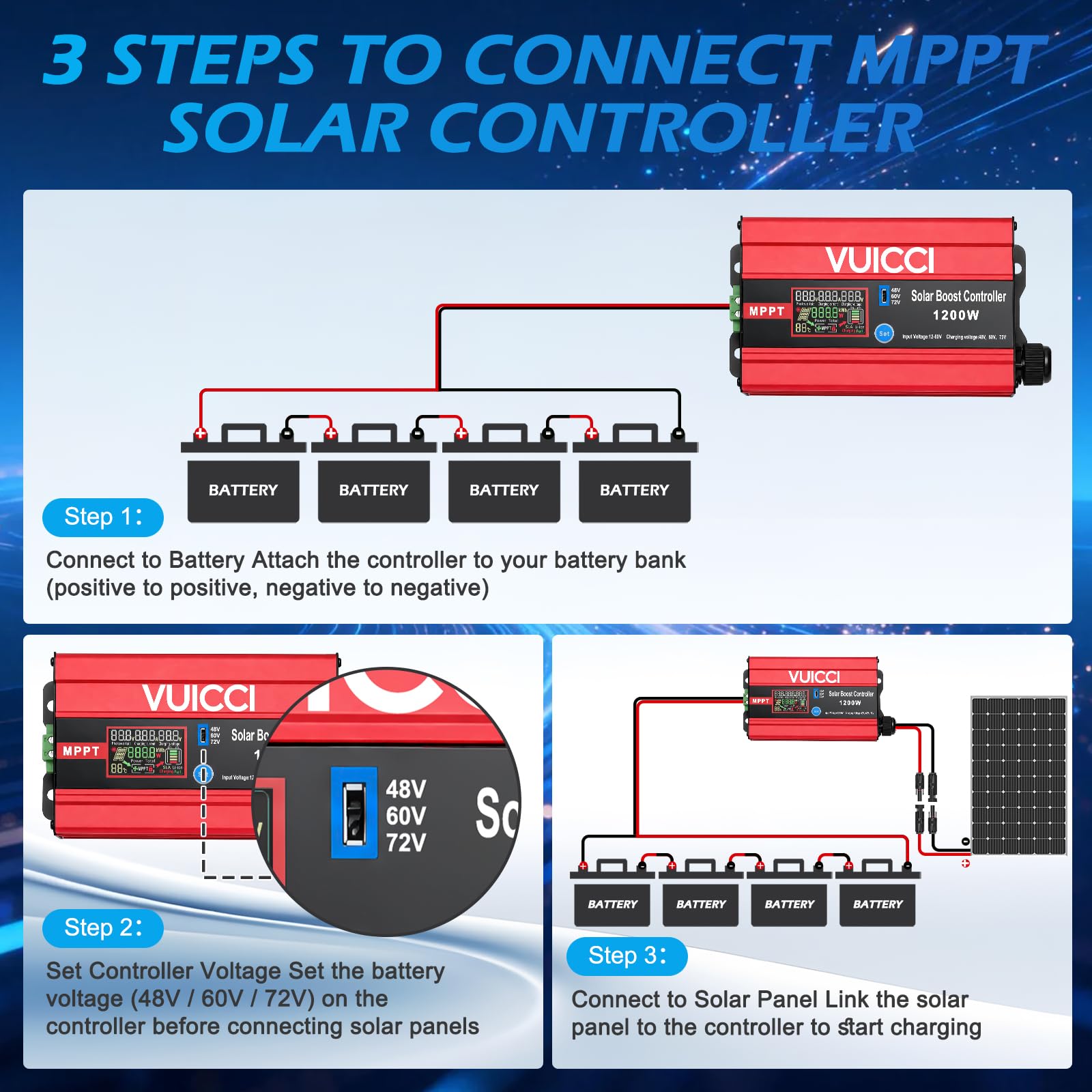

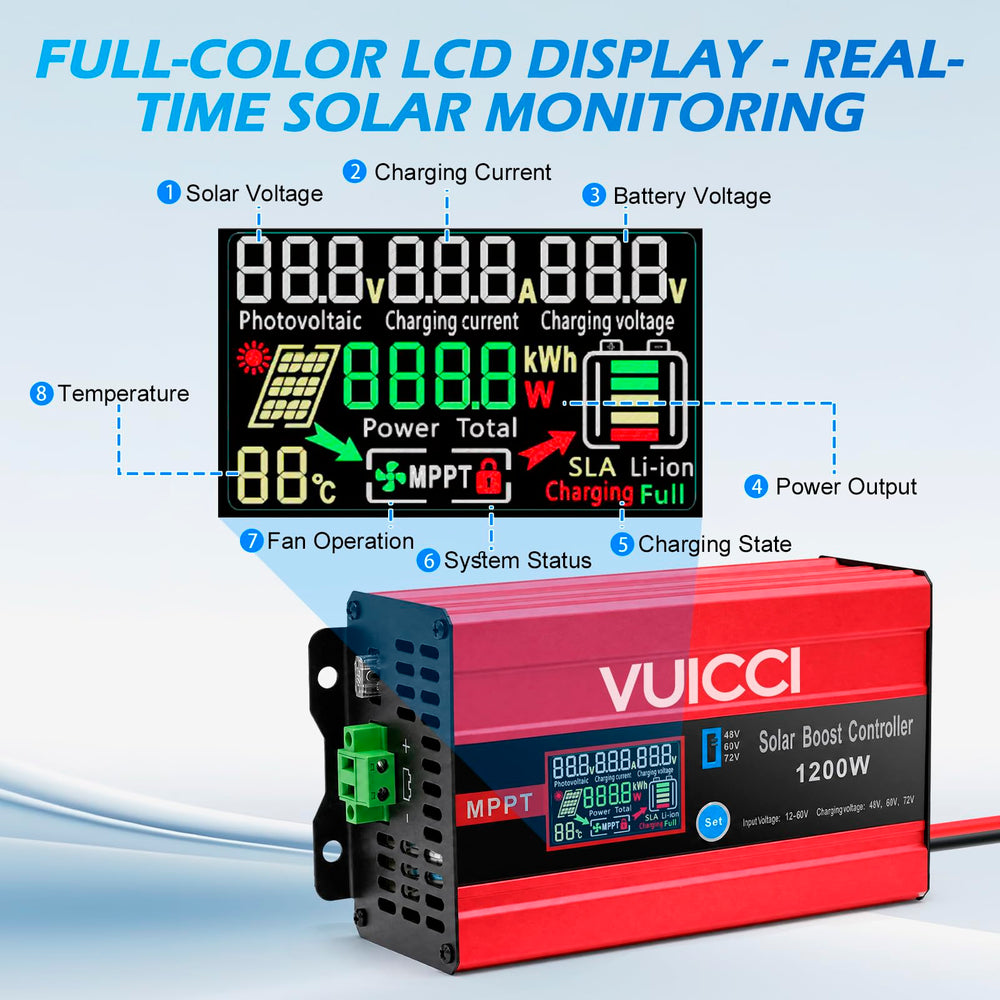

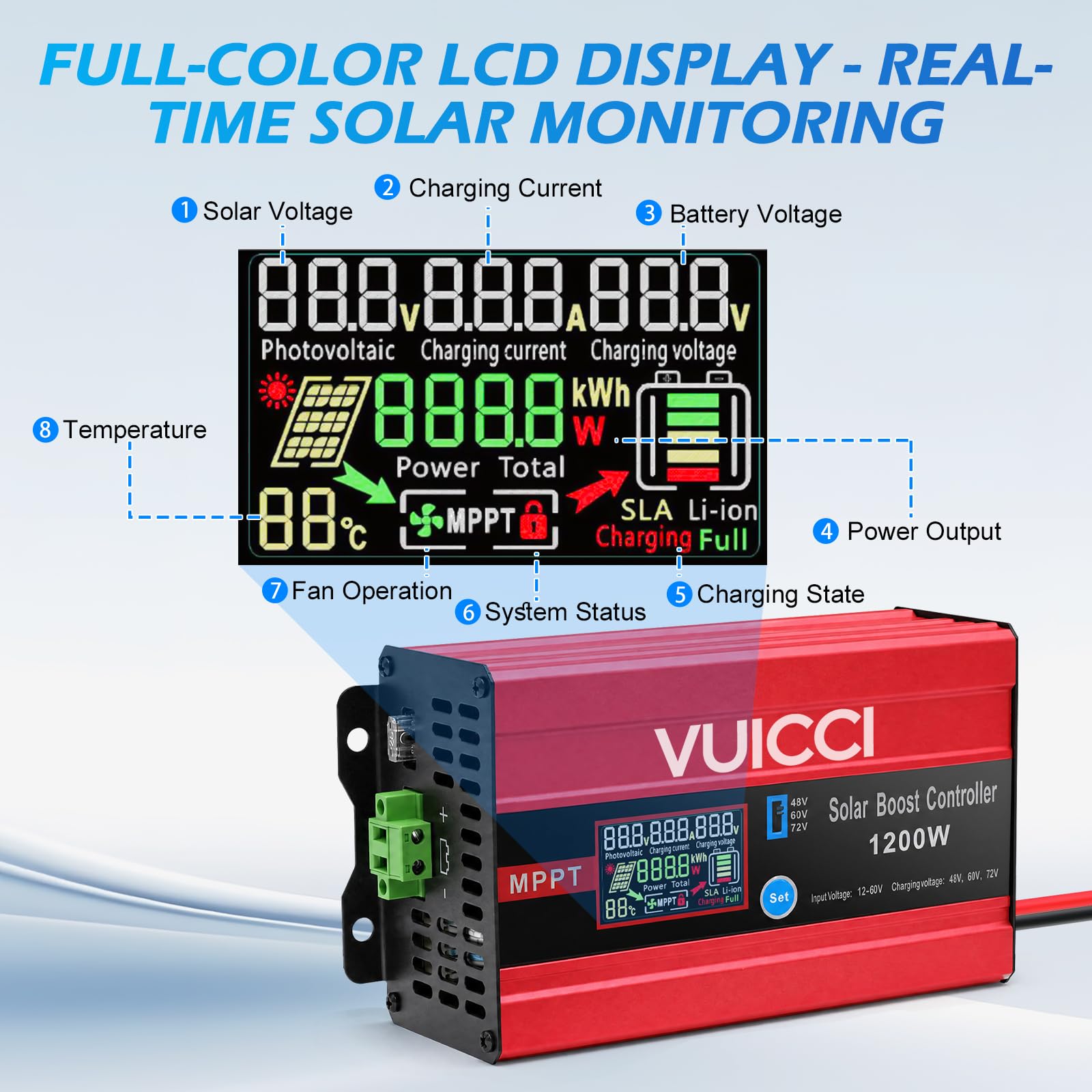

Installation uses MC4 plug-and-play wiring where possible and a compact footprint that fits tight spaces. The high-definition color LCD displays real-time voltage, current and power so you can verify system performance at a glance.

• Physical size: 6.7" × 2.36" × 3.7" and 1.8 lbs for flexible mounting.
• Interface: HD color LCD for instant system status and parameters.

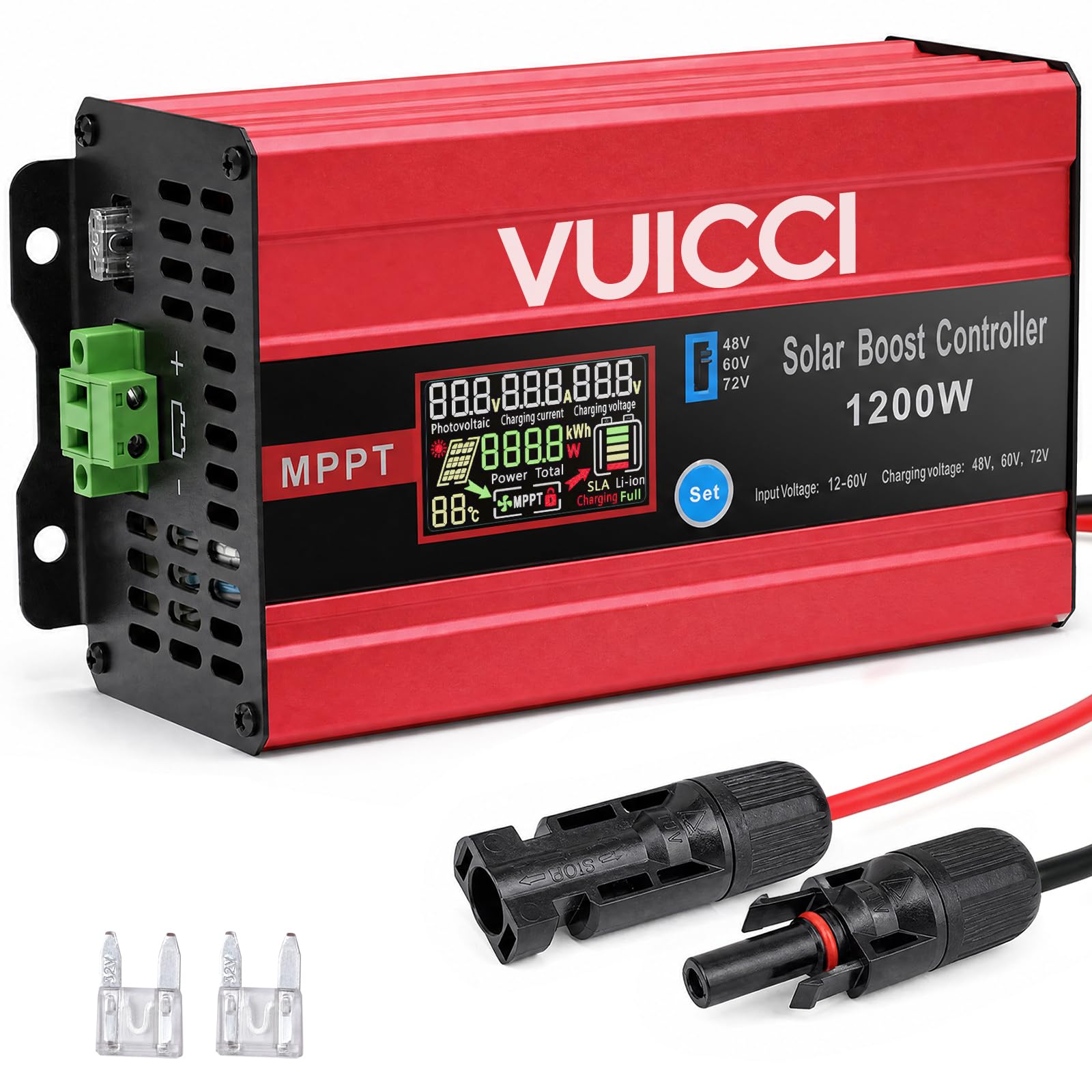

• Package contents: controller, English manual, and two spare fuses; backed by a 12-month warranty.

Who is this for? This controller is aimed at owners of small to medium off-grid systems who need to boost panel voltage to charge higher-voltage battery banks—ideal for RV and camper setups, electric golf carts, marine systems, and compact off-grid cabins. It suits DIY installers and professionals who value high MPPT accuracy, multi-chemistry support, durable metal construction, and straightforward monitoring in a small footprint.
