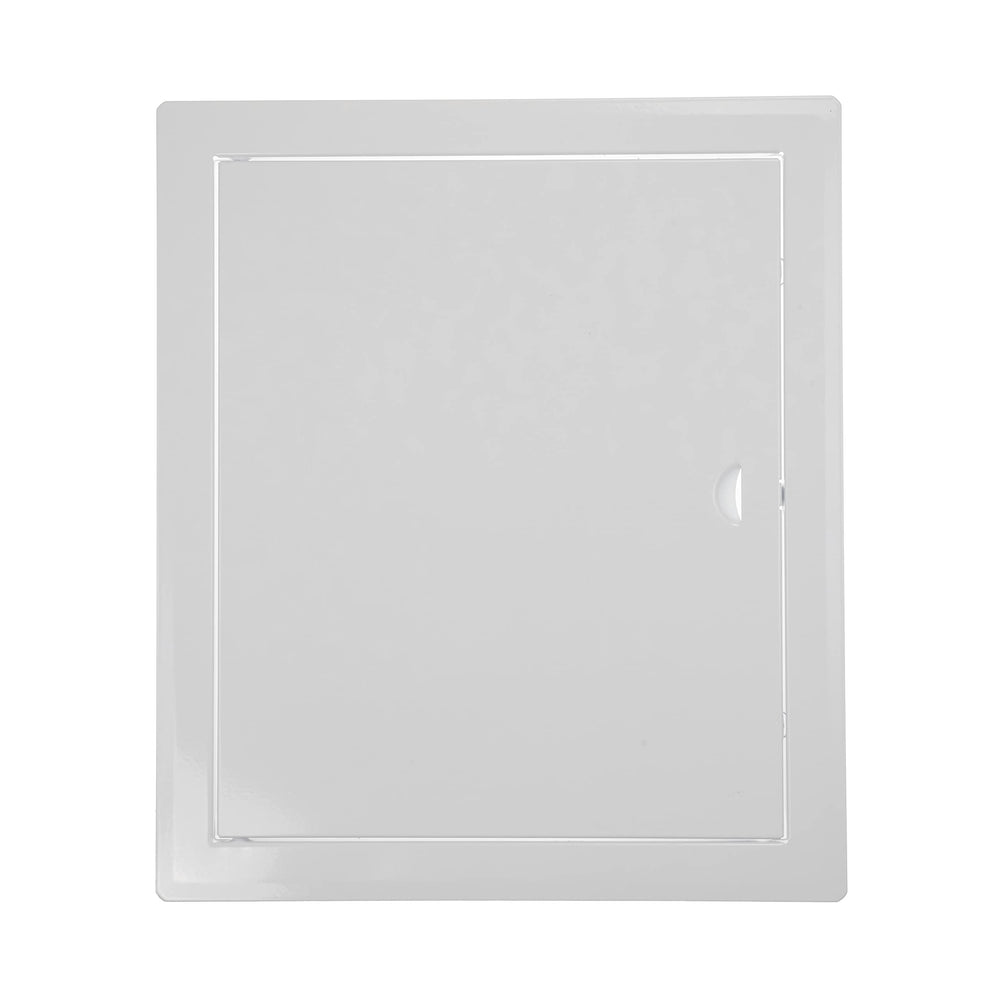

Vent Systems 10 x 12 Drywall Access Panel — Metal Wall Access Door, Epoxy‑Coated Steel, Flush Handle

The Vent Systems 10 x 12 drywall access panel is a metal wall access door that provides a neat, secure opening for plumbing, electrical, and crawlspace access in interior walls.

Designed for mounting in drywall, plasterboard, or sheetrock, this Vent Systems access panel combines a polished epoxy-coated steel face with a simple hinge-and-handle mechanism to create a long-lasting, low-profile service hatch. The unit’s outer dimensions and neck depth make it suitable for common valve boxes, drain cleanouts and small service shafts where discrete, repeated access is required.

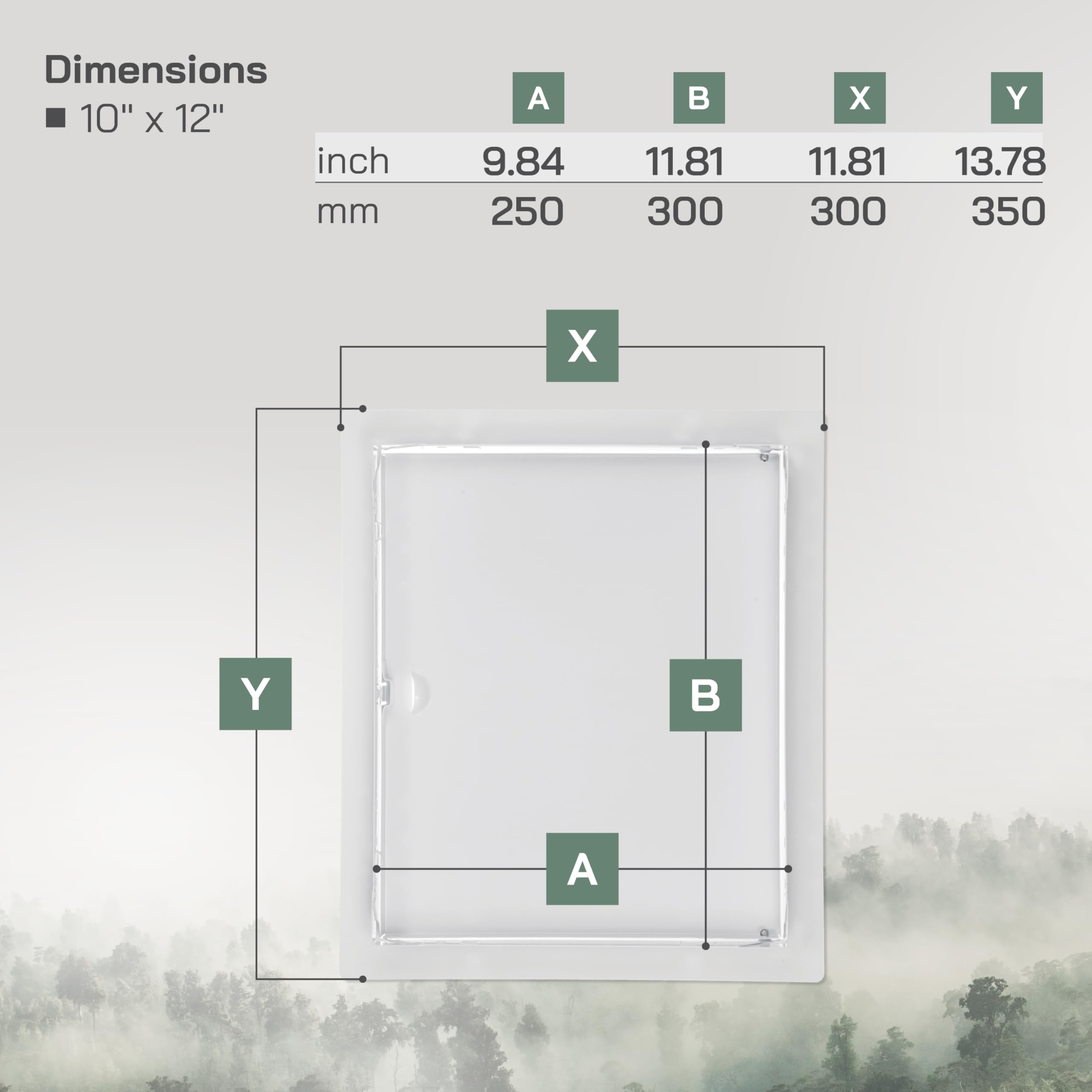

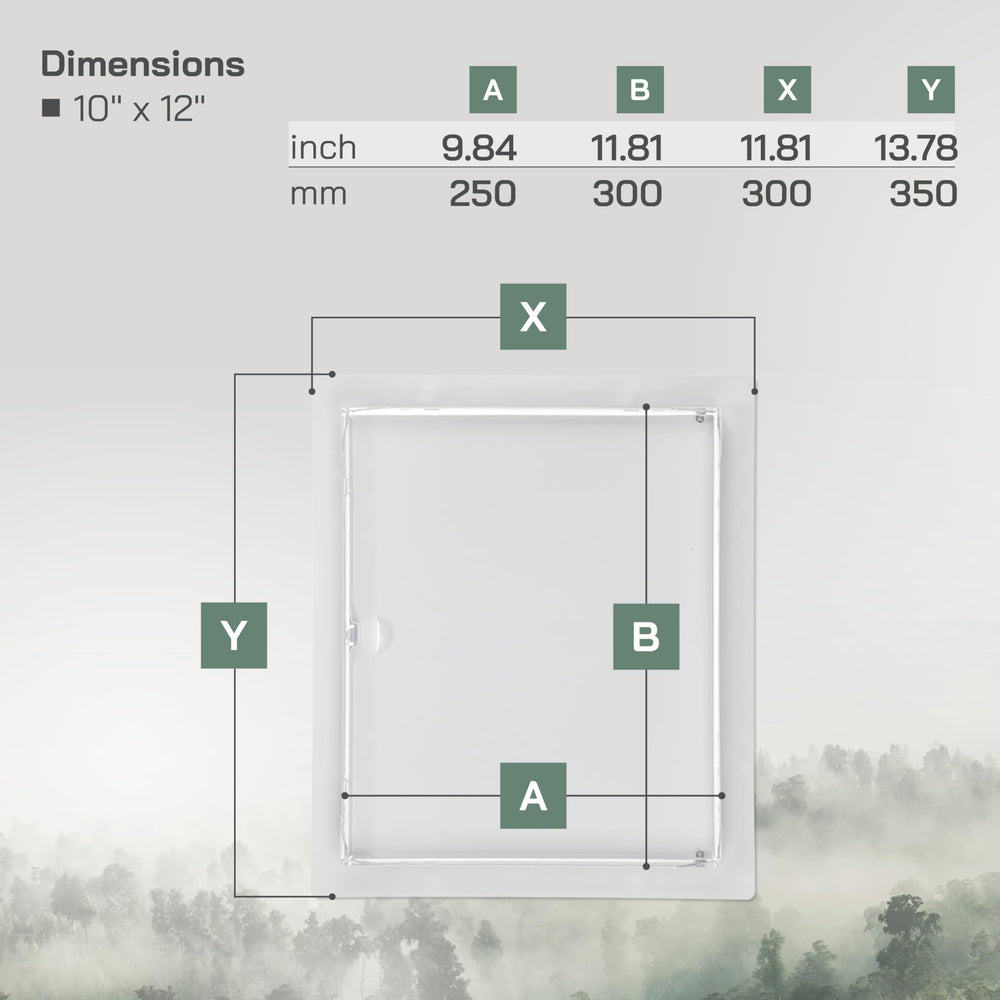

What exact opening and overall dimensions should I check before installing?

Measure your wall cutout and the available cavity before purchase to ensure a good fit. The recommended opening size and outer frame size are different, so confirm both.

• Required wall opening: 9.84" x 11.81" (neck fits this aperture)
• Outside frame dimensions: 11.81" x 13.78" — accounts for visible trim
• Neck depth: 0.98" — make sure internal clearance accommodates the depth

How does this access panel stand up to moisture and everyday wear?

The door is built from polished steel sheets finished with an epoxy coating that resists humidity and routine mechanical contact. It’s intended for interior locations where occasional exposure to moisture is likely, such as bathrooms or utility rooms.

• Epoxy-coated steel resists rust and discoloration
• Rigid construction minimizes bending or deformation
• Suitable for high-humidity interior use, not rated for exterior exposure

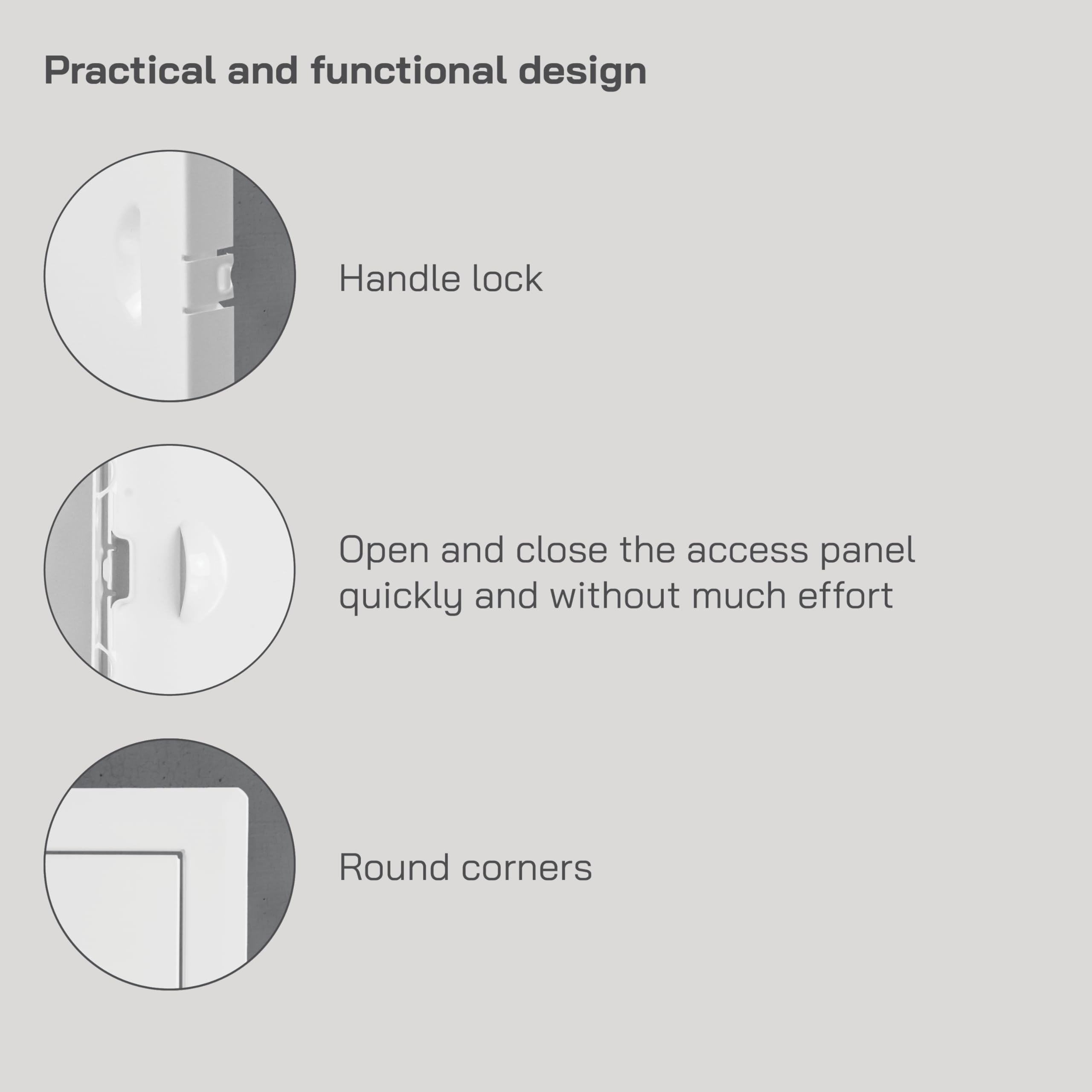

How easy is it to open, close, and secure the panel during inspections?

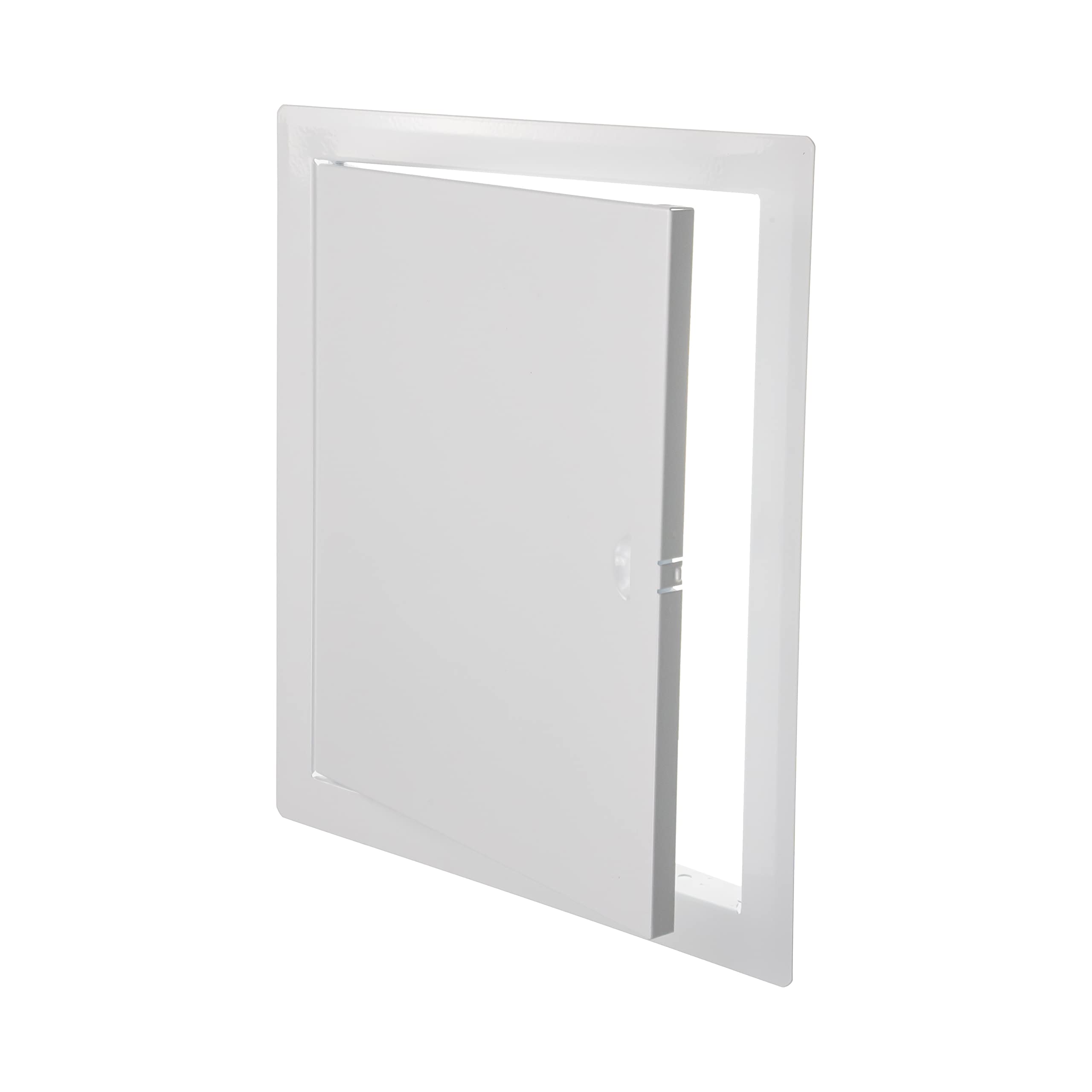

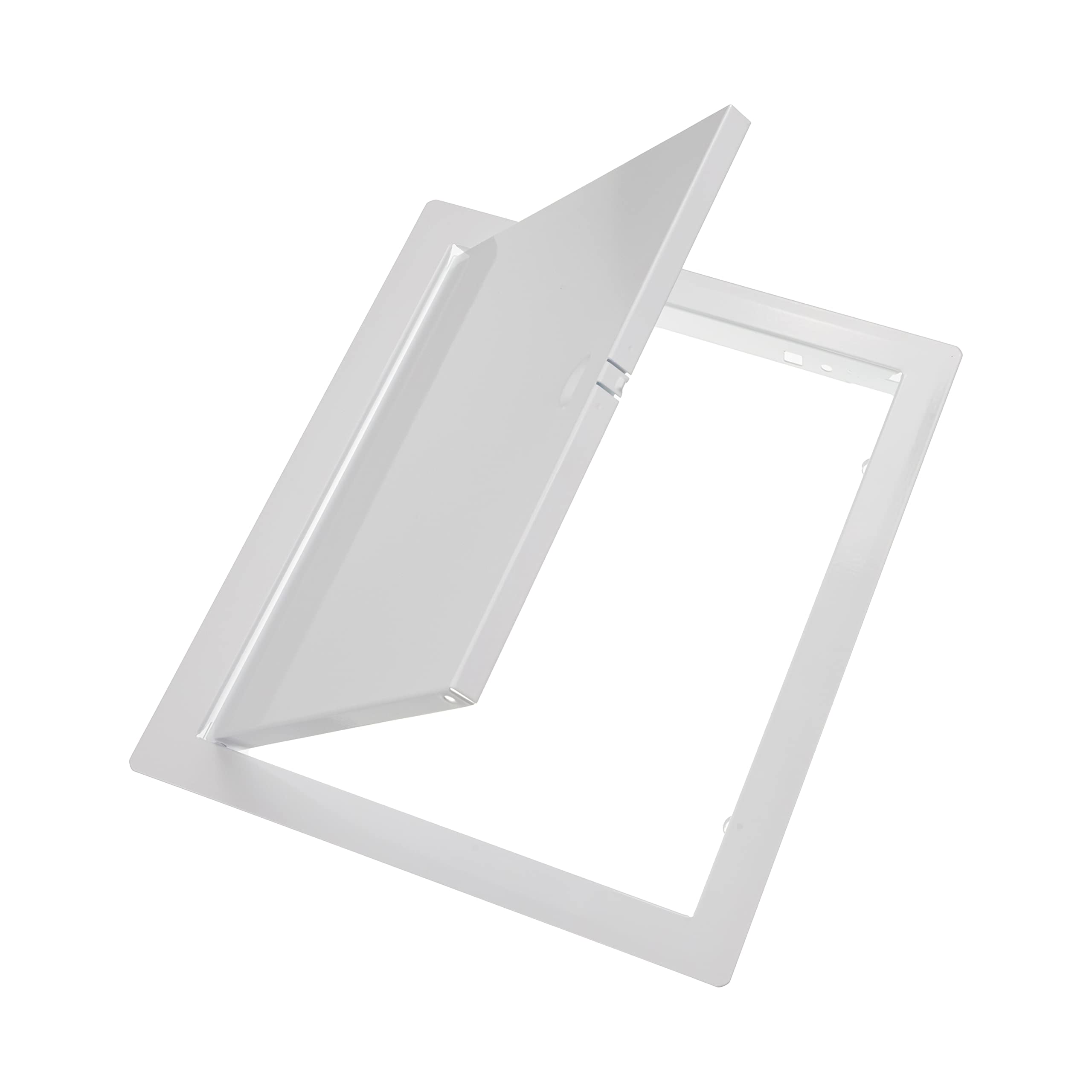

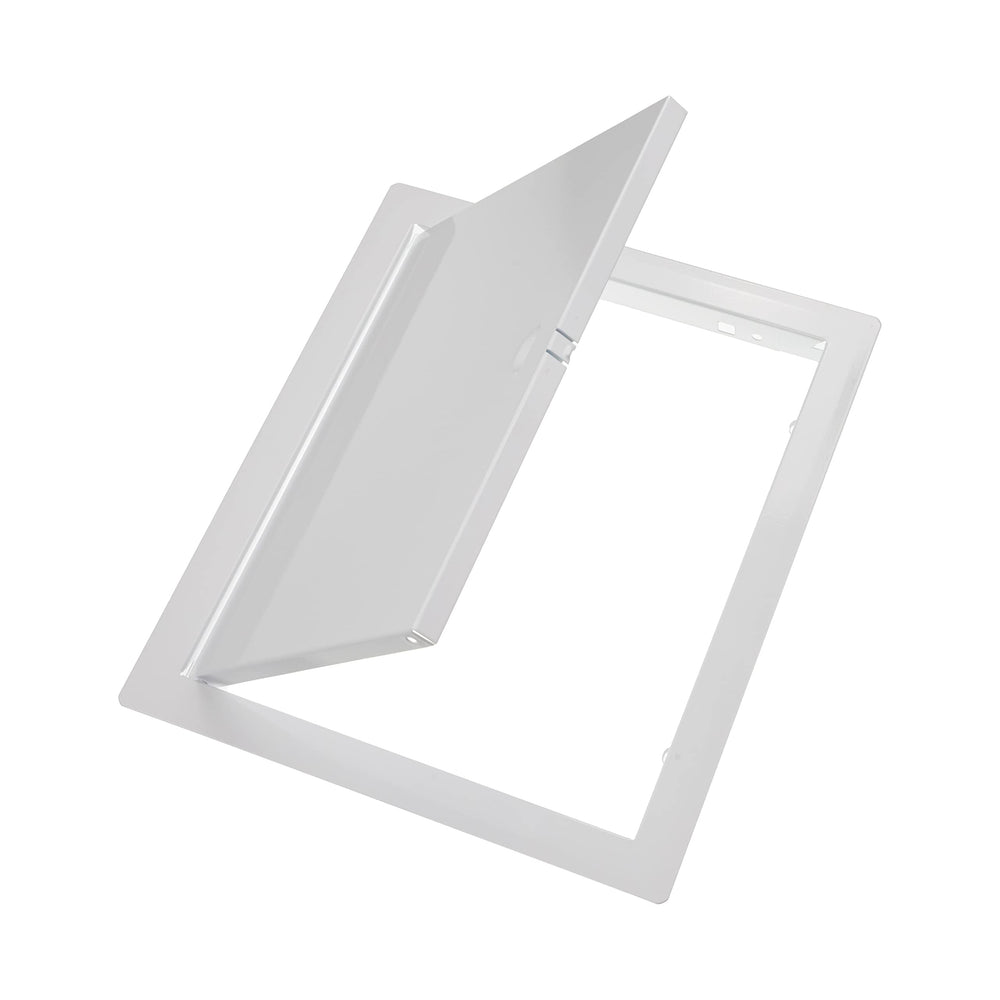

The integrated hinge design gives smooth, reliable opening and keeps the door stable when open for hands-free access. The contoured handle is designed for an easy grip so you can reach valves or cables quickly.

• Sturdy hinge ensures door stays aligned in the frame
• Ergonomic handle for quick, repeatable access

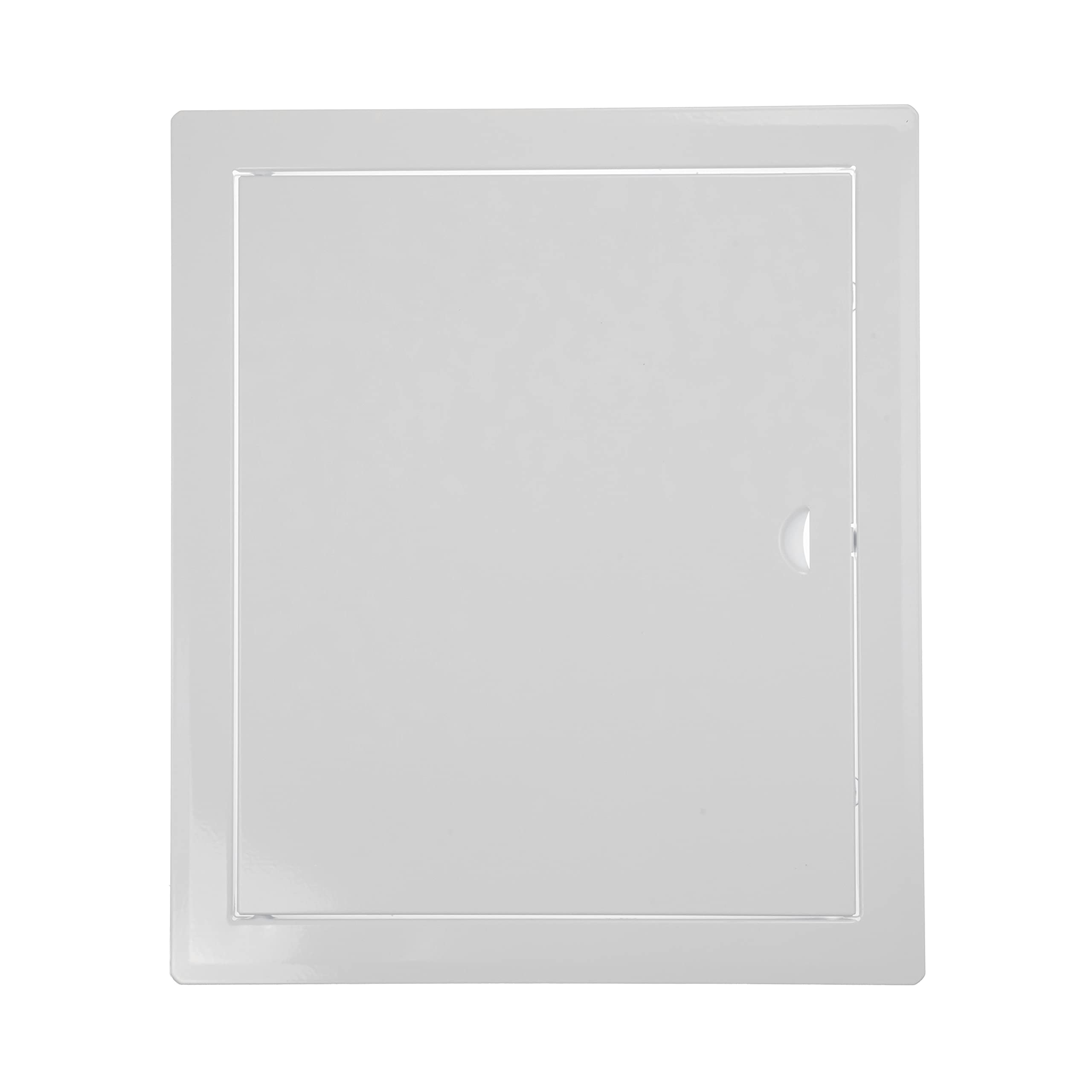

• Panel fits flush to keep a clean finished look when closed

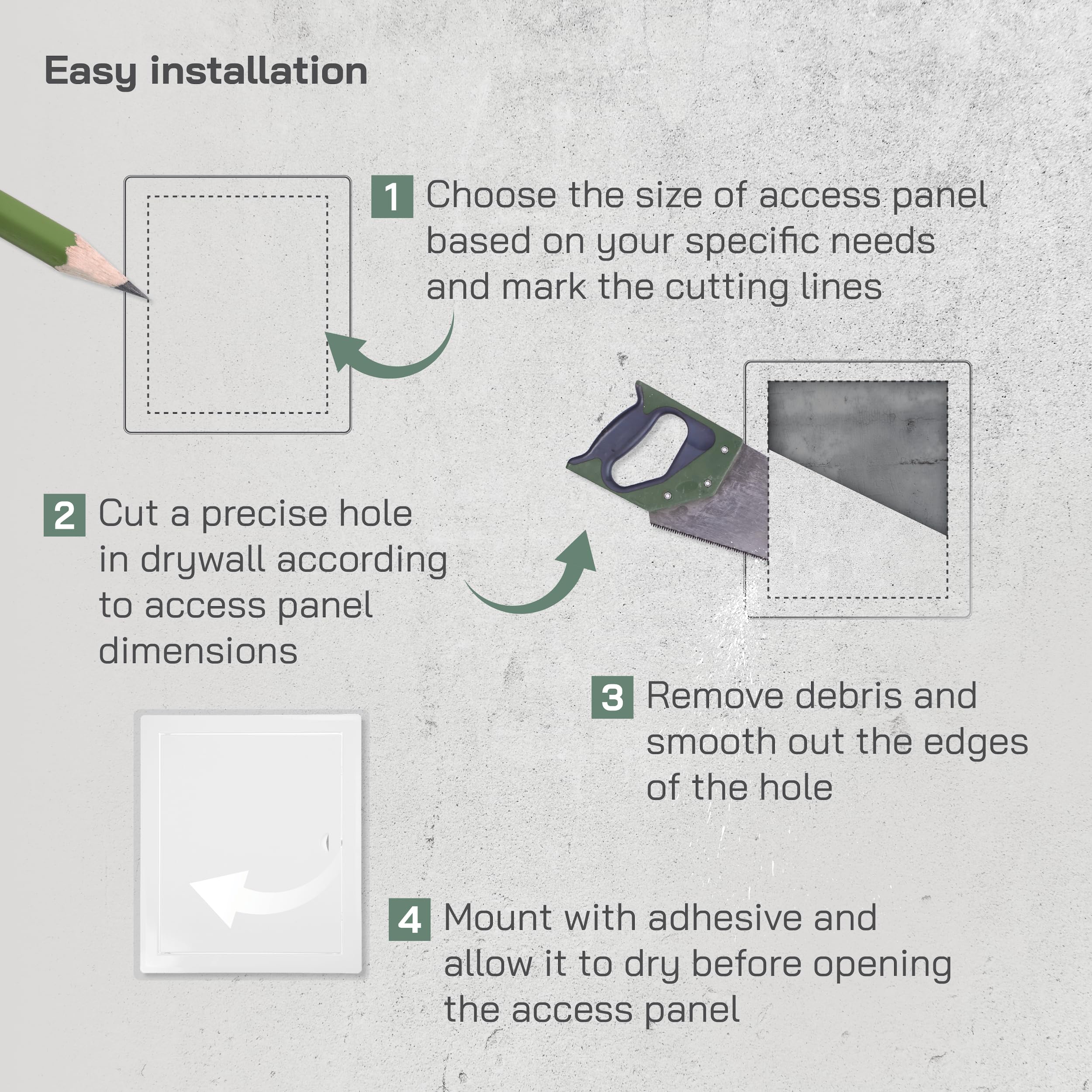

What should I know about installing the access door in drywall or plasterboard?

Installation is straightforward for a competent DIYer or tradesperson, but mounting supplies are not included, so prepare the correct adhesive or fasteners and confirm the cutout first. Follow drying time for adhesive before using the hatch.

• Cut drywall opening to 9.84" x 11.81" to accept the neck
• Attach panel with suitable construction adhesive or mechanical fasteners (not provided)
• Allow adhesive to cure fully before opening the door

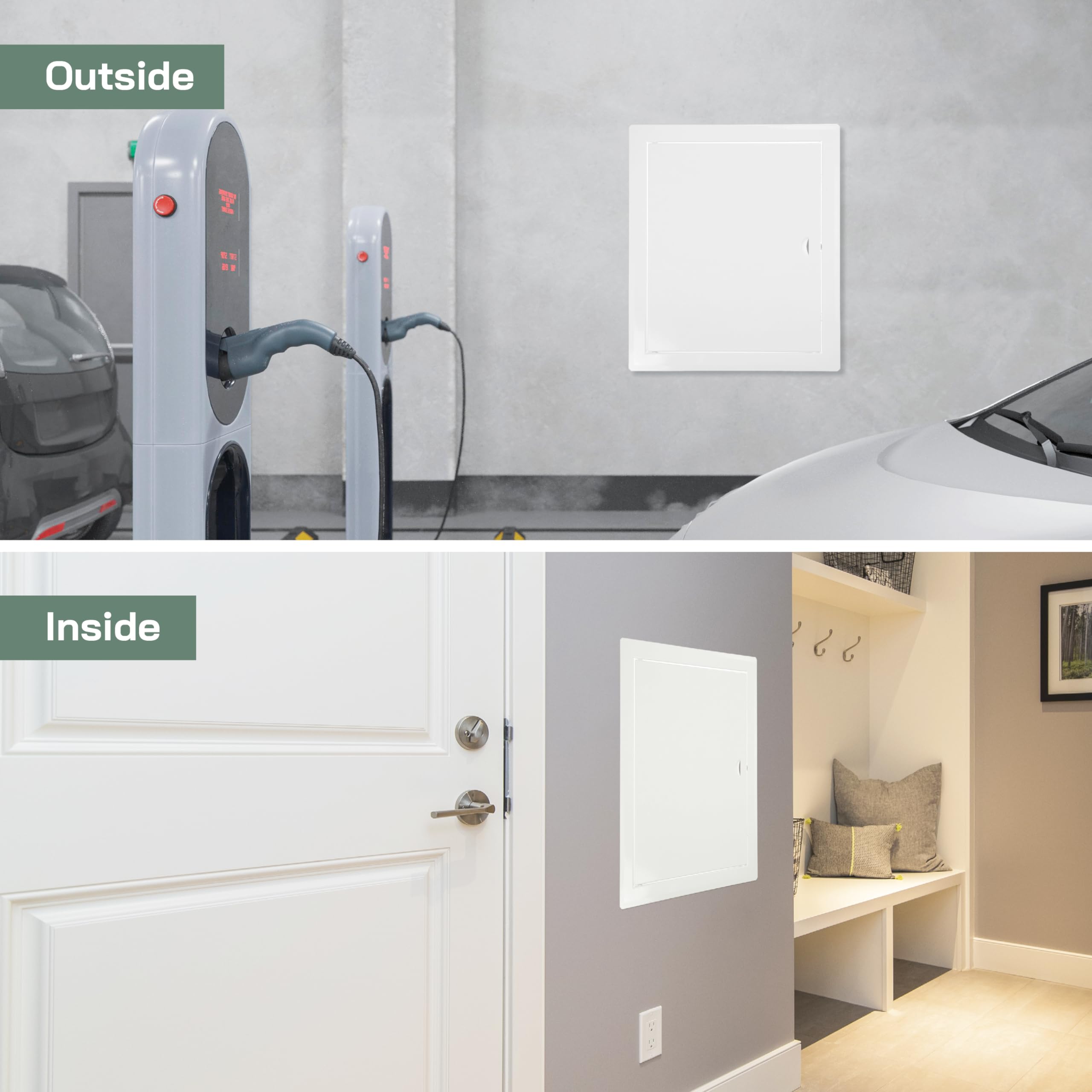

Who this is for: Installers, plumbers, electricians, contractors and homeowners who need a durable, low-profile access point for valves, drain cleanouts, cable junctions or small service shafts. Choose this Vent Systems panel if you want a corrosion-resistant metal hatch with a professional finished appearance for interior walls in bathrooms, garages, utility closets and other service areas.
