Vansdon Solar Panel Extension Cable 2x50ft 12AWG (Red/Black) — Waterproof, Low‑Loss

Vansdon's 2x50ft 12AWG solar extension cable is a weatherproof, high-conductivity red and black cable pair with preinstalled male and female waterproof connectors for extending RV and photovoltaic panel runs.

These paired 50-foot cables (one red, one black) are designed for outdoor solar systems where a reliable, low-loss connection and rugged weather resistance matter. Constructed with tinned copper conductors and thick flame-retardant insulation, the cables are certified for photovoltaic use and built to handle UV exposure, extreme temperatures, and long-term burial when needed. They simplify installation with factory-fitted male and female waterproof connectors that lock securely to standard solar module leads.

How do these cables reduce energy loss on my solar array?

The Vansdon cables use tin-plated copper conductors and a 12AWG (4 mm²) cross-section to deliver lower resistance and consistent conductivity across long runs. That means less voltage drop between the panel and charge controller or inverter, which preserves more of your generated power.

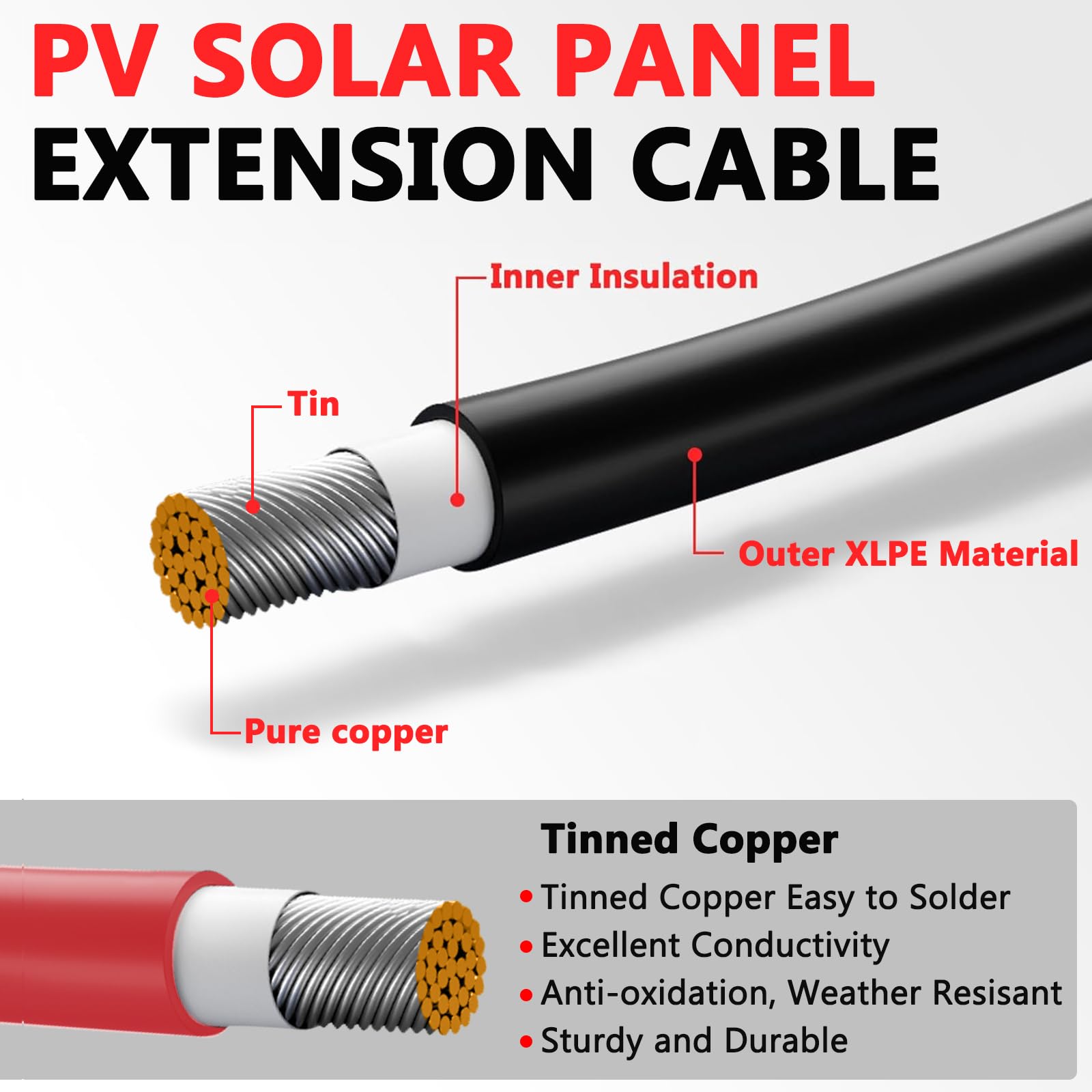

• Tinned copper improves corrosion resistance and maintains conductivity over time
• 12AWG (4mm²) supports rated currents up to 57A for typical PV setups
• Conductor resistance designed to minimize power loss on 50ft runs

Are these cables durable enough for outdoor and buried use?

Yes—the outer jacket is a thick PPO flame-retardant material rated for extreme temperatures and long-term UV exposure. The assembly meets IP67 waterproofing standards and TÜV/CE photovoltaic requirements, so it stands up to weather, sunlight, and direct burial when installed according to best practices.

• IP67-rated connectors resist water ingress in harsh conditions
• Temperature range from -40°C to 90°C (-40°F to 194°F)
• UV- and corrosion-resistant jacket suitable for rooftop, ground, or buried runs

How easy is installation and connection with these extension cables?

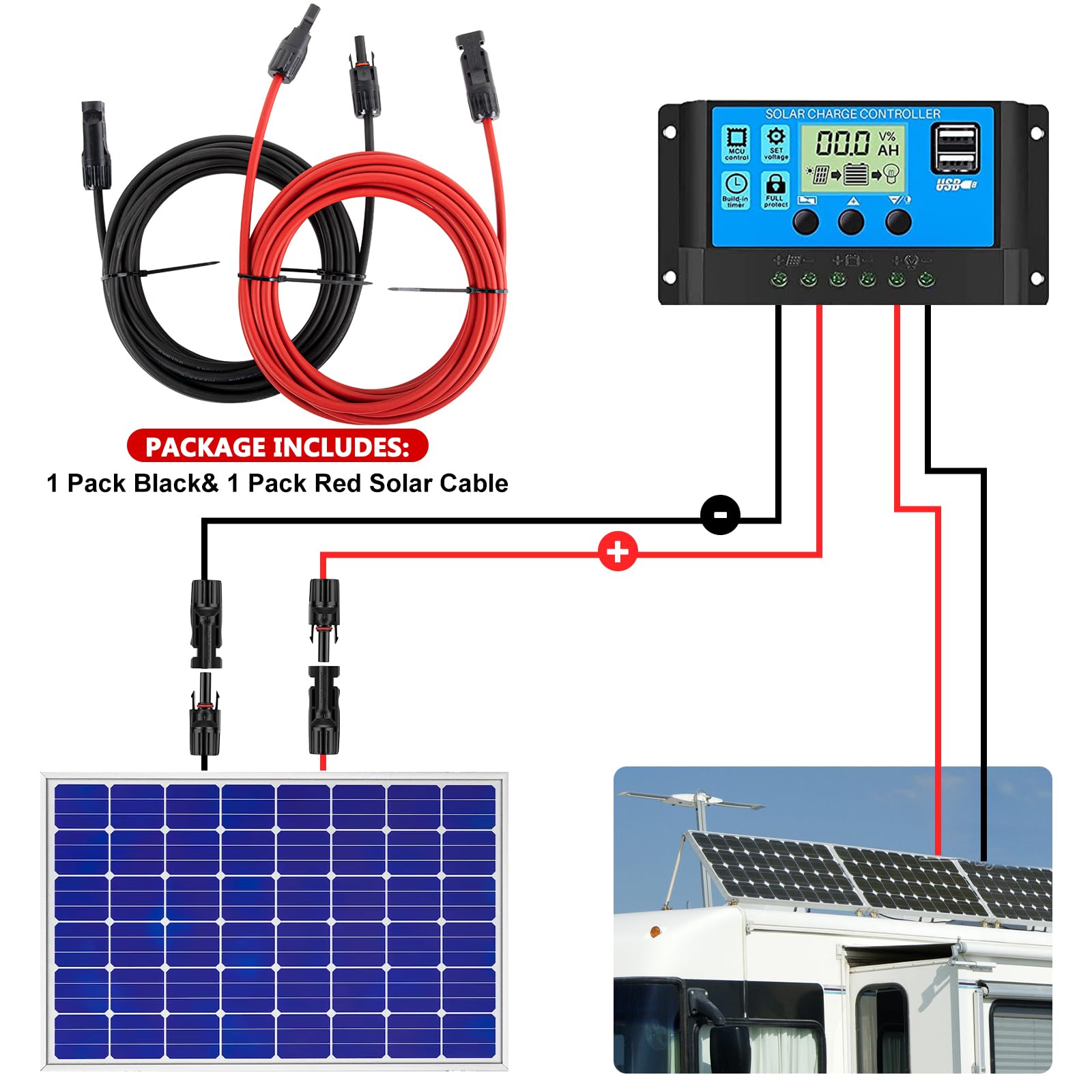

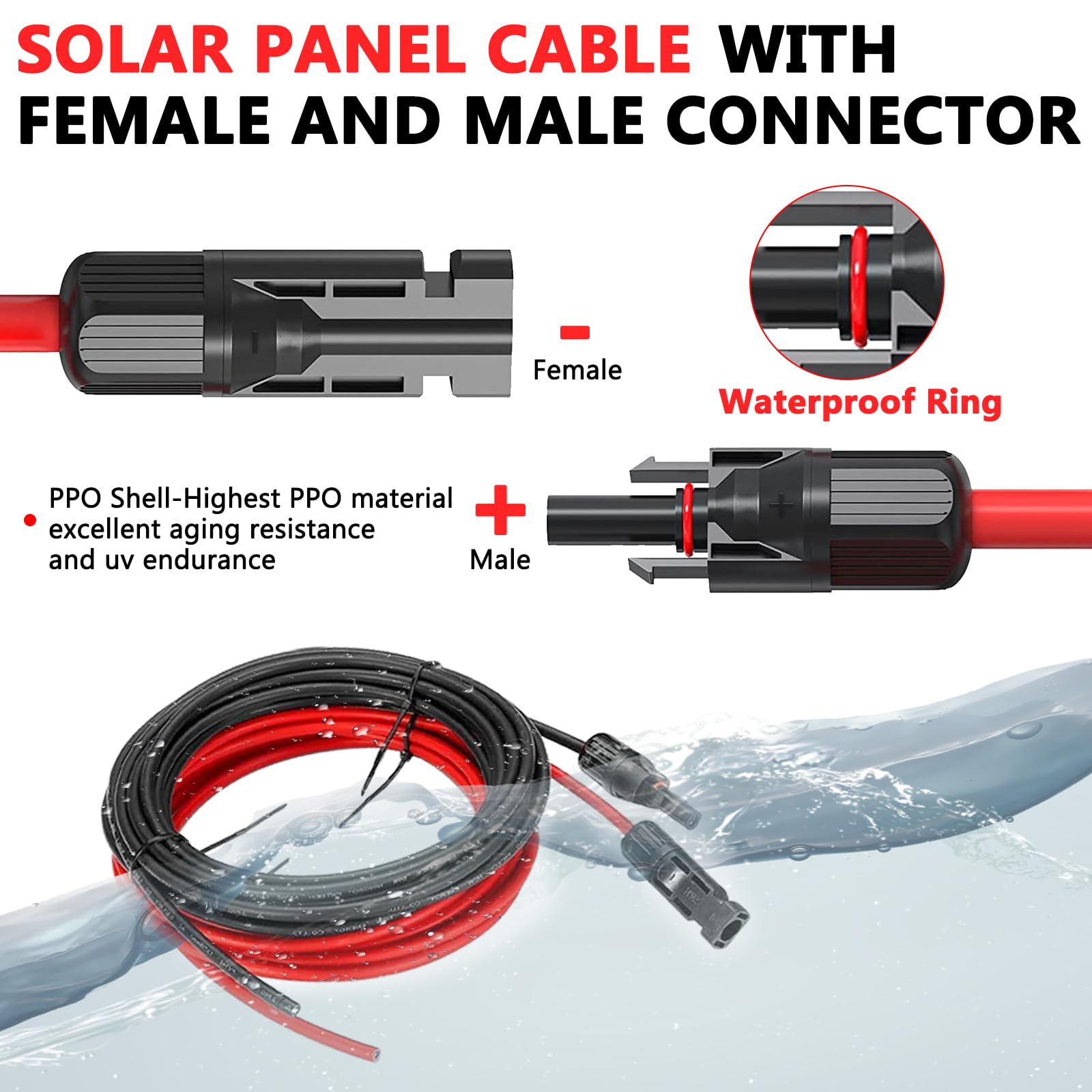

Each cable comes preterminated with a locking male or female waterproof connector to quickly mate with solar panels, in-line connectors, or charge controller leads. The self-locking connector design prevents accidental disconnection and streamlines daisy-chaining or lengthening your array without additional tools.

• Preinstalled male and female connectors speed up setup
• Self-locking mechanism secures plug-and-play connections
• Compatible with most standard solar module MC4-style leads

What lengths and gauges are available if I need different sizing?

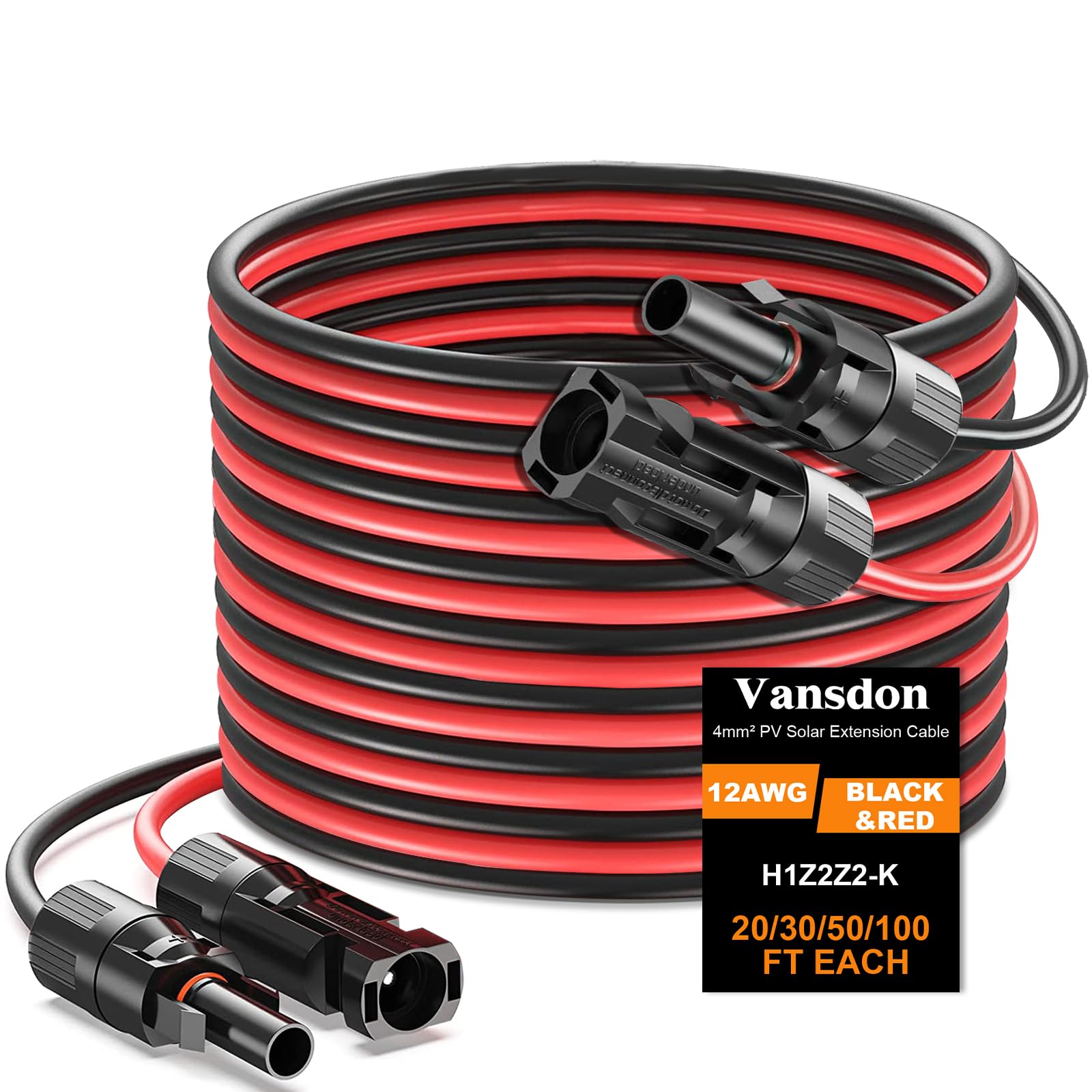

This set includes two 50-foot cables (one red, one black) in 12AWG, but Vansdon offers multiple length and gauge options to match system requirements. Choose from shorter or longer runs and larger gauges when planning higher currents or reduced voltage drop for long-distance arrays.

• Common lengths: 10ft, 20ft, 30ft, 40ft, 50ft, 60ft, 70ft, 100ft
• Available gauges typically include 10AWG and 12AWG
• Select larger gauge for higher current or extended distances

Who this is for: installers, RV owners, boaters, and DIY solar builders who need a reliable, weatherproof way to extend panel leads without custom crimping. These Vansdon 2x50ft 12AWG cables suit small off-grid systems, camper power setups, rooftop arrays, and portable panel kits where certified PV wiring, easy plug-in connections, and long-term outdoor durability are priorities. If you require longer runs or higher amperage, consider stepping up to a heavier gauge or using multiple parallel runs per system design.
