Valley Industries Boomless Broadcast Nozzle — Brass 52' Adjustable Spray with 90°/180° Caps

The Valley Industries 6541-01-CSK is a brass boomless broadcast nozzle that delivers up to 52 feet of adjustable spray coverage with interchangeable 90° and 180° caps.

This heavy-duty broadcast nozzle mounts to a standard sprayer and converts a single outlet into a wide-coverage applicator, saving setup time and reducing the need for multi-nozzle booms. Built from brass for improved wear resistance, it connects with a 1/2" NPT thread and includes a 3/8" reducer bushing so it fits common pump fittings. The nozzle is designed for use with higher-volume 12V pump systems (3.0 GPM or greater) and performs best when mounted between 24 and 48 inches above the target surface.

How does the nozzle switch between narrow and wide spray patterns?

Two quick-change caps let you select the spray footprint without special tools: a 90° cap for directional, obstacle-aware spraying and a 180° cap for broad, open-area coverage. Caps snap on and off to adapt coverage to field conditions.

• Includes 90° and 180° interchangeable caps
• Tool-free cap changes for fast field adjustments
• 90° useful near fences, trees or borders
• 180° ideal for lawns, turf and wide open areas

What flow and pump specs are required for proper performance?

The nozzle performs reliably with pump outputs at or above 3.0 GPM, typically found in 12V sprayer setups. Lower-flow pumps may reduce the spread and uniformity of the broadcast pattern, so match pump capacity to application area for best results.

• Recommended pump: 12V with 3.0 GPM or higher
• Higher flow improves pattern width and uniformity
• Check pump pressure and flow charts for exact coverage

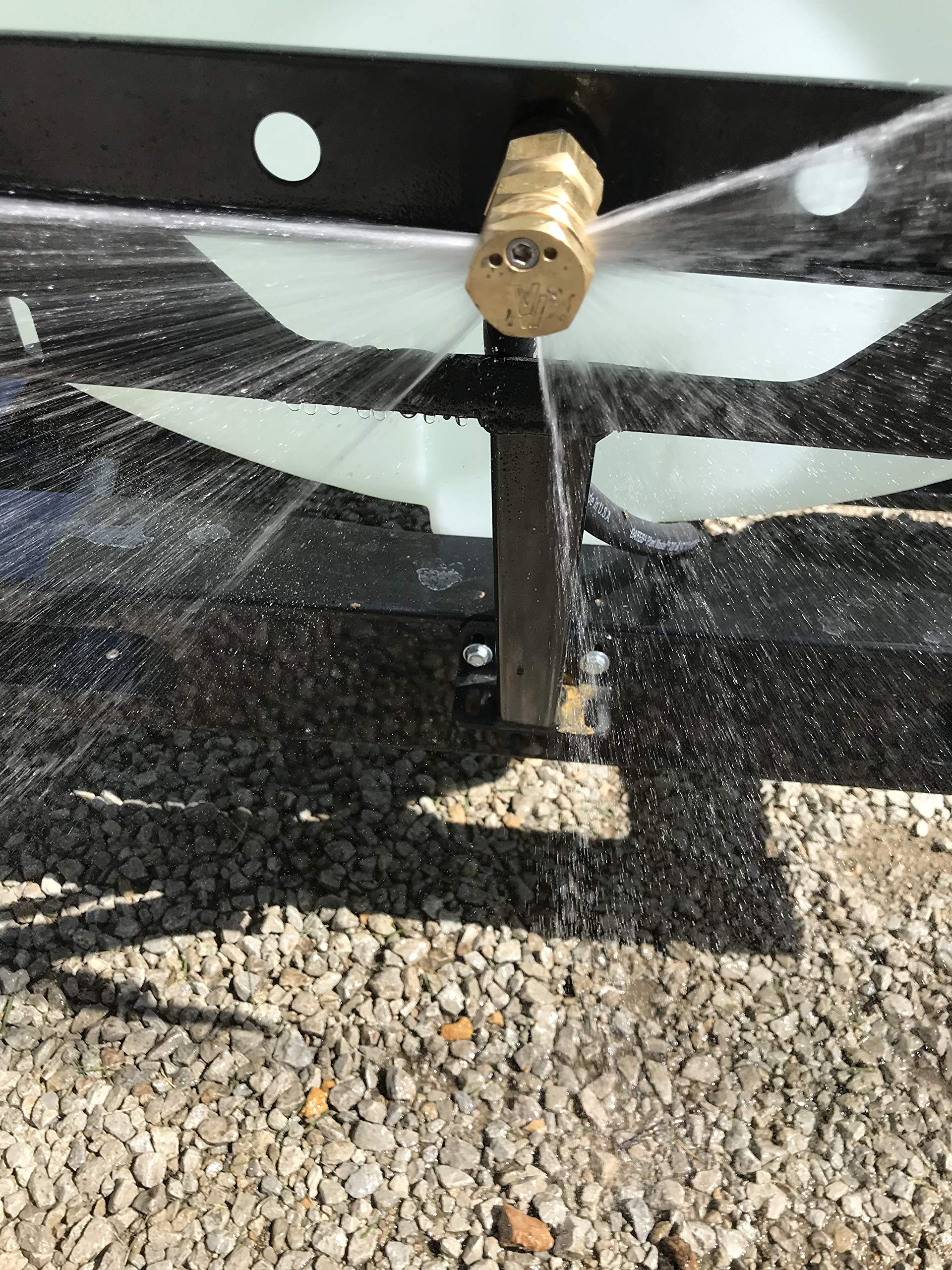

What fittings and mounting heights work with this nozzle?

The nozzle uses a 1/2" NPT inlet and ships with a 3/8" reducer bushing to suit smaller lines. It’s intended to be mounted 24"–48" above the target for even distribution; higher mounting increases footprint but can reduce application density.

• Standard connection: 1/2" NPT inlet
• Included 3/8" reducer bushing for alternative plumbing
• Recommended mounting height: 24"–48" for consistent coverage
• Adjust height to balance coverage width and deposit rate

How durable is the unit and what maintenance is needed?

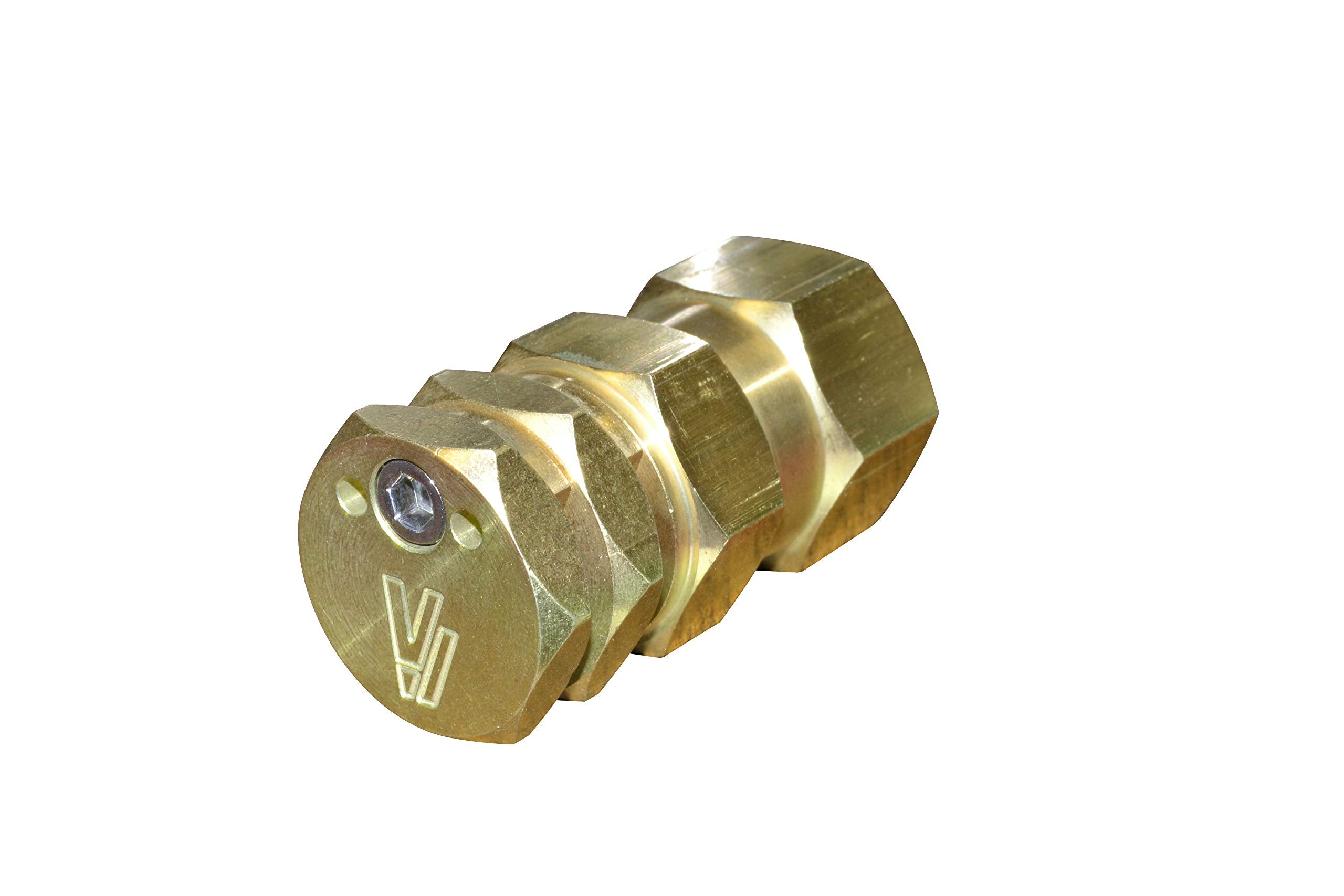

Constructed from brass, the nozzle offers enhanced resistance to abrasion and corrosion compared with many plastics, extending service life under regular use. Routine maintenance consists of flushing after use, inspecting caps for wear, and replacing seals as needed to maintain a consistent spray pattern.

• Brass construction for increased wear resistance
• Flush lines after each use to prevent clogs
• Inspect interchangeable caps and seals periodically
• Replace worn parts to preserve pattern uniformity

Who is this for: The Valley Industries 6541-01-CSK boomless nozzle is built for landscapers, turf managers, right-of-way crews and agricultural applicators who need quick setup and wide-area coverage without installing a full spray boom. It suits operators using 12V sprayer systems with moderate to high flow capacity who require a rugged, adaptable nozzle for perimeter, field, or roadside spraying tasks.
