Valemo Solar Extension Cable 2x12 AWG 40 ft — Twin MC4-Style Connectors, Weatherproof

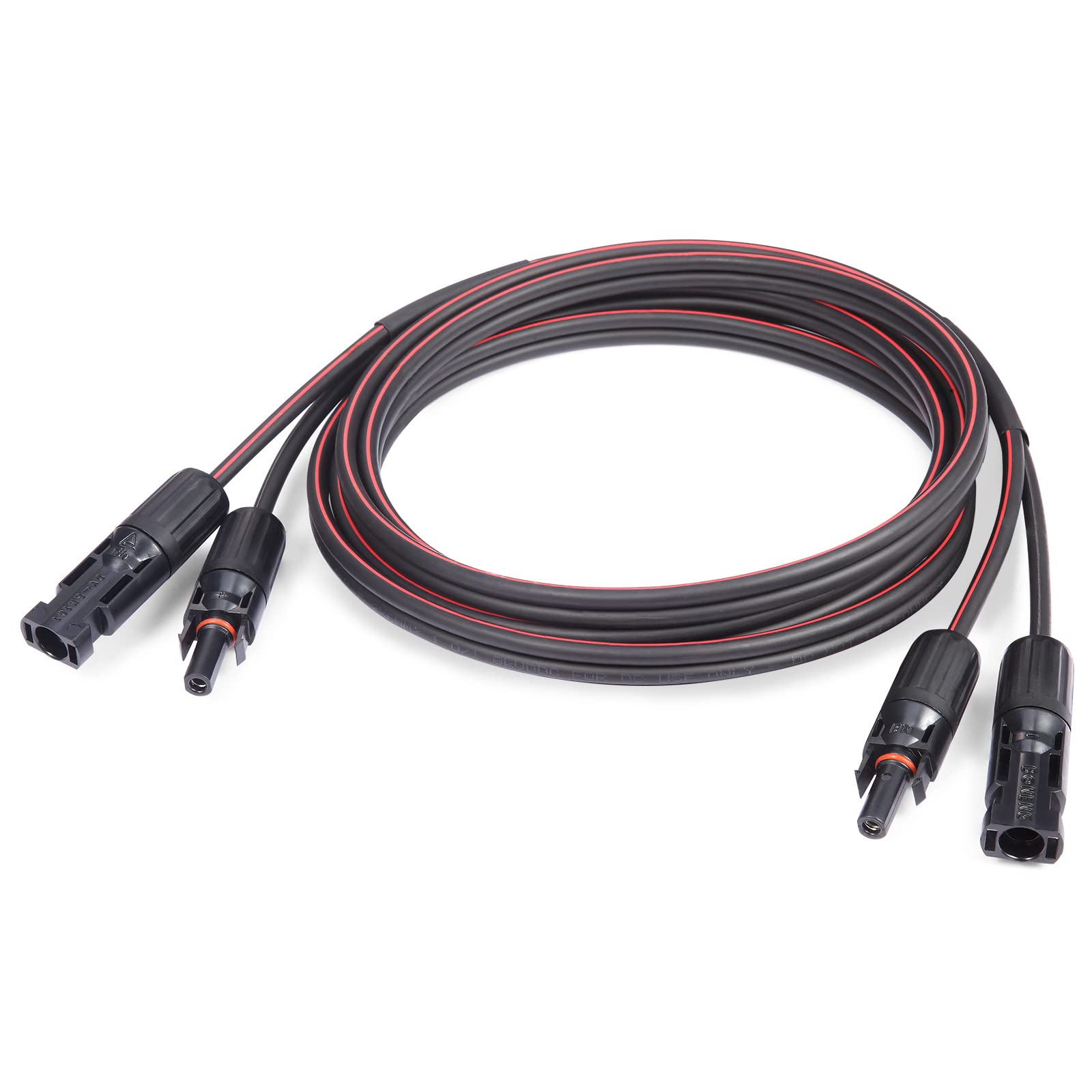

Valemo 40-foot 2x12 AWG solar extension cable is a weatherproof, twin-conductor cable with male and female connectors on both ends, built for outdoor solar panel, RV, shop, and home use.

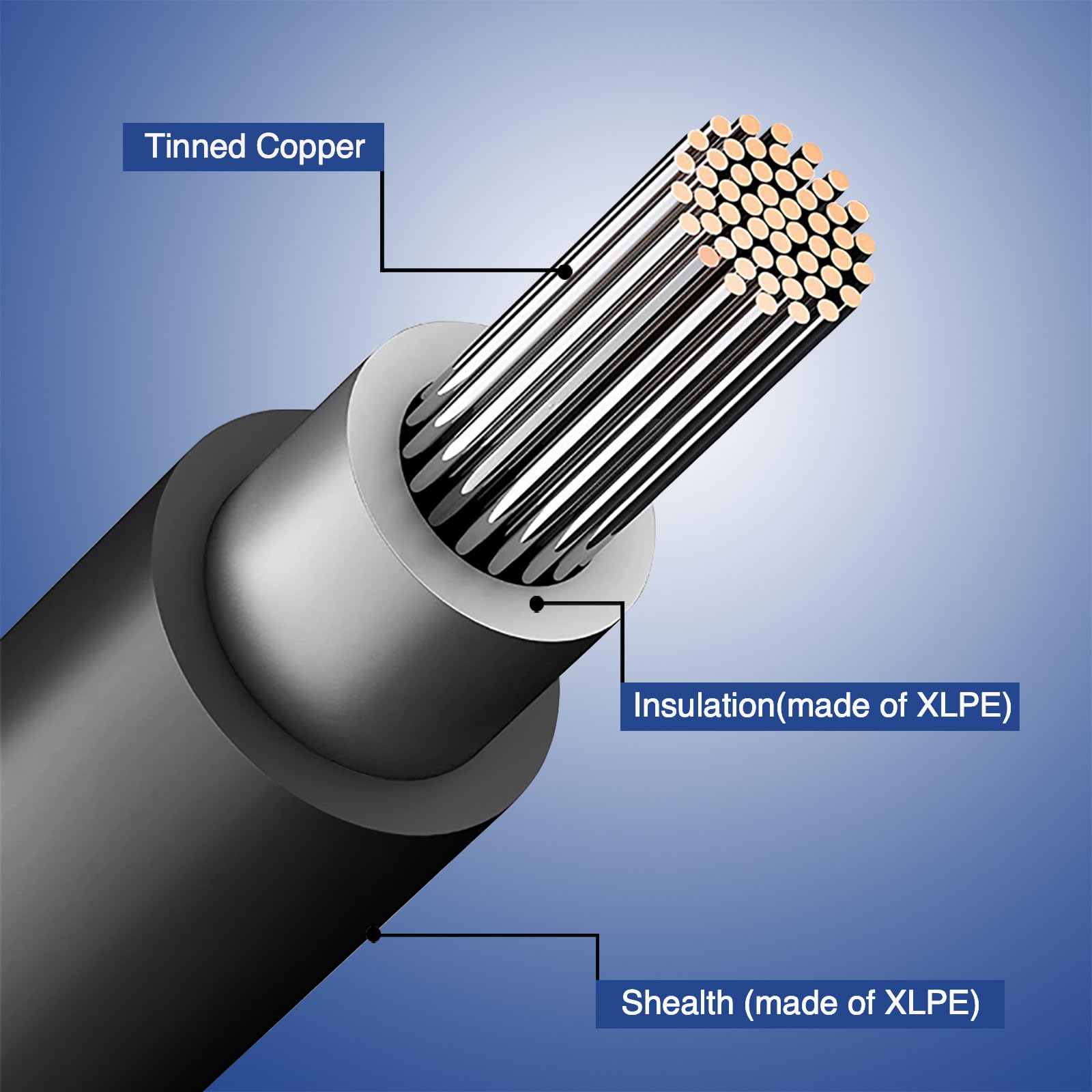

This heavy-duty solar extension wire simplifies panel placement and system routing by offering a continuous 40-foot run that maintains polarity and connection integrity. The twin wires remain joined along their length for tidy installation, while reinforced split ends and sealed MC4-style connectors give reliable performance under sun and rain. With 84 tin-coated copper strands per conductor and XLPE insulation, the cable balances flexibility, corrosion resistance, and current capacity for typical 12 AWG solar applications.

How does this cable make solar panel installation neater?

The Valemo cable is manufactured as two conductors molded together, so you get a single, compact run instead of two separate wires. This reduces tangling, keeps conduit and roof runs organized, and speeds up layout work during installs.

• Twin-conductor design keeps wires aligned from end to end.
• Split only at the ends to accommodate connectors and terminations.
• Shrink-wrap reinforcement at the split prevents unwanted fraying.
• 40-foot length provides reach between panels and charge controllers or combiner boxes.

Will this cable resist outdoor weather and oxidation?

Yes. The connectors and cable are built to endure sun exposure and moisture. Tin-coated copper strands help prevent oxidation, and the sealed connectors keep water out of contact points, improving longevity in outdoor environments.

• Tin-coated copper strands resist corrosion compared with bare copper.
• Sealed connector housings protect electrical contacts from moisture.
• XLPE insulation withstands UV and temperature swings better than standard PVC.
• Designed for repeated outdoor use on roofs, RVs, and exterior installations.

What electrical performance can I expect from 12 AWG Valemo cable?

The 2x12 AWG cable is suitable for many small-to-medium photovoltaic setups where wire runs require flexibility and current carrying capacity around the 30–35 amp range. The stranded construction improves bendability for tight routes and rooftop work.

• 84 strands per conductor provide flexibility and improved vibration resistance.
• XLPE insulation allows higher temperature operation compared with typical jacket materials.
• Recommended current capacity around 35 A for 12 AWG in typical solar conditions.
• Includes male and female connectors on both ends for plug-and-play compatibility.

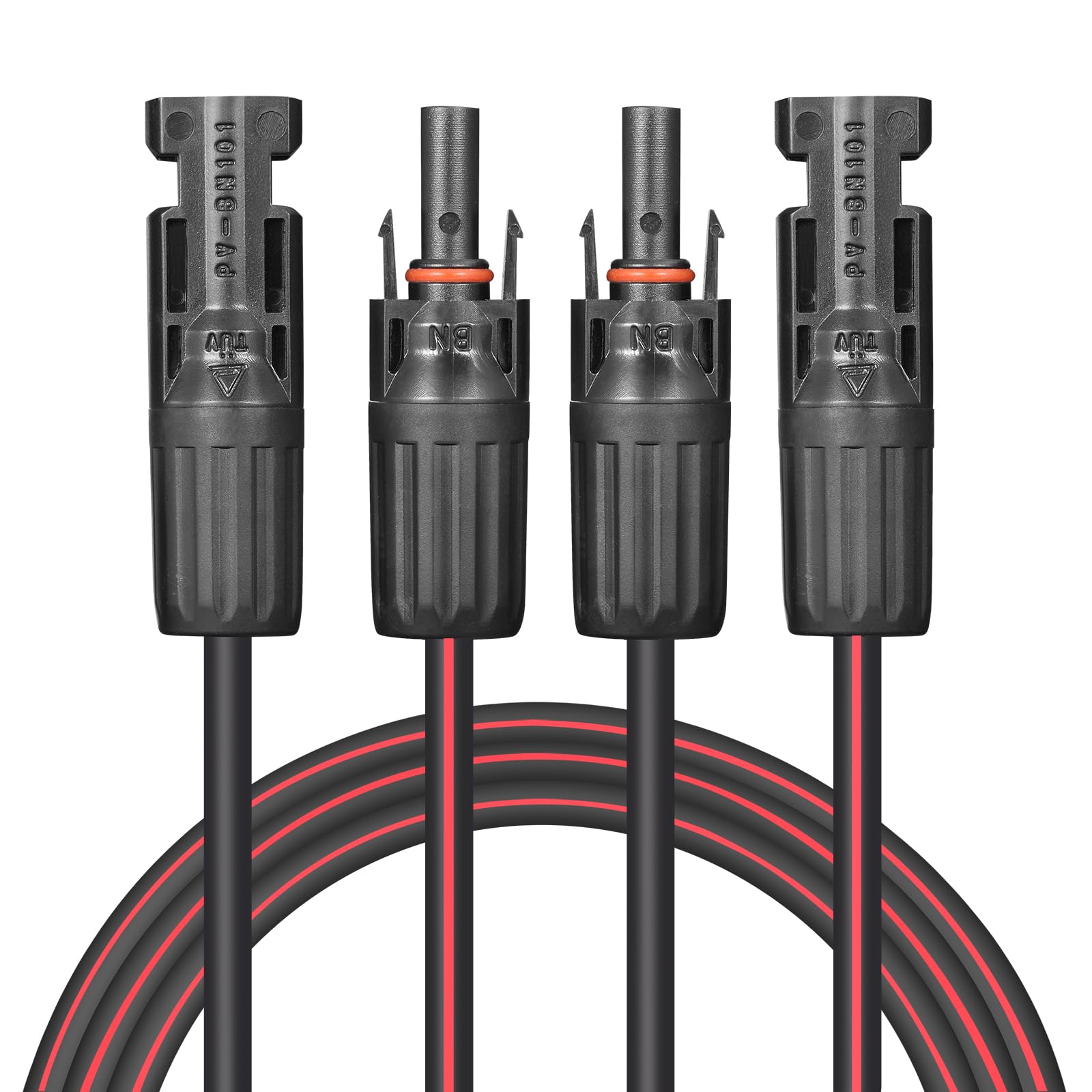

How do the connectors and reinforced split ends improve reliability?

Connectors are preinstalled and sealed, minimizing field terminations and potential failure points. The area where the twin conductors separate is reinforced with shrink wrap so the two wires won't uncontrolledly peel apart or suffer abrasion at the split.

• Pre-attached male and female connectors save time and provide consistent crimps.
• Shrink-wrap reinforcement reduces stress where the cable splits for termination.
• Sealed connector boots prevent dirt and water ingress at the mating surfaces.
• Robust construction reduces the need for frequent rework or resealing.

Who is this for? Installers, DIY solar enthusiasts, RV owners, and small commercial system operators who need a tidy, flexible, weather-resistant extension cable will benefit from Valemo’s 40-foot 2x12 AWG twin wire. It fits situations where a single neat run is preferred over two loose conductors, where prewired connectors save time, and where corrosion resistance and outdoor durability are important considerations. Choose this cable when you want organized cable runs, easier handling on roofs and RVs, and dependable outdoor electrical performance without custom assembly.
