US Motors Nidec AST125 pool pump motor — 1.25 HP 56J C‑flange replacement, dual‑voltage (115/230V)

The US Motors Nidec AST125 is a 1.25 Total Horsepower, 56J‑frame C‑flange replacement motor designed to swap into most residential pool pumps without re‑plumbing.

When a pool pump motor burns out or loses efficiency, replacing just the motor is usually faster and far less expensive than buying a whole new pump. The AST125 is built to accepted 56J‑frame dimensions and common mounting patterns so it mates with many popular makes and models. It’s offered as a direct replacement option for motors rated 1 HP up‑rated or 3/4 HP full‑rated, supports 115/230V wiring, and uses a threaded shaft and four 3/8" bolt holes at the standard 1, 5, 7 and 11 o’clock positions for straightforward installation.

How will this motor fit my existing pump housing?

The AST125 matches standard 56J C‑flange geometry and bolt hole placement so it aligns with housings from several major pump brands. Measure the flange face, bolt spacing, and shaft thread to confirm compatibility before ordering.

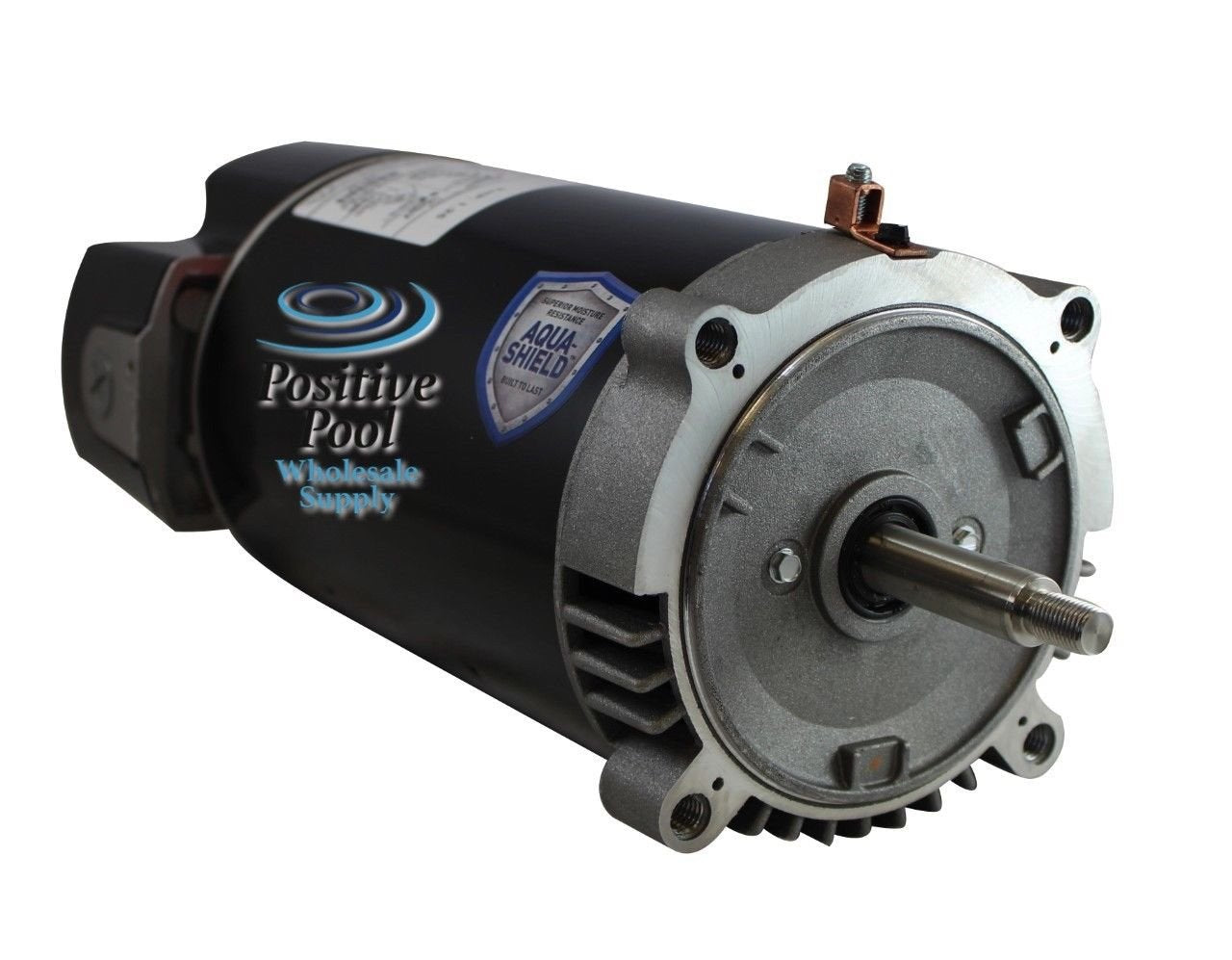

• 56J‑frame C‑flange with four 3/8" threaded bolt holes at 1, 5, 7 and 11 o’clock
• Threaded motor shaft to accept common impellers and couplers
• Intended replacement for 1‑HP up‑rated or 3/4‑HP full‑rated motors
• Compatible with housings from American Products, Pentair, Astral, Hayward, Jacuzzi and Jandy

What electrical and performance specs should I expect?

This motor delivers 1.25 Total Horsepower (THP) and is factory wired for dual‑voltage operation so it can be configured for 115V or 230V systems. The THP rating provides slightly higher output than older 3/4 HP or 1‑HP designs it replaces, which can improve flow without changing pump hydraulics.

• 1.25 THP output for improved performance over some older rated motors
• Dual‑voltage wiring: 115/230 volts selectable per your control box or wiring
• Designed for residential pool circulation, filtration and some booster roles

What installation and maintenance steps should I follow?

Installation is typically a simple swap if your pump uses the standard C‑flange and bolt pattern; however, take time to prepare the seal and coupling surfaces. It’s recommended to replace shaft seals, gaskets and lubricants at the same time to ensure leak‑free operation and protect the new motor’s bearings.

• Confirm bolt hole spacing and shaft thread before ordering
• Replace pump seals, gaskets and lubricants when installing the motor
• Follow wiring diagrams for 115/230V to match your existing supply
• Verify rotation direction after wiring and before reassembling the pump

Is there warranty or quality assurance with this replacement motor?

Each AST125 motor is built to industry quality standards and comes with a one‑year warranty to cover manufacturing defects. Keep your purchase documentation and note installation date to make warranty claims straightforward if needed.

• Backed by a full one‑year warranty against manufacturing defects
• Manufactured to standard 56J C‑flange dimensions for interchangeability
• Sold as US Motors Model AST125 with replacement compatibility details

Who is this for: The US Motors Nidec AST125 is intended for homeowners, pool service technicians, or contractors who want a cost‑effective motor swap for a residential pool pump. It’s especially useful for anyone aiming to keep existing plumbing and pump housings intact while restoring circulation and filtration performance. If you’re unsure about compatibility, measure your flange and shaft or consult a pool technician before purchase.
