Unifit Digital Thermostat Control Board Replacement for Pit Boss PBV2D1 Vertical Smoker — LED Display, Dual Probe Inputs

Unifit's digital thermostat control board is a direct replacement for the Pit Boss 2-series PBV2D1 electric vertical smoker controller, restoring precise temperature and timer functions.

If your Pit Boss PBV2D1 controller display is dim, buttons are unresponsive, or the internal thermometer readout is inconsistent, this Unifit replacement board offers an OEM-compatible option to bring your smoker back to dependable operation. Designed to match the original panel's fit and connector arrangement, this module supports the smoker's LED readout, dual meat-probe inputs, and the four cooking modes used by the Pit Boss 2-series.

How will this replacement board restore my Pit Boss smoker's controls?

The Unifit board replaces the faulty digital controller to recover the LED temperature display, push-button input, and timing features. Installation typically requires unplugging the old controller, swapping the board, and reconnecting factory plugs—no soldering for most models.

• Replaces PBV2D1-style controller board form factor

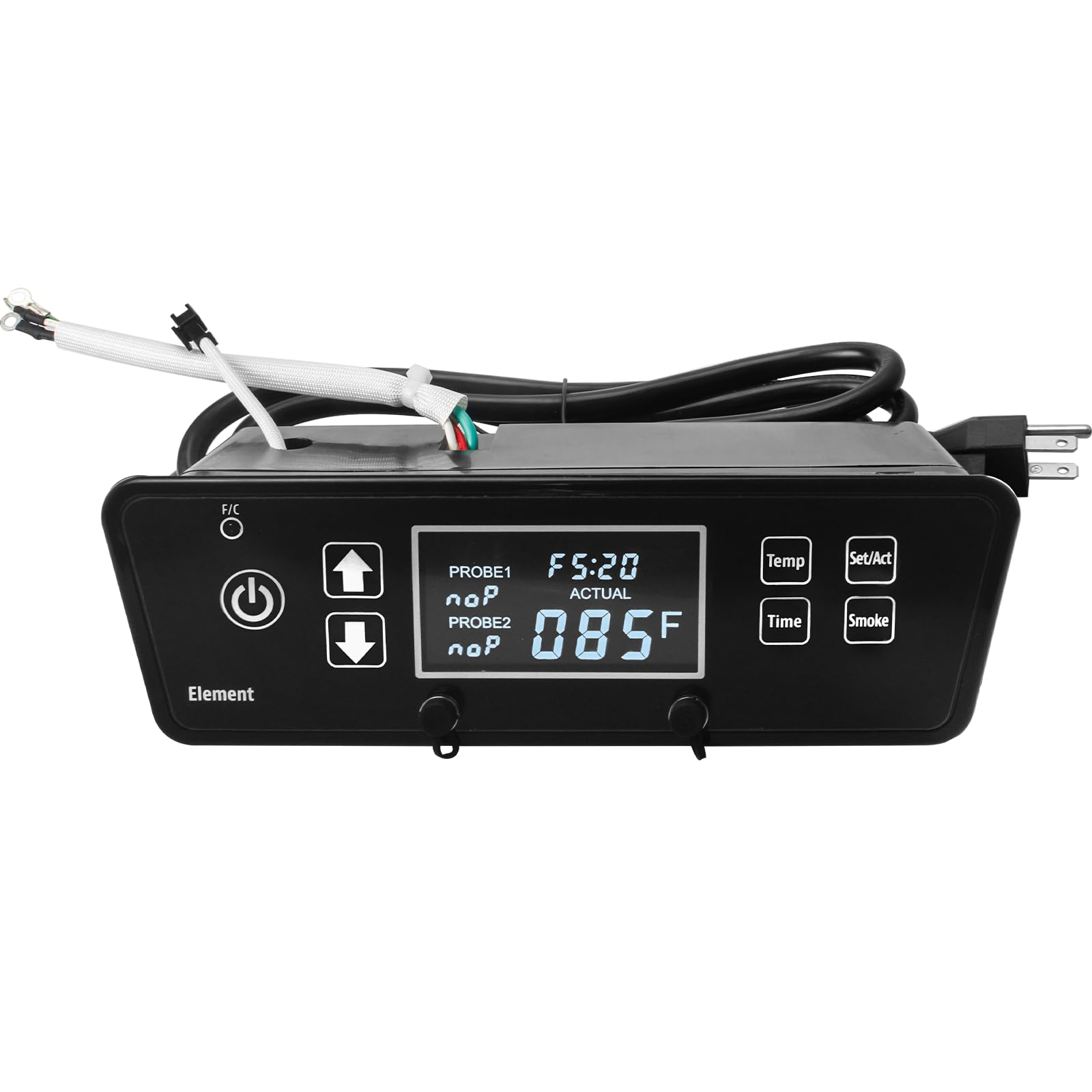

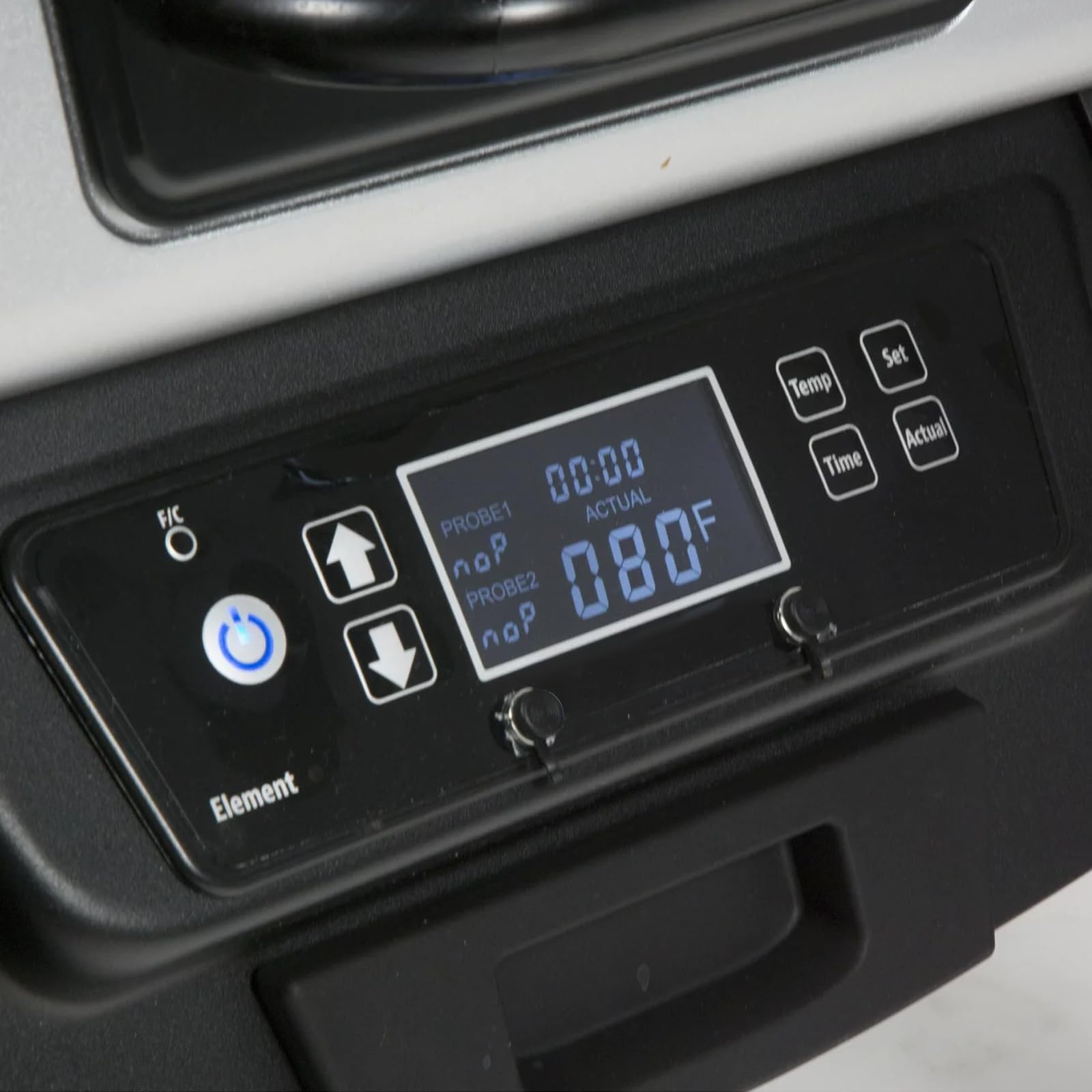

• Restores bright LED display for internal and probe temps

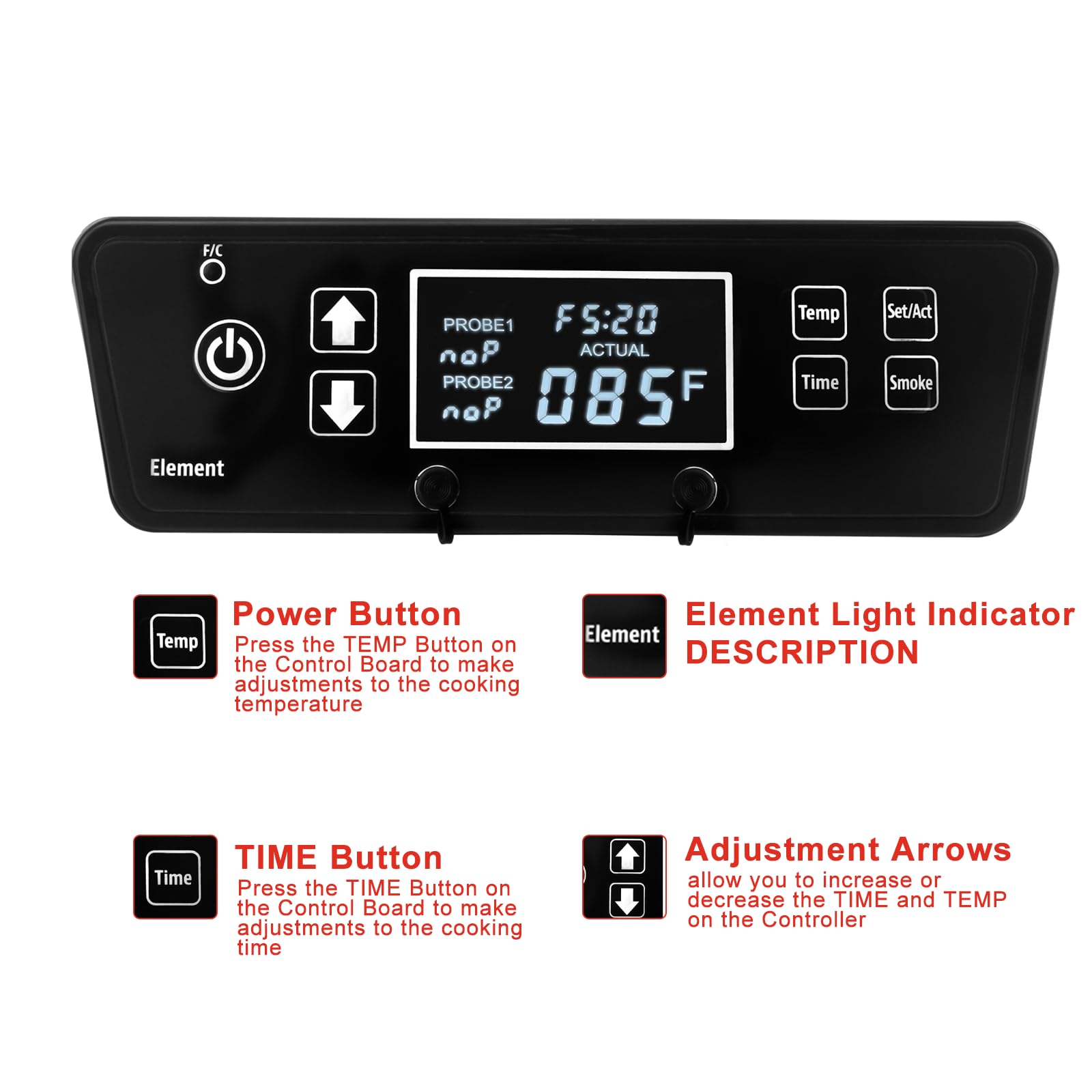

• Preserves push-button control for set temperature and timer
• Fits original connector layout for plug-and-play swaps

What temperature range and cooking modes does the new controller support?

This replacement supports the same working range as the Pit Boss 2-series controller, allowing you to select temperatures from 100°F to 400°F. The unit also switches between four commonly used cooking modes so you can smoke, baste, braise, or roast depending on the recipe.

• Temperature control from 100°F to 400°F
• Four modes: smoking, basting, braising, roasting
• Dual wired probe inputs for monitoring two meat temperatures
• High-temperature resistant components for longer lifespan

Are there any important installation or usage notes I should know?

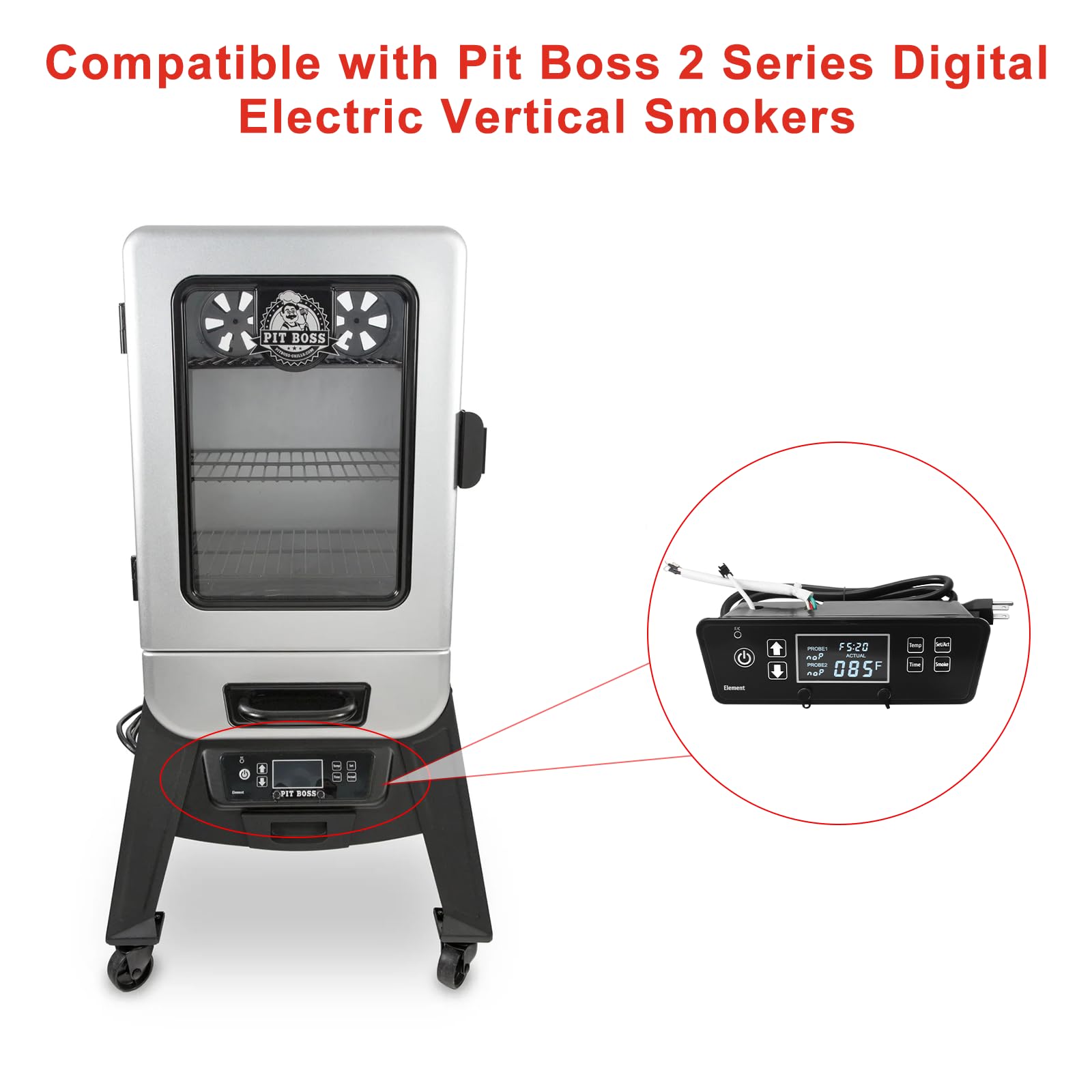

While the board is compatible with Pit Boss 2-series vertical electric smokers, it is not universally compatible with other vertical smoker controllers. Also note the controller’s set window is narrow—press the set button immediately after entering temperature or timer values to ensure the command registers.

• Not compatible with non-Pit Boss 2-series controllers
• Requires prompt pressing of the set button after inputting values
• Meat probes are not included; use existing or purchase separately
• Ships as one controller board; screws/trim may be re-used from original

Who this replacement is for: If you own a Pit Boss 2-series PBV2D1 electric vertical smoker and are experiencing dim or nonresponsive controls, temperature inconsistencies, or loss of probe readouts, this Unifit controller board is intended as a practical, cost-effective repair part. It's aimed at DIYers and grill owners who want to maintain factory-like control features—LED readout, dual-probe monitoring, and the smoker's preset modes—without replacing the entire smoker. Keep in mind this part restores electronic control but requires basic disassembly and reconnection skills; consult your smoker manual or a technician if you prefer professional installation.
