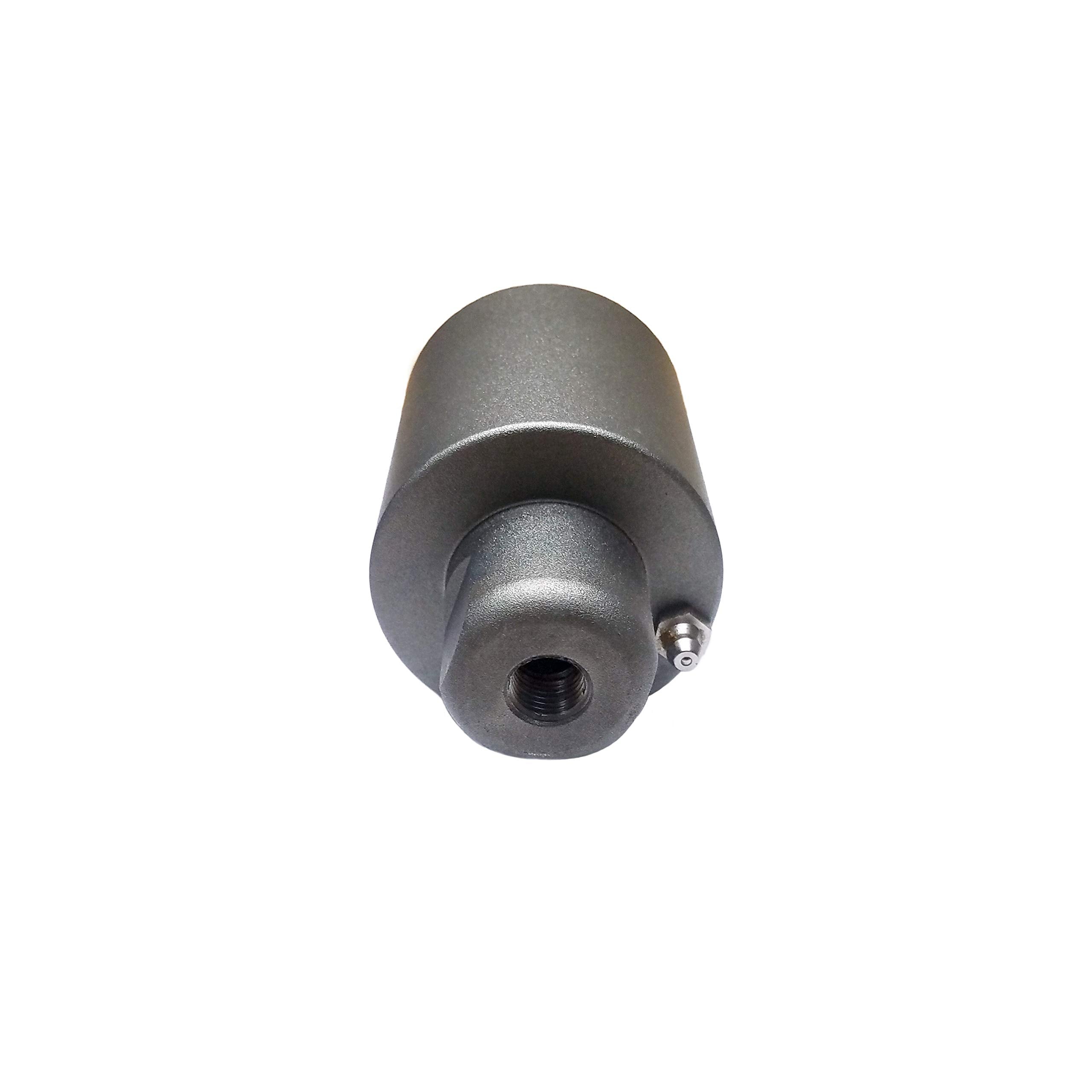

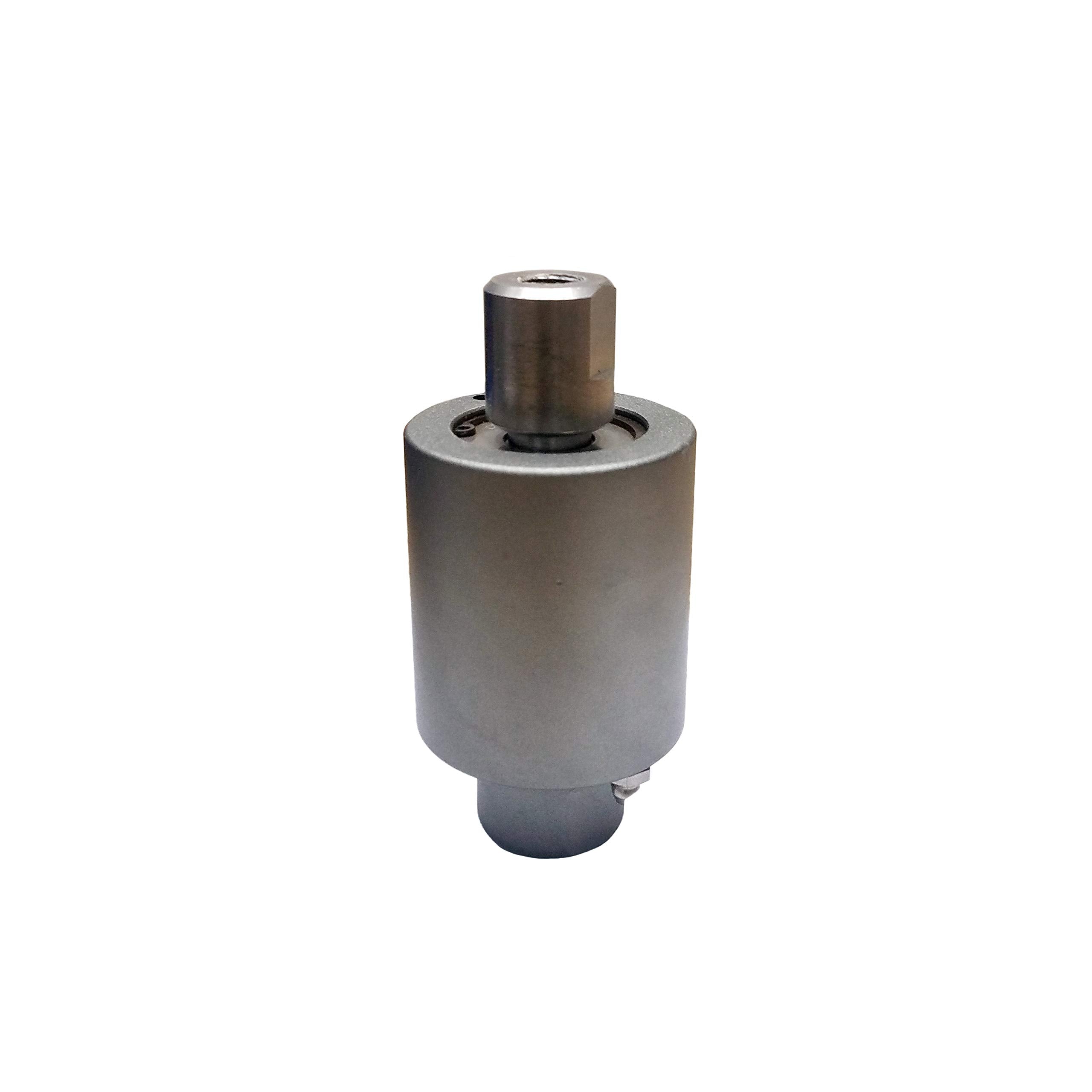

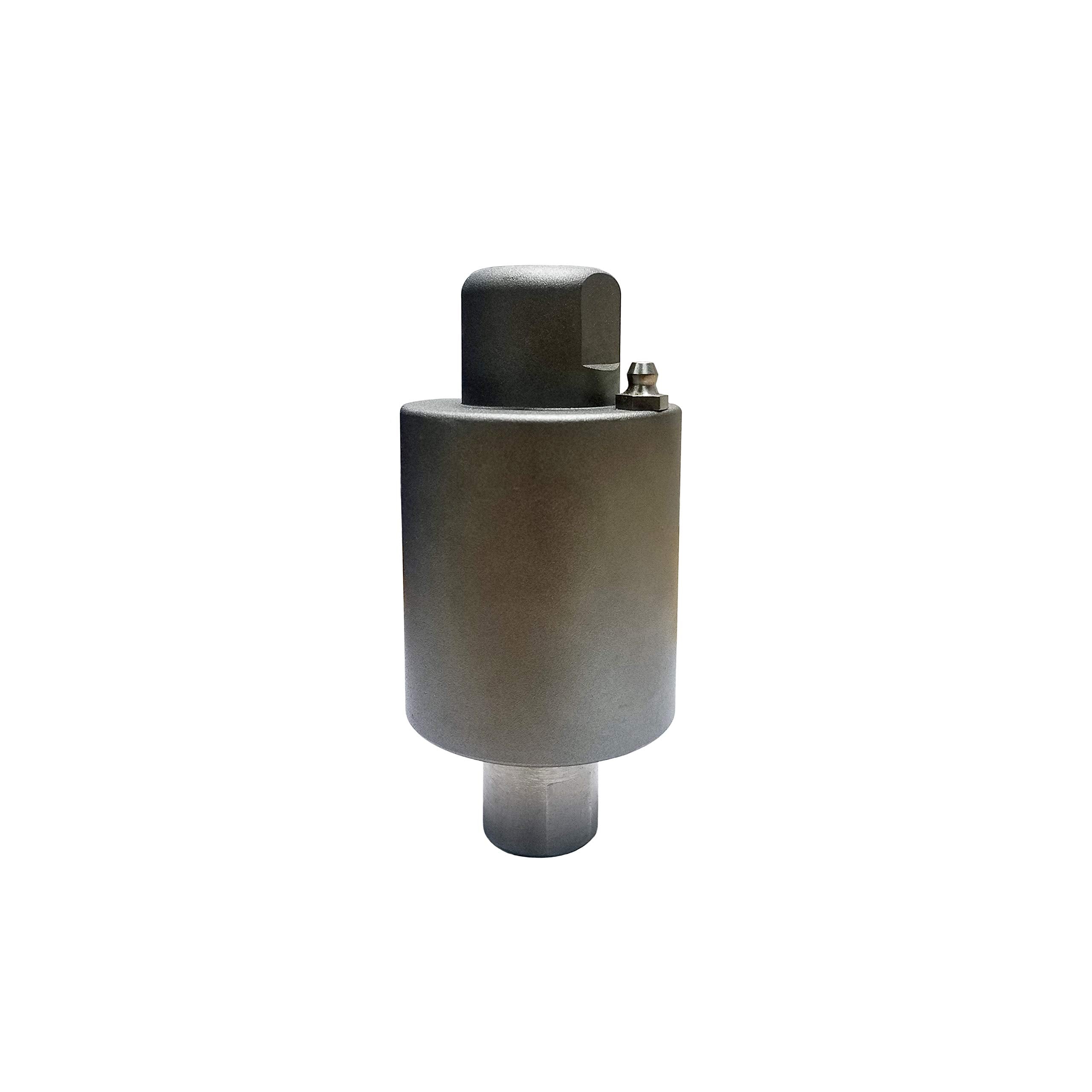

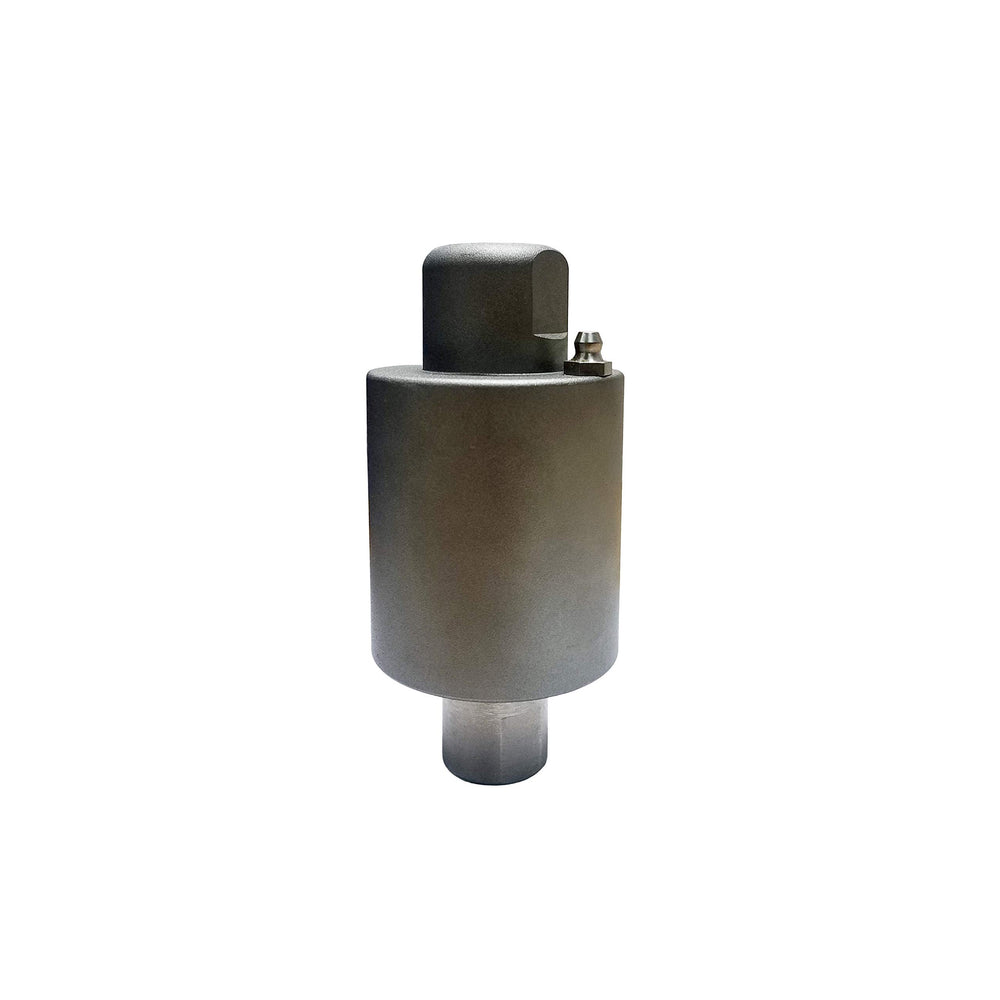

Ultimate Washer Rotary Swivel Head for BE Surface Cleaner — Aluminum Body, Stainless Insert, 4000 PSI

If your BE surface cleaner has lost its spinning action, leaks at the swivel, or you need a robust spare, this rotary swivel head rebuild kit brings the moving parts back to spec. Built with a stainless steel insert and an aluminum body, the assembly accepts high pressure up to 4000 PSI and flows up to 8 GPM. It’s designed for both hot and cold water applications and tolerates temperatures to 190°F, making it suitable for demanding washdowns where heat or high pressure are required.

Which BE models and nozzle plates work with this swivel head?

This part is a direct replacement for many BE Whirl-A-Way assemblies and several part numbers used across BE pressure-supply surface cleaners. Check your model and part references before ordering to ensure compatibility.

• Compatible with BE models: BE-1600WAW, BE-2000WAWY, BE-2000WAWS, BE-2400WAWS
• Replaces part numbers: 85.403.003, 85.403.007, 85.403.011, 85.403.009, 85.403.010
• Also fits nozzle plates AW-7020-8003, AW-7020-8005, AW-7020-8006, AW-7020-8007, AW-7020-8010

How durable is the swivel head under heavy use?

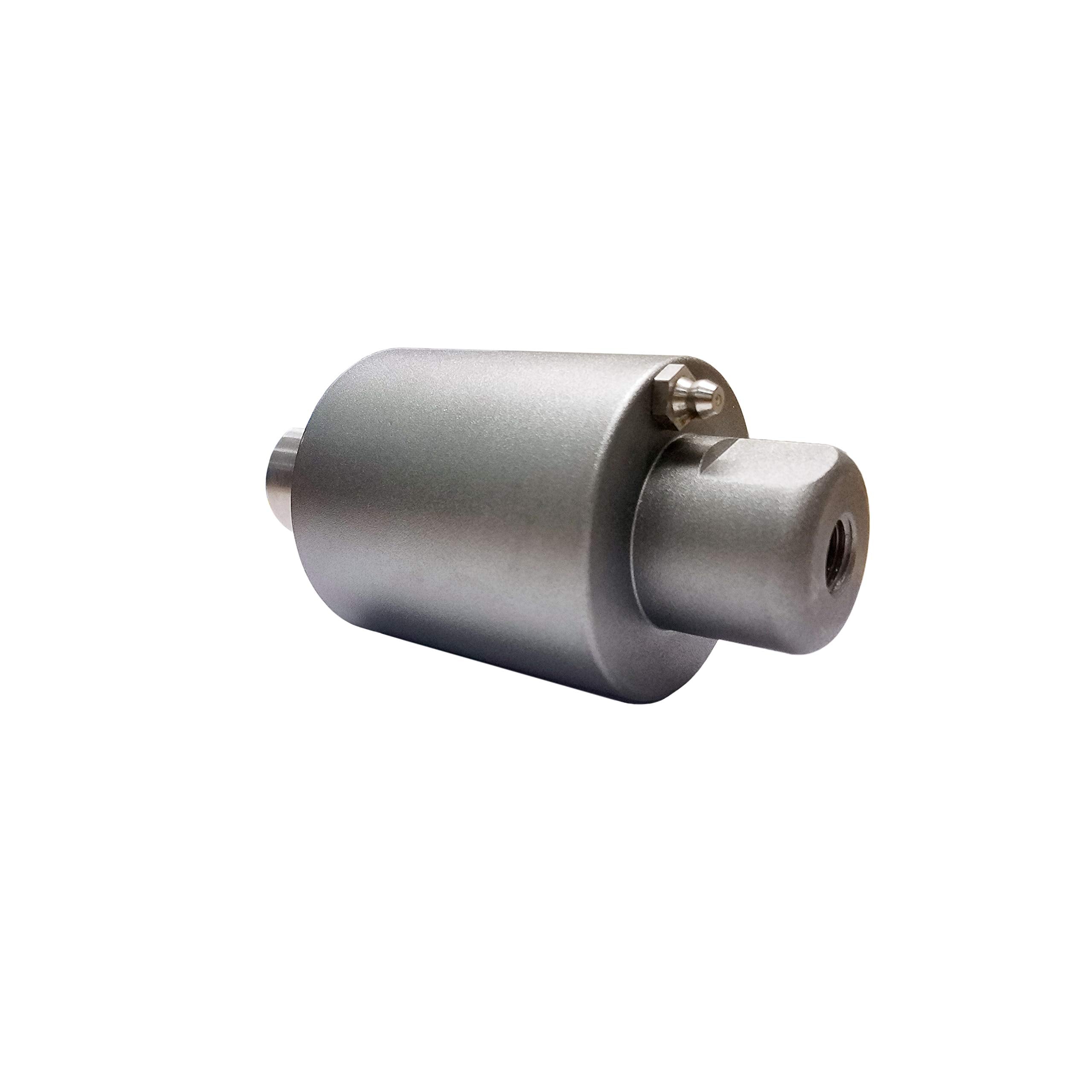

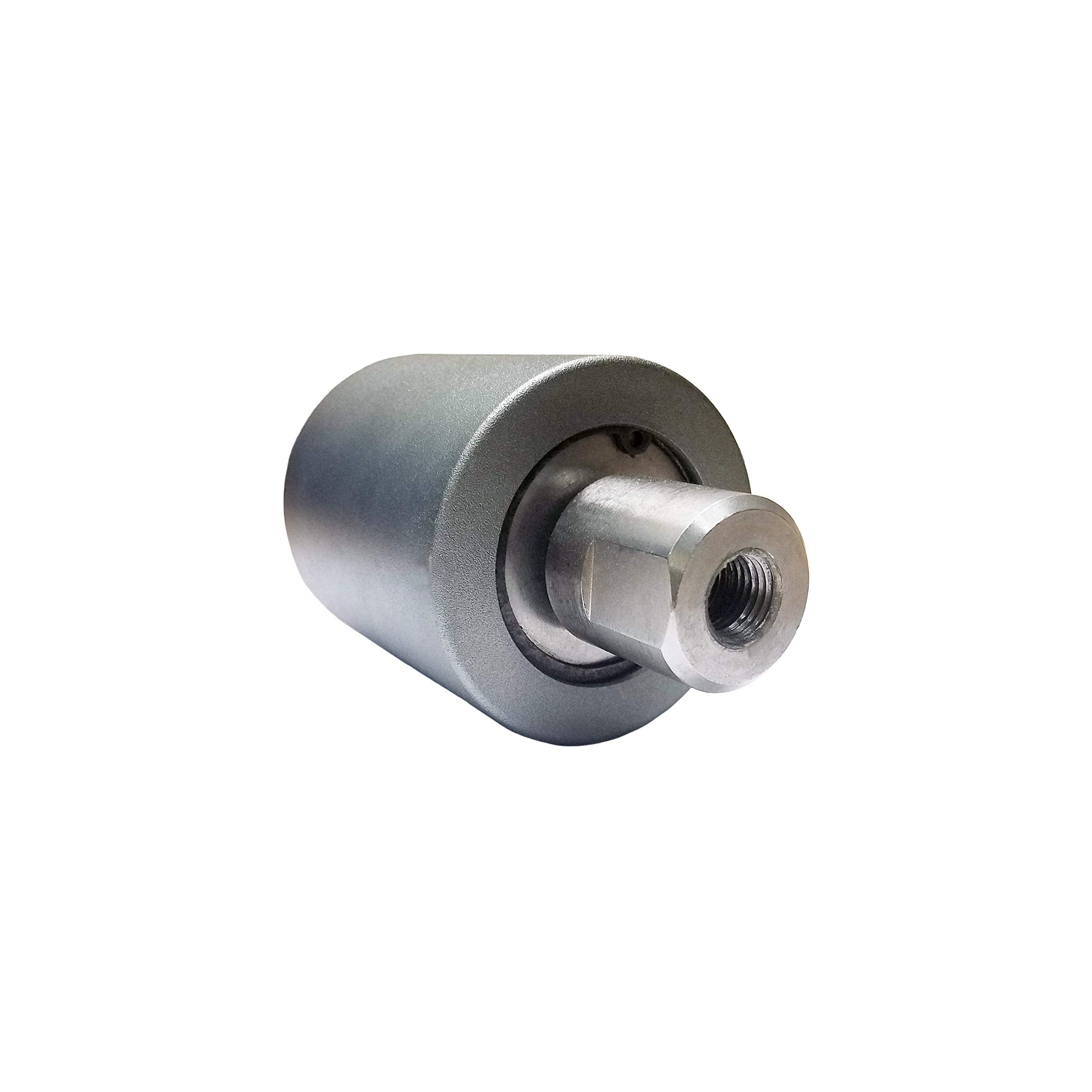

Durability is built into the materials and design: an aluminum housing keeps weight low while a stainless steel internal insert resists wear from high-speed rotation and abrasive particles in water. The unit is rated to handle typical commercial pressure-washer loads and includes features to support long life under frequent use.

• Maximum pressure rating: 4000 PSI for heavy-duty cleaning cycles
• Maximum flow: 8 GPM to match commercial surface cleaner demands
• Temperature tolerance up to 190°F for hot-water operations

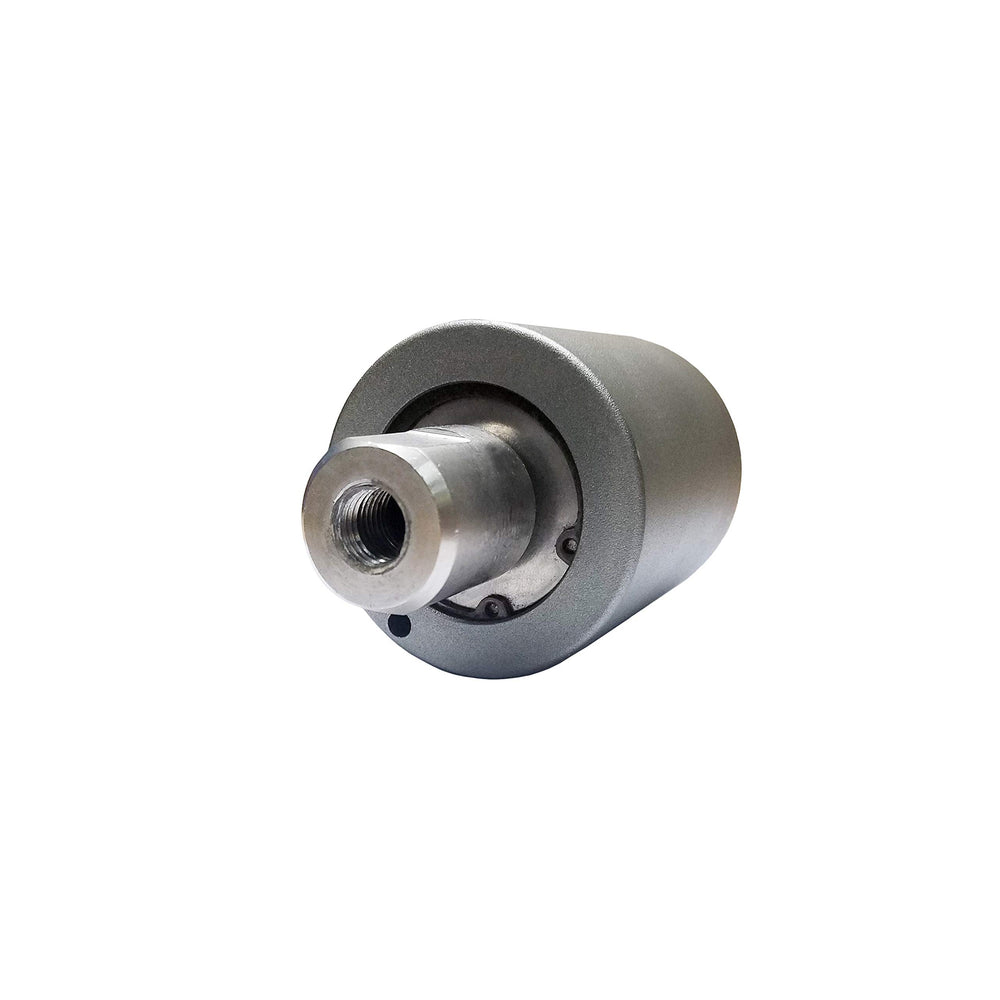

• Includes grease nipple and weep hole to ease maintenance and reduce seal failure

What fittings, seals, and maintenance features are included?

The kit ships as a complete swivel assembly and contains the necessary inlet/outlet threads and service features to reinstall into your surface cleaner quickly. Greasing and occasional inspection of seals will keep performance consistent and minimize downtime.

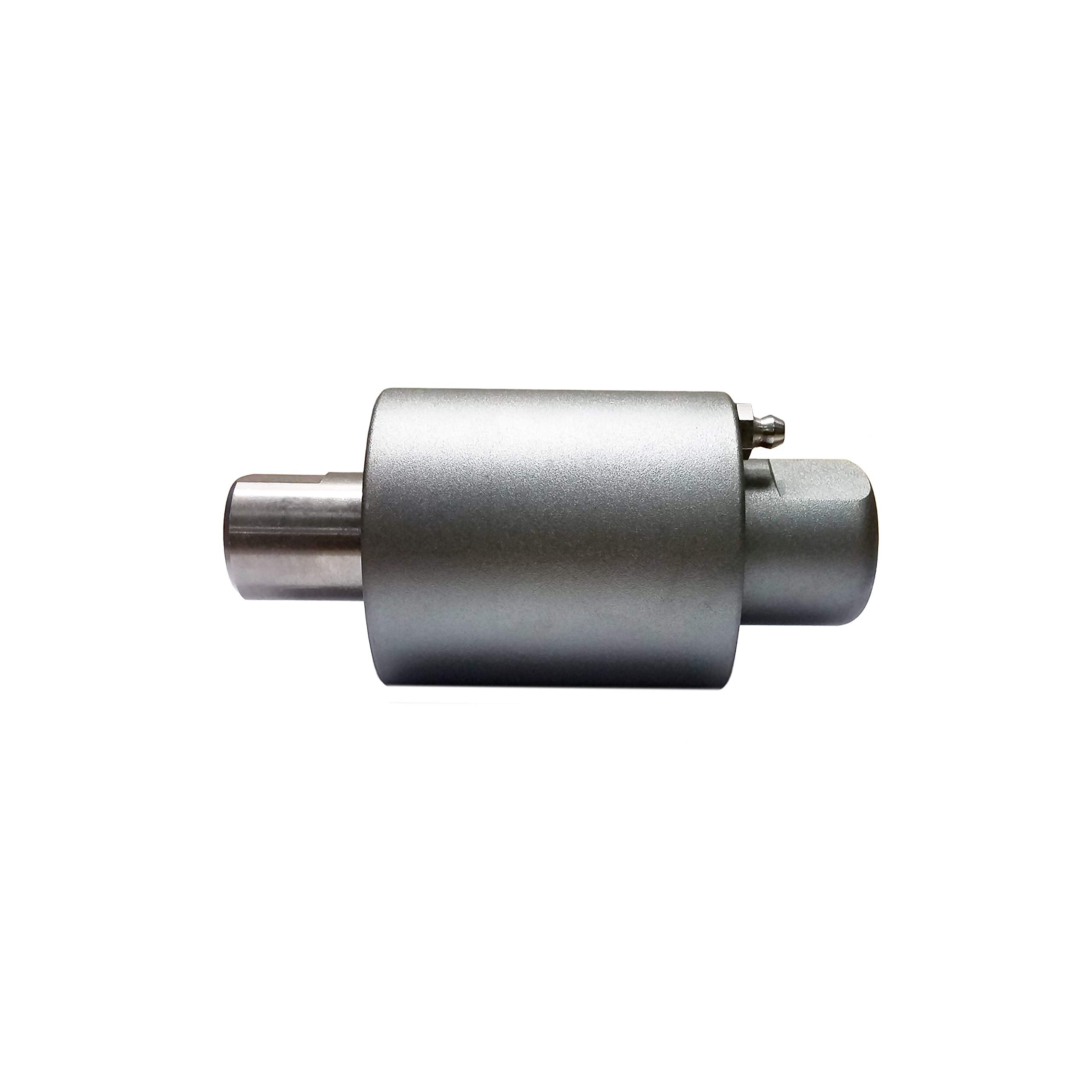

• Inlet: 1/4" female pipe thread — ready to accept standard pressure-washer plumbing
• Outlets: two 1/4" female pipe threads for spray distribution

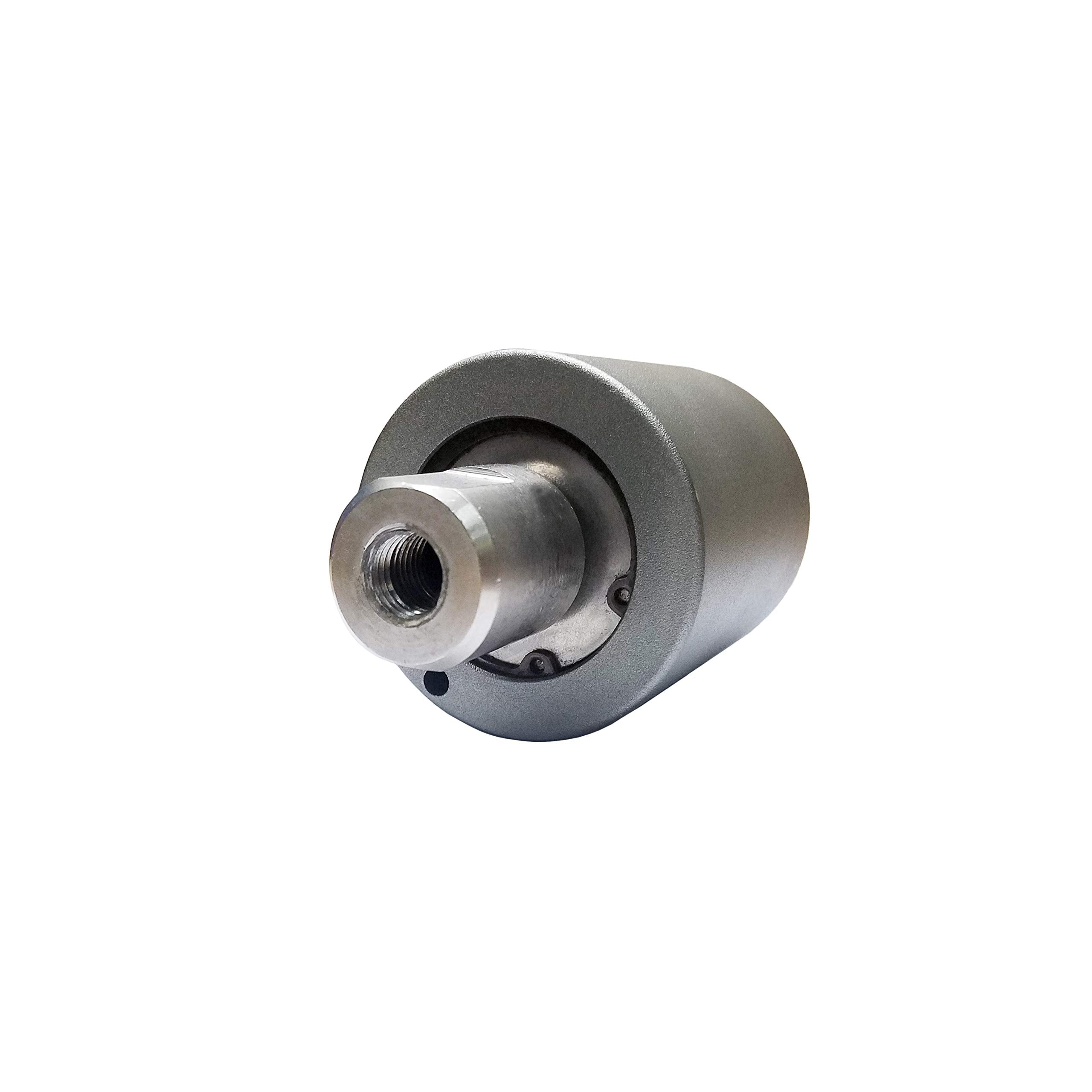

• Grease nipple provided for periodic lubrication without disassembly
• Weep hole allows pressure relief and helps indicate seal wear

Can I use this swivel head with hot water and high RPMs?

Yes — the assembly is rated for hot-water use up to 190°F and was designed to operate at rotational speeds common in BE surface cleaners. Observe the maximum RPM recommendation for your specific machine and ensure seals are in good condition when using very hot water.

• Maximum temperature: 190°F — suitable for most hot-water cleaning tasks
• Rated RPMs: compatible with BE pressure-supply surface cleaner operating ranges (check your model specs)
• Use recommended grease and inspect seals after prolonged hot-water exposure

Who is this for? This rotary swivel head is intended for professional cleaners, maintenance technicians, rental operators, and serious DIYers who own BE Whirl-A-Way or similar BE surface cleaners and need a reliable replacement part. If your machine shows reduced rotation, leaking at the swivel, or you maintain a fleet of surface cleaners, this assembly provides a ready-to-install solution that restores performance with OEM-compatible fittings and service features.
