UCEDER Hot Tub Heater LX H20-Rs1 110-120V 2 kW Inline Thermostat — Compact Retrofit for ≤400 gal Spas

UCEDER Hot Tub LX H20-Rs1 is a compact 110–120V, 2 kW inline spa heater designed to raise and maintain water temperature in small bathtubs, portable spas and hot tubs with up to about 400 US gallons of water.

This inline thermostat heater is built for retrofit or aftermarket spa upgrades where a low-voltage, energy-efficient heating element is needed. It connects directly to a circulating pump and requires a dedicated 20A circuit; the unit ships without a plug and has three wires for permanent connection. Designed for straightforward installation when matched with the correct pump, plumbing and electrical supply, the LX H20-Rs1 focuses on reliable, compact performance rather than high-capacity commercial heating.

How much water can this 2 kW heater effectively warm?

The LX H20-Rs1 performs best in small to medium home tubs and portable spas. UCEDER recommends a maximum water capacity of about 400 US gallons; exceeding that can prevent the heater from reaching or holding set temperatures.

• Maximum recommended capacity: ~400 US gallons
• Not intended for large commercial pools or oversized hot tubs
• Heating time depends on pump flow and ambient temperature

What electrical and plumbing setup do I need to install the heater?

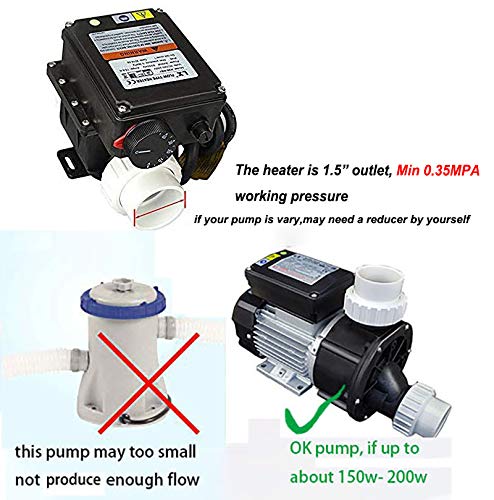

Install the heater on a dedicated 20A circuit and provide a 1.5" outlet for the inline connection. The unit requires a minimum water pressure (0.35 MPa) and works with pumps that deliver sufficient flow and horsepower.

• Voltage: 110–120V (2 kW) with a 20A breaker or adapter
• Wiring: three wires — black (live), white (neutral), green (ground)
• Plumbing: 1.5" outlet and minimum 0.35 MPa pressure

Which pump and flow specs are recommended for reliable operation?

A pump that produces steady flow and at least 200 watts (approximately 3600 L/h) is advised. Undersized pumps or insufficient flow will trigger safety features or prevent the heater from engaging.

• Suggested pump power: ≥200 W
• Suggested flow: approximately 3600 L/h or higher
• Incorrect pump sizing can cause no-heat conditions

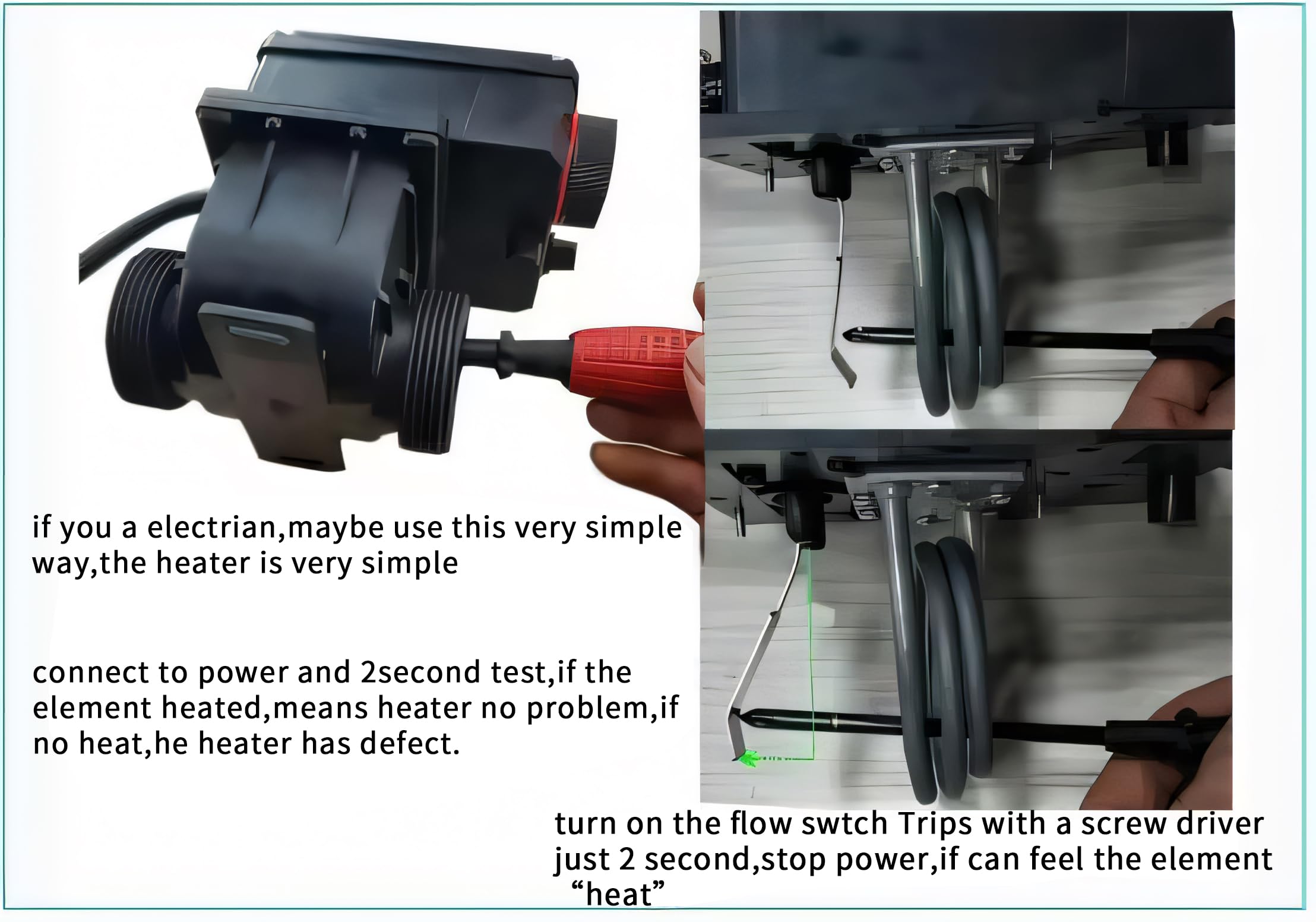

How can I troubleshoot if the heater doesn’t operate?

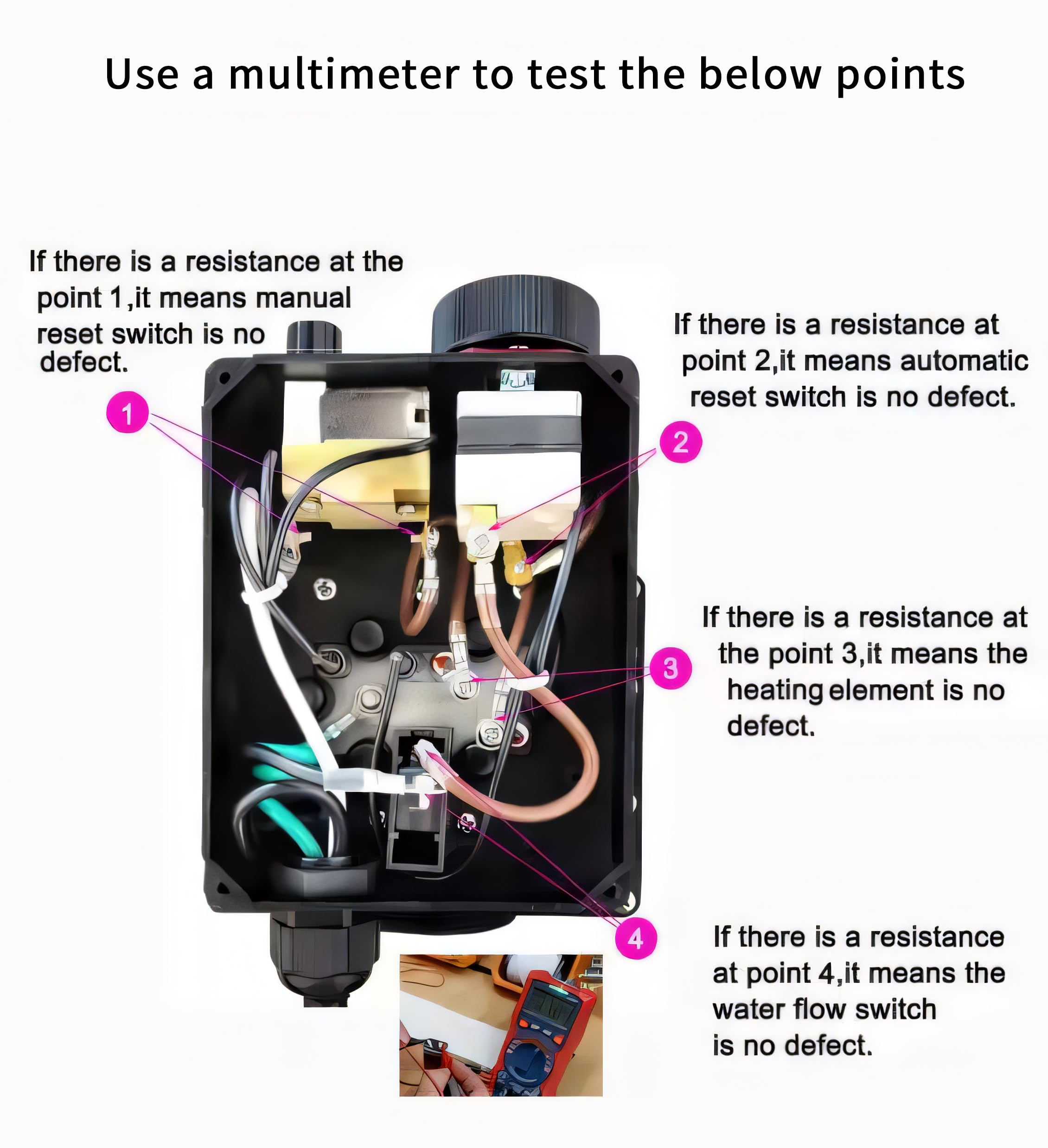

UCEDER provides simple inspection steps: check mount direction, verify wiring, confirm flow and pressure, and use a multimeter to isolate faulty components. The package includes pictorial guidance for detecting heating element damage and testing four diagnostic points.

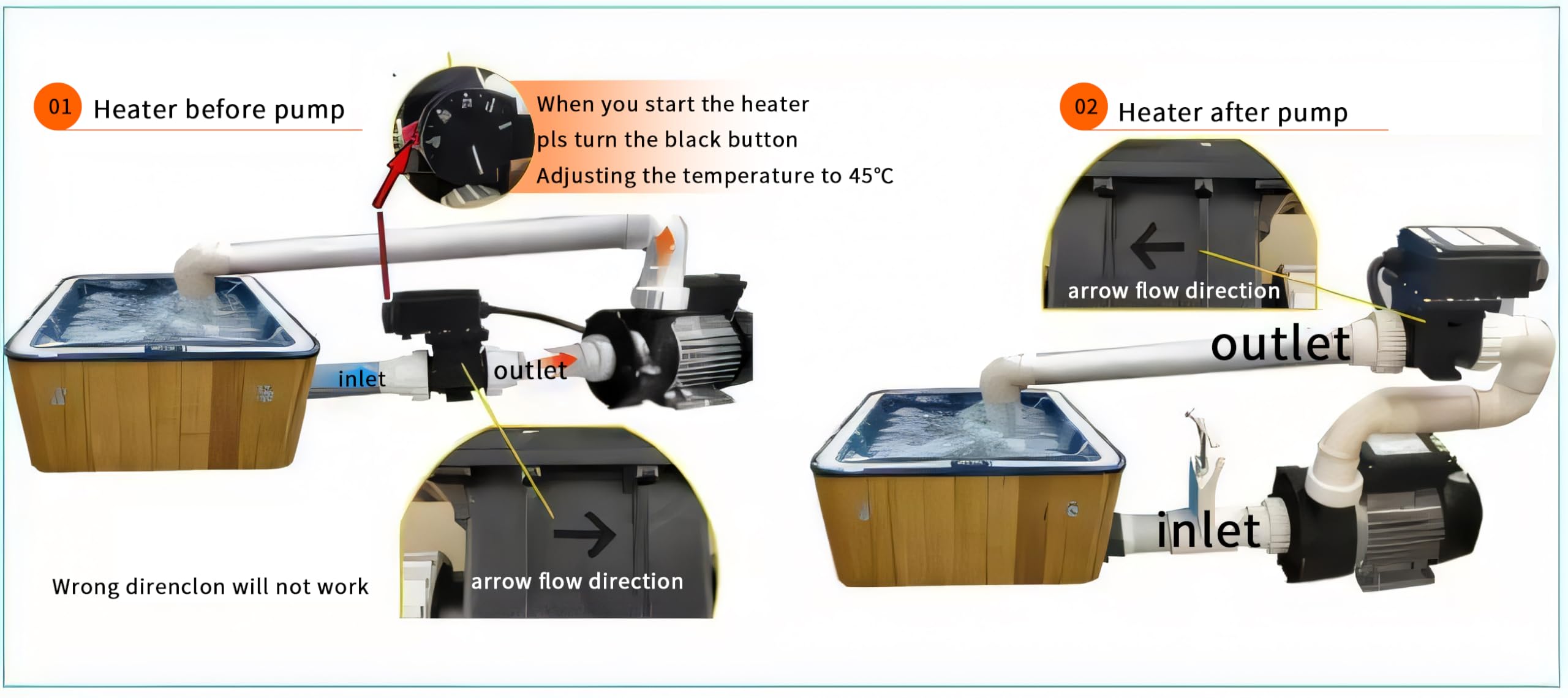

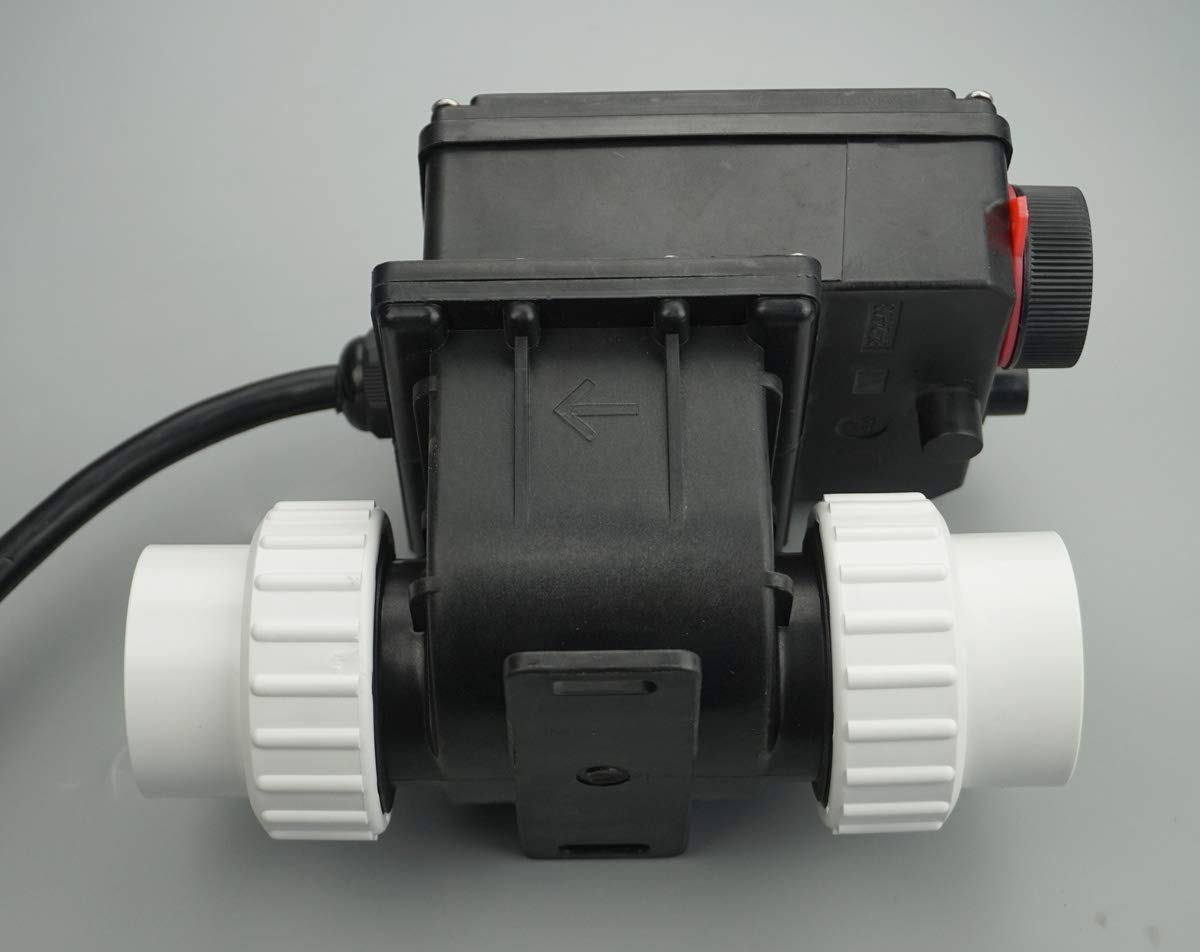

• Confirm arrow on unit matches water flow direction
• Use a multimeter to test the four diagnostic terminals
• Photograph installation, pump, set temperature and water volume for support

Who this is for: The UCEDER LX H20-Rs1 is aimed at homeowners, DIY installers and technicians refurbishing compact hot tubs, portable spas or small bathtubs who need a low-voltage, space-saving inline heater. It’s a practical choice when you have a compatible pump, a dedicated 20A circuit and plumbing with a 1.5" outlet. If you operate a large commercial tub or require high-speed rapid heating for large volumes, consider a higher-capacity model instead.
