Topsolar 100W 12V Monocrystalline Solar Panel Kit — 30A PWM Controller, Z-Brackets for RV/Boat/Cabin

This compact kit bundles a durable 100-watt monocrystalline panel with a 30A PWM charge controller, mounting Z-brackets, and a pair of red/black solar cables so you can set up a small off-grid array quickly. The panel measures 1160 × 510 × 35 mm (45.6 × 20 × 1.37 in), weighs 15.84 lbs, and delivers a maximum power voltage (Vmp) of 23V and current (Imp) of 4.3A—sized to recharge 12V battery banks and integrate into mobile or remote power systems.

How will this kit perform on an RV or boat?

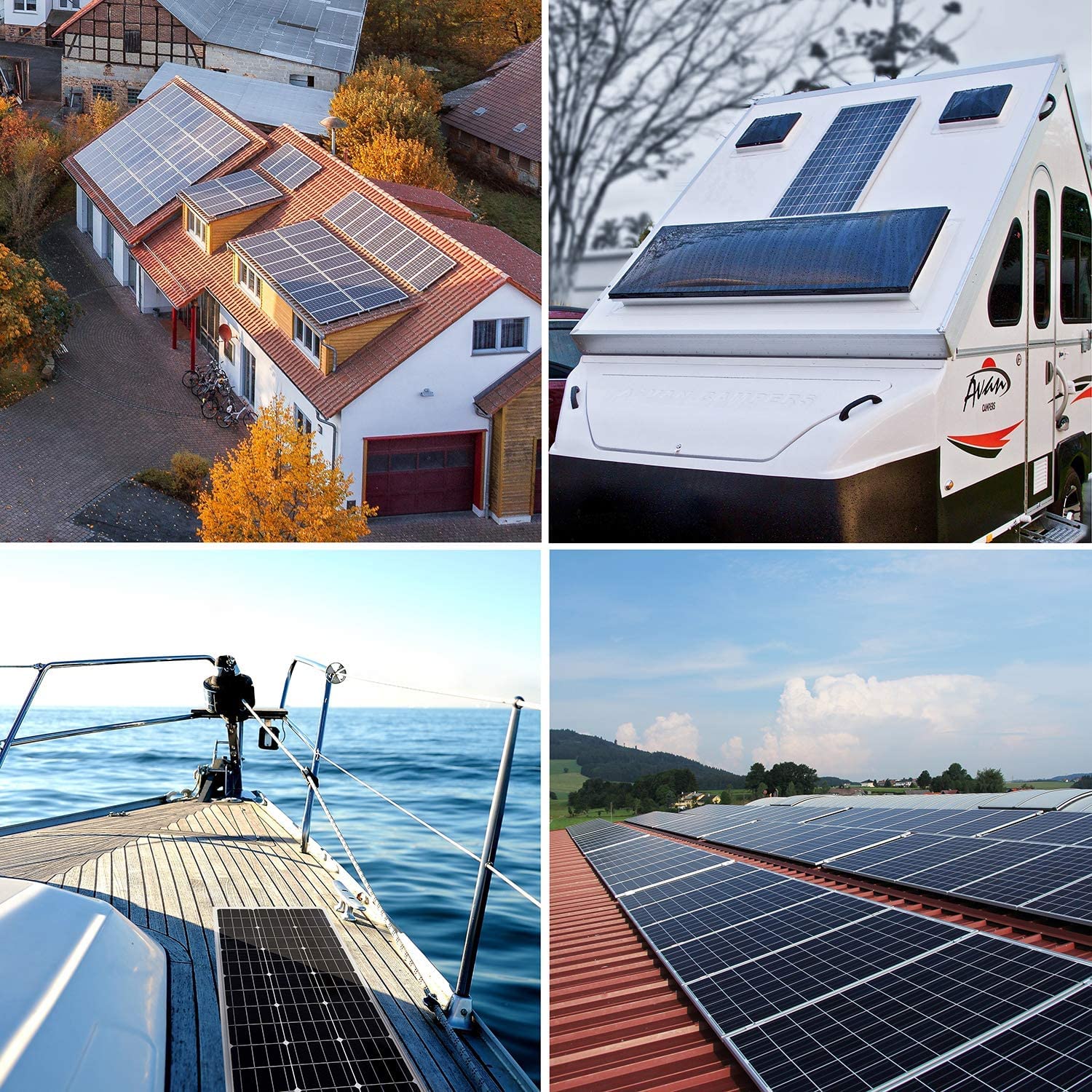

The panel’s monocrystalline cells provide efficient energy capture in a compact footprint, while the strong aluminum frame and tempered glass stand up to outdoor exposure. Pre-drilled mounting holes and included Z-brackets let you secure the panel to curved or flat surfaces commonly found on vehicles and marine roofs.

• 100W output for steady 12V battery charging

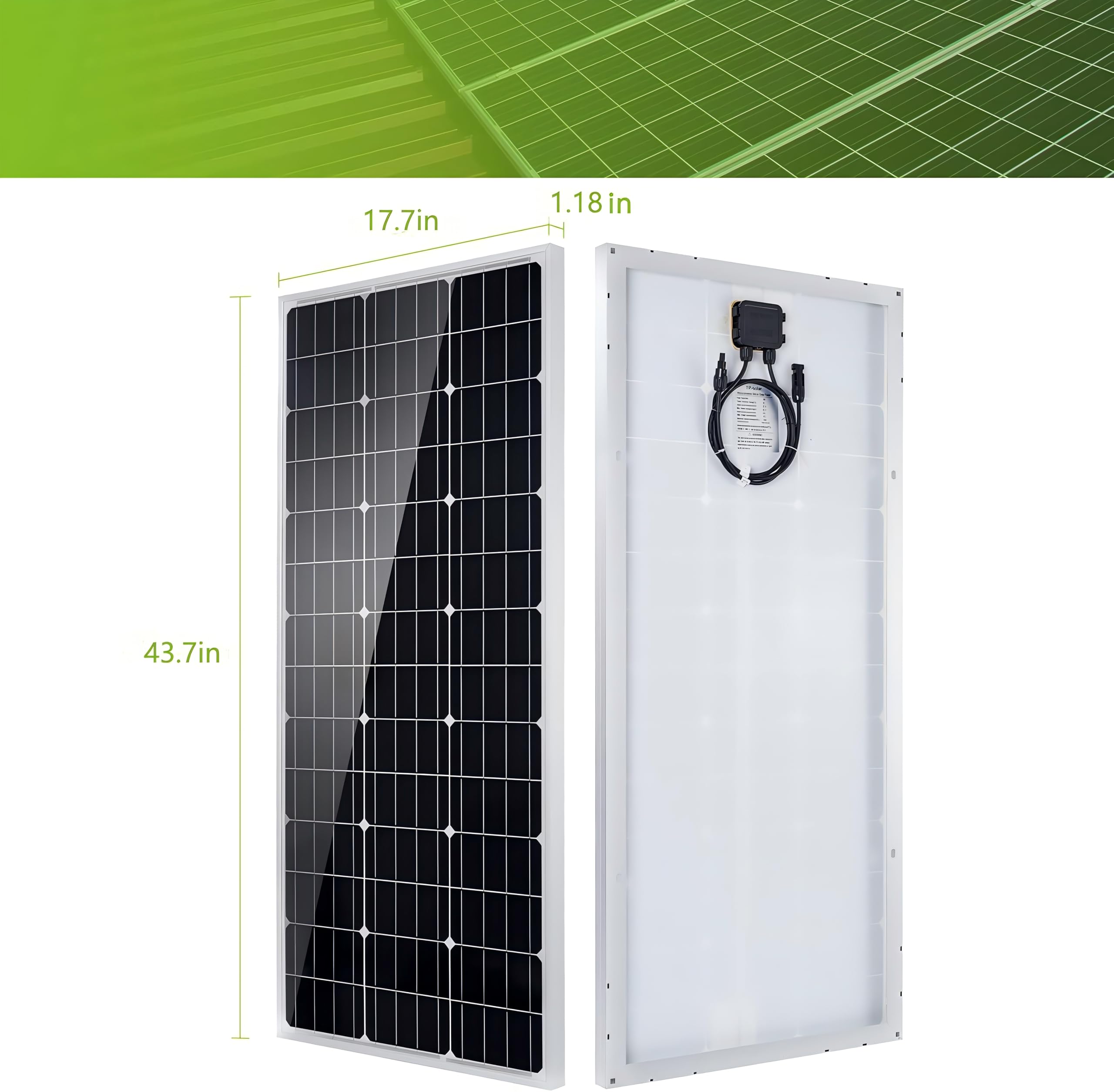

• Pre-drilled rear holes plus 4 Z-brackets for straightforward mounting
• Compact 1160×510×35 mm size fits many rooftop spaces
• Robust frame and glass withstand wind and snow loads

What protections and expansion options does the 30A charge controller provide?

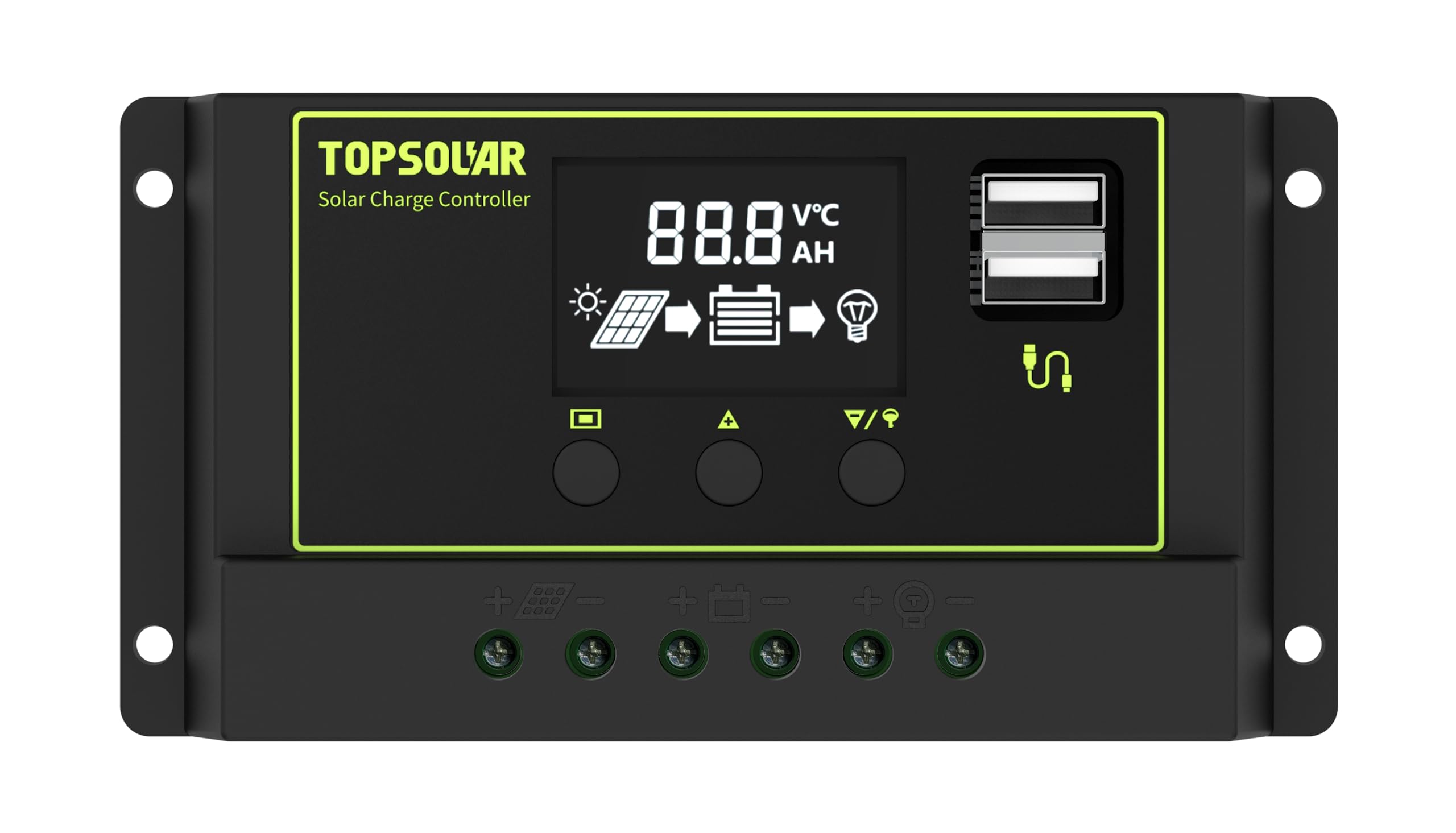

The included 30A PWM charge controller manages battery charging to prevent overcharge and reverse polarity, and guards against short circuits and excessive discharge. It supports system expansion so you can add more panels while staying within safe limits for 12V or 24V configurations.

• PWM charge regulation to protect battery life
• Reverse polarity and short-circuit safeguards built in
• Expandable: up to 260W total on a 12V system, 520W on 24V
• Simple 12V/24V compatibility switching for different battery banks

How durable is the panel for long-term outdoor use?

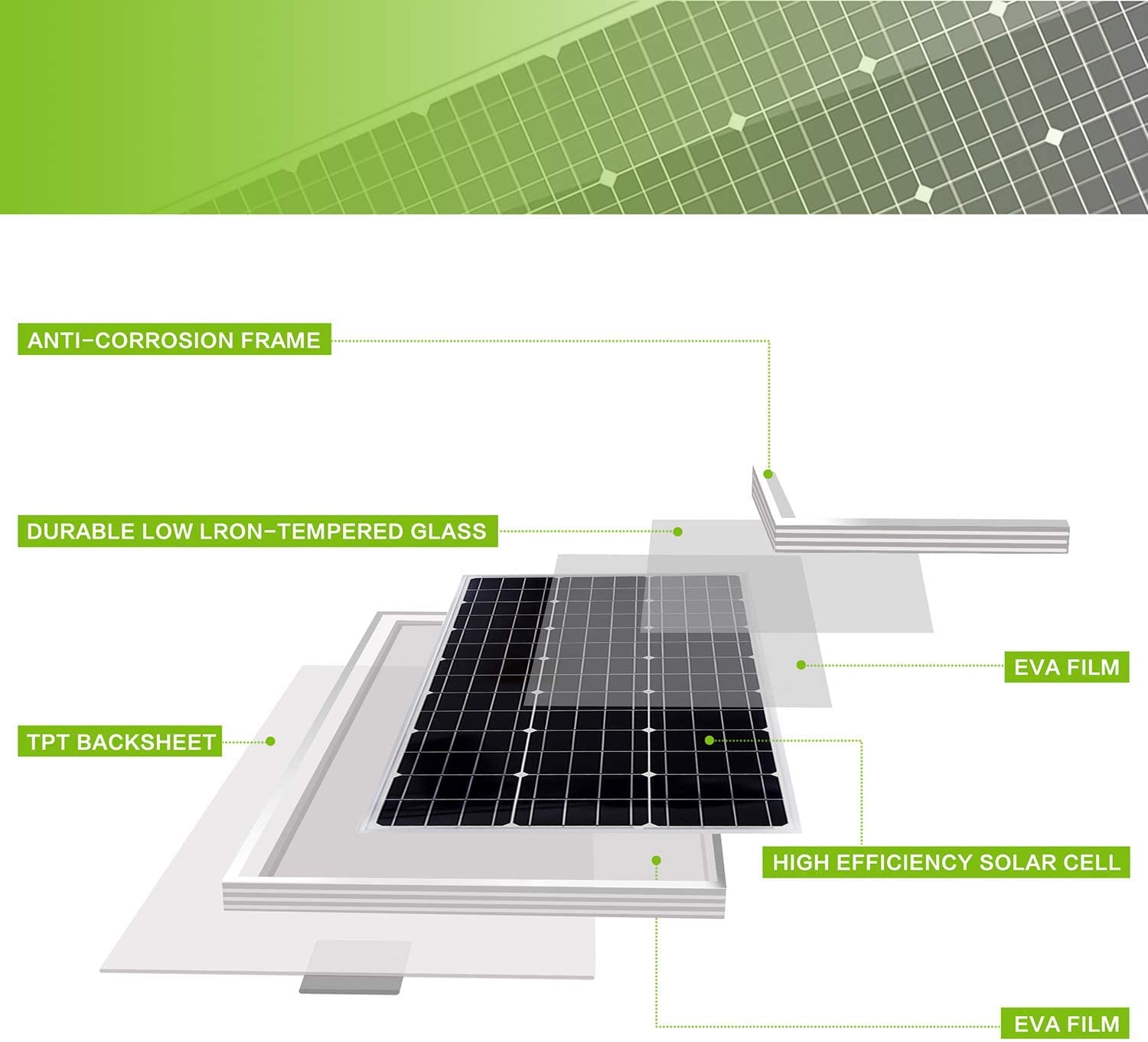

Topsolar built this module with a tempered-glass front and reinforced aluminum frame to resist the elements. The panel is engineered to handle high wind and snow pressure values, which reduces the chance of damage in harsh weather and extends useful life in exposed installations.

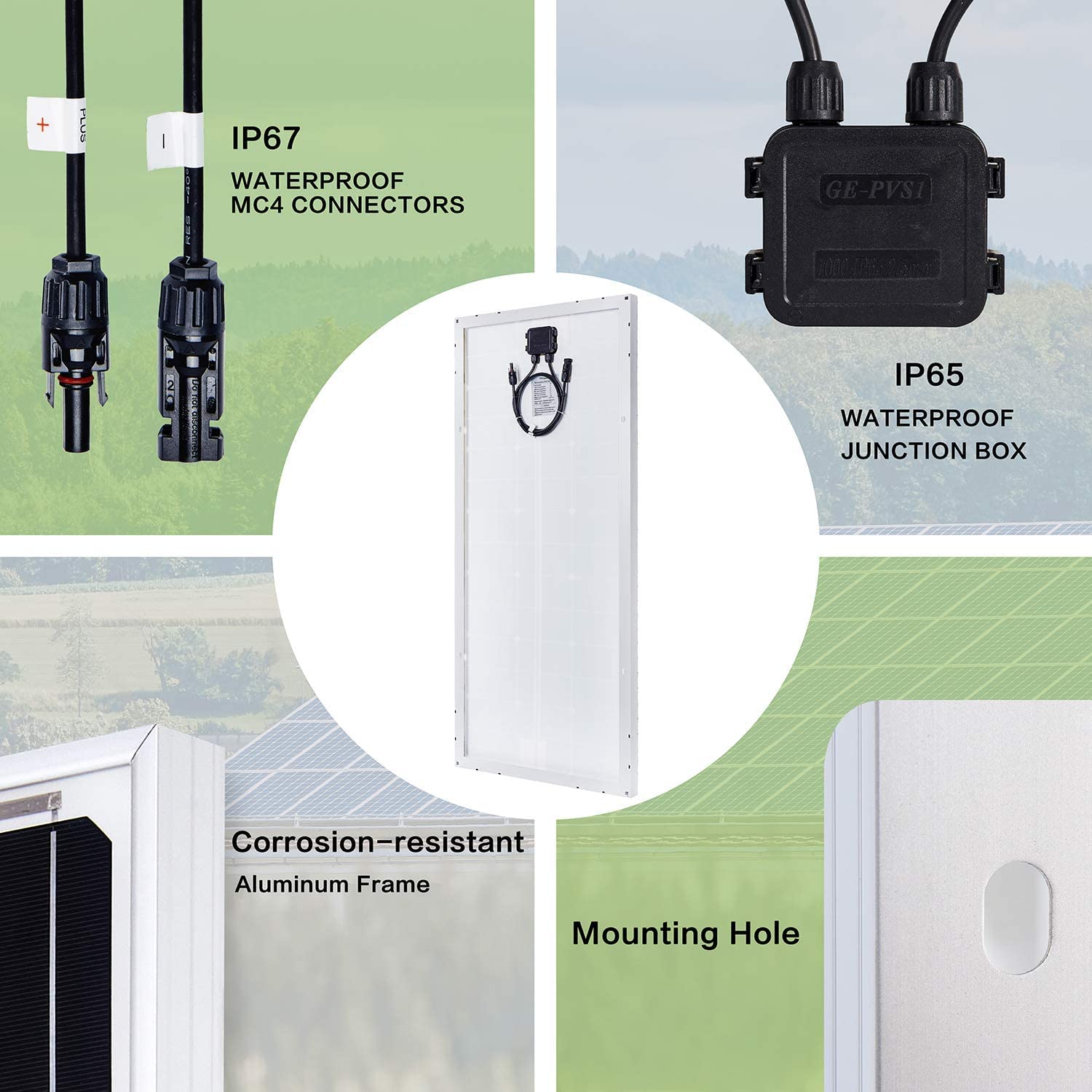

• Tempered glass for scratch and impact resistance
• Aluminum frame for corrosion resistance and rigidity
• Wind load rating 2400 Pa and snow load rating 5400 Pa
• Design intended for years of outdoor operation

What’s included and how easy is installation?

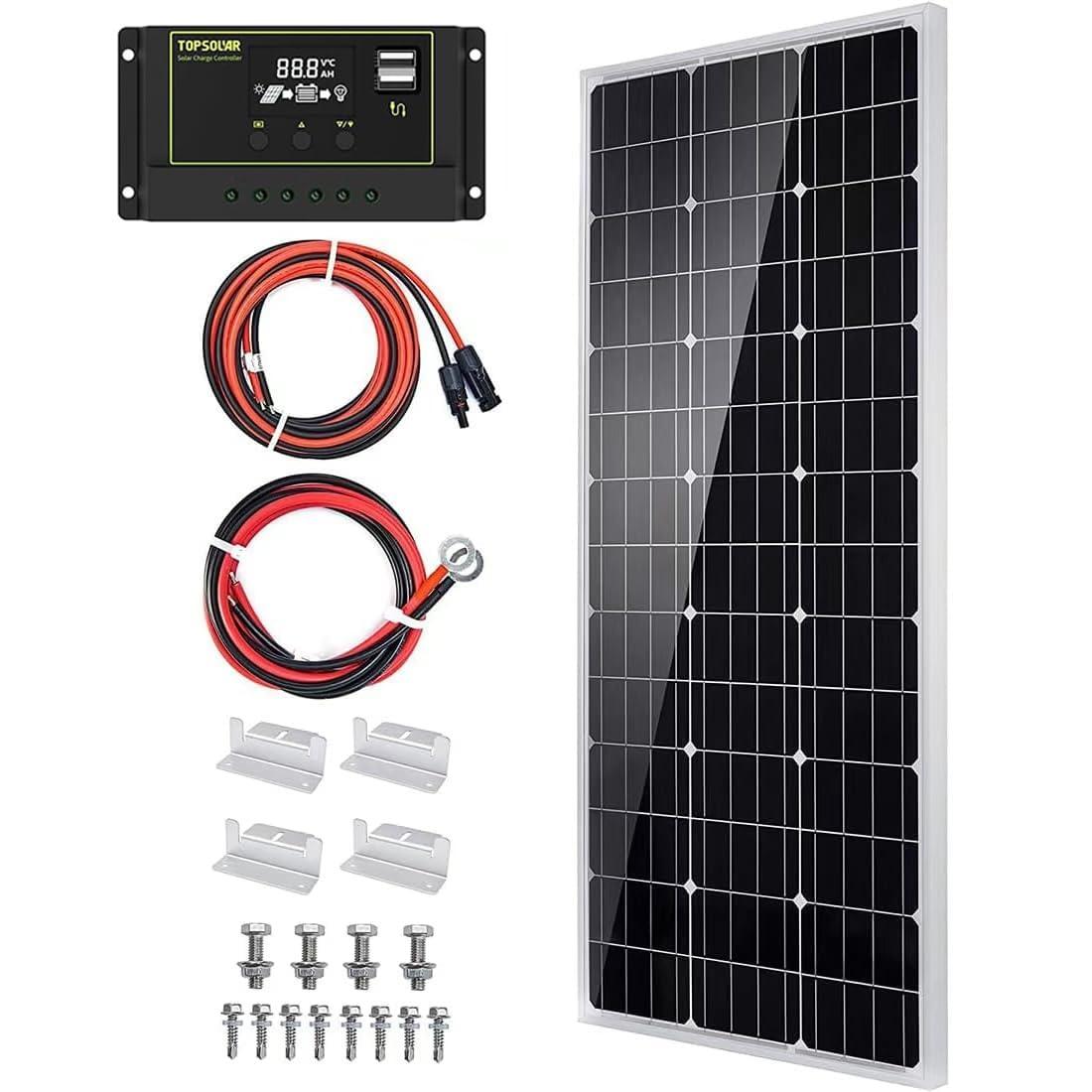

The package includes the solar panel, a 30A 12V/24V PWM charge controller, one pair of red and black solar cables, and four Z-mounting brackets for fast attachment. With pre-drilled holes on the panel back and the necessary mounting hardware and wiring, a basic rooftop or pole mount setup can be completed by a competent DIYer or technician.

• One 100W monocrystalline panel (1160×510×35 mm, 15.84 lbs)
• 30A PWM solar charge controller for battery management
• Red and black solar cable pair for panel-to-controller connection
• Four Z-brackets for secure mounting and easy alignment

Who is this for: This Topsolar kit suits owners of RVs, boats, tiny homes, cabins and off-grid hobby sites who want a compact, durable 12V charging solution with straightforward installation. It’s also a good starting point for anyone planning to expand later—either adding panels up to the specified system limits or integrating the controller into an existing 12V/24V battery setup.
