TOOLCY 3/4" Shaft Horizontal Pressure Washer Pump 2600–3300 PSI 2.5 GPM — 180–225cc Compatible, Maintenance-Free Crankcase

TOOLCY 3/4" Shaft Horizontal Pressure Washer Pump is a durable replacement pump delivering 2600–3300 PSI at 2.5 GPM for 180–225cc engines.

This horizontally mounted pressure washer pump from TOOLCY is built to revive worn-out pressure washers with a higher-rated 3300 PSI option and long-lasting construction. It fits many popular gas-powered units (180–225cc, 6.0–8.0 HP) and arrives ready to install with matched nozzles and a maintenance-free crankcase. The design emphasizes straightforward installation, corrosion resistance, and consistently powerful cleaning performance across outdoor jobs.

How does this pump improve cleaning performance?

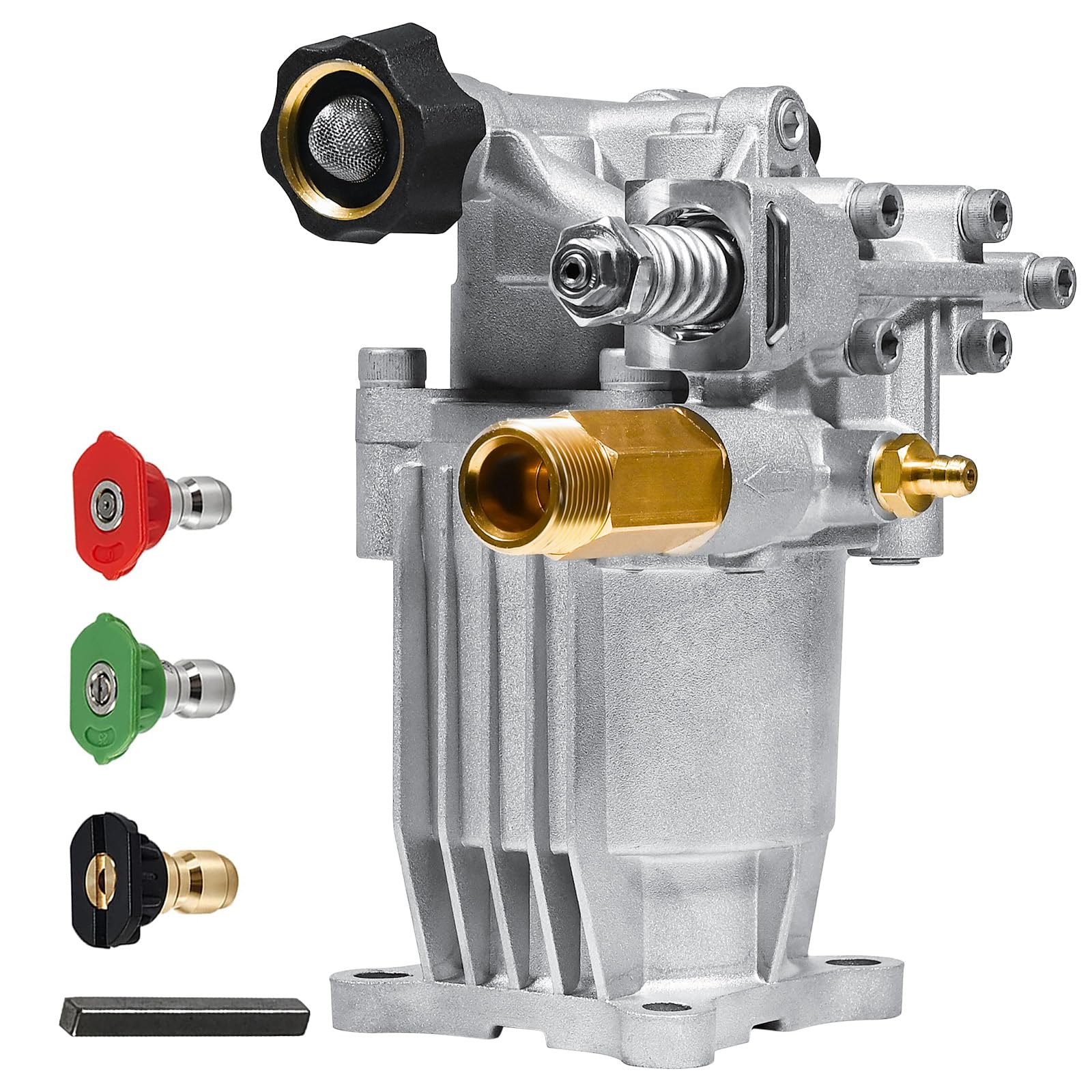

The pump provides a robust flow and pressure combination (2.5 GPM at up to 3300 PSI) that speeds up grime removal while maintaining steady spray control. Three test-matched nozzle tips (0°, 25°, soap) are included so you can switch spray patterns for different surfaces without guesswork.

• Peak pressure range: 2600–3300 PSI for tougher stains.
• Flow rate: 2.5 gallons per minute for quicker coverage.
• Includes 0°, 25°, and soap nozzles for precision cleaning.
• Better suited for tasks like driveways, siding, vehicles, and patios.

Is the pump easy to install and start?

Yes — the TOOLCY horizontal pump is designed for fast replacement with a keyed 3/4" shaft and straightforward mounting dimensions. The unit supports quick cold starts without a separate pressure relief step, and setup typically takes 5–10 minutes with the provided key when matched to a compatible engine.

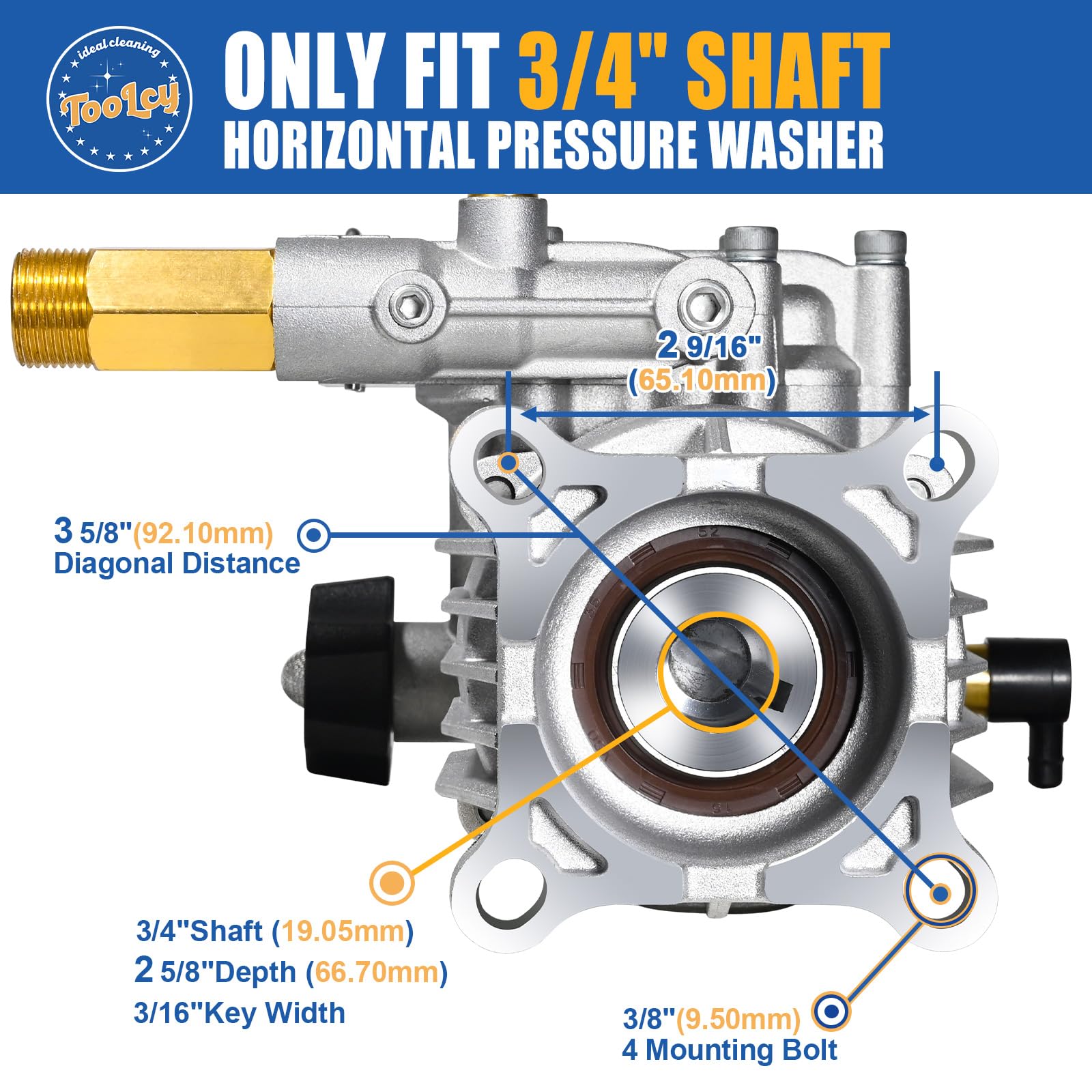

• Shaft: 3/4" with 3/16" key width for secure coupling.
• Mounting: diagonal hole distance 3 5/8" and center-to-center 2 9/16".
• Installation time: about 5–10 minutes following instructions.
• Cold start friendly — no additional relief valve required before start.

What maintenance and durability features does it offer?

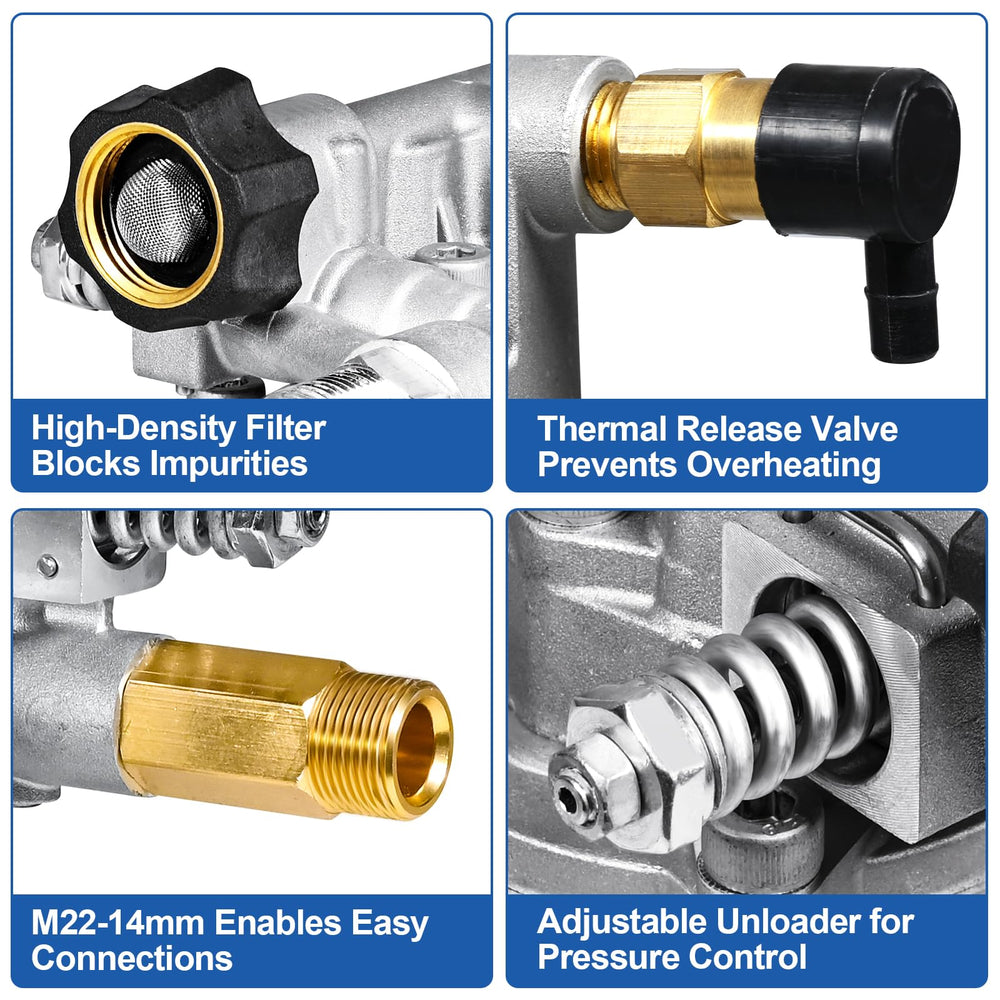

The pump housing is die-cast aluminum treated against corrosion, and the crankcase is maintenance-free, eliminating the need for lifetime pre-filling or frequent oil changes. TOOLCY rates this pump for extended operation time compared with many market alternatives, helping reduce downtime and replacement frequency.

• Die-cast aluminum body with surface treatment to resist rust.
• Maintenance-free crankcase — no routine oil pre-fill or changes required.
• Rated operation time roughly 150 hours, longer than many replacements.
• Designed for rugged outdoor use and repeated starts.

Which engines and models is this pump compatible with?

The TOOLCY pump is compatible with a wide range of small gas engines and many popular pressure washer models. It is suitable for Honda GC160/GC190 variants, several Simpson and Homelite model numbers, Karcher units and multiple other replacement codes; however, it will not fit 7/8" shaft gas engines.

• Compatible engines: 180–225cc (6.0–8.0 HP), Honda GC160 / GC190 listed numbers.
• Works as replacement for many Simpson, Homelite, Troy-Bilt, and Karcher models.
• Specific cross-reference codes are included for easy verification before purchase.
• Not compatible with 7/8" shaft engines — requires 3/4" shaft only.

Who is this for? The TOOLCY 3/4" horizontal pressure washer pump is aimed at homeowners, landscapers, and small contractors who need a cost-effective, durable replacement pump to restore or upgrade older gas pressure washers. It fits users who want higher pressure and faster cleaning without frequent maintenance, plus those who value easy installation and broad parts compatibility. Verify shaft size and mounting dimensions against your machine before ordering to ensure proper fit and performance.
