TIROAR SX244DA Lateral Assembly with Center Pipe for Hayward S244T/S270T — Hubbed Center Pipe & Radial Laterals

The TIROAR SX244DA lateral assembly with center pipe is a direct replacement part designed to restore proper filtration flow in compatible Hayward Pro Series sand filters.

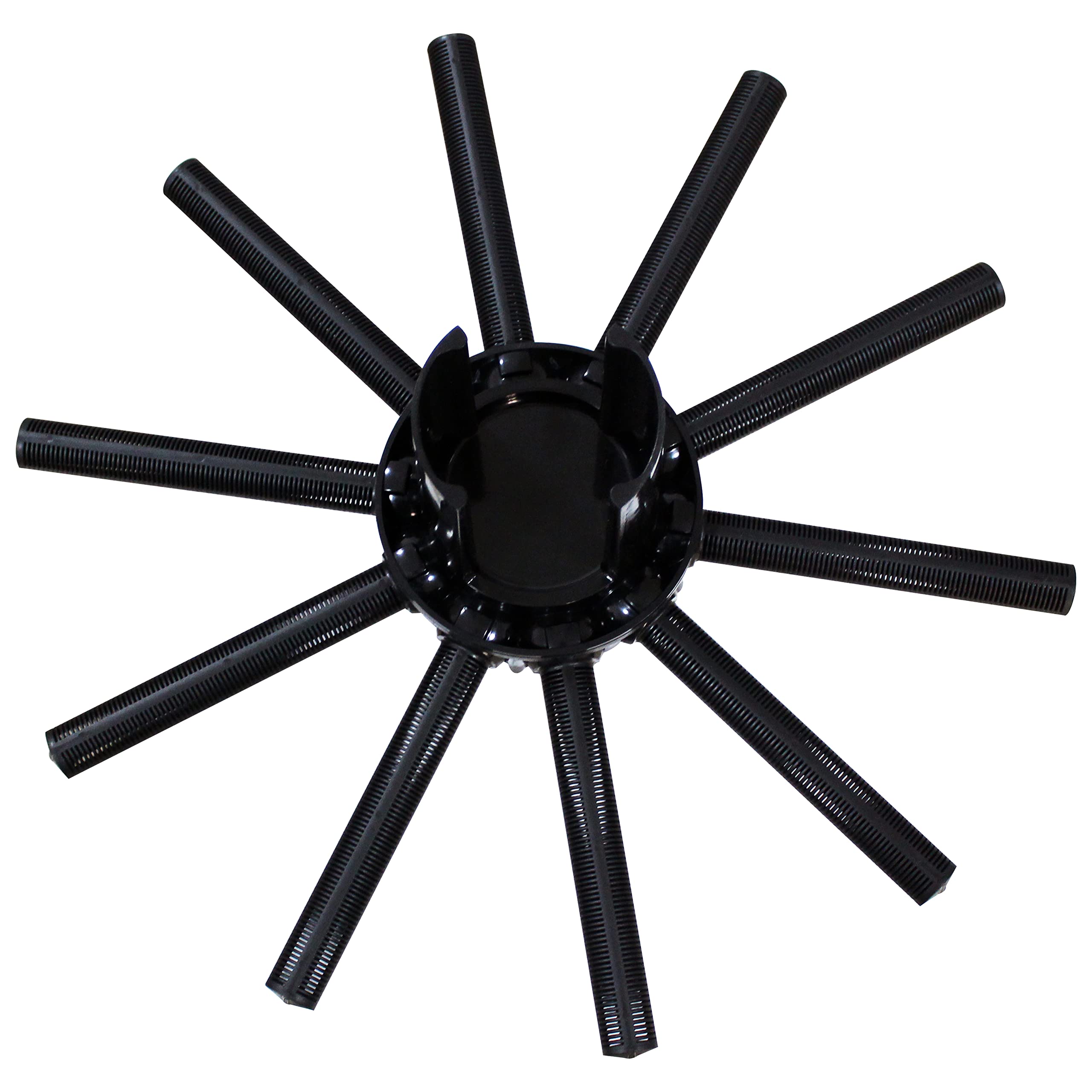

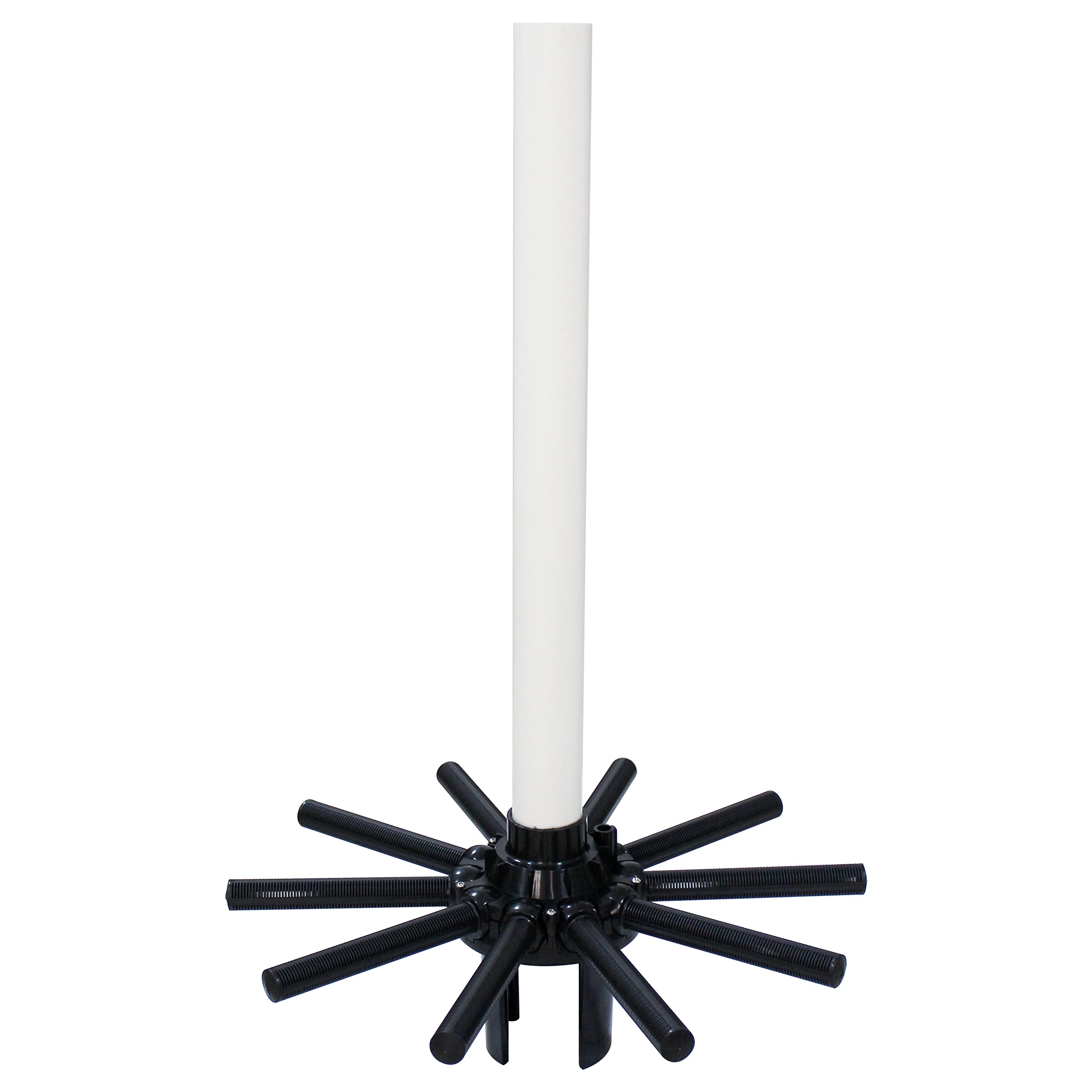

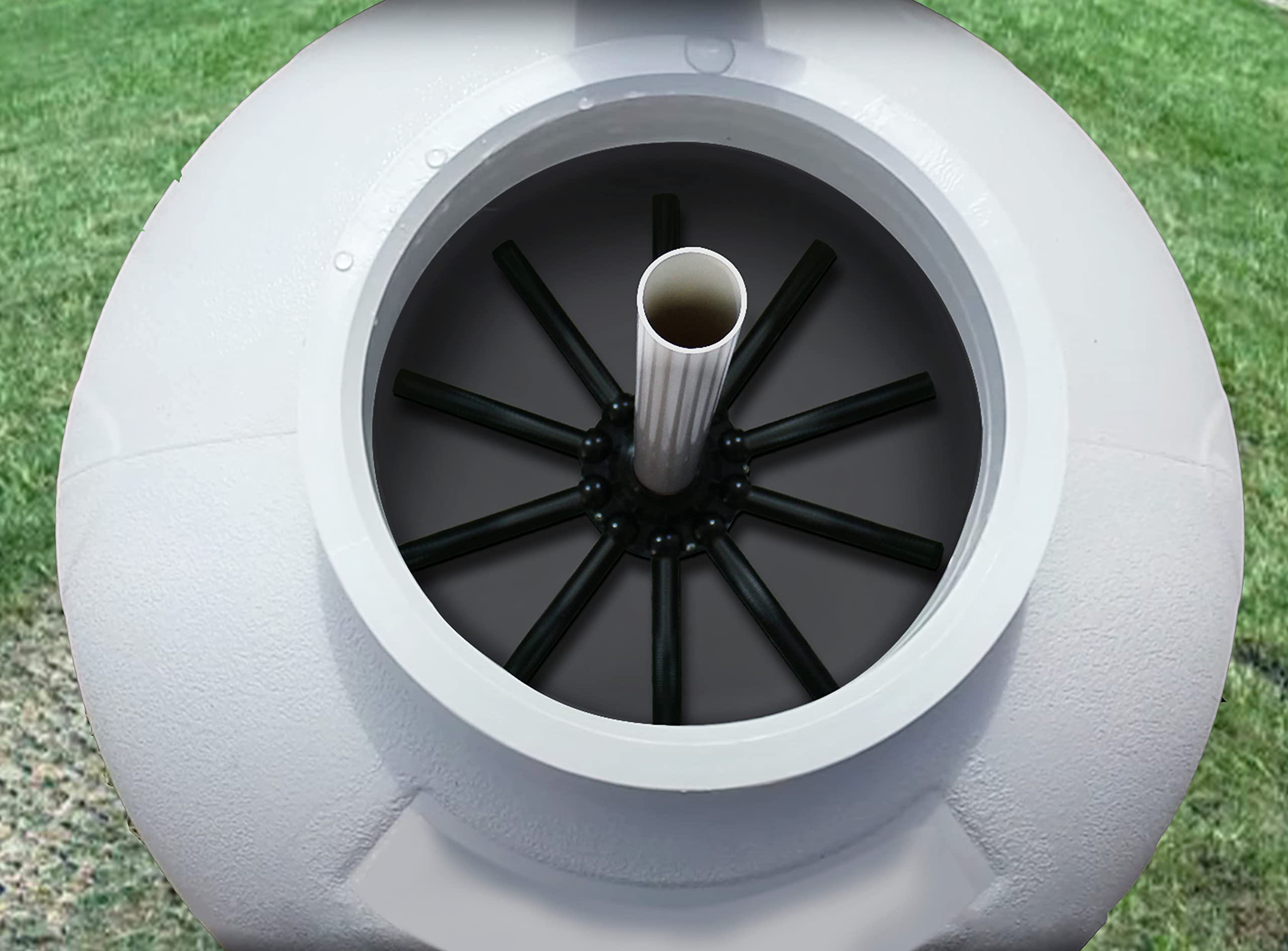

If your Hayward S244T, S270T or S270T2 (1997 and earlier) sand filter is producing cloudy water, slow flow, or uneven pressure, the internal lateral assembly and center pipe are often the worn components. This TIROAR replacement set includes the hubbed center pipe and the radial lateral arms that collect filtered water from the sand bed and route it up to the multiport valve. Designed to match the original geometry, the parts fit inside the filter tank and let media and debris separate as intended when installed correctly.

How will replacing the lateral assembly improve my filter’s performance?

Installing a fresh lateral assembly removes damaged or clogged arms that let sand leak into the pool or allow unfiltered bypass. Replacing worn components re-establishes balanced water flow through the sand bed and reduces channeling that causes poor filtration.

• Restores even water distribution and collection across the sand media
• Prevents sand leakage into the plumbing and pool
• Helps return clear water and maintain proper pressure readings

Will this SX244DA kit fit my Hayward sand filter model?

The TIROAR SX244DA assembly is specifically made to be compatible with Hayward Pro Series models S244T, S270T and S270T2 (manufactured 1997 and earlier). Before purchasing, compare the internal pipe length and lateral pattern to your existing parts to ensure a match.

• Compatible models listed: S244T, S270T, S270T2 (1997 - pre)

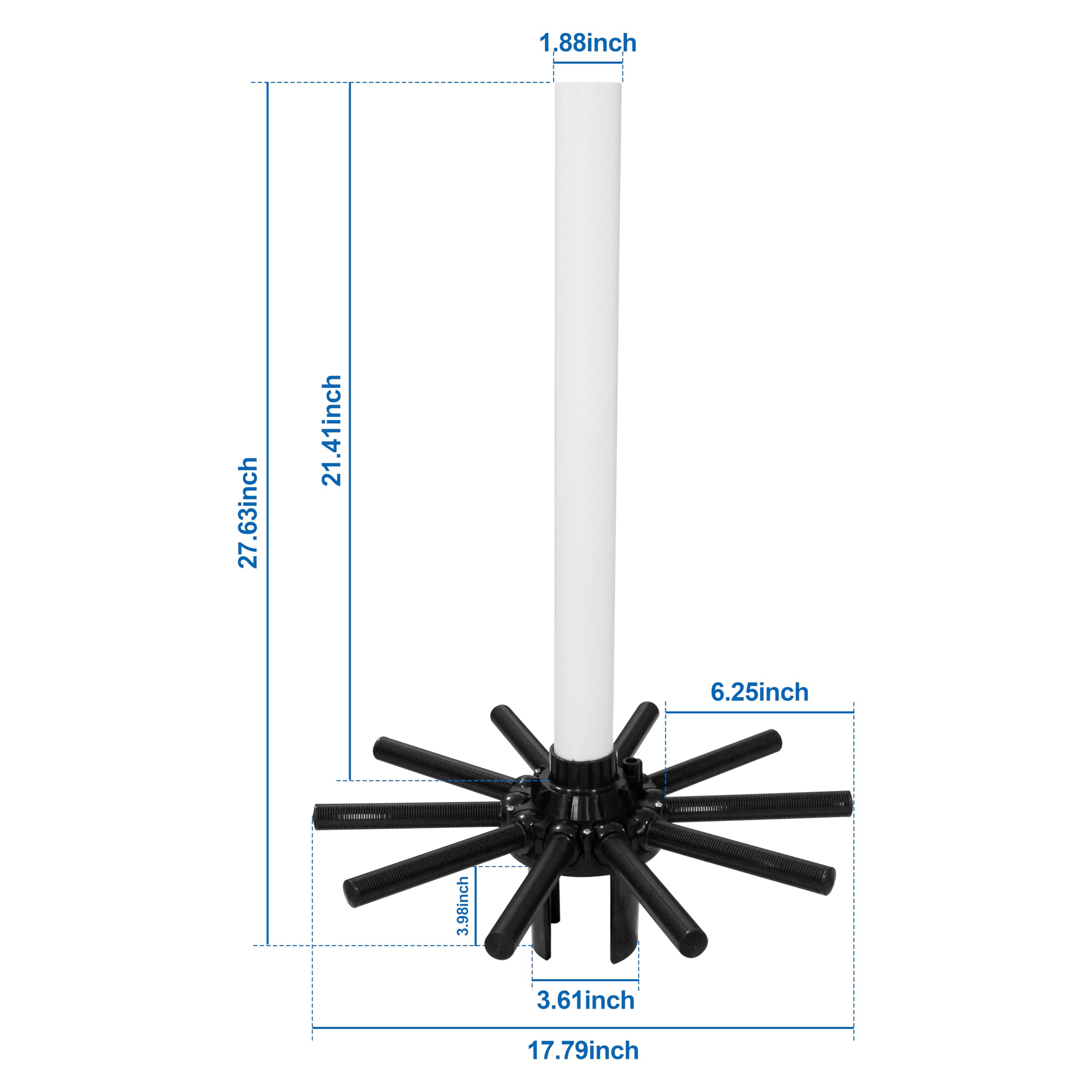

• Measure center pipe length and lateral arm count to confirm fit
• Consult the original filter manual or remove the old part for comparison

What is included and are there any important installation steps?

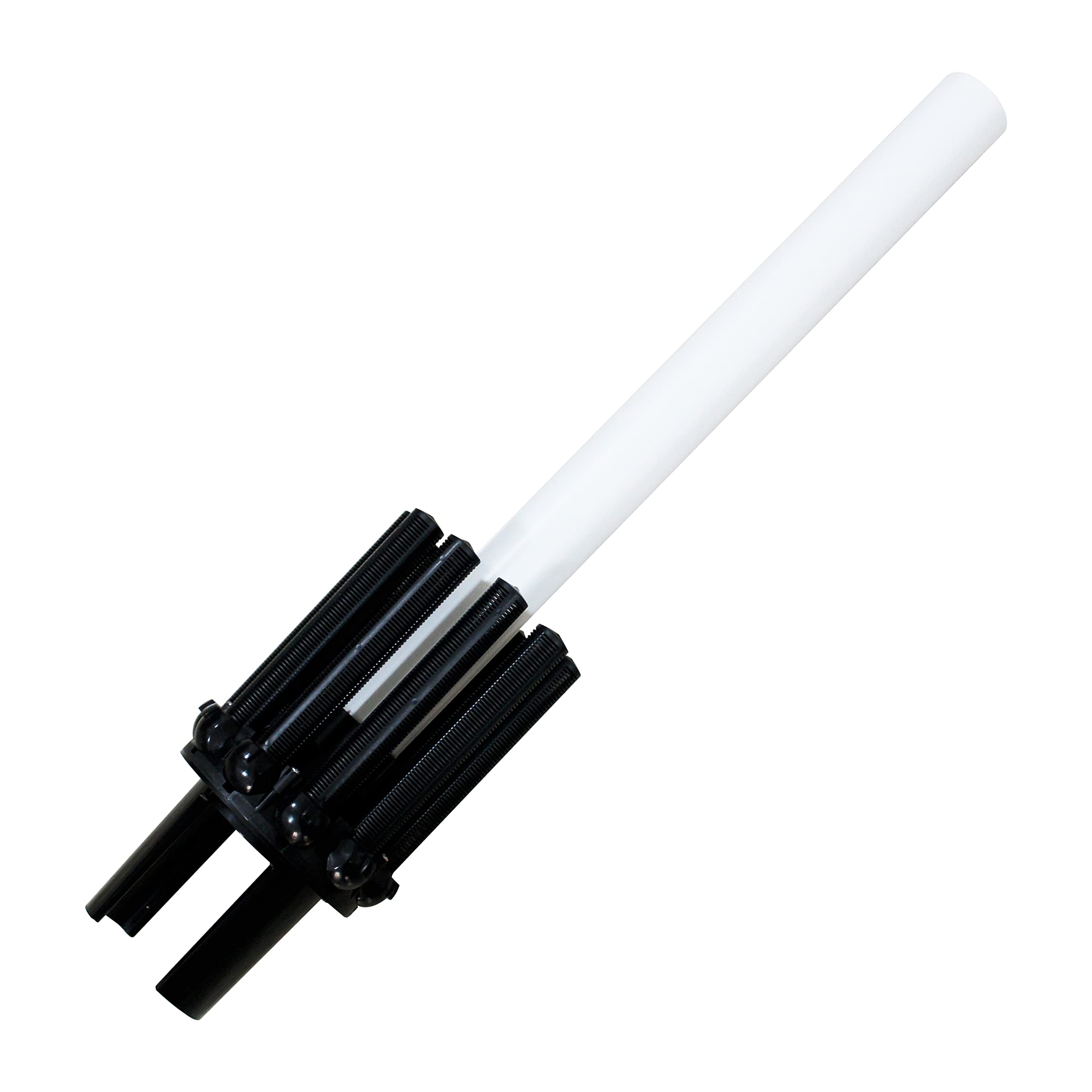

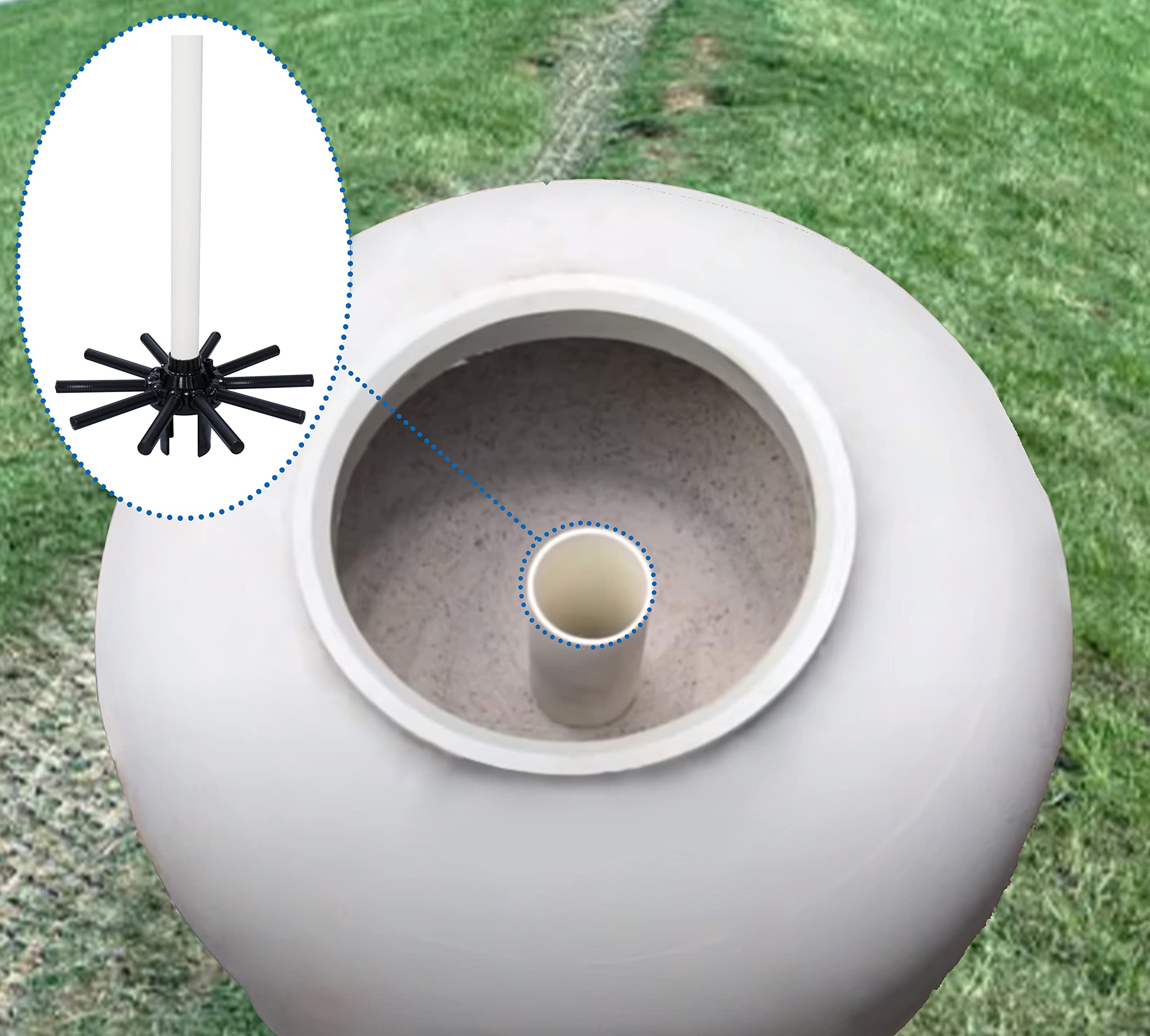

The kit arrives with the center riser pipe and the radial lateral assembly ready for installation. To avoid damaging the lateral arms, cover the center tube opening before adding sand and partially fill the tank with water to support the assemblies during backfill.

• Supplied: center pipe and full lateral assembly
• Cover tube opening while pouring sand to prevent media entry
• Add water to the tank before final sand fill to protect the laterals

How long can I expect this replacement to last and how do I maintain it?

Longevity depends on operating conditions, sand maintenance, and chemical balance. Routine checks during seasonal maintenance and careful handling during sand changes will extend service life and keep filtration consistent.

• Inspect lateral arms during annual service or when sand is changed
• Keep water chemistry balanced to reduce premature wear
• Replace if arms are cracked, clogged, or letting sand pass through

Who is this for: Pool owners or service technicians who operate Hayward Pro Series S244T/S270T/S270T2 (1997 and earlier) filters and need a reliable OEM-style replacement to restore filtration performance. This TIROAR assembly is ideal for anyone performing a mid-life rebuild of their sand filter, homeowners troubleshooting sand in the pool, and professionals who want a direct-fit part to minimize downtime during maintenance.
