Tigo TS4-A-O Module Add-On Rapid Shutdown & Optimizer, 1500V, 1.2m Cable with MC4 Connectors

The Tigo TS4-A-O is a module-level add-on that delivers rapid shutdown and per-panel optimization for PV arrays, compatible with 1500V systems and fitted with a 1.2 m cable and genuine MC4 connectors.

Built as an add-on MLPE (module-level power electronics), the TS4-A-O (Part No. 461-00252-32) is designed to improve energy harvest and compliance on modern solar rooftops. It integrates rapid shutdown to meet NEC 690.12 and offers optimization to reduce the effects of shade, module mismatch, and mixed orientations. The unit installs at the module junction box and connects with a 1.2 m cable and MC4 genuine connectors for straightforward integration into new or retrofit PV systems.

How does the TS4-A-O manage rapid shutdown requirements?

The TS4-A-O implements module-level rapid shutdown functionality that helps systems meet NEC 2014, 2017, and 2020 690.12 requirements. It safely reduces DC voltage on the array when shutdown is triggered and does so at the module level for quick response.

• NEC 690.12 compliant across 2014–2020 editions
• Module-level voltage reduction for safer access during maintenance
• Installs directly on the module junction box—no separate enclosure needed

What optimization benefits does the TS4-A-O provide on shaded or mixed arrays?

The TS4-A-O adds per-module power optimization to reduce the impact of partial shading and string mismatch. Applied selectively to affected modules, it improves the whole-string output without requiring full-system conversion to MLPE.

• Tolerates shade and mismatch to boost overall yields
• Supports unequal string lengths and mixed orientations
• Enables targeted deployment only where optimization is needed

Can the TS4-A-O be used without additional communication or monitoring hardware?

Yes—this add-on delivers optimization and rapid shutdown without mandatory communication modules or monitoring accessories. For customers who want extra visibility and advanced safety features, the TS4-A-O can be integrated with the CCA kit and TAP for monitoring and centralized control.

• Works standalone for core safety and optimization functions
• Optional CCA Kit with TAP adds monitoring and expanded safety features
• Simplifies retrofit projects where full communications are unnecessary

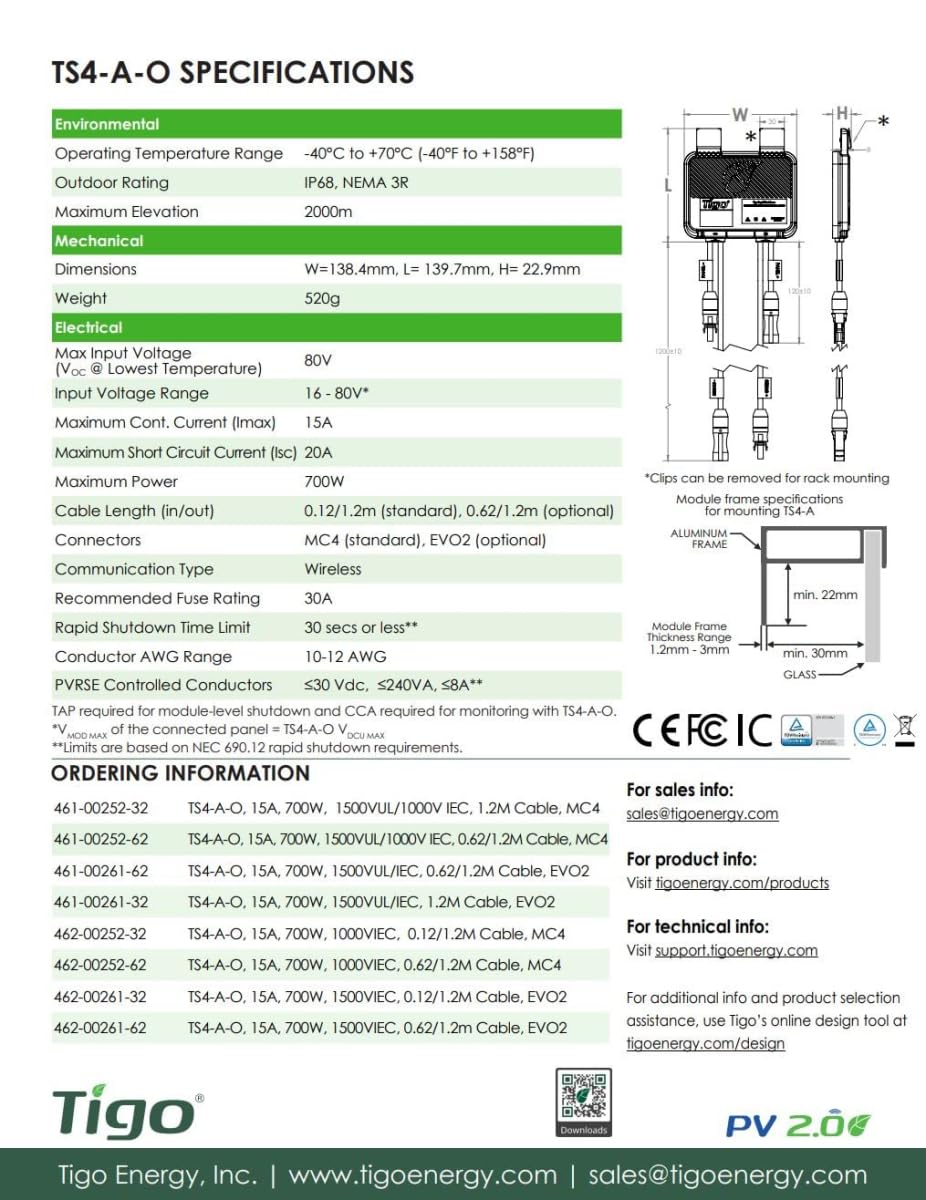

What system specs and connectors does this module add-on include?

The TS4-A-O supports up to 1500 V system voltage and comes with a factory-fitted 1.2 m cable and genuine MC4 connectors for reliable field connections. Its compact add-on form factor mounts at each module and is intended for long-term outdoor PV operation.

• 1500 V maximum system voltage rating

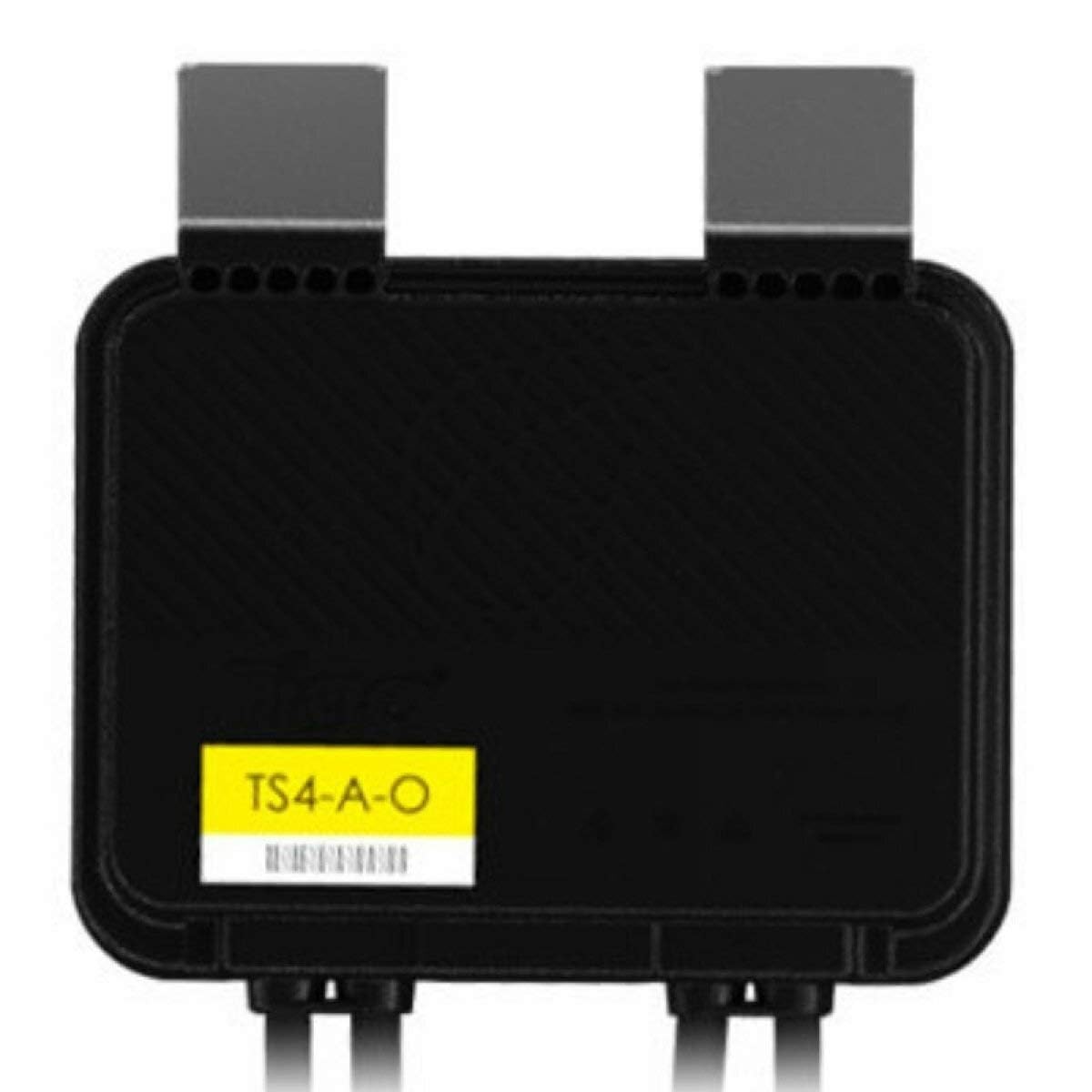

• 1.2 m factory cable with genuine MC4 connectors for secure mating
• Designed for module-level mounting and outdoor durability

Who is this for? Installers and system designers who need NEC-compliant rapid shutdown and targeted module-level optimization will find the Tigo TS4-A-O useful. It’s ideal for rooftops with shading, irregular layouts, or mixed-module orientations where selective optimization improves energy yield without converting the entire array to MLPE. Consider adding the CCA Kit with TAP if centralized monitoring or enhanced safety and analytics are desired.
