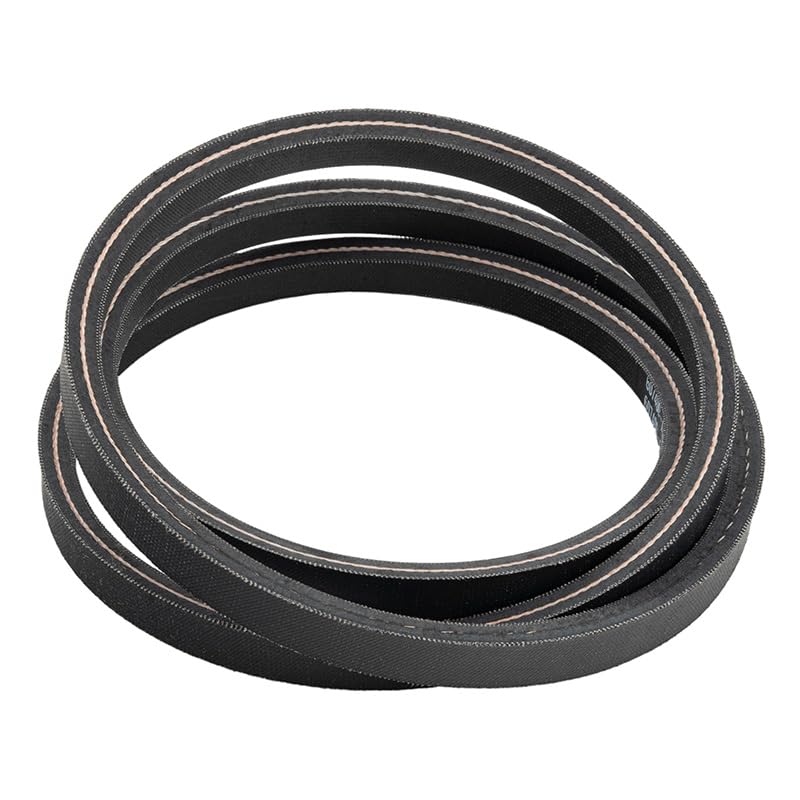

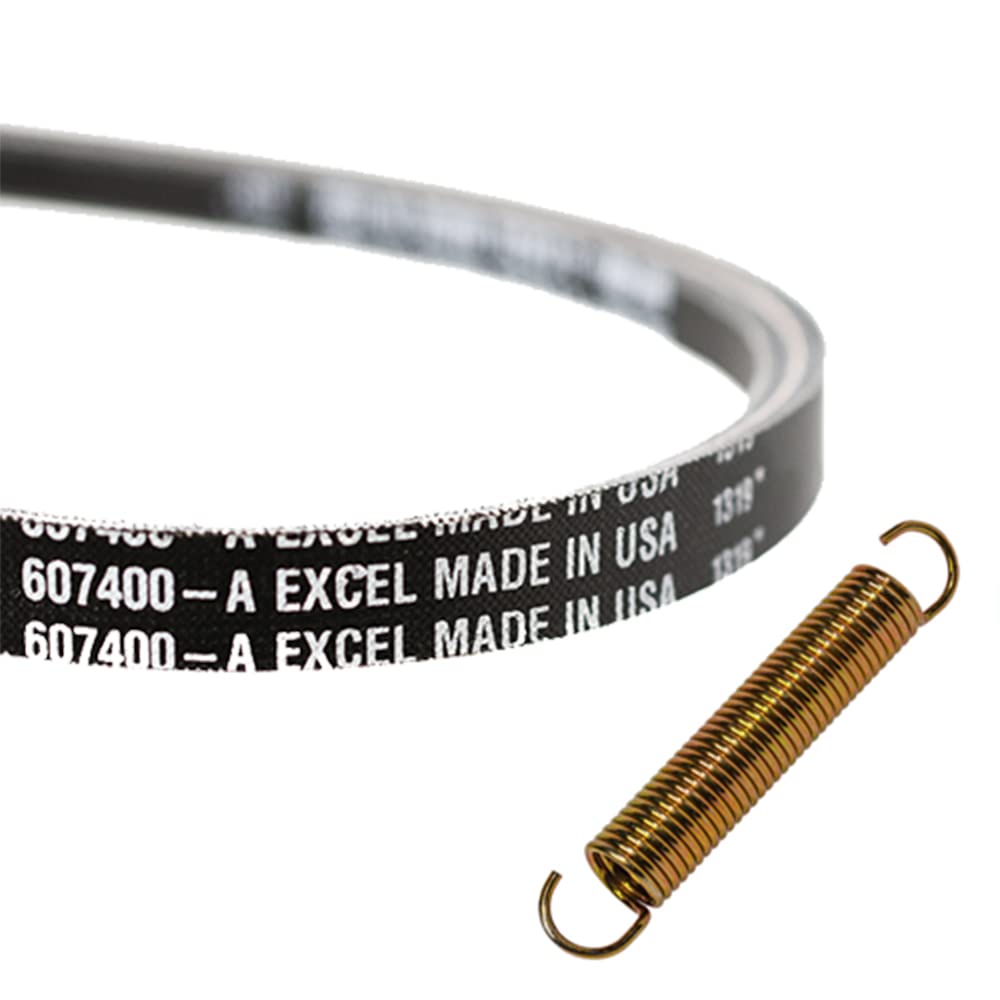

The Mower Shop Pump Belt 607400 & Idler Spring 604490 for Raptor/Raptor SD Mowers — Restores Hydraulic Drive

The Mower Shop Pump Belt 607400 paired with Idler Spring 604490 restores hydraulic drive performance on compatible Raptor and Raptor SD riding mowers.

Replacing a worn pump belt and its idler spring is a common maintenance step to keep the hydraulic system powering your mower’s deck and wheels working reliably. This kit includes the exact belt model 607400 and the matching idler spring 604490, engineered to drive the hydraulic pulleys from the clutch on specific Raptor series machines. Before installation, it’s important to inspect related components—idler pulley, idler arm and hydraulic fans—because damaged parts can quickly wear a new belt.

Which mower models will this pump belt and spring fit?

This replacement set is designed for Raptor, Raptor SD and Raptor SDX riding mower models that use the 607400 belt configuration. It is not compatible with Raptor X, Raptor XD or Raptor XL models—verify your serial number and parts diagram to ensure a match. If your mower uses a different belt routing or idler assembly, choose the correct part number rather than assuming interchangeability.

• Compatible: Raptor, Raptor SD, Raptor SDX models
• Not compatible: Raptor X, Raptor XD, Raptor XL

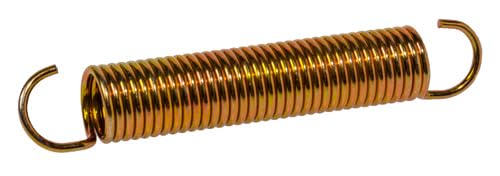

• Includes both belt 607400 and idler spring 604490 for correct tensioning
• Check your mower’s parts manual or serial number for confirmation

How does this kit affect hydraulic drive performance?

Replacing a stretched or glazed belt and its worn spring helps restore proper tension and reduces slipping under load, so the hydraulic pump receives consistent power from the clutch. Restored belt tension improves responsiveness and can prevent overheating or premature wear of other drivetrain components. However, if idler pulleys, arms, or hydraulic fans are worn, the new belt will still fail early.

• Restores correct belt tension and reduces slipping
• Improves hydraulic pump efficiency and responsiveness
• Helps avoid heat-related damage from slipping belts
• Inspect pulleys and arms before installation to ensure longevity

What should I check before replacing the belt and spring?

Inspect the idler pulley bearings, the idler arm for play or cracks, and the condition of hydraulic cooling fans; any of these can abrade or misalign a new belt. Clean pulleys and confirm proper pulley alignment and clutch operation before mounting the new belt and spring. Using the included idler spring ensures the correct preload on the idler for consistent belt tracking.

• Check idler pulley bearings for smooth rotation and no wobble
• Look for wear or bends in the idler arm and replace if needed
• Confirm hydraulic fan blades are intact and not touching the belt
• Use the supplied spring 604490 to achieve correct tension

How easy is installation and what tools are typically required?

Installation is a moderate DIY job for anyone comfortable with small-engine maintenance. Typical tools include basic hand wrenches, a socket set, and pliers to release tension and position the spring; a service manual with belt routing is helpful. If you encounter seized bolts, damaged pulleys, or unclear routing, seek professional service to avoid improper installation.

• Common tools: wrenches, sockets, pliers, and service manual
• Allow time to inspect and clean associated components
• Replace worn pulleys or arms before installing the new belt
• Professional service recommended for difficult or unclear repairs

Who is this for: This pump belt 607400 with idler spring 604490 is intended for owners and technicians servicing The Mower Shop Raptor, Raptor SD and Raptor SDX riding mowers who need a direct-fit replacement for the hydraulic drive. Choose this kit if your mower shows belt slipping, reduced hydraulic performance, visible belt wear, or if you’re performing scheduled drivetrain maintenance and have already confirmed model compatibility. If you have a Raptor X, XD or XL model, consult your parts list for the correct alternatives.
