Tapa 7-Gallon Universal Generator Fuel Tank for Honda EC6500/EM6500 — Assembled Gauge & Grommets, Direct-Fit Dimensions

This is a universal 7-gallon replacement fuel tank designed to fit Honda EC6500/EM6500-style generators and many other models that share the same mounting dimensions.

If your generator’s original tank is cracked, leaking, or missing, this Tapa universal replacement offers a ready-to-install option that includes an assembled fuel gauge and rubber grommets. It’s engineered to match common mounting hole patterns used across a wide range of consumer and portable inverter/generator brands, giving you a straightforward swap without custom fabrication. Before ordering, confirm the tank’s external and mounting measurements against your unit to ensure fit.

Will this tank physically fit my generator model?

Fit depends on matching the tank’s external size and mounting hole spacing to your generator’s frame. This Tapa tank lists its full dimensions and hole-to-hole measurements so you can directly compare them to your generator base. Many popular generators share these dimensions, but some models use different OEM tanks—so measurement verification prevents returns.

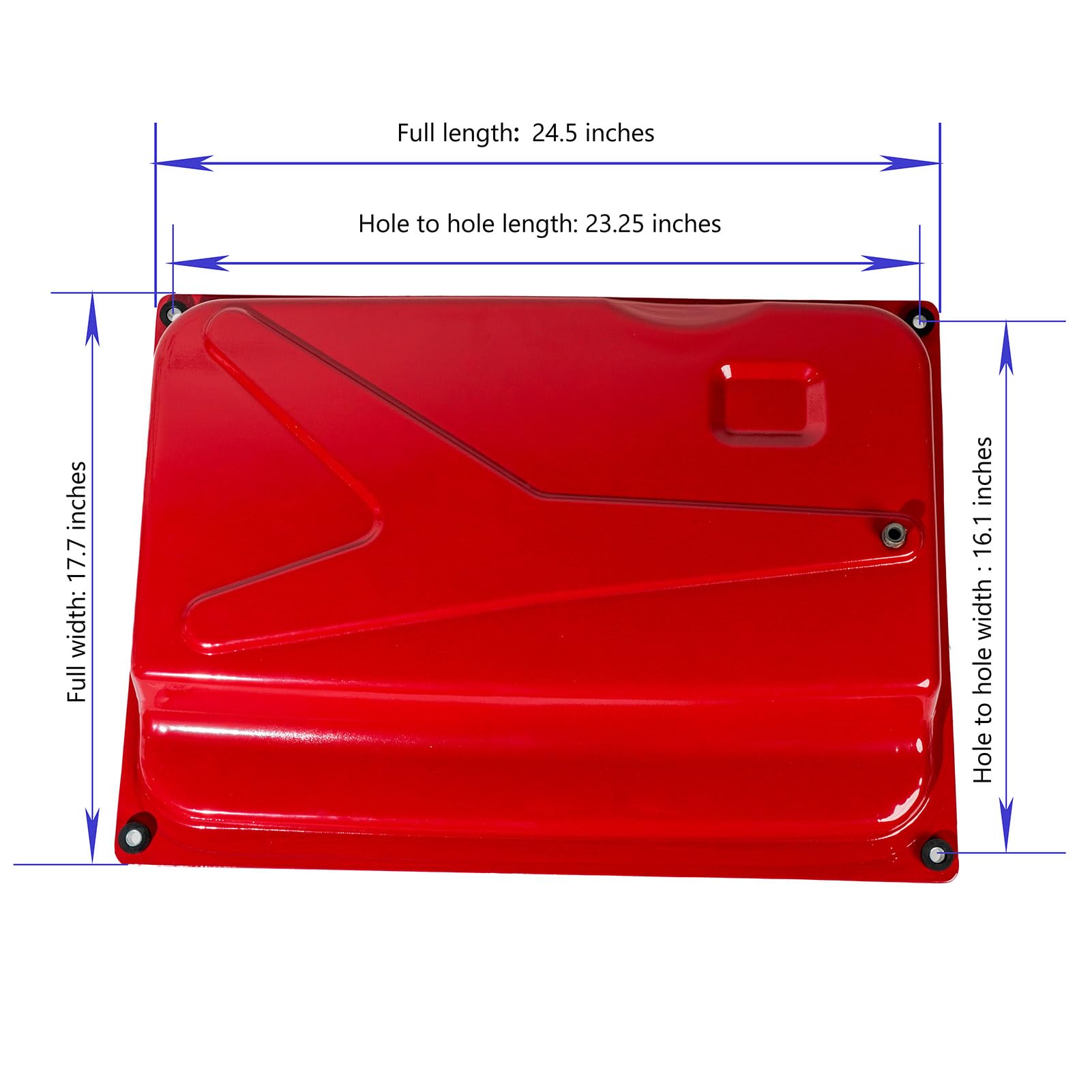

• Full length: 24.5"; full width: 17.7"; height: 6.5"
• Mounting hole-to-hole: length 23.25"; width 16.1"; height 5"
• Compatible examples: Honda EC6500/EM6500 families, Champion 5000–9375 series, Predator/Harbor Freight models, Wen and others

What comes with the tank and what do I need to install it?

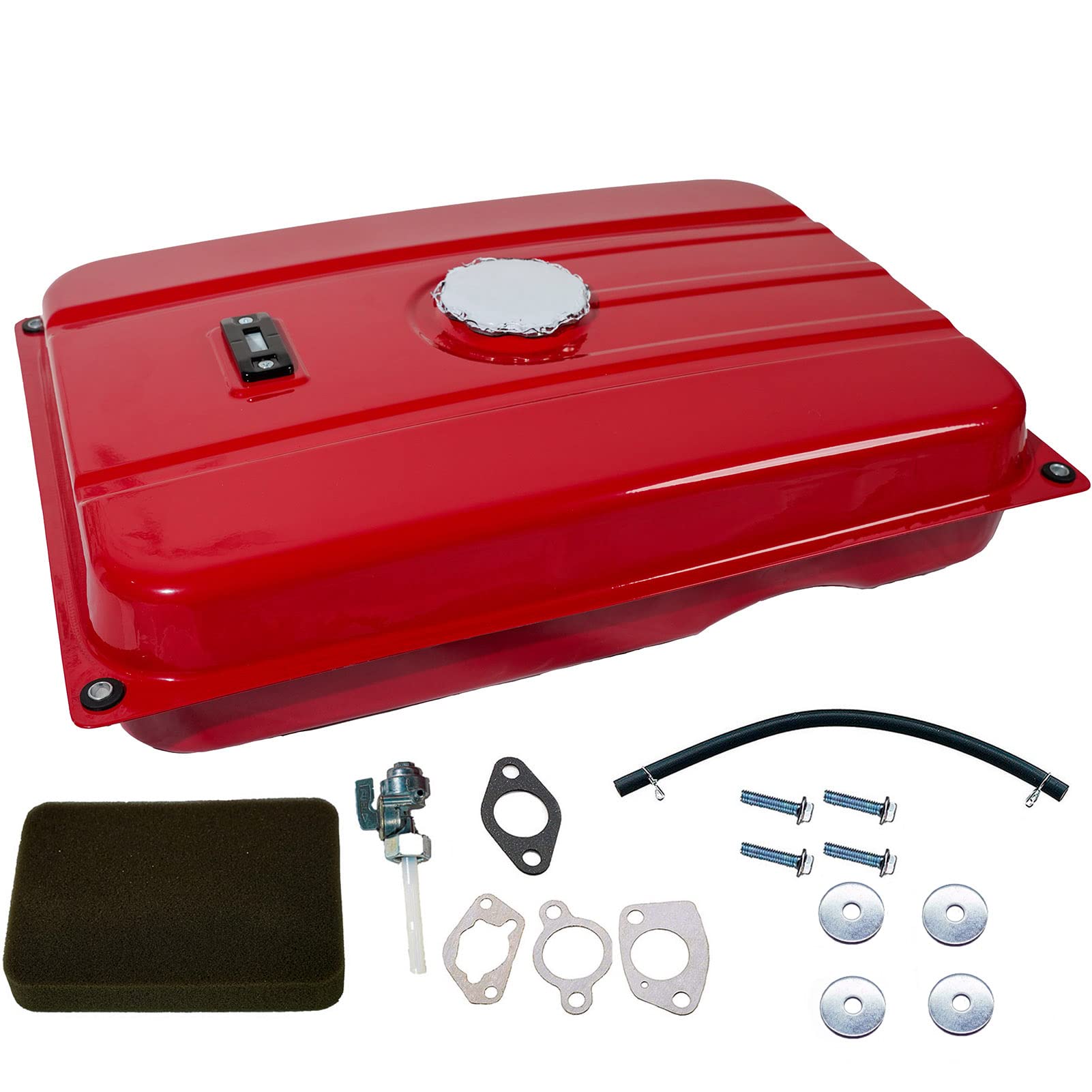

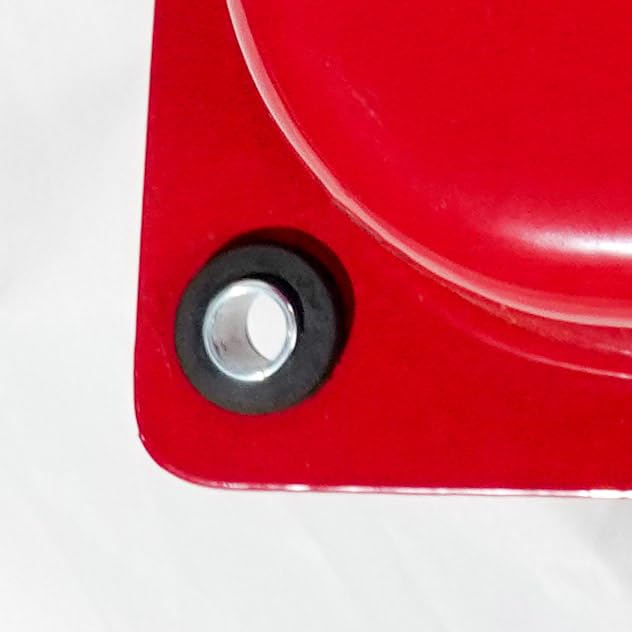

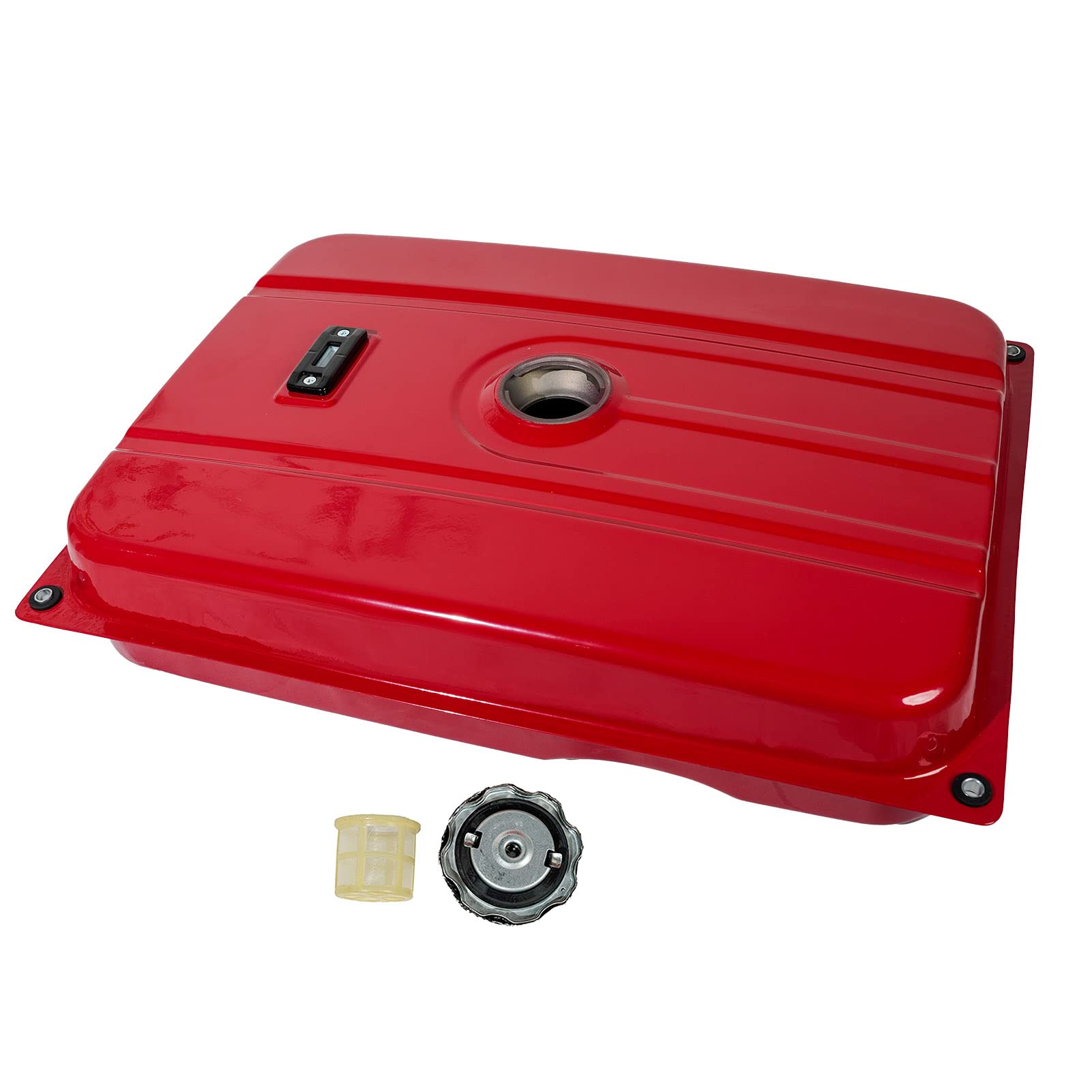

The tank ships with several installation parts so you can complete a direct replacement in most cases. It arrives with the fuel gauge installed and rubber grommets already in place—features sometimes missing on aftermarket tanks. The package also includes common consumables and connectors to simplify installation.

• Included: petcock (fuel shutoff), air filter, fuel line, clips, mounting bolts
• Also included: gasket set for muffler and carburetor, grommet set and bolts
• Not included: vent valve (tank is not vented); confirm if your generator requires a vented tank

How much fuel will it actually hold and are there limitations?

The labeled capacity is 7 gallons, but the practical usable volume is slightly lower—this is common across aftermarket tanks. If you require an exact seven-gallon usable capacity for runtime calculations, you should not assume the full labeled amount. Also note that this particular model does not include a vent valve, which affects how it performs on some generator designs.

• Advertised capacity: 7 gallons (true usable volume is a bit less)
• No built-in vent valve—check your OEM requirement before purchase
• Designed for many models but always confirm dimensions and vent needs

How do I avoid returns and ensure a successful swap?

Measure your original tank and mounting points precisely before buying. Many returns are avoidable when buyers compare the full length, width, height, and hole-to-hole spacing listed with this tank. Pay attention to the venting requirement and the included hardware so you’re not surprised after delivery.

• Compare the tank’s full and mounting dimensions with your existing tank before ordering
• Confirm whether your generator needs a vented tank—the Tapa unit is non-vented
• Inspect included parts on arrival (fuel gauge, grommets, petcock, lines) to speed installation

Who is this for: This Tapa universal replacement tank is best for owners of portable generators whose original tanks match the listed mounting dimensions and who don’t require a vented tank. It’s suited to DIYers, repair shops, and anyone seeking a cost-effective direct-replacement tank for Honda EC6500/EM6500-style machines, many Champion, Predator, Wen, and other compatible models. Measure carefully and use the included hardware for the simplest installation and longest service life.
