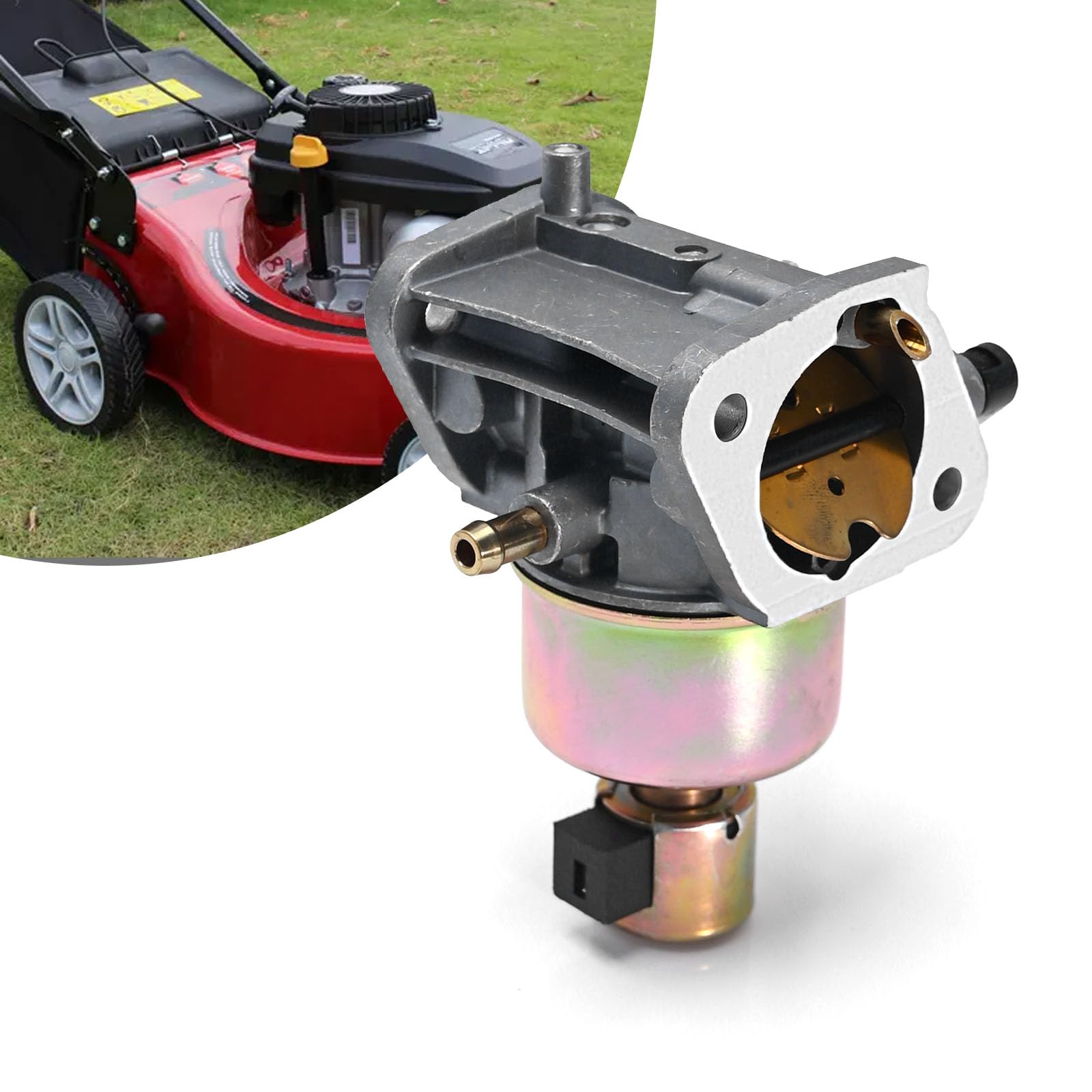

SYOWADA Carburetor Replacement Kit for Kawasaki 23HP Engines FR651V FS651V FR691V FS691V — With Air Filter & Fittings

SYOWADA 15004-0986 is a complete replacement carburetor kit with air filter and fittings designed to restore proper fuel delivery on select Kawasaki 23 HP engines.

If your Kawasaki-powered mower or commercial walk-behind shows poor idle, hard starting, or uneven throttle response, replacing the carburetor with a compatible assembly can bring it back to reliable performance. This SYOWADA kit replaces part numbers 15004-0986, 15004-0828 and 15004-7062 and includes the air filter, pre-filter, fuel filter, fuel line, clamps, valve and gaskets you need for a neat installation on FR651V, FS651V, FR691V and FS691V engines used in machines like the Gravely ZT 42 XL.

Which engines and models will this kit fit?

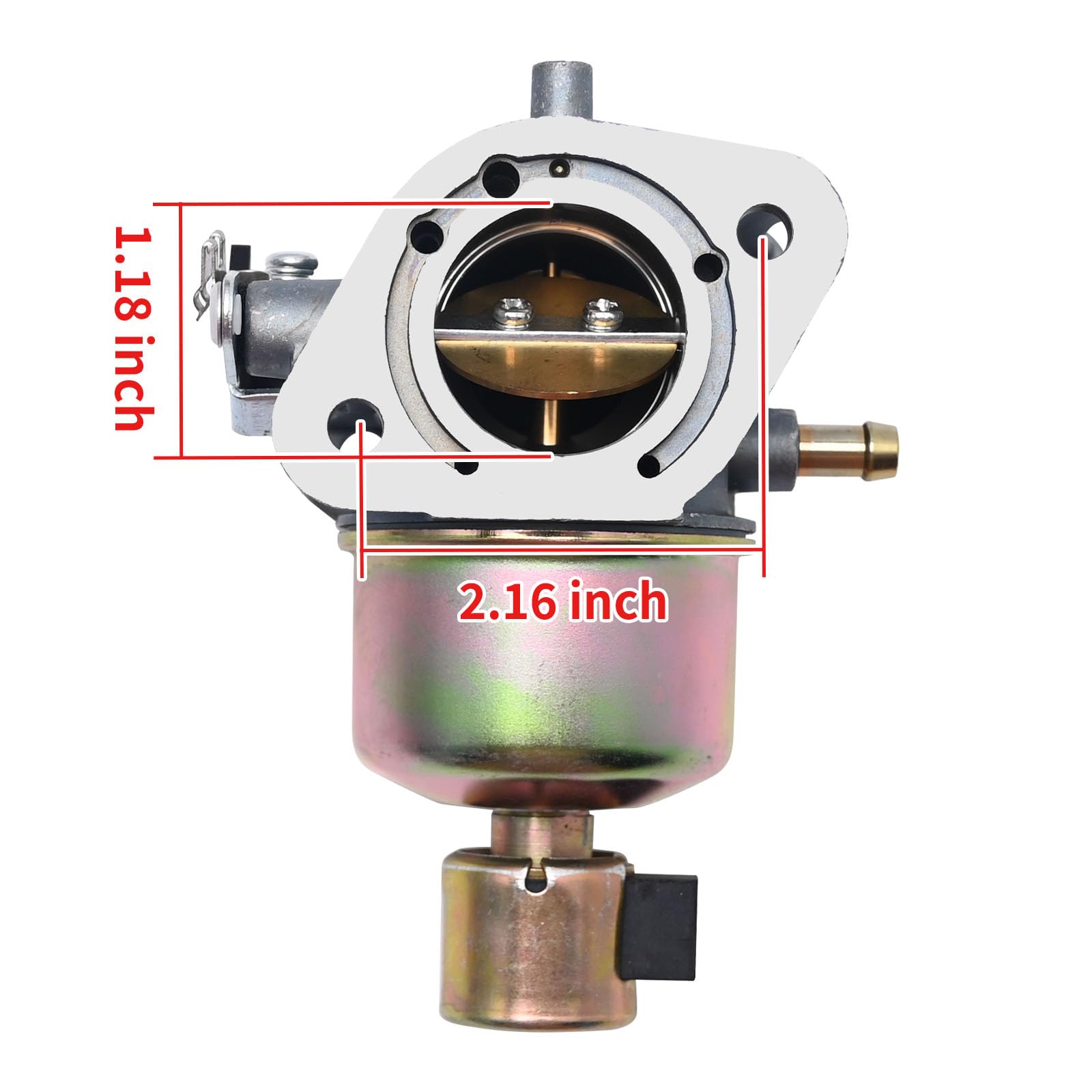

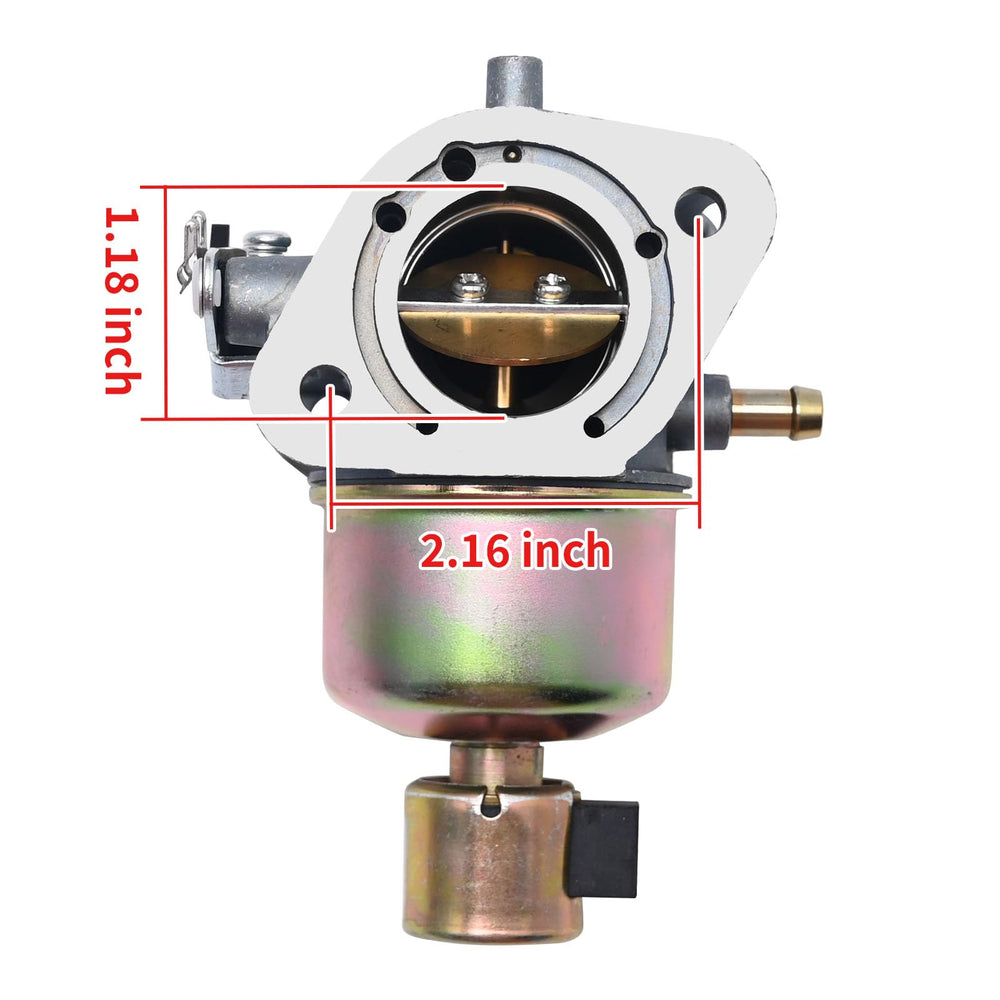

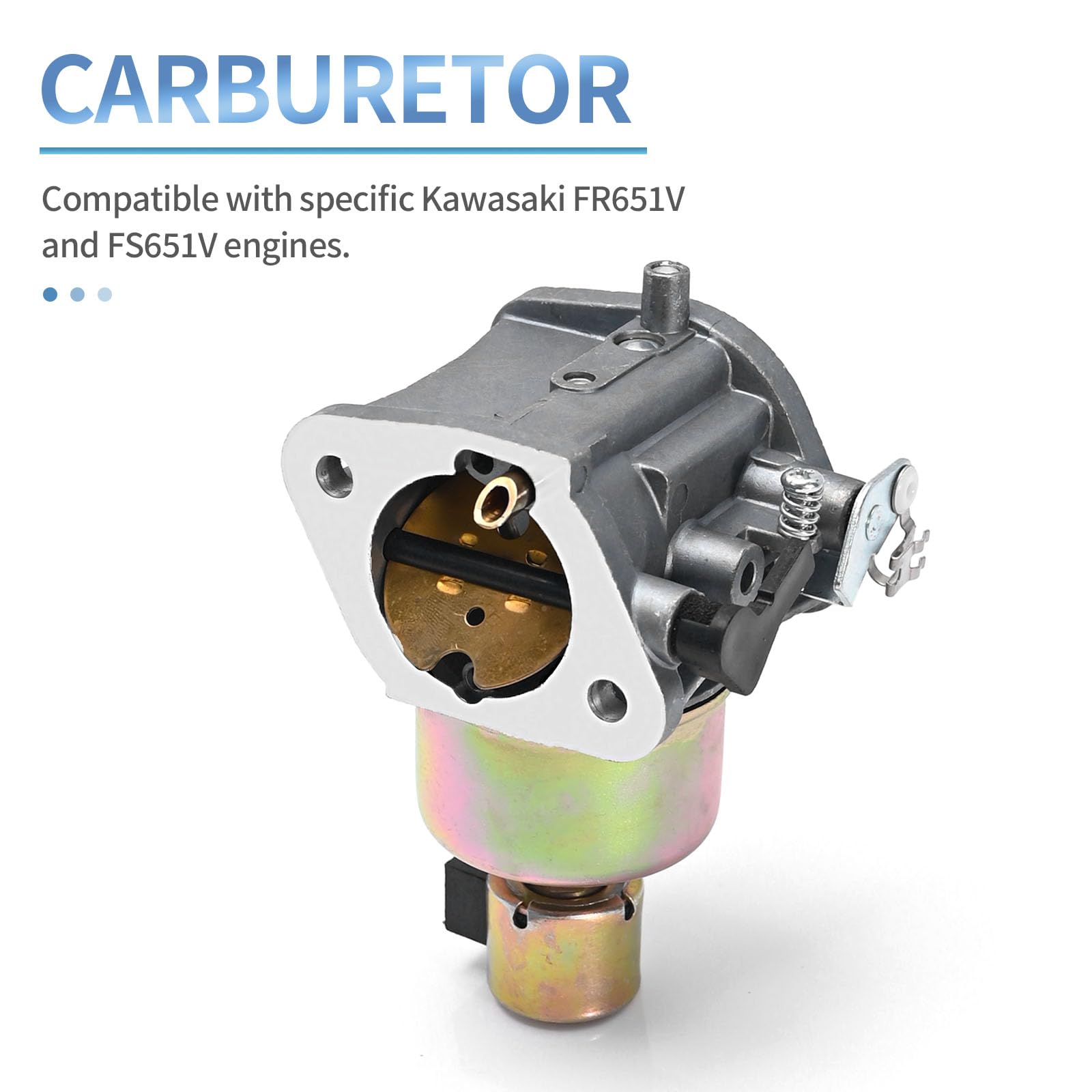

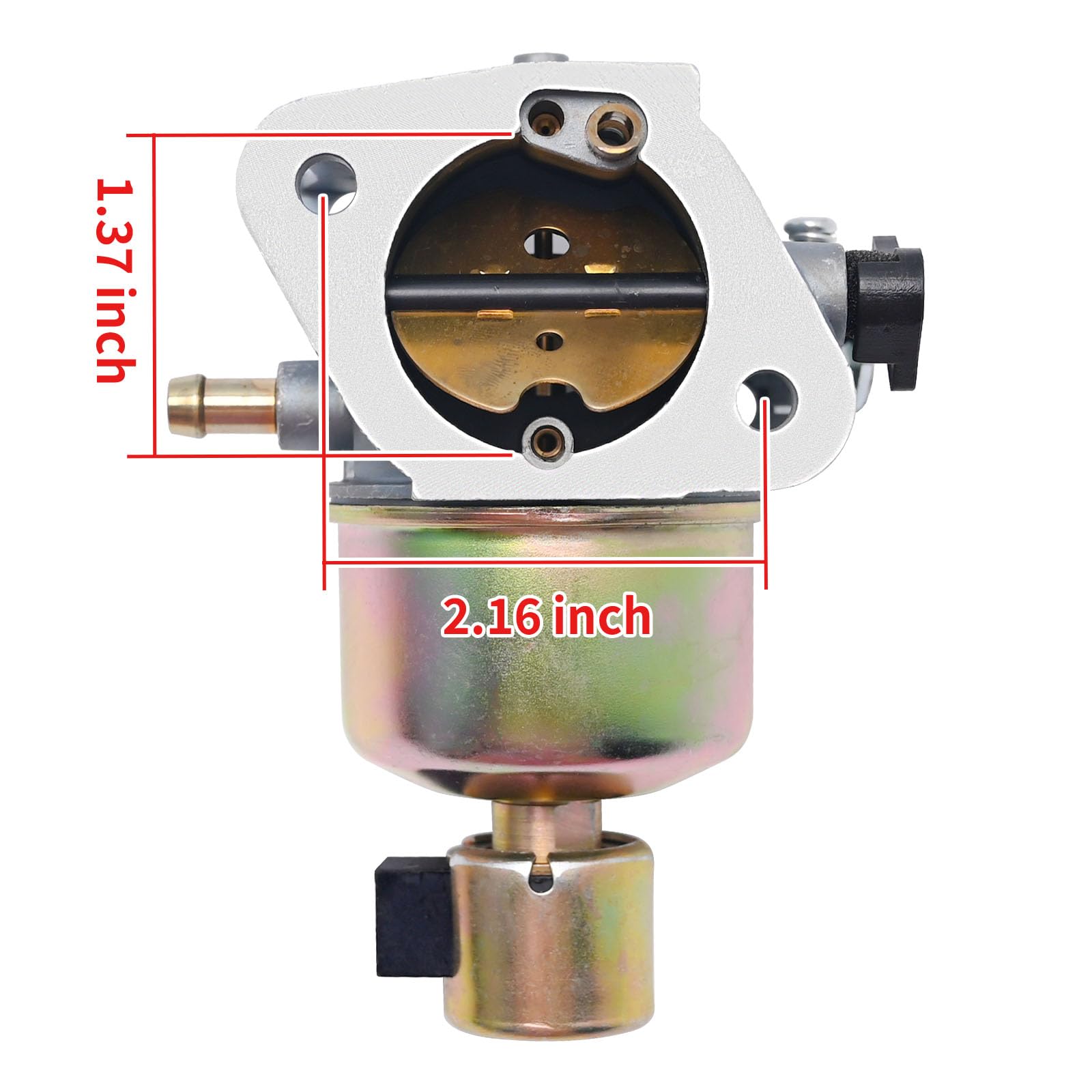

This carburetor assembly is manufactured to match the mounting, throttle linkage and fuel ports of specific Kawasaki 23 HP V-twin engines. It fits FR651V, FS651V, FR691V and FS691V engine families and is commonly used on Gravely and similar commercial zero-turn mowers.

• Replaces OEM part numbers: 15004-0986, 15004-0828, 15004-7062
• Compatible with Gravely ZT 42 XL and comparable decks
• Designed for Kawasaki 23 HP vertical shaft engines

What components are included and why they matter?

The kit includes the carburetor plus a selection of consumables so you can complete the service without sourcing extra parts. That reduces downtime and ensures sealing surfaces and filters are fresh when the carburetor is installed.

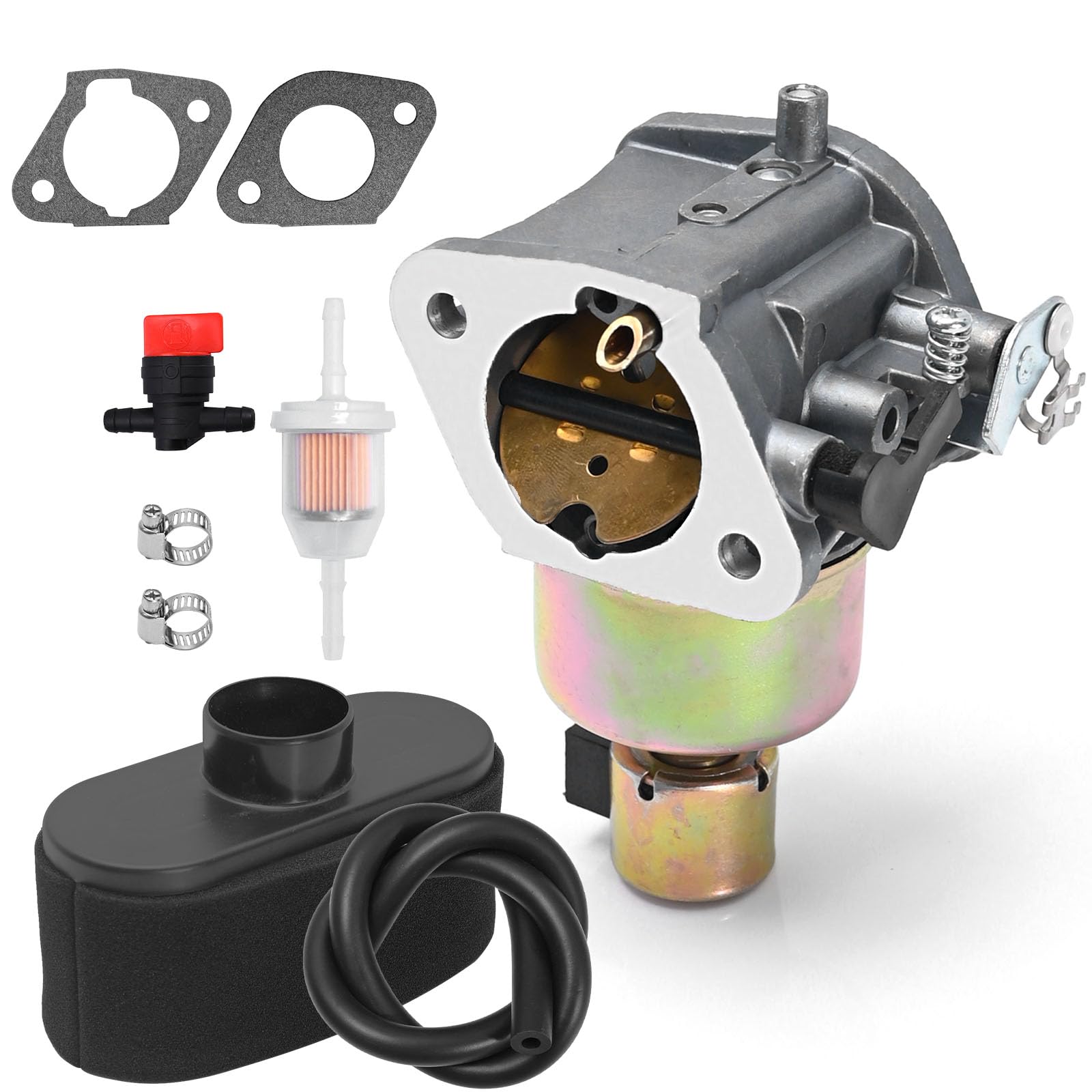

• 1 carburetor assembled for direct replacement

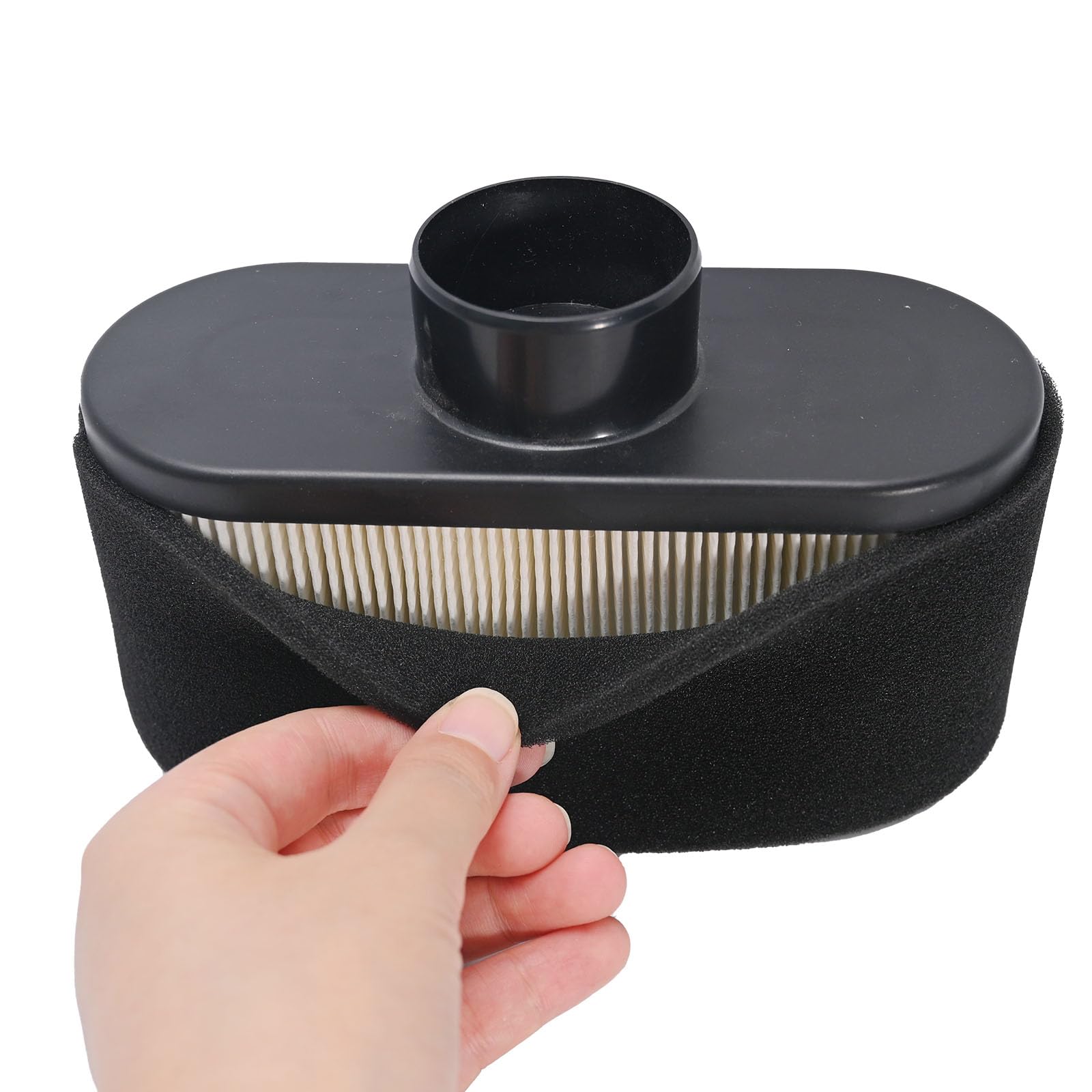

• 1 air filter and 1 pre-filter to protect the carb throat
• 1 fuel filter, fuel line, 2 clamps and 2 gaskets for leak-free connections
• 1 valve and other small fittings required for installation

How do I install this SYOWADA carburetor kit?

Installation requires basic mechanical tools and familiarity with small engine fuel systems. Always drain or clamp the fuel line, follow your engine service manual for throttle and choke settings, and replace gaskets to prevent air leaks.

• Shut off fuel and remove the air cleaner before starting
• Disconnect throttle/choke linkages and remove old carburetor mounting bolts
• Fit new gaskets, attach the carburetor, reconnect lines and bleed the fuel system
• Test idle and throttle response, then recheck for fuel leaks

What maintenance or checks should I do after fitting the new carburetor?

After installation, run the engine through warm-up cycles and verify stable idle and smooth throttle transitions. Check for fuel odors, dampness at hose clamps and confirm the air filter is seated correctly to avoid improper air/fuel mixtures.

• Inspect clamps and fuel lines after the first hour of operation
• Replace the air filter regularly per operating conditions
• Adjust idle and mixture slightly if needed following the engine manual

Who is this for: The SYOWADA 15004-0986 carburetor kit is aimed at homeowners, landscapers and small commercial operators who maintain Kawasaki 23 HP V-twin engines and prefer a complete replacement package. It’s a practical choice for anyone wanting a direct-fit carb swap with the filters and seals included, reducing parts hunting and downtime while restoring steady fuel delivery and throttle response.
