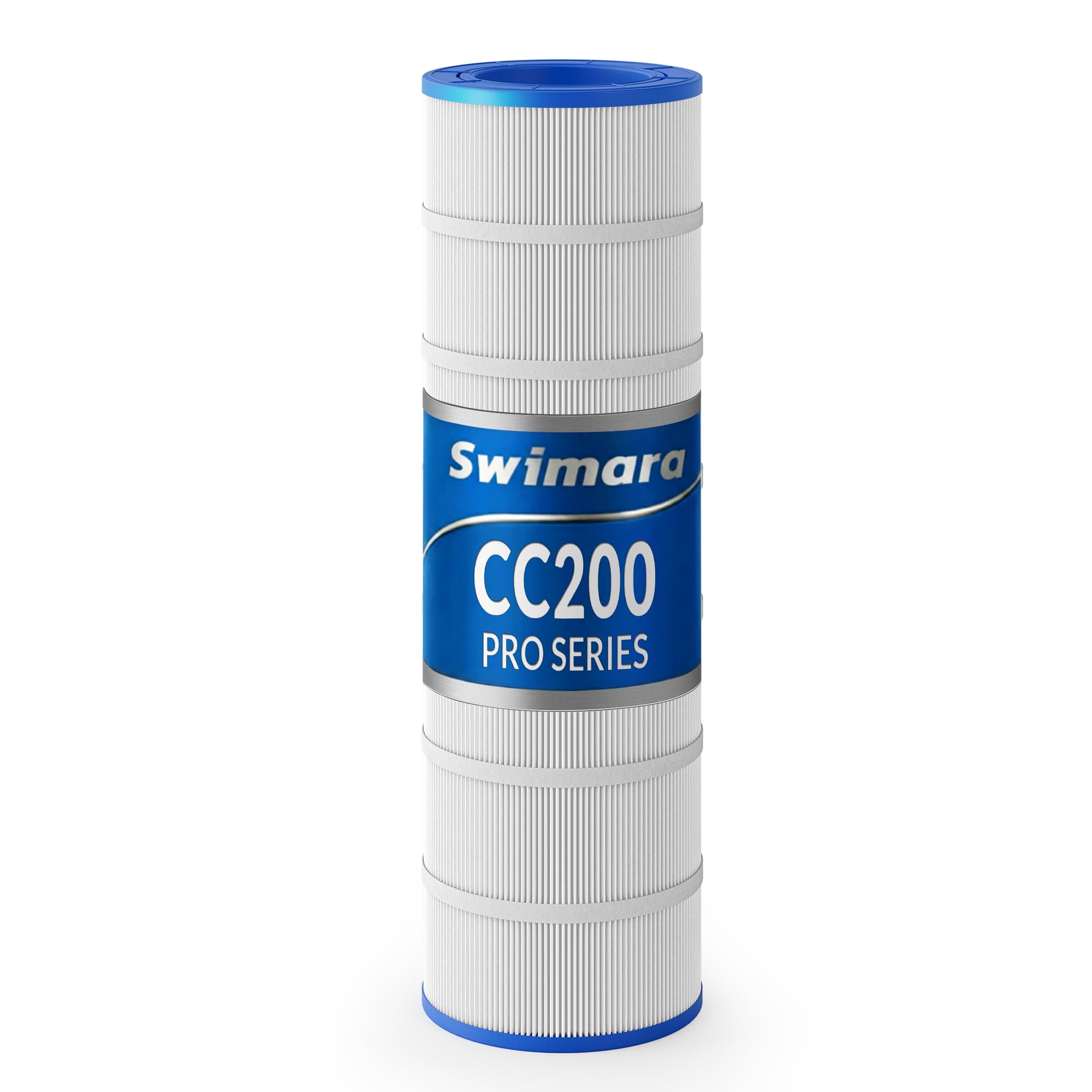

Swimara Pro Series Pool Filter Cartridge — 200 sq ft 10-micron Replacement for Pentair CC200, 10-1/16" OD x 31-1/8"

This Swimara Pro Series filter cartridge replaces Pentair CC200, PAP200, CCRP200 and similar 200 sq ft cartridges with a precise 10-1/16 in. outer diameter and 31-1/8 in. length. Built with trilobal 10-micron media, molded PU end caps, reinforced bands and stable pleat spacing, it’s designed to deliver consistent flow and dependable particle removal while remaining easy to clean with a garden hose. The cartridge is certified to NSF/ANSI 50 for pool use and is sized to match Pentair part numbers and legacy replacements—verify your filter dimensions and open-end size before ordering.

Will this Swimara cartridge fit my Pentair CC200 or RP200 filter?

Yes, the Swimara Pro Series is built to replace Pentair CC200 and related RP200 cartridges when your filter uses open-end cartridges of the specified dimensions. Always measure to confirm fit before purchase.

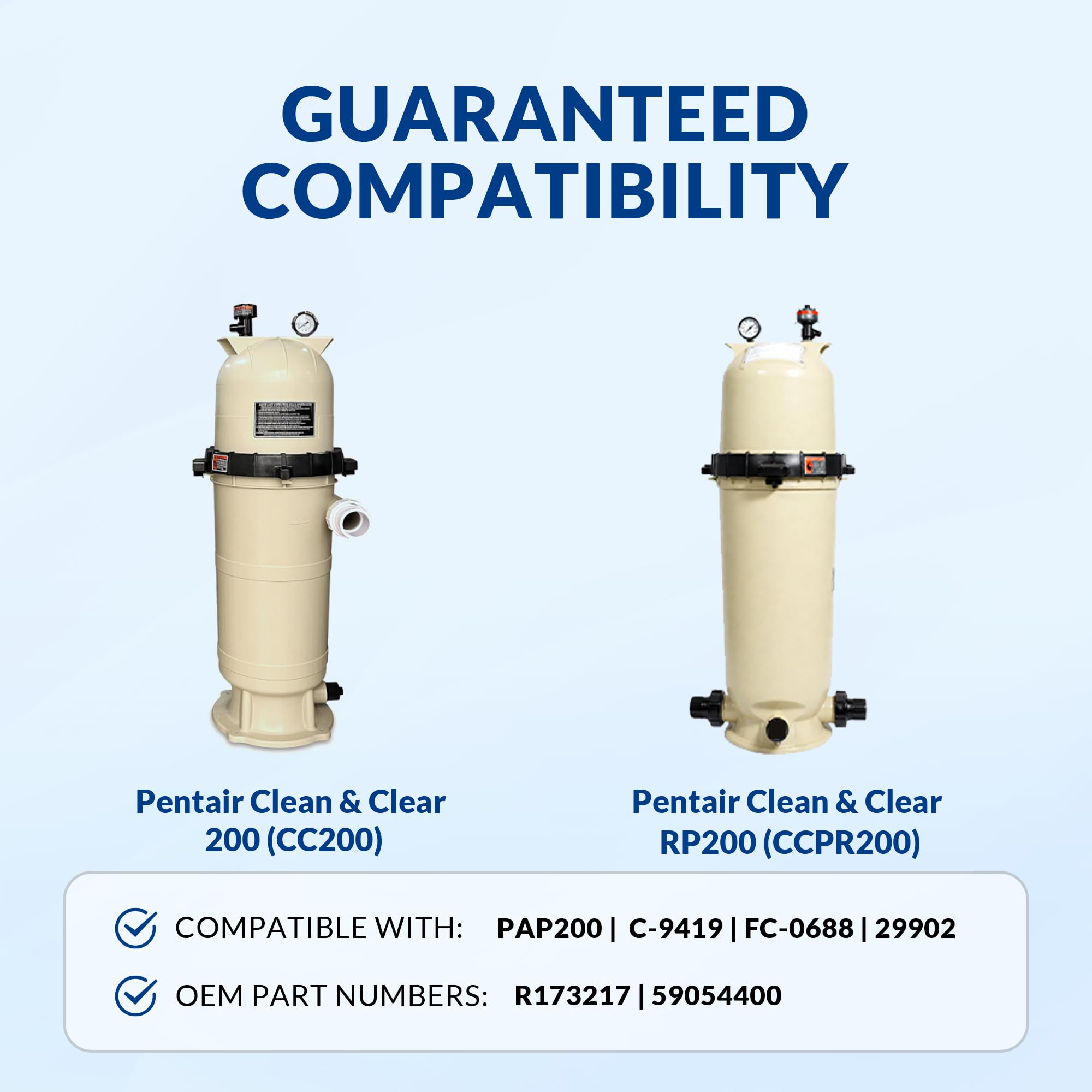

• Compatibility: Fits CC200 / replaces PAP200, CCRP200, Posi-Clear RP200 and Predator 200.
• Replaces common part numbers: R173217, 59054400, C-9419, FC-0688.

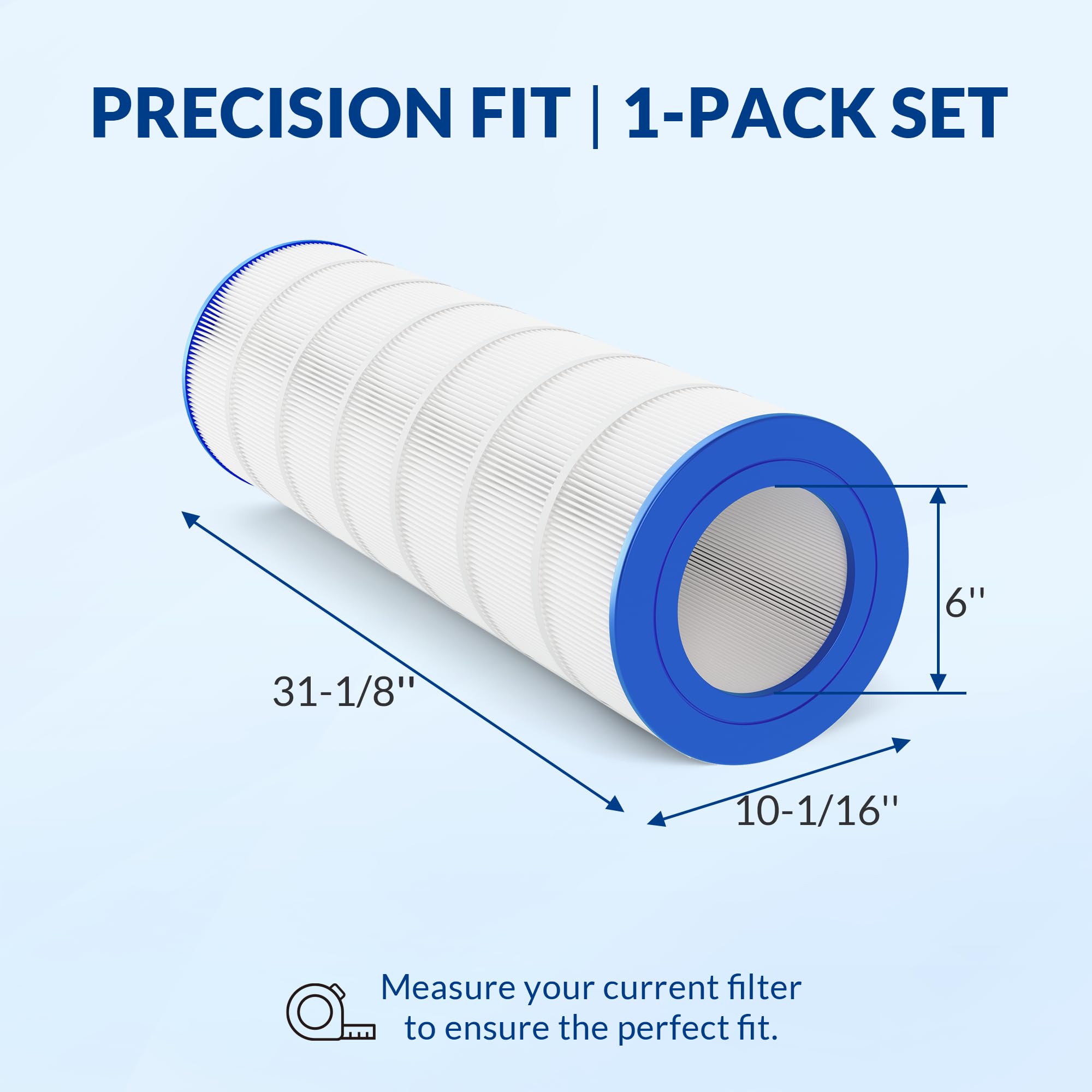

• Dimensions: 10-1/16 in. OD × 31-1/8 in. length; 6 in. open ends.
• Tip: Verify your filter’s cartridge length and open-end diameter before ordering.

How effective is the filtration and what does 10-micron mean?

The cartridge uses trilobal fibers rated at 10 microns, which means it captures many fine particles that are visible as cloudiness or small debris. The trilobal fiber profile increases surface area versus round fibers, improving capture while keeping flow steady.

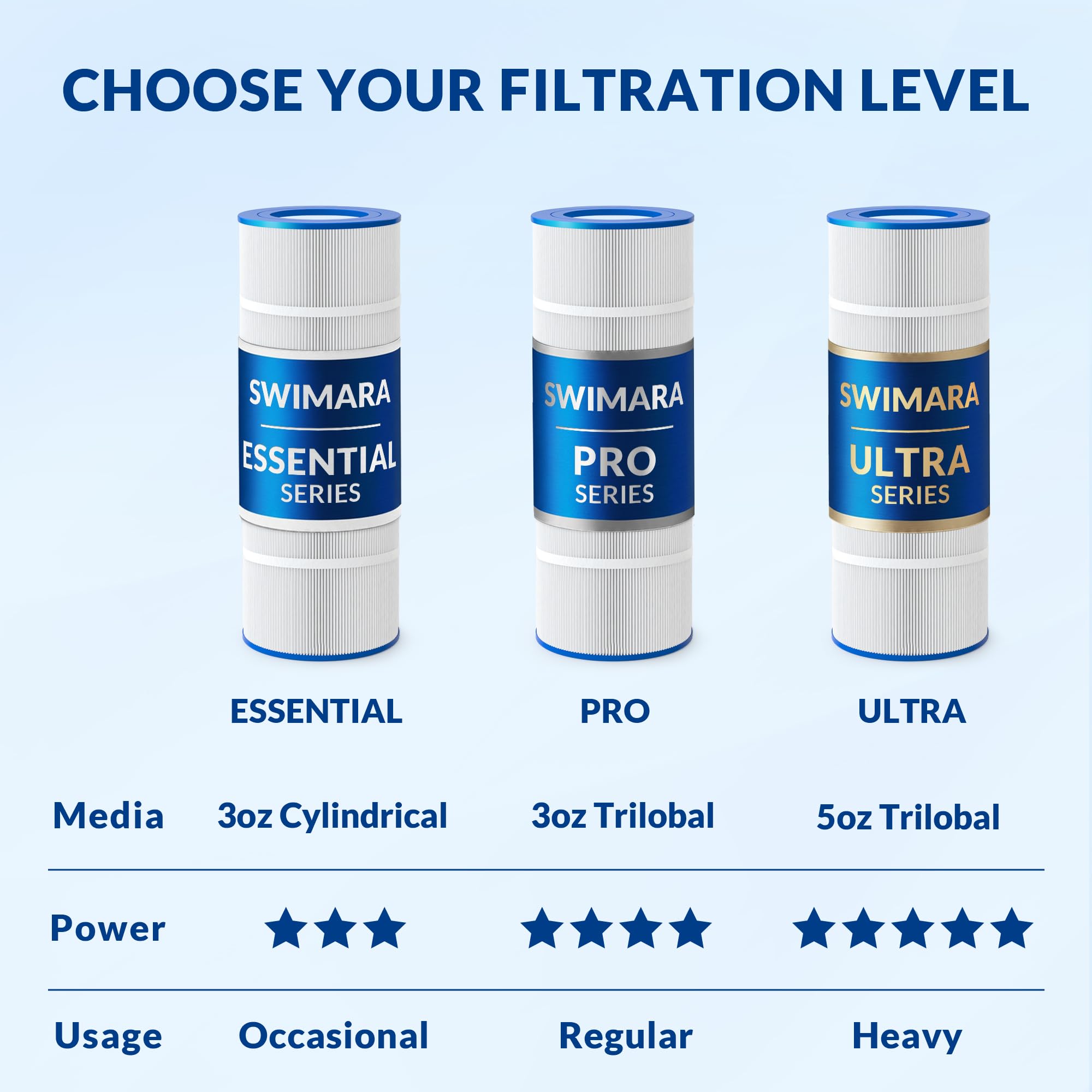

• Media weight: 3 oz/sq yd trilobal 10-micron media for fine-debris capture.
• Performance: Better surface exposure helps trap small particles without unduly restricting flow.
• Certification: Designed and tested to meet NSF/ANSI 50 standards for pool-use materials.

How do the end caps and pleats affect durability and maintenance?

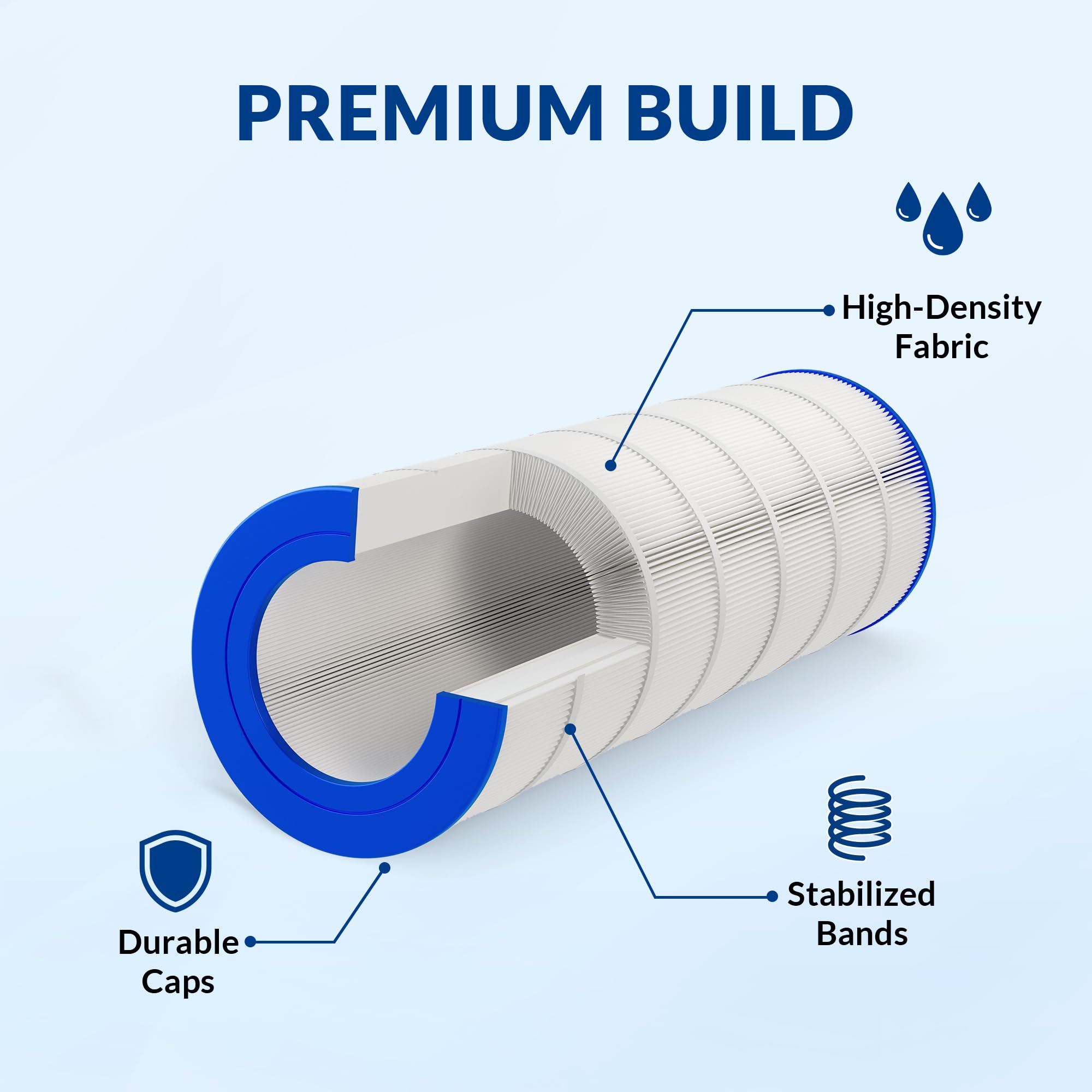

Molded PU end caps, reinforced bands and evenly spaced pleats maintain a stable pleat pack without an internal PP center core. This helps minimize collapse, keeps flow consistent and makes garden-hose rinsing more effective.

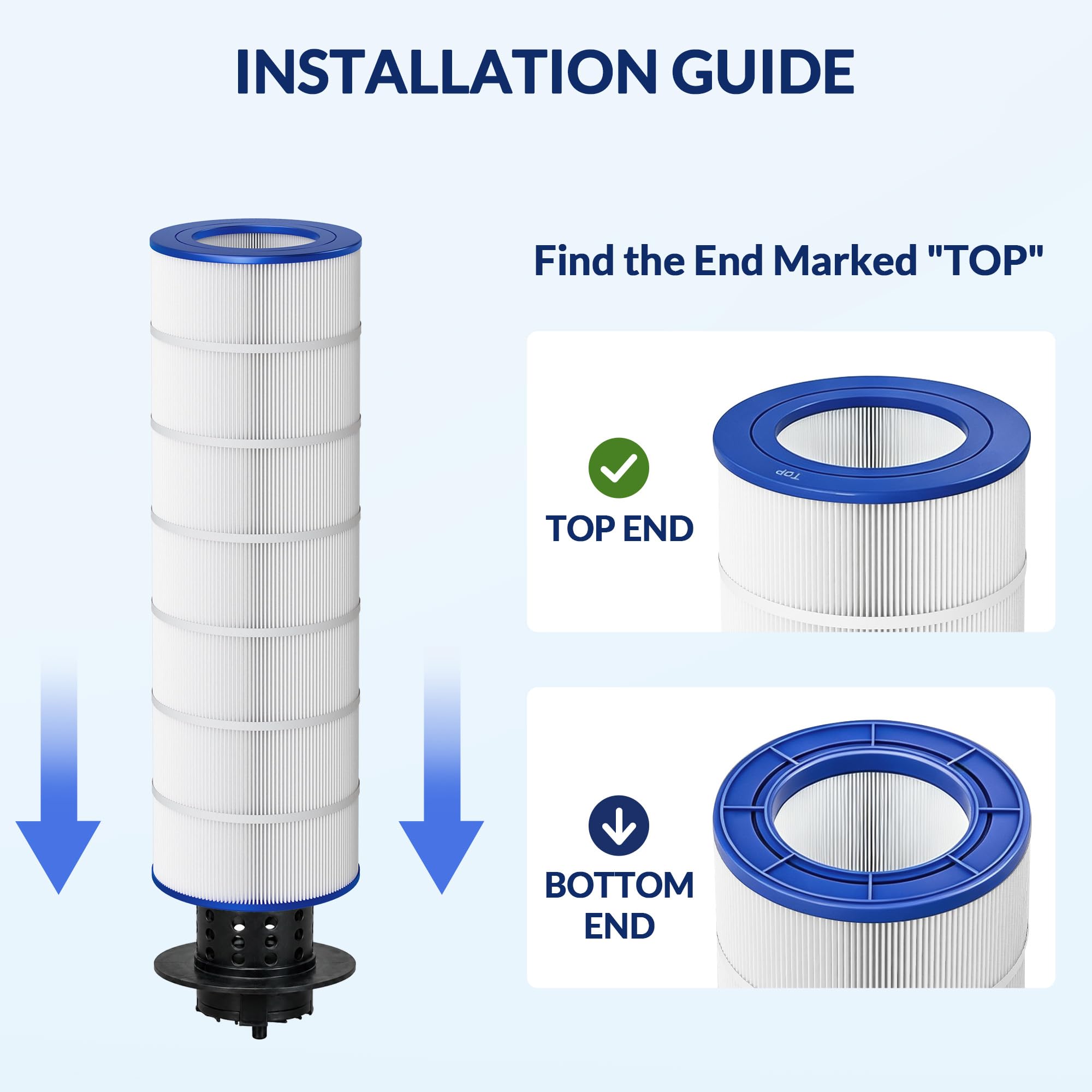

• End caps: Molded polyurethane provides a secure, leak-resistant seal to housings.
• Reinforcement: Bands and consistent pleat spacing resist deformation under flow.
• Maintenance: Even pleats and trilobal fibers release debris more readily during rinsing.

When and how should I clean the cartridge to maintain performance?

Routine rinsing and inspection preserve filtration efficiency. For Pentair CC200 and compatible RP systems, clean when filter pressure rises about 8–10 PSI above the clean starting pressure; consult your system manual for specifics.

• Depressurize the filter following your pump manual before opening.

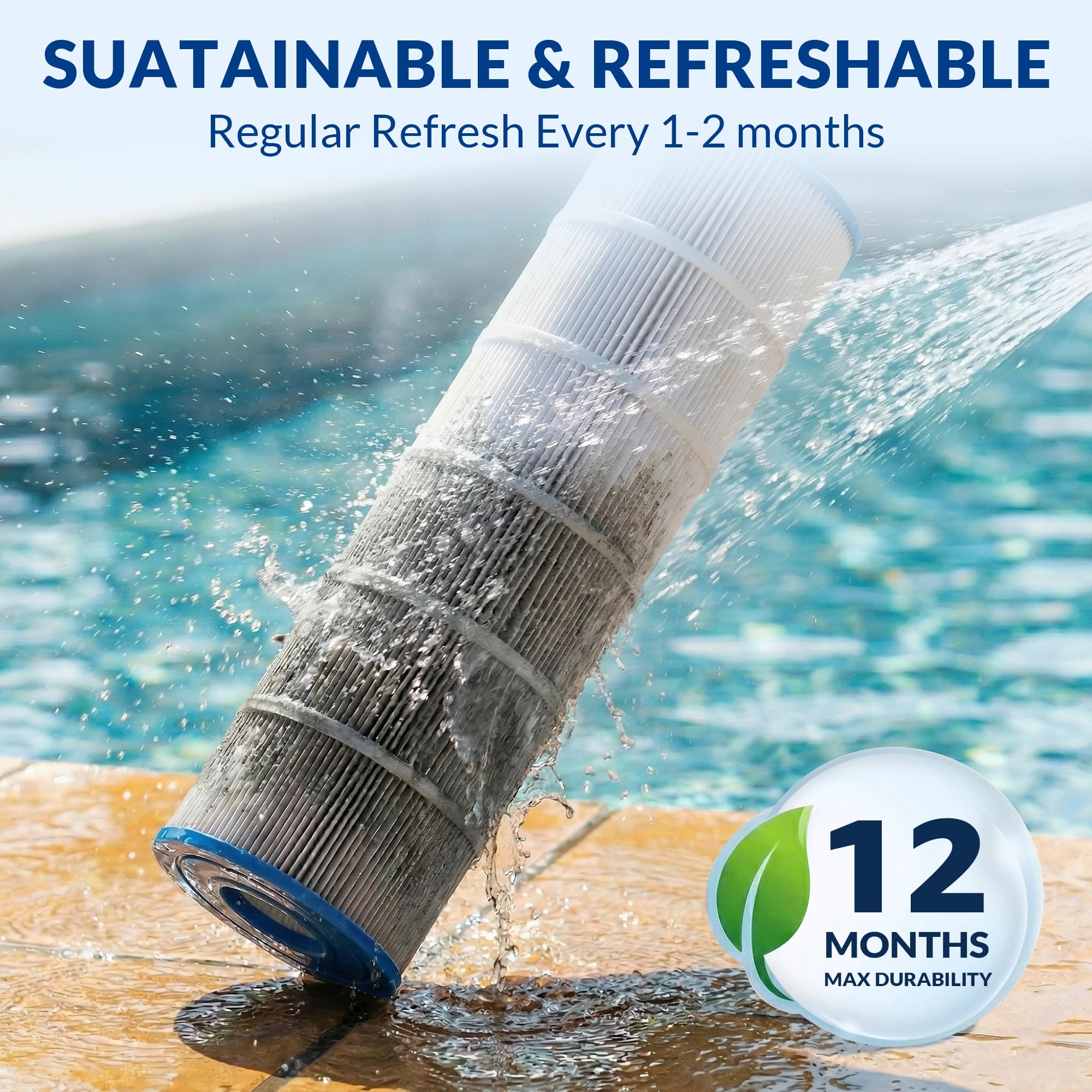

• Use a garden hose and start at one end, washing along pleat channels to dislodge trapped debris.
• Replace rather than clean if pleats are torn, permanently clogged, or if flow remains poor after rinsing.

Who is this for: The Swimara Pro Series for Pentair CC200 is intended for pool owners and maintenance professionals who need a compatible 200 sq ft, 10-micron replacement cartridge that balances fine-particle capture with easy routine cleaning. It’s suited for standard Pentair CC200 or RP housings that accept open-end cartridges of the listed dimensions and for anyone seeking NSF/ANSI 50–rated replacement media with reinforced construction for longer-term stability.
