Strongthium GX340/GX390 Carburetor Tune-Up Kit — Complete Carb & Ignition Kit for 11–13HP (338–440cc)

The Strongthium GX340 GX390 Tune Up Parts Carb Kit is a complete replacement kit that refreshes small 11–13HP engines by providing a carburetor, ignition components, and essential gaskets and filters for a cost-effective tune-up.

If your GX340/GX390-style engine is running unevenly, hard to start, or losing power, this kit gathers the common service parts you need to get it back to workable condition without buying expensive OEM assemblies. Designed to match the fit and function of many widely used 338–440cc clone and OEM utility engines, the set is aimed at equipment such as pressure washers, water pumps, tillers, go-karts, and small log splitters.

Will this carb kit fit my Honda-style GX340 or GX390 engine?

The kit is built to work with many GX340/GX390 pattern engines and with popular replica makes. It lists multiple compatible part numbers and works on a broad range of 338–440cc engines used by brands like Predator, Champion, and Generac. Always compare mounting hole spacing and linkage orientation before installation.

• Compatible with engines in the 338–440cc range and 11–13HP class
• Matches common part numbers such as 16100-ZF6-V01 and 16100-ZF2-V00
• Fits equipment types: pressure washers, water pumps, tillers, mini bikes
• Not marketed as OEM; verify fit prior to buying

What parts are included and what do they replace?

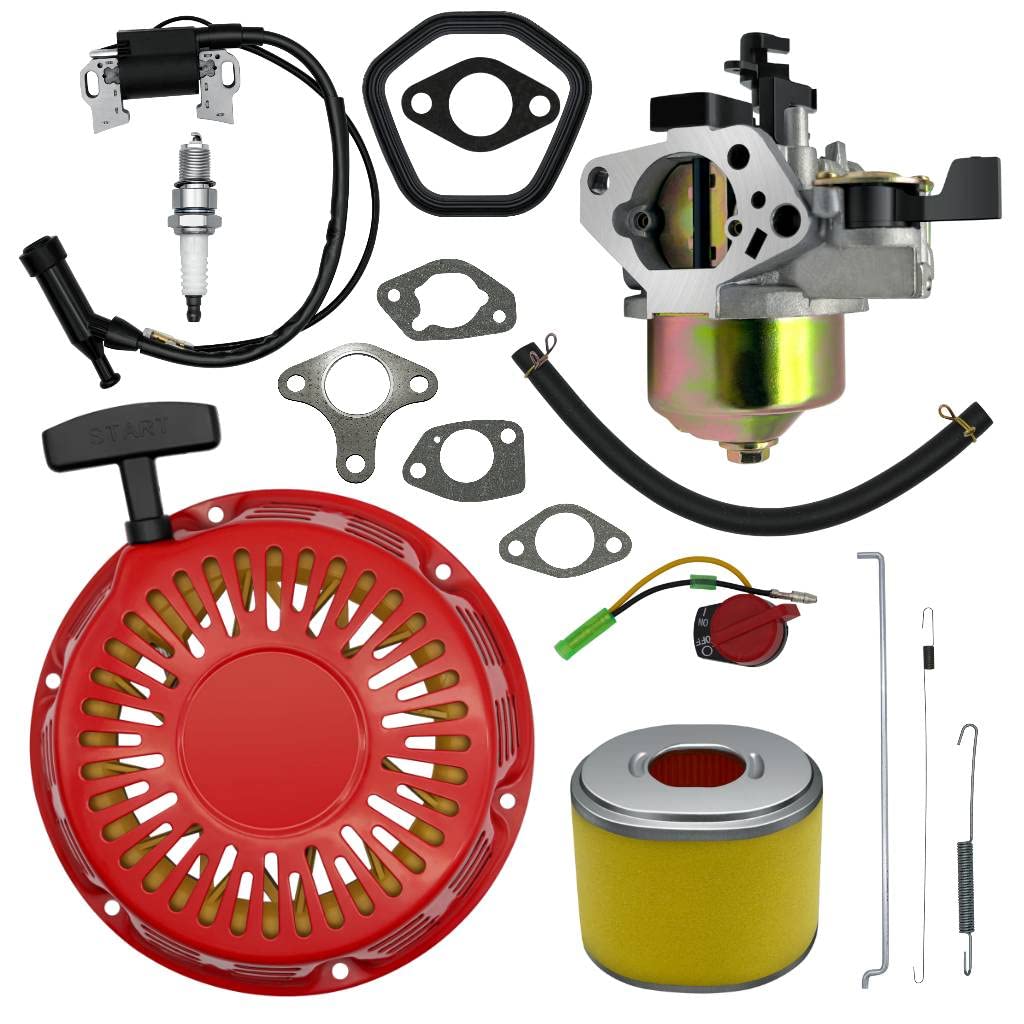

This tune-up set combines the most often replaced service items into one package so you can repair running and ignition issues in one go. Included are a carburetor with gaskets, a recoil pull-start assembly, an ignition coil, an air filter, spark plug, fuel line, and other consumables necessary for a typical tune-up. The kit contains both sealing gaskets and small hardware to simplify installation.

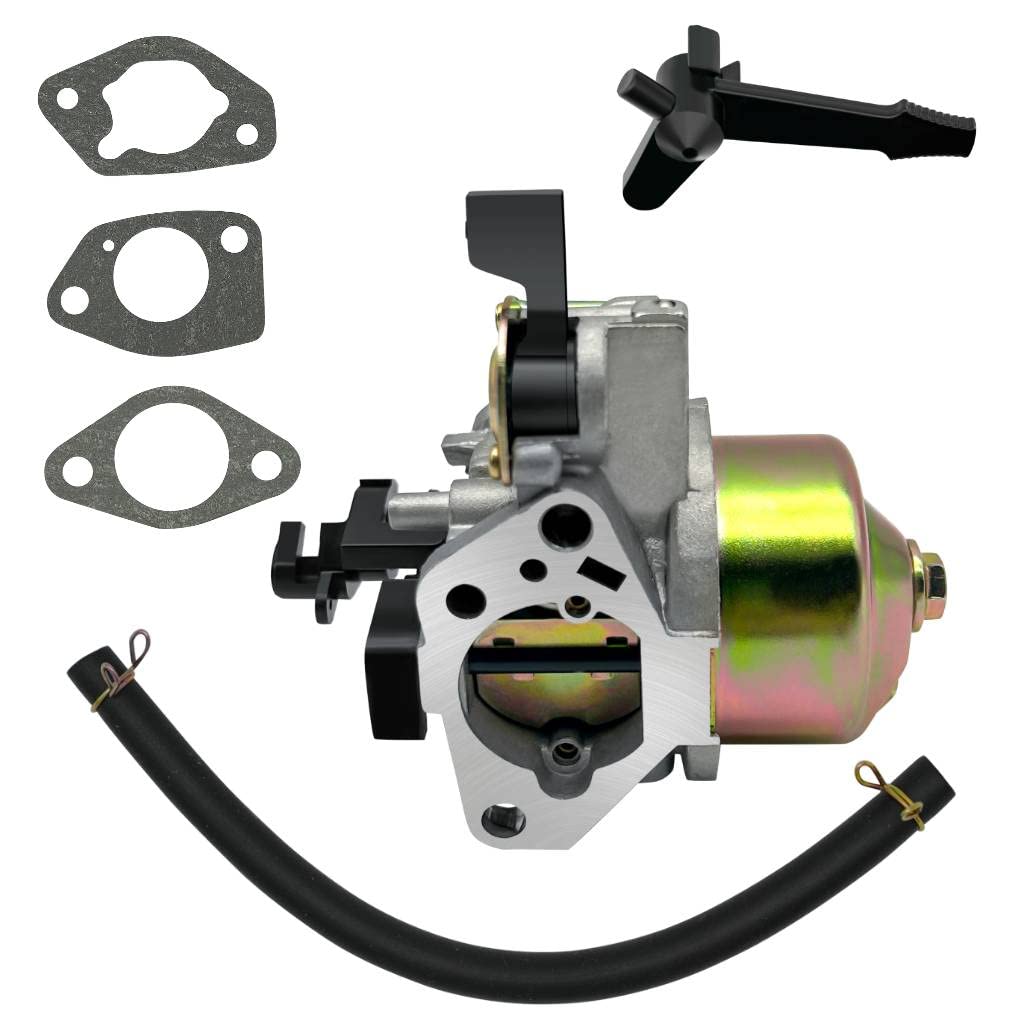

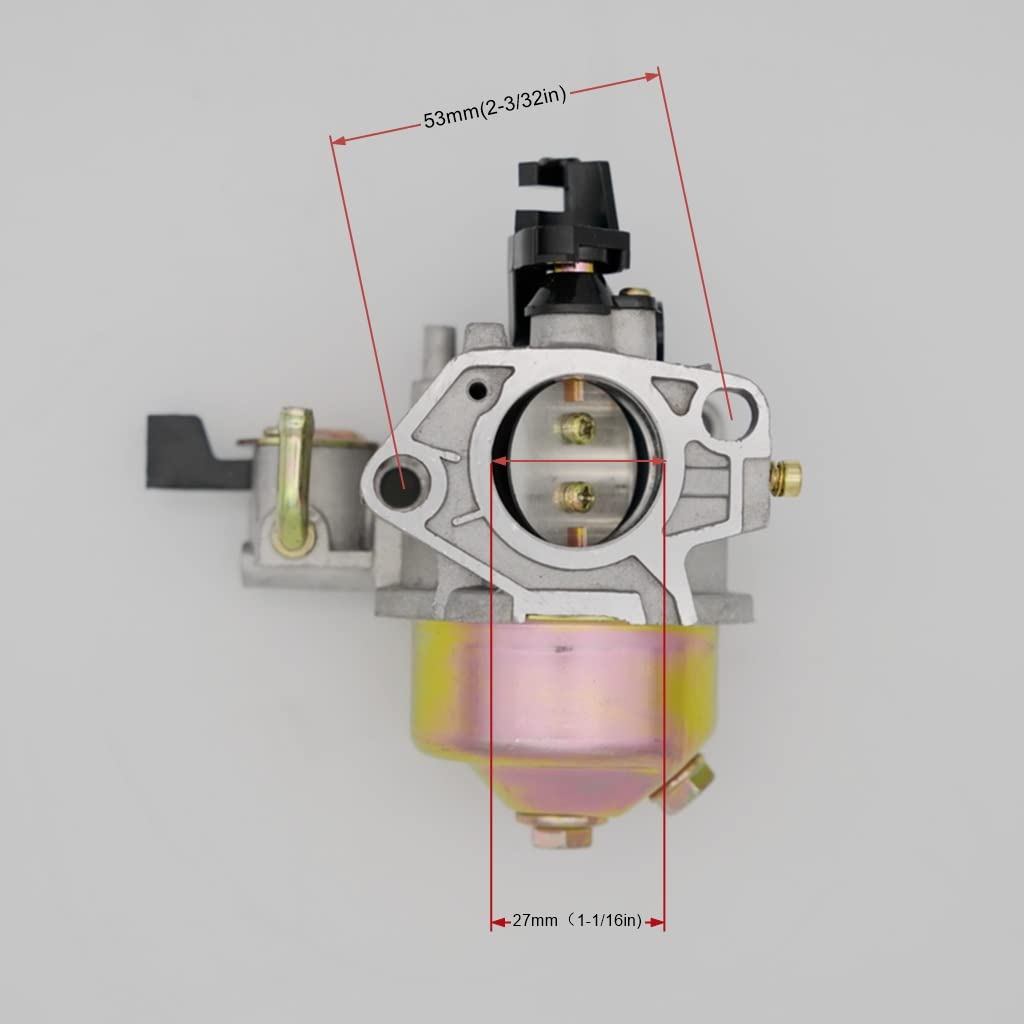

• 1× compatible carburetor plus mounting gaskets

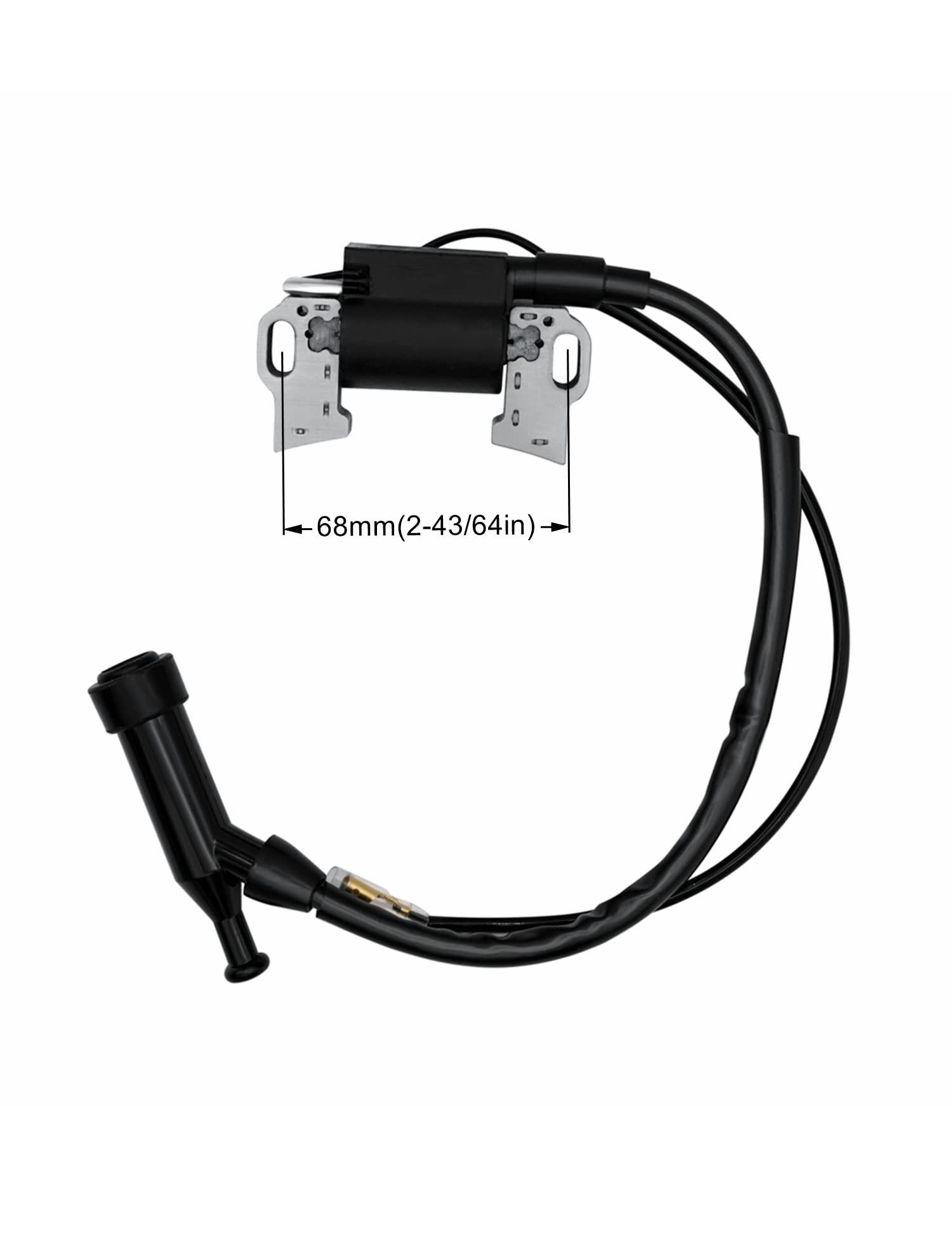

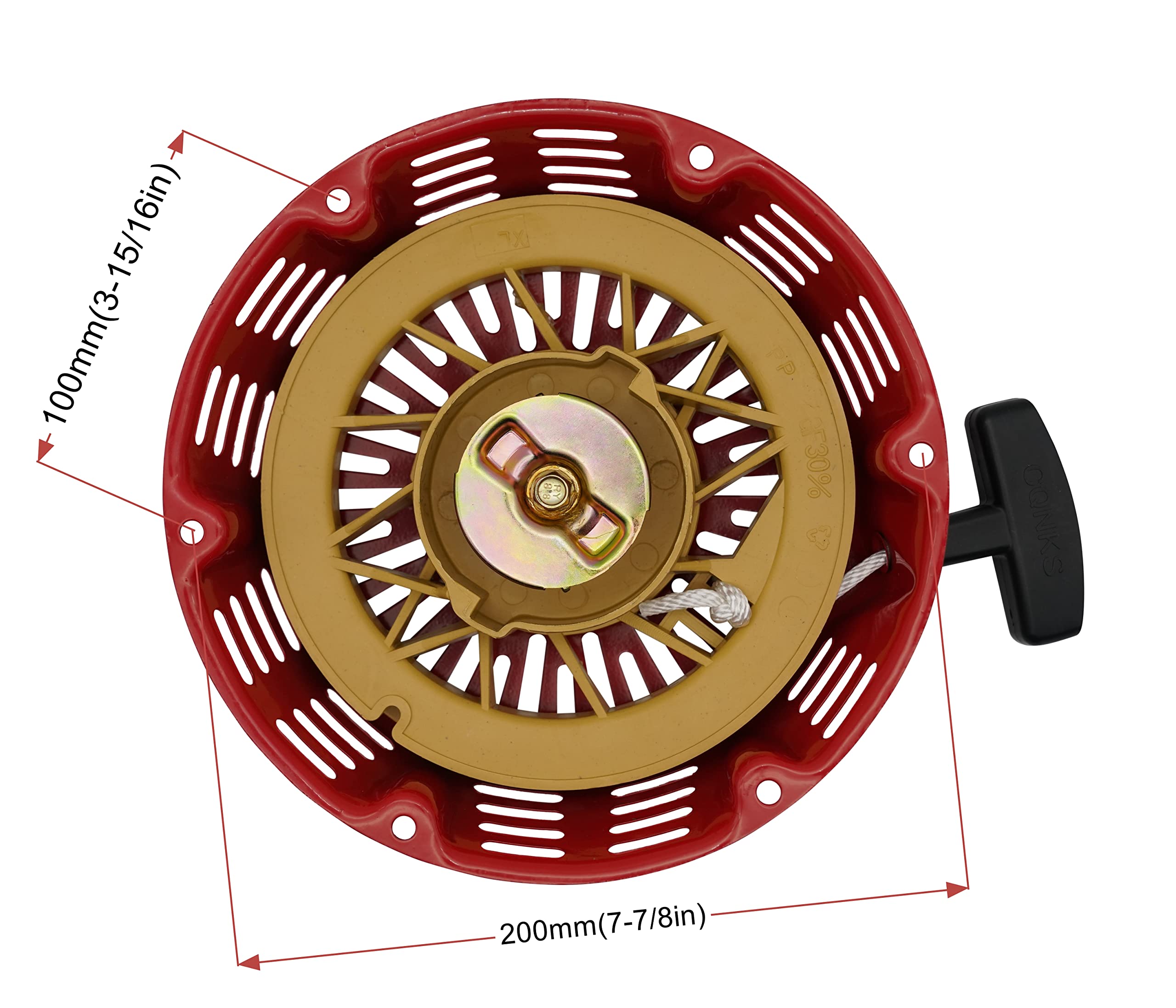

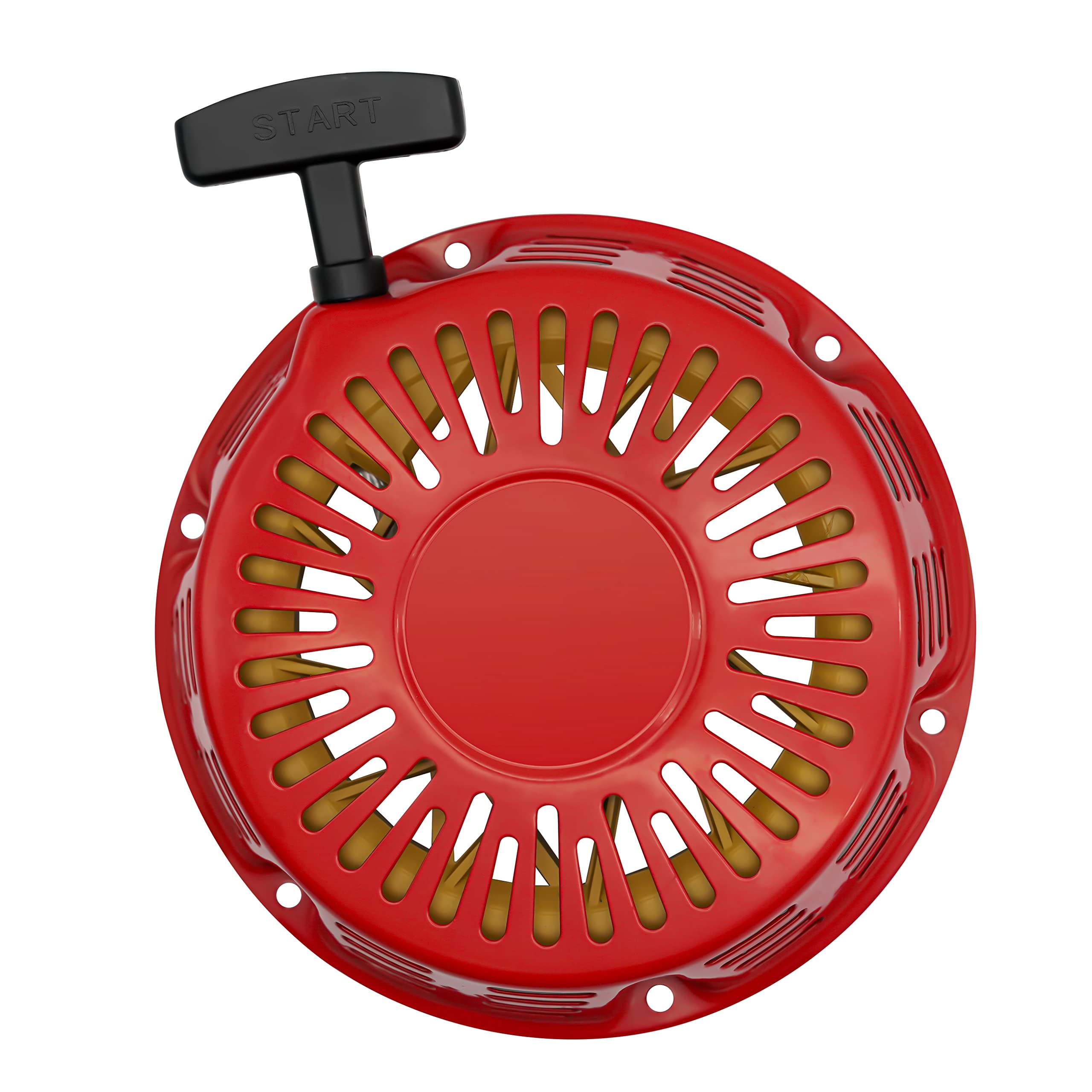

• 1× pull cord (recoil) assembly and 1× ignition coil

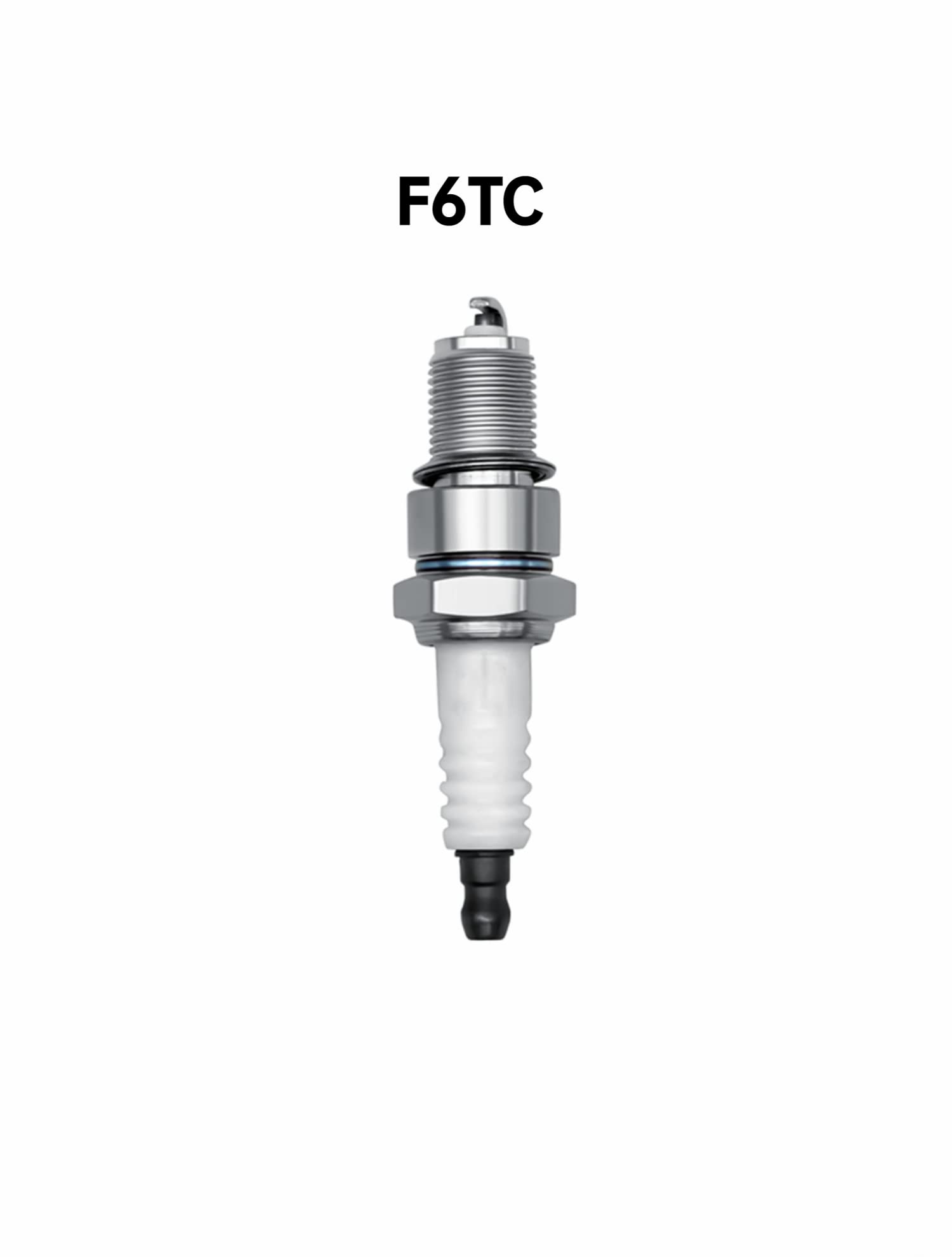

• 1× air filter, 1× spark plug (F6TC), and fuel line

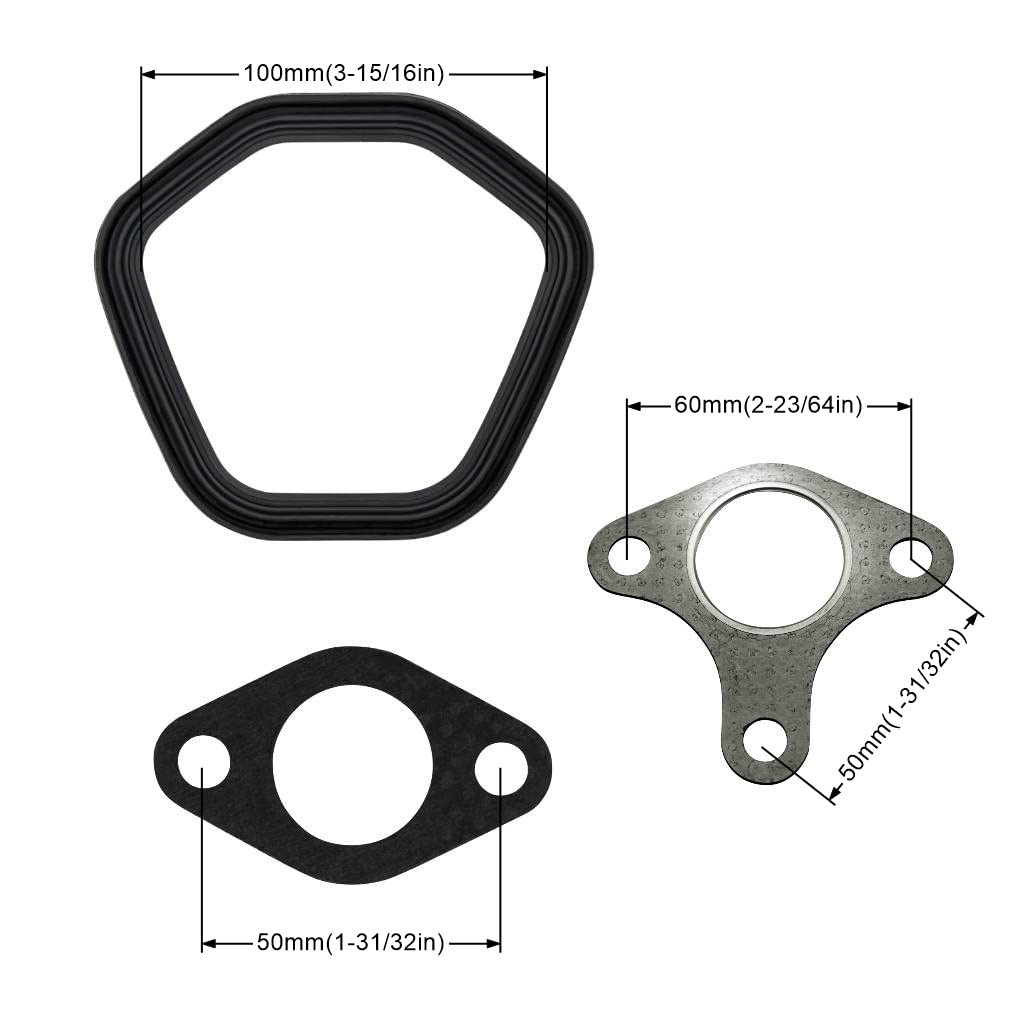

• Throttle spring set, switch, valve cover and exhaust gaskets

How will this kit affect performance and maintenance?

Replacing worn consumables like the carburetor, air filter, and spark plug often restores smoother idling, easier starting, and more consistent throttle response on older small engines. While this kit won’t recreate a factory-new engine, it provides the parts most likely to resolve common fuel and ignition faults at a modest cost. Proper tuning and installation yield the best outcomes.

• Improves starting and idle when old parts are fouled or leaking
• Reduces fuel delivery issues by replacing the carburetor and fuel line
• Addresses ignition faults with a new coil and spark plug
• Includes gaskets to prevent air or exhaust leaks after service

How should I prepare for installation and compatibility checks?

Before you begin, compare the carb mounting flange, throttle linkage, and fuel port locations to the unit on your engine. Gather basic hand tools, a service manual or diagram for torque specs, and a clean workspace for gasket surfaces. If you’re unsure about electrical connections or recoil assembly steps, photos during disassembly help during reassembly.

• Compare part numbers and physical flange dimensions before ordering
• Have hand tools, clean rags, and a torque wrench for gasket sealing
• Label wires and take photos during disassembly for correct reconnection
• Test the engine after installation and make small carb adjustments as needed

Who this is for: This Strongthium tune-up carb kit is aimed at DIY mechanics, landscapers, and small equipment owners who maintain GX-style 11–13HP engines and want a budget-friendly service solution. It’s particularly useful for those working on pressure washers, water pumps, go-karts, tillers, and other gas-powered utility machines that share the GX340/GX390 architecture. Note the kit parts are aftermarket replacements, so professional installers or experienced hobbyists should verify fit and perform final tuning.
