SOGTICPS 60A MPPT Solar Charge Controller for 12V–96V Systems — 230V PV Input, Multi-Chemistry Support

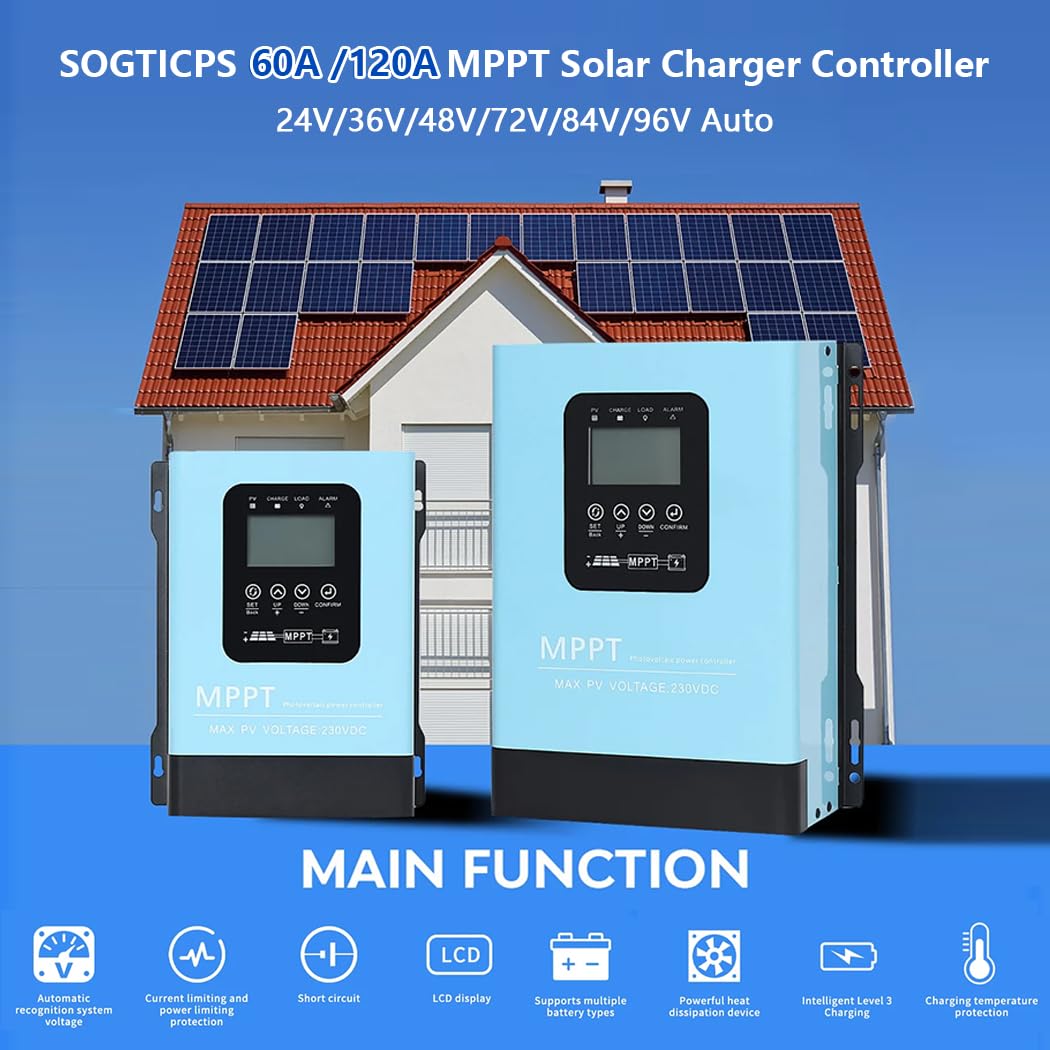

The SOGTICPS 60A MPPT solar charge controller is a high-voltage, multi-battery regulator that automatically detects system voltage and manages PV inputs up to 230V for 12V–96V battery banks.

This 60A maximum power point tracking (MPPT) controller supports a wide range of battery voltages and chemistries, including sealed lead-acid, GEL, LiFePO4 and Li-ion. Designed for off-grid systems, RVs, boats and small commercial setups, it delivers efficient charging, multiple safety protections, and full-power input to meet higher-load needs. The controller's automatic voltage detection and broad PV input capacity make it a versatile central piece for expanding solar installations.

How does this controller handle different battery voltages and chemistries?

The device auto-detects the system voltage and adapts charging parameters to match 12V through 96V batteries. It includes configurable profiles for common chemistries (lead-acid, GEL, LiFePO4, Li-ion) so charging is appropriate for battery type and prolongs life when used correctly.

• Automatic detection of 12V/24V/36V/48V/60V/72V/84V/96V systems

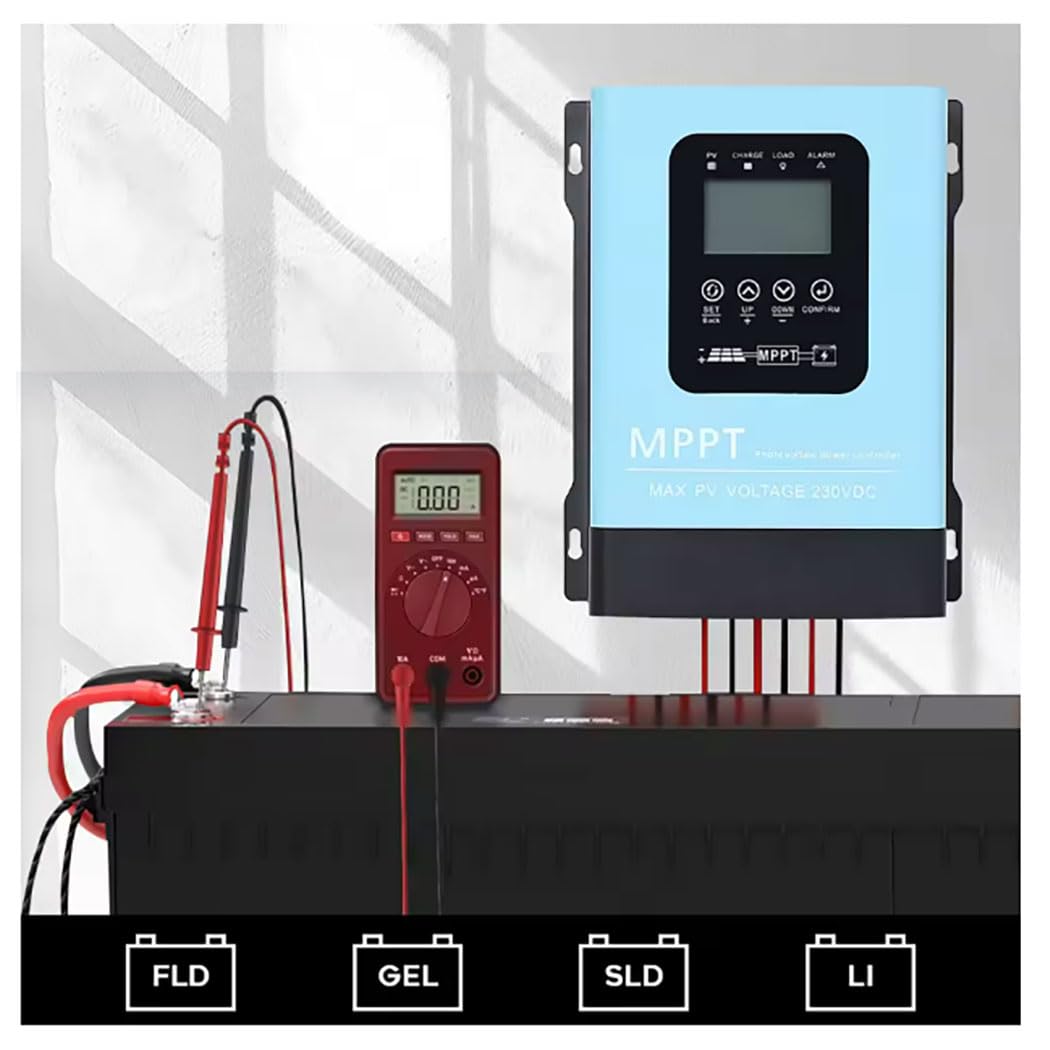

• Selectable charging profiles for sealed lead-acid, GEL, LiFePO4 and Li-ion
• Activation mode to revive low-activity lithium batteries
• Scalable for single- or multi-bank setups depending on wiring

What PV and power limits should I plan for?

The controller accepts PV open-circuit voltages up to 230V and can handle substantial PV arrays per supported battery voltage. Its full-power input capability means it can serve higher-demand loads and complex off-grid configurations without throttling the array unnecessarily.

• PV VOC up to 230V for safe module string sizing
• PV max output by battery: 12V = 720W; 24V = 1440W; 36V = 2160W
• Extended PV max: 48V = 2880W; 60V = 3600W; 72V = 4320W
• Higher ranges: 84V = 5040W; 96V = 5760W

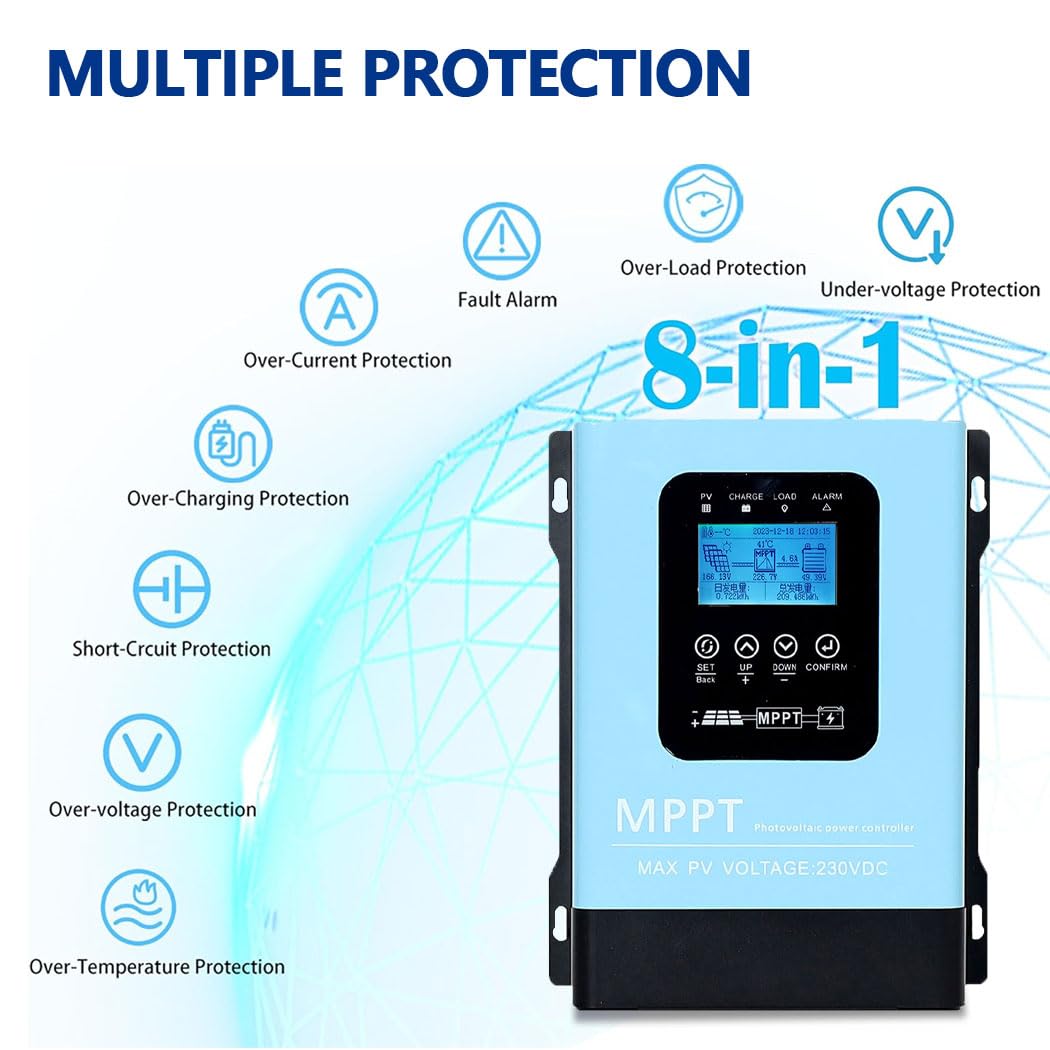

What protections and reliability features are included?

The unit incorporates several safety and longevity features to protect both the battery and connected equipment. Built-in protections reduce the risk of damage from common faults and help maintain stable system operation under variable conditions.

• Overcharge and overcurrent protection to prevent battery damage
• Short-circuit and overheating safeguards for system safety
• Battery activation feature for recovering low-activity lithium cells
• Robust MPPT tracking for improved energy harvest compared with PWM controllers

Who is this for? Installers, homeowners or DIYers planning medium- to high-power off-grid systems, as well as RV and marine owners who need a flexible controller for mixed battery types, will find the SOGTICPS 60A MPPT useful. It's aimed at projects that require higher PV voltages and larger array capacities, such as small farms, workshops, or residential off-grid systems that may grow over time. If you need a single controller that supports many battery voltages, provides full-power input and includes activation and protective features, this model suits those needs.
