SOFO Recoil Starter Assembly for Champion-style 389–500cc Engines — Ready-to-Install with Metal Housing & Durable Rope

This SOFO Original Pull Start Assembly is a direct-fit recoil starter designed to replace worn or broken starters on Champion-style 389–500cc engines used in 5000–9200W generators, pressure washers, water pumps and similar small engine equipment.

If your generator, pressure washer or pump has a sticky, frayed or non-retracting pull cord, the starter assembly is often the fastest, most cost-effective fix. This SOFO unit pairs a reinforced metal housing with a smooth recoil spring and a durable pull rope to restore reliable hand-start performance. It ships as a ready-to-install kit with mounting bolts and a pre-cut rope so you can get back to work without buying extra parts.

How do I know this starter fits my engine?

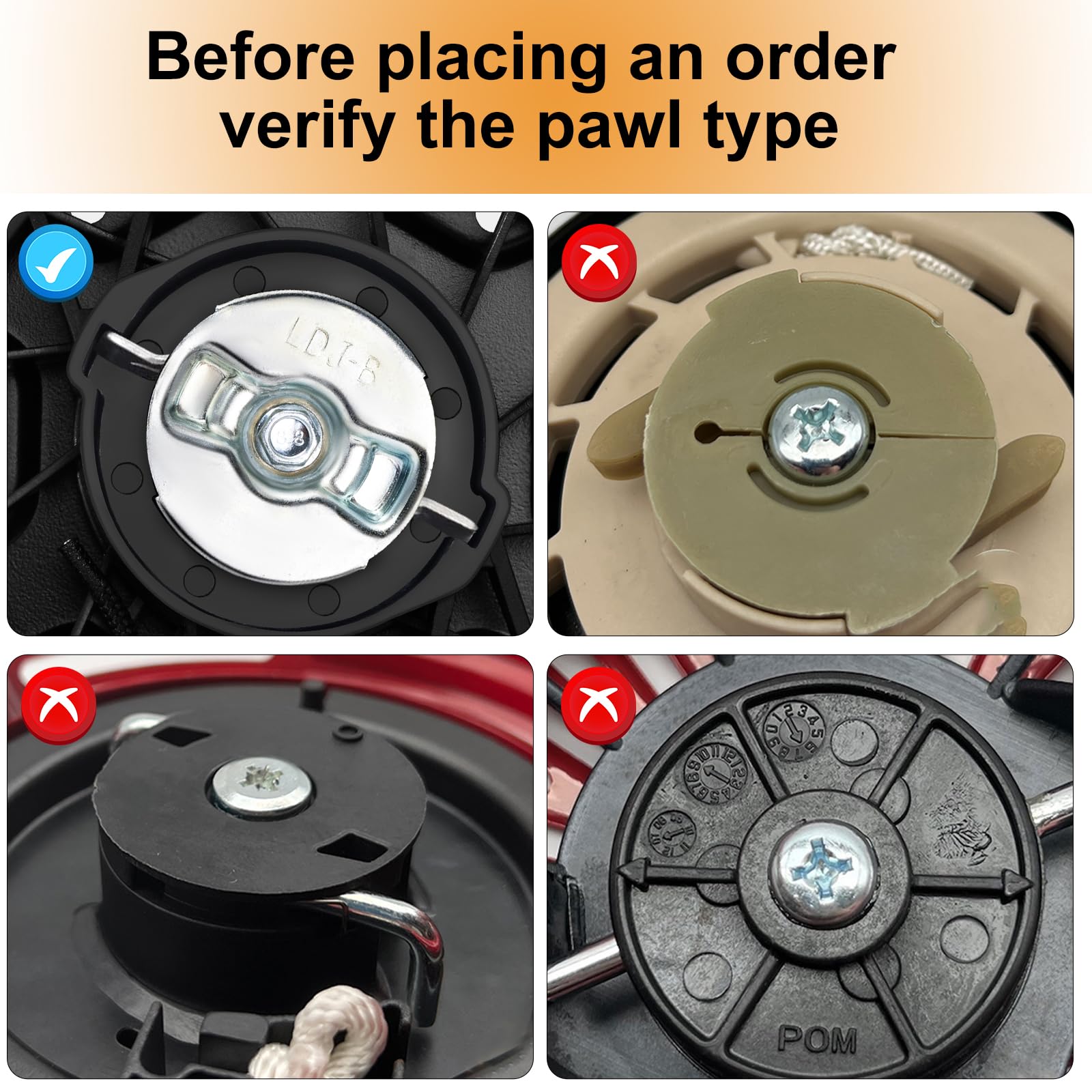

Measure the mounting pattern and compare it to your existing starter: this SOFO unit matches common Champion-style dimensions used on many 389–500cc engines. Confirm the hole spacing and pawl/rachet style before ordering to ensure compatibility.

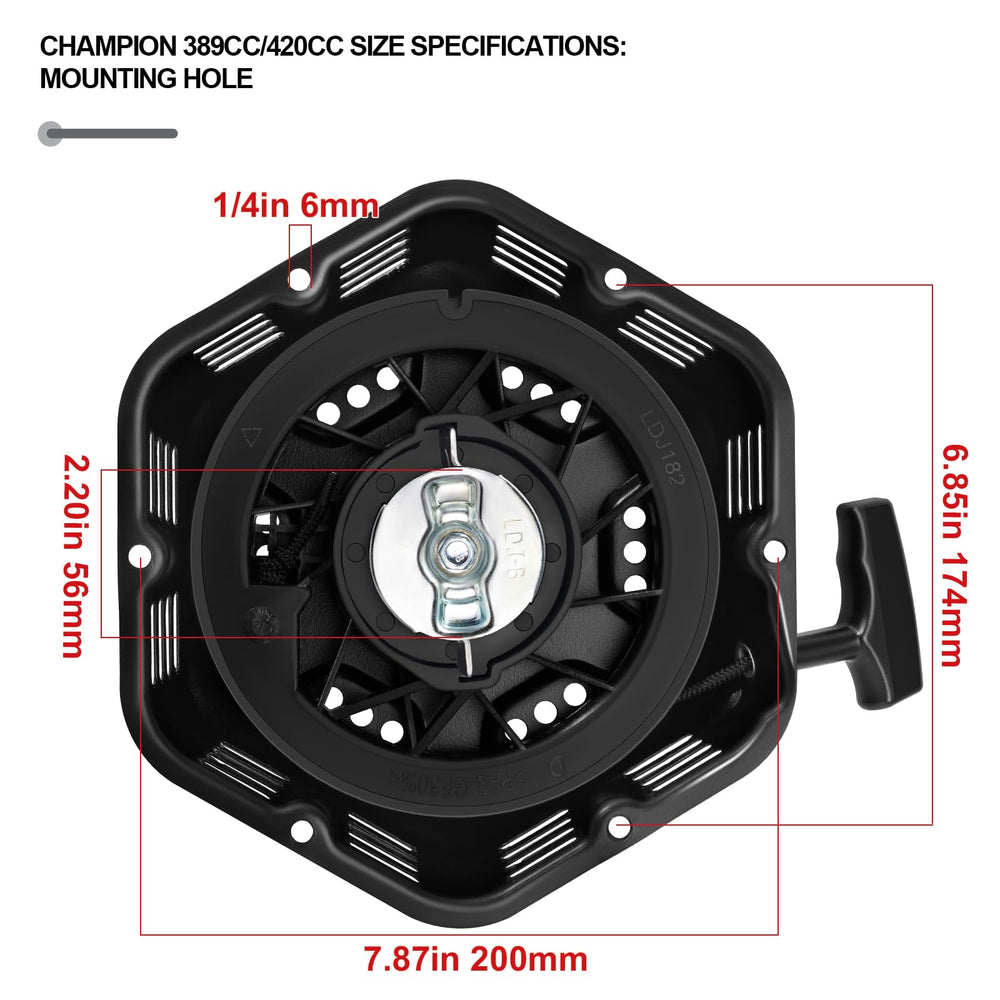

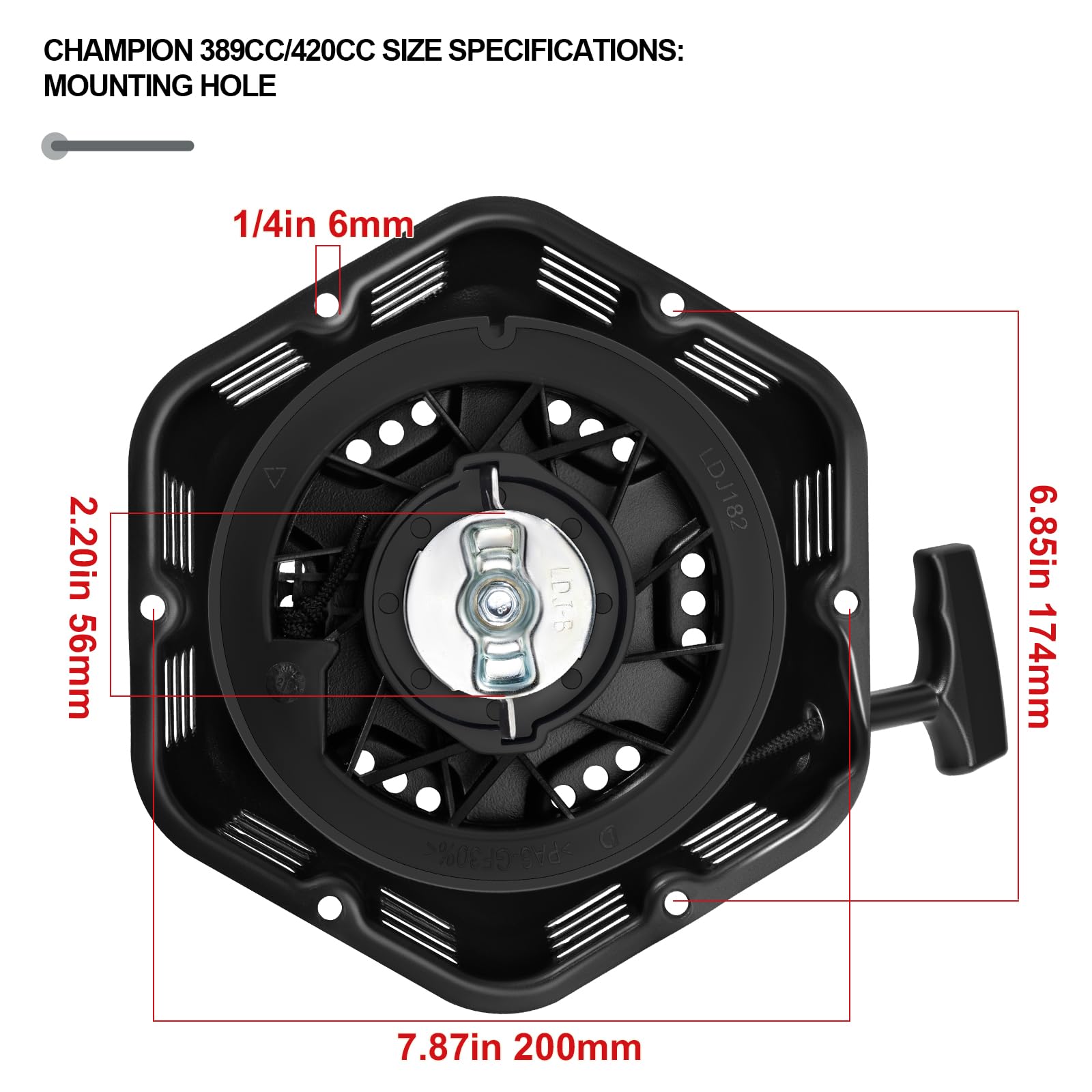

• Mounting hole adjacent distance: 6.85 in (174 mm)
• Hole-to-hole center across starter: 7.87 in (200 mm)
• Rachet diameter: 2.2 in (56 mm)
• Designed for engines used in 5000W–9200W equipment

What improvements does this SOFO starter offer over a worn OEM unit?

The assembly includes a metal shell that resists cracks and deformation, a robust coil spring for prompt rewind, and a smooth, abrasion-resistant rope. A detachable grip reduces hand fatigue and makes replacement easier, while the preinstalled components help you avoid additional trips to the parts store.

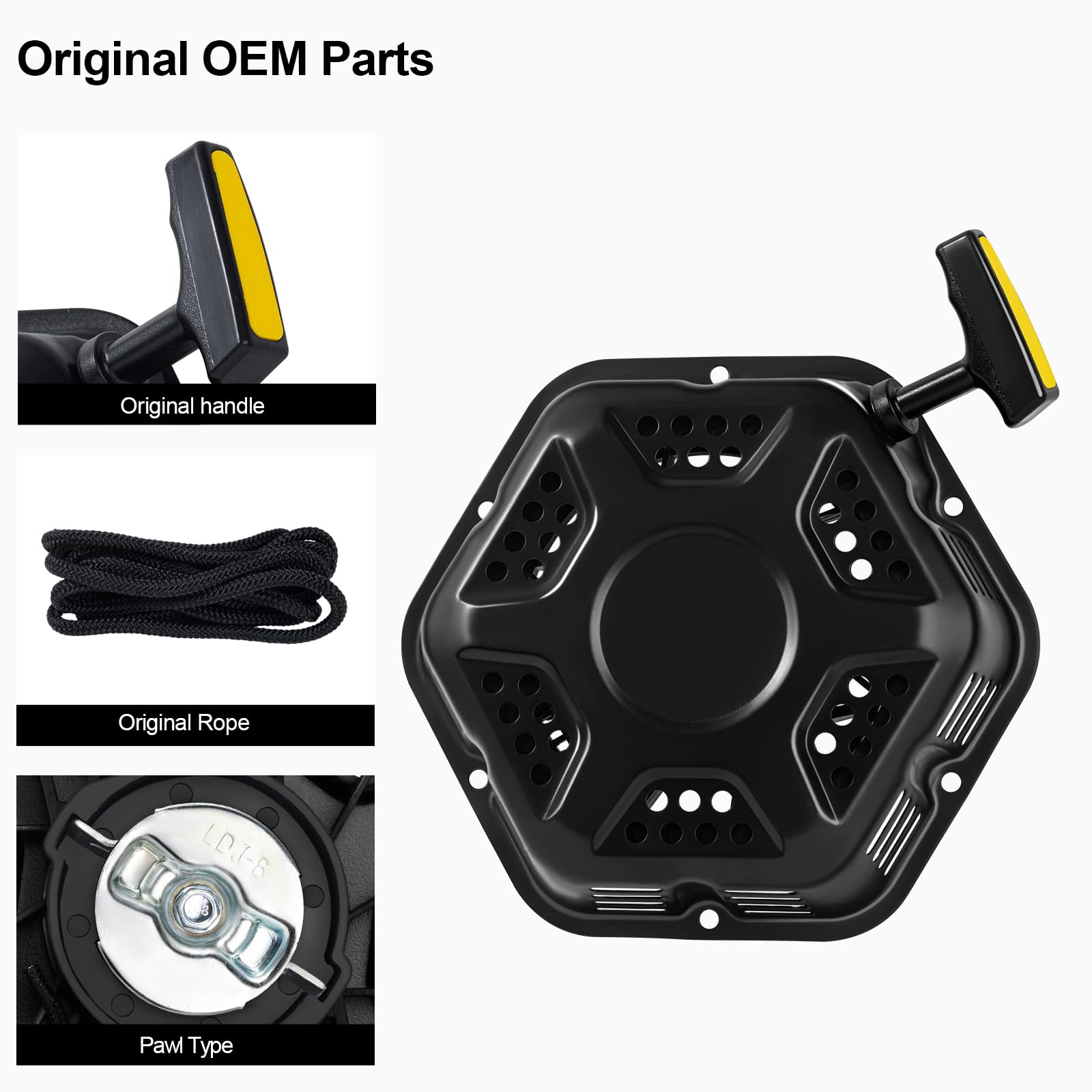

• Heavy-duty metal housing for longer life
• Integrated recoil spring for faster rewind

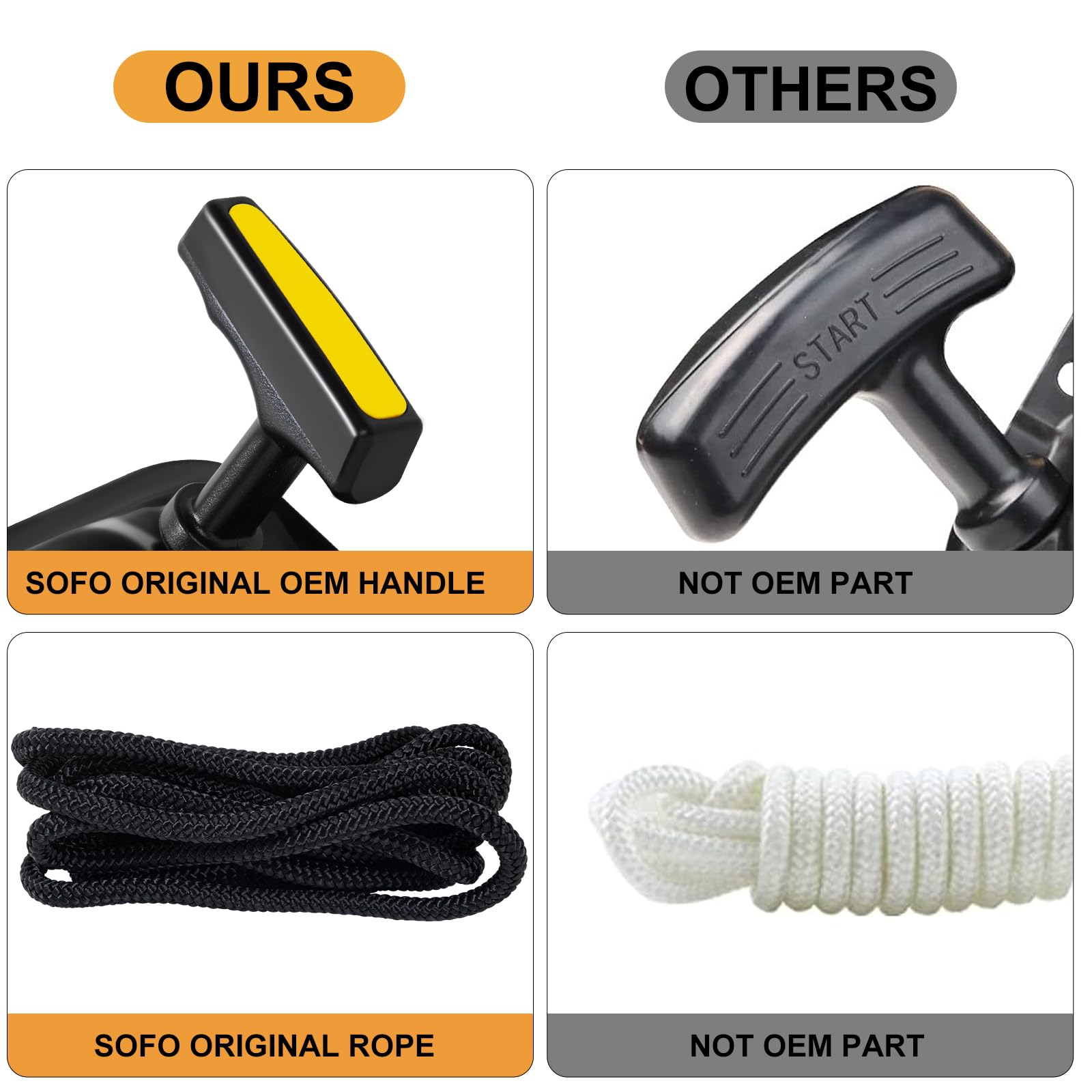

• 145 cm durable pull rope with detachable ergonomic handle

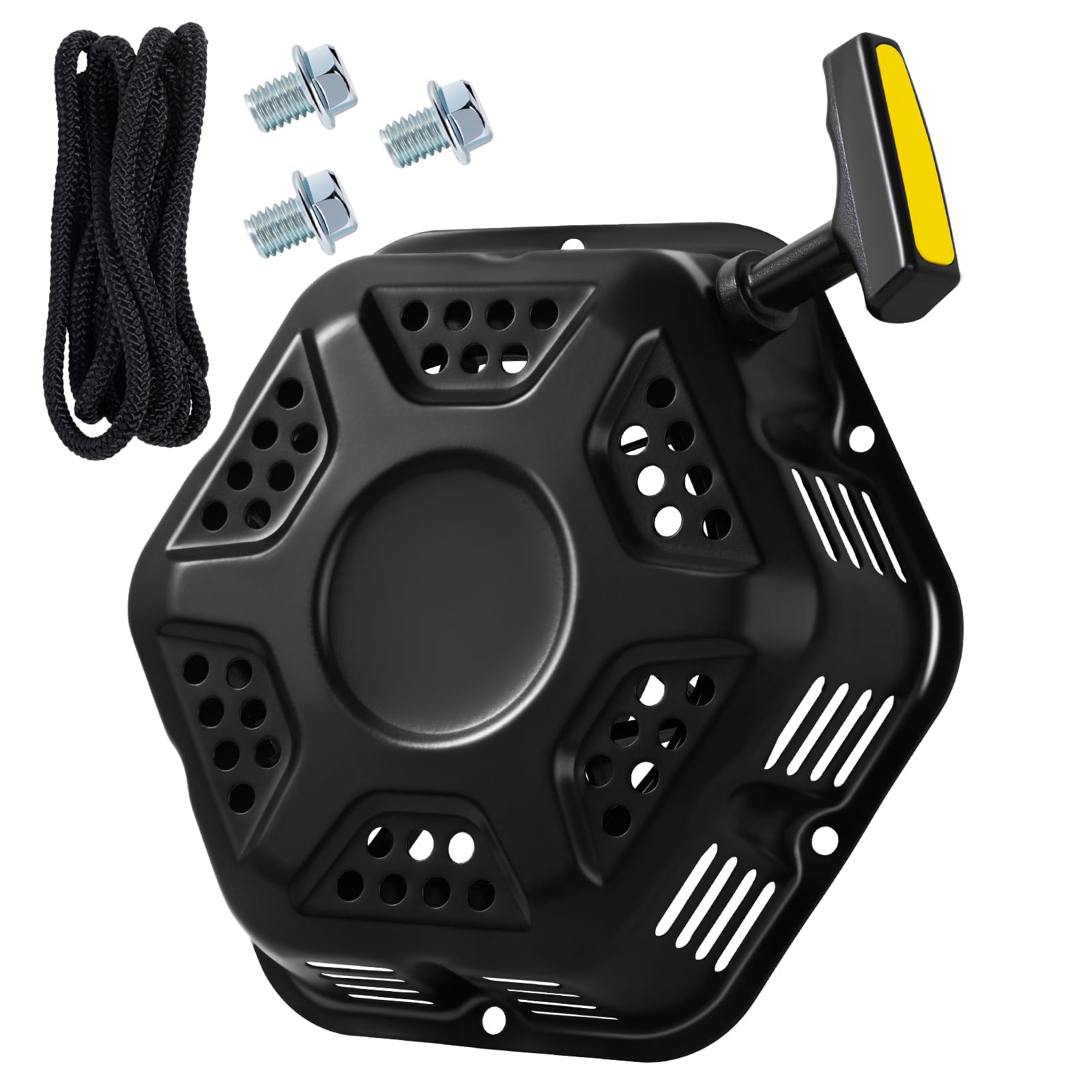

• Comes with three mounting screws for quick installation

Which machines and tasks commonly use this replacement starter?

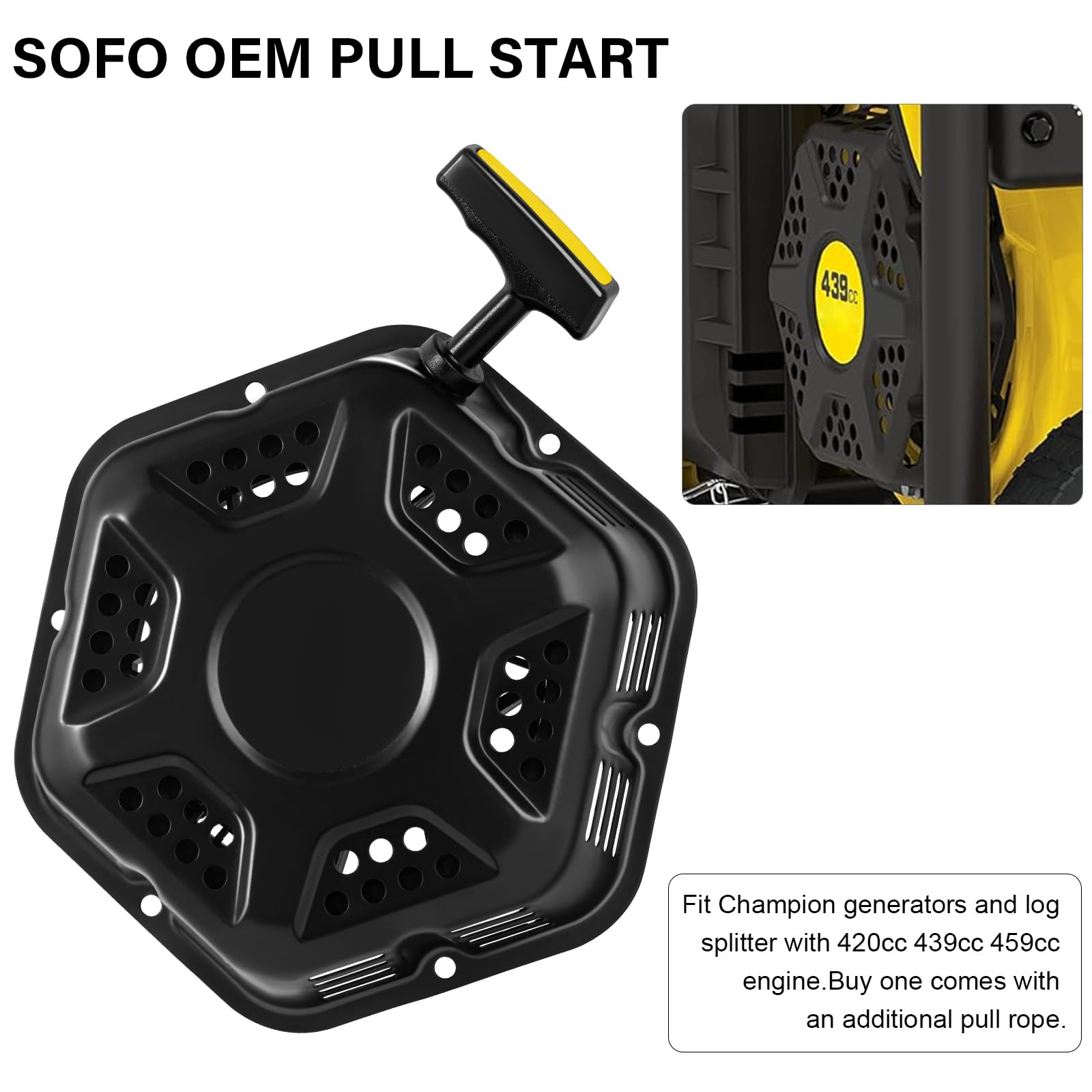

This starter is versatile and suited for many small engine applications where Champion-style recoil starters are used. It’s typically found on portable generators, water pumps, pressure washers and recreational mini bikes or go-karts that fall into the specified displacement range.

• Portable generators (5,000–9,200 watt class)
• Pressure washers and water pumps
• Snow blowers, go-karts, mini bikes and small engine equipment
• Useful for field repairs and service shop replacements

How do I install this replacement part safely and quickly?

Always disconnect spark plug or battery power and secure the equipment before starting. Remove the old starter, verify the mounting holes and pawl orientation, then transfer or align the ratchet and pawl with the flywheel before torquing the supplied bolts evenly.

• Disconnect ignition and stabilize the machine
• Compare hole pattern and pawl type with your old starter
• Install and tighten the three supplied screws evenly
• Test pull tension and rope retraction before full use

Who is this for: The SOFO recoil pull starter kit suits DIY mechanics, small engine repair shops and owners of Champion-style generators and equipment who need a durable, ready-to-install replacement. If your engine is within the 389–500cc displacement range or your machine is rated between 5000 and 9200 watts and shows a failed or unreliable pull start, this assembly is engineered to restore dependable, manual starting without expensive downtime.
