SIEMENS spa panel 125A main-lug outdoor 4-space 8-circuit with factory 50A GFCI — NEMA 3R weatherproof

This compact, weatherproof spa panel delivers a ready-made solution for outdoor hot tub and pool installations. It combines a NEMA Type 3R enclosure with a factory-installed QF250 two-pole 50 Amp GFCI breaker, a 125 Amp rated interior, and room for additional branch circuits. The panel ships with a cover plate and a five-position ground bar and is built for single-phase power systems using HS-type hubs.

What components come preinstalled and ready to use?

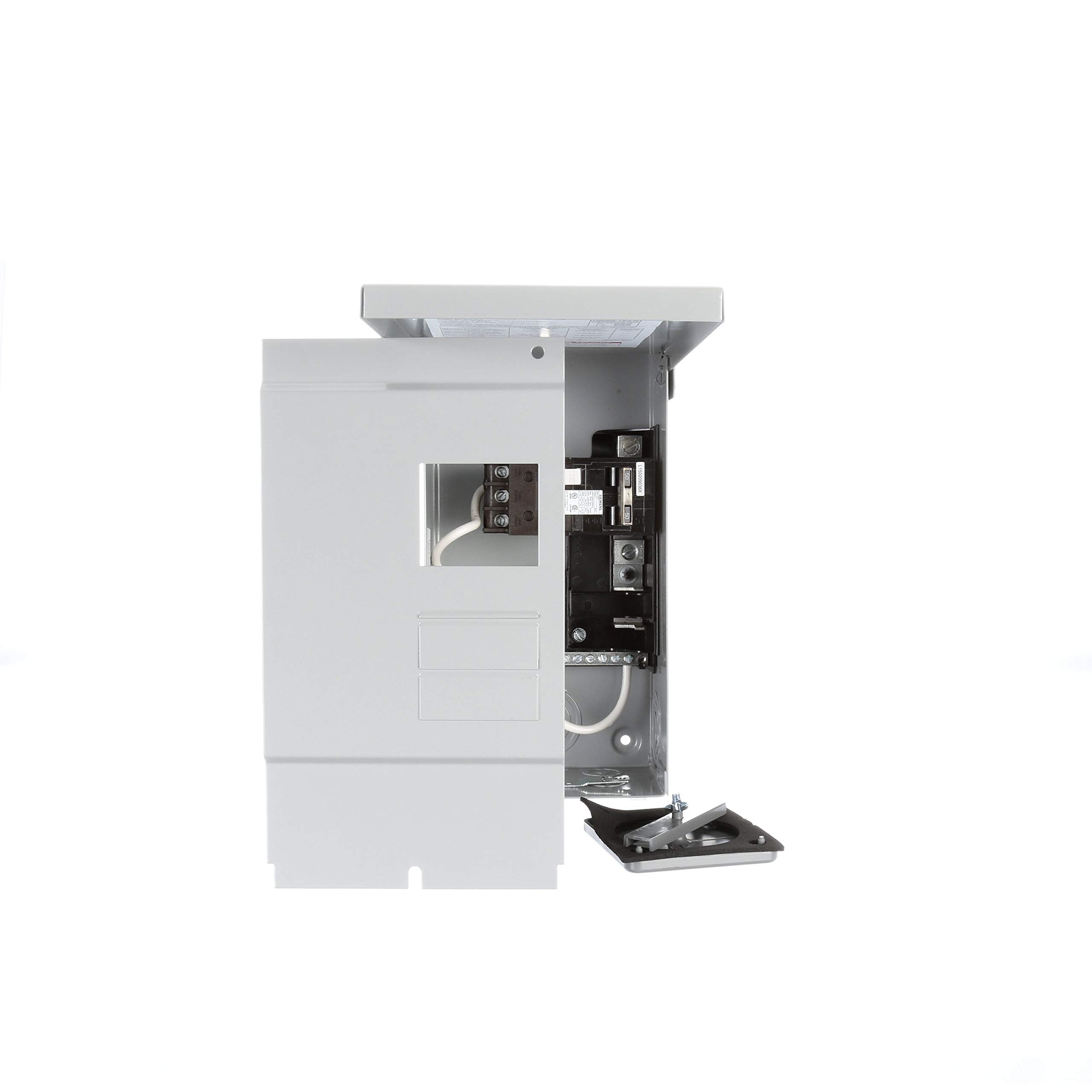

The Siemens spa panel arrives with the critical safety component already installed: a 50 Amp two-pole GFCI breaker (QF250). It also includes a factory-mounted five-position ground bar and an interior sized for 125 Amp service, so installers avoid separate sourcing of those items.

• Factory-installed QF250 50A two-pole GFCI breaker
• 125 Amp rated interior and one-piece bus bar construction
• Factory-installed five-position ground bar included
• Cover plate provided — ready for wiring and mounting

How does this panel handle outdoor and wet-location installations?

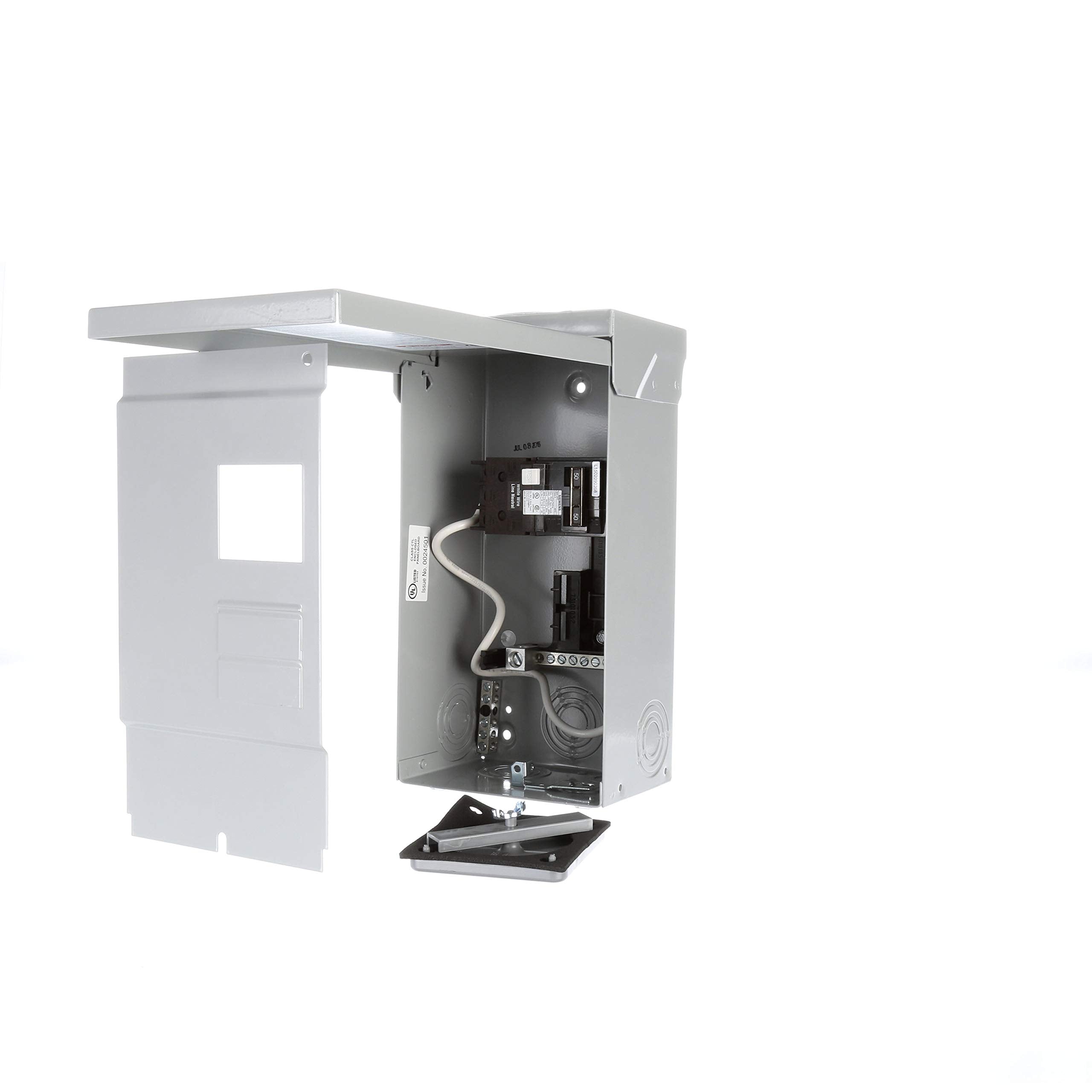

The enclosure is NEMA Type 3R rated for outdoor use, shielding internal components from rain and light weather exposure. It’s designed for typical spa, hot tub, and pool equipment locations where a robust outdoor cabinet is required.

• NEMA 3R outdoor-rated enclosure for weather protection
• HS-type hub compatibility for conduit and wiring entry
• Corrosion-resistant finish suitable for outdoor mounting sites

Can I expand circuits or what are the panel’s circuit capacities?

This model provides four physical spaces and accepts up to eight circuits using tandem breakers where allowed, plus two extra open spaces for additional branch circuits. The one-piece bus bar is designed to be used with circuit breakers only, simplifying expansion planning while preserving UL-listed compliance.

• 4 spaces, 8 circuits maximum with approved breaker configurations
• Two spare spaces available for future branch circuits
• One-piece bus bar made specifically for circuit breaker connection

Is this panel compatible with my spa, and what electrical specs matter?

The W0408L1125SPA50 is intended for single-phase spa and pool applications that require a dedicated 50A GFCI-protected feed and up to 125 Amp main-lug interior rating. Confirm local code requirements and installer preferences for grounding, conduit entry, and breaker types before installation.

• Single-phase panel suitable for typical residential spa/hot tub feeds
• Includes a two-pole 50A GFCI breaker for equipment protection
• UL listed with 125A rated interior — check local inspection rules

Who is this for: Electricians, pool and spa technicians, and homeowners planning a dedicated outdoor feed will find this Siemens spa panel useful when they need a compact, code-conscious solution that arrives with a factory-installed 50 Amp GFCI breaker. It’s best for outdoor spa or hot tub installations requiring a weatherproof cabinet, built-in ground provisions, and room to add a couple of branch circuits without buying multiple components separately. Always have a licensed electrician verify compatibility with local electrical codes and site-specific wiring needs before installation.
