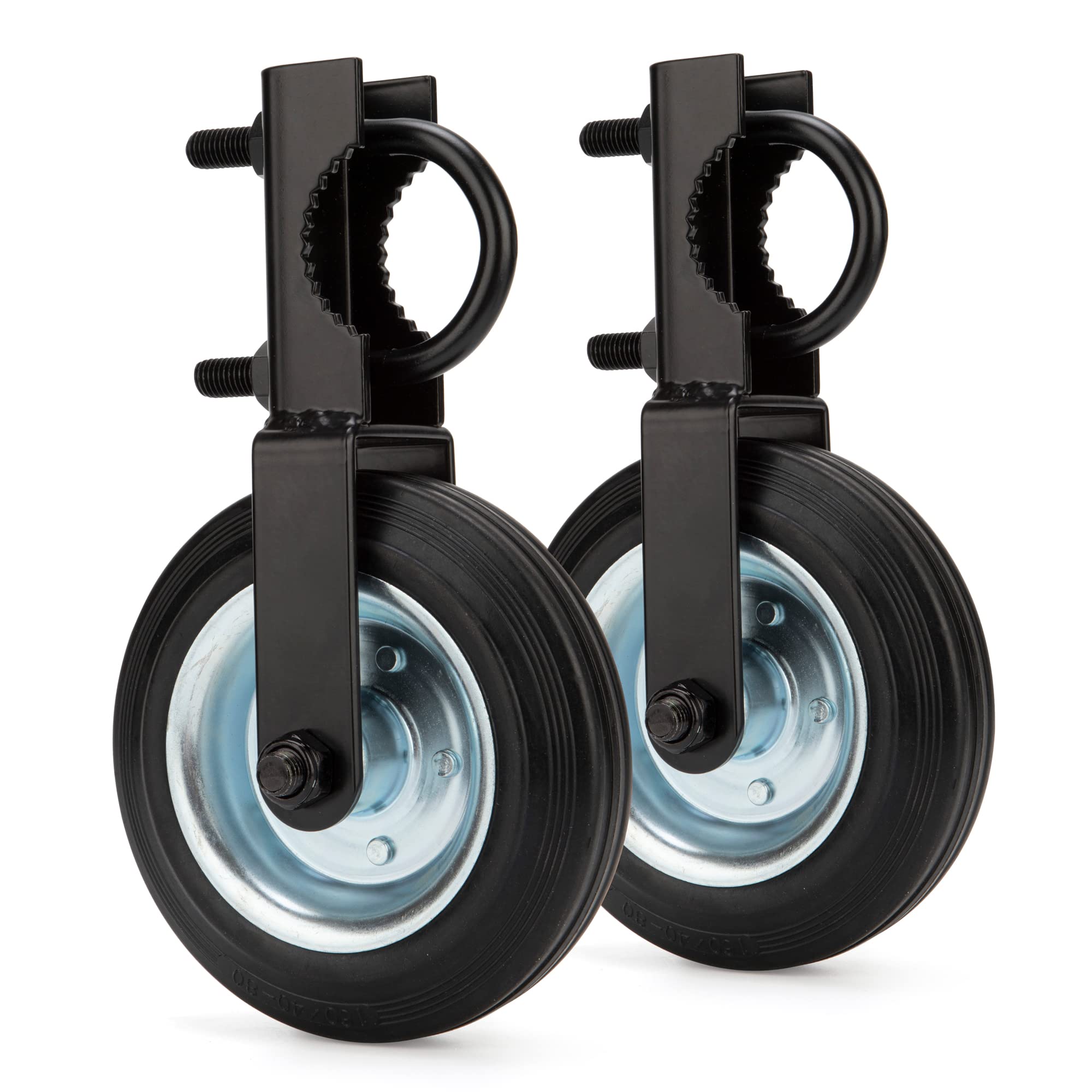

SANKINS Gate Helper Wheel for Metal Swing Gates, 6" Solid Rubber Support Caster, Fits 1-5/8"–2" Frames, 500 lb Capacity (2 Pack)

SANKINS Gate Helper Wheel is a heavy-duty 6-inch support caster that prevents metal swing gates from dragging, fitting 1-5/8" to 2" round gate frames and supporting up to 500 lbs.

Install a reliable rolling support to keep chain-link and pipe-frame swing gates level, easier to open, and protected from wear. This two-piece set combines a solid-rubber 6" wheel, hot-dipped galvanized steel hardware, and an adjustable mounting angle so gates that sag or bind at the latch glide smoothly over a variety of surfaces.

How does the gate helper wheel stop my gate from dragging?

The wheel takes the gate's weight off the hinges and distributes it to the ground, lifting the lower edge just enough to clear ruts and uneven terrain. Its rugged solid-rubber tire and sealed bushing let the caster roll smoothly under typical outdoor loads.

• Rated to support gate loads up to 500 lbs
• 6" diameter wheel reduces friction and vibration
• Sealed bushing and bearings for smoother rotation

Will it fit my gate frame and how do I mount it?

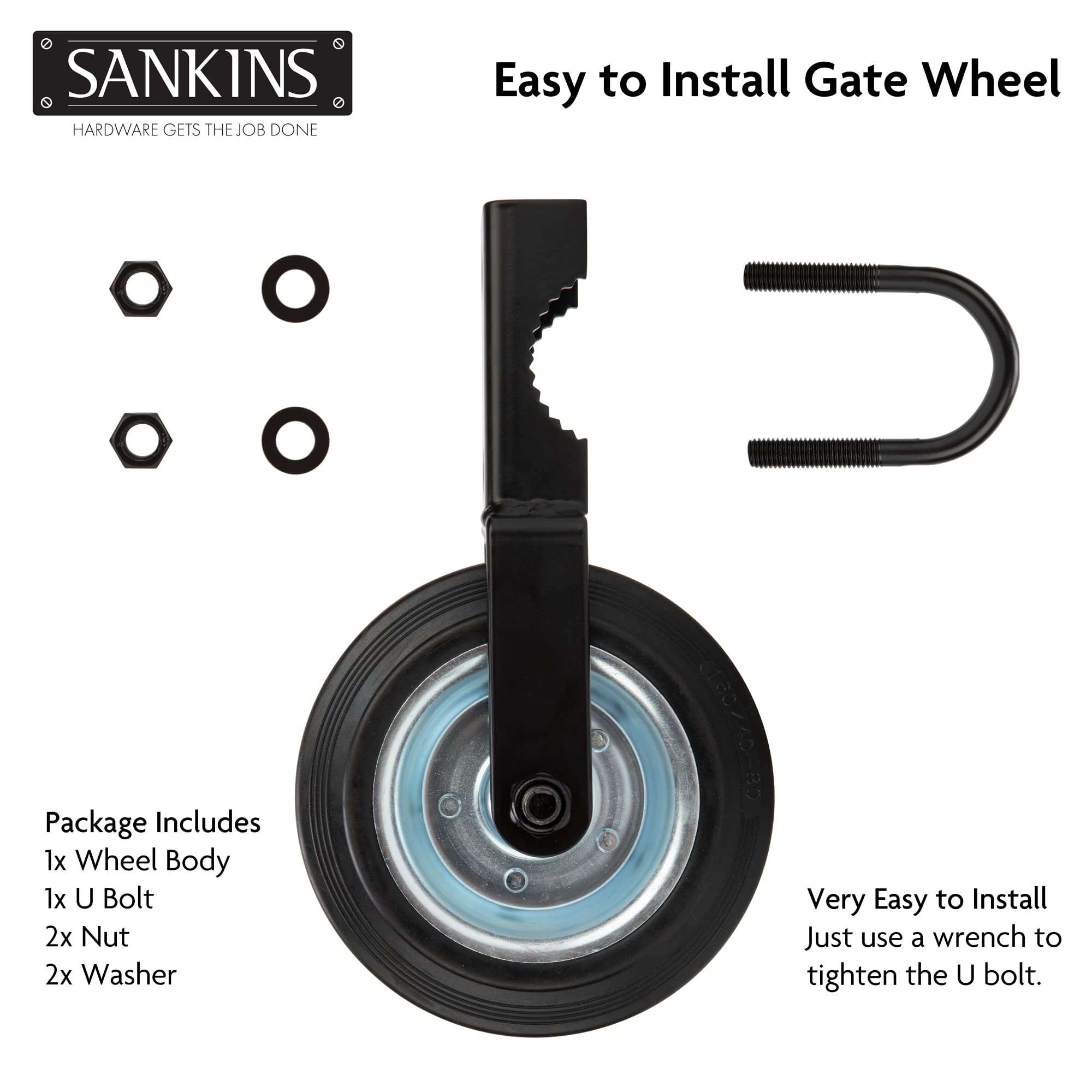

This wheel is designed for round gate tubing between 1-5/8" and 2" outside diameter; the included U-bolt and serrated clamp teeth secure to pipe frames without welding. Installation requires lifting the gate to the desired height, placing the wheel on the bottom rail, and tightening the washers and nuts with a wrench.

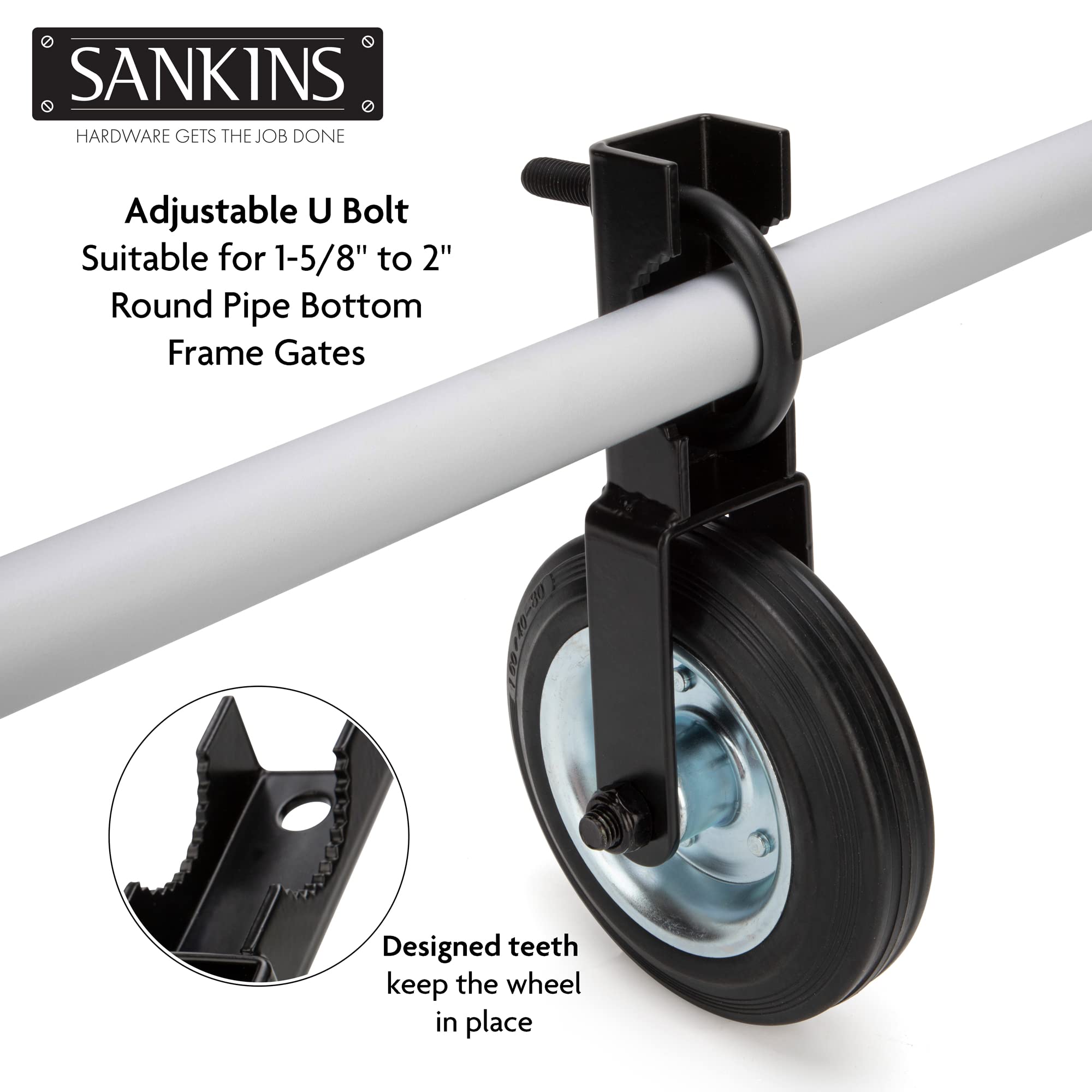

• Fits 1-5/8"–2" O.D. pipe—measure before ordering
• U-bolt mounting with teeth for grip on chain-link and farm pipe
• Simple hardware-only install—no special tools required

How much adjustable lift does the caster provide and on what surfaces does it roll?

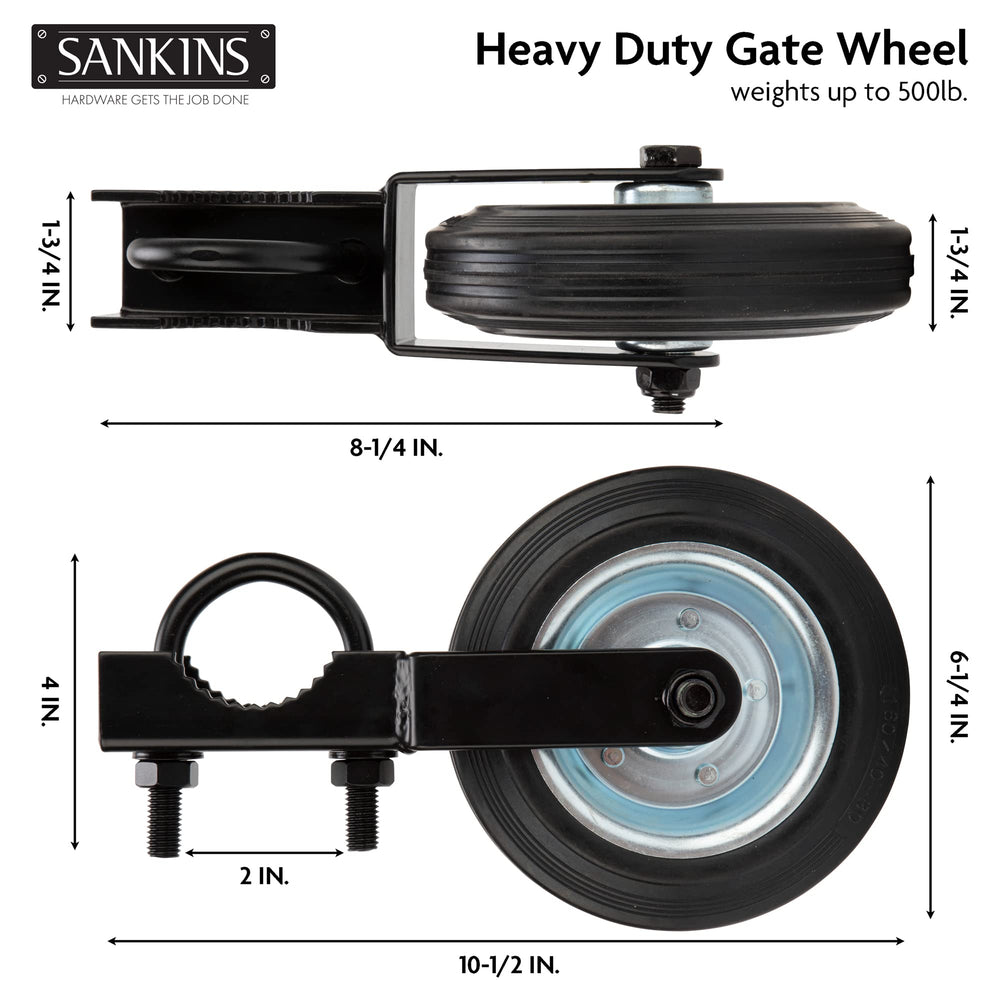

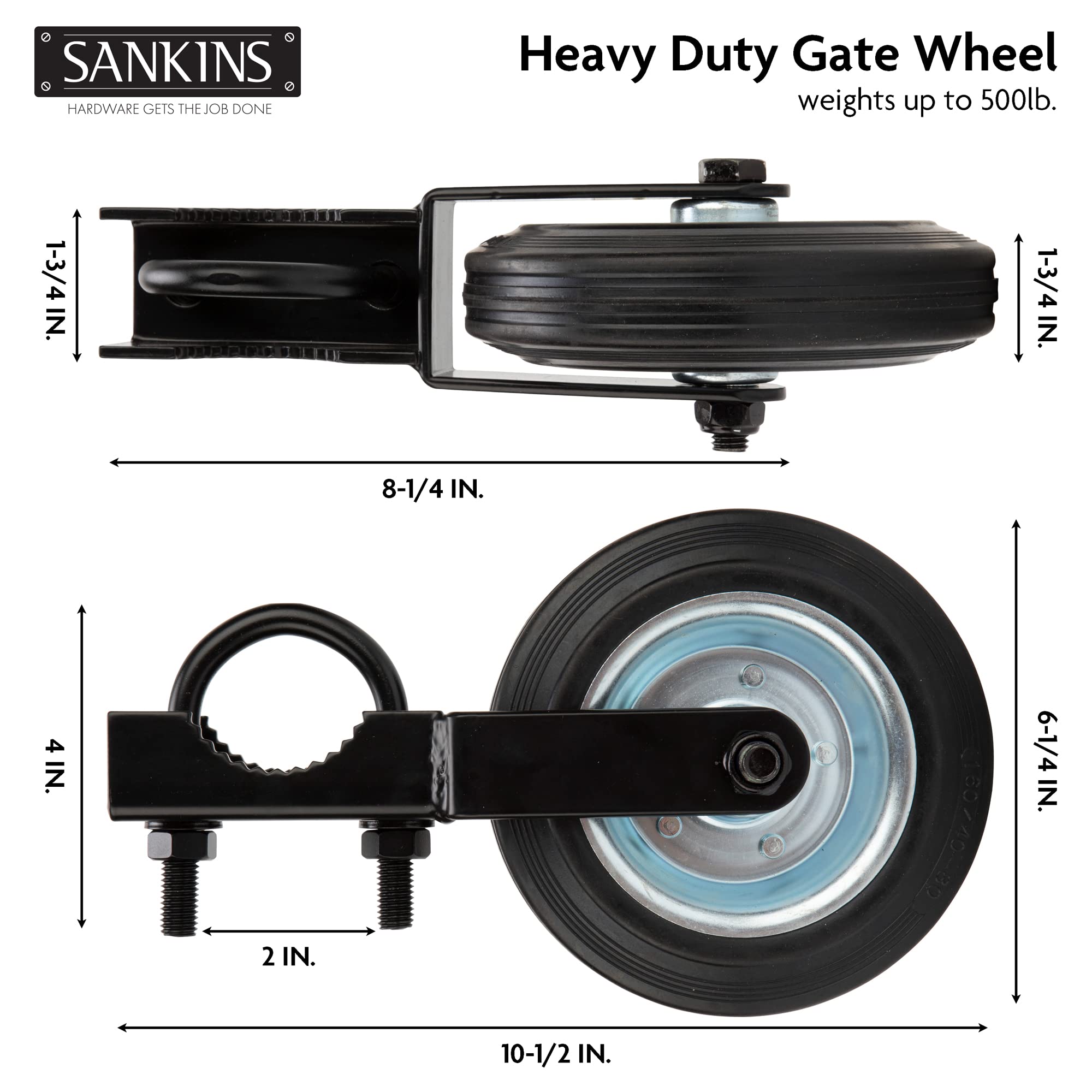

Adjust the bracket angle from 0° to 90° to change the wheel’s effective lift; depending on angle, the gate can be raised between about 3" and 8-3/4" to clear obstacles. The 1-3/4" wide tire performs well over concrete, grass, pasture, and compacted gravel.

• Adjustable lift range: roughly 3" to 8-3/4" depending on angle
• 1-3/4" tread width for stable rolling on varied ground
• Solid rubber tire resists wear, suitable for outdoor use

What materials and durability features should I expect?

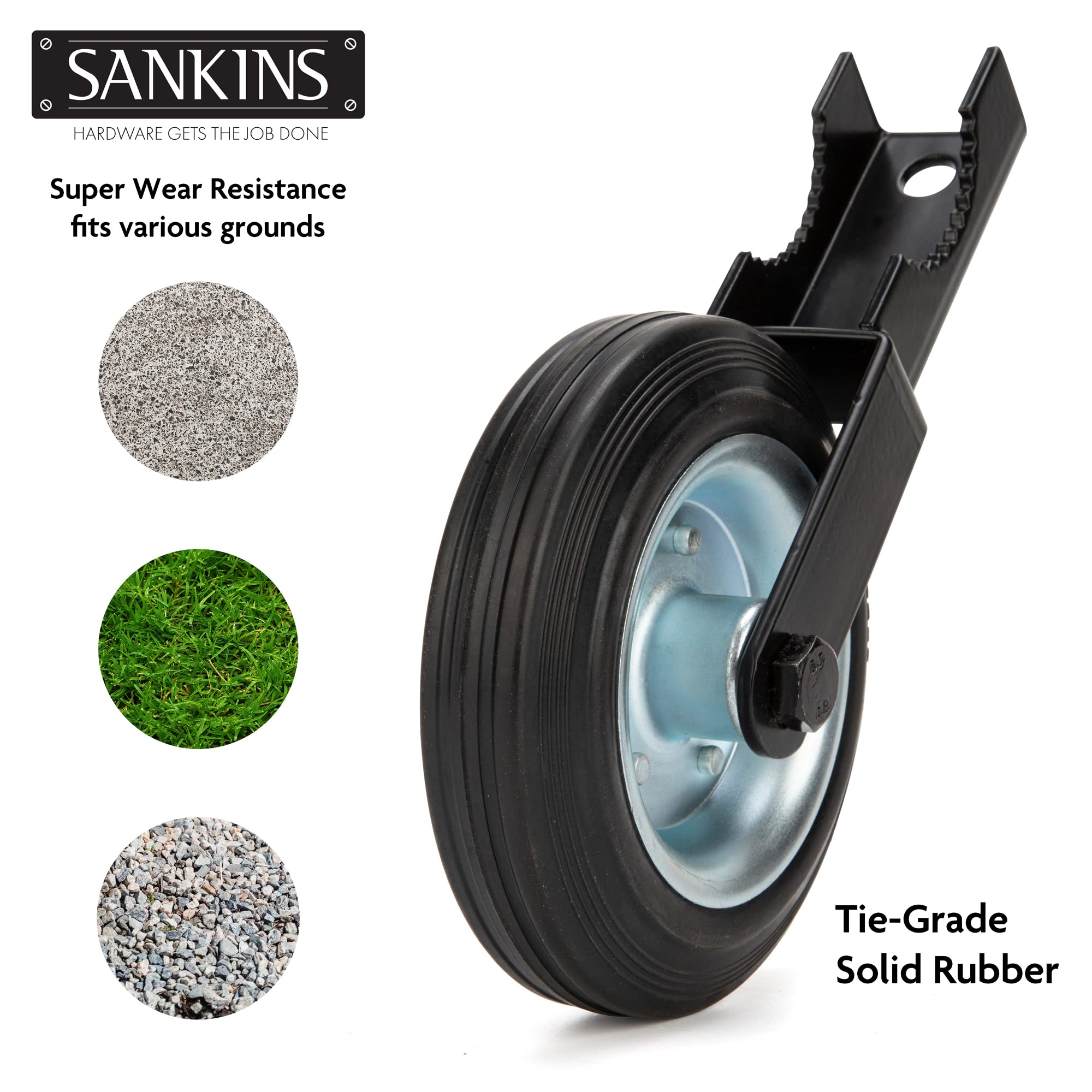

The SANKINS gate wheel combines a tire-grade solid rubber wheel with hot-dip galvanized steel hardware to resist corrosion in outdoor settings. The bearing-supported axle and rugged clamp design help the wheel withstand regular opening and closing on farm and residential gates.

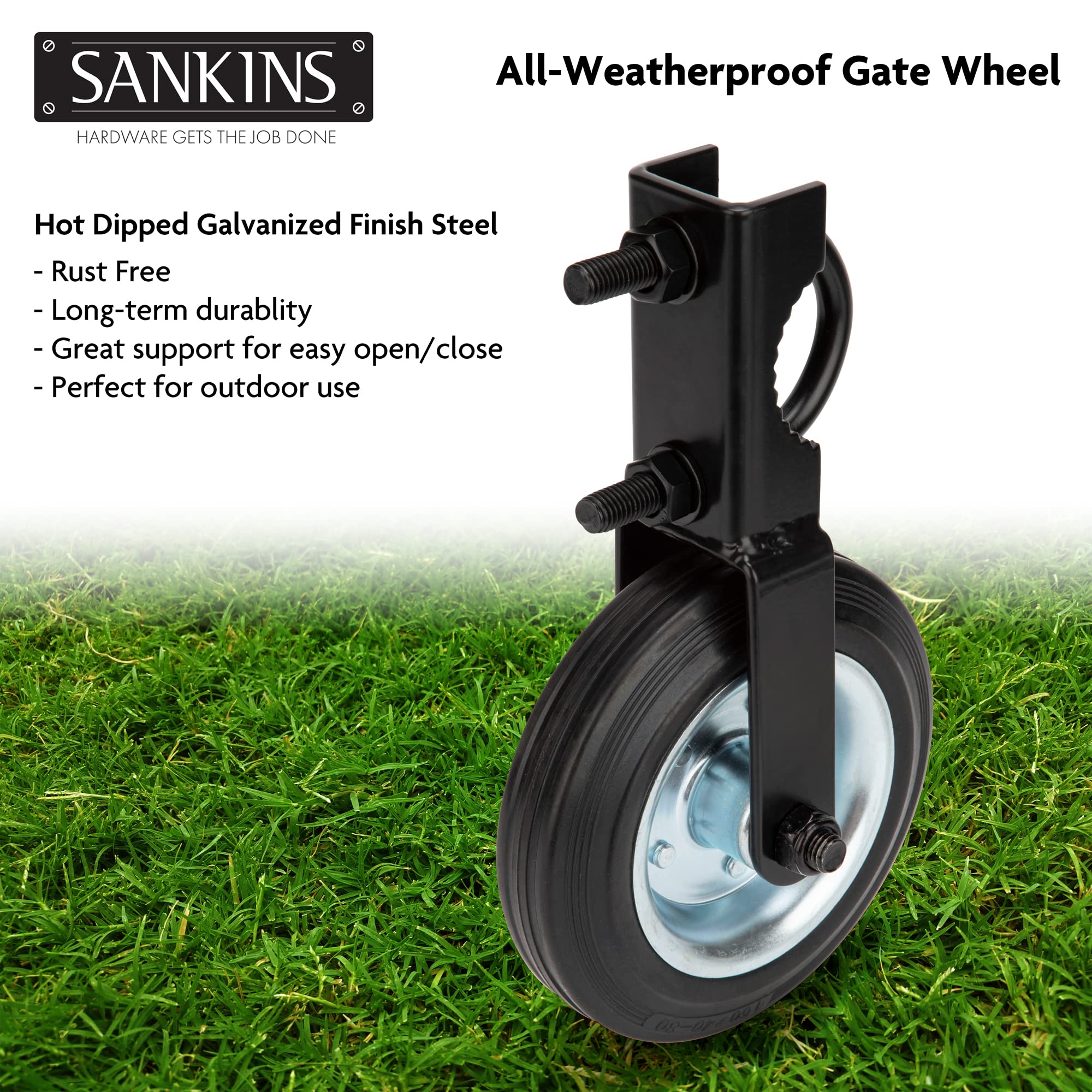

• Hot-dipped galvanized finish to reduce rust on the bracket
• Solid rubber wheel for long wear life in outdoor conditions
• Bushing/bearing system to maintain smooth rotation under load

Who this is for: property owners, farmers, and contractors who use chain-link or round-pipe swing gates and need a low-cost way to prevent sagging, reduce hinge wear, and make gates easier to operate. Choose this two-pack if you want heavy-duty support for single or double gates rated up to 500 lbs per caster, with straightforward hardware mounting and a design suited to varied outdoor surfaces.
