RIDGE WASHER Pressure Washer Undercarriage Cleaner 16.1-inch — 4 Nozzles, Casters, 1500–4000 PSI

RIDGE WASHER's 16-inch Pressure Washer Undercarriage Cleaner is a heavy-duty undercarriage attachment designed to clear road grime, mud, and oil from beneath cars, trucks, SUVs and trailers using 1500–4000 PSI power washers.

This undercarriage cleaner combines a wide 16.1-inch rotating cleaning head with four spray nozzles, two casters, and included straight and curved extension wands to make under-car cleaning faster, safer, and less strenuous. Built to accept hot or cold water and to work best at 2500 PSI and above, this unit keeps you out from under vehicles while delivering a broad, targeted spray pattern to reach wheel arches, frame rails, and rocker panels.

How does the RIDGE WASHER undercarriage cleaner remove grime effectively?

The 16.1-inch head distributes high-pressure water through four strategically angled nozzles to dislodge compacted dirt and oily deposits along the vehicle’s underside. Paired with a power washer operating above the minimum pressure range, the rotating spray pattern covers more surface area than a single lance, shortening cleaning time and reducing the need to reposition the wand constantly.

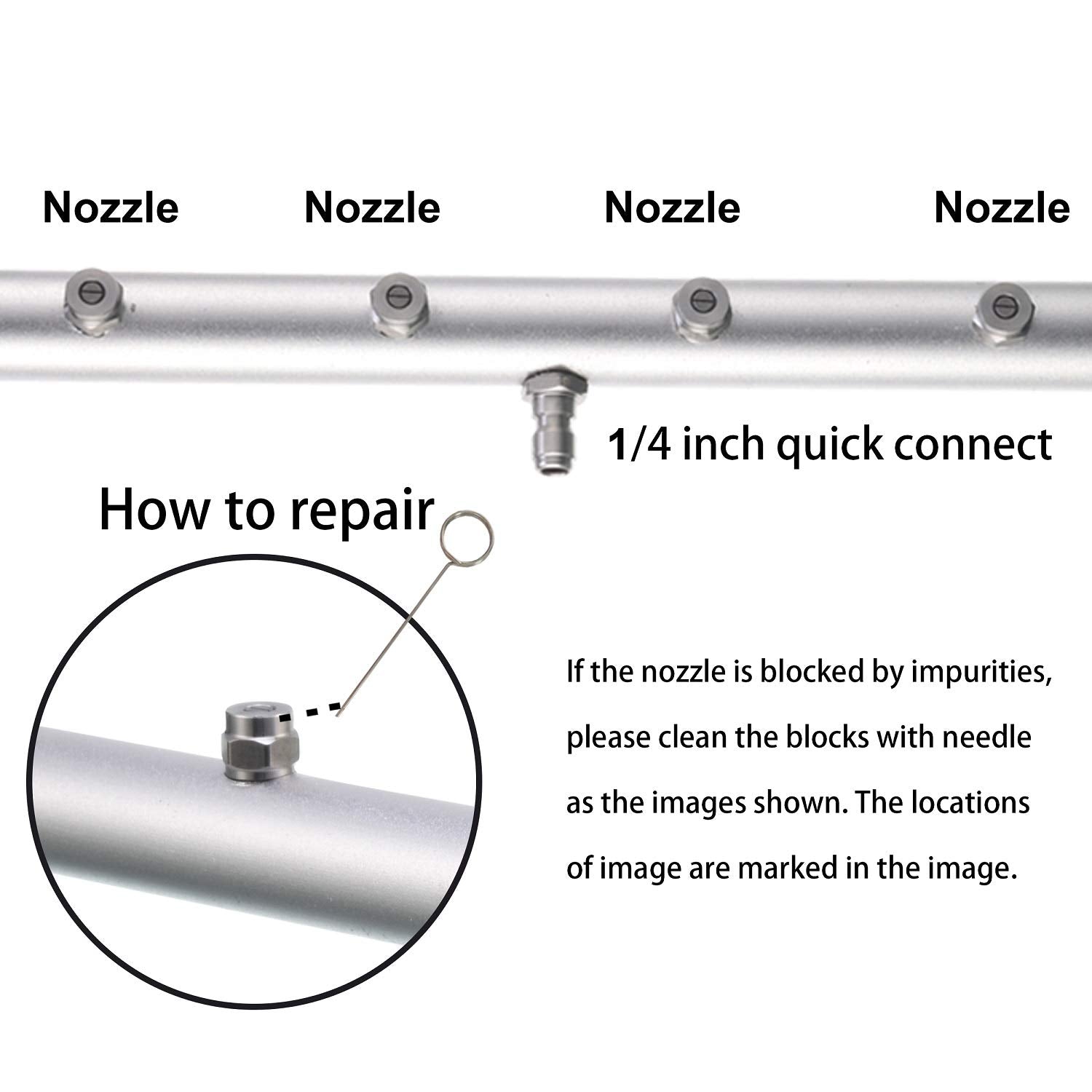

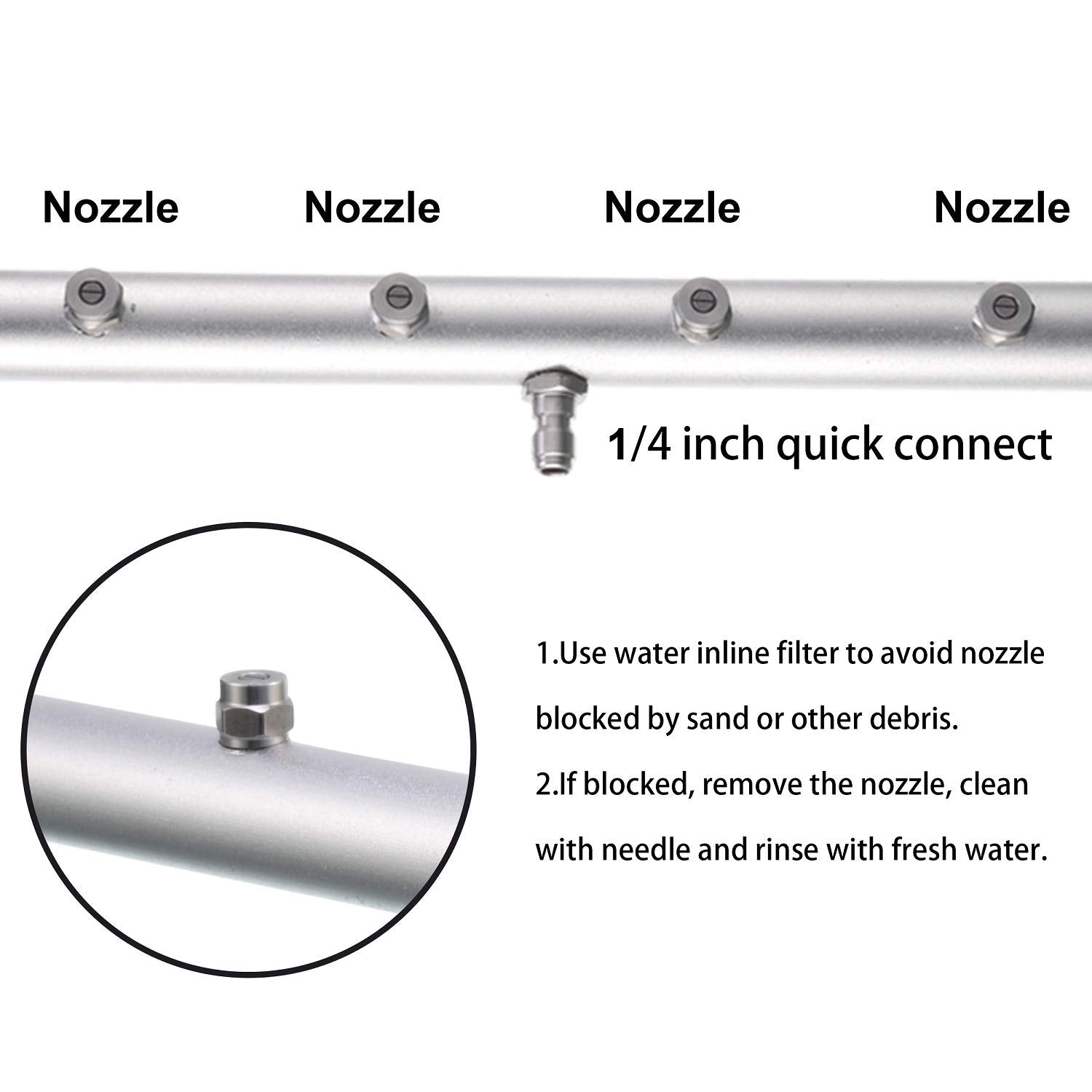

• Four high-pressure nozzles for wider spray coverage and faster dirt removal.
• 16.1" cleaning width reaches frame rails and rocker panels in one pass.
• Two casters allow smooth gliding under the vehicle for even cleaning.
• Compatible with hot or cold water for improved grease and oil breakthrough.

What pressure and equipment do I need to use it safely and effectively?

This undercarriage washer functions across a 1500–4000 PSI range, but performance improves at 2500 PSI or higher. Use a compatible pressure washer with a quick-connect fitting, and attach the included straight extension wand and curved wand in sequence to reach beneath the vehicle without crawling under it.

• Required operating pressure: minimum 1500 PSI; recommended 2500+ PSI for best results.
• Works with both hot and cold water power washers up to 4000 PSI.

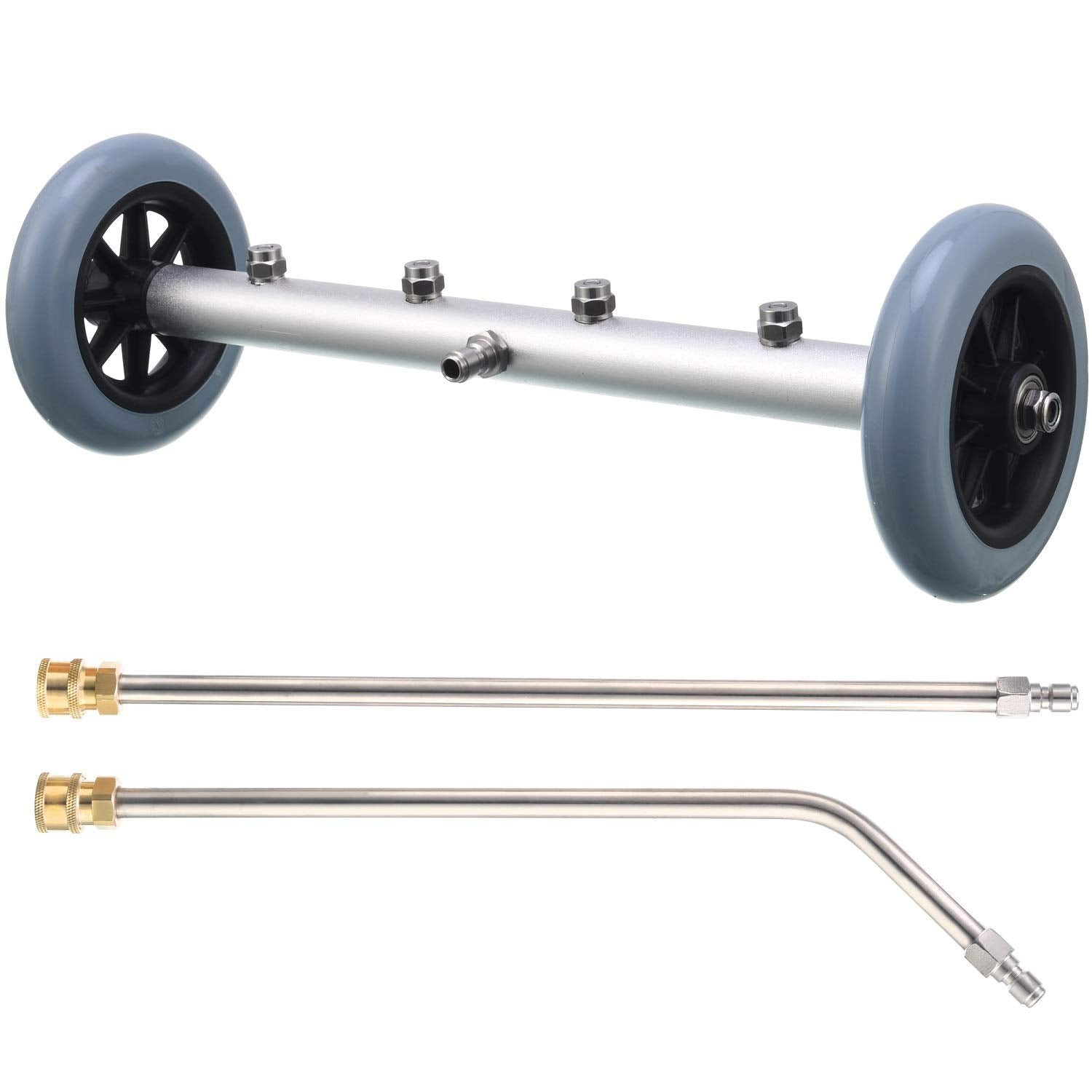

• Includes straight and 15.7" curved extension wands for safe, hands-off operation.

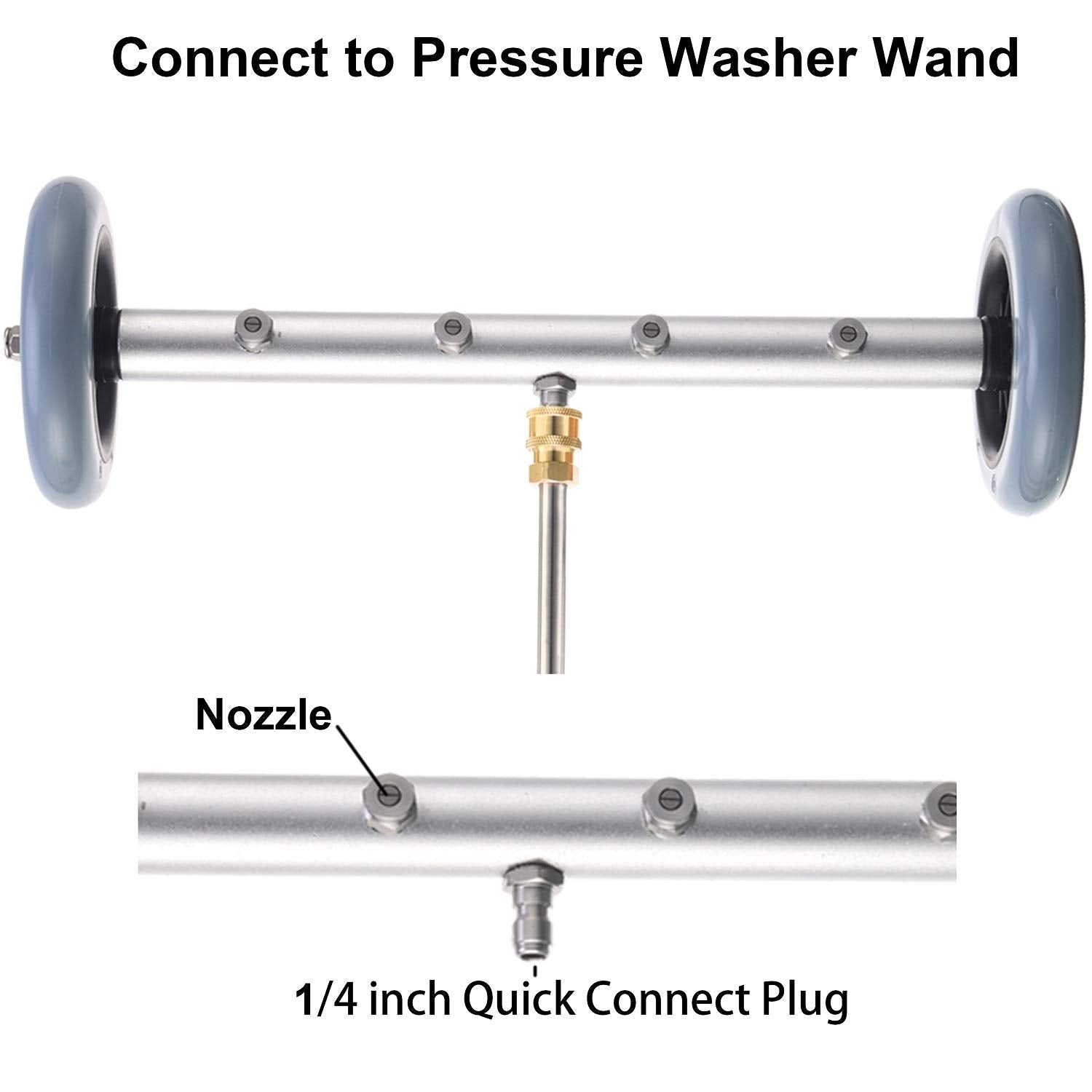

• Quick-connect compatibility for most pressure washer guns.

How do I assemble and use the undercarriage washer?

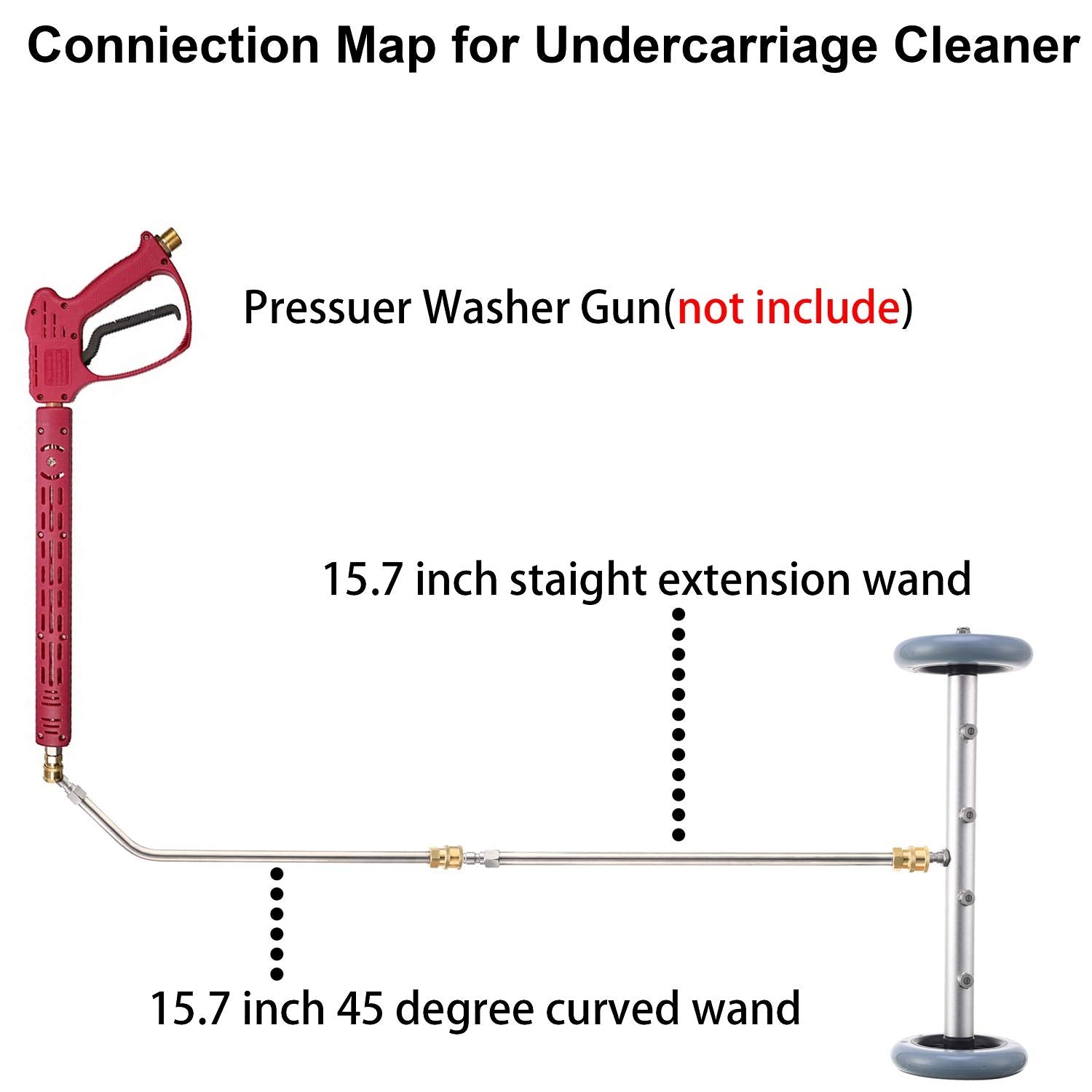

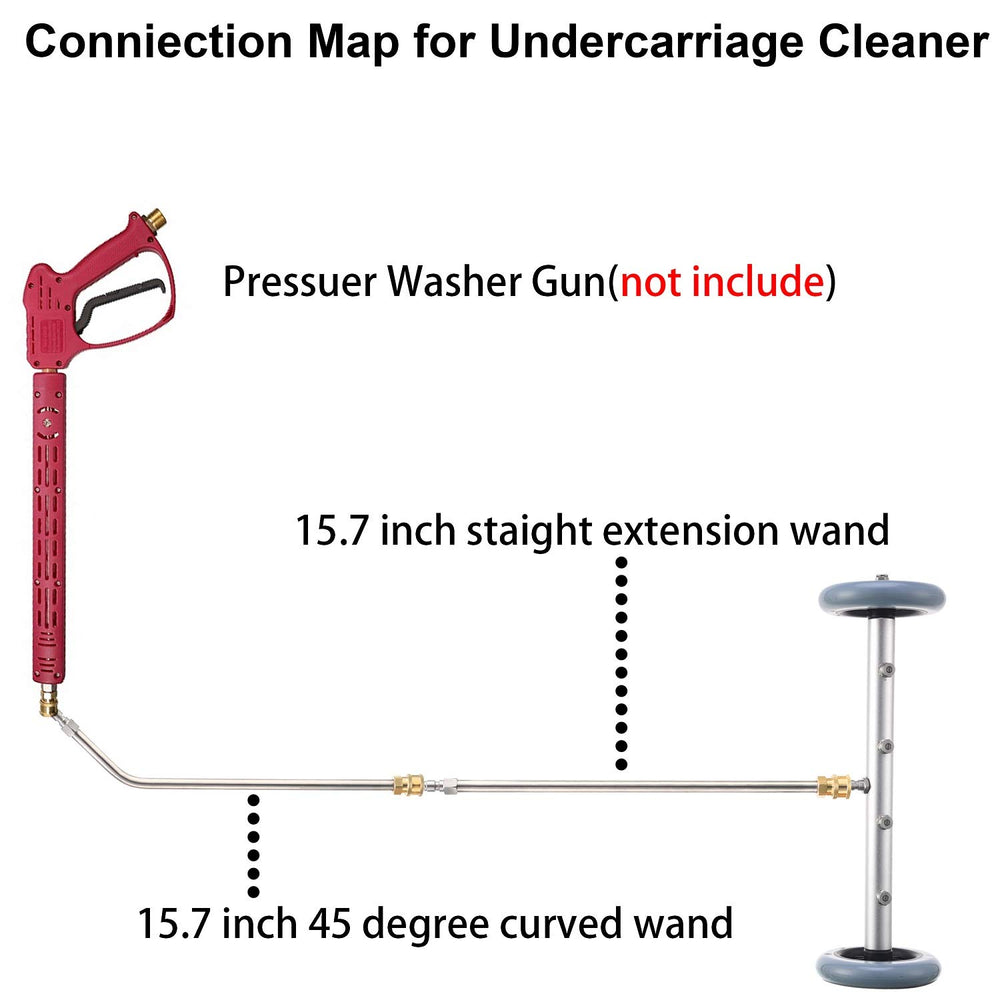

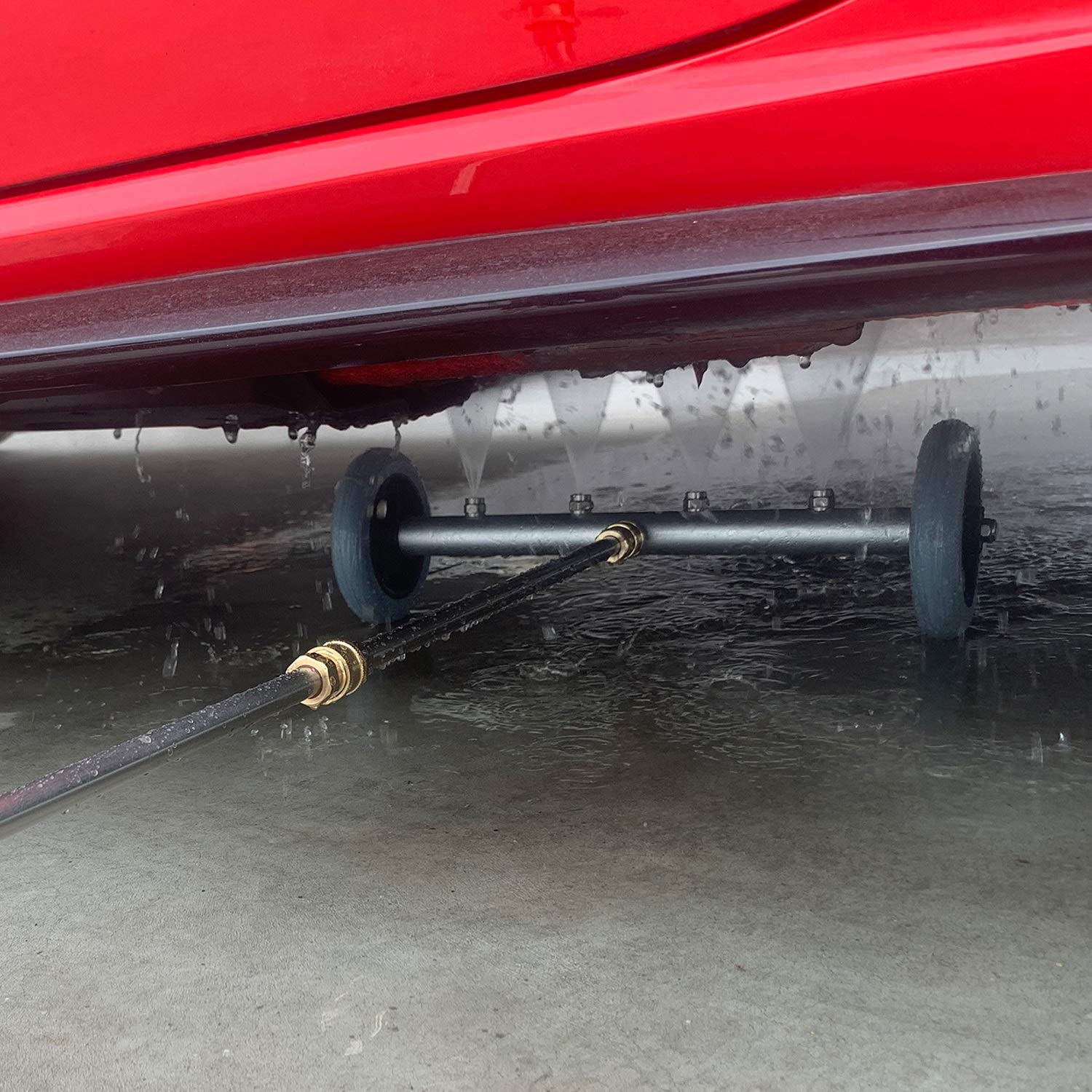

Assembly is straightforward: attach the straight extension wand to the undercarriage head, then connect the curved wand to the straight wand, and finally hook your pressure washer gun to the angled wand. Pull the wand assembly along under the vehicle while spraying—two casters help guide the unit for consistent coverage and reduced operator fatigue.

• Step 1: Connect the 16.1" undercarriage head to the straight wand.
• Step 2: Attach the 15.7" curved wand to position the head under the vehicle.
• Step 3: Quick-connect the pressure washer gun and control spray while pulling the wands.
• Step 4: Move slowly for complete coverage; repeat passes as needed.

What makes this model different from other undercarriage cleaners?

The RIDGE WASHER unit offers a larger-than-average cleaning head, four nozzles, and two casters for stability and broader coverage, which reduces cleaning passes and time. The kit includes both straight and curved 15.7-inch wands, enabling safer reach beneath trucks and trailers without improvised extensions.

• Larger 16.1" head cleans more area per pass than smaller competitors.
• Four-nozzle configuration delivers balanced high-pressure spray across the width.
• Two casters improve maneuverability and maintain consistent nozzle height.
• Complete wand set included—no extra purchases required for most washers.

Who is this for: The RIDGE WASHER 16-inch undercarriage cleaner is made for car enthusiasts, mobile detailers, fleet managers, and homeowners who need a safer, faster way to wash under vehicles. It suits anyone with a compatible pressure washer (1500–4000 PSI) looking to remove road debris, mud, and oil buildup without crawling under a chassis.
