Renogy Rover MPPT Solar Charge Controller Bluetooth 20A 12V/24V — High-efficiency with App Monitoring

The Renogy Rover MPPT 20A Bluetooth solar charge controller intelligently optimizes solar panel output to charge 12V or 24V battery banks efficiently while protecting the system.

This compact, die-cast aluminium controller uses Renogy’s Maximum Power Point Tracking (MPPT) algorithm to harvest up to 99% tracking efficiency and as much as 98% conversion efficiency, improving energy capture compared with PWM controllers. It automatically recognizes 12V or 24V systems for most lead-acid configurations, offers configurable charging for lithium batteries, and includes Bluetooth connectivity for monitoring and parameter adjustments from a smartphone.

How does the Rover improve solar charging compared with simpler controllers?

The Rover continually finds the optimal voltage point from solar panels so the array delivers maximum power throughout changing light conditions. This produces faster, more consistent charging and better performance on cloudy or variable days.

• MPPT algorithm tracks the true maximum power point in real time
• High conversion efficiency reduces energy lost as heat
• Die-cast aluminium housing helps dissipate heat for sustained output
• Effective in partial-shade and fluctuating irradiance

What protections and charging stages does it provide for batteries?

Built-in safeguards and flexible charging profiles protect battery health and system integrity. The Rover runs multi-stage charging for lead-acid and tailored stages for lithium, plus self-diagnostics for common fault conditions.

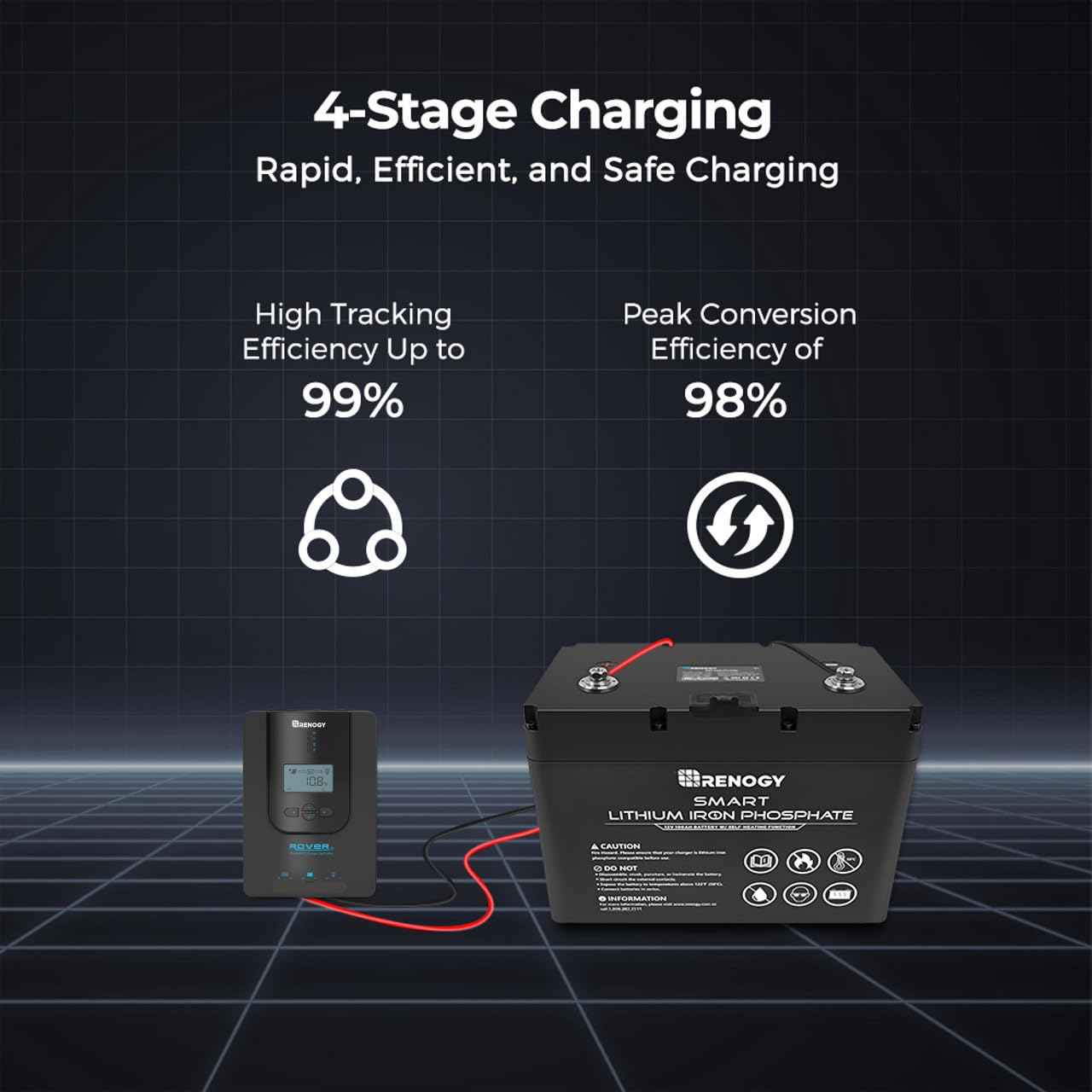

• Four-stage charging for lead-acid: Bulk, Absorption, Float, Equalization
• Two-stage charging and reactivation support for lithium batteries

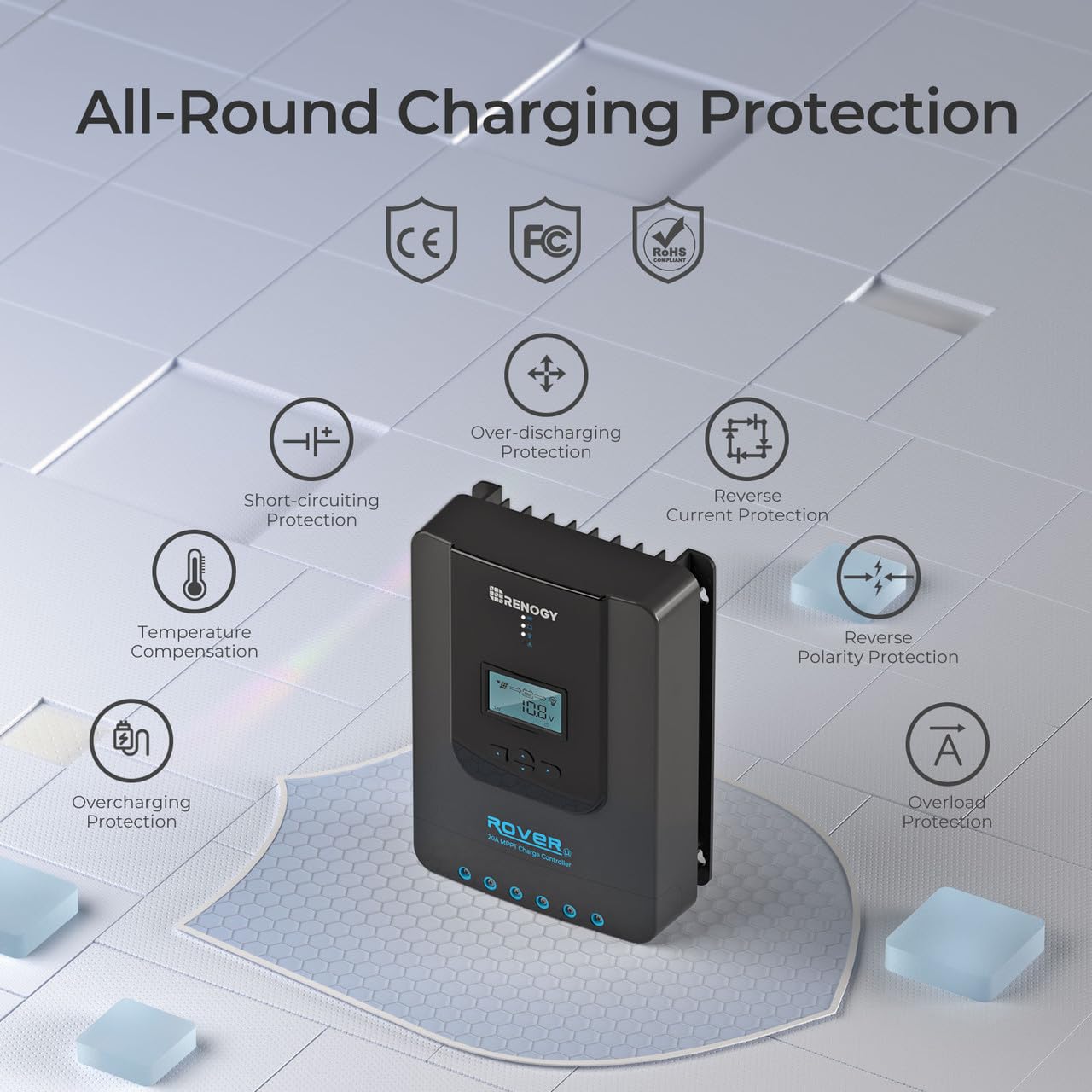

• Overcharge, over-discharge, overload, reverse polarity, short-circuit, and reverse current protection
• Onboard error codes and status indicators simplify troubleshooting

How do I monitor and control the Rover in daily use?

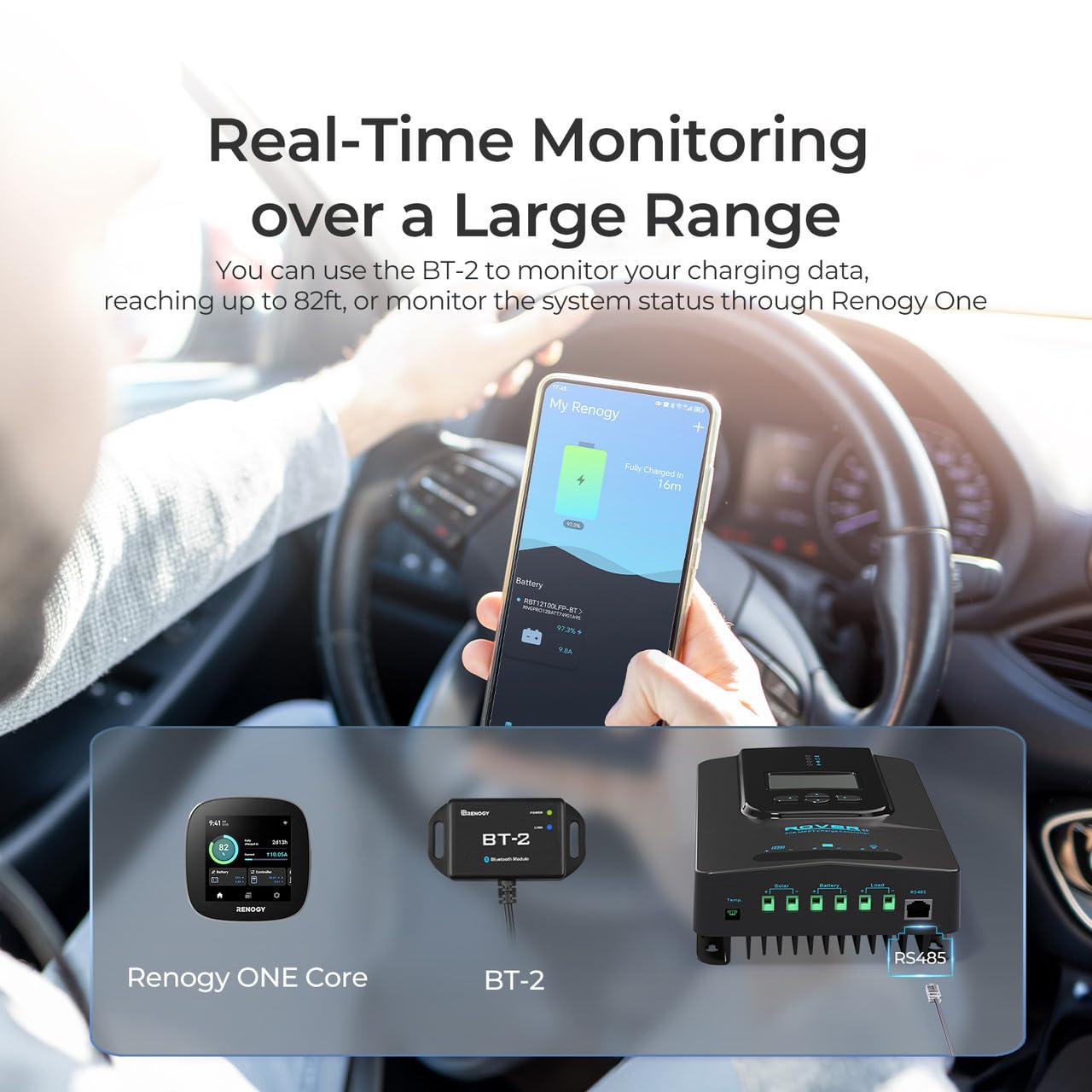

Pair the controller with the Renogy Bluetooth app to view real-time system data, change charging parameters, and check error logs from a phone or tablet. The onboard LCD and LEDs provide immediate local feedback even without a mobile device.

• Bluetooth connectivity for remote monitoring and parameter tuning
• LCD screen plus multiple LED status indicators for local readout
• Optional load terminals allow direct DC appliance control and timer setups
• Customizable parameters for different battery chemistries and sizes

What installation and compatibility considerations should I know?

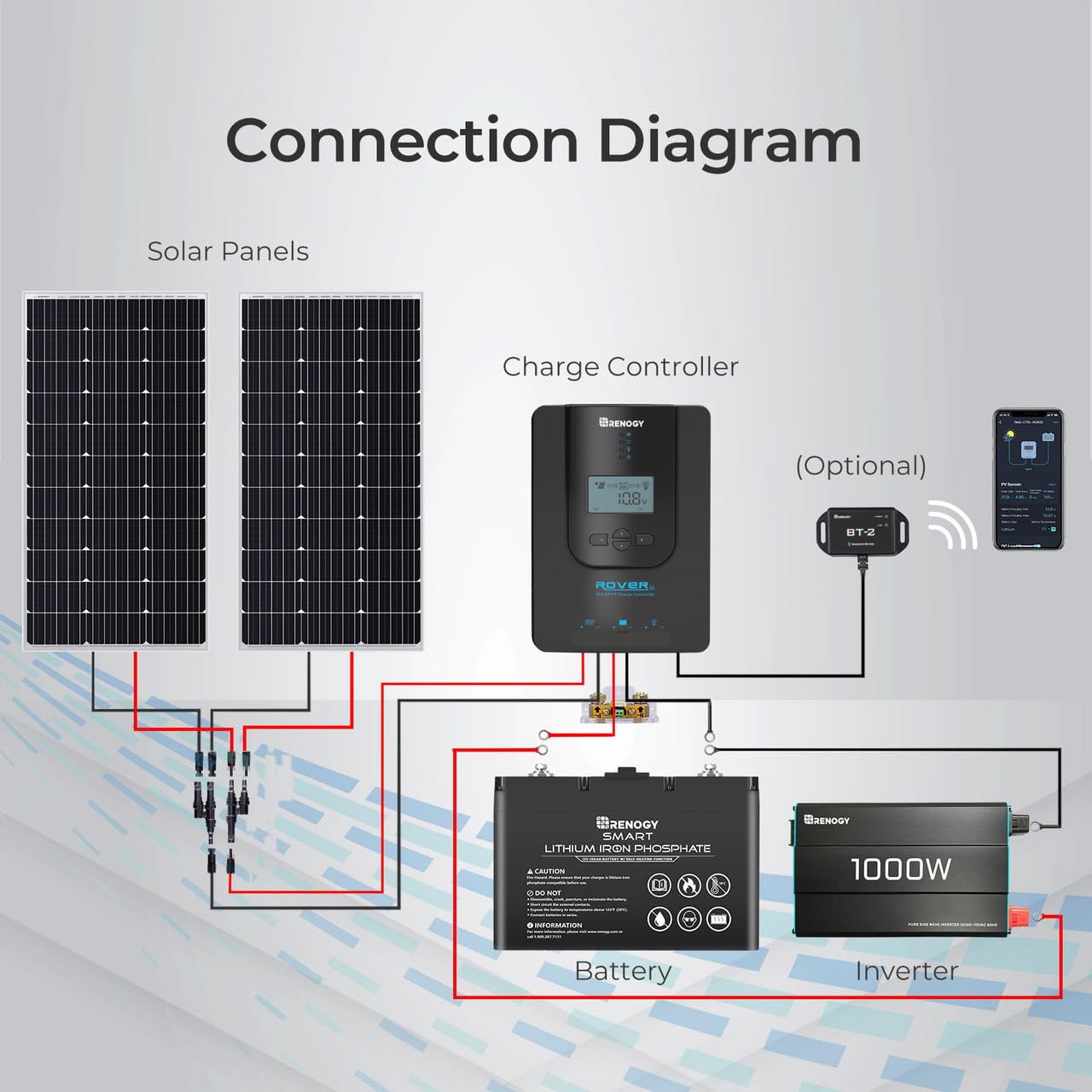

Installation is straightforward for 12V/24V DC systems; wire the solar array, battery, and optional DC loads to the labeled terminals. Use appropriately sized wiring and fuses, and follow placement guidance to ensure ventilation and avoid excessive heat.

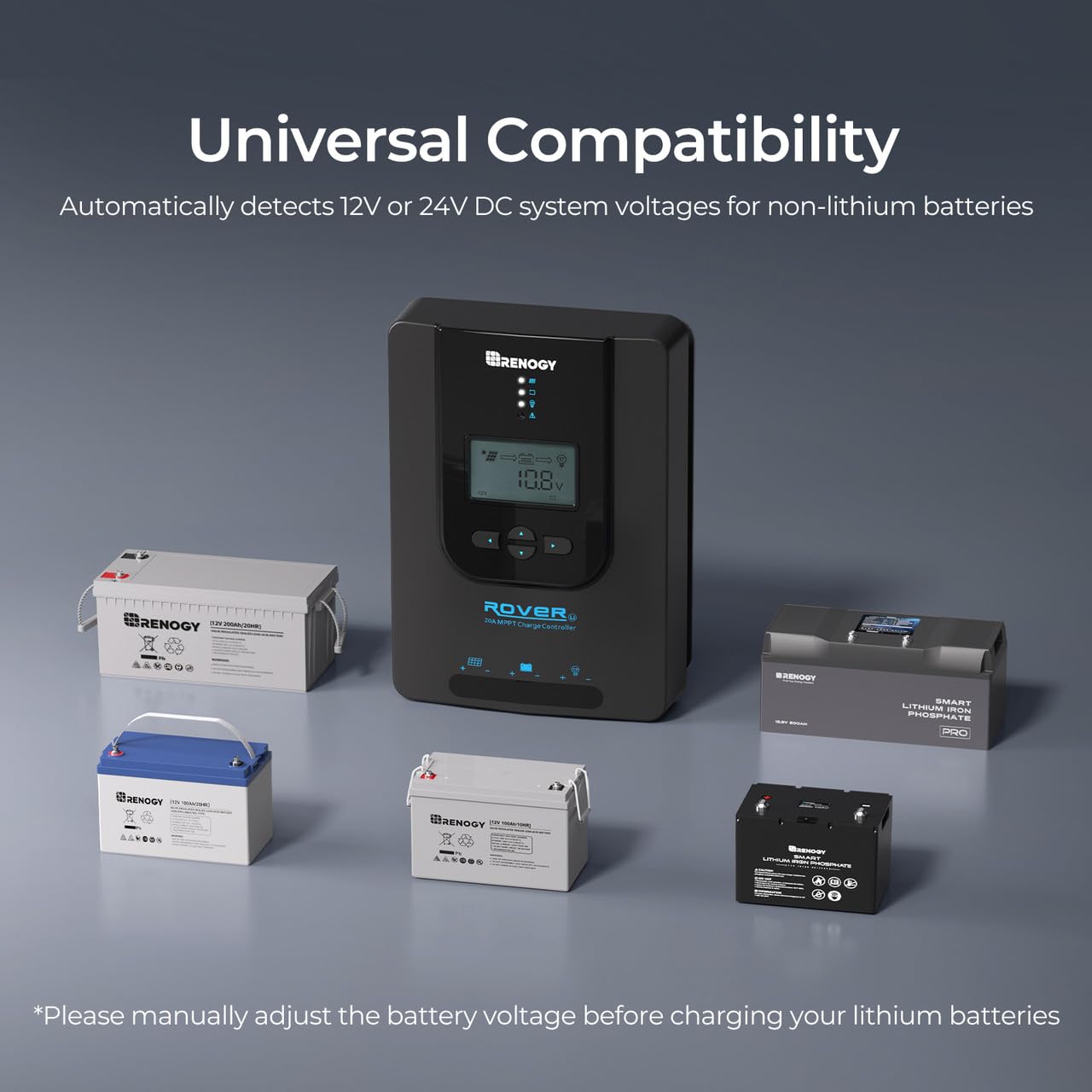

• Automatically detects 12V or 24V DC systems (non-lithium auto-detection)
• Mount on ventilated surface; die-cast case improves cooling
• Connect DC loads directly to the controller’s load terminals if desired
• Follow Renogy wiring and fuse recommendations for safe operation

Who is this for: The Renogy Rover 20A MPPT controller is for DIY solar installers, van/boat/RV owners, off-grid hobbyists, and small system integrators who want a compact, efficient charge controller that balances strong MPPT performance with built-in protections and Bluetooth monitoring. Choose the Rover when you need reliable energy harvesting from limited panel area, flexible battery charging options, and clear system diagnostics without a large footprint or complex setup.
