Renogy Rover MPPT Solar Charge Controller 40A 12V/24V with Bluetooth, High Efficiency & Safety

The Renogy Rover MPPT 40A Bluetooth is a smart solar charge controller that maximizes panel output while protecting and managing 12V/24V battery systems.

Built for off-grid systems, RVs, boats and small home arrays, the Rover uses MPPT tracking to extract more power from solar panels than traditional PWM controllers. It combines high conversion efficiency, multiple safety protections and Bluetooth monitoring so you can tune charging profiles and watch performance from your phone.

How does the Rover improve solar energy harvest?

The Rover uses advanced Maximum Power Point Tracking (MPPT) to continuously find the panel’s optimal operating voltage, improving charge current especially in variable light. That means higher usable energy compared with simpler controllers, particularly under cloudy or changing conditions.

• MPPT tracking efficiency up to 99% for fast response to irradiance shifts.
• Peak conversion efficiency around 98% to reduce energy loss.
• Works with panels whose voltage exceeds battery voltage, enabling more flexible array designs.

What safety and battery-care features are included?

Rover protects the entire DC system with multiple automatic safeguards and intelligent diagnostics to prevent damage and unsafe conditions. Charging is adjustable to match battery chemistry, helping extend battery life through controlled charge stages.

• Full protections: reverse polarity, overload, short circuit, overcharge, over-discharge and overheating.
• Four-stage charging for lead-acid (Bulk, Absorption, Float, Equalization); two-stage for lithium plus lithium reactivation.
• Insulated UL-certified enclosure and self-diagnostic routines for reliable operation.

How easy is setup, monitoring and daily use?

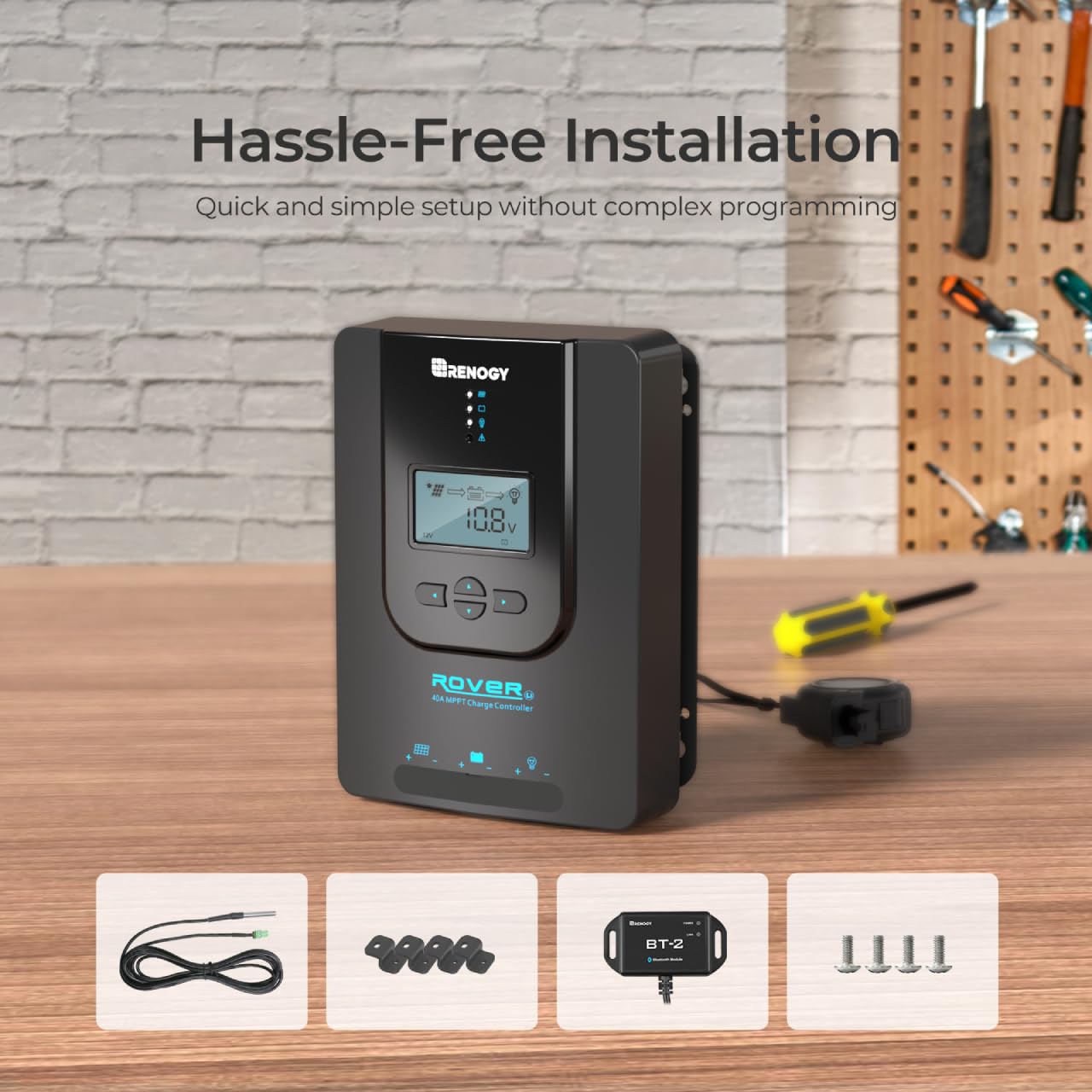

The Rover is designed for straightforward installation, with a clear LCD, LED indicators and included mounting brackets. For remote monitoring and parameter changes, pair the optional Bluetooth module with the Renogy DC Home app for real-time status, historical data and custom settings.

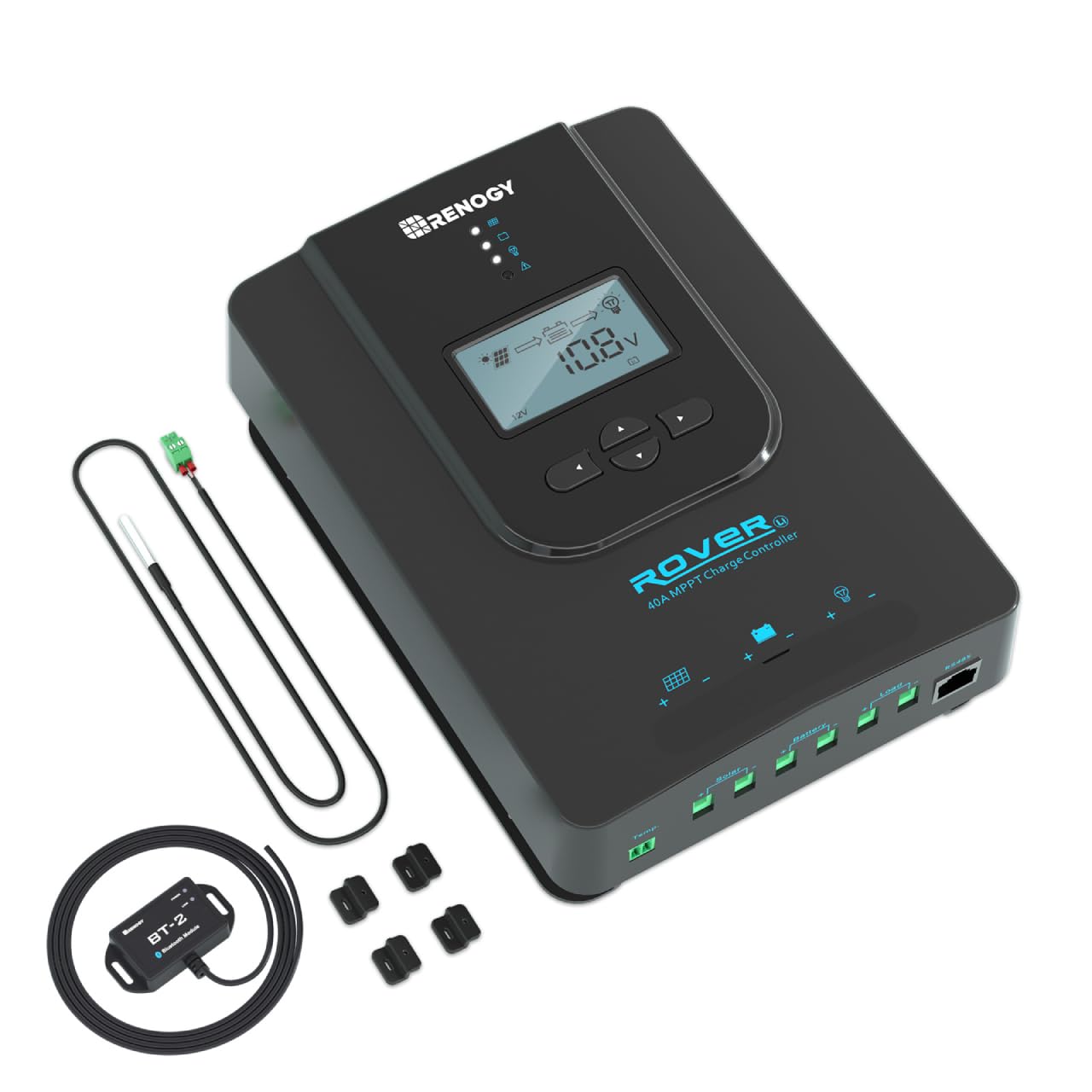

• LCD display and LEDs show charge status, error codes and system metrics.
• RJ45 port supports Renogy BT-1 or BT-2 Bluetooth modules for app monitoring.
• Direct load terminals with five load modes let you power DC appliances and manage runtimes.

How does the Rover handle heat and silent operation?

Instead of a fan, Rover uses an integrated heat sink for passive cooling, ensuring quiet operation with reliable thermal regulation. This design reduces maintenance and eliminates fan noise in living or sleeping areas.

• Aluminum heat sink dissipates heat efficiently without moving parts.
• 0 dB operation suitable for cabins, RV interiors and bedrooms.
• Thermal protection engages to protect components during high temperatures.

Who is this for? The Renogy Rover MPPT 40A Bluetooth is made for DIY solar installers, vanlifers, boat owners and homeowners who need a compact, high-efficiency charge controller that offers advanced MPPT performance, comprehensive protection and smartphone monitoring. Choose Rover if you want better solar harvest in changing light, configurable charging for different battery chemistries, silent cooling and straightforward app-based oversight. It’s especially useful when you need to revive deeply discharged batteries, manage DC loads directly, or integrate a reliable controller into a 12V or 24V off-grid setup.
