Renogy Rover 40A MPPT Solar Charge Controller 12V/24V — LCD, App-Enabled, Multi‑Battery Support

Renogy Rover 40A MPPT is a smart solar charge controller that maximizes solar harvest and protects batteries by delivering efficient 12V/24V MPPT charging with adjustable settings and LCD monitoring.

The Renogy Rover 40A brings advanced MPPT tracking and adaptable charging to small and medium off-grid systems. It automatically detects 12V or 24V battery banks, supports multiple battery chemistries, and includes a clear LCD plus app-enabled connectivity for live performance data. Built for durable, all‑weather operation, the Rover 40A fits rooftop RV arrays, cabin installations, boat setups, and small remote power systems.

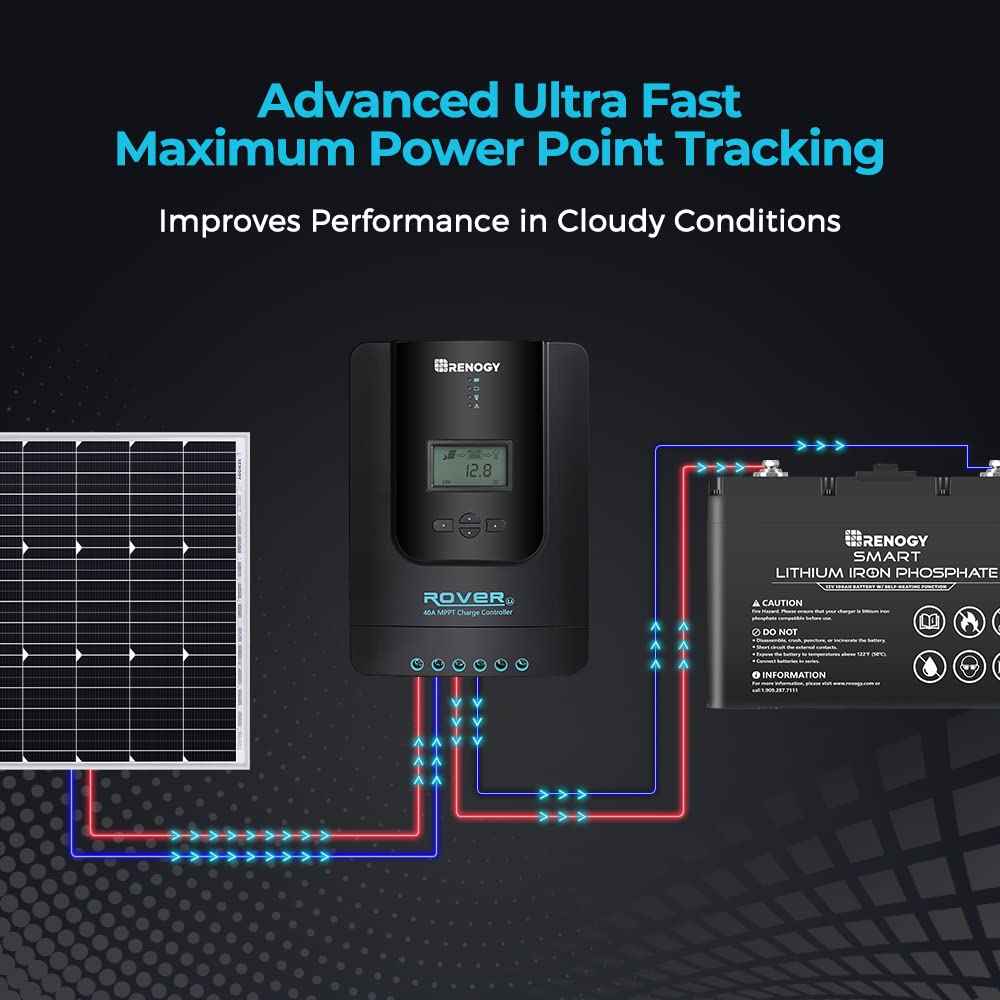

How does the Rover 40A increase solar output compared to PWM controllers?

Renogy’s MPPT algorithm continuously searches for the panel’s optimum power point and converts excess voltage into usable current, improving energy capture especially under variable light. That means more usable amperage to charge batteries faster and more efficiently than PWM units.

• 98% conversion rate and 99% tracking efficiency for greater power extraction.
• Rapid adjustment to changing irradiance and partial shading.
• Higher charging currents at lower solar voltages, boosting performance in low light.

Which battery types and charging profiles are supported?

The Rover 40A accommodates common battery chemistries and applies appropriate multi-stage charging to promote longevity. It offers configurable profiles so you can match charging behavior to Gel, AGM, Flooded, and Lithium battery requirements.

• 12V/24V auto-detection for easy system setup.
• 4-stage MPPT charging (Bulk, Absorption, Float, Equalization) for lead-acid batteries.
• 2-stage charging profile optimized for lithium batteries with auto-reactivation features.

What protections and environmental tolerances does it provide?

The controller is built to operate reliably in harsh conditions and to protect connected components from common electrical faults. Rugged materials and comprehensive safeguards reduce maintenance and risk in off-grid installations.

• Operating range from -40°F to 149°F for extreme climates.
• Full electrical protections: reverse polarity, overcharge, over-discharge, overload, short circuit, and reverse current prevention.
• Rust- and corrosion-resistant construction for long-term outdoor use.

How can I monitor and configure the Rover 40A remotely?

The Rover integrates with the Renogy DC Home app and supports RS485通讯, allowing remote status checks, setting changes, and firmware updates when paired with the optional BT-2 accessory. The onboard LCD provides immediate local readings and menu access.

• View real-time data and 30-day history in the Renogy DC Home app (BT-2 accessory sold separately).
• Adjust charging parameters, set alarms, and perform firmware updates remotely.

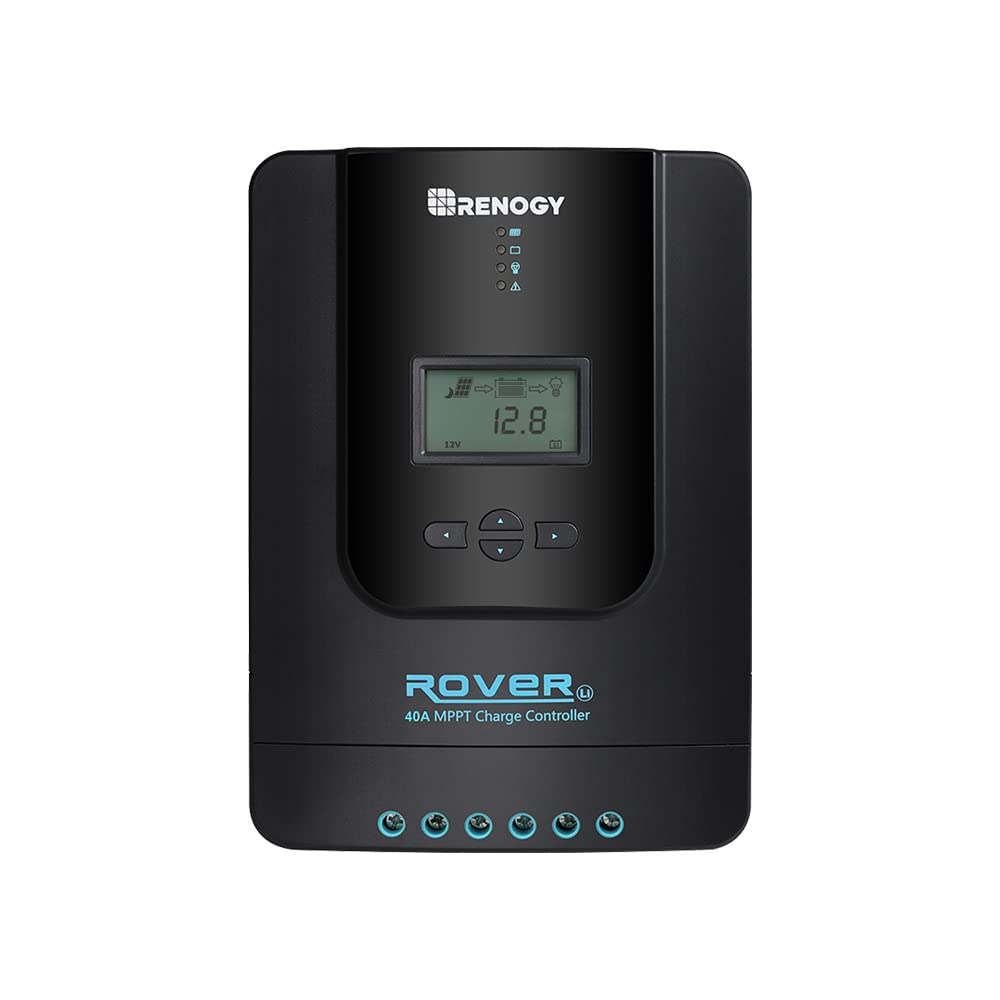

• Front-panel LCD for instant diagnostics and configuration without tools.

Who is this for: The Renogy Rover 40A MPPT controller is designed for RVers, vanlifers, boat owners, cabin and tiny-home builders, and off-grid hobbyists who need reliable, efficient solar charging and battery management for 12V or 24V systems. It suits installations with modest to medium solar arrays that require durable hardware, flexible battery support, and remote monitoring capability.
