Renogy Rover 20A MPPT Solar Charge Controller 12V/24V (Black) — Auto-Detect, Dual-Peak Tracking, LCD

Renogy Rover 20A MPPT is a compact solar charge controller that maximizes panel output and protects batteries for 12V/24V off-grid, RV, marine, and small cabin systems.

This Rover 20A MPPT controller combines multi-peak tracking accuracy with a full suite of protections and monitoring functions so you get more usable power from your panels while keeping lead-acid and lithium batteries safe. With auto 12V/24V detection, a backlit LCD, surge guards, and Modbus support, it integrates into small to medium solar setups that need reliable, efficient charging and simple system visibility.

How does the Rover 20A MPPT improve solar harvest on partly shaded days?

The Rover uses dual-peak MPPT algorithms to find the best operating point even when panels are partially shaded or unevenly illuminated. This keeps panel voltage and current nearer to optimal values so you recover more energy compared with PWM controllers.

• 99.9% multi-peak tracking targets maximum power points across panel arrays
• Improved conversion efficiency (up to 98% typical) versus PWM controllers
• Better performance when one or more modules are shaded, damaged, or mismatched

What battery types and charging modes does it support?

The Rover supports gel, sealed, flooded lead-acid batteries and multiple lithium chemistries with selectable charging profiles. It provides a four-stage charging sequence for lead-acid and a two-stage recovery and recharge approach for lithium to safely handle deep discharges.

• Bulk, Absorption, Float, Equalization for lead-acid extension
• Lithium recovery mode to attempt safe reactivation of deeply discharged packs
• Auto-detect 12V/24V systems for simple installation without manual jumper settings

What protections and environmental features keep my system safe outdoors?

Built for harsh conditions, the Rover includes temperature-compensated charging, TVS lightning surge protection, and reverse polarity/overload safeguards. The controller automatically adjusts charge parameters across extreme temperatures and blocks harmful transients to protect batteries and electronics.

• Operational range from -40°F to 149°F with automatic temperature compensation
• TVS surge guard and reverse-polarity protection for storm-prone installations
• Overload and short-circuit safeguards plus capacitive surge handling for pumps/motors

How can I monitor performance and integrate Rover into a smart system?

The front LCD displays voltage, current, error codes, and stores up to 365 days of performance logs for trend analysis. For remote monitoring, the unit supports Modbus and can be paired with Renogy Bluetooth accessories to stream data to the Renogy DC Home app.

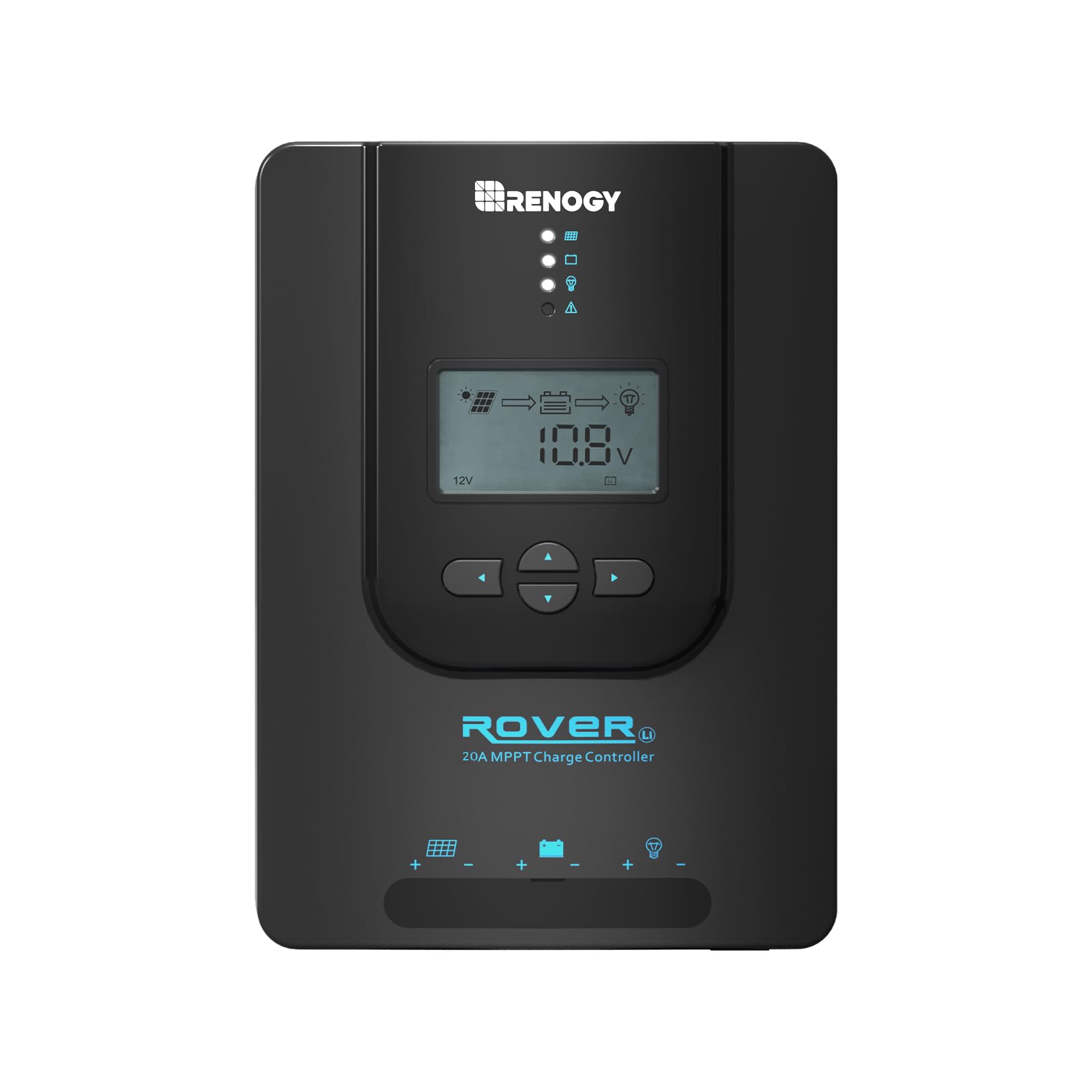

• Backlit LCD with real-time readouts and error indications
• 365-day solar performance logging to review generation and usage patterns
• Modbus protocol support and optional Bluetooth module for app-based monitoring

Who this is for: The Renogy Rover 20A MPPT is designed for off-grid homeowners, RV and marine owners, tiny-home builders, and DIY solar installers who need a dependable, efficient charge controller for small solar arrays. It’s well suited to systems that face variable sunlight, require battery chemistry flexibility, and benefit from integrated protections and logging without the complexity of larger industrial controllers.
