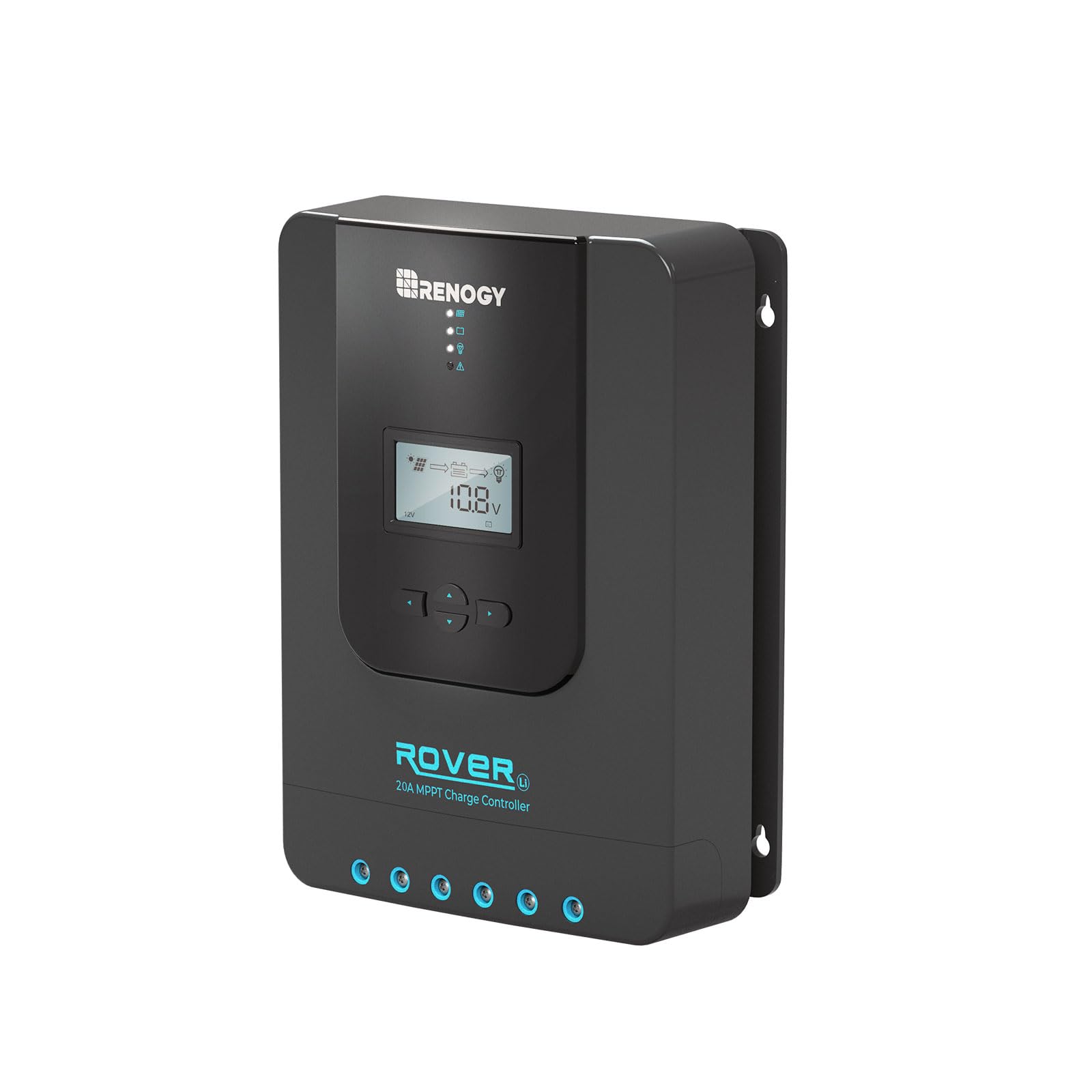

Renogy MPPT Solar Charge Controller 20A 12/24V LCD Bluetooth-Ready Multi-Battery Protection

Designed for small off-grid systems, RVs, boats and remote power setups, the Rover 20A uses maximum power point tracking (MPPT) to harvest more energy from photovoltaic arrays under changing light. It auto-detects 12V or 24V battery systems, supports common battery chemistries, logs system performance, and can be monitored remotely when paired with Renogy's BT2 Bluetooth module (sold separately).

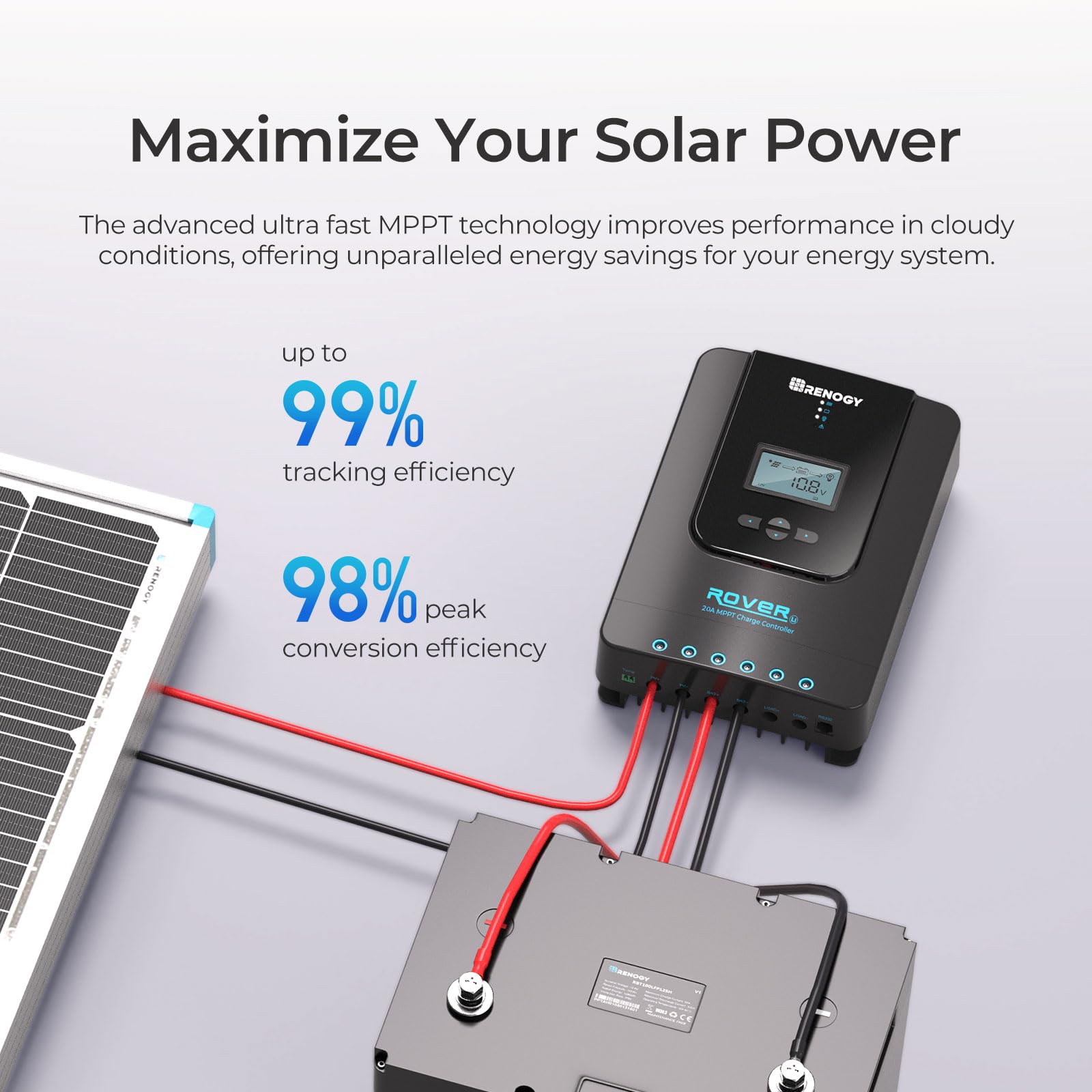

How does this controller improve solar panel performance?

The Rover applies MPPT algorithms to continuously tune panel operating voltage so the array delivers its peak power, especially useful in partial shade or varying sunlight. That means higher charging current to batteries compared with simple PWM regulators.

• MPPT multi-peak tracking increases harvested energy under non-ideal conditions.
• Accepts up to 260W at 12V or 520W at 24V with Voc ≤ 100V.
• Handles capacitive inrush from some panel setups without shutting down.

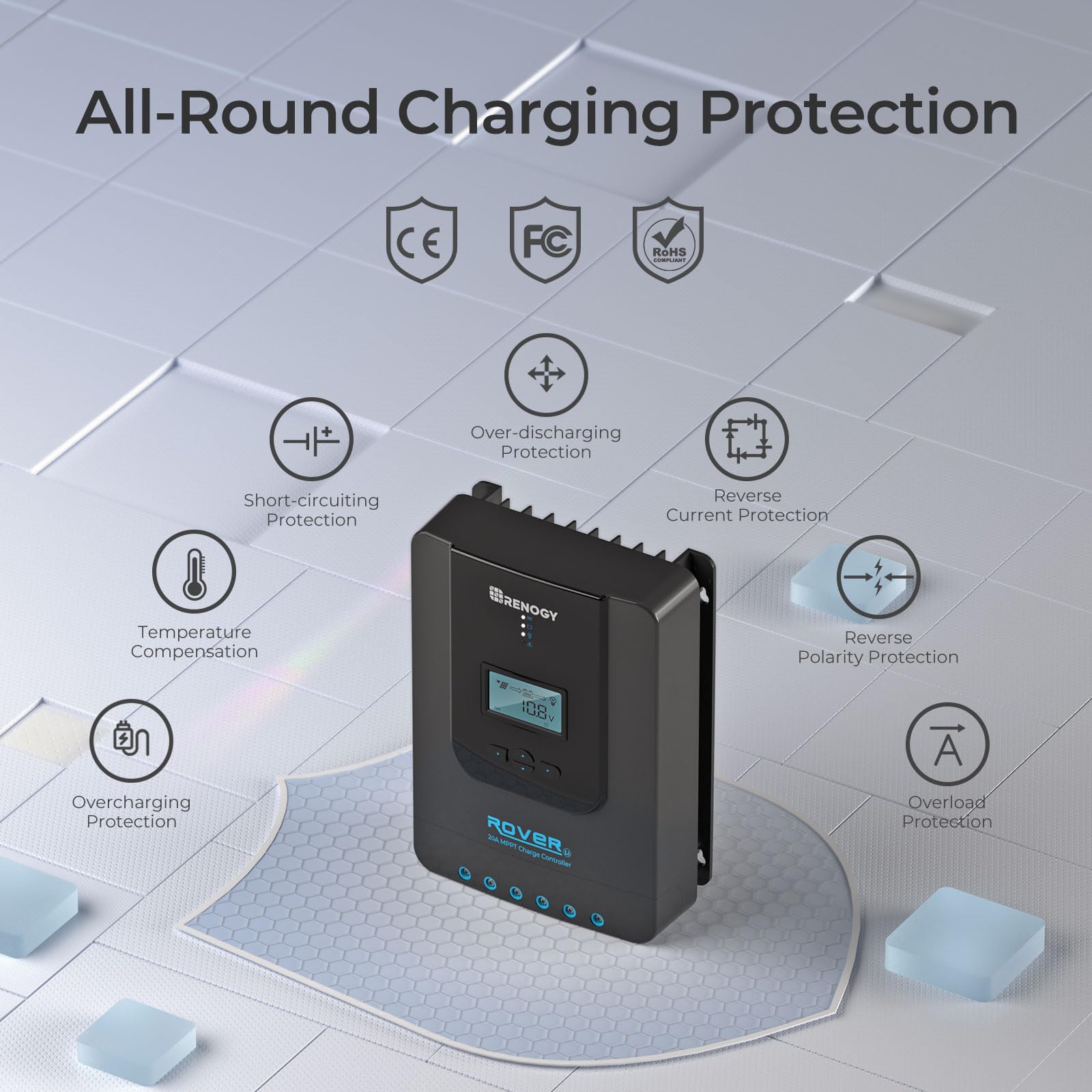

What protections and safety features are included?

Built for outdoor and mobile use, the Rover includes multiple hardware safeguards and intelligent temperature compensation to extend battery life and prevent damage. It also incorporates transient suppression to mitigate lightning surges.

• Reverse polarity and overload protection prevent installation mishaps.
• TVS surge protection rated for 6kV helps guard against lightning spikes.
• Temperature compensation and auto-adjust charging profiles protect batteries across -40°F to 149°F conditions.

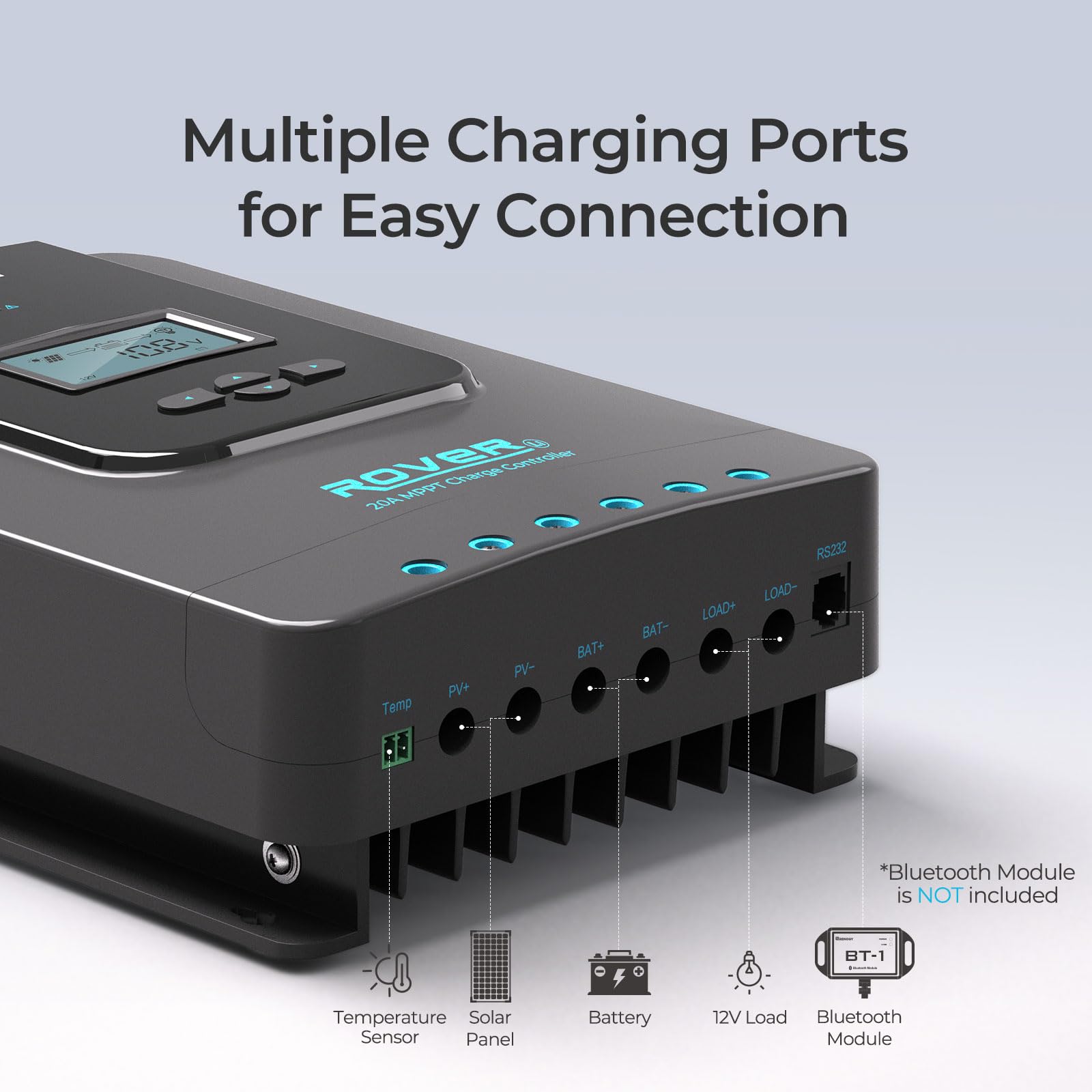

Can I use it to run DC loads and monitor performance remotely?

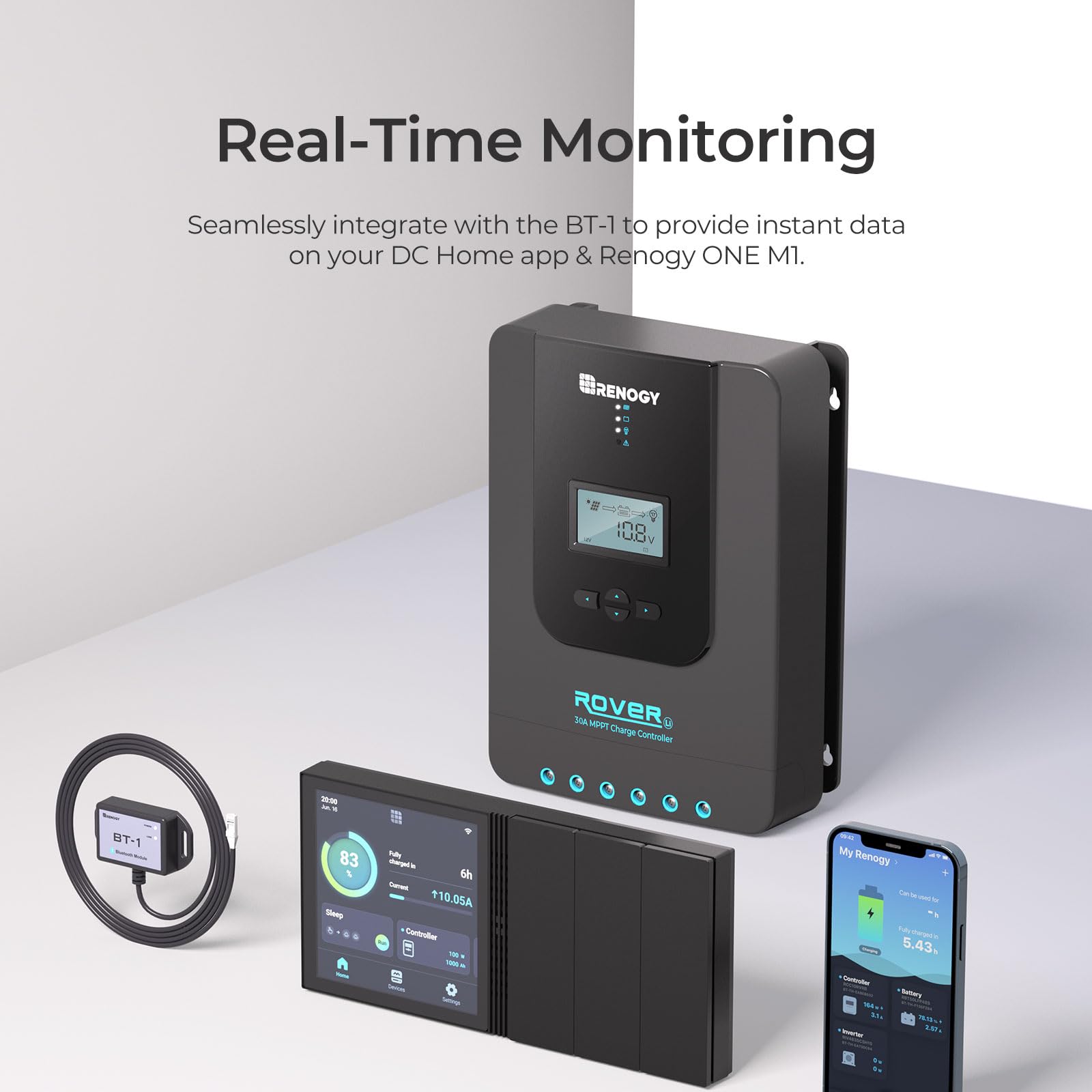

Yes — the Rover powers DC appliances directly and provides scheduling for loads via its built-in timer. For remote monitoring and real-time alerts, add the BT2 Bluetooth module to view live data and historical logs on Renogy’s app.

• Direct DC load output suitable for fans, pumps and lighting.
• Programmable timer to schedule load operation and conserve energy.
• 365-day data logging and Modbus support for system integration and diagnostics.

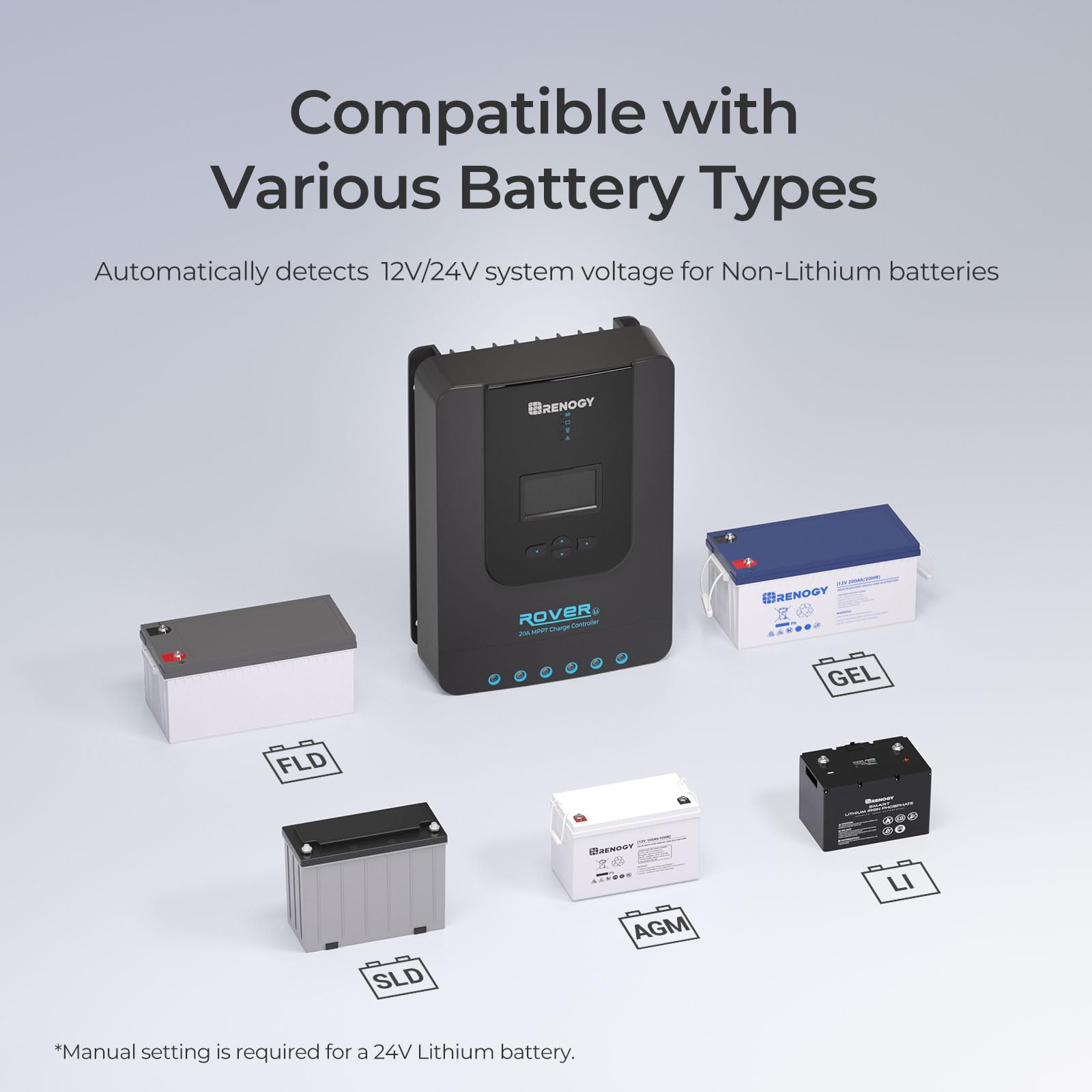

How does it manage different battery types and tricky situations?

The Rover supports gel, sealed, flooded and several lithium chemistries with selectable charging profiles and a lithium recovery mode that attempts to restore deeply discharged batteries. Its four-stage charge algorithm balances fast charging with long-term battery health.

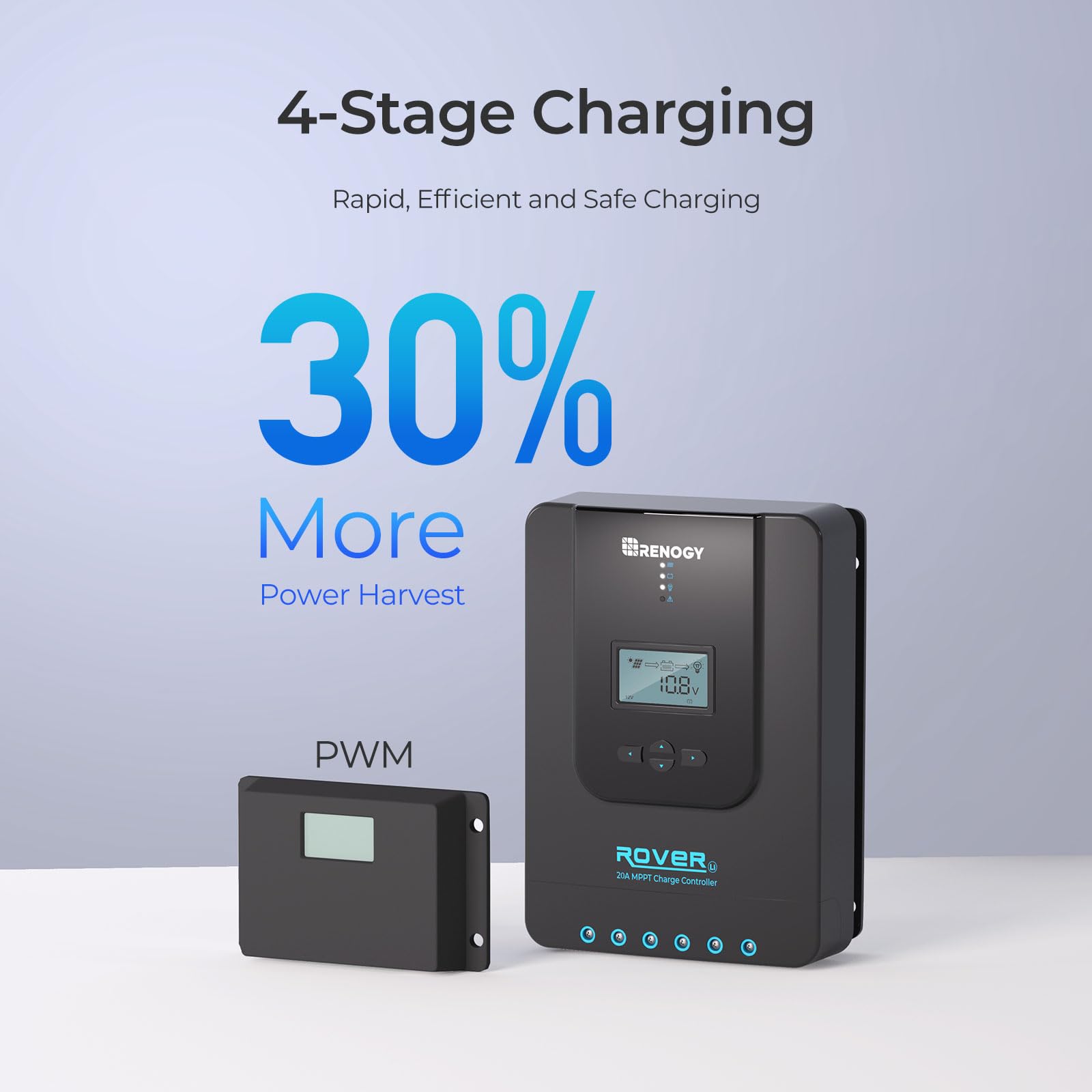

• Four-stage charging: Bulk, Absorption, Float and Equalization where applicable.
• Auto-detection of 12V/24V systems simplifies setup.
• Dedicated lithium recovery routine helps revive severely discharged cells.

Who is this for: The Renogy Rover 20A MPPT controller is ideal for DIYers and small-system integrators building RV, marine, cabin or tiny-home solar arrays who want higher energy yield, safety features for mobile use, and optional Bluetooth monitoring. It suits anyone needing reliable 12V/24V battery charging for systems up to 260W (12V) or 520W (24V) with Voc under 100V.
