Renogy Monitoring Screen for 12V 30/50A DC-DC MPPT — Flush‑mount Backlit LCD, Real‑time Status

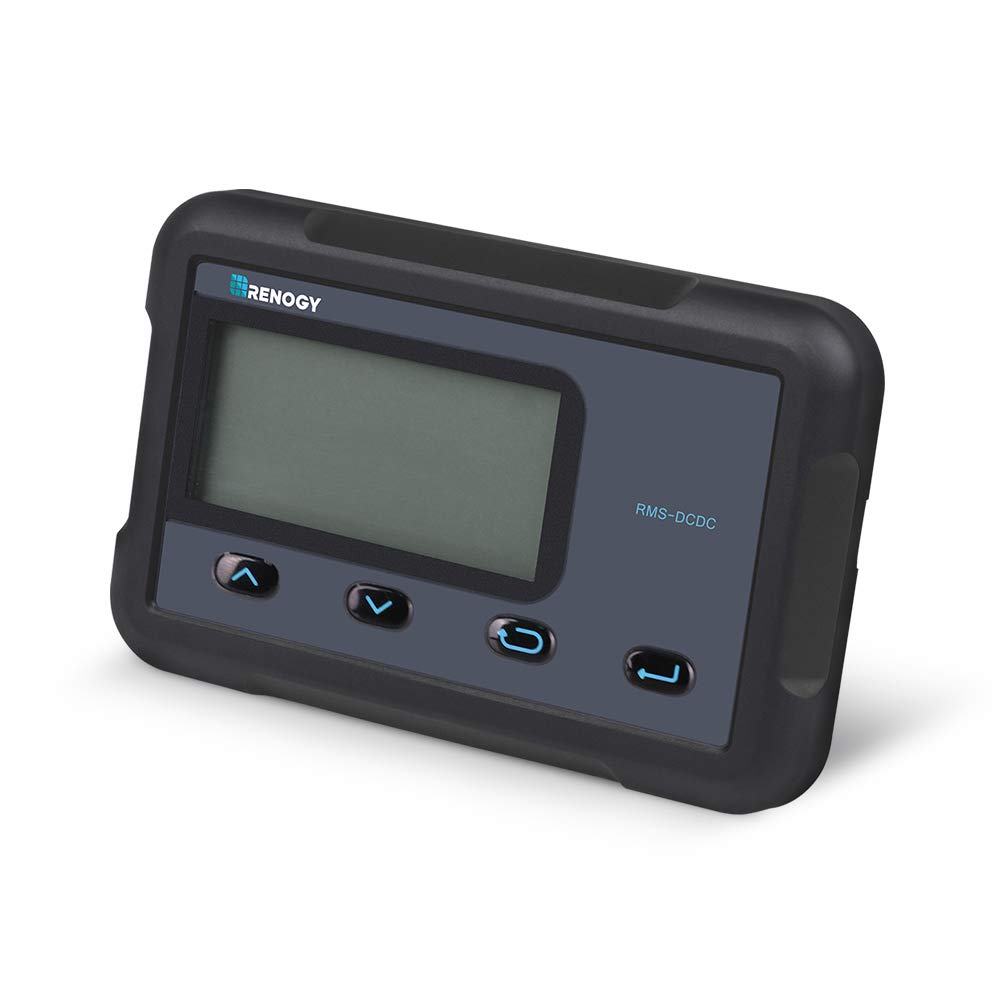

The Renogy RMS-DCDC is a flush-mount backlit LCD monitoring screen that provides real-time status, adjustable settings, and error diagnostics for 12V 30/50A DC-DC MPPT onboard battery chargers.

Lightweight, compact and engineered for a clean panel installation, this remote monitoring display connects directly to compatible Renogy DC-DC MPPT chargers via an RJ45 plug. The RMS-DCDC delivers instant feedback on two-battery systems (house and auxiliary), lets you modify charging parameters from the panel, and surfaces charging and alternator data in clear numeric formats. It’s built for installers, vehicle upfitters, and recreational users who want a simple, accurate readout without opening the charger enclosure.

How does the RMS-DCDC show my system’s charging status?

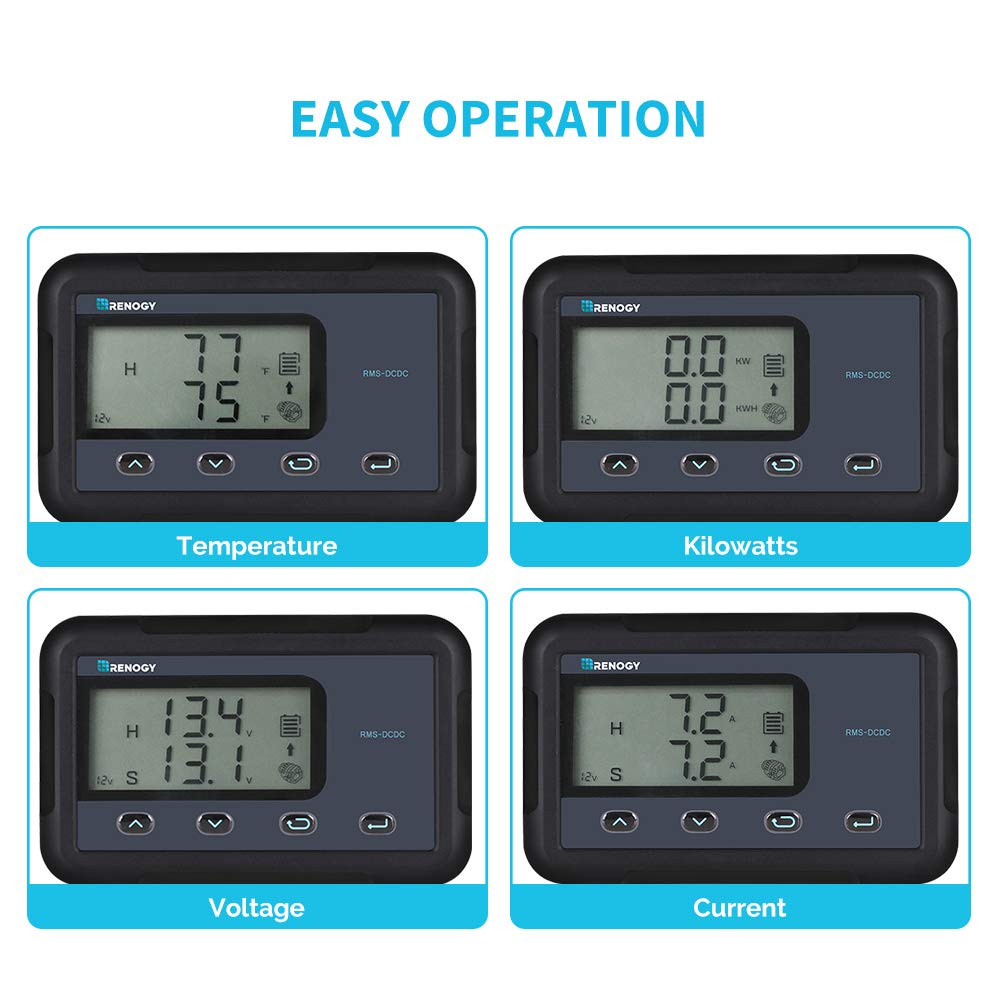

The backlit LCD presents live voltage, current and status indicators for both house and auxiliary batteries, so you can check charge state at a glance. A four-button interface cycles through screens and reveals error codes when something needs attention.

• Backlit numeric display for day and night visibility
• Separate readouts for house and auxiliary battery banks
• Realtime alternator and solar charging current/voltage tracking
• Error code listing to speed troubleshooting

Can I change charger settings from the monitor?

Yes—the RMS-DCDC exposes key charging parameters so you can tailor voltages and current limits without returning to the charger. Navigation is handled with the screen’s four-button keypad for straightforward in-field adjustments.

• Adjust float, bulk, and equalization voltages where supported

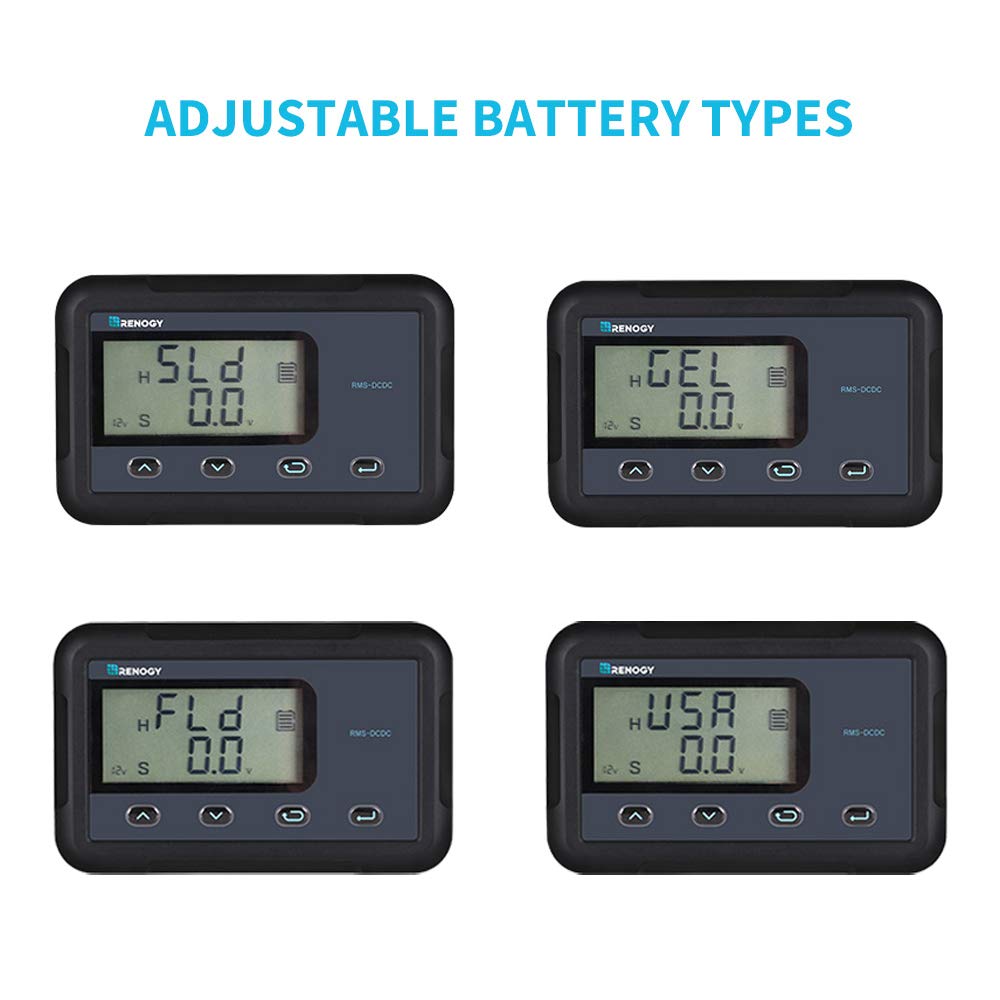

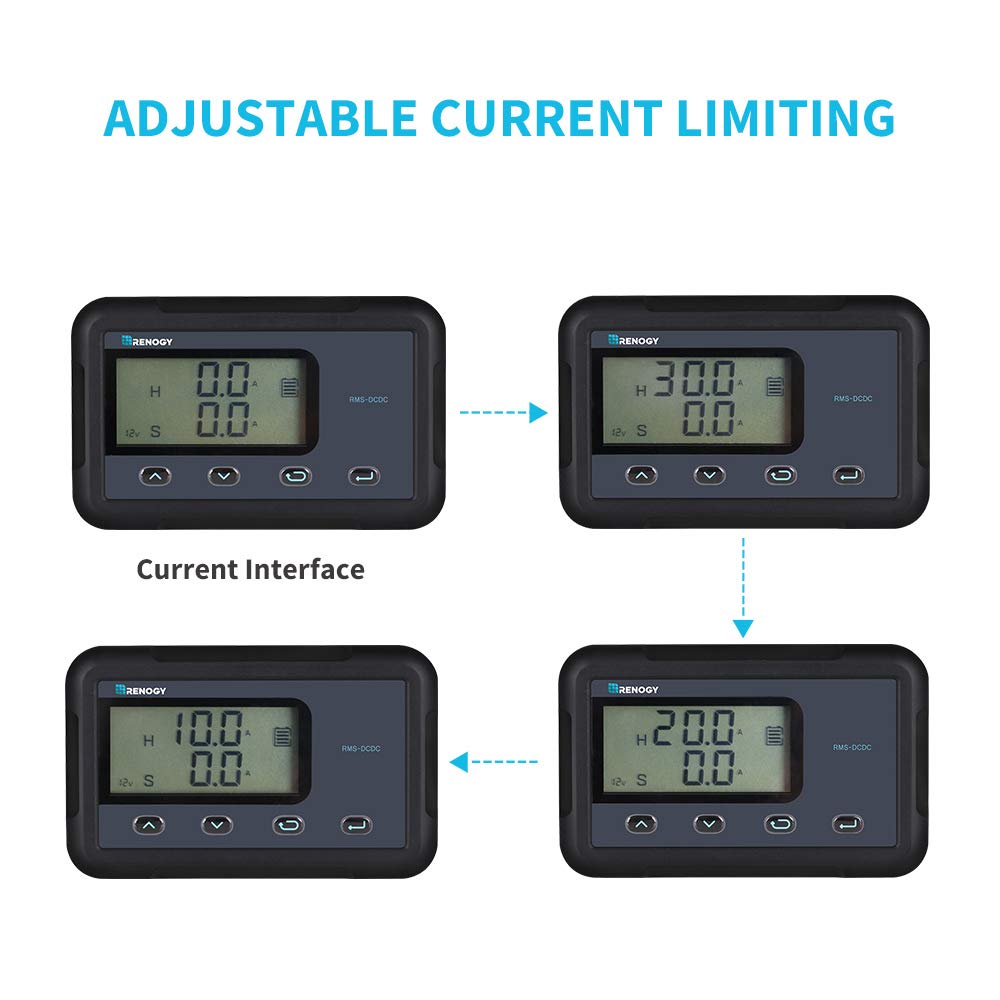

• Set current thresholds and battery types for non-lithium banks
• Save changes directly to the connected DC-DC MPPT unit via RJ45 link
• Simple menu structure designed for quick configuration

What installation and compatibility should I expect?

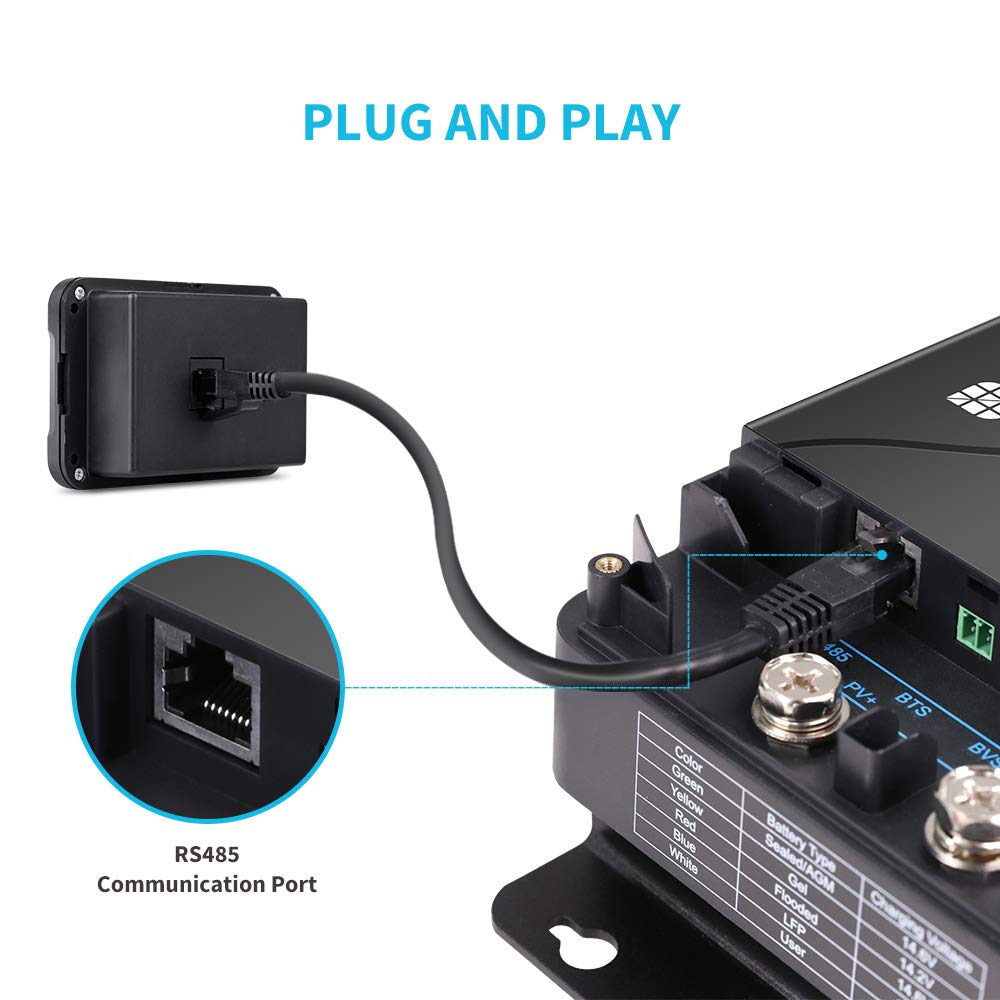

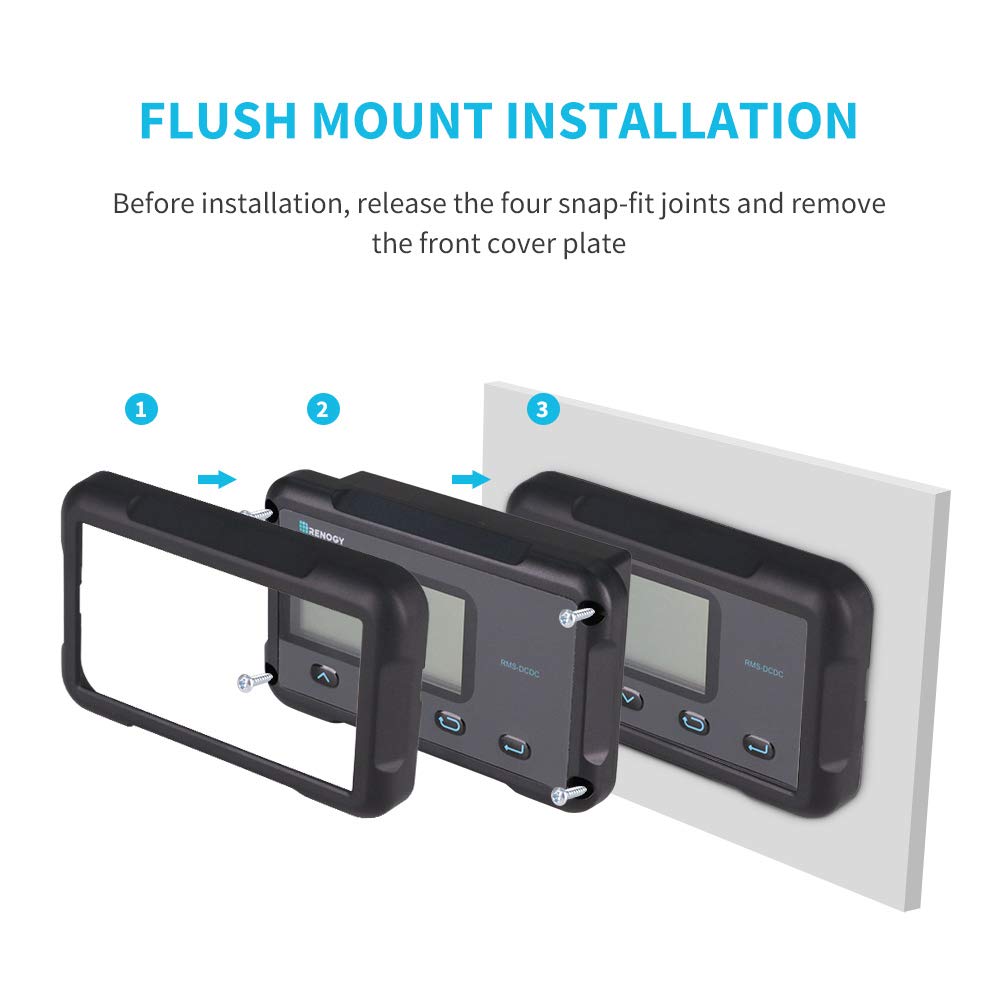

The monitor is designed for flush mounting to produce a professional, low-profile look in dash panels or control cabinets. It uses a single RJ45 connection to communicate with compatible Renogy DC-DC MPPT onboard chargers; the plug-and-play wiring reduces installation steps.

• Flush-mount frame for clean panel integration
• Single RJ45 cable connection—no extra adapters required
• Works with Renogy 12V 30A and 50A DC-DC MPPT charger series
• Note: display logic referenced in some manuals is not supported on this unit

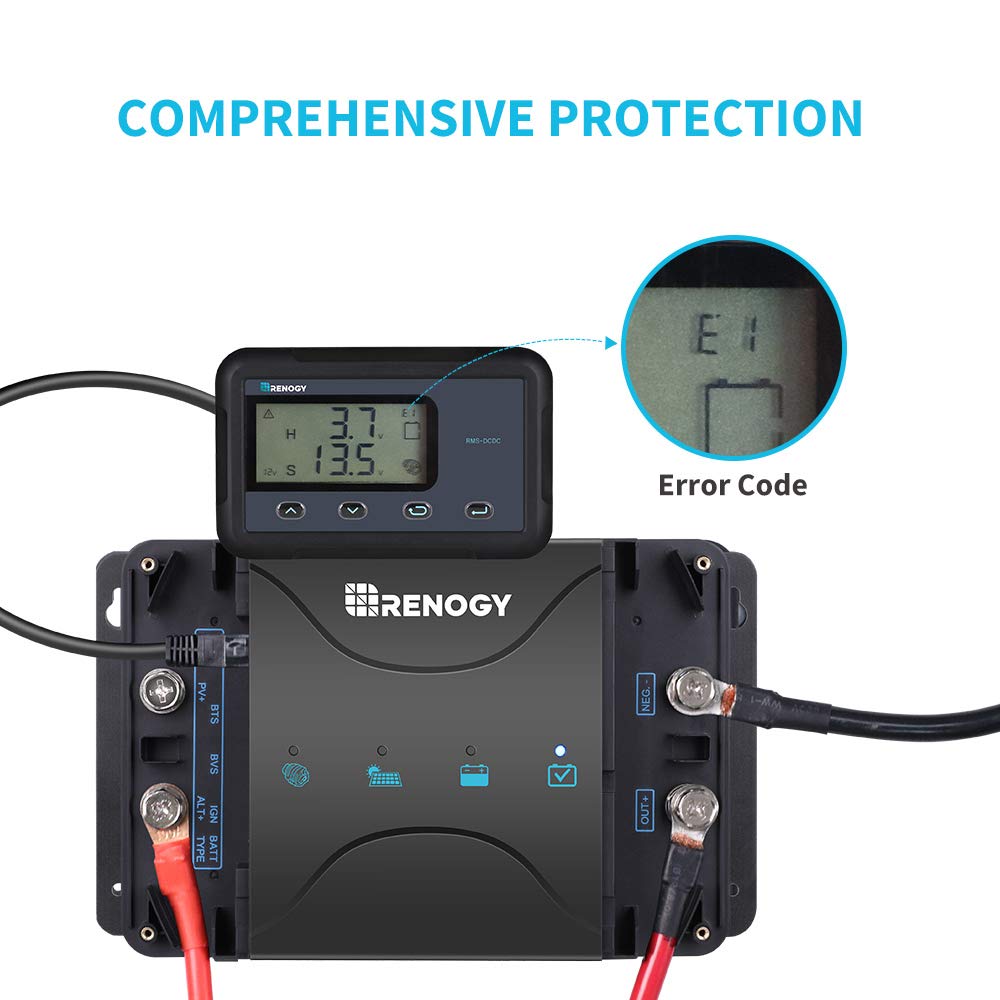

What diagnostics and safety feedback does it provide?

The RMS-DCDC reports error codes and operational states so you can identify charging interruptions or abnormal conditions quickly. While it gives useful diagnostic information, it’s intended as an operator display and not a replacement for detailed system troubleshooting.

• Error code readout to pinpoint common charger issues
• Live readouts to spot sudden drops or spikes in voltage/current
• Non-lithium battery optimization and smart generator compatibility notes
• Designed to support preventive checks and informed operator decisions

Who is this for: installers, vanlifers, marine hobbyists and fleet operators who use Renogy 12V 30A or 50A DC-DC MPPT onboard chargers and want immediate, simple visibility into a two-battery system. If you need an unobtrusive, flush-mounted display that presents live charging numbers, lets you tweak basic settings, and helps surface fault codes for faster fixes, the RMS-DCDC is built to fit that role. Note that this panel currently supports non-lithium house batteries and integration with smart generators where applicable; consult your system documentation for exact compatibility details.
