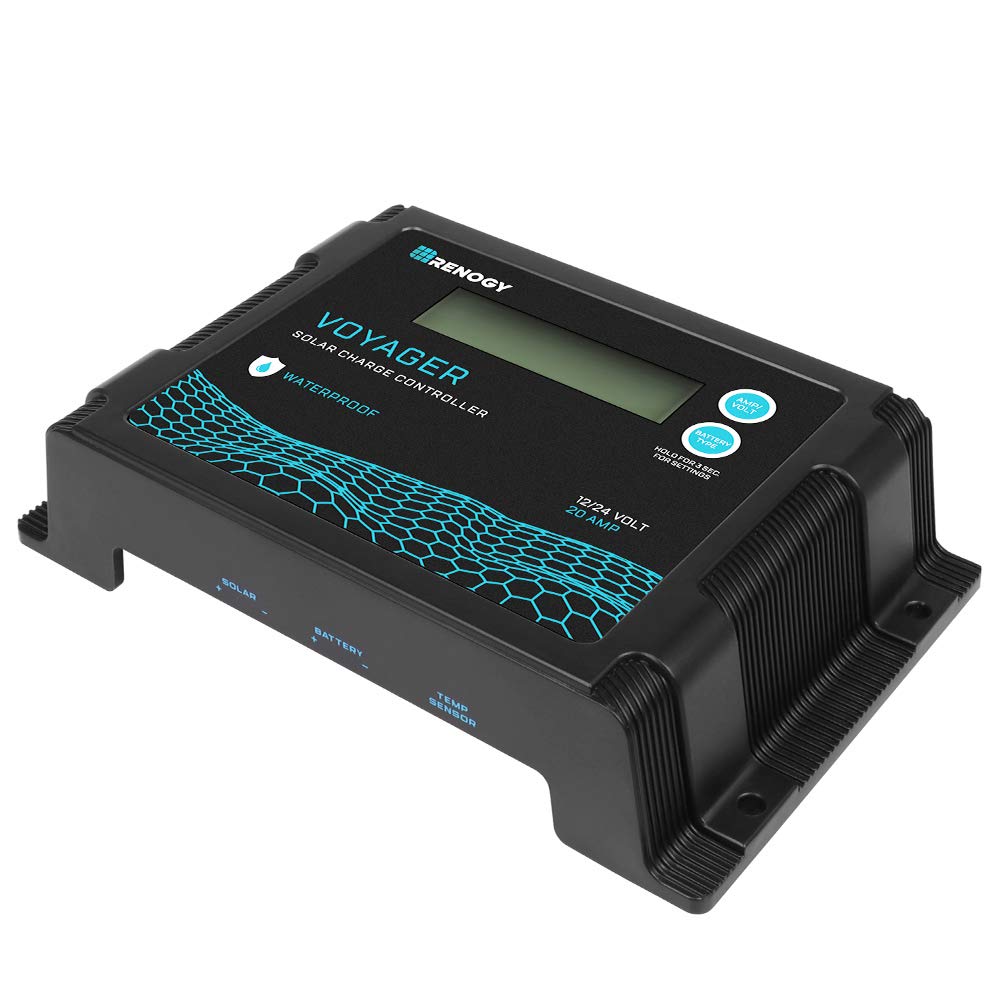

Renogy Voyager 20A PWM Solar Charge Controller 12/24V IP67 Waterproof, 4-Stage Charging

The Renogy Voyager 20A is a waterproof 20-amp PWM solar charge controller designed for 12V and 24V off-grid systems, delivering protected, multi-stage charging for lead-acid and lithium batteries.

Built to withstand outdoor and marine environments, the Voyager 20A combines four-stage PWM charging with an IP67-rated enclosure so it tolerates water spray, rain, and condensation without compromising performance. It supports multiple battery chemistries — including an activation option for Lithium Iron Phosphate — and includes an easy-to-read backlit LCD to monitor system status, energy, and diagnostic codes. The controller also incorporates comprehensive electrical safeguards to help preserve panels and batteries when used in small solar arrays for boats, RVs, cabins, or tiny homes.

How does the Voyager protect my battery and solar panels?

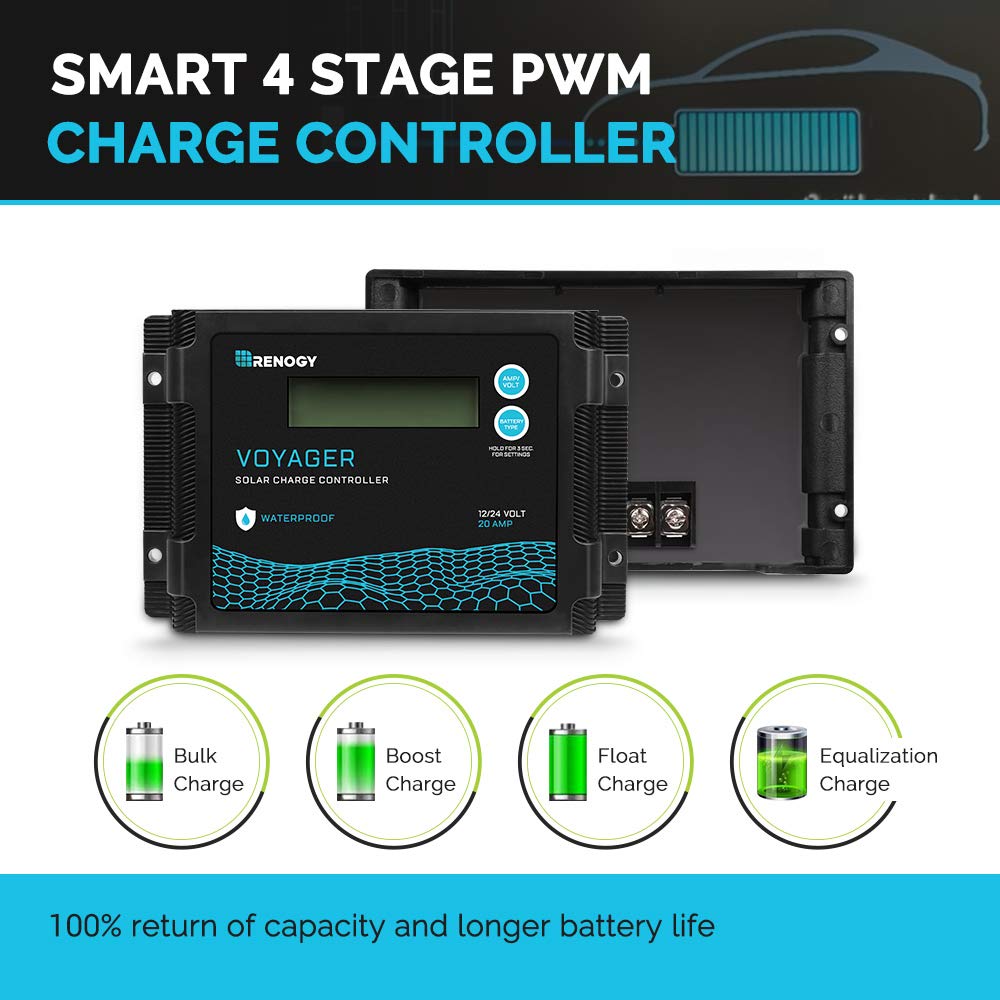

The Voyager uses intelligent PWM algorithms and a 4-stage charge profile (Bulk, Absorption, Float, Equalization) to charge batteries efficiently and reduce stress from overcharging or deep cycling. Built-in safety features automatically respond to common faults to prevent damage to both panels and batteries.

• 4-stage PWM charging tailored to extend battery life
• Automatic protections: reverse polarity, short-circuit, overload
• Reverse current blocking to prevent nighttime battery drain
• LCD error codes to quickly identify and correct issues

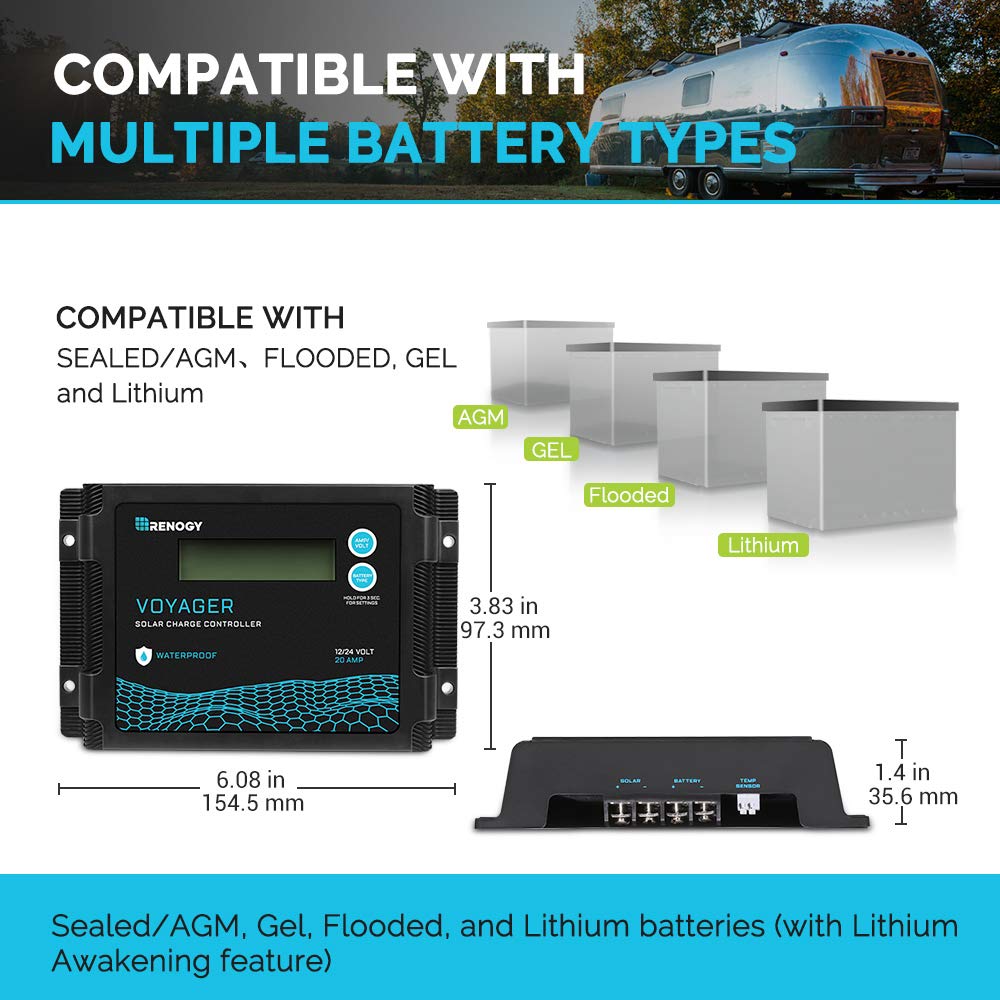

Will it work for 12V and 24V systems and different battery types?

Yes — the Voyager detects 12V or 24V system voltage automatically for Gel, AGM, and Flooded batteries. It also supports Lithium Iron Phosphate batteries via a Lithium activation setting, though lithium charging voltage should be set manually when required by your battery specifications.

• Auto-sensing for 12V/24V systems when using lead-acid types
• Dedicated Lithium activation option for LiFePO4 compatibility
• Manual lithium voltage setting recommended to match battery specs
• Works with small off-grid solar arrays typical for marine and RV use

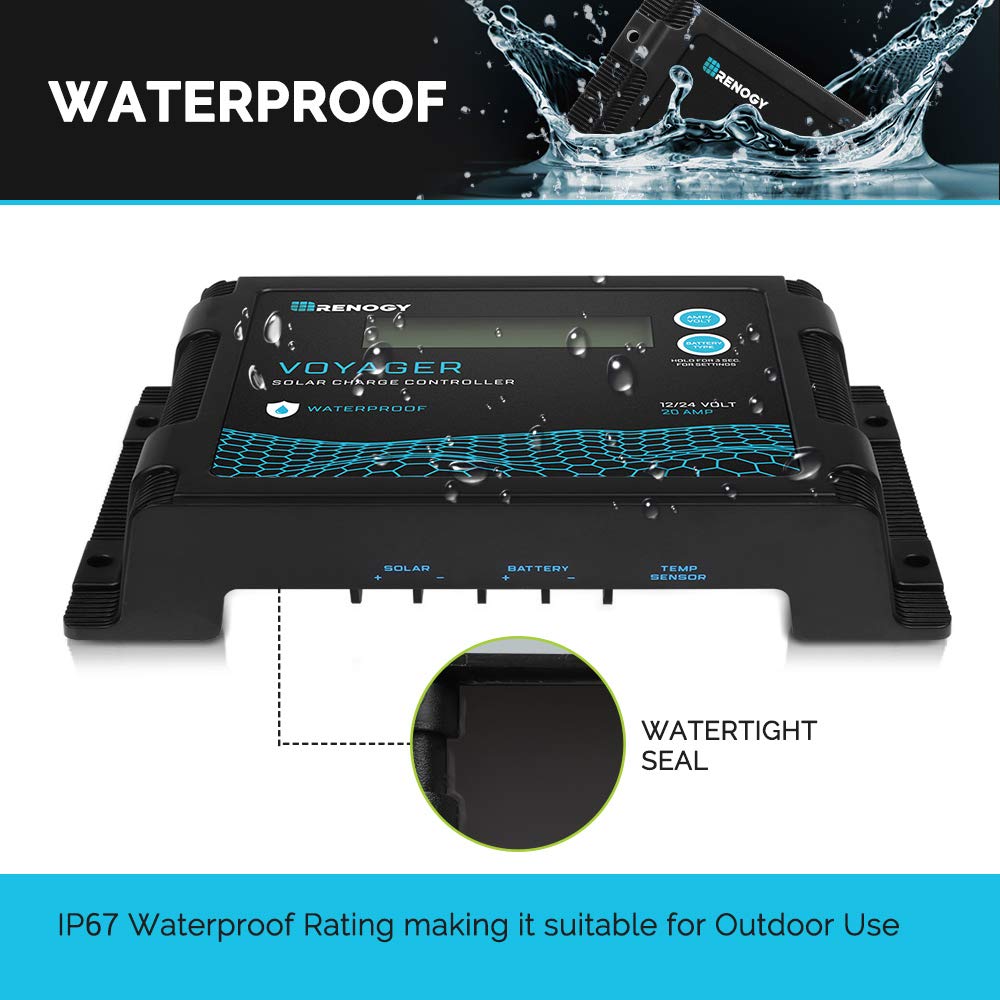

How durable is the Voyager for outdoor and marine use?

The Voyager carries an IP67 rating, meaning its housing protects electronics against dust ingress and temporary immersion in water. The robust enclosure and corrosion-resistant connectors make it suitable for damp, salty, or rainy environments commonly encountered on boats and coastal installations.

• IP67-rated enclosure for dust-tight and water-resistant protection
• Designed to tolerate spray, rain, and condensation without failure
• Sturdy mounting and sealed connections for marine or exterior mounting
• Backlit LCD remains readable in low-light and variable conditions

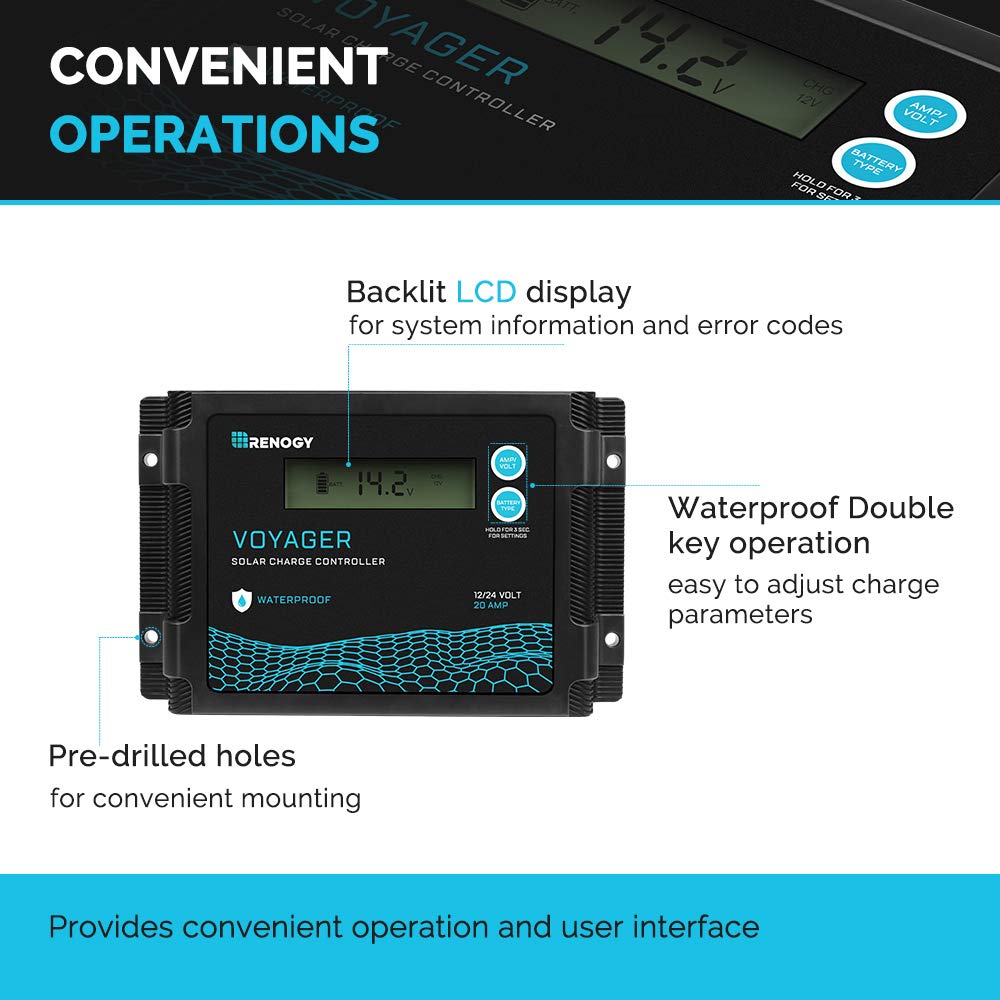

What information does the display show and how do I monitor the system?

The backlit LCD provides real-time system data so you can monitor charging current, energy generation, battery voltage, temperature, and fault codes at a glance. This helps you quickly assess system performance and respond to warnings or parameter adjustments when needed.

• Live readouts: charging current, battery voltage, and generated energy
• Temperature readings to help prevent thermal stress on components
• Clear error codes for rapid troubleshooting and safer operation
• Simple menu-driven interface for adjusting battery type and settings

Who is this for: The Renogy Voyager 20A is intended for owners of small off-grid power systems — boaters, RVers, cabin users, and vanlifers — who need a durable, weatherproof charge controller with multi-chemistry support and clear system monitoring. It suits anyone pairing modest solar arrays with Gel, AGM, Flooded, or LiFePO4 batteries and who wants reliable protections and easy status visibility for everyday outdoor use.
