Description

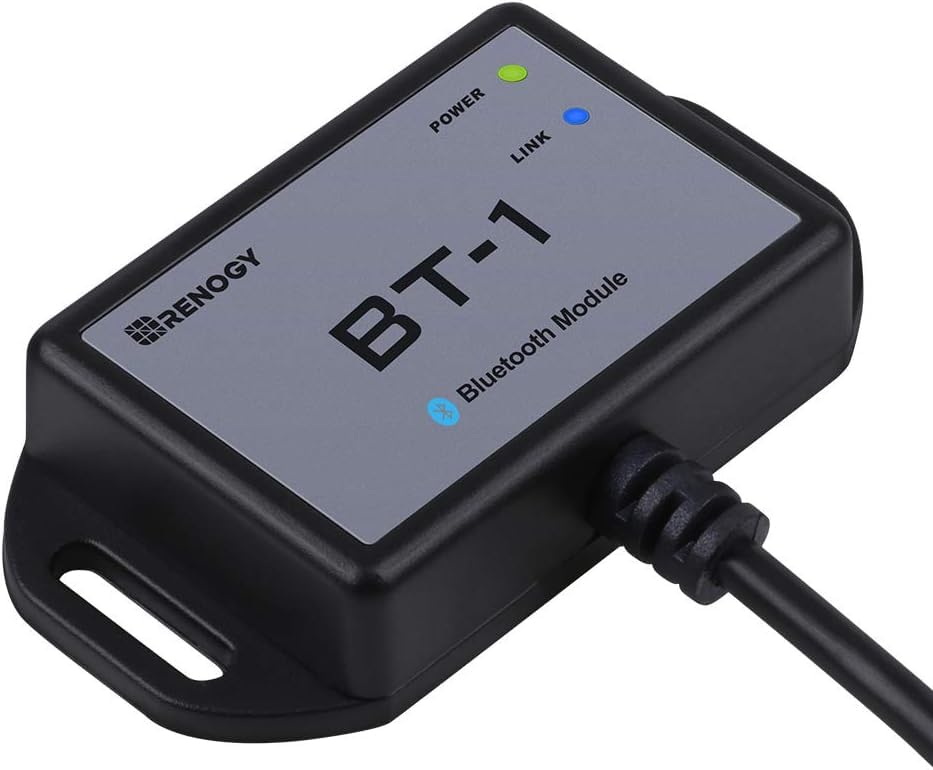

xThe Renogy BT-1 is a compact Bluetooth communications module that turns compatible Renogy solar charge controllers into wireless, app‑accessible systems for monitoring and adjusting settings.
Install the BT-1 to view live PV system data and change controller parameters from your phone using the DC Home app. It plugs into the controller’s RJ12/RS232 port, draws negligible power, and supports dust‑ and splash‑resistant outdoor use. This product streamlines system checks and adjustments without climbing onto roofs or opening combiner boxes.
Which Renogy controllers work with the BT-1 and which do not?

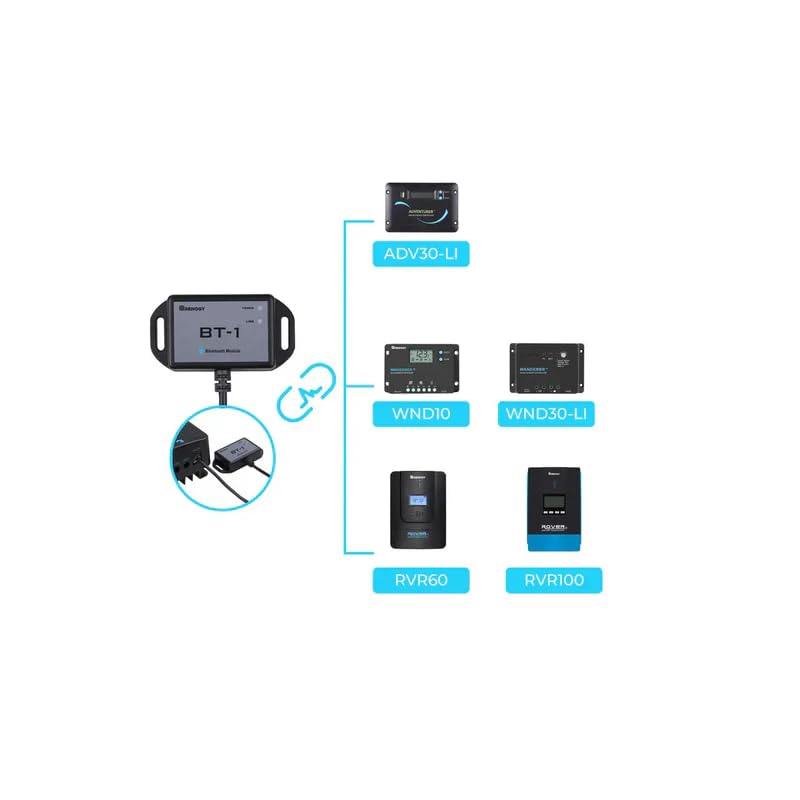

The BT-1 is designed to communicate with selected Renogy PWM and MPPT controllers. It supports Wanderer 10A and 30A, Adventurer Li 30A (PWM models), and Rover 60A and 100A MPPT models via the RS232 interface. It is not compatible with Rover 20A/30A/40A MPPT controllers — those require the BT‑2 module.
- Compatible: Wanderer 10A/30A, Adventurer Li 30A (PWM)
- Compatible via RS232: Rover 60A & 100A (MPPT)
- Not compatible: Rover 20A/30A/40A MPPT — use BT‑2
- Confirm controller model before purchase to avoid incompatibility
How do you install and power the BT-1 module?
Installation is plug‑and‑play: connect the included 5 m (16.4 ft) cable between the BT‑1 and the controller’s RJ12/RS232 socket. The module draws power directly from the controller, so no separate battery or adapter is needed. Two onboard LEDs display power and Bluetooth status to help with setup.
- Includes 5 m (16.4 ft) RJ12 cable for easy reach
- Powered by the controller — no extra supply required

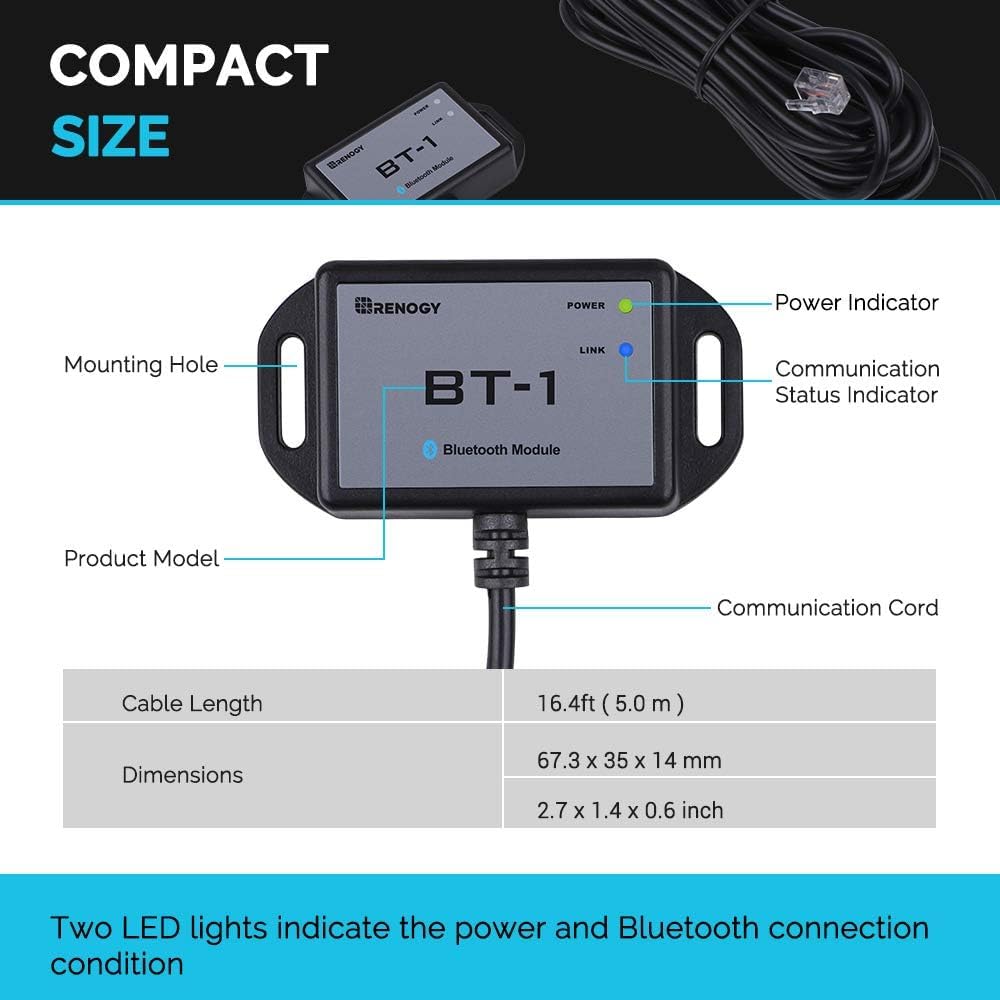

- LED indicators for power and Bluetooth connectivity
- Simple pairing through DC Home app on smartphone
What are the BT-1's performance and environmental specs?
The module uses a fixed 9600 bps RS232 protocol for steady communication and consumes very little energy: 0.04 W in standby and 0.05 W while operating. Bluetooth range reaches up to about 82 ft (25 m) in open air, and the IP54 enclosure survives dust and splashes. It operates reliably between -20°C and 85°C for a wide range of installations.
- Bluetooth range: up to 82 ft (25 m) line of sight
- Power draw: standby 0.04 W, operating 0.05 W
- Data link: fixed 9600 bps RS232 for stable transfer
- Durability: IP54 rated, -20°C to 85°C operating range
Who is this for? The Renogy BT‑1 fits DIYers, RV and tiny‑home owners, and off‑grid installers who already use compatible Renogy controllers and want the convenience of real‑time monitoring and parameter tweaks from a phone. It’s best for systems where the supported Wanderer, Adventurer Li, or Rover 60/100 controllers are installed and remote app access will simplify regular checks or tuning. Avoid this product if your controller is a Rover 20/30/40 MPPT — select the BT‑2 instead.
FAQ
Q: Will the BT-1 work with my Rover 30A MPPT controller?
A: No. Rover 20A/30A/40A MPPT controllers are not compatible with BT‑1; use the BT‑2 module instead.
Q: Does the BT-1 need an external power source?
A: No. The BT‑1 is powered directly through the RJ12/RS232 port by the controller, no extra power required.
