Renogy Adventurer-Li 30A PWM Solar Charge Controller — 12V/24V, Flush-Mount, Programmable Lithium & Multi-Stage Charging

The Renogy Adventurer-Li is a 30A PWM solar charge controller that supports 12V and 24V systems, charges most lithium and lead-acid battery types, and offers a flush-mount design with RS232 connectivity for Bluetooth monitoring.

Built for clean RV, camper, and small off-grid installations, the Adventurer-Li combines programmable lithium charge settings, multi-stage PWM regulation, and a backlit LCD into a compact negative-ground housing. Its RS232 port lets you add Renogy’s BT-1 Bluetooth accessory to monitor and tweak settings with the Renogy DC Home app, while a surface-mount bracket is included if you prefer easy-panel mounting. The controller also includes diagnostic protections and temperature compensation to help protect batteries and electronics across a wide operating range.

How does this controller manage different battery chemistries?

The Adventurer-Li detects system voltage automatically (12V/24V) and provides selectable charging profiles for lithium, sealed/AGM, gel, and flooded batteries. Programmable lithium charge voltage ensures compatibility with many lithium packs, while four charging stages support healthier battery cycles for lead-acid types.

• Selectable battery type including lithium and multiple lead-acid profiles
• Bulk, boost, float, and equalization stages for lead-acid maintenance
• Programmable lithium charging voltage to match vendor specs
• Temperature compensation to adjust voltages in varying climates

What installation options and physical features does it offer?

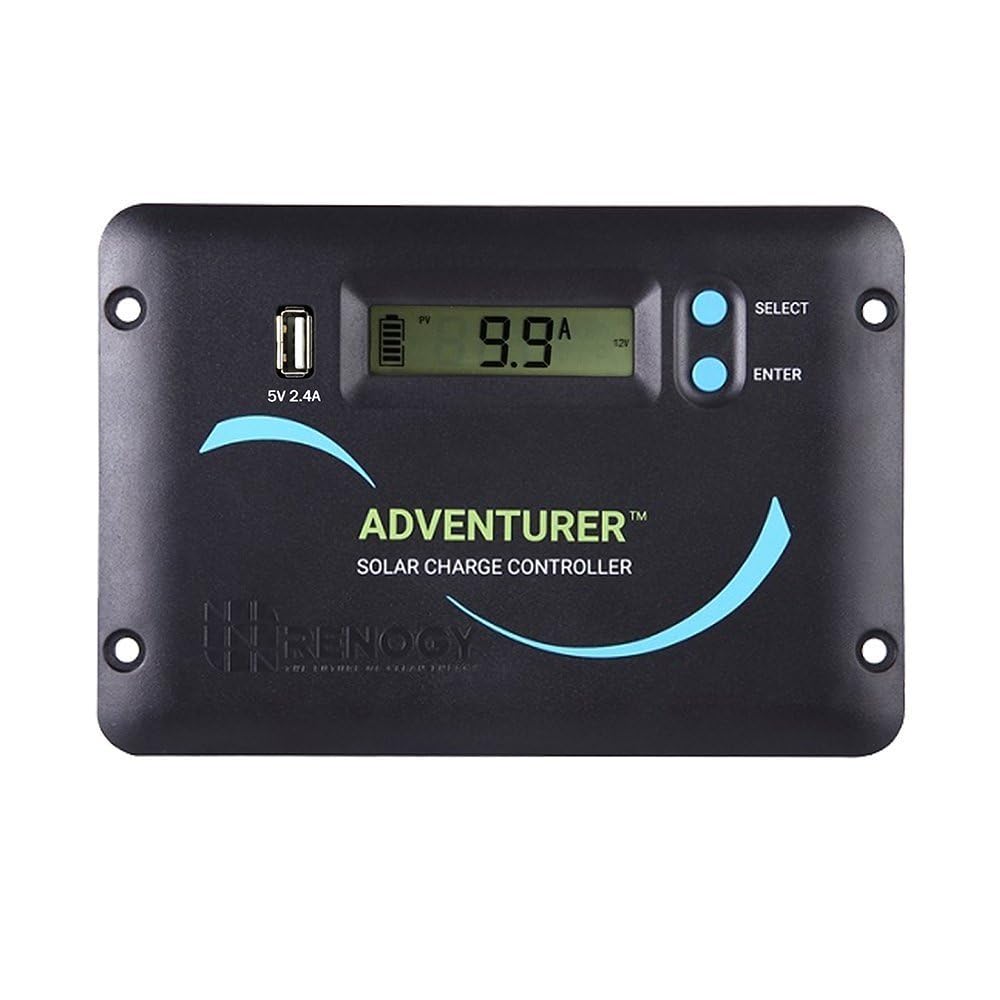

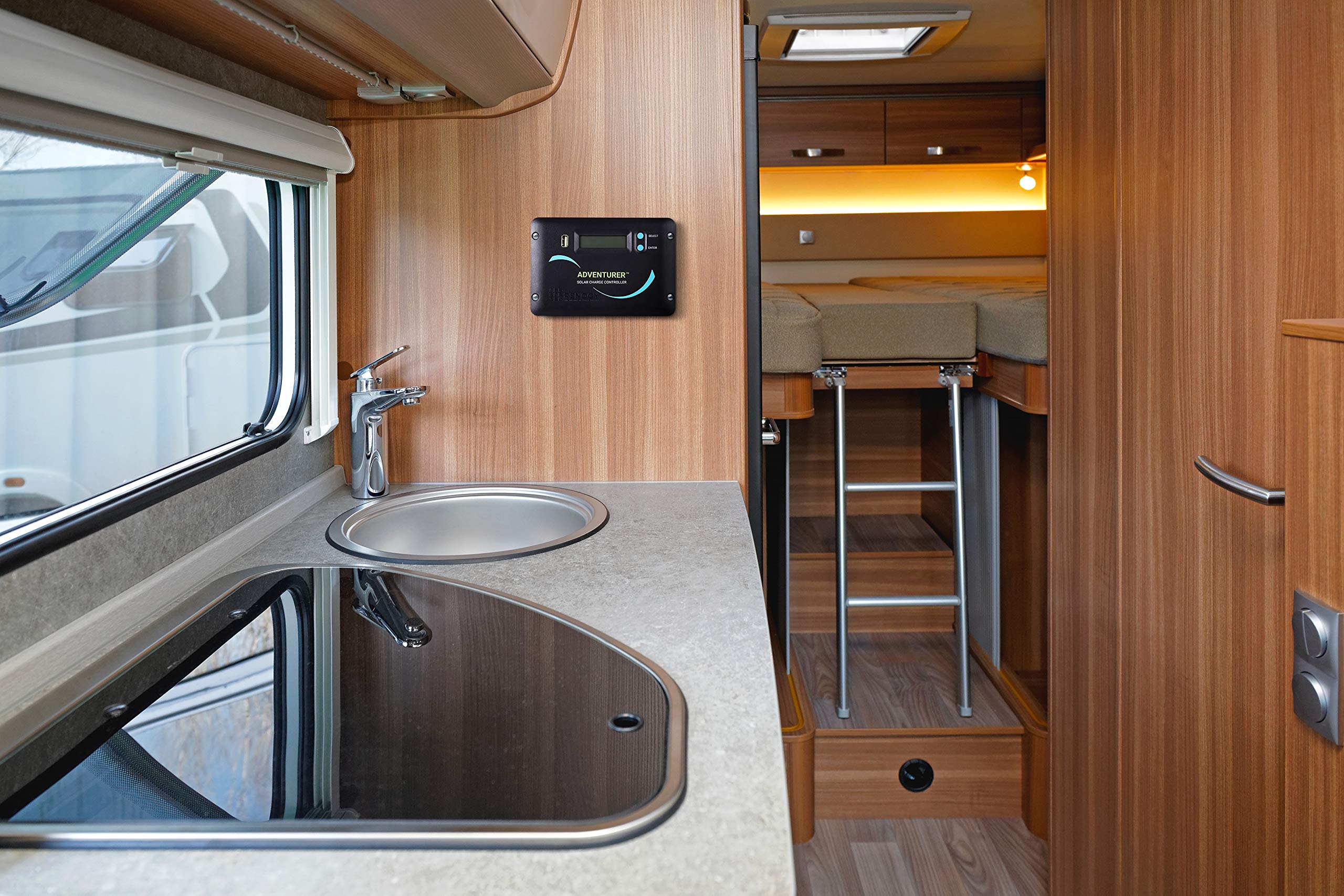

The unit ships with a flush-mount front for an integrated look on RV or camper walls plus a surface-mount adapter for alternative installations. It’s negative-ground compatible to match many vehicle electrical systems and keeps wiring neat while avoiding common miswiring hazards.

• Flush-mount design for a low-profile panel appearance
• Included surface-mount attachment for standard mounting
• Negative-ground wiring to suit RV/camper electrical conventions
• Compact footprint with a backlit LCD for on-device monitoring

Can I monitor and configure the controller remotely?

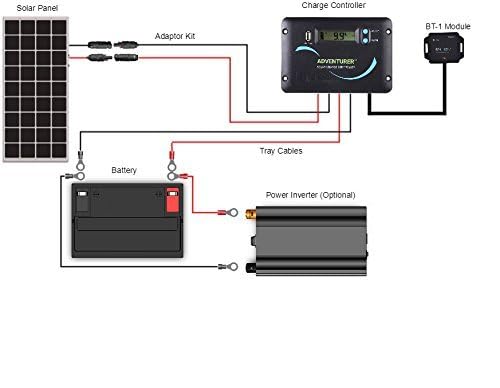

Yes — add the Renogy BT-1 Bluetooth module to the RS232 port to connect with the Renogy DC Home smartphone app. The app provides real-time system readouts and allows you to change settings without opening panels or accessing the controller directly.

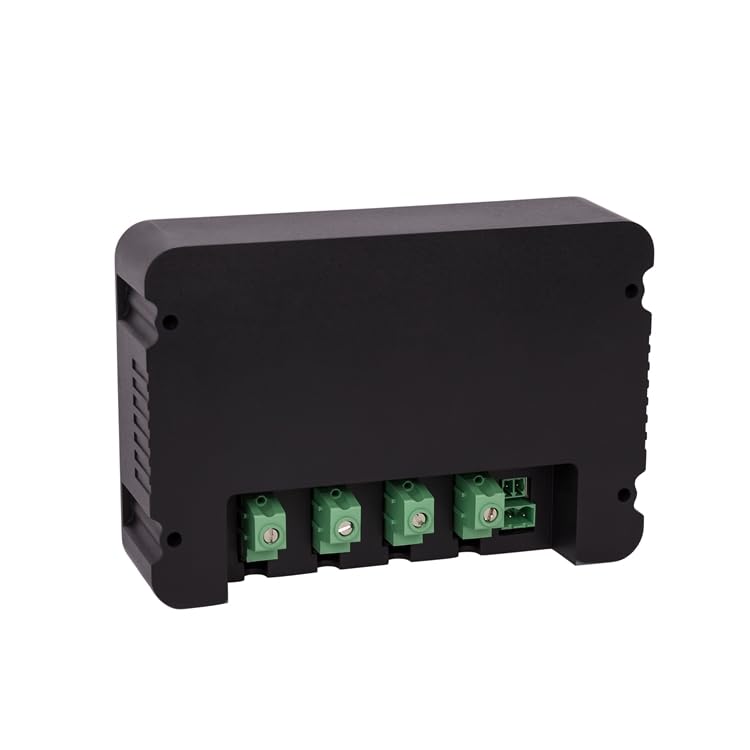

• RS232 port for optional BT-1 Bluetooth module
• Renogy DC Home app support for status and configuration
• Onboard LCD for instant local diagnostics and parameter checks
• Self-diagnostic routines to flag wiring or system faults

How does it protect gear and perform in extreme conditions?

The Adventurer-Li includes multiple electronic protections—overcharge, reverse polarity, short-circuit, and over-temperature—to reduce risk from installation errors or component failures. It operates across a broad temperature span and adjusts charging to preserve battery life in hot or cold environments.

• Protections: overcharge, short circuit, reverse polarity, and thermal
• Auto temperature compensation for accurate charging voltages
• Rated to operate in wide temperature ranges for varied climates
• Self-checking diagnostics simplify troubleshooting and setup

Who is this for? The Renogy Adventurer-Li is aimed at vanlifers, RV owners, boaters, and small off-grid system builders who want a tidy, reliable solar charge solution that supports lithium chemistry and integrates with smartphone monitoring. If you value a low-profile installation, selectable battery profiles, and straightforward diagnostics in a compact 30A PWM package, this controller is a practical choice for managing a 12V or 24V battery bank.
