Description
xThe Renogy Adventurer 30A PWM is a 12V/24V negative-ground solar charge controller that intelligently manages and protects battery charging for RVs, boats, and off-grid systems.
Compact and built for real-world installation, this Renogy Adventurer controller automatically detects system voltage, supports lead-acid and lithium chemistries, and offers both flush and surface-mount options. With a backlit LCD, temperature compensation, and multiple safety protections, it’s designed to simplify solar charging while extending battery life in harsh environments.
How does the Adventurer handle different battery types and voltages?
The controller auto-senses 12V or 24V systems and provides a four-stage PWM charge profile (Bulk, Boost, Float, Equalization) that adapts to common battery chemistries. It supports lithium, AGM, gel, and flooded batteries and includes functions to revive deeply discharged lithium packs.
- Automatic 12V/24V detection for plug-and-play setup
- 4-stage charging to reduce sulfation and balance charge cycles
- Revive mode for over-discharged lithium batteries
- User-selectable battery type settings via LCD
Can I install this on an RV or boat without special wiring changes?

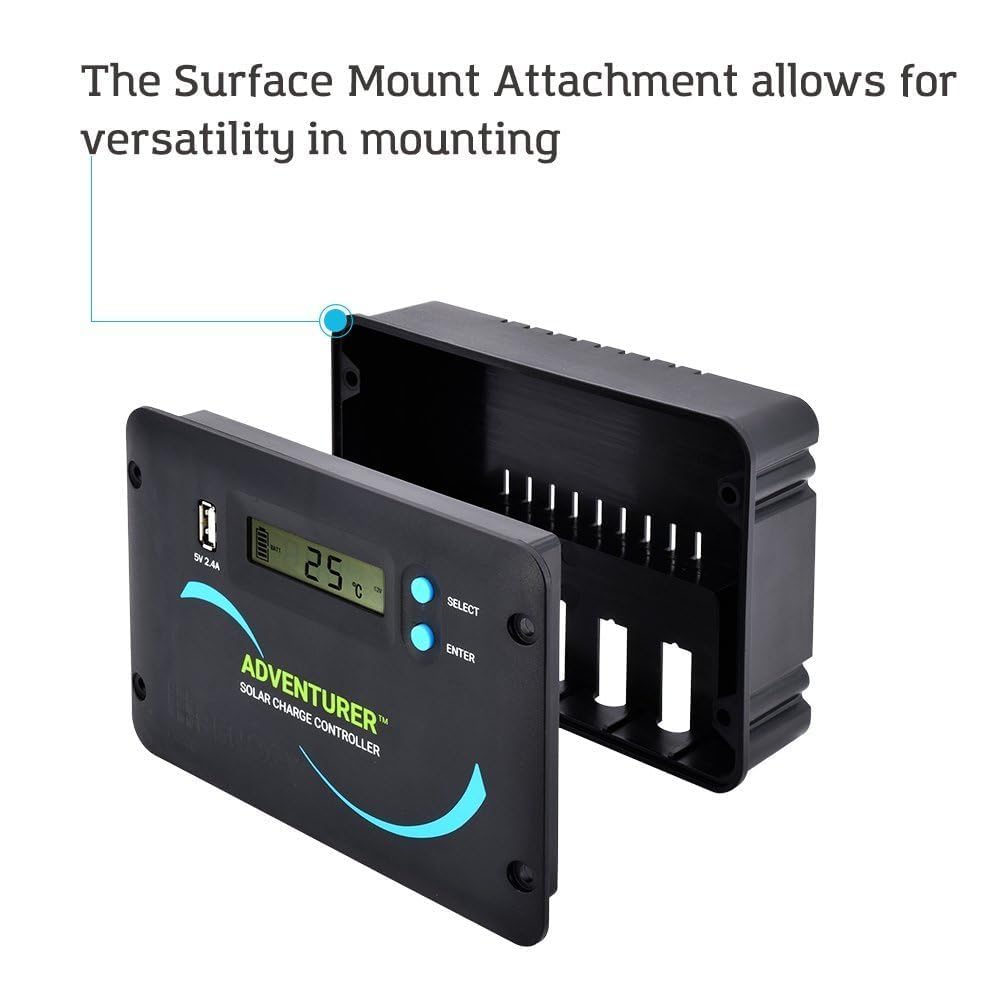

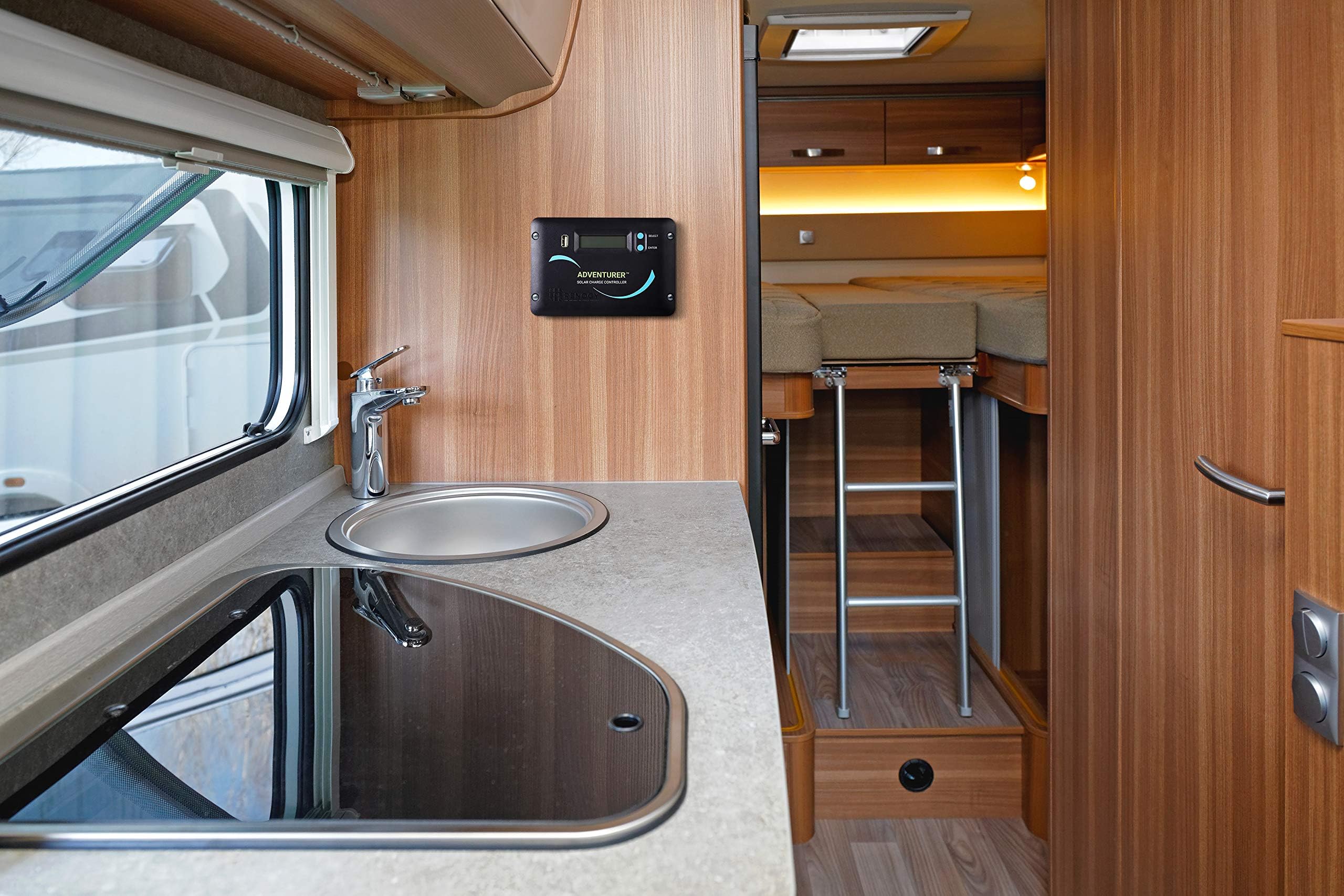

Yes — the Adventurer is designed for standard negative-ground installations common in RV and marine systems, minimizing polarity issues during installation. It includes both a flush-mount bezel and a surface-mount kit so you can choose the method that matches your panel or cabin wall.
- Negative-ground compatibility to match vehicle wiring
- Surface-mount kit included for no-cutout installs
- Flush-mount option for a clean built-in appearance (tight tolerances)
- Clear backlit LCD and Renogy BT-1 app compatibility for monitoring
What protections and environmental ranges does it offer?
The Adventurer includes overcharge, short-circuit, reverse polarity protection and automatic temperature compensation to optimize charging across temperature extremes. It’s rated to operate from -4°F to 140°F, making it suitable for many outdoor and mobile installations.
- Overcharge and short-circuit safeguards for battery longevity
- Auto temperature compensation adjusts charging thresholds
- Wide operating temperature for cold and hot climates
- Self-diagnostics with status messages on the LCD
How will I know system status and track performance?

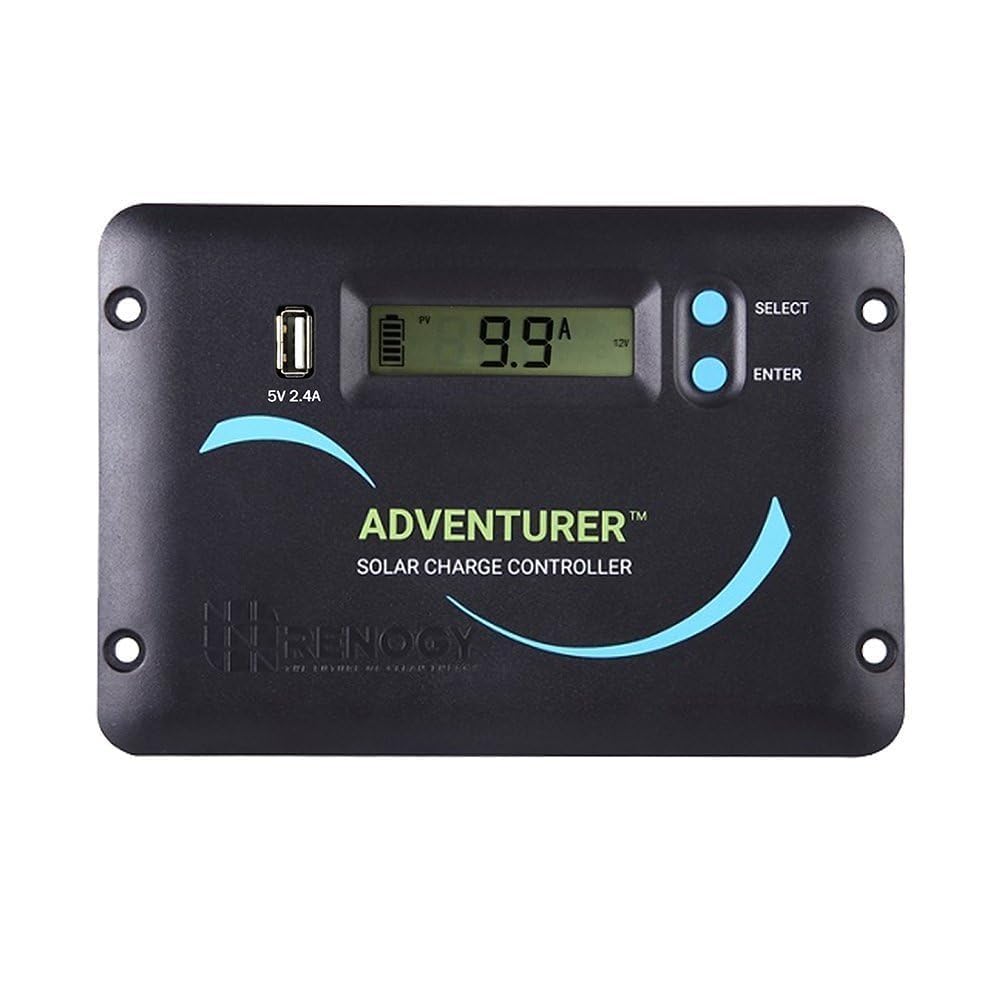

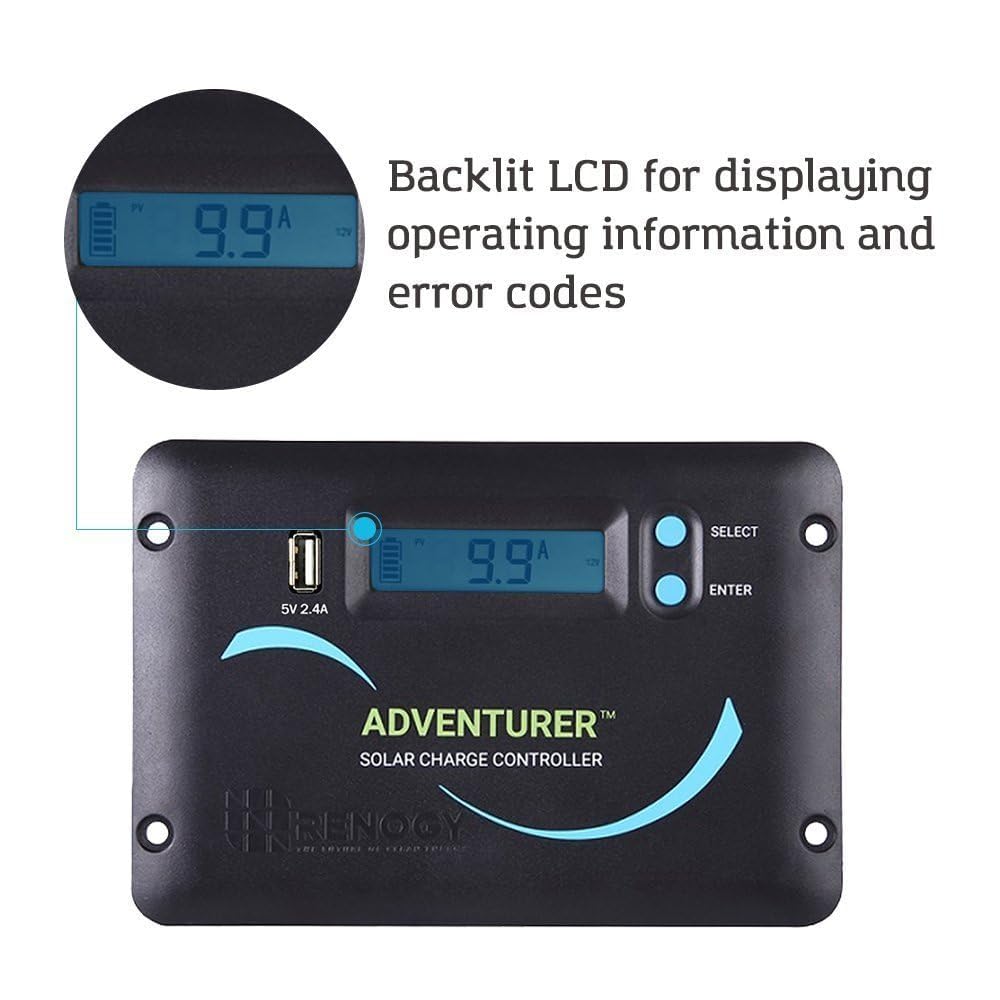

The controller’s backlit LCD displays real-time voltage, current, and charging stage. For remote or mobile monitoring, pair it with the Renogy BT-1 module and the DC Home app to view live metrics and troubleshoot from a smartphone.
- Backlit LCD shows voltage, current, and charge stage

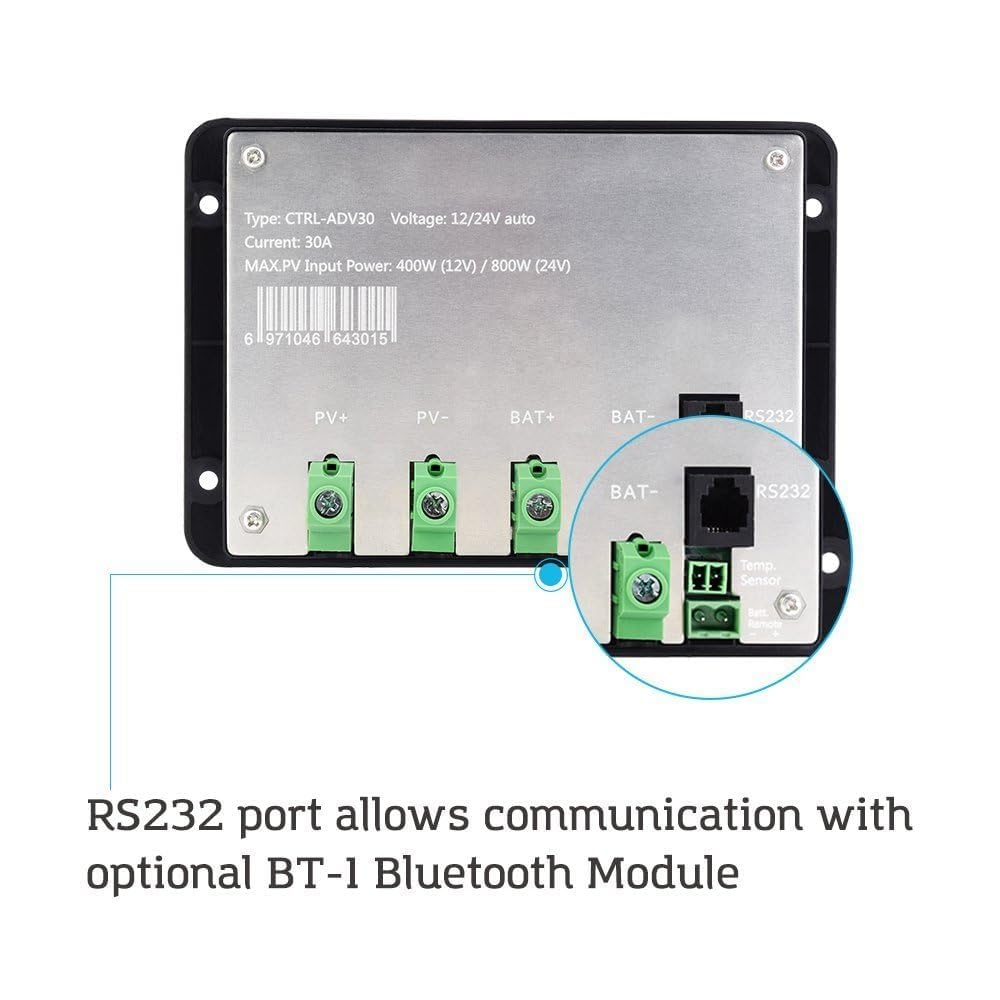

- Compatible with Renogy BT-1 Bluetooth module for app monitoring
- Simple menus and status codes for quick diagnostics
- Tracks input from solar panels and output to batteries/loads
Who this is for: The Renogy Adventurer 30A PWM is ideal for RV owners, boaters, and off-grid hobbyists who need a dependable, easy-to-install charge controller that supports multiple battery chemistries and negative-ground systems. Choose it if you want a durable controller with flexible mounting options, clear monitoring, and protections suited to mobile and outdoor solar setups.
FAQ
Q: Does the Adventurer support both 12V and 24V systems?
A: Yes. It automatically detects and configures for 12V or 24V systems for straightforward setup.
Q: Can I mount it without cutting a hole in my wall?
A: Yes. The controller includes a surface-mount kit so no wall cutout is required for installation.
