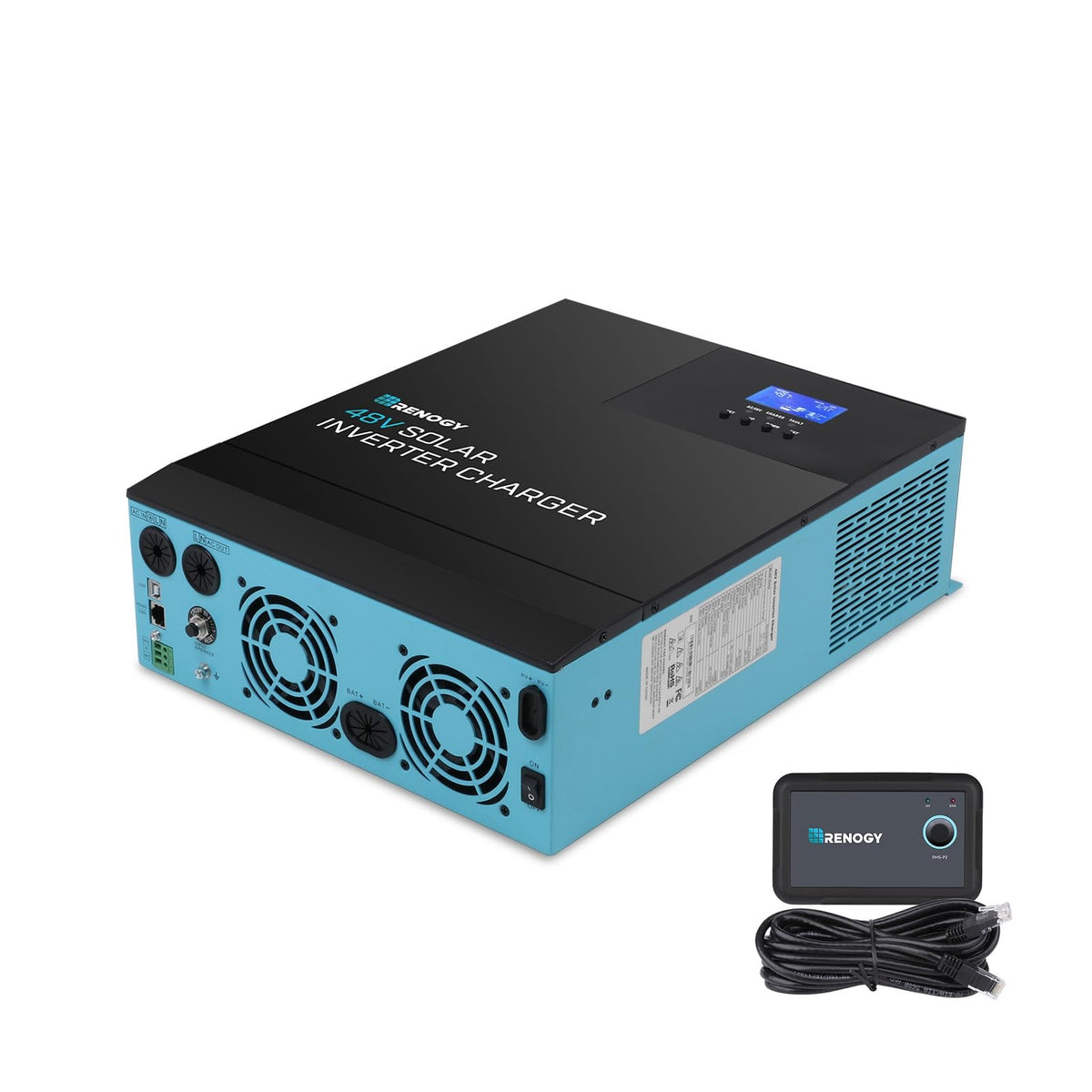

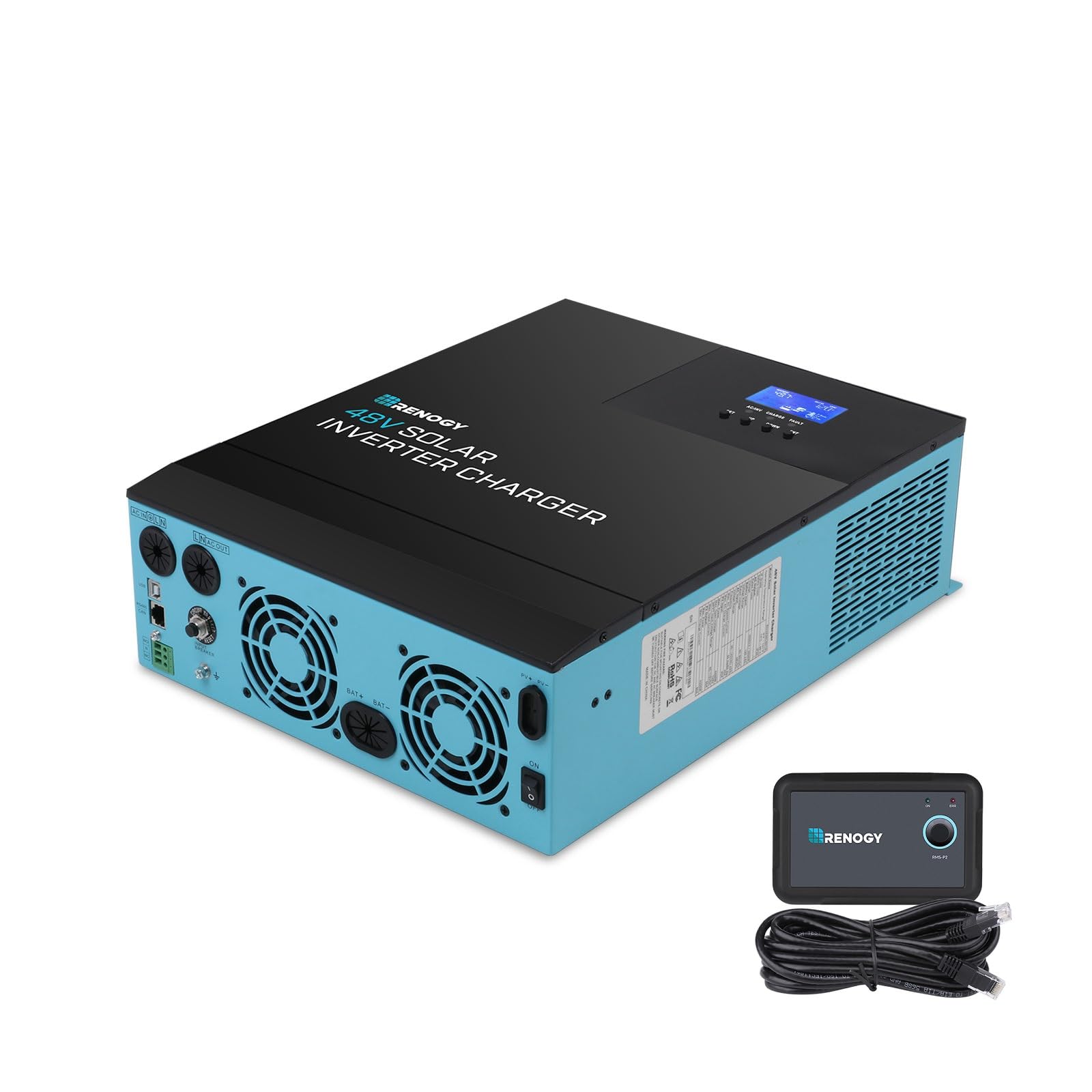

Renogy 48V 3500W Pure Sine Wave Inverter Charger — All-in-One with 80A MPPT & 7000W Surge

Renogy 48V 3500W Pure Sine Wave Inverter Charger combines a 3500W continuous inverter, 80A MPPT solar charge controller and a 40A battery charger into one hybrid, UPS-capable unit designed for off-grid and portable power systems.

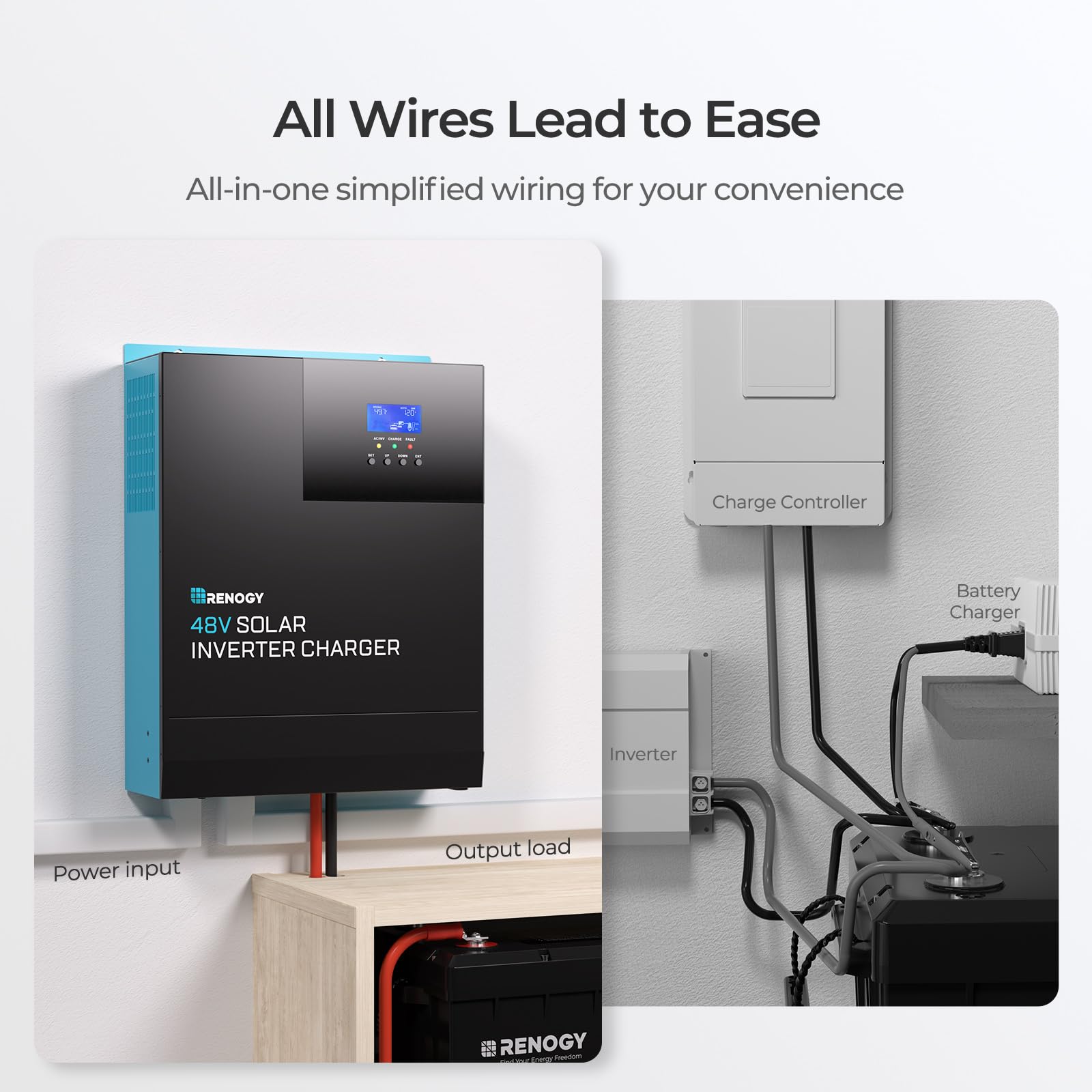

This all-in-one Renogy system merges solar charging, AC/generator battery charging and inverter functions to deliver clean 120V AC power from a 48V battery bank. Built to handle surge loads up to 7000W for starting motors or compressors and sustain continuous 3500W output, it’s optimized for homes, RVs, and camping setups where space and reliability matter. Advanced protections, several preset battery profiles and a power-saving mode help stretch stored energy while ensuring electronics stay online during source transitions.

How does this device keep my electronics running without interruption?

The inverter charger monitors AC and solar inputs and switches to inverter output within about 10 milliseconds if external power fails, preventing equipment shutdowns. That fast switchover, combined with pure sine wave output, ensures sensitive devices and appliances get stable power when grid or generator sources drop.

• 10 ms automatic transfer to inverter during AC/solar loss
• Pure sine wave output safe for computers and appliances
• 7000W peak surge handles motor and compressor starts
• Built-in protections to prevent damage during faults

What solar and battery charging features are included?

This unit integrates an 80A/145V MPPT solar charge controller to harvest solar energy efficiently and a 40A AC/generator battery charger to replenish batteries when needed. Preset profiles for common 48V battery chemistries speed setup, while a user mode allows customized charge parameters for unconventional battery types.

• 80A MPPT controller for faster, higher-voltage panel inputs
• 40A AC charger for reliable utility or generator charging

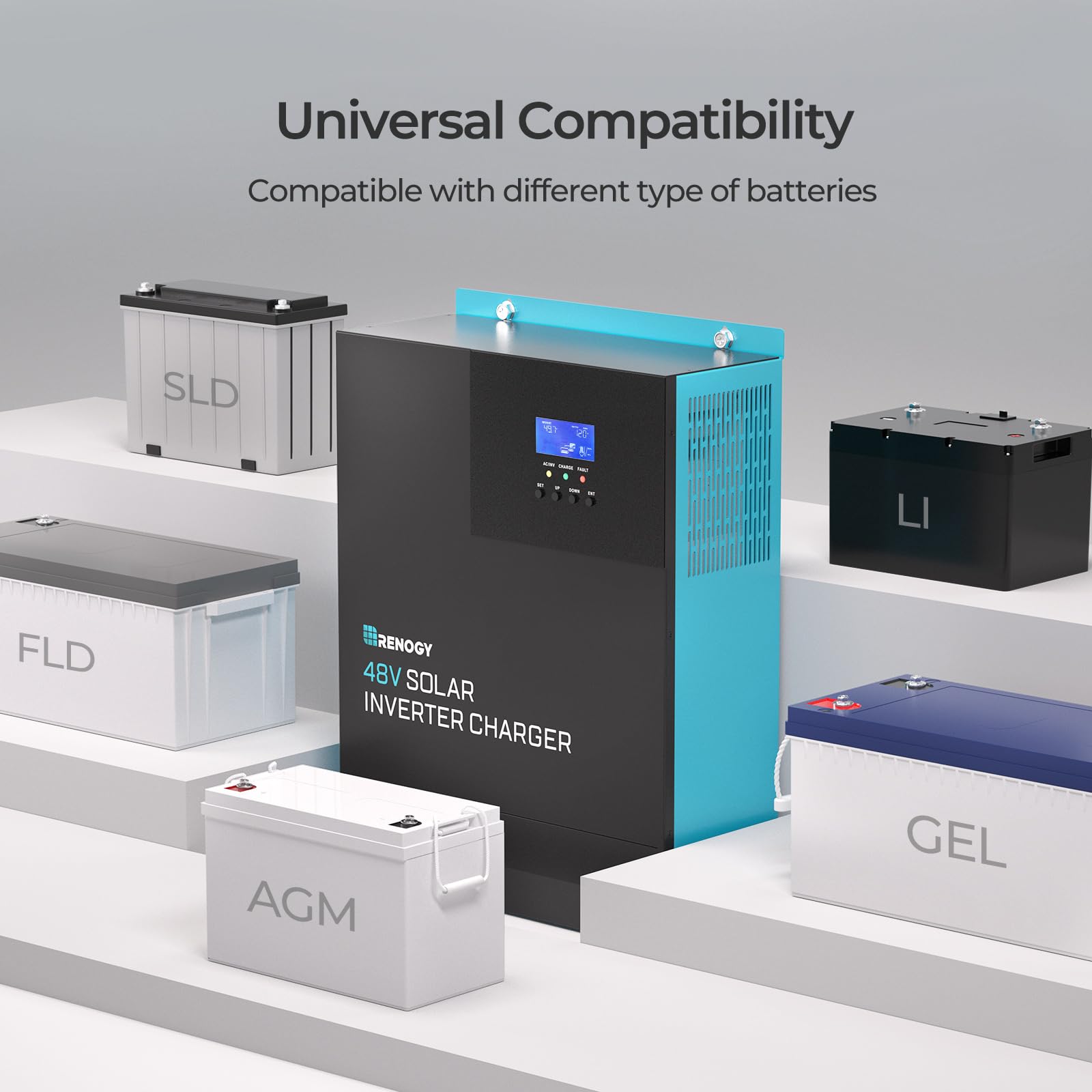

• Preset modes: AGM, Gel, Flooded, Sealed, Lithium (48V)
• User mode for custom voltage and charging curves

How can I maximize runtime and efficiency with this inverter?

The Renogy inverter features a power-saving mode and low idle consumption to reduce standby losses and extend battery runtime. Adjusting the power-saving settings lowers idle draw to as little as 25W, while the unit’s efficient inverter and MPPT controller convert energy with minimal waste.

• Power Saving Mode reduces idle power to ~25W
• 48W typical low idle consumption when not in power-saving mode
• High conversion efficiency from DC to AC for longer runtimes

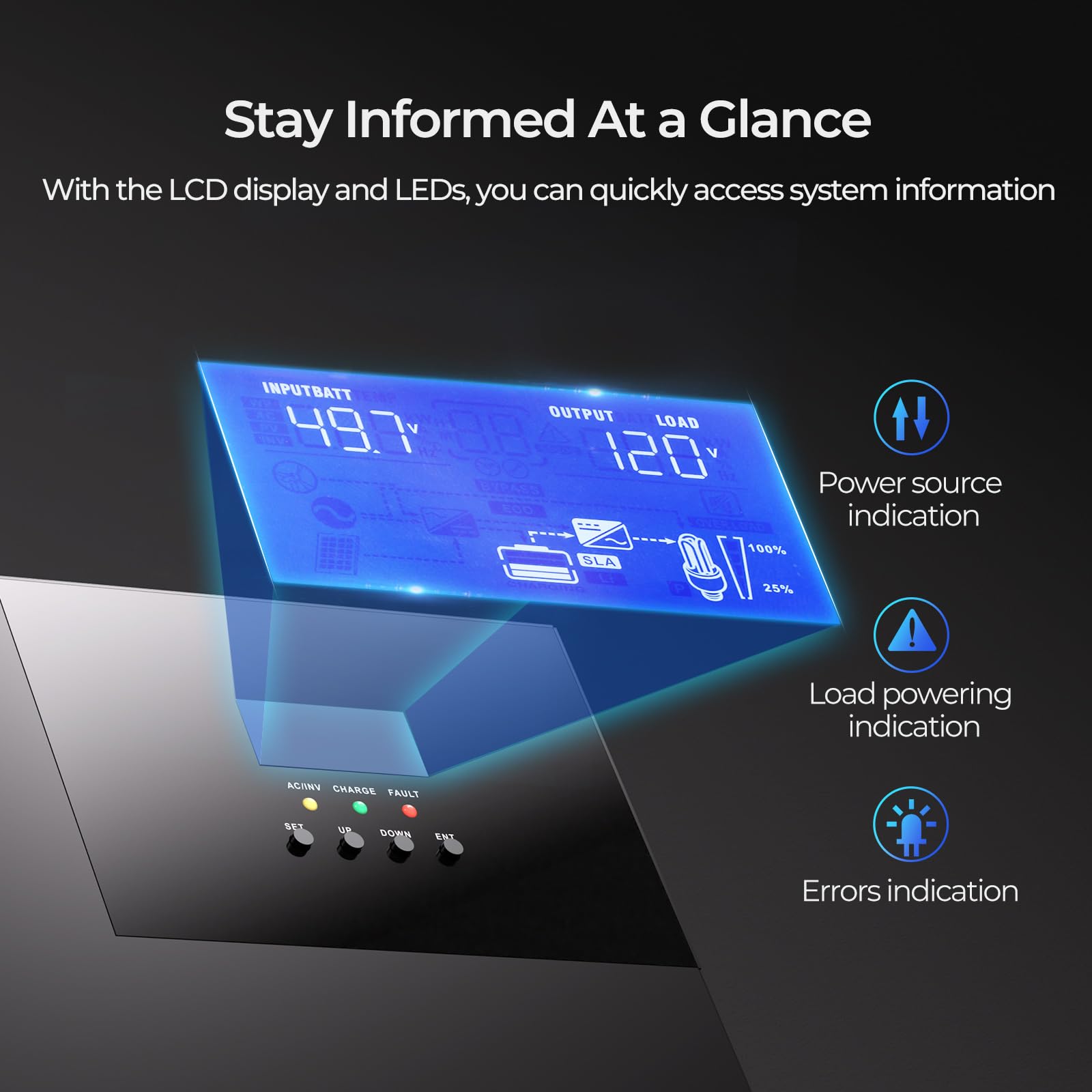

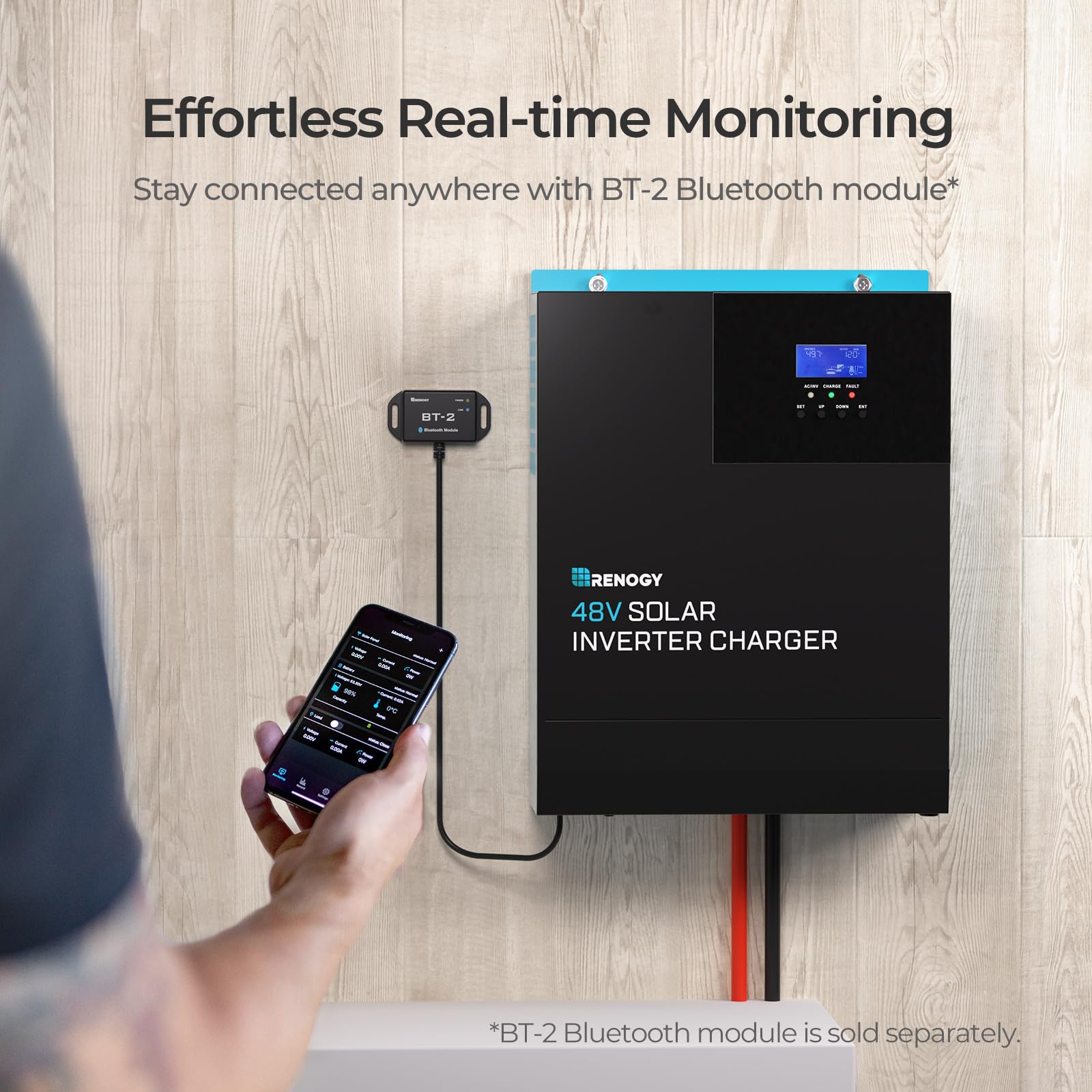

• LCD and LED indicators for real-time performance monitoring

What protections and certifications does it offer?

Renogy built comprehensive hardware and software safeguards into the inverter charger to protect your investment and connected loads. It complies with relevant safety standards and includes protections that shut down or limit operation under fault conditions to prevent equipment damage.

• Short-circuit, over-voltage, overload and temperature protection
• Complies with Part 15 of the FCC Rules and RoHS certified
• Software-controlled fault detection and recovery routines
• LCD/LED alerts for quick diagnostics and status checks

Who is this for: The Renogy 48V 3500W Pure Sine Wave Inverter Charger is aimed at homeowners, RV owners, vanlifers and campers who need a compact hybrid power solution that blends solar harvesting, utility/generator charging and clean AC output. It’s particularly useful for systems requiring reliable UPS behavior, users with 48V battery banks who want preset battery chemistry support, and anyone seeking to reduce idle power losses while maintaining robust surge capacity for appliances and power tools.
