Renogy 100W N-Type 16BB Solar Panel — 12V High-Efficiency (25%), Durable RV & Marine Module

If you need a compact, high-output panel that squeezes more watts into the same footprint, this Renogy unit uses A+ grade N-type cells and a 16-busbar (16BB) layout to increase power yield and resist hot-spot damage. Built with low-iron tempered glass, corrosion-resistant aluminum framing, and polyamide corner supports, the module is designed for marine, RV, and rooftop exposure while retaining stable performance in hot climates thanks to a favorable temperature coefficient.

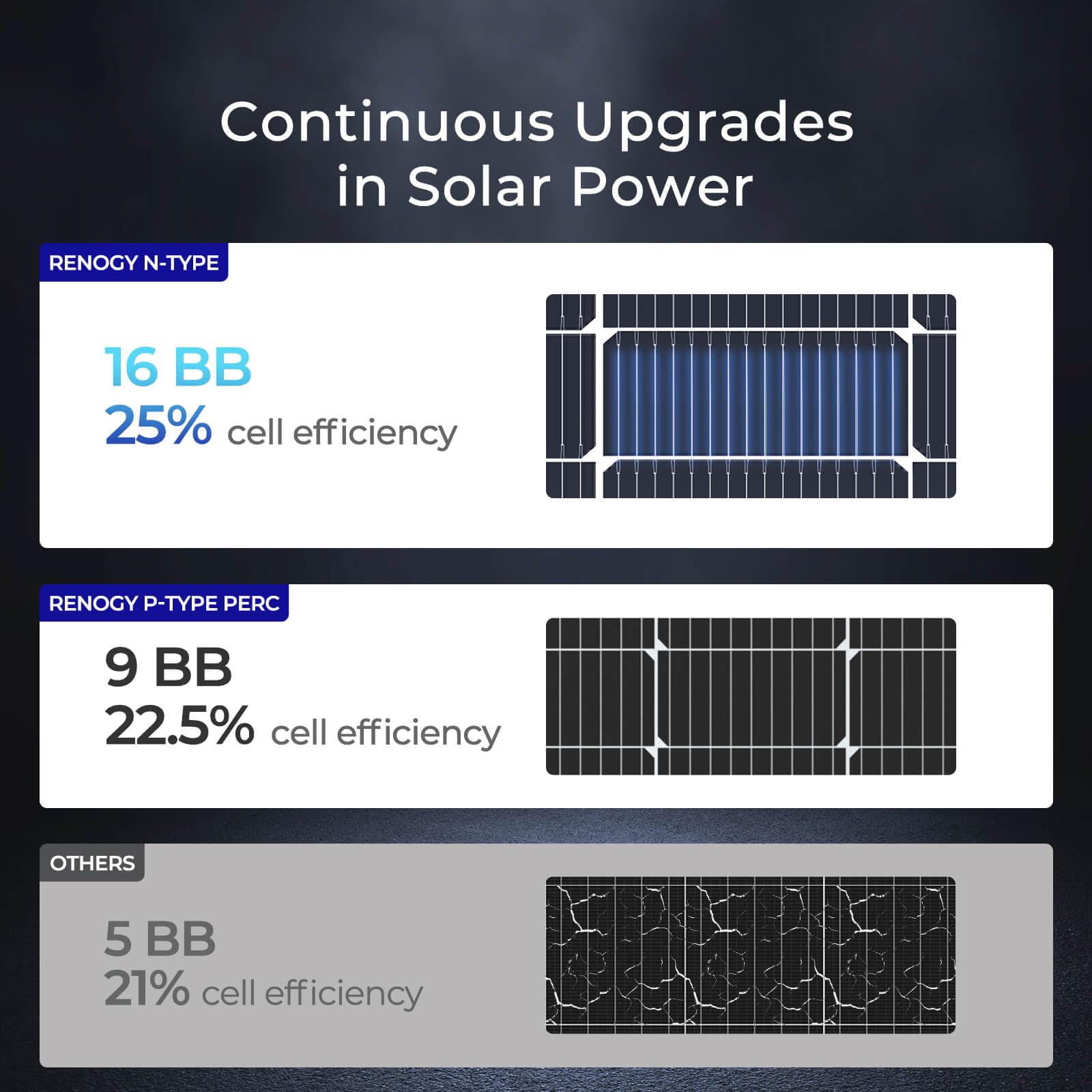

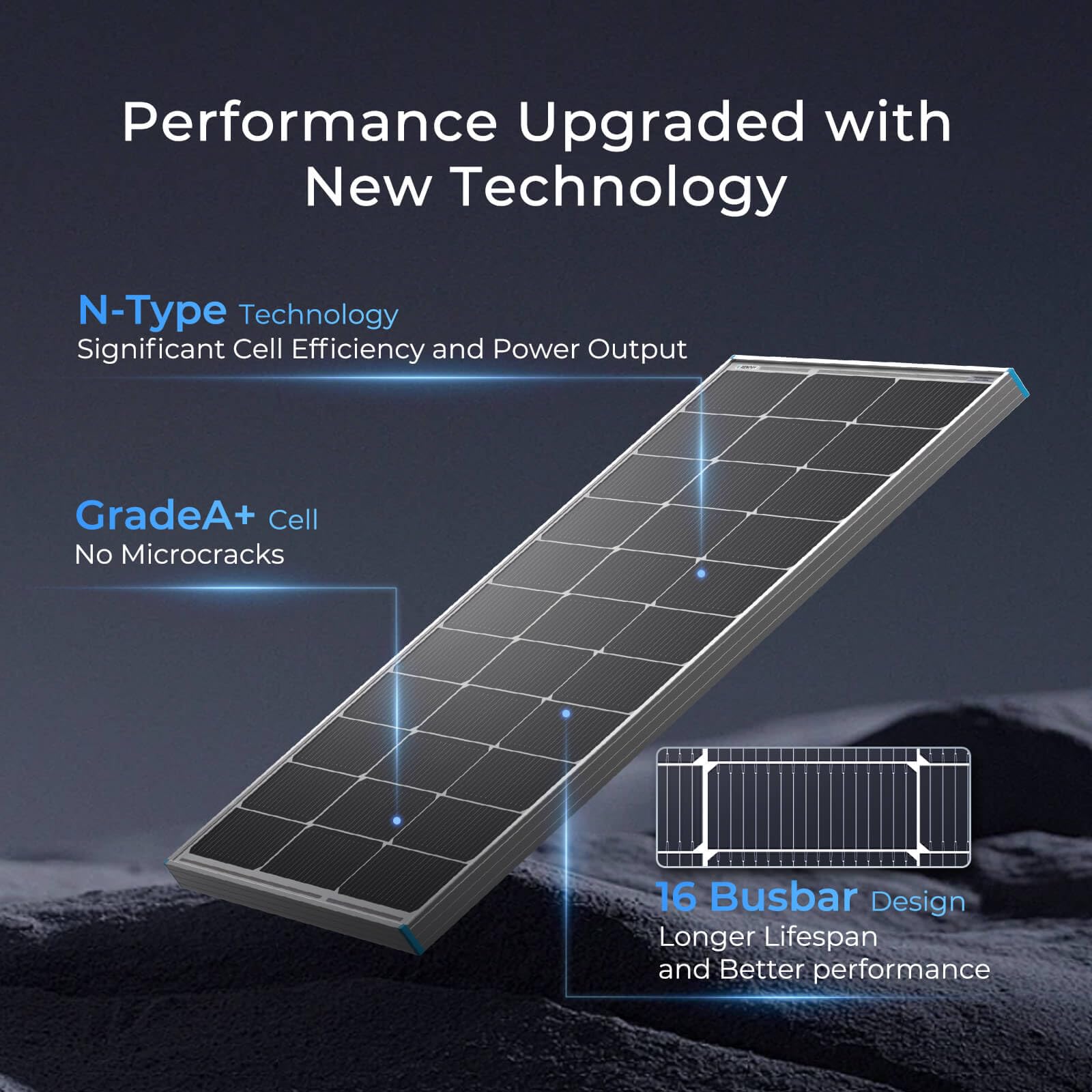

How does the N-type 16BB design improve energy output?

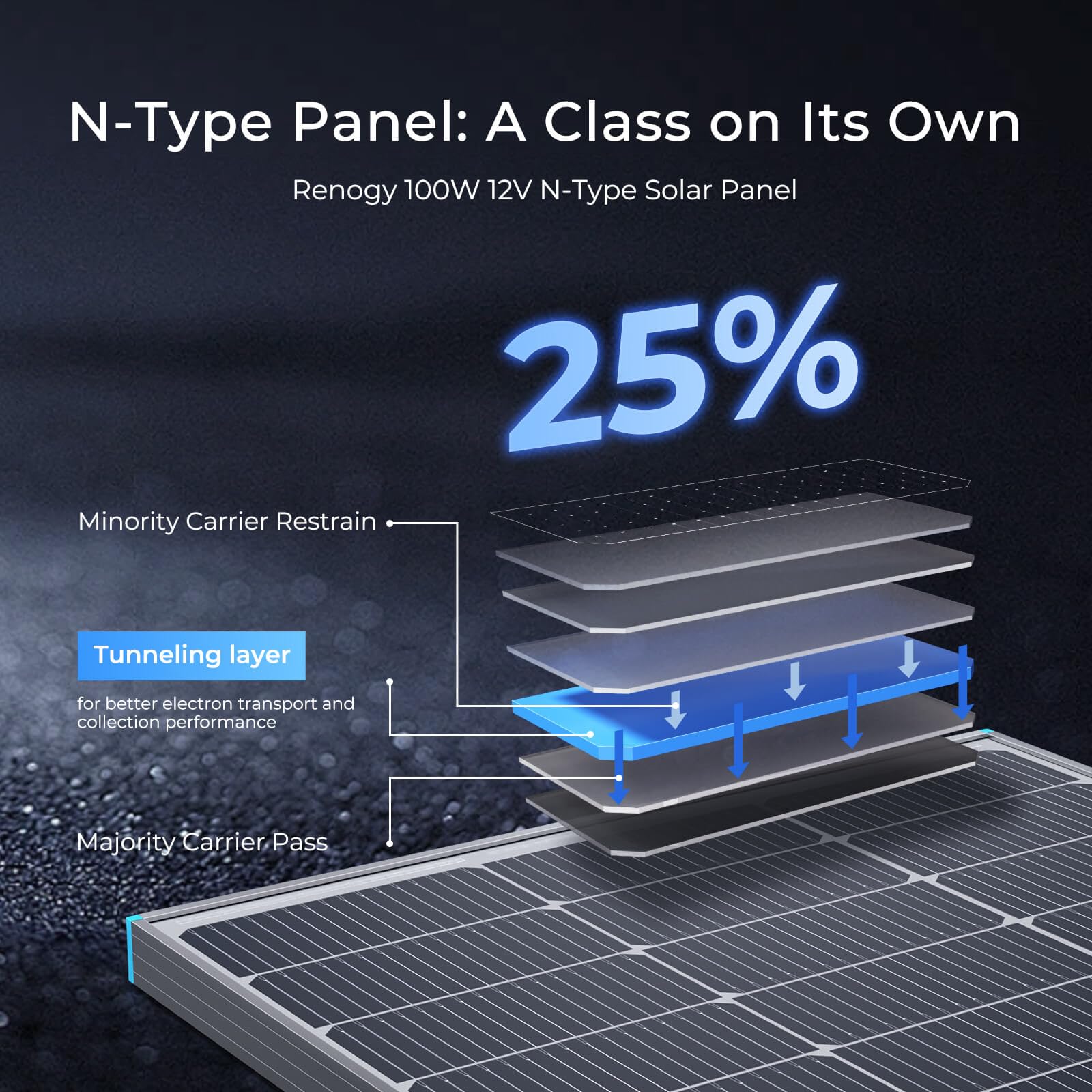

The N-type cell chemistry and 16-busbar architecture both raise electrical performance and reliability. N-type cells have lower recombination losses, and more busbars shorten current paths, increasing open-circuit voltage and short-circuit current. Together they boost the module’s conversion efficiency and help deliver roughly 20W more power compared with older panel layouts of similar size.

• A+ grade N-type monocrystalline cells for higher intrinsic efficiency.
• 16BB layout reduces resistive losses and mitigates hot-spot formation.
• Higher open-circuit and short-circuit performance increases usable power.

Will this panel hold up to outdoor and marine conditions?

The Renogy 100W panel is engineered for durability in varied weather. It uses low-iron tempered glass that resists impacts and aluminum framing that resists corrosion, plus polyamide corner supports for added mechanical strength. The module carries an IP65 rating for junction-box protection and is built to endure rain, wind, and snow for many years.

• Low-iron tempered glass for impact resistance and improved light transmission.
• Corrosion-resistant aluminum frame suitable for marine exposure.
• Polyamide corners and pre-drilled holes enable secure rooftop or deck mounting.

How does it perform in hot climates and on rooftops?

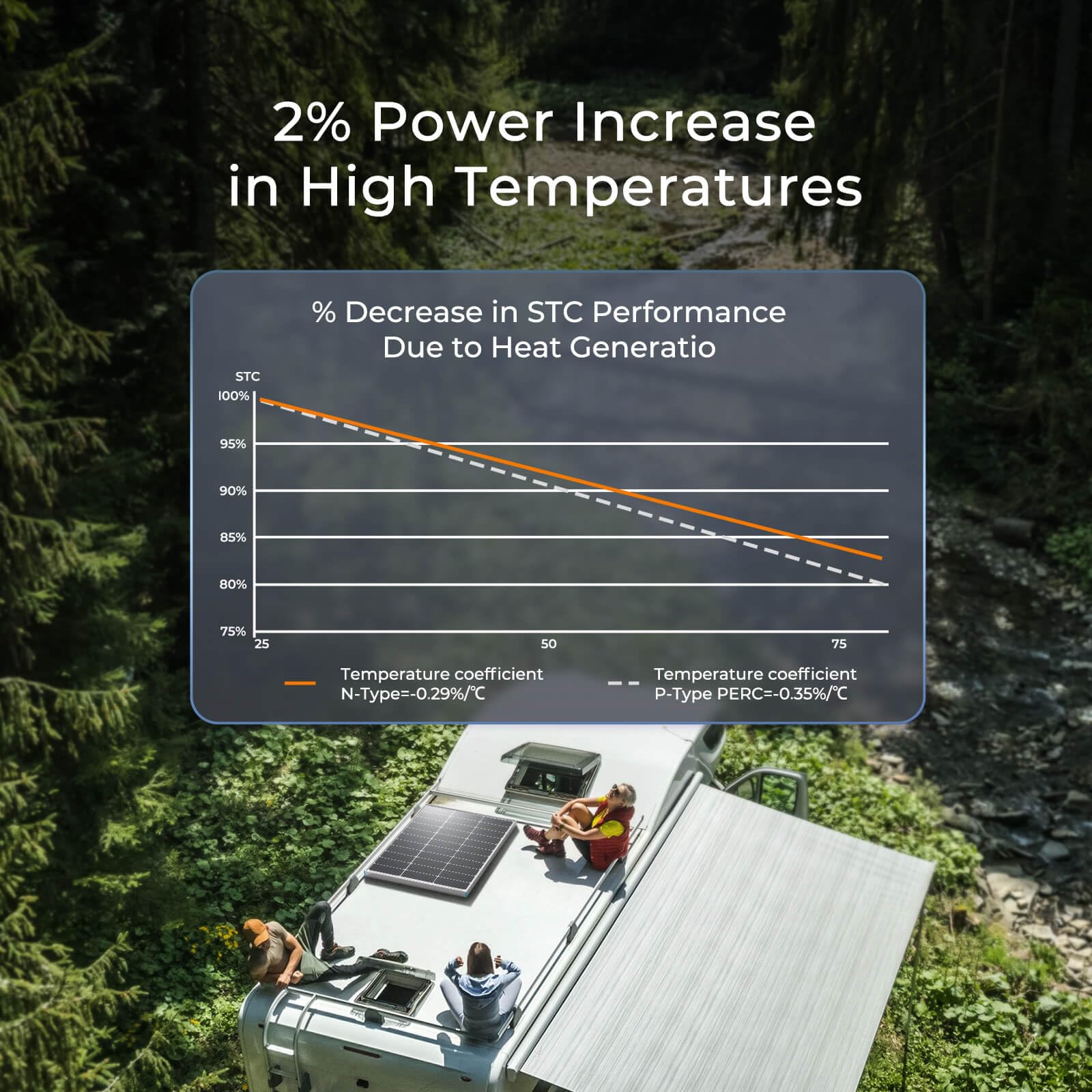

This panel has a relatively low temperature coefficient, meaning it loses less output as ambient temperature rises compared with many conventional modules. That translates to steadier power generation during hot afternoons and in warmer regions, maximizing battery charging during peak sun. The higher baseline efficiency also helps produce more energy per square foot on limited roof or deck space.

• Lower temperature coefficient reduces power loss in heat.

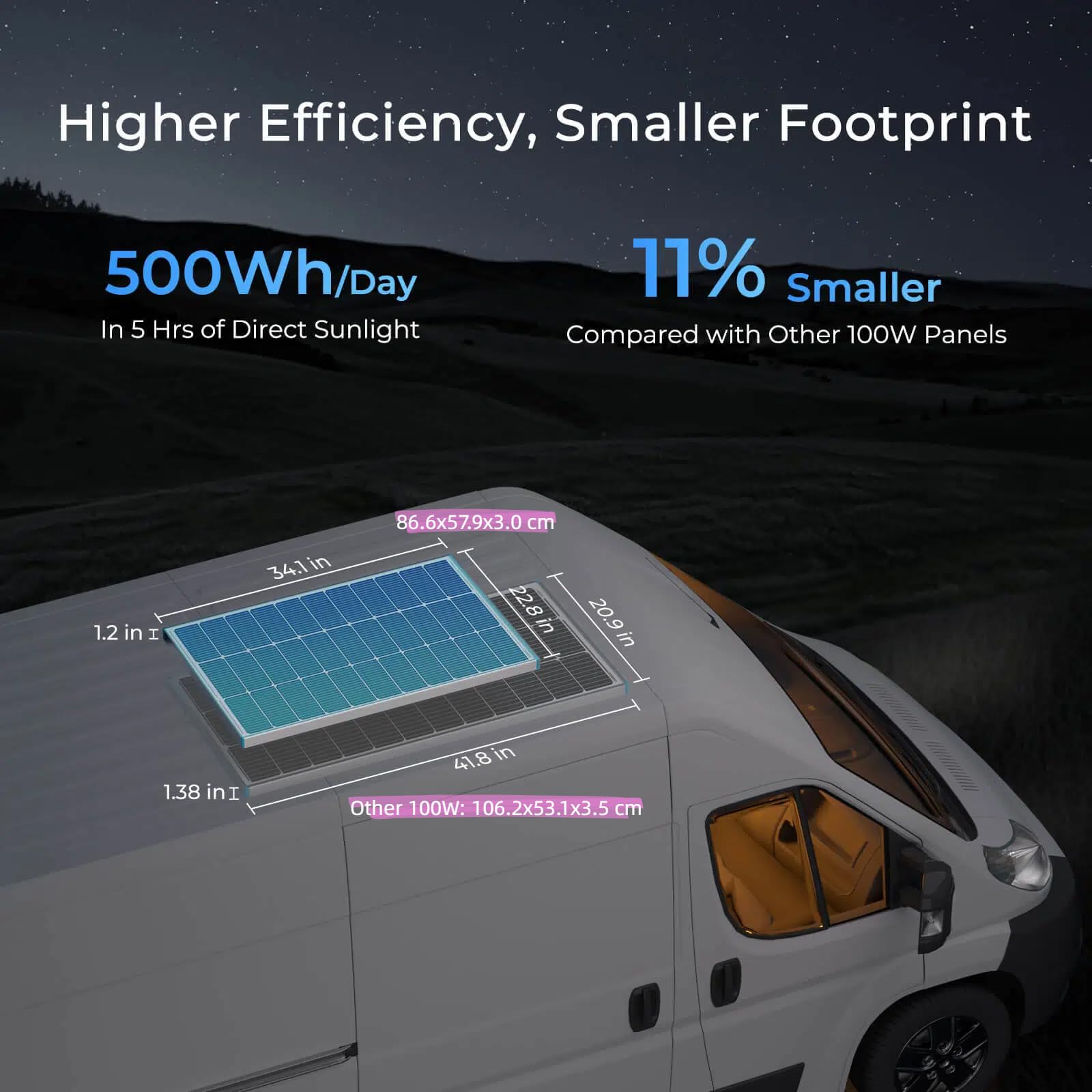

• High efficiency yields more watts from constrained areas like RV roofs.
• Consistent charging for batteries in summer months and hot environments.

How easy is installation and what warranty support is provided?

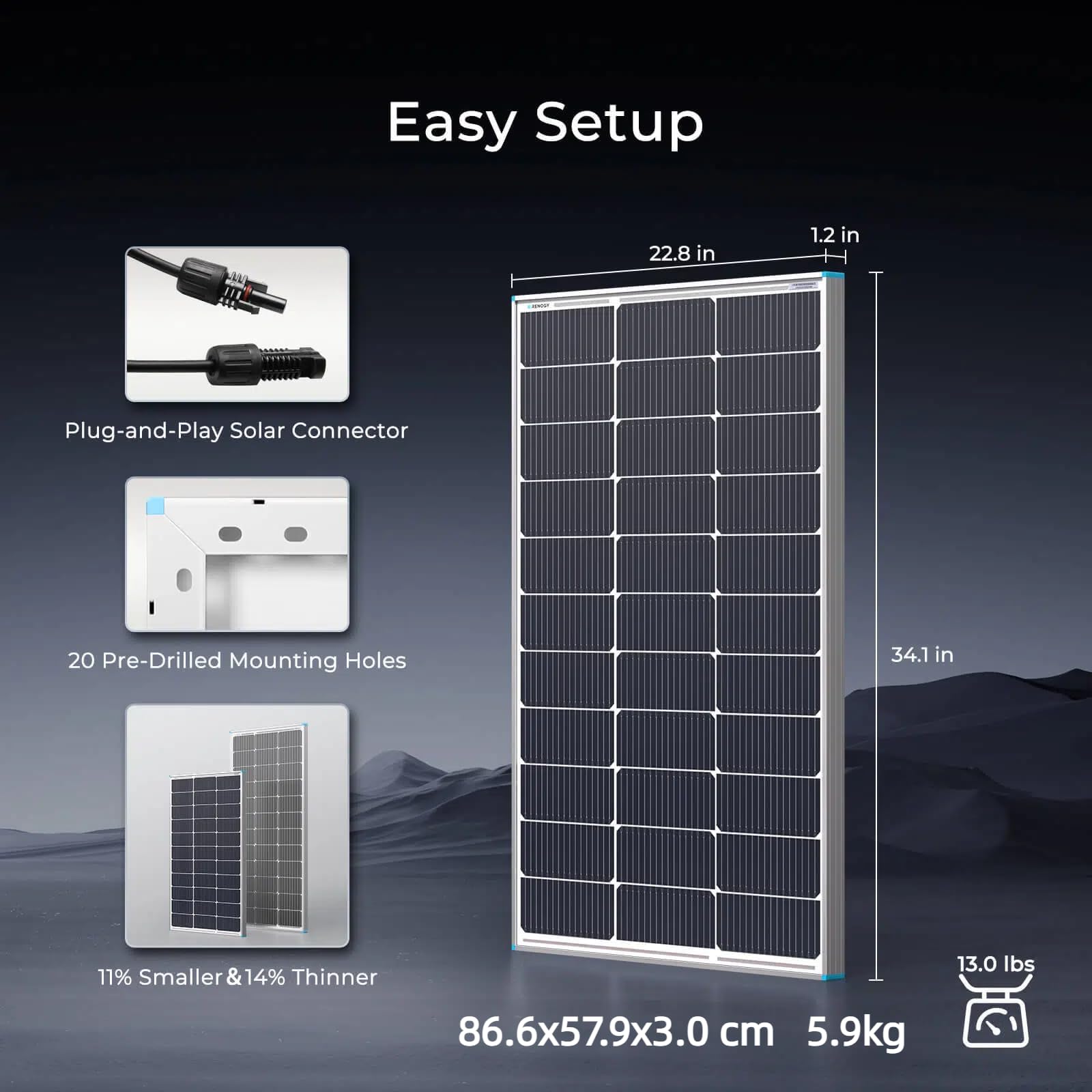

Renogy includes 20 pre-drilled mounting holes to accommodate various DIY and professional installations, making alignment and attachment straightforward on curved or flat surfaces. The panel ships as a complete PV module ready for standard MC4-compatible cable connections through the junction box. Renogy backs the product with a 10-year materials and workmanship warranty and a 25-year performance warranty guaranteeing roughly 80% output at year 25.

• 20 pre-drilled mounting holes for flexible installation options.
• Standard PV junction box for MC4-compatible connections.
• 10-year workmanship warranty and long-term performance guarantee.

Who is this for? The Renogy 100W N-Type 16BB panel is aimed at RV owners, boaters, van lifers, rooftop DIYers, and small off-grid battery system builders who want compact, high-efficiency power without sacrificing durability. It’s a practical choice when roof or deck space is limited but higher wattage and better heat performance are required. If you need a reliable 12V charging module that balances output, build quality, and long-term warranty support, this panel is a strong contender.
