Rain Harvesting Rainwater Tank Gauge — Single-Hole Tank-Top Dial, Float-Driven, Fits Up to 8 ft

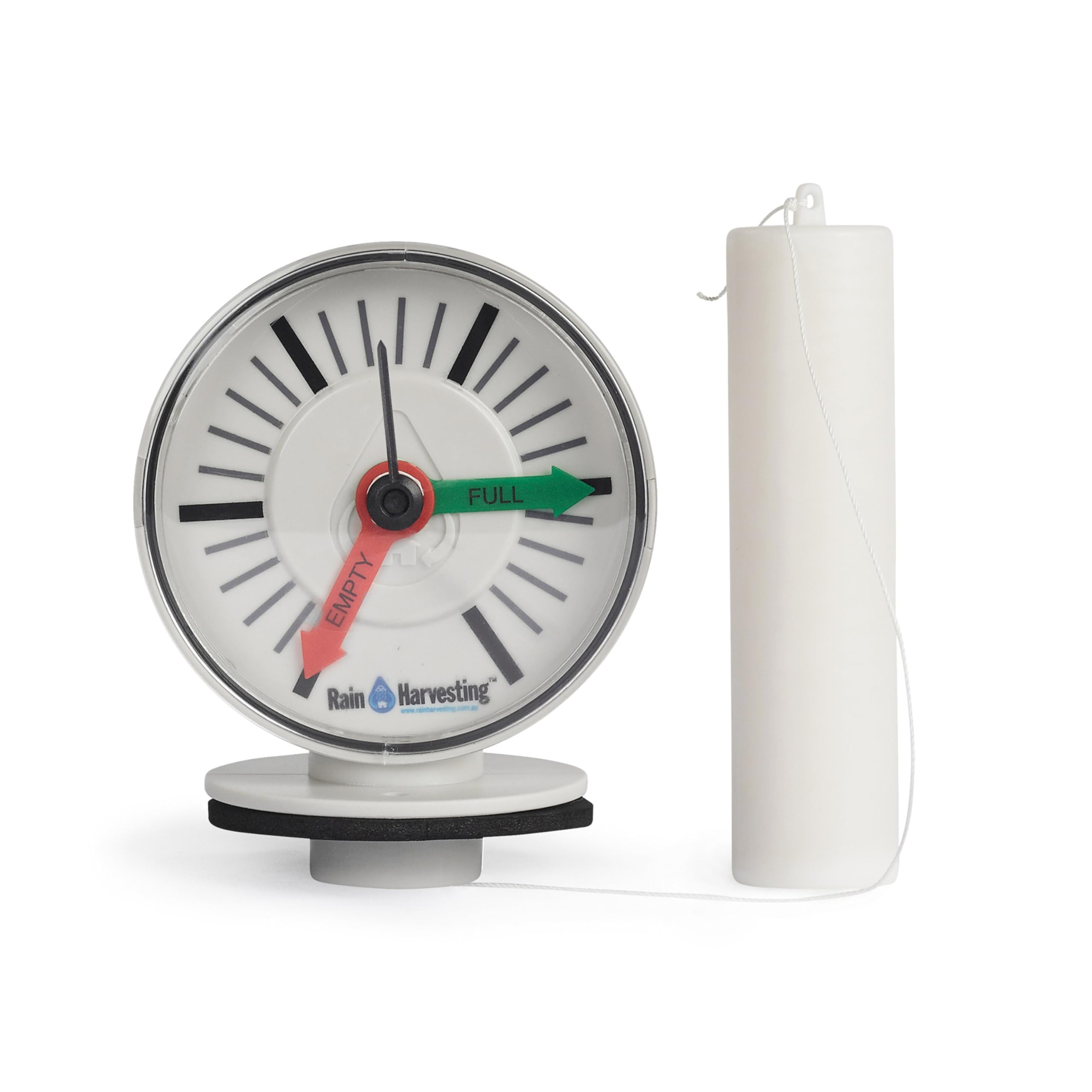

The Rain Harvesting Tank Gauge is a single-hole, tank-top dial that shows your water level at a glance for vented aboveground and below-ground tanks up to 8 feet high.

Stop guessing how much rainwater you have left. This compact mechanical gauge mounts through one hole in the tank and uses an easy-to-read dial with clear Empty and Full markers. It requires no power, is quick to install, and is calibrated by rotating the dial hands to match your tank height. The result is a straightforward, durable way to monitor collection for gardening, irrigation, household reuse, or stormwater management.

How does the gauge tell me my current water level?

The gauge uses a float mechanism connected to a visible dial on the tank top. As the water level rises or falls, the float moves and the dial hands indicate approximated Empty and Full positions so you can read current storage quickly. It’s a visual, mechanical solution that avoids electronics and batteries.

• Float-driven needle shows relative level inside the tank

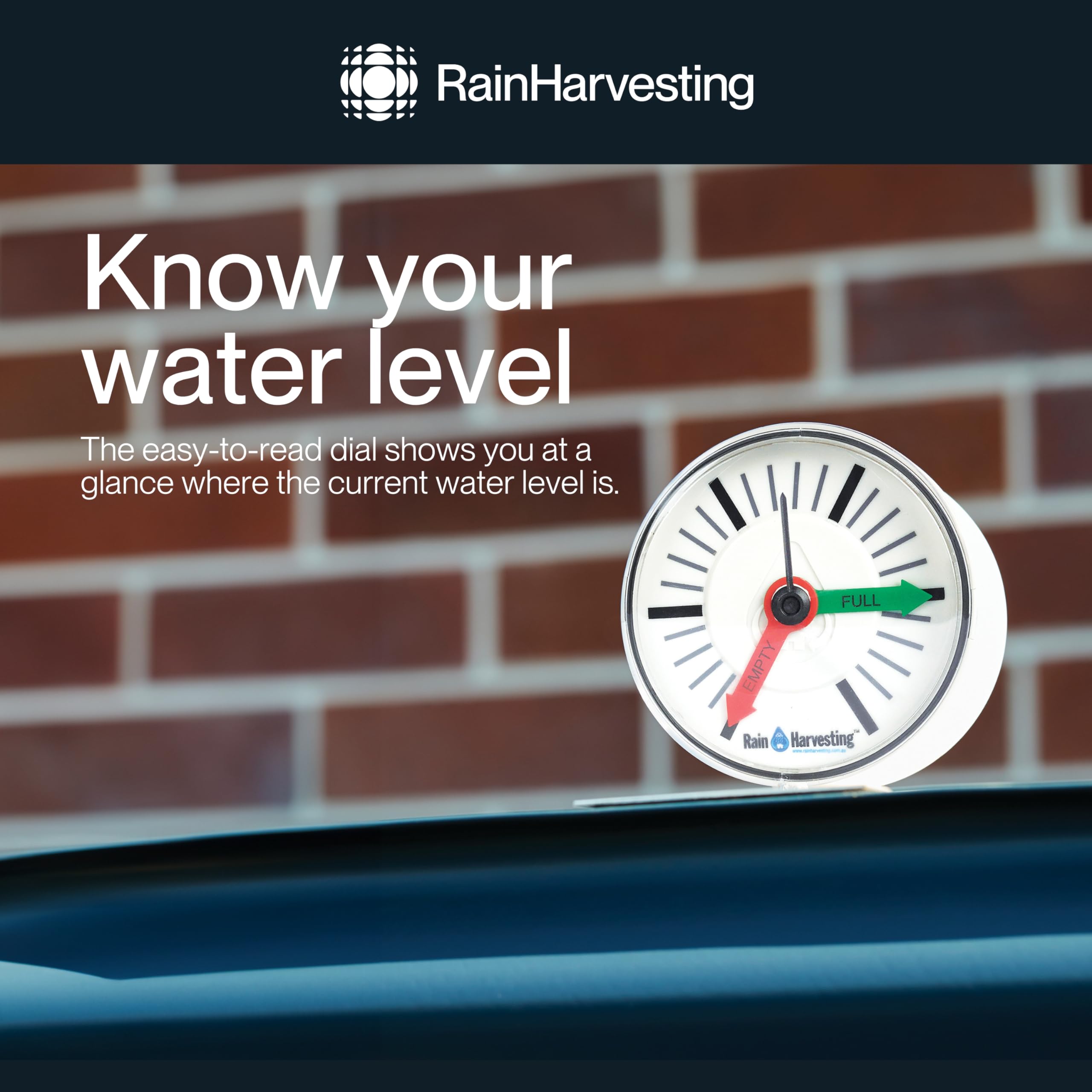

• Dial marked with clear "Empty" and "Full" labels for quick reads
• No electricity required—works during power outages
• Visible from a distance for fast checks

How easy is it to install and calibrate?

Installation needs just one hole at the tank top and a secure mounting of the gauge body. After mounting, set the dial hands to match your tank’s actual height so the Empty and Full markers align with its top and bottom. Typical installation takes minutes and basic tools.

• Single-hole mounting reduces cutting and sealing work
• Simple hand adjustment to calibrate to tank height
• Suitable for common tank materials—follow tank manufacturer guidance
• No special fittings or wiring required

Which tanks are compatible with this gauge?

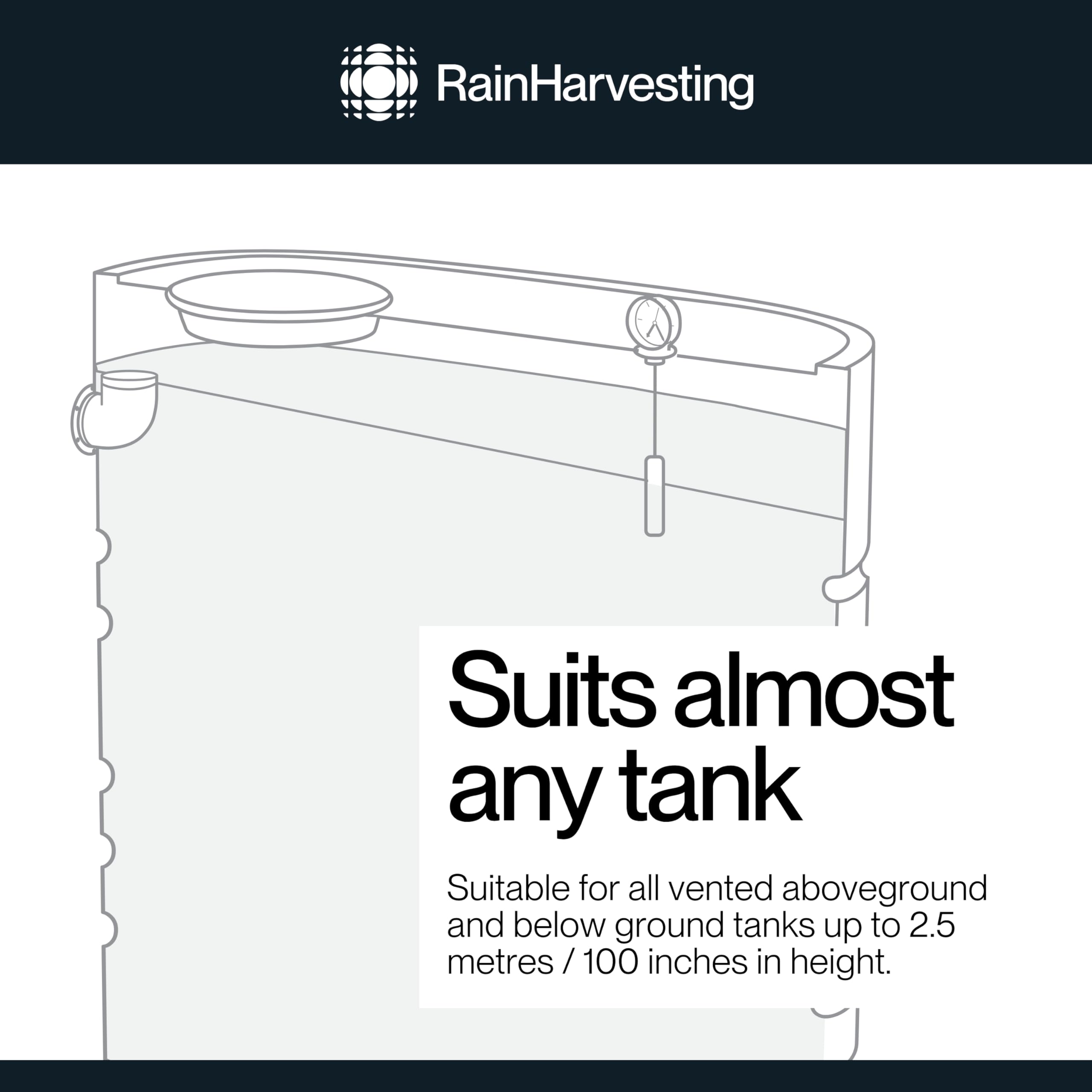

The Rain Harvesting Tank Gauge is designed for vented tanks that sit aboveground or below-ground and have an accessible top. It supports tank heights up to 8 feet; taller tanks may need alternate monitoring solutions. Ensure the tank top can accept a single through-hole and that internal obstructions won’t block the float arm.

• Works on vented aboveground and below-ground tanks
• Rated for tanks up to 8 feet in height
• Not suited for pressurized or sealed tanks without venting
• Check for internal baffles or pipes that could obstruct float movement

How does the gauge help with water management?

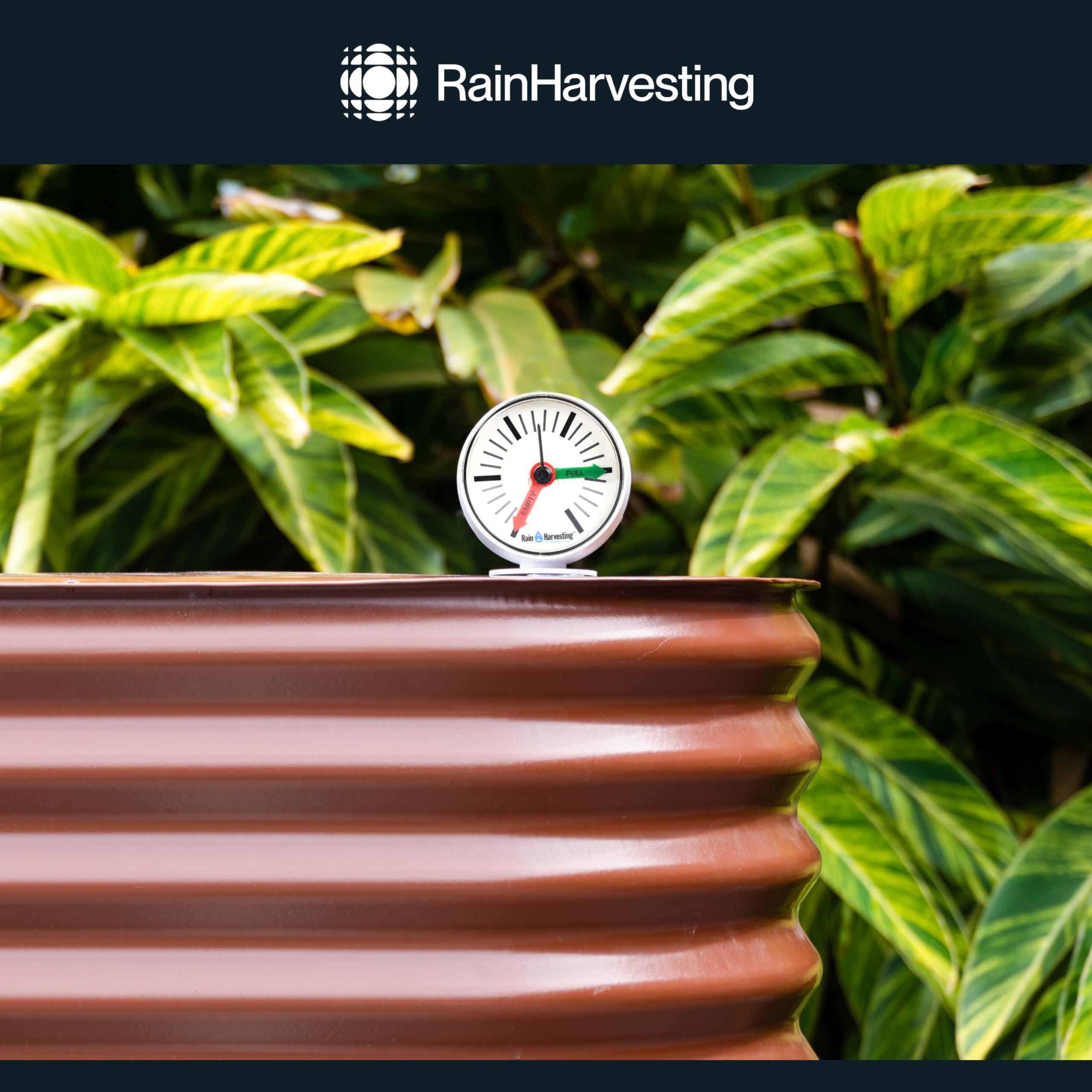

By making storage visible at a glance, the gauge helps you plan irrigation, conserve water, and avoid unexpected shortages. Knowing levels allows more efficient use of collected rainwater and scheduling of back-up supply refills when needed. It’s a low-maintenance tool that supports everyday decision-making about water use.

• Prevents sudden depletion by enabling regular checks
• Supports irrigation planning and refill timing
• Provides a simple record point for seasonal monitoring
• Reduces waste by encouraging timely usage and capture

Who is this for? The Rain Harvesting Tank Gauge is ideal for homeowners, small-scale landscapers, community gardeners, and facility managers who use vented rainwater tanks and want a low-cost, low-effort method to monitor storage. If you collect rainwater for irrigation, toilet flushing, or other non-pressurized uses and need a reliable visual indicator without electronics, this gauge is a practical match. For sealed, pressurized, or very large tanks, consider complementary level-sensing options.
