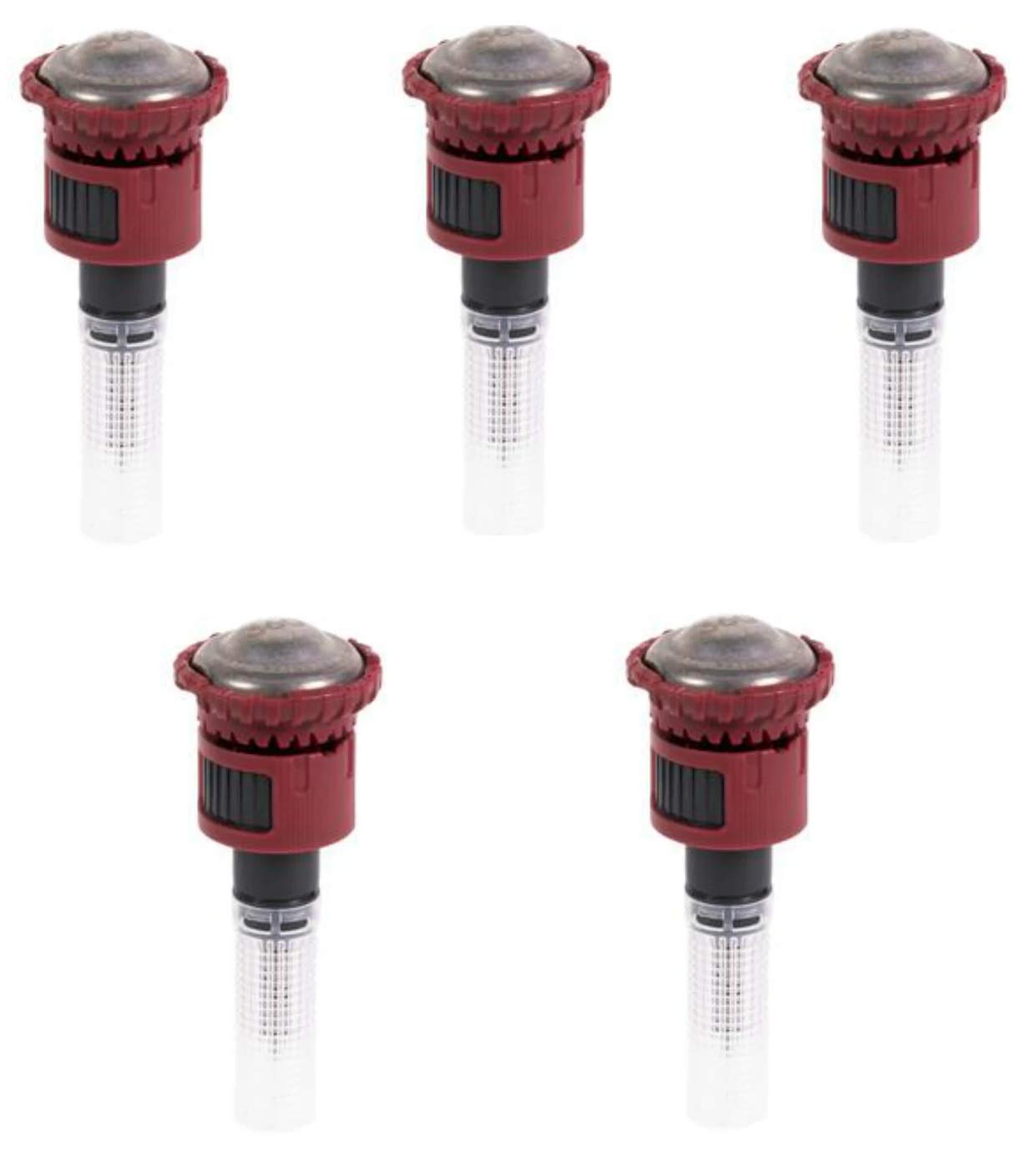

Rain Bird R-VAN24 Rotary Nozzles 17–24 ft 5-Pack — 360° Adjustable, Water-Efficient

Rain Bird R-VAN24 is a 5-pack of adjustable 360° rotary nozzles that deliver thick, low-precipitation streams for 17–24 ft coverage while reducing runoff and improving water-use efficiency.

These R-VAN Adjustable Rotary Nozzles replace conventional spray nozzles to provide rotating-stream irrigation that lowers precipitation rate and creates larger droplets that resist wind. The nozzles are color-coded and laser marked for quick identification, fit all Rain Bird spray bodies, risers and adapters, and allow tool-free adjustments of arc and radius. A built-in manual flush feature helps keep orifices clear of debris, making these nozzles well suited to retrofit projects or new installations where water efficiency and jobsite reliability matter.

How do these nozzles save water compared with standard spray nozzles?

R-VAN rotary technology applies water at a lower precipitation rate by converting a spray into several rotating streams, which reduces surface runoff and allows more time for infiltration. Retrofits often show significant reductions in flow and improved distribution uniformity.

• Can reduce nozzle flow by up to 60% versus typical fixed spray nozzles
• Improves overall water efficiency typically by up to 30%
• Large water droplets minimize misting and evaporation losses

What adjustment and maintenance options are available on the R-VAN24?

Arc and radius are adjusted by hand—no tools required—so contractors or homeowners can fine-tune coverage on-site. The nozzle also includes a manual pull-up flush to clear dirt and debris without disassembly.

• Hand-adjustable radius from 17 to 24 feet, and arc from 45° to 270° (360° full-circle models included)
• Pull-up flush feature clears clogged openings quickly
• Color-coded, laser-marked body for fast model recognition

How do these nozzles perform in windy or high-pressure conditions?

R-VAN’s thick, wind-resistant streams are designed to cut through breezes and maintain application where it's needed, reducing off-target drift. The design also resists misting or fogging at higher operating pressures, maintaining delivery consistency.

• Rotating streams produce larger droplets that penetrate wind
• Maintains uniform coverage at common irrigation pressures without fogging
• Works reliably in realistic outdoor conditions and landscapes

Which systems and settings are compatible with the R-VAN24 nozzles?

These nozzles are built for compatibility with Rain Bird spray bodies, risers and common adapters, making them simple drop-in replacements or upgrades for many existing heads. They are ideal for turf and larger planting areas where medium to long throw is required.

• Fits all Rain Bird spray bodies, risers, and adapters
• Designed for turf areas and medium-to-large landscape zones
• Available as a 5-pack for multiple-head updates or phased retrofits

Who is this for: The Rain Bird R-VAN24 5-pack is aimed at irrigation professionals, property managers, and DIY homeowners upgrading spray heads to rotary technology for better water management. It's a practical choice when you need adjustable, wind-resistant coverage between 17 and 24 feet, easy on-site tuning without tools, and a quick way to retrofit multiple heads for improved efficiency and reduced runoff.
