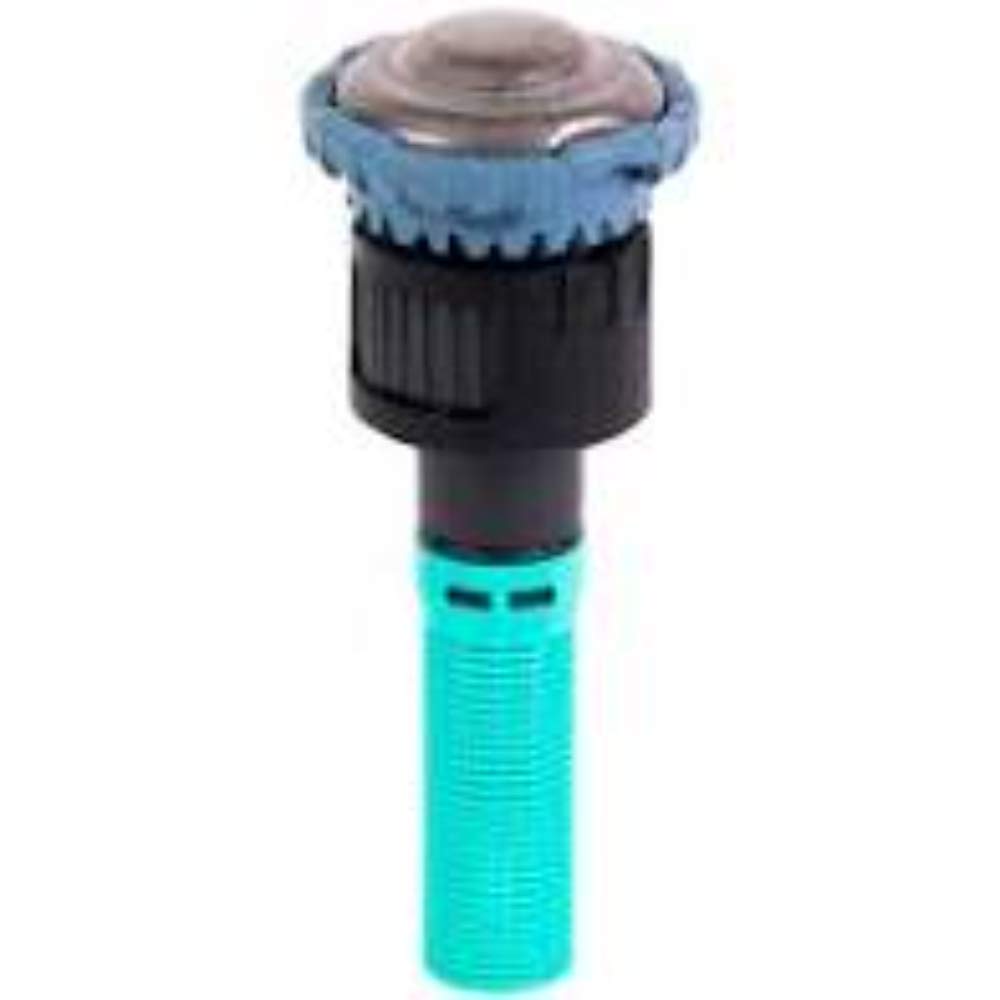

Rain Bird R-VAN14 Adjustable Rotary Nozzles 8–14 ft (10-pack) — 45°–270° Arc, Matched Precipitation

Rain Bird R-VAN14 rotary nozzles are adjustable 8–14 ft spray nozzles (45°–270°) sold as a 10-piece bag for efficient, matched-precipitation irrigation.

Designed for residential and commercial sprinkler systems, the R-VAN14 delivers multiple rotating streams that spread water evenly across an 8 to 14 foot radius. These rotary nozzles are color-coded and laser-marked for quick identification, fit all Rain Bird spray bodies, risers, and adapters, and include a pull-up flush feature to clear debris. They operate across a 30–55 psi range with a recommended pressure of 45 psi to maintain consistent performance without misting.

How do R-VAN14 nozzles improve water distribution in my lawn?

The R-VAN14 uses several rotating streams to cover the radius uniformly, which reduces dry spots and overlaps compared with single-stream spray heads. Matched precipitation rates mean different nozzle patterns and radii apply water at similar rates, simplifying zone design and run time calculations.

• Multiple rotating streams for even coverage
• Low precipitation rate to limit runoff and erosion
• Matched precipitation across arc and radius types
• Performs well at higher pressures without misting

What adjustments can I make and when should I do them?

Arc and radius are adjustable and should be set while the water is running to ensure accurate placement and overlap. Quick, tool-free adjustments let you fine-tune each nozzle to fit odd-shaped beds, walkways, or turf areas without removing the head.

• Arc adjustable between 45° and 270° for custom patterns
• Radius adjustable between 8 and 14 feet on the fly
• Pull-up flush clears debris before final adjustment
• Color-coded/laser-marked for fast model recognition

What operating conditions and compatibility should I expect?

These nozzles are engineered to operate across a pressure range of 30–55 psi, with 45 psi as the recommended setting to balance reach and droplet integrity. R-VAN14s are compatible with all Rain Bird spray bodies, risers, and adapters, making them easy to retrofit into existing systems.

• Pressure range: 30–55 psi (recommended 45 psi)
• Spacing coverage: 8' to 14' radius
• Works with Rain Bird spray bodies, risers, adapters
• Maintains performance at higher pressures without fogging

Who is this for? Landscapers, irrigation contractors, and homeowners who need reliable, adjustable rotary nozzles for medium-radius turf or planting areas will find the Rain Bird R-VAN14 useful. The 10-piece bag is ideal for servicing multiple heads or outfitting a single zone, and the combination of tool-free adjustment, debris flushing, and matched precipitation makes these nozzles suitable for retrofit projects and new installations that prioritize even watering and reduced runoff.
