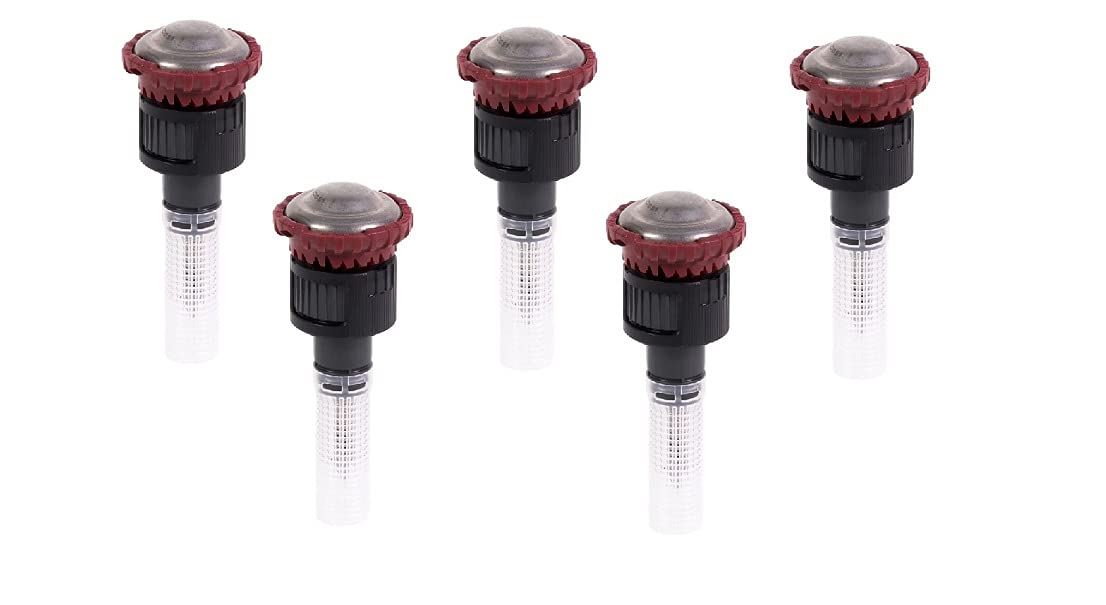

Rain Bird R-VAN Adjustable Rotary Nozzle 17–24 ft — 45–270° Arc, 5-Pack, Low-Precipitation Wind-Resistant

Rain Bird R-VAN (17-24) Adjustable Rotary Nozzles are hand-adjustable rotary sprinkling nozzles that deliver low-precipitation, wind-resistant streams for efficient irrigation from 17 to 24 feet.

The R-VAN24 nozzle is built to replace standard spray nozzles and give designers and homeowners finer control over water application. Using rotating-stream technology, the nozzle creates thicker droplets and a lower precipitation rate to reduce runoff and erosion. Adjustments to arc and radius are made by hand—no tools required—while a manual flush feature helps clear debris in challenging conditions.

How does the R-VAN24 improve water efficiency?

The R-VAN nozzle applies water at a lower precipitation rate and forms larger droplets, which reduces misting and keeps water in the target zone. Retrofitting conventional spray nozzles with R-VANs can substantially cut flow and improve overall system efficiency.

• Rotating stream lowers precipitation rate to limit runoff.
• Large droplets penetrate wind, reducing drift and fogging.
• Can reduce nozzle flow up to 60% and boost water efficiency up to 30% when used appropriately.

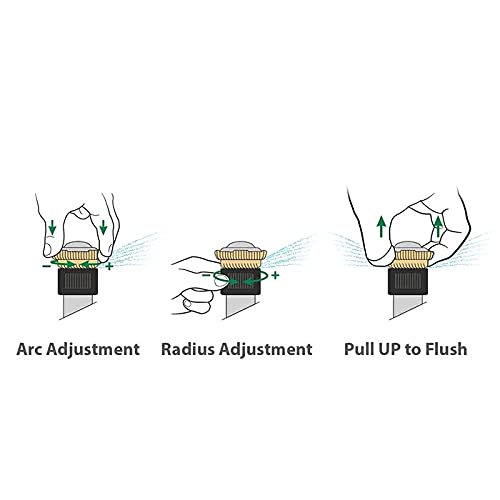

Can I adjust spray pattern and distance without tools?

Yes—both the arc (45° to 270°) and the radius (17–24 ft) are adjustable by hand. The color-coded R-VAN series makes selecting the correct model quick, and adjustments are intuitive for installers and homeowners.

• Arc adjustment from 45° to 270° for sector coverage.
• Radius adjustable between 17 and 24 feet for flexible spacing.
• Color-coded body simplifies on-site identification.

What performance and compatibility should I expect?

R-VAN nozzles operate best in the 30–55 psi range, with a recommended pressure of 45 psi for optimal coverage and matched precipitation rate performance. They pair with Rain Bird 5000 Series rotors and most spray bodies, risers, and adapters used in residential and commercial irrigation.

• Recommended operating pressure: 45 psi (works from 30–55 psi).
• Radius coverage up to 24 feet; matches MPR designs from 13'–35' with 5000 Series rotors.
• Compatible with all Rain Bird spray bodies and many risers/adapters.

How do these nozzles handle dirt, wind, and real-world conditions?

R-VAN’s thicker, wind-resistant streams are engineered to cut through breezes and reduce misting—helpful in landscaping where drift is a concern. The manual flush feature allows you to clear grit and debris quickly, maintaining reliable operation even in dirty or hard-water environments.

• Thick streams reduce misting and keep water on plants.
• Manual flush lets you remove clogging particles by hand.
• Durable construction designed for outdoor irrigation conditions.

Who is this for: The Rain Bird R-VAN24 5-pack suits homeowners, landscape professionals, and irrigation designers seeking to reduce water waste and improve distribution uniformity. It’s ideal for replacing high-precipitation spray nozzles in turf and shrub areas where runoff, wind drift, or inefficient coverage are concerns. Use when matched spacing and pressure control are available to realize the greatest efficiency gains.
